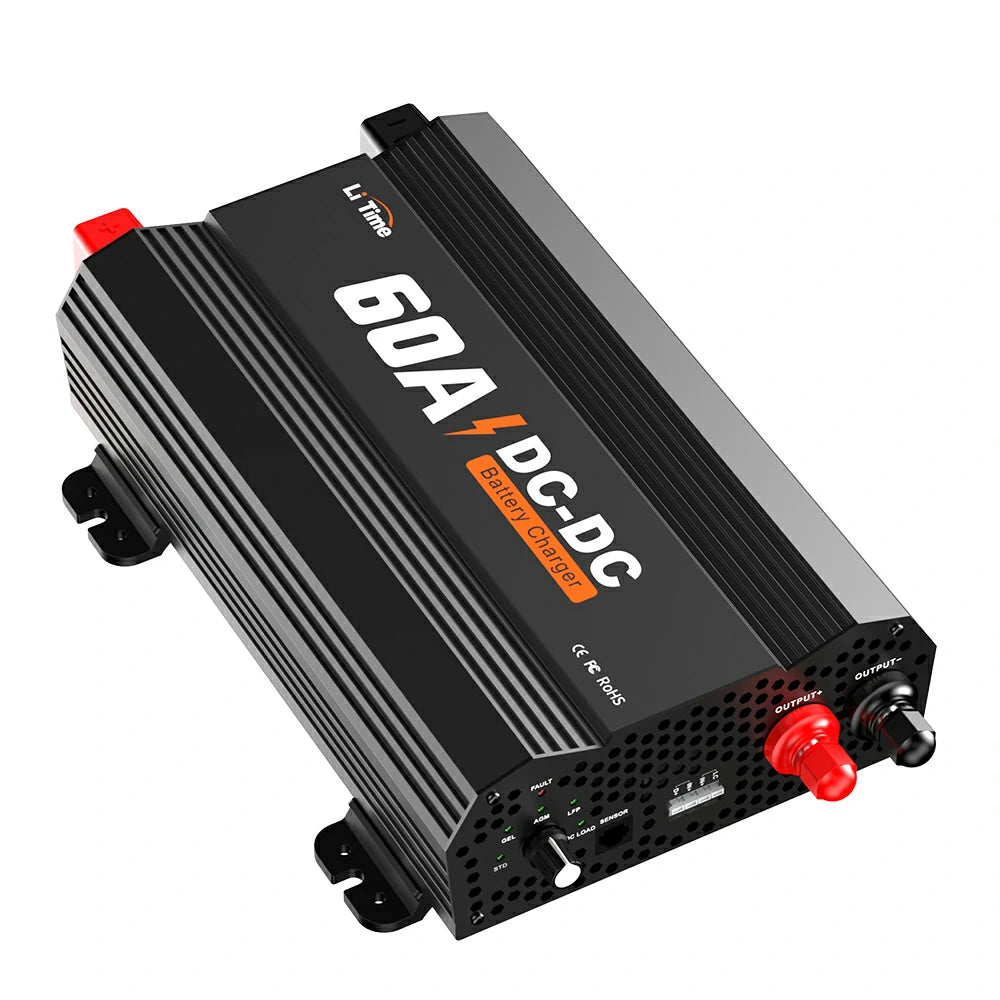

surface of LiTime 60A dc to dc lithium battery charger

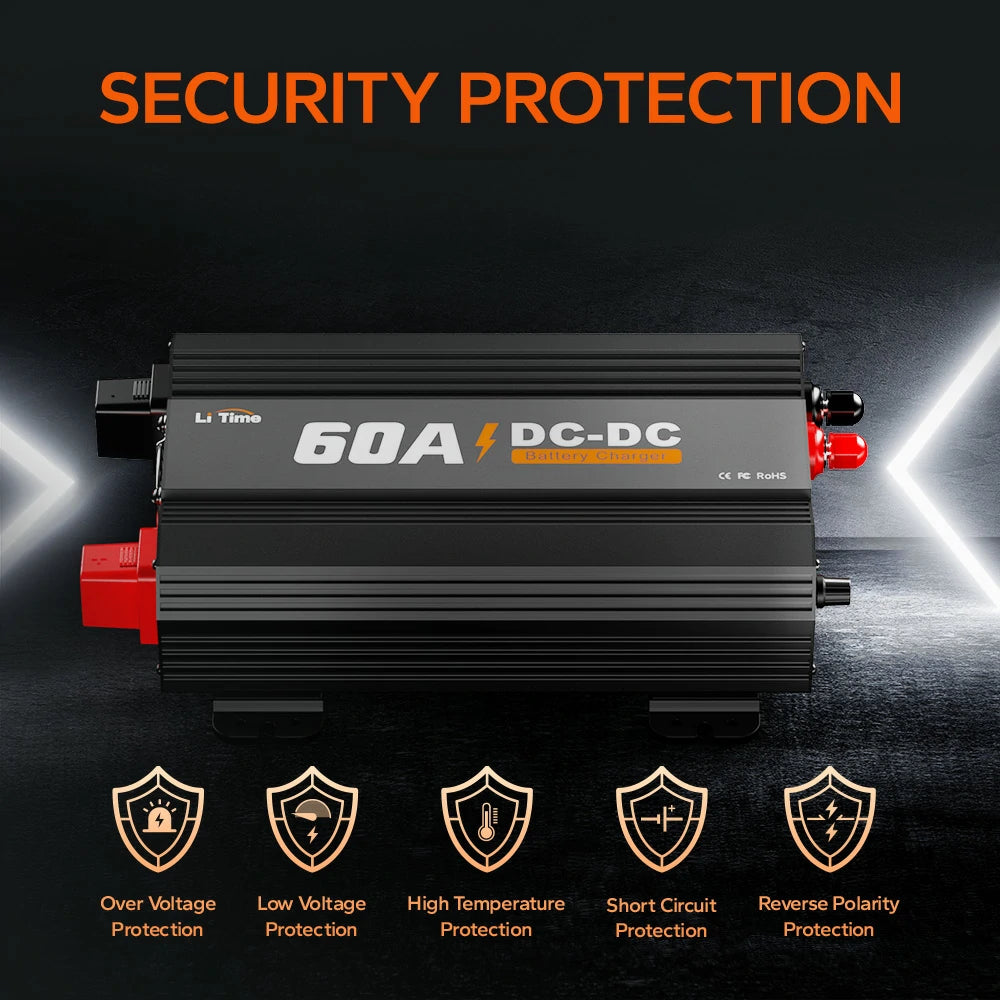

protections of LiTime 60a DC to DC charger Over Voltage,Low Voltage,High Temperature,Short Circuit,Reverse Polarity

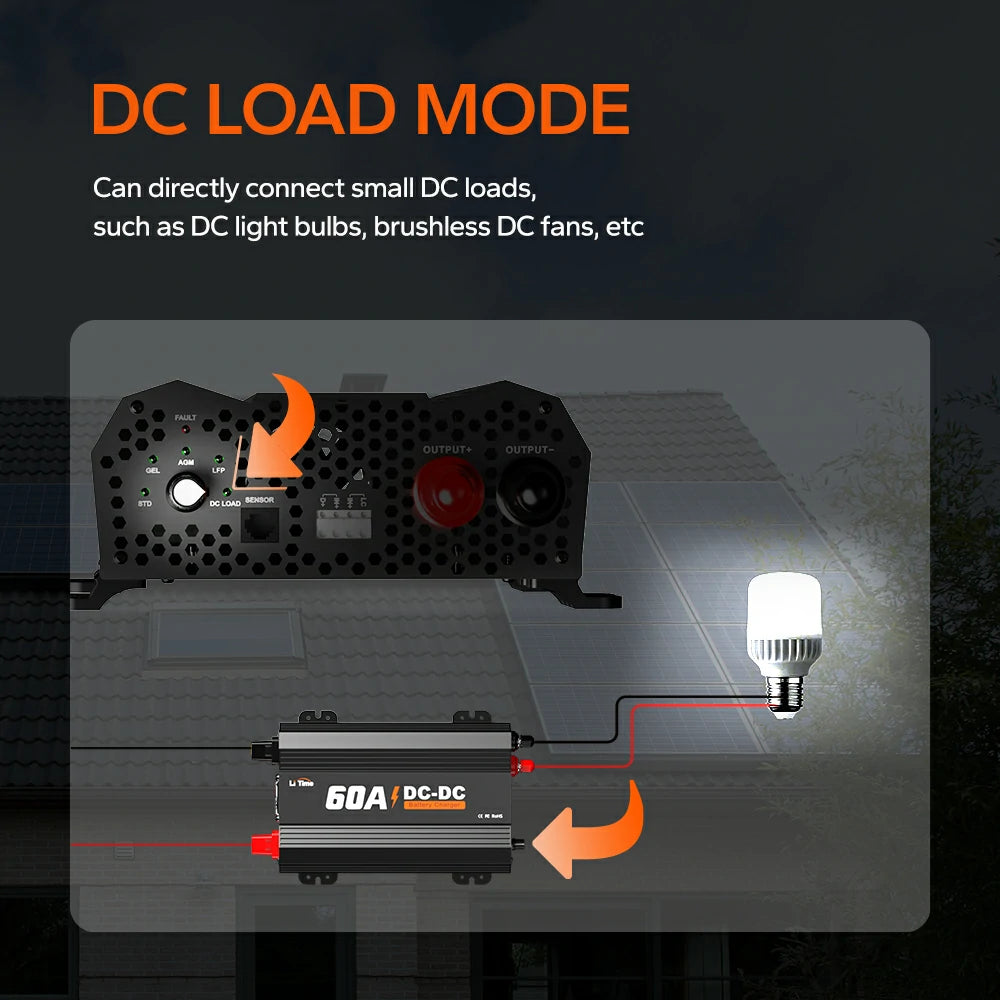

dc load mode of LiTime 60A dc to dc battery charger

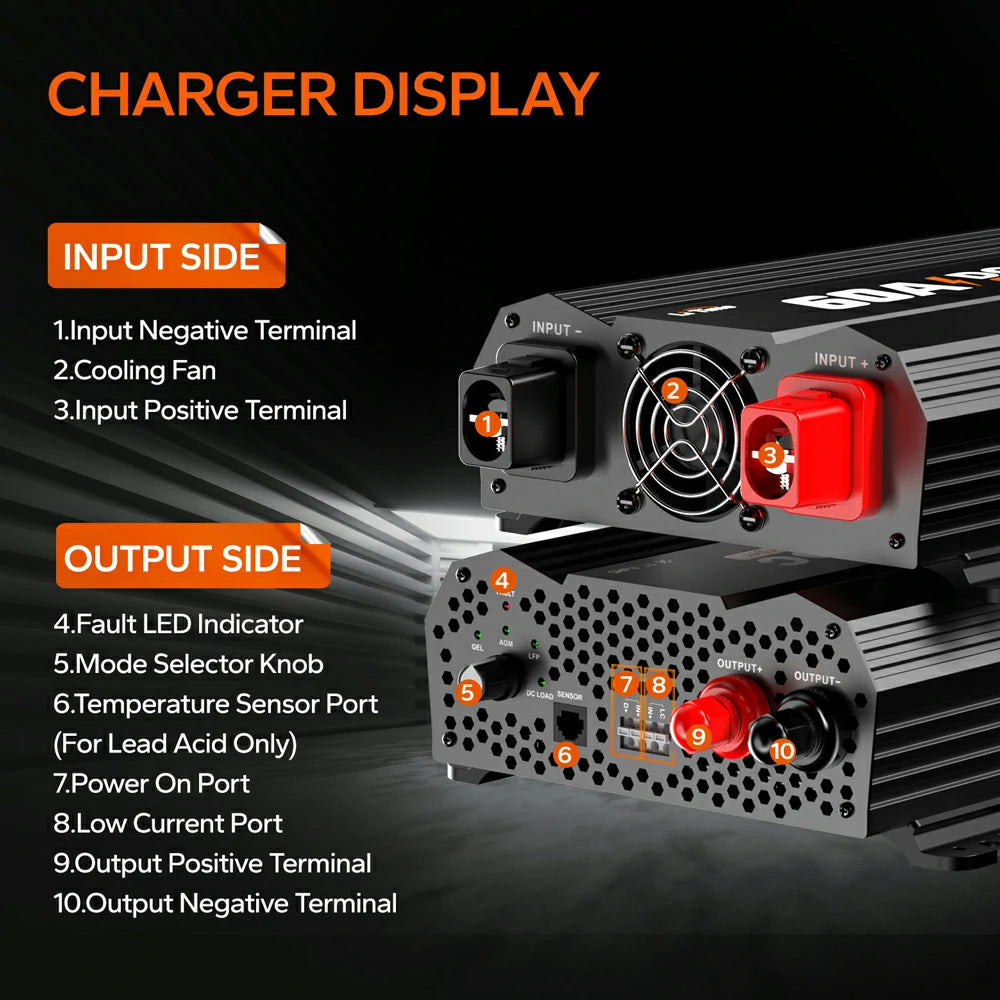

the appearance of LiTime 60A dc to dc input side and output side

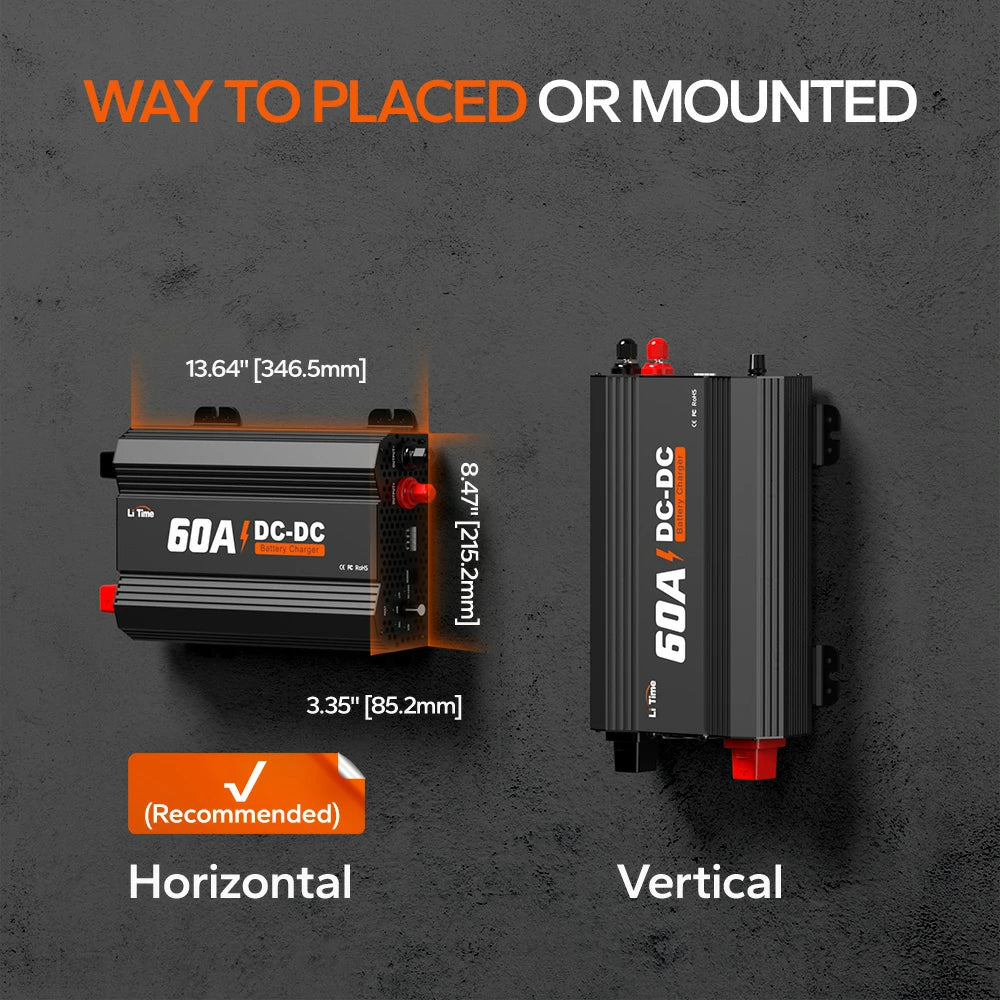

the size of length, wide, height of LiTime 60A dc to dc charger and recommended mouted way

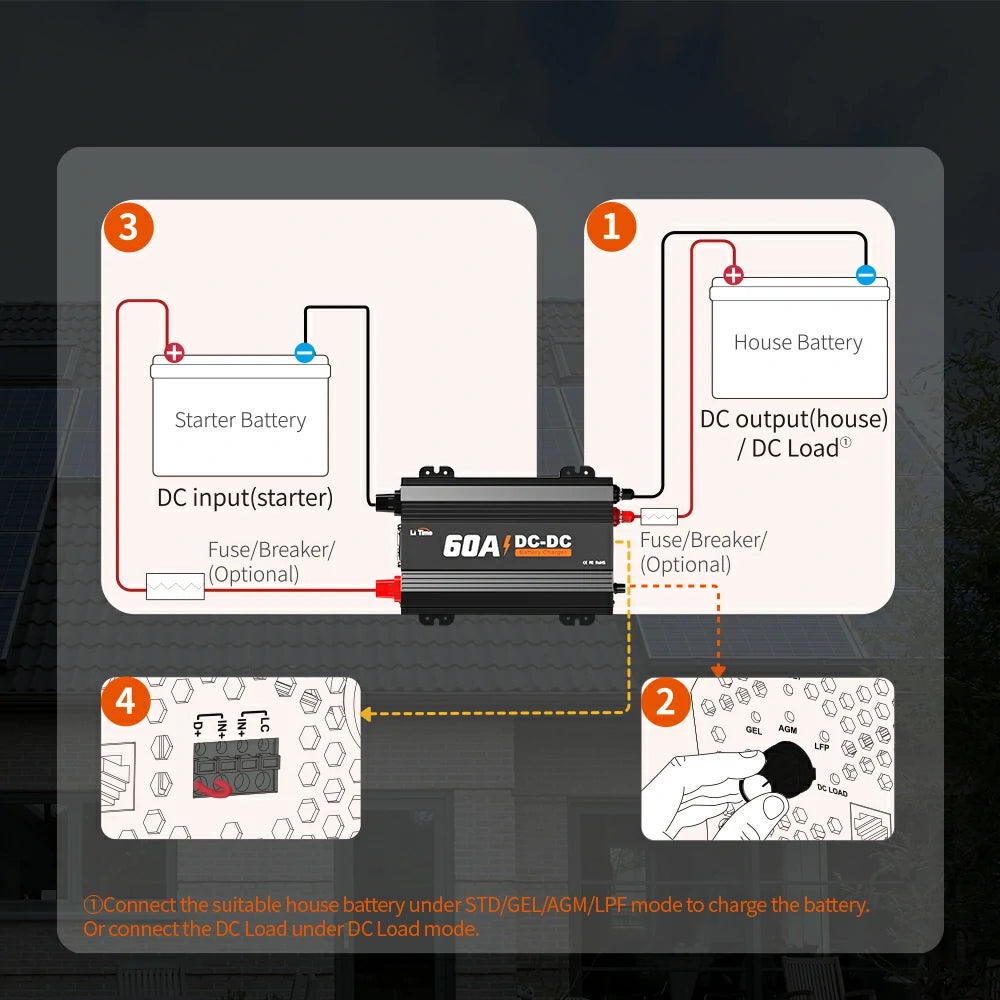

diagram of connecting LiTime 60A dc to dc battery charger

LiTime 12v 60a DC to DC charger scompatible for multiple types STD, GEL, AGM, LFP batteries

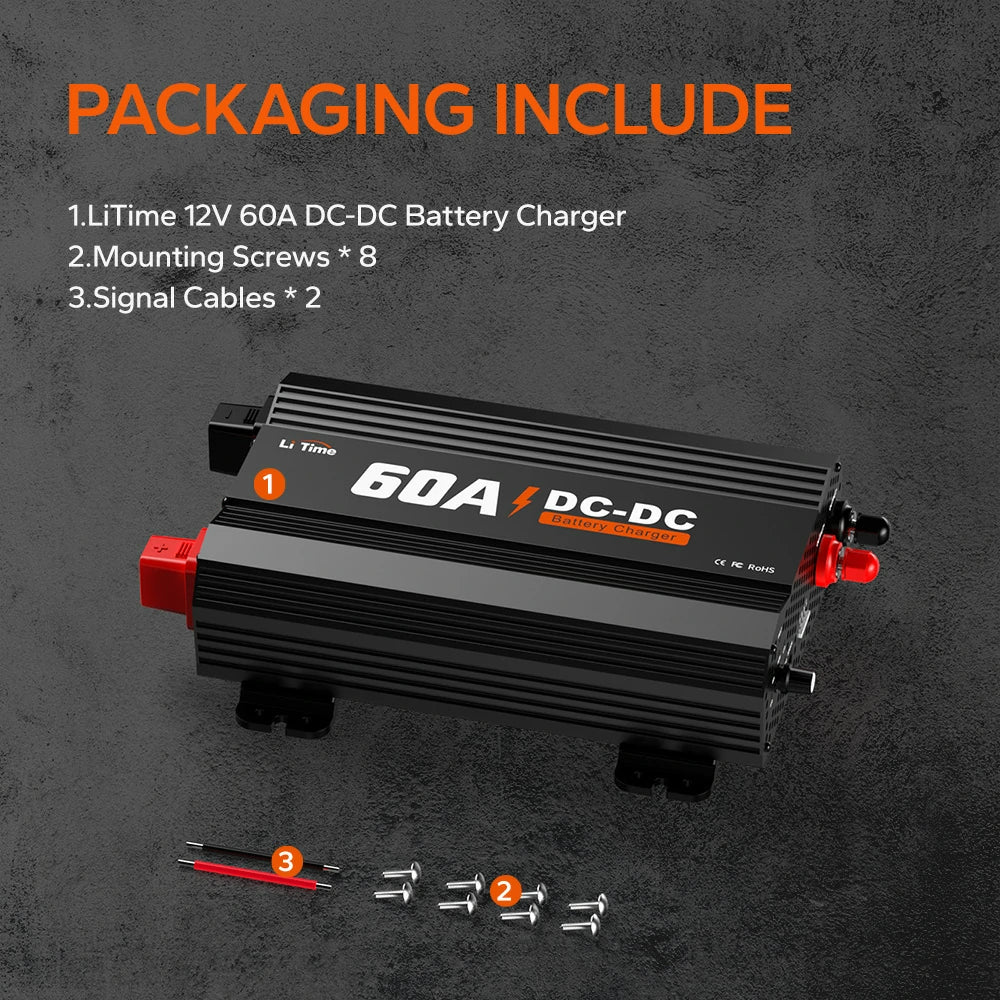

package information of LiTime 60A dc to dc charger - mounting screws, cables

1 / 1

Features

LiTime 12V 60A DC to DC Battery Charger

$189.99

$251.49

24% OFF

30-Day Price Guarantee included — If the price drops within 30 days, we’ll refund the difference.

COMPATIBILITY The knob operation conveniently selects battery type for charging with a 60A high-efficiency output, adaptable to larger capacity battery packs. Additionally, a low current port limits output to 30A. The device offers convenient 30A and 60A charging and discharging current options for versatile use.

SMART MULTI-STAGE CHARGING The 12V 60A DC - DC smart charger changes different charge modes to match your battery type. For LiFePO4 Battery it will charge in 2 steps mode (CC, CV), for Lead Acid Battery it will charge by 3-stage charging (Bulk, Absorption, and Float), to make sure it optimally and automatically charges to 100%. It also can wake up your lithium battery after BMS protection.

VARIOUS PROTECTION SAFETY This LITime battery charger with high-quality offers over-voltage protection, low-voltage protection, over-temperature protection, short circuit protection, and output reverse polarity protection to ensure operation safety. It also isolates the input and output to prevent voltage transfer errors and interference with home battery charging.

WIDELY USED The compact and robust design of our dc to dc charger makes it suitable for RVs, commercial vehicles, and many more applications.The output end can not only be connected to a life battery, but also be directly used with a DC load.

Note: Use the included screws (Φ5/32'' [4mm], 5/8'' [16mm]) for secure mounting to prevent installation failure or product damage.

Comparison

Quantity:

$189.99

$251.49

24% OFF

2-Year Warranty

Backed up by techical support within 24hrs.

30-Day Price Match

Worry-free purchase guarantee.

Free Shipping

Free standard shipping on all orders.
Delivered in 2–5 business days.

Free Returns

30 days hassle free returns.

12V 60A DC-DC

$189.99

$251.49

[{"alt":"surface of LiTime 60A dc to dc lithium battery charger","id":33921445822684,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime60ADC-DCcharger_3.webp?v=1725879442"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime60ADC-DCcharger_3.webp?v=1725879442","width":1000},{"alt":"protections of LiTime 60a DC to DC charger Over Voltage,Low Voltage,High Temperature,Short Circuit,Reverse Polarity","id":33921445953756,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime60ADC-DCcharger_6.webp?v=1725879442"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime60ADC-DCcharger_6.webp?v=1725879442","width":1000},{"alt":"dc load mode of LiTime 60A dc to dc battery charger ","id":33921445757148,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime60ADC-DCcharger_2.webp?v=1725879442"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime60ADC-DCcharger_2.webp?v=1725879442","width":1000},{"alt":"the appearance of LiTime 60A dc to dc input side and output side","id":33921590427868,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime_60A_DC-DC_charger_9.webp?v=1725881044"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime_60A_DC-DC_charger_9.webp?v=1725881044","width":1000},{"alt":"the size of length, wide, height of LiTime 60A dc to dc charger and recommended mouted way","id":33921445855452,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime60ADC-DCcharger_4.webp?v=1725879442"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime60ADC-DCcharger_4.webp?v=1725879442","width":1000},{"alt":"diagram of connecting LiTime 60A dc to dc battery charger","id":33921445920988,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime60ADC-DCcharger_5.webp?v=1725879442"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime60ADC-DCcharger_5.webp?v=1725879442","width":1000},{"alt":"LiTime 12v 60a DC to DC charger scompatible for multiple types STD, GEL, AGM, LFP batteries","id":33921446019292,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime60ADC-DCcharger_8.webp?v=1725879442"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime60ADC-DCcharger_8.webp?v=1725879442","width":1000},{"alt":"package information of LiTime 60A dc to dc charger - mounting screws, cables","id":33921445724380,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime60ADC-DCcharger_1.webp?v=1725879442"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime60ADC-DCcharger_1.webp?v=1725879442","width":1000}]

Features Specs FAQ Reviews

LiTime 12V 60A DC-DC Battery Charger

The LiTime 12V 60A DC-DC Battery Charger is engineered to ensure your battery reaches full capacity safely and efficiently. With the LiTime 12V 60A DC-DC Battery Charger, you can be confident that your batteries will be charged quickly and safely, supporting your power needs whether on the road or in remote locations. Get your battery to 100% with ease!

Multiple Protections of LiTime 12V DC-DC RV Battery Charger

The LiTime 12V 60A DC-DC Battery Charger is equipped with advanced safety features to ensure reliable operation and protect your battery and devices. Here are the critical protections included: Over Voltage Protection, Low Voltage Protection,High Temperature Protection, Short Circuit Protection, Reverse Polarity Protection. With these multiple protections, you can have peace of mind knowing that your battery charging is not only efficient but also safe, making the LiTime DC-DC Battery Charger a reliable choice for your power management needs.

multiple protections of litime 12v 60A dc-dc battery charger

Multiple Options for Charging 12V Batteries

The LiTime 12V 60A DC-DC Battery Charger provides versatile charging options tailored for various battery types, ensuring effective and reliable charging. Before using the DC-DC charger to recharge your batteries, please ensure that you select the correct battery type and confirm the charging requirements with your battery manufacturer. By doing so, you can maximize the efficiency and lifespan of your batteries while ensuring safe operation!

LiTime 60A DC-DC battery charger displaying multiple charging options for 12V batteries

Always Keep the Power On the Go

With the LiTime 12V 60A DC to DC Battery Charger, you can ensure that your power needs are met wherever you are. This system is designed for versatility, allowing for two charging sources to keep your service battery charged and ready for use.

keep the power on the go with litime 12v 60A dc-dc battery charger for rv trip

Recommended Cable Sizing & Fusing

To ensure optimal performance and safety when using the LiTime 12V 60A DC-DC Battery Charger, it's important to follow the recommended cable sizing and fusing guidelines. Using the correct cable sizes minimizes voltage drop and maximizes the efficiency of the charging process. Proper fusing is critical for protecting your systems and preventing electrical hazards. Always ensure that the fuses are correctly rated according to these specifications to maintain safe and efficient operation.

recommended cable sizing and fusing for litime 12v 60A dc-dc battery charger

Low Current Port

The LiTime 12V 60A DC-DC Battery Charger features a Low Current (LC) Port that allows you to limit the charging current to 30A. This can be particularly useful in specific charging scenarios where a softer charging approach is desired.

SPECS

BASIC

System Nominal Voltage：

12V

Battery Type：

STD, GEL, AGM, LFP

Charging Current：

60A

Charging Efficiency：

Max. 90%

Charging Voltage Range：

14.6V (Lithium); 14.4V to 14.8V (Lead Acid)

Max. Alternator Input Power：

1000W

Standby Self-Consumption：

＜0.75A

Humidity：

≤95% Non-condensing

Recommended Input/Putput Torque：

8N·m to 10 N·m/ 70.8 lbf·inch to 88.5 lbf·inch

DIMENSIONS

Size：

13.64*8.47*3.35 in

Approx. Weight：

6.17 lbs

TEMPERATURE

Operating：

-10°C to 40°C/14°F to 104°F

Storage：

-20°C to 70°C/-4°F to 158°F

FAQ

What is a DC-DC charger, and why do I need it?

A DC-DC charger allows you to safely charge a leisure battery from your vehicle's alternator while protecting both the alternator and batteries. It ensures efficient charging, especially in setups with lithium batteries.

Why is my dc-dc charger not charging even though the indicator lights seem normal?

Probably you meet the "dual lockout issue", this happens when

Charger Detects Output Overvoltage: The DC-DC charger senses an overvoltage condition at its output.
BMS Detects Overcharge: Concurrently, the battery's BMS signals an overcharge situation.

Read on this DC to DC Not Charging Troubleshooting Guide for detailed steps guide to solve.

What type of alternator is this DC to DC on board battery charger compatible with?

This battery charger is designed to work with both conventional and smart alternators. However, because conventional alternators maintain a consistent voltage during charging, while smart alternators adjust their charging output based on operating conditions, it is necessary to connect the charger to the smart alternator using the Signal cable provided with the package through the Vehicle Ignition Port.

What types of battery does the charger support?

It's suitable for 12V Lithium, Gel, AGM, and Calcium batteries. This charger enables the batteries to reach a full 100% charge. Additionally, it has the capability to jump start lithium batteries that have become discharged to a low voltage.

How does the DC-DC charger differ from a regular AC charger?

A DC-DC charger converts DC voltage from one battery bank to another. It’s ideal for charging a 12V battery from a vehicle’s electrical system, whereas an AC charger requires an external AC power source (like a wall outlet).

Is the charger safe to use in harsh weather conditions?

This charger has a durable, rugged design suitable for moderate outdoor environments. However, avoid exposure to extreme weather conditions like heavy rain or snow, as it is not fully waterproof.

What protective features are built into this DC-DC charger?

The charger includes overcharge protection, reverse polarity protection, overcurrent protection, and thermal protection to ensure safe and reliable charging.

Can this charger charge multiple 12V batteries simultaneously?

Yes. This charger can simultaneously charge multiple batteries in a parallel configuration, provided that the batteries are of the same type and have an identical 12V voltage. It supports parallel systems of up to 4 batteries (4P). To connect in parallel, batteries must be identical (same brand, type, voltage, capacity, and BMS) and purchased within 1 month.

REVIEWS

Robust product

The instructions regarding the jumper cable to turn on the unit, could use a more in-depth explanation and or suggestions to how this could be utilized in different applications, could prove useful to many. Some alternators do not like a big load applied immediately upon being energized.

LiTime 12V 60A DC to DC Battery Charger

This is a beast of a charger.

Very high quality construction with an all aluminum body and heat fins.Easy to follow instructions included.Very robust screw terminals which accept large 2 gauge lugs easily.Just one simple dial to select battery type and your all set up.Genius.No complex programming. Highly recommend. Great price also.
