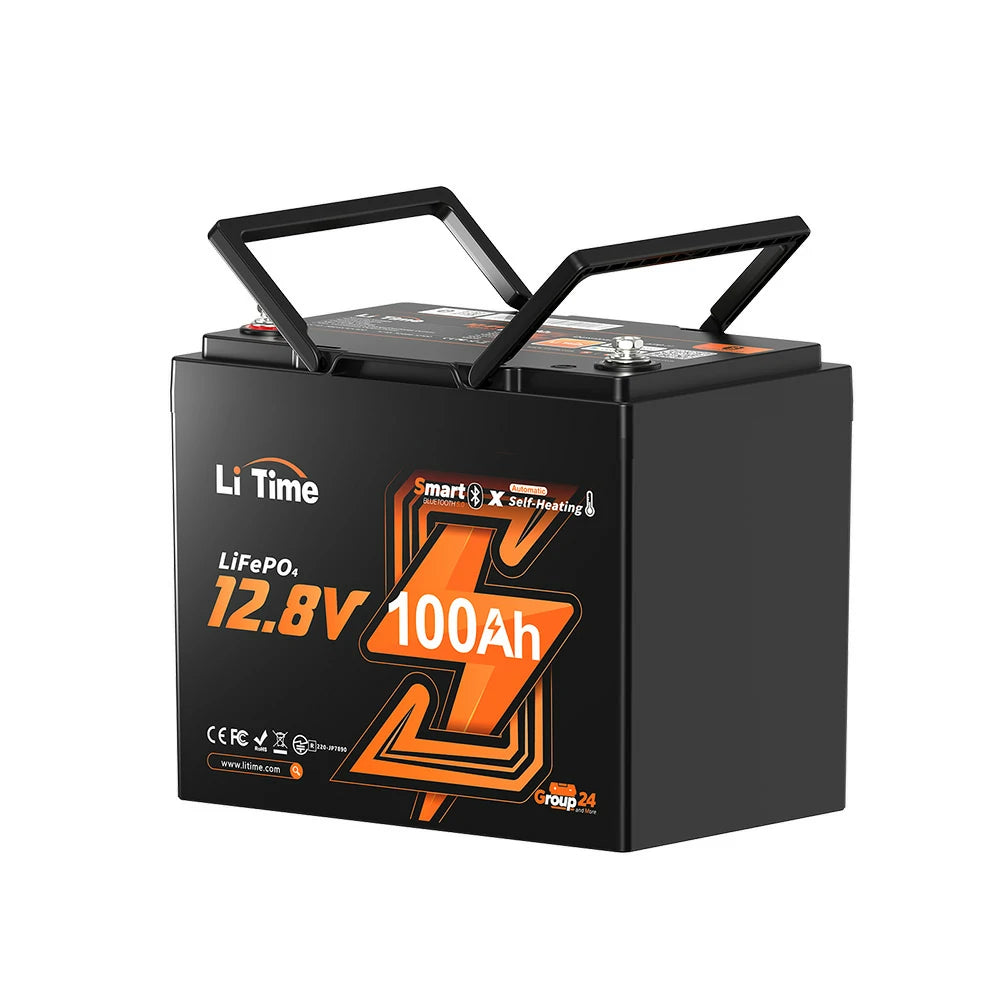

12V 100Ah Group 24 Bluetooth LiFePO4 Lithium Deep Cycle Battery with self-heating

dimensions of group 24 deep cycle lithium battery

LiTime 100Ah Group 24 LiFePO4 battery: Bluetooth 5.0, self-heating, IP65 waterproof, BMS protections

LiTime 100Ah Group 24 LiFePO4 battery with self-heating (-20°C to 5°C), 70-150min warm-up, Bluetooth monitoring

hand holding smartphone showing LiTime app monitoring 100Ah Group 24 LiFePO4 battery with Bluetooth 5.0 and self-heating function

low temp charging off protection feature of litime group 24 lithium battery with Bluetooth 5.0 and self-heating function

Automotive Grade A Lithium Cell 12V 100Ah lithium battery with Lifespan to 10 Years and Over 4000 Life Cycles

LiTime self-heating function: charger-powered (left) vs internal-power (right) warm-up modes

12v 100ah self-heating battery with universal fit

12v 100ah lithium battery with ip65 waterproof

LiTime 12v 100ah group24 self-heating battery

Deep cycle lithium group 24 battery with Bluetooth 5.0 and self-heating function

12V 100Ah Group 24 Bluetooth LiFePO4 Lithium Deep Cycle Battery with self-heating + 12V 20A Charger

1 / 0

Features

Bluetooth

Bluetooth 5.0 for battery status tracking—SOC, voltage, power, and more.

Self-Heating

Smart heating below 41°F for safer cold-weather charging.

Low-Temp

Low-Temp Charging Protection – Stops charging in cold environments to ensure safety and extend battery lifespan.

LiTime 12V 100Ah Group 24 Bluetooth Lithium Battery with Self Heating

Q: How do I monitor the battery status?

This 12V lithium battery, equipped with an integrated Bluetooth module, enables convenient monitoring of the battery status using your smartphone through the LiTime App.

Q: How does the self-heating function work?

The auto self-heating function will be activated by the BMS when the battery is connected to a charger at -20℃ to 5℃ (-4℉ to 41℉). The heating will stop when the battery temperature reaches 10℃ (-4℉).

Q: Does the lithium battery charge itself while heating?

No. The charging will start after the lithium battery heats itself to 10℃ (50℉).

Q: Can I add heating facilities to help with external heating?

External heating only heats the casing and does not heat the battery cells. In conditions of -20°C, after external heating for two hours, the battery cells temperature rise to 5°C, but the lead-acid casing temperature has risen to 70-80°C.Therefore, it is not recommended to externally heat the battery, as the actual cell temperature cannot be determined at this time.

Q: Are LiTime lithium batteries safe?

Yes. LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. LiTime lithium cells are certificated by UL, FCC, CE, RoHS, and UN38.3 to ensure their quality and safety. All LiTime LiFePO4 batteries come with an internal Battery Management System, which protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage. Additionally, LiTime LiFePO4 Lithium batteries have been tested to be free from the risk of fire.

Q: What should you do when you receive a new battery?

When you receive your battery, it may have a low state of charge (SOC) due to transportation and storage. To ensure optimal performance, charge the battery immediately to avoid over-discharge.Batteries with Bluetooth functionality may arrive in an off state, showing a terminal voltage between 3V and 5V, and you won't be able to connect them to your phone. This is because they are shipped powered off, similar to mobile phones, to minimize self-discharge and extend the battery's lifespan.There are 2 ways to solve the problem: using an AC-DC lithium battery charger or an MPPT solar charge controller to charge it for 3 to 10 seconds, then the battery can be used normally.If you plan to store the battery for a long time, charge it to a SOC of 50% and perform maintenance every three months. This will help preserve its functionality and performance.

Q: What's the dimension of group 24 battery?

The Group 24 battery is a standard model measuring 10.5″L x 6.1875″W x 8.875″H, commonly found in RVs, backup power systems, and medical equipment. These batteries are frequently utilized as deep cycle batteries rather than for starting engines.

Q: What are the differences between Self-Heating and Low-temperature protection batteries?

These two series primarily address the charging issues of LiFePO4 lithium batteries in cold weather. The main difference between the Low-Temperature series and the Self-Heating series lies in the presence of an automatic Battery Management System (BMS) heating module. The Self-Heating series allows the battery to self-warm without any action required from the user while charging. However, the Low-Temperature Protection series will automatically cut-off the charging when the temperature is below 0℃ (32℉), and it requires you to take some measures, such as placing the battery in a warm indoor environment, to warm it up to 5℃ (41℉) and restore charging capability.Read on LiTime Low-Temperature Batteries VS Self-Heating Series for more information.

Q: How many LiTime 100Ah group 24 lithium batteries can I connect at most?

LiTime group 24 batteries support versatile configurations, including series, parallel, and series-parallel connections.Series connection: Up to 4 batteriesParallel connection: Up to 4 batteriesSeries-parallel connection: Up to 16 batteriesImportant Notes:For safe and stable operation, all connected batteries must meet the following criteria:✔ Same specifications – Identical capacity (Ah) and BMS rating (A)✔ Same brand – Different brands may have incompatible BMS settings✔ Purchased within a short timeframe (ideally within one month)

$297.49

$439.99

32% OFF

30-Day Price Guarantee & 7-Day Free Return Policy Included

Meet LiTime's Latest Invention - Your 2025 Must-have Breakthrough LiFePO4 Battery

Bluetooth 5.0, Auto-connection, smart control & monitor battery with LiTime App
Self-heating function secures charging safely in freezing weather
LiTime's latest BMS provides 20+ protections and warnings
Automatic Overload Protection & Recovery-No User Intervention Required
EV Grade-A LiFePO4 Cells, 4000+ cycles@100%DOD
1280Wh of high energy, 1280W of large output power
500A/1S peak discharge current to withstand larger surges
Group 24 battery size, 10.24*6.61*8.30 in.
Max 20.48kWh expandable energy (Max 4P4S)
Best lithium battery for RVs/camping/trolling motors(30~70lb)/solar/off-grid/home storage
10X charging efficiency, 2X runtime time (compared with regular lead-acid batteries)
Low TCO (total cost of ownership), only 0.1$/kWh
Upon initial use or after manually powering off the battery, please ensure to connect the charger to turn on the battery. Recommended LiTime 14.6V 20A charger.
DO NOT use as starter battery

Choose Products

Comparison

1 PACK

$297.49 $439.99

Hurry—Only 61 Left in Stock!

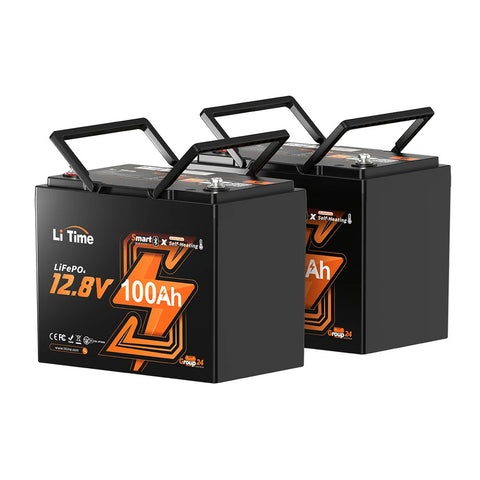

2 PACK

$586.06 $869.99

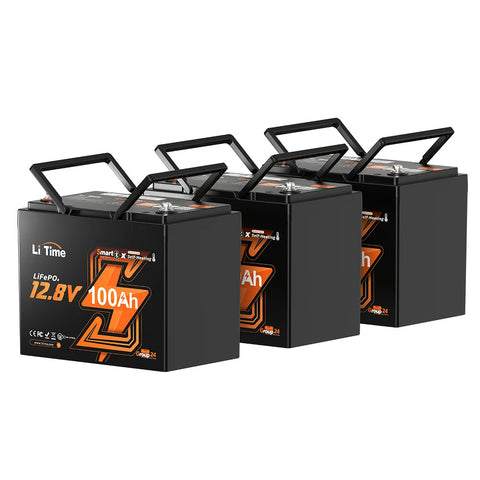

3 PACK

$874.62 $1,309.99

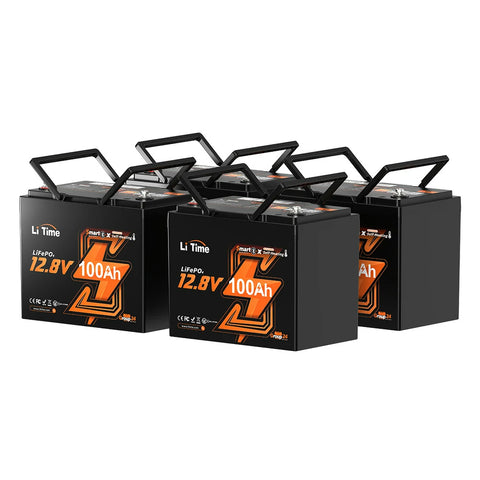

4 PACK

$1,154.26 $1,729.99

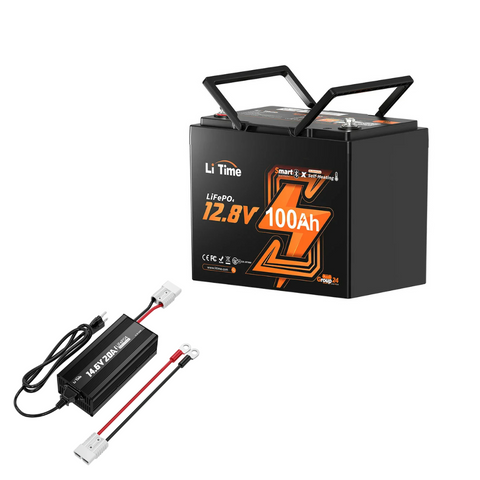

1 PACK + 20A Charger (Save 5%)

$386.31 $579.99

Quantity:

$297.49

$439.99

32% OFF

Add to Cart

5 Years Warranty

Backed by technical support within 24 hours.

30 Days Price Match

Worry-free purchase guarantee.

7 Days Free Returns

7 days no-questions-asked return.

Local Warehouse Shipping

Free standard shipping on all orders.
Delivered in 2–5 business days.

12V 100Ah Group24 Smart Self-Heating

$297.49

$439.99

Add to Cart

[{"alt":"12V 100Ah Group 24 Bluetooth LiFePO4 Lithium Deep Cycle Battery with self-heating","id":34582938550492,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/12V_100Ah_self-heating_battery_1.webp?v=1740046579"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/12V_100Ah_self-heating_battery_1.webp?v=1740046579","width":1000},{"alt":"dimensions of group 24 deep cycle lithium battery","id":34011829305564,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/12V100AhGroup24BluetoothLiFePO4LithiumDeepCycleBatterywithSelfHeating_3.jpg?v=1740046579"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/12V100AhGroup24BluetoothLiFePO4LithiumDeepCycleBatterywithSelfHeating_3.jpg?v=1740046579","width":1000},{"alt":"LiTime 100Ah Group 24 LiFePO4 battery: Bluetooth 5.0, self-heating, IP65 waterproof, BMS protections","id":34011829403868,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/12V100AhGroup24BluetoothLiFePO4LithiumDeepCycleBatterywithSelfHeating_6.jpg?v=1740046579"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/12V100AhGroup24BluetoothLiFePO4LithiumDeepCycleBatterywithSelfHeating_6.jpg?v=1740046579","width":1000},{"alt":"LiTime 100Ah Group 24 LiFePO4 battery with self-heating (-20°C to 5°C), 70-150min warm-up, Bluetooth monitoring","id":34011829567708,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/12V100AhGroup24BluetoothLiFePO4LithiumDeepCycleBatterywithSelfHeating_9.jpg?v=1740046579"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/12V100AhGroup24BluetoothLiFePO4LithiumDeepCycleBatterywithSelfHeating_9.jpg?v=1740046579","width":1000},{"alt":"hand holding smartphone showing LiTime app monitoring 100Ah Group 24 LiFePO4 battery with Bluetooth 5.0 and self-heating function","id":34011829338332,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/12V100AhGroup24BluetoothLiFePO4LithiumDeepCycleBatterywithSelfHeating_4.jpg?v=1740046579"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/12V100AhGroup24BluetoothLiFePO4LithiumDeepCycleBatterywithSelfHeating_4.jpg?v=1740046579","width":1000},{"alt":"low temp charging off protection feature of litime group 24 lithium battery with Bluetooth 5.0 and self-heating function","id":34011829371100,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/12V100AhGroup24BluetoothLiFePO4LithiumDeepCycleBatterywithSelfHeating_5.jpg?v=1740046579"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/12V100AhGroup24BluetoothLiFePO4LithiumDeepCycleBatterywithSelfHeating_5.jpg?v=1740046579","width":1000},{"alt":"Automotive Grade A Lithium Cell 12V 100Ah lithium battery with Lifespan to 10 Years and Over 4000 Life Cycles","id":34011829502172,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/12V100AhGroup24BluetoothLiFePO4LithiumDeepCycleBatterywithSelfHeating_8.jpg?v=1740046579"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/12V100AhGroup24BluetoothLiFePO4LithiumDeepCycleBatterywithSelfHeating_8.jpg?v=1740046579","width":1000},{"alt":"LiTime self-heating function: charger-powered (left) vs internal-power (right) warm-up modes","id":34011829436636,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/12V100AhGroup24BluetoothLiFePO4LithiumDeepCycleBatterywithSelfHeating_7.jpg?v=1740046579"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/12V100AhGroup24BluetoothLiFePO4LithiumDeepCycleBatterywithSelfHeating_7.jpg?v=1740046579","width":1000},{"alt":"12v 100ah self-heating battery with universal fit","id":34582938714332,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/12V_100Ah_self-heating_battery_6.webp?v=1740046579"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/12V_100Ah_self-heating_battery_6.webp?v=1740046579","width":1000},{"alt":"12v 100ah lithium battery with ip65 waterproof","id":34582938747100,"position":10,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/12V_100Ah_self-heating_battery_7.webp?v=1740046579"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/12V_100Ah_self-heating_battery_7.webp?v=1740046579","width":1000},{"alt":"LiTime 12v 100ah group24 self-heating battery","id":34582938779868,"position":11,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/12V_100Ah_self-heating_battery_8.webp?v=1740046579"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/12V_100Ah_self-heating_battery_8.webp?v=1740046579","width":1000},{"alt":"12V 100Ah Group 24 Bluetooth LiFePO4 Lithium Deep Cycle Battery with self-heating","id":34582938583260,"position":12,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/12V_100Ah_self-heating_battery_2.webp?v=1740046579"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/12V_100Ah_self-heating_battery_2.webp?v=1740046579","width":1000},{"alt":"Deep cycle lithium group 24 battery with Bluetooth 5.0 and self-heating function","id":34582938648796,"position":13,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/12V_100Ah_self-heating_battery_3.webp?v=1740046579"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/12V_100Ah_self-heating_battery_3.webp?v=1740046579","width":1000},{"alt":"12V 100Ah Group 24 Bluetooth LiFePO4 Lithium Deep Cycle Battery with Self Heating","id":34582938681564,"position":14,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/12V_100Ah_self-heating_battery_4.webp?v=1740046579"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/12V_100Ah_self-heating_battery_4.webp?v=1740046579","width":1000},{"alt":"12V 100Ah Group 24 Bluetooth LiFePO4 Lithium Deep Cycle Battery with self-heating + 12V 20A Charger","id":34619074642140,"position":15,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/12V_100Ah_hbt_charger.png?v=1740464575"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/12V_100Ah_hbt_charger.png?v=1740464575","width":1000}]

Features Specs FAQ Reviews Compare User Manual

Features

Built-in Self-heating Tech for All-weather Charging

Unencumbered by harsh weather, LiTime 12V self-heating lithium battery can power your devices in the cold, which is designed for those of you who love winter travel! With 2 self-heating modes (Regular & Energy-efficient), the 12V LiFePO4 battery ensures optimal performance even in freezing temperature. Equipped with EV-grade cells and self-developed BMS, it provides 4000-15000 cycles and 20+ protections for safer use. Smart Bluetooth 5.0 is convenient to monitor and control your battery at any time. Power for your upcoming winter adventure!

features of Litime self-heating Group 24 battery: Bluetooth 5.0, 4000+ cycles, low-temp cut-off, 10X charging efficiency

Heat up Fast, Power up Faster

LiTime 12V 100Ah self-heating lithium battery comes with 100W heating pads, increasing heating efficiency by 2X. From 14℉, it only takes 70-90 minutes to heat up. From -4℉, it only takes 100-150 minutes. Even while ice fishing in cold weather, it quickly raises the internal temperature and provides a high-efficient charging.

litime smart self-heating battery designed for safer low-temperature charging, with activation below 5°C/41°F and deactivation above 10°C/50°F

Beat the Cold with 2 Self-heating Modes

With built-in 2 heating pads, LiTime 12V 100Ah lithium ion battery features an efficient self-heating function. The battery supports 2 heating modes (Regular & Energy-Efficient), so you can adjust it through LiTime APP. When the battery temperature is between -20℃ to 5℃/-4℉ to 41℉, the BMS will start to activate the self-heating function. It will be stopped when the battery temperature has reached 10℃/50℉.

1. Regular Mode: When the charger current is ≥10A, it only uses with charger. 2. Energy-efficient: (1) Charger & Battery: When the charger current is ＜10A and the battery's SOC＞20%, it uses the charger first and the battery as a supplement. (2) Only Battery: When the battery's SOC＞20%, it supports only using the battery's own power to heat the pads.

two heating modes regular & energy-efficient self heating function of litime group 24 battery

EV Grade Cells, Enhanced Performace

With EV-grade cells, LiTime 12V self-heating LiFePO4 battery features high energy density of 56.36Wh/lbs, as well as boasts 4000+ cycles@100% DOD, 6000+ cycles@80% DOD, and 15000+ cycles@60% DOD (compared to lead-acid batteries with 200-500 cycles), which compatible with eco-friendly and high efficiency. The self-heated battery has a 10-year lifespan, which is 3.3X more than lead-acid batteries. It gives you lower replacement costs and enhanced reliability.

litime group 24 self-heating battery: 5 years service, 10 years lifespan, 4000+ cycles at 100% DOD, 15000 at 60% DOD

Self-developed BMS, 20+ Advanced Protection

LiTime has developed an upgraded BMS to provide more all-around protection for your battery, greatly enhancing security. The intelligent BMS offers comprehensive protections, like over-charge, over-discharge, over-current, over-heating and short circuit, ensuring the battery operates safely in any condition. Besides, it also features more upgraded protections, including moisture proof, salt-spray resistance, pre-charging functions, and overload protection with self-recovery (30s). With safety in mind, LiTime 12V 100Ah deep cycle battery is committed to offering a secure charging experience you can trust!

bms protection information of litime self heating group 24 lithium battery: over-charge/discharge, pre-charging function and more

Stay Connected to Your Battery Anywhere with Bluetooth

LiTime 12V 100Ah self-heating battery equipped with Bluetooth 5.0 technology, allowing you to monitor and control your battery effortlessly through the LiTime app. You can easily access real-time data about your battery's status, including SOC, current, voltage, temperature, etc. And you can check the self-heating mode, control battery's discharging and turn it off. This feature not only enhances your experience but also helps you optimize battery performance. Imagine being able to check your battery’s health while camping—no need to pull out the battery, just a quick glance at your smartphone. Stay informed and in control, making your adventures enjoyable with LiTime!

litime Group 24 battery with Bluetooth 5.0 for monitoring via app, allowing users to check status and adjust heating modes

Best Replacement for 12V 100Ah Lead-Acid Batteries

LiTime 12V 100Ah self-heating lithium battery has been upgraded in terms of portability and performance, being smaller, more efficient and smarter. Compared to a traditional 12V 100Ah lead-acid battery, this 12V battery boasts 3X energy and 3.3X lifespan. And compared to LiTime 12V 100Ah basic model, it boasts 25% smaller size, 33% higher energy density, and adds Bluetooth 5.0 function. Say goodbye to bulky batteries, and embrace the intelligence of LiTime 12V 100Ah battery to power your every adventure!

litime Group 24 battery: smaller size, higher energy, Bluetooth features, 25% volume reduction, and advanced battery management

Up to 51.2V 400Ah Battery Power Bank

LiTime 12V self-heated LiFePO4 battery supports 4P4S connections, up to 400A continuous discharge current and 20.48kWh energy storage system. You can adjust the capacity and voltage as needed to accommodate different loads and usage scenarios. Whether you want a high-demand backup energy for your home, or a powerful system for your RV, it can meet your energy needs and provide sufficient & reliable power.

connect the group 24 battery in sereis and parallel Max20.48kW

4 Flexible Charging Methods

LiTime 12V self-heating battery features 10X faster charging efficiency than traditional lead-acid batteries. Recommended with LiTime 14.6V 20A LiFePO4 battery charger, and it will need about 5 hours to fully charge your battery. In addition, you can choose other charging methods, including solar panel (≥400W) + MPPT, alternator + DC to DC charger, and generator + AC to DC charger.

charging options for litime Group 24 battery: AC charger, solar panel with MPPT, alternator, and generator connections

Power Your Life, No Matter Where You Are

LiTime 12V 100Ah deep cycle battery is your go-to solution for versatile power needs. The robust power is ideal for your winter RV travel, ensuring you enjoy every road trip without worrying about energy. With a compact and intelligent design, the self-heating battery can power your trolling motor for a day on the water or start ice fishing, giving you a seamless fishing experience. In addition, connect the batteries in 4P4S to store enough energy for your home or off-grid setup. Power your adventures with confidence!

group 24 battery for rv, trolling motor, off-grid

litime self-heating group 24 battery fits for all types of rvs

Trusted Power for Every Journey

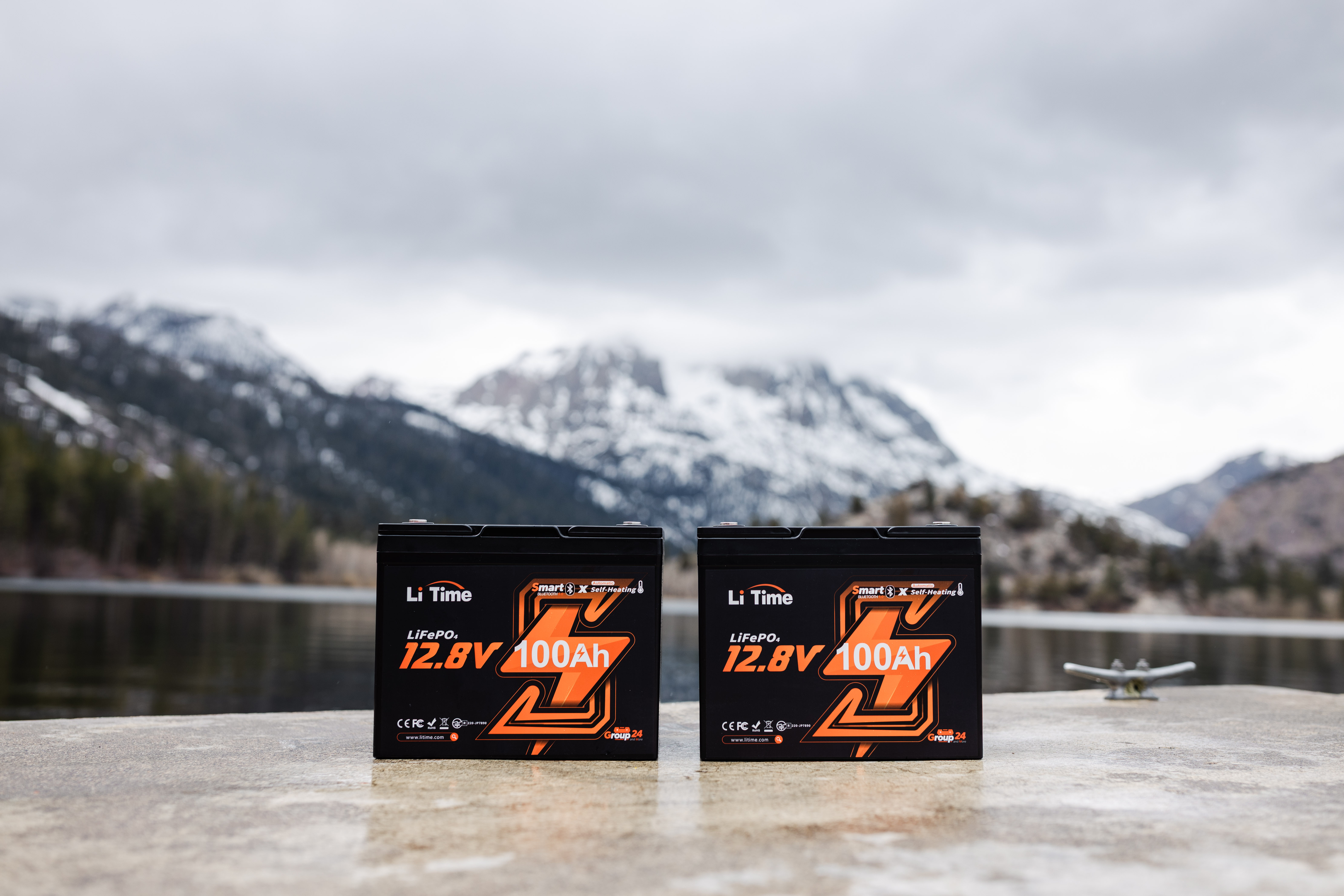

2 litime 12v group 24 self-heating batteries by a snow mountain

A smiling man holds a LiTime self-heating group 24 battery while standing next to his fishing boat on a trailer

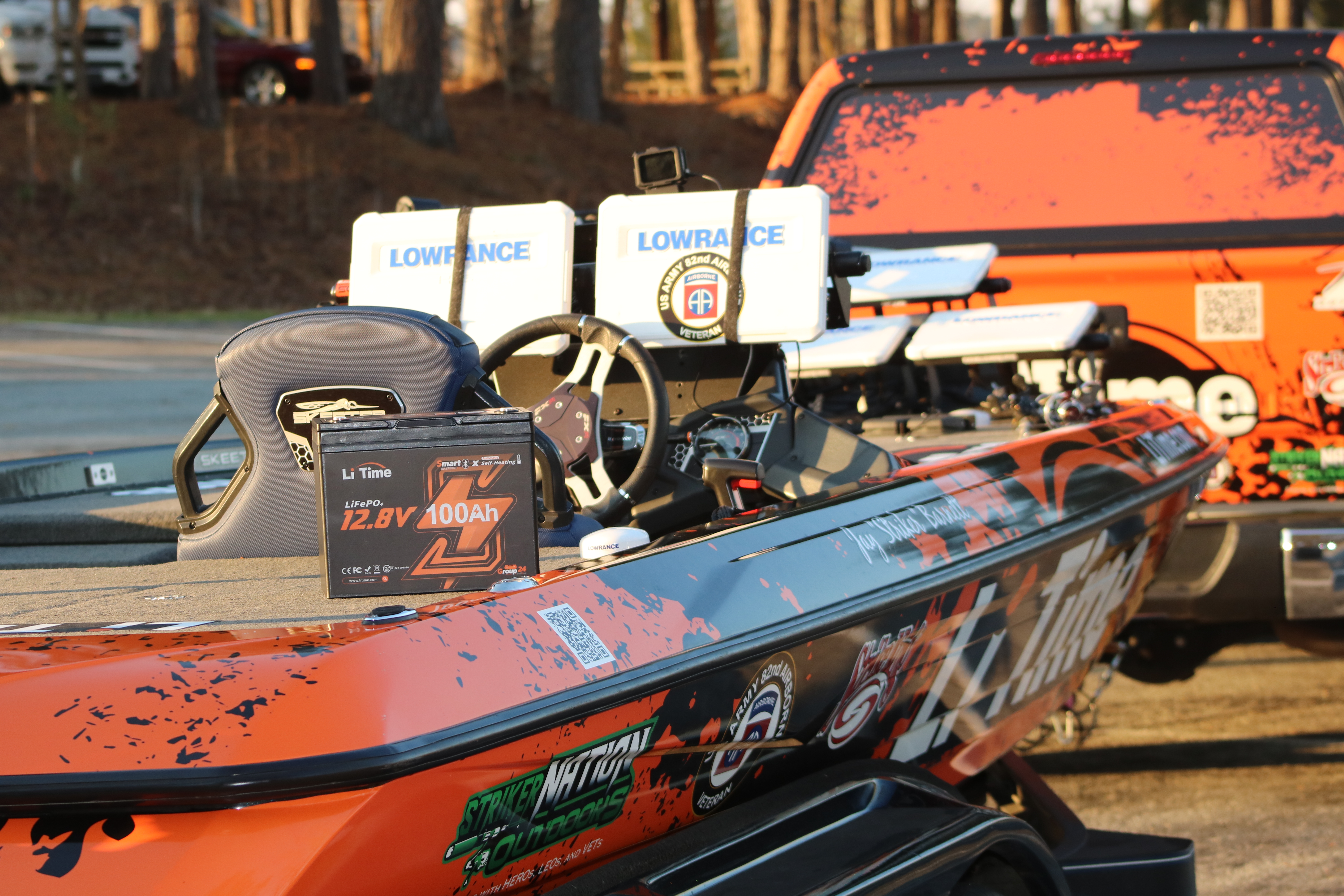

a LiTime self-heating group 24 battery sits inside a boat next to a fishing rod, reel, and pliers, ready for a day on the water

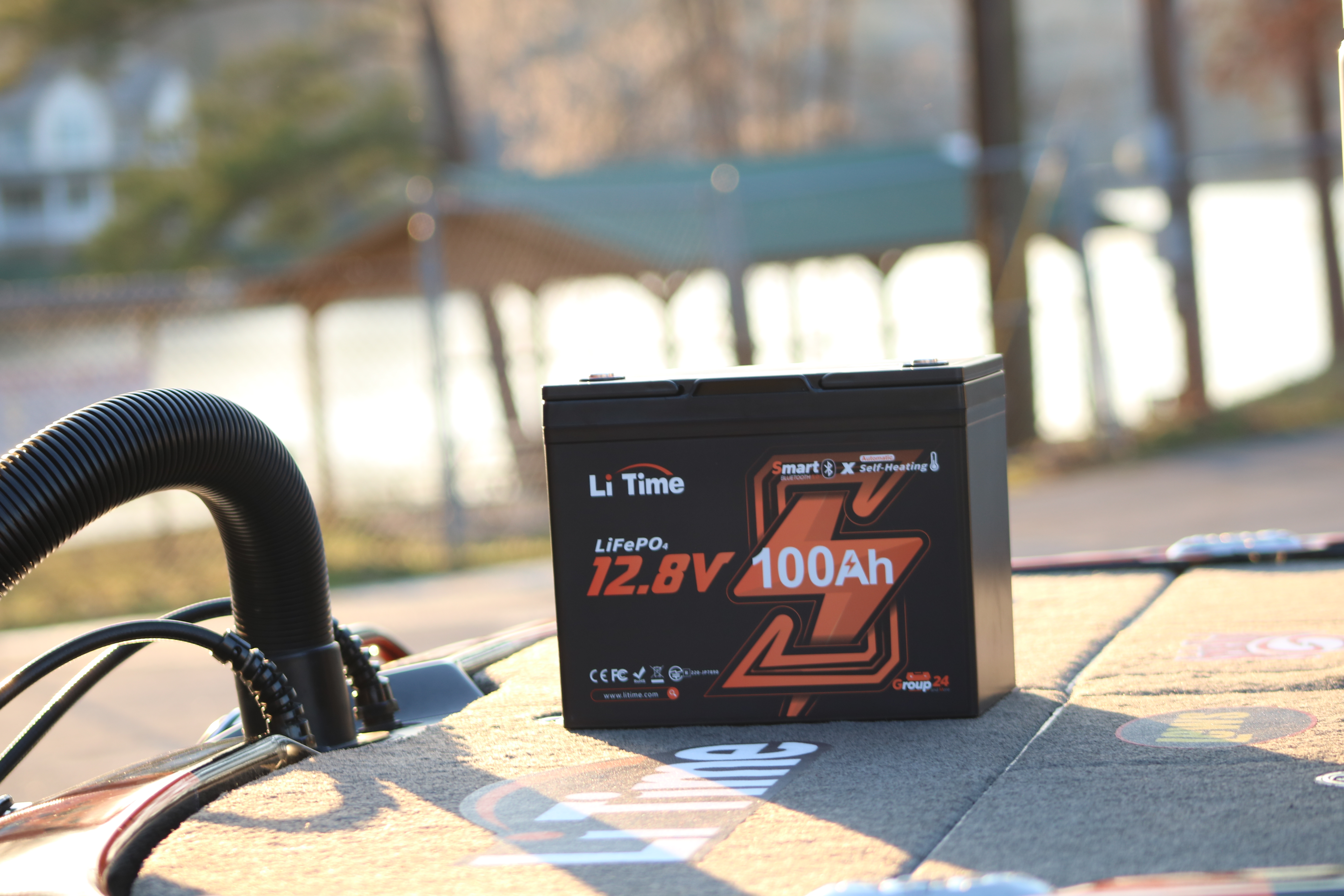

A LiTime self-heating group 24 battery sits on the deck of a professional tournament bass boat with large electronics

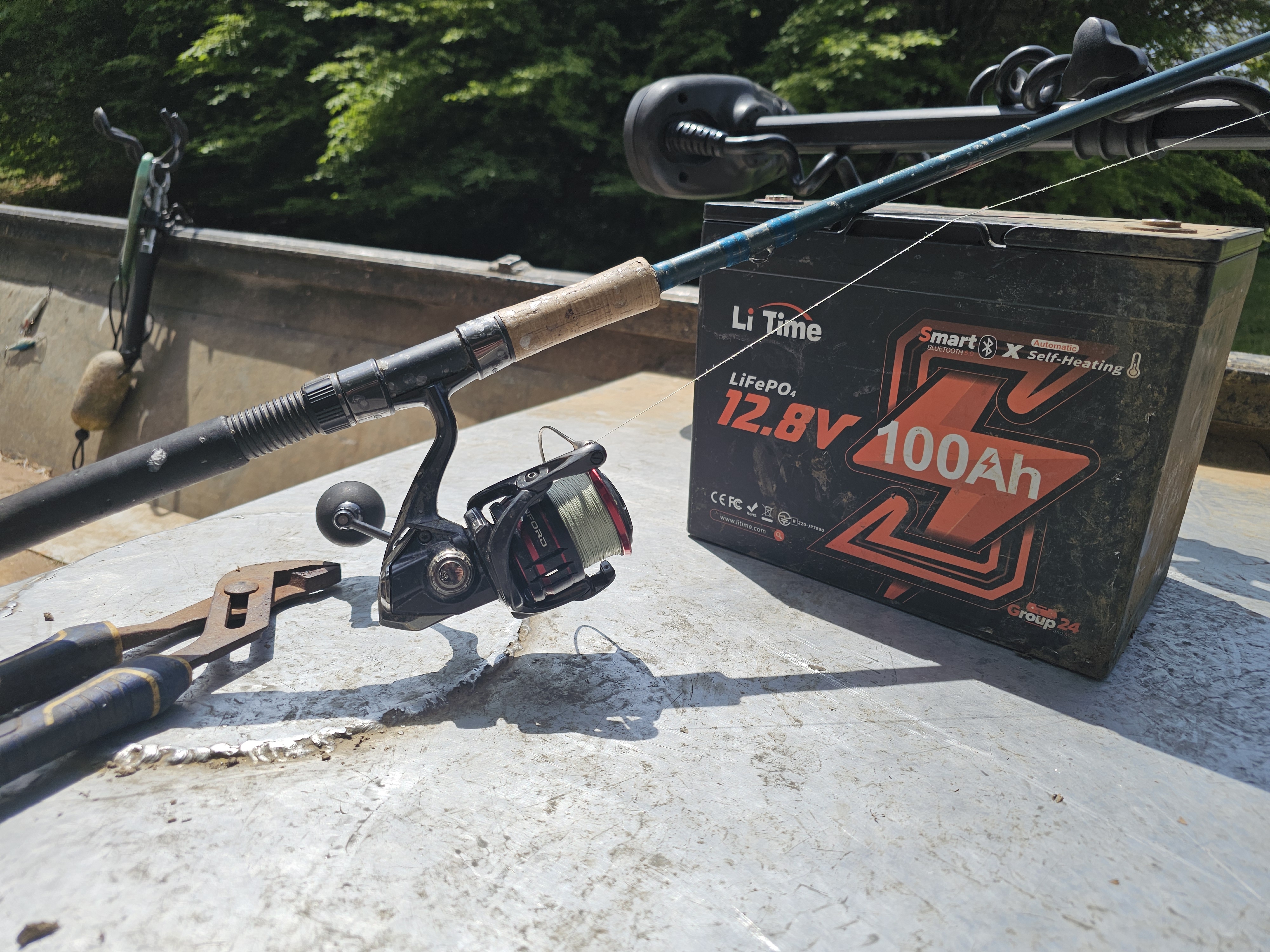

a close-up photo of a LiTime 100Ah group 24 battery on the deck of a boat in the warm, late afternoon sun

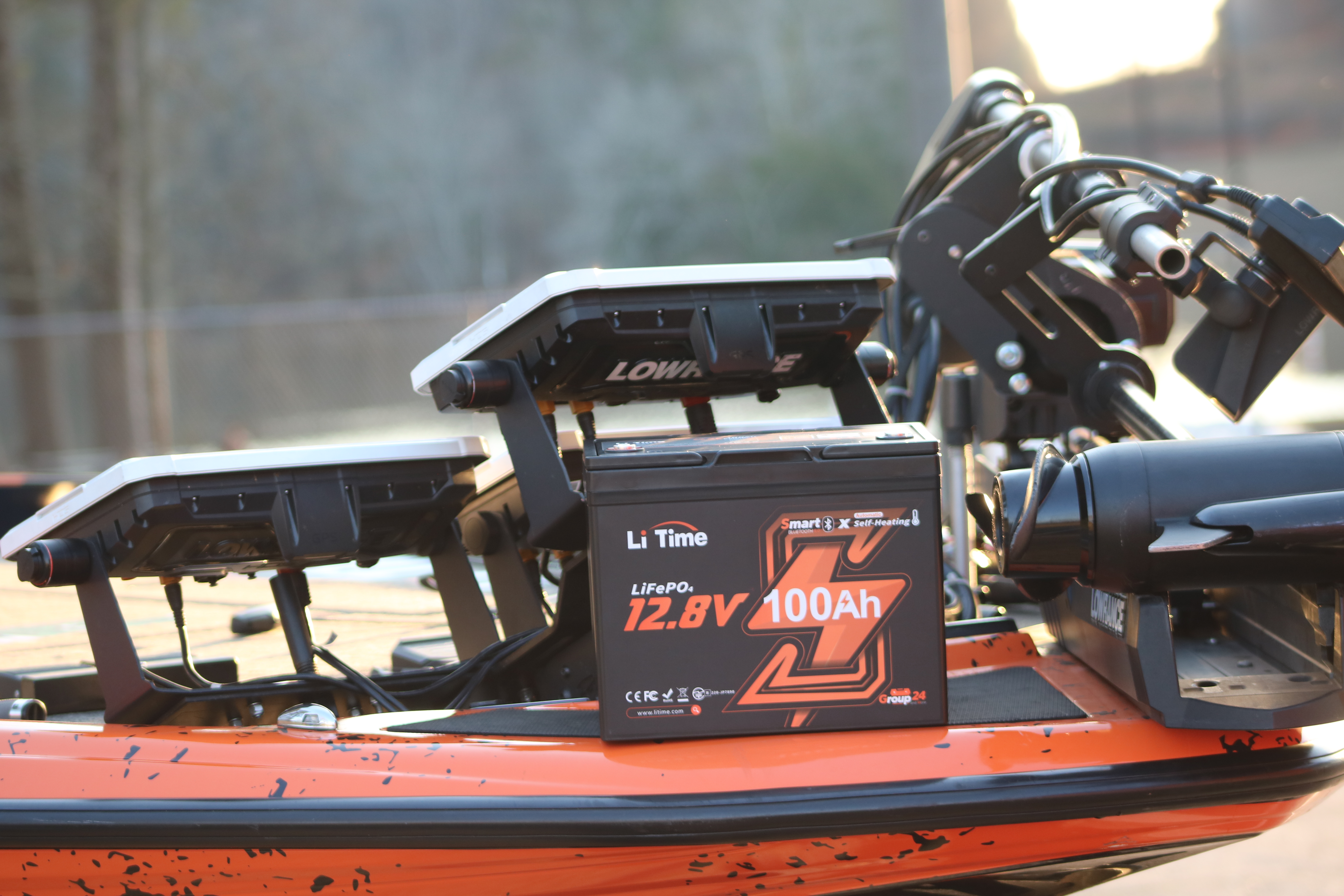

A LiTime self-heating group 24 battery sits on the bow of an orange bass boat, ready to power a trolling motor and electronics

A smiling man with a beard and hat gives a thumbs-up while holding a LiTime group 24 battery under the hood of his truck

See What’s Inside: Unboxing Now

SPECS

BATTERY

Cell Type：

LiFePO4

Warranty：

5 years

Cycle Life：

4000 Cycles at 100% DOD, 6000 Cycles at 80% DOD, 15,000 Cycles at 60% DOD

Nominal Voltage：

12.8V

Rated Capacity：

100Ah

Energy：

1280Wh

Max. Expansion (Parallel & Series)：

4P4S

Internal Resistance：

≤40mΩ

Certifications：

UL-1973, FCC, CE, RoHS, UN38.3, FCC ID, MIC

Bluetooth：

√

Self-Heating：

√

BMS

BMS：

100A

Max. Continuous Output Power：

1280W

Max. Continuous Charge Current：

100A

Max. Continuous Discharge Current：

100A

Max. Discharge Current 1 Second：

500A

CHARGE

Charge Method：

CC/CV

Charge Voltage：

14.4V ± 0.2V

Recommend Charge Current：

20A

TEMPERATURE

Charge Temperature：

-20°C to 50°C / -4°F to 122°F

Discharge Temperature：

-20°C to 60°C / -4°F to 140°F

Storage Temperature：

-10°C to 50°C / 14°F to 122°F

Low-Temperature Protection：

√

Automatic Discharge Off：

<-4°F/-20°C

Automatic Charge Off：

＜32°F/0°C

Automatic Charging Recovery：

≥41°F/5°C

SELF-HEATING

Heating Temperature：

Charge: -20°C to 5°C / -4°F to 41°F

Approx. Heating Time：

70-90mins (from -10°C/14°F); 100-150mins(from -20°C/-4°F)

Required Minimum Charge Current for Heating Function：

10A

OTHERS

Terminals：

M8 Bolts

Weight Approx.：

22.71 lbs

Size：

L10.24*W6.61*H8.27 in (Group 24 Size)

Housing Material：

ABS

Protection Class：

IP65

USER MANUAL

LiTime 12.8V 100Ah Group24 Smart Self-Heating Battery - User Manual.pdf

COMPARE

Nominal Voltage

Bluetooth

Self-Heating

Heating Temperature

Approx. Heating Time

Required Minimum Charge Current for Heating Function

Size

12V 100Ah Group24 Smart Self-Heating

$297.49 ~~$439.99~~

12.8V

√

Charge: -20°C to 5°C / -4°F to 41°F

70-90mins (from -10°C/14°F); 100-150mins(from -20°C/-4°F)

10A

L10.24*W6.61*H8.27 in (Group 24 Size)

12V 100Ah Self-Heating

$309.99 ~~$429.99~~

the surface of LiTime 12v self heating lithium battery

12.8V

√

Charge: -20℃ to 10℃ / -4℉ to 50℉

30-60 mins (from -10°C / 14°F); 70-100 mins (from -20°C / -4°F)

L13*W6.77*H8.43 in (Group 31 Size)

12V 200Ah Plus Self-Heating

$579.99 ~~$749.99~~

overview of LiTime 12v 200ah self heated lithium battery

12.8V

√

Charge: -20°C to 5°C / -4°F to 41°F

70-90 mins (from -10°C/14°F); 100-150 mins(from -20°C/-4°F)

20A

L21*W8.2*H 8.5 in

FAQ

How do I monitor the battery status?

This 12V lithium battery, equipped with an integrated Bluetooth module, enables convenient monitoring of the battery status using your smartphone through the LiTime App.

How does the self-heating function work?

The auto self-heating function will be activated by the BMS when the battery is connected to a charger at -20℃ to 5℃ (-4℉ to 41℉). The heating will stop when the battery temperature reaches 10℃ (-4℉).

Does the lithium battery charge itself while heating?

No. The charging will start after the lithium battery heats itself to 10℃ (50℉).

Can I add heating facilities to help with external heating?

External heating only heats the casing and does not heat the battery cells. In conditions of -20°C, after external heating for two hours, the battery cells temperature rise to 5°C, but the lead-acid casing temperature has risen to 70-80°C.

Therefore, it is not recommended to externally heat the battery, as the actual cell temperature cannot be determined at this time.

Are LiTime lithium batteries safe?

Yes. LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. LiTime lithium cells are certificated by UL, FCC, CE, RoHS, and UN38.3 to ensure their quality and safety.

All LiTime LiFePO4 batteries come with an internal Battery Management System, which protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage. Additionally, LiTime LiFePO4 Lithium batteries have been tested to be free from the risk of fire.

What should you do when you receive a new battery?

When you receive your battery, it may have a low state of charge (SOC) due to transportation and storage. To ensure optimal performance, charge the battery immediately to avoid over-discharge.

Batteries with Bluetooth functionality may arrive in an off state, showing a terminal voltage between 3V and 5V, and you won't be able to connect them to your phone. This is because they are shipped powered off, similar to mobile phones, to minimize self-discharge and extend the battery's lifespan.

There are 2 ways to solve the problem: using an AC-DC lithium battery charger or an MPPT solar charge controller to charge it for 3 to 10 seconds, then the battery can be used normally.

If you plan to store the battery for a long time, charge it to a SOC of 50% and perform maintenance every three months. This will help preserve its functionality and performance.

What's the dimension of group 24 battery?

The Group 24 battery is a standard model measuring 10.5″L x 6.1875″W x 8.875″H, commonly found in RVs, backup power systems, and medical equipment. These batteries are frequently utilized as deep cycle batteries rather than for starting engines.

What are the differences between Self-Heating and Low-temperature protection batteries?

These two series primarily address the charging issues of LiFePO4 lithium batteries in cold weather. The main difference between the Low-Temperature series and the Self-Heating series lies in the presence of an automatic Battery Management System (BMS) heating module. The Self-Heating series allows the battery to self-warm without any action required from the user while charging.

However, the Low-Temperature Protection series will automatically cut-off the charging when the temperature is below 0℃ (32℉), and it requires you to take some measures, such as placing the battery in a warm indoor environment, to warm it up to 5℃ (41℉) and restore charging capability.

Read on LiTime Low-Temperature Batteries VS Self-Heating Series for more information.

How many LiTime 100Ah group 24 lithium batteries can I connect at most?

LiTime group 24 batteries support versatile configurations, including series, parallel, and series-parallel connections.

Series connection: Up to 4 batteries
Parallel connection: Up to 4 batteries
Series-parallel connection: Up to 16 batteries

Important Notes:
For safe and stable operation, all connected batteries must meet the following criteria:
✔ Same specifications – Identical capacity (Ah) and BMS rating (A)
✔ Same brand – Different brands may have incompatible BMS settings
✔ Purchased within a short timeframe (ideally within one month)

REVIEWS

will definitely be buying from these guys again!

Wanted to shave a few pounds off my boat and get a little more juice, so I swapped out my old lead acid battery for this bad boy. Let me tell you—this thing did not disappoint.

Took it out for the first time yesterday and trolled for 7 hours straight. I basically treated this battery like a rented mule, and it just shrugged and kept going. Only used 12% of its capacity the whole trip. My 55 lb thrust trolling motor was living its best life with zero power issues.

According to the app, if I kept using power at the same rate, I could’ve trolled for 28 hours. At that point, I’d need a nap before the battery did.

Super happy with this purchase—will definitely be buying from these guys again!

Fast shipping

Fast shipping ,light weight and small footprint! I used 3 of the size 24 for my 36 volt trolling motor. This was the only size I could fit in my battery compartment. So far they work great.

LiTime 12V 100Ah Group 24 Bluetooth Lithium Battery with Self Heating

Replaced two deep cycle marine batteries with one of these. Seems to work great. The Bluetooth and app is a nice feature. Haven't been able to test it in cold weather yet as it is summer here in New England.

Got it activated and charged

Got it activated and charged, and easily installed in my Li-ready Intech Sol Horizon (2022 model). I was glad not to have to install a Li charger/converter; just flip a microscopic switch on the circuit board and good to go.
Seems to work fine so far. The smart feature is nice; I can check my phone for battery condition.Haven't had it out yet, so I am withholding 5th star for now.

LiTime 12V 100Ah Group 24 Bluetooth Lithium Battery with Self Heating

Does it's job...

Very feature rich battery at a great price. I have two on my little RV and they work great.

12v 100Ah Group 24 Bluetooth w/ Self Heating fantastic replacement for RV.

These have been outstanding so far(2 weeks installed). I replaced 2 24 series deep cycle lead acids. They are exactly the right size for my battery box and easy to wire. SO MUCH MORE capacity than the lead acid they replaced.

Rv sla upgrade

Shipping was great. Replaced SLA batteries in our rv with these. So far 1 week in, everything is working just find. Bluetoothing to batteries, etc. I installed in parallel 2 100ah for our needs and converter woke them up and took about 4hrs? Ish to reach full charge. Customer service stayed in contact to make sure product arrived and working.

All Reviews

Official Website Only

Advantages of Buying from LiTime.com: Benefits, Discounts, And VIP Service

Official Website Discount

Quick View

A friendly customer support agent with a headset, symbolizing professional LiFePO4 expert support

LiFePO4 Experts Support

Quick View

Risk-Free Warranty

Quick View

Free Shipping

Quick View

a hand receiving gold coins, representing the LiPoints and customer rewards program

LiPoints & Rewards

Quick View

One-Stop-Solution

Quick View

Why LiTime is Your Best Choice

icon shows litime is no.1 in lifepo4 battery industry

TOP 1 LiFePO4 Brand

As the #1 LiFePO4 battery brand, LiTIme leads the market with the most complete power solutions—covering RVs, home storage, marine, golf carts, off-grid systems, and beyond.

15-Year Expertise

With 15 years of industry experience, LiTime serves over 350,000+ users globally, ensuring quality and trust. LiTime keeps innovating and has your back, always.

24/7 Expert Support

With 24/7 expert support and an average 24-hour response time, we ensure you get the help you need, anytime. Whether it's pre-sales or after-sales, we guarantee 100% support every step of the way.

Expert-Backed Quality

LiTime is certified by top organizations like RVDA, backed by over 70+ patents and recognized for quality. Let authorities and patents prove why LiTime leads the way.

Industry-Leading Tech

With EV-grade cells passing 80+ tests and a self-developed BMS with under 1% margin of error, LiTime batteries ensure 15,000 cycles, 20+ protections, and up to 10 years of reliable performance.

icon shows litime batteries multiple features

Cutting-Edge Features

LiTime batteries offer a range of advanced features, including Bluetooth, low-temperature protection, self-heating, high-rate discharge, pre-charging, ensuring reliable power and peace of mind in any environment.

User-Driven Power Stories

See how LiTime batteries are changing the way real users power their lives.

0 +

Years of Industry Expertise

0 +

Countries & Regions

0 +

Intellectual Property Rights

0 +

User Insights

litime lithium golf cart battery customer review: a red golf cart sits on grass

Matt Elliott

The weight difference was incredible. One 6v Battery weighed 63 lbs. this battery 38 lbs!

litime customer feedback of using lithium trolling motor battery in kayak

Reel in Florida

I think the mini is the real star of the show. 100ah in this small a package is perfect for kayaks and other small craft.

Patrick Dwivedi

I love the lighter weight of the battery. I no longer need to call on my trusty neighbors to help me install the battery inside my VW Bus.

Paul Muller

Shipping was extremely fast ( received within two days after placing order). Batteries work like a charm for our camper.

[KellG]

For the performance & reliability, I do recommend this battery

A LiTime 51.2V 100Ah battery is placed on carpet, showcasing its features alongside a tennis ball for scale, in a customer review

Dan M

The amount of power that this battery can instantly dump into the cart is awesome.

Eric Anderson

Used my new LiTime 12v 200a batteries for the first time this weekend. Couldn’t be happier!

litime customer feedback of using the battery powering fish finders

mtkeane

I would say that not only are the products great, but so is the customer service.

Greg Sapp

Very impressed with the quality and the documentation provided by LiTime.

customer review of litime lithium 12v 140ah dual purpose marine battery

Reel in Florida

The best upgrade you can make!

Artie H

Li Time US , Great customer support services

litime customer feedback of a man holding a 12v 140ah group 31 battery showing his satisfaction

Andrew Martin

This charger is a beast! Pleasantly surprised so far with LiTime products.

litime lithium golf cart battery customer review: A person stands by the golf cart

John D. Hollingsworth, Jr.

After many months of debate, I finally bit the bullet and rebuilt my Stealth 4x4 cart with the new batteries.

Customer

So far for my golf cart it's been a great battery I got the 10amp charger also no problems.

Eve Ford

Great customer service! The batteries ran our solar system on our camper with no problem.

Klaus Feldmeier

The replacement was straight forward - the new LiTimes batteries are nearly 50% lighter than the lead acid batteries.

Scott Winebarger

No complaints yet, still building my system, so far, I am impressed

[Timothy Vaughan] Vaughan

Already had my 100ah trolling motor battery out several times and it’s delivered in spades. Very happy with my purchase!

John Hogan

Though I had to reconfigure the base of the robot, I have more than enough battery capacity to run for hours.

Perry Mahnke

It's amazing how much lighter the LiTime Mini batteries are, the conversion was easy, and the fit & finish on the LiTime Minis is great.

Anthony Carita

Love how light this battery is. My mower lost about 100 Lbs of weight. The battery has a nice case and looks top quality.

Rob D.

Great Products. Really Great Support.

Matt Elliott

The weight difference was incredible. One 6v Battery weighed 63 lbs. this battery 38 lbs!

Reel in Florida

I think the mini is the real star of the show. 100ah in this small a package is perfect for kayaks and other small craft.

Patrick Dwivedi

I love the lighter weight of the battery. I no longer need to call on my trusty neighbors to help me install the battery inside my VW Bus.

Paul Muller

Shipping was extremely fast ( received within two days after placing order). Batteries work like a charm for our camper.

[KellG]

For the performance & reliability, I do recommend this battery

Dan M

The amount of power that this battery can instantly dump into the cart is awesome.

Eric Anderson

Used my new LiTime 12v 200a batteries for the first time this weekend. Couldn’t be happier!

mtkeane

I would say that not only are the products great, but so is the customer service.

Greg Sapp

Very impressed with the quality and the documentation provided by LiTime.

Reel in Florida

The best upgrade you can make!

Artie H

Li Time US , Great customer support services

Andrew Martin

This charger is a beast! Pleasantly surprised so far with LiTime products.

John D. Hollingsworth, Jr.

After many months of debate, I finally bit the bullet and rebuilt my Stealth 4x4 cart with the new batteries.

Customer

So far for my golf cart it's been a great battery I got the 10amp charger also no problems.

Eve Ford

Great customer service! The batteries ran our solar system on our camper with no problem.

Klaus Feldmeier

The replacement was straight forward - the new LiTimes batteries are nearly 50% lighter than the lead acid batteries.

Scott Winebarger

No complaints yet, still building my system, so far, I am impressed

[Timothy Vaughan] Vaughan

Already had my 100ah trolling motor battery out several times and it’s delivered in spades. Very happy with my purchase!

John Hogan

Though I had to reconfigure the base of the robot, I have more than enough battery capacity to run for hours.

Perry Mahnke

It's amazing how much lighter the LiTime Mini batteries are, the conversion was easy, and the fit & finish on the LiTime Minis is great.

Anthony Carita

Love how light this battery is. My mower lost about 100 Lbs of weight. The battery has a nice case and looks top quality.

Rob D.

Great Products. Really Great Support.

Power You Can Trust, Backed By Experts

The Power Behind Experts, Adventures, And The World’s Best

Media

Association

"Globally trusted, LiTime’s innovation in energy solutions sets a new industry standard."

"LiTime combines cutting-edge technology with unmatched reliability, powering users' lives worldwide."

"LiTime’s LiFePO4 batteries provide outstanding performance, making it the top choice for customers."

"LiTime delivers powerful, reliable, and sustainable energy solutions tailored to meet every need."

"LiTime’s customer-centric approach drives the development of unparalleled energy solutions."

"LiTime's energy solutions combine advanced R&D with real-world user insights for unmatched reliability."

"With extensive research backing it, LiTime’s products are engineered for superior quality and durability."

"Renowned for its exceptional battery technology, LiTime is a trusted leader in energy innovation."

"The world trusts LiTime for innovative and dependable energy solutions, powering homes and businesses."

"LiTime's global reputation for excellence is built on performance, reliability, and cutting-edge technology."

"LiTime’s LiFePO4 batteries are the perfect fusion of innovation and reliability for every user."

"LiTime’s commitment to research ensures their products remain at the forefront of energy solutions."

"LiTime's power solutions are trusted by users globally, offering unmatched performance and longevity."

"LiTime’s success stems from combining groundbreaking technology with a deep understanding of customer needs."

"LiTime pioneers the future of energy with innovation, reliability, and sustainability."

LiTime batteries are installed to ABYC E-13 standards, fully compliant with lithium battery requirements.

Powering passion on the water – as a member of IGFA.

Proud Member of GCSAA – Trusted by golf course professionals nationwide.

Member of RVDA – Serving the RV Industry with advanced lithium power.

Powering the RV lifestyle with Escapees-backed lithium technology.

Official FMCA commercial member delivering trusted power for motorhome owners.

Supporting professional anglers and sustainable fishing through the National Professional Anglers Association.

Login to LiTime

Create a LiTime Account

Forgot your Password?

Change your password.

Reset Your Password

Verify your email address.

We have sent you an email

Set Your Password

LiTime 12V 100Ah Group 24 Bluetooth Lithium Battery with Self Heating

Meet LiTime's Latest Invention - Your 2025 Must-have Breakthrough LiFePO4 Battery

Features

Built-in Self-heating Tech for All-weather Charging

Heat up Fast, Power up Faster

Beat the Cold with 2 Self-heating Modes

EV Grade Cells, Enhanced Performace

Self-developed BMS, 20+ Advanced Protection

Stay Connected to Your Battery Anywhere with Bluetooth

Best Replacement for 12V 100Ah Lead-Acid Batteries

Up to 51.2V 400Ah Battery Power Bank

4 Flexible Charging Methods

Power Your Life, No Matter Where You Are

Trusted Power for Every Journey

See What’s Inside: Unboxing Now

SPECS

BATTERY

BMS

CHARGE

TEMPERATURE

SELF-HEATING

OTHERS

USER MANUAL

COMPARE

12V 100Ah Group24 Smart Self-Heating

12V 100Ah Self-Heating

12V 200Ah Plus Self-Heating

FAQ

How do I monitor the battery status?

How does the self-heating function work?

Does the lithium battery charge itself while heating?

Can I add heating facilities to help with external heating?

Are LiTime lithium batteries safe?

What should you do when you receive a new battery?

What's the dimension of group 24 battery?

What are the differences between Self-Heating and Low-temperature protection batteries?

How many LiTime 100Ah group 24 lithium batteries can I connect at most?

REVIEWS

Customer Reviews

Official Website Only

Official Website Discount

LiFePO4 Experts Support

Risk-Free Warranty

Free Shipping

LiPoints & Rewards

One-Stop-Solution

Why LiTime is Your Best Choice

TOP 1 LiFePO4 Brand

15-Year Expertise

24/7 Expert Support

Expert-Backed Quality

Industry-Leading Tech

Cutting-Edge Features

User-Driven Power Stories

Power You Can Trust, Backed By Experts

Get an Exclusive 5% OFF Discount

Shop By

Applications

Support

Company
