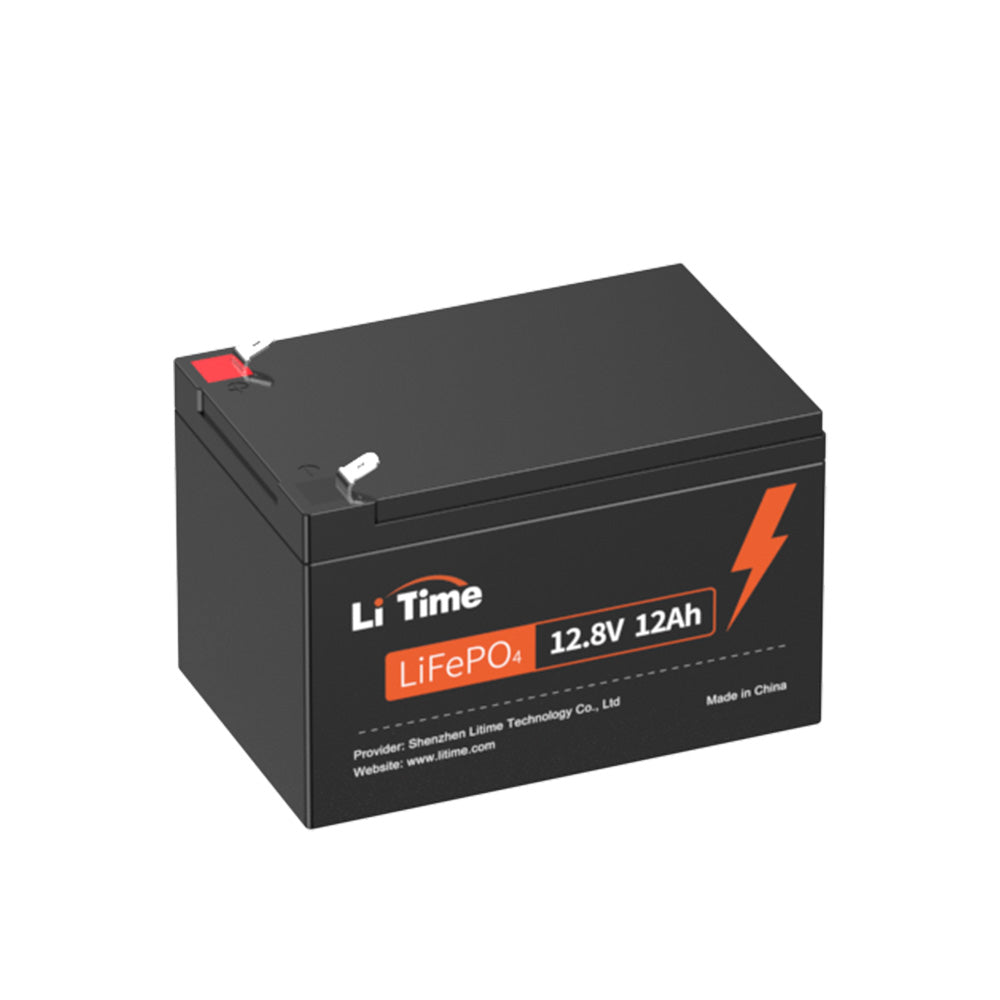

LiTime 12V 12Ah LiFePO4 Lithium Battery for Fish Finder

【3-Year Warranty】LiTime offers a 3-year warranty for the LiTime 12V 12Ah batteries. LiTime provides professional technical support and customer service as phone support or online services with quick feedback within 24 hours. If you have any questions during use, please feel free to contact us, we will do our best to meet your needs.
【Superior Performance】LiTime 12V 12Ah LiFePO4 Battery is a perfect replacement for traditional lead-acid batteries since LiFePO4 Cells with higher energy density, better stability performance, and greater power.
【4000+ Cycles & 10 Years Lifetime】LiTime 12Ah lithium batteries have a low self-discharge rate and support 100% DOD and 100% SOC, providing better performance and longer battery life. LiTime 12V 12Ah lithium battery can run 4000+ cycles, its lifetime can last up to 10 years.

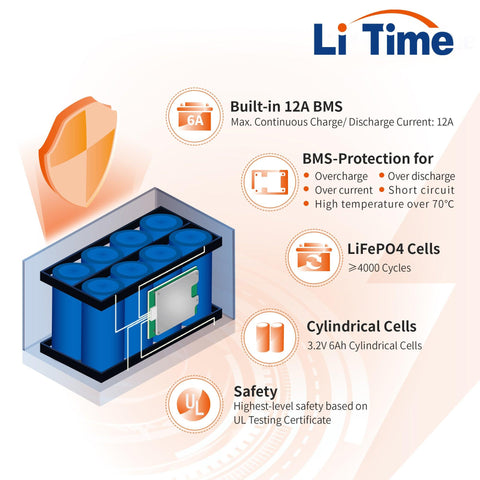

【100% Protection】LiTime 12V12Ah lithium batteries with built-in 12A battery management system (BMS) to protect batteries from overcharge, over-discharge, over-current, over temperature, and short circuit.
【Safe & Eco-Friendly】LiTime 12V 12Ah LiFePO4 battery provides the highest-level safety based on CE, ROHS, and FCC certifications. The battery won’t burn or explode because of the stable LiFePO4 cell structure. And it doesn’t contain any heavy metals or rare metals and is more environmentally friendly.
【Widely Used Applications】LiTime 12Ah lithium battery is perfect for fish finders, kids' scooters, LED lights, phones, fans, alarm systems, security cameras, game machines, outdoor camping, laptop, etc.

$69.99
$74.99
$69.99
Please hurry! Only 2 left in stock
Subtotal: $69.99

Free Shipping

Free standard shipping on all orders

Estimated to be delivered within 2-5 business days.

3 Years Warranty

Backed up by techical support within 24hrs.

Free Returns

30 Days Hassle Free Returns
litime 12 volt 12ah deep cycle lithium battery

LiTime 12V 12Ah LiFePO4 Lithium Battery for Fish Finder

$74.99 $69.99

LiTime 12V 12Ah LiFePO4 Lithium Battery for Fish Finder

$74.99 $69.99

Frequently Bought Together

litime 12 volt 12ah deep cycle lithium battery 1000
$74.99 $69.99
battery charger for 12v lithium rv and trolling motor 1000
$99.99 $74.99
lithium battery box 1000
$129.99 $89.99
Price Total: $0.00

    SPECS

    BATTERY
    Cell Type:
    LiFePO4 Cylindrical
    Warranty:
    3 Years
    Cycle Life:
    4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
    Nominal Voltage:
    12.8V
    Rated Capacity:
    12Ah
    Energy:
    153.6Wh

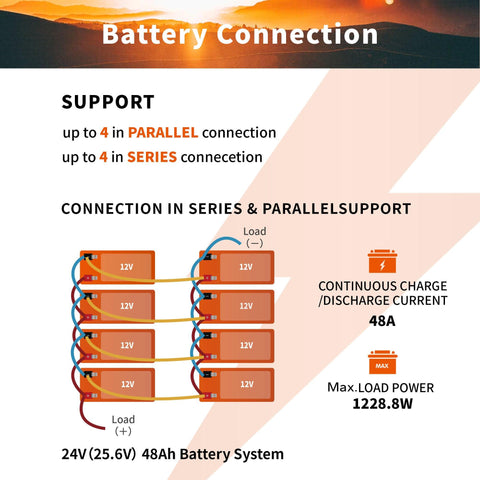

    Max. Expansion (Parallel & Series):
    4P4S
    Internal Resistance:
    ≤50mΩ
    Certifications:
    UL, FCC, CE, RoHS, UN38.3
    BMS
    BMS:
    12A
    Max. Continuous Output Power:
    153.6W
    Max. Continuous Charge Current:
    12A
    Max. Continuous Discharge Current:
    12A
    Max. Discharge Current 5 Seconds:
    50A
    CHARGE
    Charge Method:
    CC/CV
    Charge Voltage:
    14.4V ± 0.2V
    Recommend Charge Current:
    2.4A (0.2C)
    TEMPERATURE
    Charge Temperature:
    0℃ to 50℃ / 32℉ to 122℉
    Discharge Temperature:
    -20℃ to 60℃ / -4℉ to 140℉
    Storage Temperature:
    -10℃ to 50℃ / 14℉ to 122℉
    OTHERS
    Terminals:
    F2
    Weight Approx.:
    3.42 lb/1.55kg

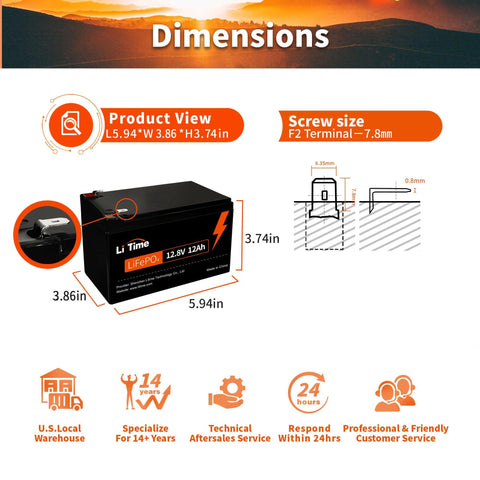

    Size:
    L5.94*W3.86*H3.74 inch
    Housing Material:
    ABS (Flame Retardant Plastic)
    Protection Class:
    IP65

    FAQ

    Q: What is the lifespan of LiTime 12V 12A LiFePO4 lithium battery?

    A:

    LiTime LiFePO4 lithium battery can be used for 4000-15000 life cycles. Depending on usage Itan be used 10 years or more. Lead acid and AGM get roughly 300-500 life cycles before their capacity is reduced substantially. Therefore, even though there is more upfront cost with a LiTime LiFePO4 Battery, the upgraded saves you big over time.

    Q: How do I know what size of LiFePO4 lithium battery I need?

    A:

    It's more about what your priorities are. LiTime LiFePO4 lithium battery has about twice the capacity as lead acid and AGM batteries. So, if your goal is to get more usable battery time (Amps) then you should upgrade to a battery with the same Amps (or more). I.e. if you replace a 100amp battery with a LiTime 12V 100Ah LiFePO4 Lithium Battery, you will get about double the usable amps, with about half the weight. If your goal is to have a smaller battery, much less weight, or less expensive. Then you can replace the 100amp battery with a LiTime 12V 50AH LiFePO4 Lithium Battery. You will get about the same usable amps (time), it would cost less, and it's about 1/6 the weight. Refer to the spec sheet for dimensions or email us with further questions or custom needs.

    Q: Are LiTime LiFePO4 lithium batteries safe?

    A:

    Yes. LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. LiTime lithium cells are UL certified for the highest safety and sustainability standards. All LiTime LiFePO4 batteries come with an internal Battery Management System which protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage. Additionally, LiTime LiFePO4 Lithium batteries have been tested to be free from the risk of fire, and electric shock in harsh environments.

    Q: Can I use LiTime LiFePO4 lithium batteries as starting batteries?

    A:

    No. LiTime LiFePO4 lithium batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices.

    Q: Can I charge LiTime LiFePO4 lithium batteries wiith solar panels?

    A:

    Yes, you can charge LiTime LiFePO4 lithium batteries with solar panels. You should size your charge controller based on the voltage and current output of your solar array setup. That will ensure that your charge controller can process and regulate the power coming from your solar panels. Take a 24V MAX. 22 amps output solar system as example. You would need a solar charge controller that can handle 24 volts and 27.5 amps (125% of your max current output).

    Q: Can I charge LiTime LiFePO4 lithium batteries in cold weather (under freezing temperatures)?

    A:

    LiFePO4 batteries can safely charge between 32°F to 113°F (0°C to 45°C). LiTime 12V 100Ah Smart LiFePO4 batteries include the low-temperature charging protection which will automatically cut the battery charging off when the cell temperature is lower than 32℉, thus preventing the battery cells from damage when charging under the freezing point. If necessary (not recommended), you can push the low-temp protection button twice, then the BMS would allow your battery to charge under the freezing point for emergency use.

    Q: How do I store LiTime LiFePO4 lithium batteries?

    A:

    It is recommended to store LiTime LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, cycle the batteries at least every 6 months. Recommended storage environment: 10℃~35℃ (50℉~95℉), 45%RH~75%RH

    REVIEWS

    Customer Reviews

    Based on 1 review
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    P
    Paula Gibeault
    We are really impressed with this battery!

    We use 12 Ah 12 V batteries to power "countdown time displays" for rally racing cars at the start line of each stage (time trial section). The displays use bright LEDs so the competitors can watch their start time approach, even in daylight.
    We have been using AGM batteries for years, but decided to try the LiFePO4 Lithium battery. We were happy with how much lighter it was, and its full charge voltage of 13.45 V made the LEDs brighter than we had ever seen before.
    We then tested the battery and discovered it performed perfectly for 14 hours of steady use!
    Attached is the graph showing the difference between the new LiTime battery and two of our newest AGM batteries. As you can see, even after 14 hours, it produced more than a FULLY CHARGED AGM battery!
    We're ordering more to replace our current batteries - these are great!

    Customer Reviews

    Based on 1 review
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    P
    Paula Gibeault
    We are really impressed with this battery!

    We use 12 Ah 12 V batteries to power "countdown time displays" for rally racing cars at the start line of each stage (time trial section). The displays use bright LEDs so the competitors can watch their start time approach, even in daylight.
    We have been using AGM batteries for years, but decided to try the LiFePO4 Lithium battery. We were happy with how much lighter it was, and its full charge voltage of 13.45 V made the LEDs brighter than we had ever seen before.
    We then tested the battery and discovered it performed perfectly for 14 hours of steady use!
    Attached is the graph showing the difference between the new LiTime battery and two of our newest AGM batteries. As you can see, even after 14 hours, it produced more than a FULLY CHARGED AGM battery!
    We're ordering more to replace our current batteries - these are great!
