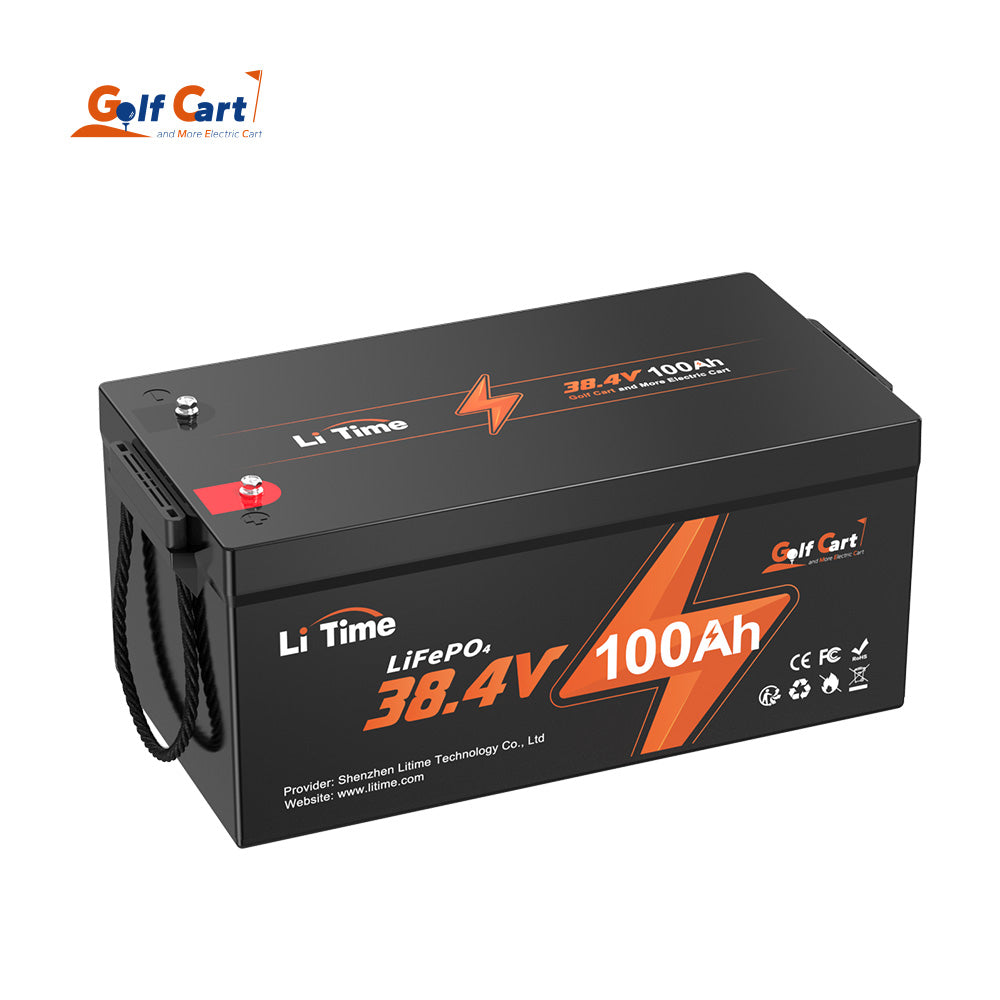

LiTime 36V 100Ah Lithium Golf Cart battery, 200A BMS, 3840Wh Energy

  • Born for Golf Carts(Club Car, EZGO, ICON & Yamaha)

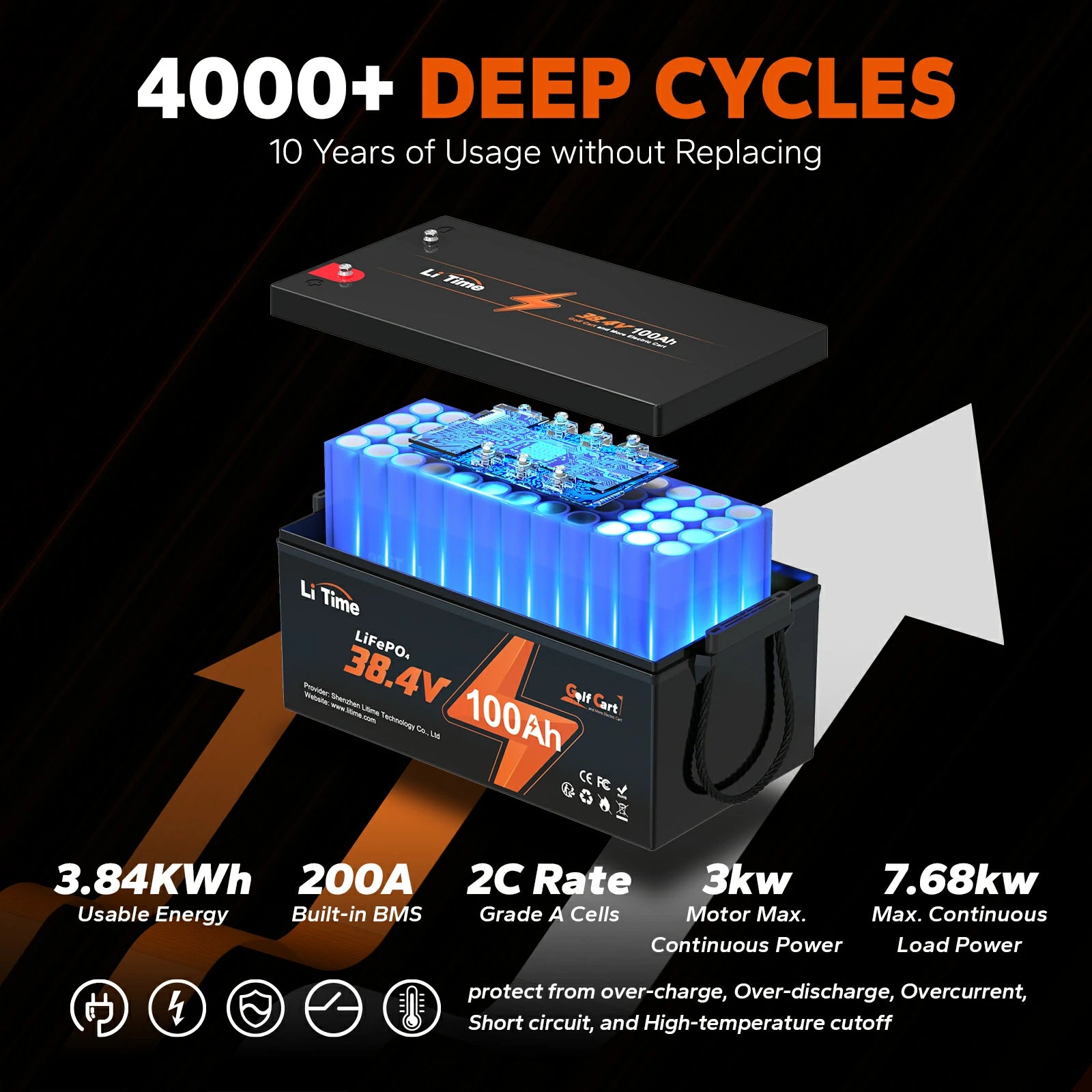

  • EV Grade A+ LiFePO4 Cells: more than 10-year lifespan, 4000+ cycles at 100% DOD, 6000+ cycles at 80% DOD and 15,000+ cycles at 60% DOD
  • 2C Discharging Rate: Max 2C continuous discharging, low internal resistance and 650A (1s) peak current make your cart easily drive through steep slopes.
  • Unlock Remarkable Energy: release 3840Wh energy to drive your cart approx 30~35 miles.
  • Built to Last: a robust 200A BMS to protect it from over-current, over-charging, over-discharging, short circuits and overheating.
  • Ultra-Large Output Power: Max. 5000W for golf cart, Max. 7680W for home energy
  • Upgrade Cart Performance: 85% lighter and 50% smaller than 6* 6V 210Ah lead-acid batteries, it prolongs the life of the cart's components  and makes your golf cart more maneuverable, faster and with less wear & tear.
  • Ultra-Low Energy Consumption: with 71.68Wh/km, it provides double longer runtime on each charge.
  • Group 8D Size:  L20.47*W10.59*H8.66 inch, suitable and popular for most scenarios.
  • Lower Total Cost of Ownership: It costs at 0.1$/kWh, lowering operating costs by around US$100 annually(no intermediate replacement and regular maintenance).
  • Widely Using: fit for golf carts, 36V all-terrain vehicles (ATV), electric tricycles (≤21 mph/35km/h), boathouses, electric outboard motor, home backup power, etc
  • Max 4P: build a 38.4V 400Ah to release 15.36kWh energy
  • Faster 2 Charging Ways: Max. 1C charging & supports LiFePO4 charger/Solar
  • The Best Service: fast delivery, 24-hour response & 5-year warranty
$1,194.99
$1,733.32
$1,194.99
Please hurry! Only 8 left in stock
Pack: 1 Pack
Subtotal: $1,194.99

Free Shipping

Free standard shipping on all orders

Estimated to be delivered within 2-5 business days.

5 Years Warranty

Backed up by techical support within 24hrs.

Free Returns

30 Days Hassle Free Returns
LiTime 36V 100Ah Lithium Golf Cart battery

LiTime 36V 100Ah Lithium Golf Cart battery, 200A BMS, 3840Wh Energy

$1,733.32 $1,194.99

LiTime 36V 100Ah Lithium Golf Cart battery, 200A BMS, 3840Wh Energy

$1,733.32 $1,194.99
Pack: 1 Pack

Frequently Bought Together

LiTime 36V 100Ah Lithium Golf Cart battery 1000
$1,733.32 $1,194.99
Choose Options
Choose Options
Pack: 1 Pack
Hurry up! only 8 left

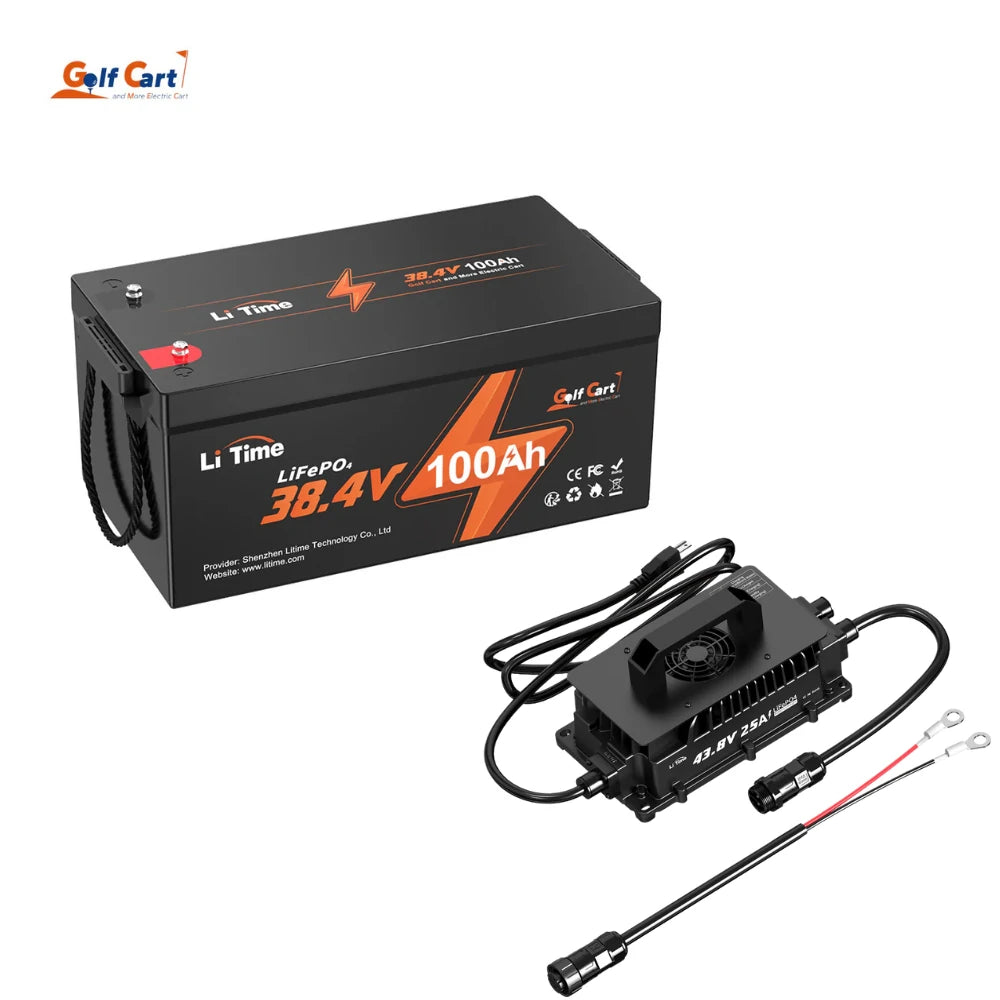

LiTime 36 Volt (43.8V) 25A LiFePO4 IP65 Waterproof Charger 1600
$314.27 $219.99
LiTime 36V 100Ah Lithium Golf Cart battery 1000
$1,733.32 $1,103.99
Choose Options
Choose Options
Title: Used - Like New
Hurry up! only 1 left
battery monitor with shunt 1000
$99.99 $79.99
battery disconnect switch 1000
$39.99 $29.99
Price Total: $0.00

    Customer Reviews

    Based on 1 review
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    C
    Craig Nelson
    Battery seems good but be aware of the size since it is a single battery pack.

    I have used LiTime batteries for a a few years now so I wanted to stick with a brand I trusted. This golf cart battery will hopefully continue that relationship. The battery has a physically small base footprint than the published size would indicate so be mindful of that. (hopefully they are correcting that issue with better documentation). The battery itself seems to operate as expected.. I replaced six 235Ah lead acid batteries with this single 36v 100Ah LiFePO4 golf cart battery. I did have to "rework" the battery compartment because this single battery is bigger than any one of the six it replaced. We shall see how it lasts, but given my past experience with their batteries I don't think that will be an issue.

    Customer service is something that is very important to me and the LiTime customer service has been very responsive and helpful.

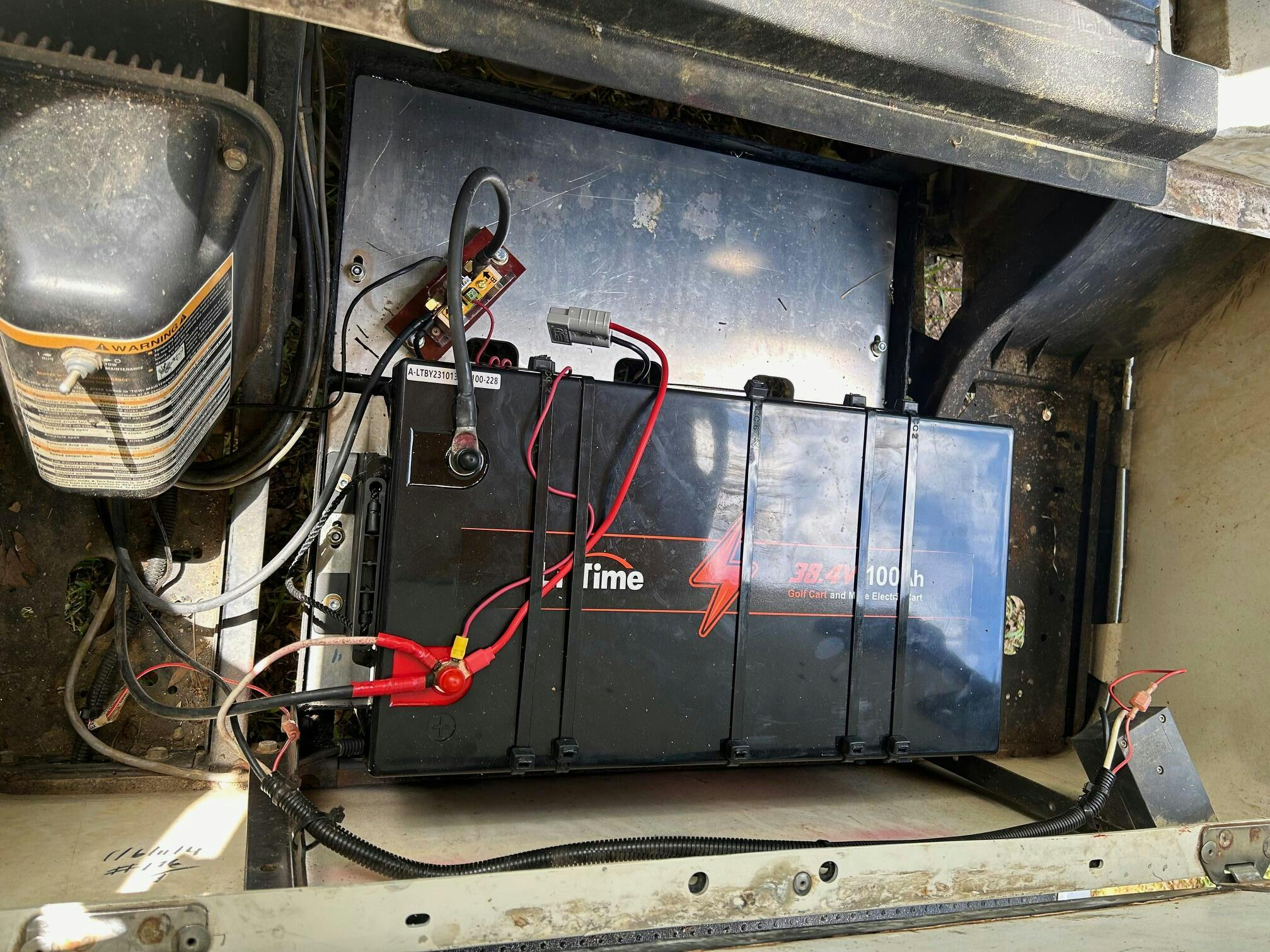

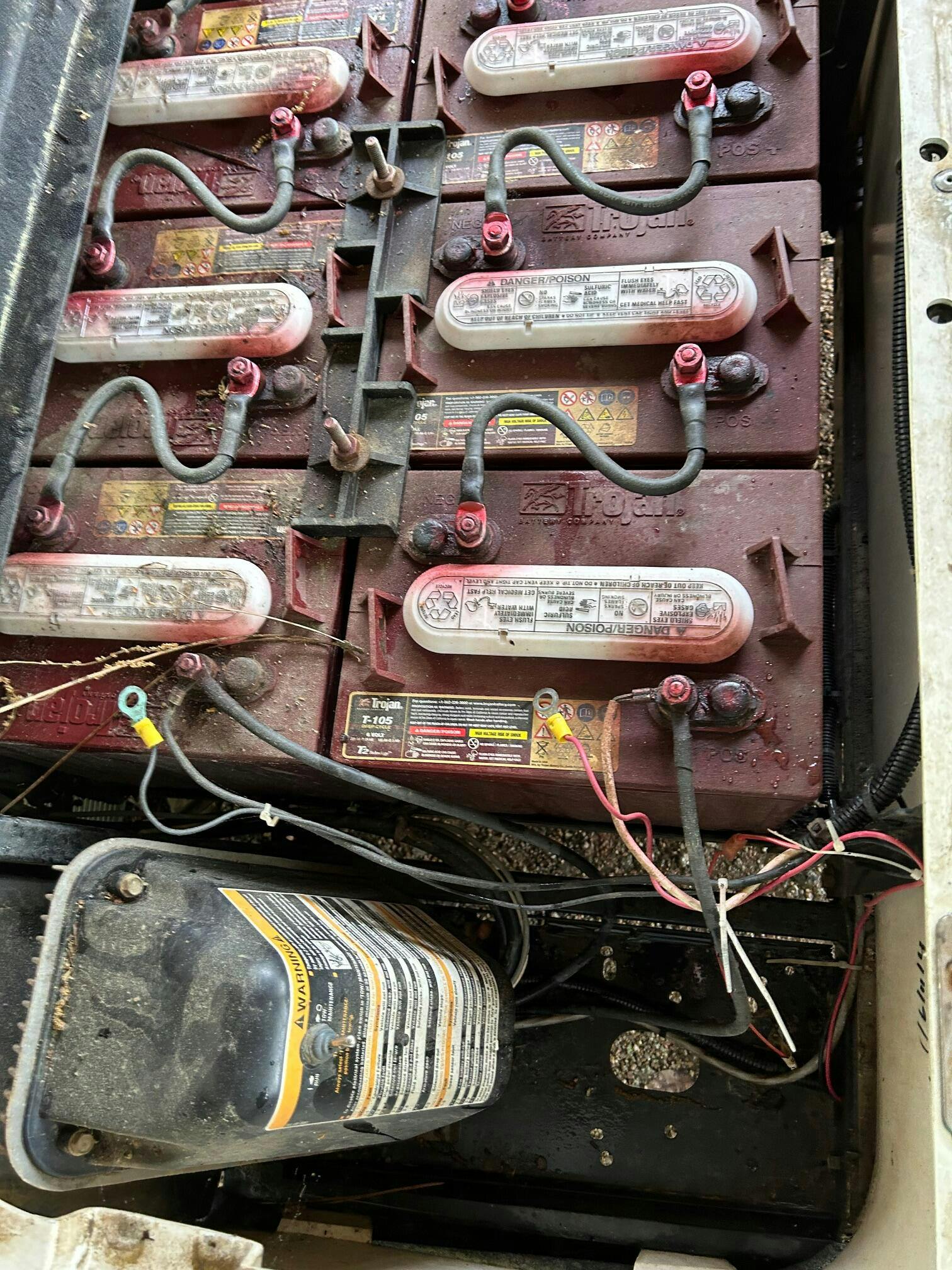

    I recommend the brand. Pictures are before and after.

    Built to Last: LiTime Lithium Batteries for 36V Golf Cart
    LiTime 36V 100Ah Golf Cart lithium Battery, born for golf carts, is perfectly compatible with golf cart brands of Club Car, EZGO, ICON & Yamaha. Whether accelerating up punishing hills or unleashing blasts of torque, It can easily power your golf cart to drive through with its Max 2C continuous discharging current and 350A(1S) peak discharging current.
    36v battery for golf cart
    Unleashing Boundless Power
    Boasting an enormous 3840Wh energy, these 36V golf cart batteries realize a longer driving range. On a full charge, it supports over 30~35 miles of travel, making you drive your golf cart without energy stress and free to roam across the golf course all day long.
    36v battery for golf cart
    LiTime 200A BMS Smart Protection
    Built with a robust 200A BMS, LiTime 36V lithium golf cart batteries safeguard themselves from overcurrent, overcharging, over-discharging, short circuits and overheating, ensuring you a long-term reliable lithium battery.reliability by protecting against overcurrent, overcharging, over-discharging, short circuits and overheating
    36v golf cart batteries

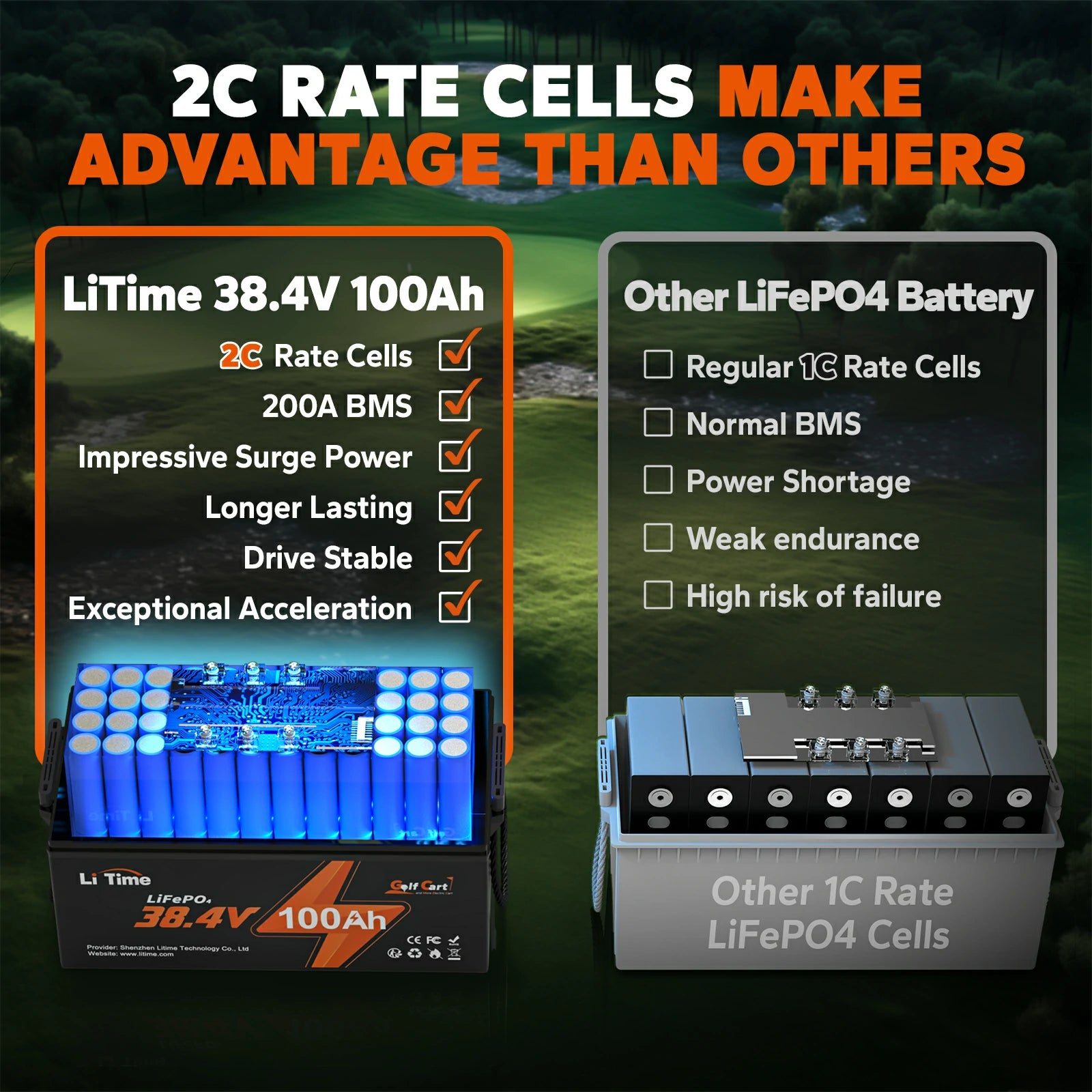

    2C Continuous Discharging, Powerful Than Ever
    LiTime 36V battery for golf cart uses EV grade A+ LiFePO4 cells, which support Max 2C continuous discharging and 650A(1S) peak discharging current. It's easy for your golf cart to drive through any steep slope.
    36v golf cart battery

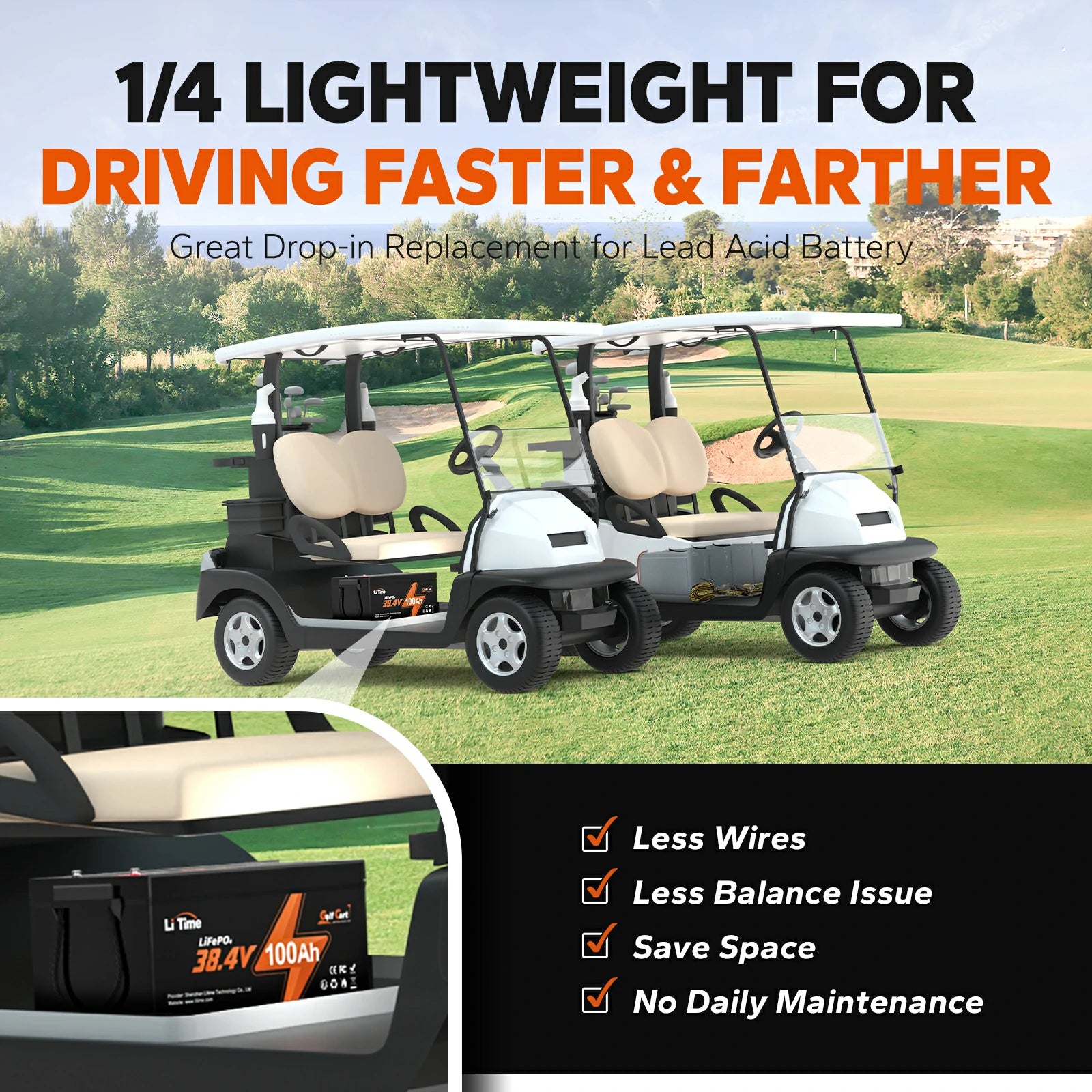

    Superior to Lead-Acid in All Aspects
    Compared with 6V 210Ah lead-acid batteries, one LiTime 36V 100Ah golf cart battery can offset 6* 6V 210Ah lead-acid batteries in usable energy at 1C diacharging condition. Most importantly, LiTime golf cart battery is 50% smaller and 85% lighter, greatly improving your cart's maneuverability, speed and torque of the golf carts and prolonging the service life of the cart's components.maneuverability. It prolongs the service life of the cart's tires, brakes, and other components, significantly improving the speed and torque of the golf carts
    36v golf cart batteries
    Durable, Smoother & Safer
    Compared to similar lithium batteries under the same operating conditions, LiTime 36V lithium battery for golf cart has overcurrent charging protection to improve the cart's resistance to reverse charging, ensuring you a more durable golf cart battery to drive smoother and safer.
    36v golf cart batteries

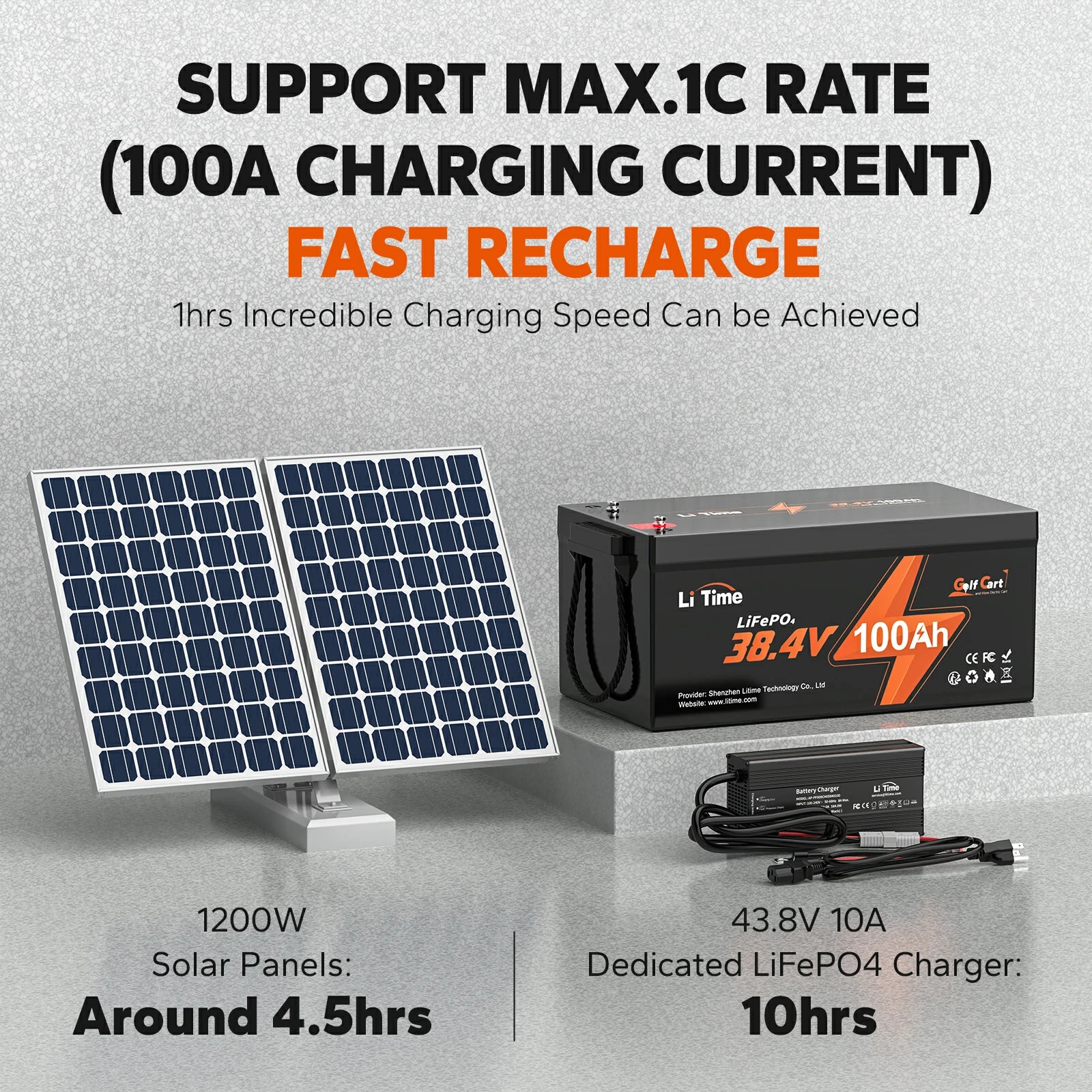

    Swiftly Charging
    LiTime 36V 100Ah Golf Cart Lithium Battery supports Max 1C charging. You can choose a LiFePO4 charger or solar panels to charge. Additionally, LiTime battery has no memory effect, it can be partially or fully charged at any time.
    charge 36v golf cart batteries
    A Universal Energy Solution
    LiTime 36V 100Ah golf cart LiFePO4 battery is a universal energy solution that can power a wide range of vehicles, equipment and scenarios. Whether powering golf carts, 36V LSV, ATV, NEV, E-trike, electric shuttle buses, electric trike scooters(≤21ML/35KM/h) or boathouses, outboard electric motor and home backup, it delivers reliable energy wherever and whenever needed.
    36v golf cart batteries
    36v golf cart batteries

    SPECS

    BATTERY
    Cell Type:
    LiFePO4 Prismatic
    Warranty:
    5 Years
    Cycle Life:
    4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
    Nominal Voltage:
    38.4V
    Rated Capacity:
    100Ah
    Energy:
    3840Wh
    Max. Expansion (Parallel & Series):
    4P
    Internal Resistance:
    ≤40mΩ
    Certifications:
    UL, FCC, CE, RoHS, UN38.3
    BMS
    BMS:
    200A
    Max. Continuous Output Power:
    For Golf Cart: 5000W For Energy Storage: 7680W
    Max. Continuous Charge Current:
    100A
    Max. Continuous Discharge Current:
    200A
    Max. Discharge Current 1 Second:
    650A
    CHARGE
    Charge Method:
    CC/CV
    Charge Voltage:
    43.2V±0.6V
    Recommend Charge Current:
    20A(0.2C)
    TEMPERATURE
    Charge Temperature:
    0℃ to 50℃ / 32℉ to 122℉
    Discharge Temperature:
    -20℃ to 60℃ / -4℉ to 140℉
    Storage Temperature:
    -10℃ to 50℃ / 14℉ to 122℉
    OTHERS

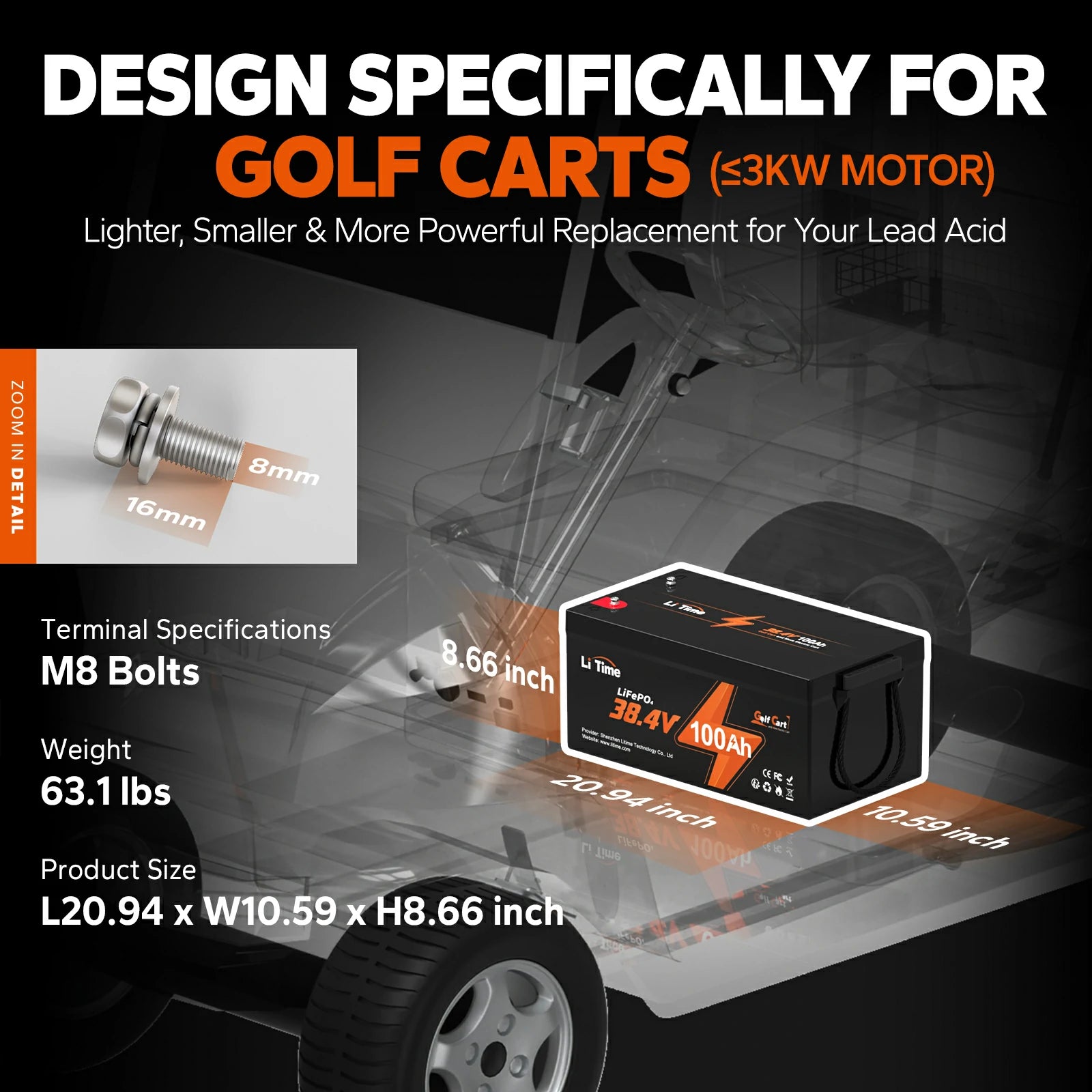

    Terminals:
    M8 bolts
    Weight Approx.:
    63.1 lbs
    Size:
    L20.47*W10.59*H8.66 inch (group 8D size)
    Housing Material:
    ABS (Flame Retardant Plastic)
    Protection Class:
    IP65

    FAQ

    Q: Can you convert a 36v golf cart to 48v?

    A:

    Yes, it is possible to convert a 36V golf cart to a 48V system. This conversion usually involves replacing the existing 36V battery pack, charger, controller, and potentially the motor to accommodate the higher voltage.

    Q: How fast does a 36V golf cart go?

    A:

    The speed of a 36V golf cart can vary depending on factors such as the make and model, as well as any modifications made to the cart. Generally, a stock 36V golf cart can reach speeds of around 12 to 15 miles per hour.

    Q: How many amps does a 36V golf cart draw?

    A:

    The amperage draw of a 36V golf cart varies based on factors such as terrain, weight load, and the condition of the batteries and motor. On average, it can range from 20-30 amps.

    Q: How will installing lithium batteries improve the performance of a golf cart?

    A:

    Lithium batteries can deliver more power to your golf cart than traditional lead-acid batteries. This means you can tackle hills and inclines with ease, and your golf cart will have a higher top speed.

    Q: What is the life expectancy of a lithium golf cart battery?

    A:

    Lithium batteries have a significantly longer lifespan compared to lead-acid batteries, LiTime lithium golf cart batteries can last 10+ years.

    Q: How to Charge 36V 100Ah lithium golf cart battery?

    A:

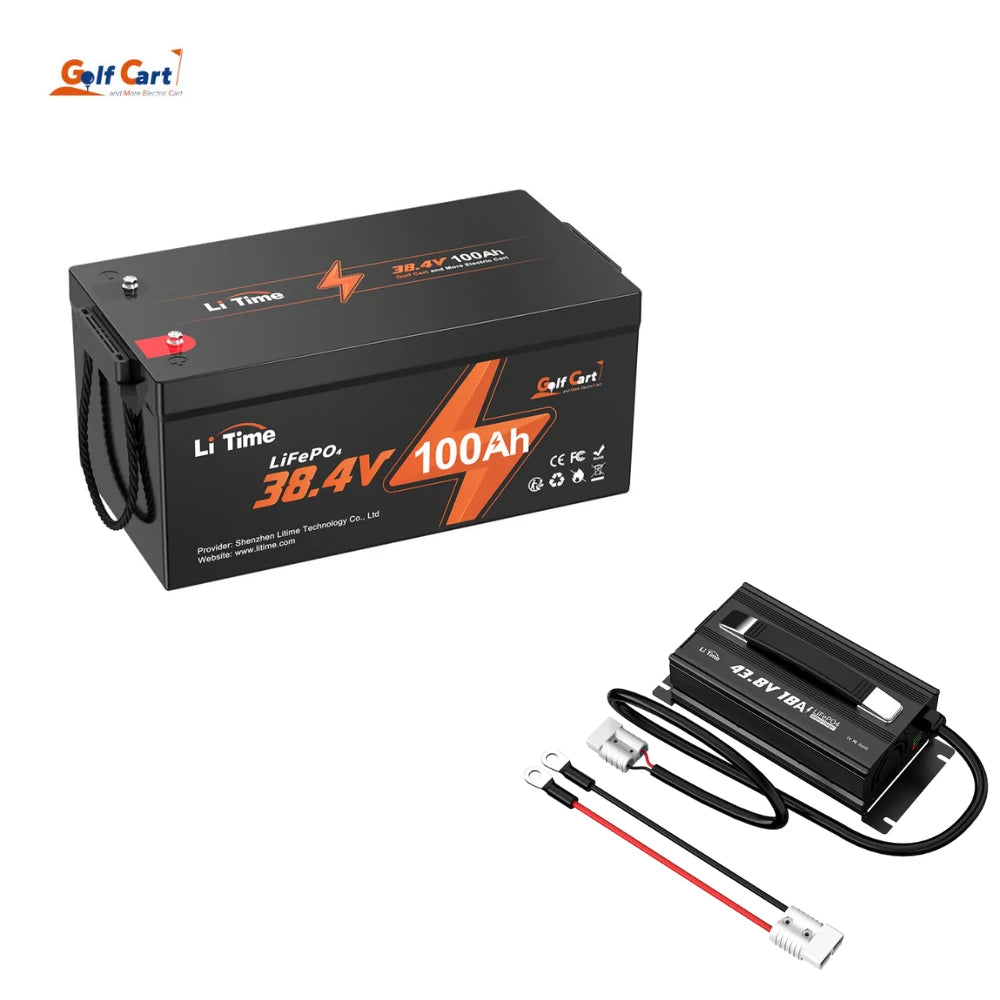

    1. LiFePO4 Battery Charger

    We recommend using a 43.8V battery charger to maximize the capacity

    Recommend charging voltage: 42.6V ~ 43.8V

    Recommend charging current: 20A (0.2C): the battery will be fully charged in around 5hrs to 100% capacity. 50A (0.5C): the battery will be fully charged in around 2hrs to around 97% capacity.

    Attention:

    Connect the charger to the battery before connecting it to the grid power in case of sparks.

    Remember to disconnect the charger from the battery after fully charging.

    Related reading: Can I Charge LiFePO4 batteries with a Normal Charger?

    2. Solar Panels

    The battery can be fully charged in one day (with effective sunshine 4.5 hrs/day) by 1200W solar panels. It may take more than one day to fully charge the battery by ≥1200W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.

    3. Generator/Alternator

    If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations. The Recommended Charging Voltage: 42.6V ~ 43.8V.

    The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

    Q: Are LiTime LiFePO4 batteries safe?

    A:

    Yes. LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. LiTime lithium cells are UL certified for the highest safety and sustainability standards. All LiTime LiFePO4 batteries come with an internal Battery Management System which protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage. Additionally, LiTime LiFePO4 Lithium batteries have been tested to be free from the risk of fire, and electric shock in harsh environments.

    Q: Can I use LiTime LiFePO4 Lithium batteries as starting batteries?

    A:

    No. LiTime LiFePO4 lithium batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices.
