LiTime 24V 100Ah Lithium Battery for RV and Truck
Stay Cool: Ensures stable performance for reliable parking AC use to stay cool all night

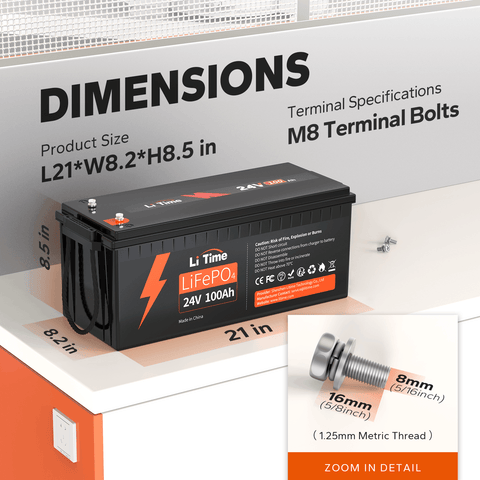

EV-Grade LiFePO4 Cells: L20.95*W8.15*H8.5 in,
L20.95*W8.15*H8.5 in
L20.95*W8.15*H8.5 in
100% DOD & 10-year lifetime: LiTime lithium battery Provides 4000~15000 cycles, with a 10-year service life, three times longer than lead-acid batteries
1/3 Light weight & Portable: LiTime 24V 100Ah LiFePO4 battery weighs only 45.85lbs, 1/3 the weight of lead-acid batteries, and has an energy density of 55.83Wh/lb, making it suitable for RVs, Trolling Motors, Marine, and Off-Grid Applications

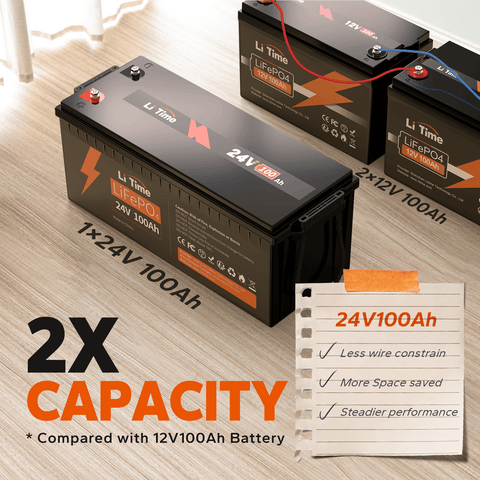

2.56kWh Higher Energy: A single LiTime 24V 100Ah lithium battery equals two 12V 100Ah lithium batteries. 24V higher voltage and 2.56kWh energy, supports up to 4P2S connection to make a 48V 400Ah battery bank of 20.48kWh energy, enabling you to build your battery system with easier operation and are perfect as backup power
Strict Protection & Speedy Charging: LiTime LiFePO4 battery has built-in 100A BMS to protect it from overcharge, over-discharge, over-current, high temp and short circuits. Operating Temp: Charge: 0°C~50°C; Discharge: -20°C~60°C. Besides, a 29.2V 20A dedicated lithium charger is recommended, it will just cost you 5hrs to have your lithium battery fully charged
2-5 Business Day Fast Delivery: LiTime offers 2-5 working day fast delivery from local warehouses in Los Angeles, CA or Dallas, TX, along with professional technical support and one-on-one customer service with quick feedback within 24 hours
Warm Tips for Battery Application: LiTime 24V 100Ah Lithium Battery is not suitable for running a golf cart, engine, or any device alike that will generate a high current the moment it is started
Meets ABYC E-13 Standard: LiTime batteries are installed to ABYC E-13 standards, fully compliant with lithium battery requirements, Complies with the IEC 62619 standard
FedEx, UPS, or Amazon Logistics.
Reliable Energy When and Where You Need It Most
With top EV LiFePO4 cells and a robust battery management system, the LiTime 24V 100Ah LiFePO4 battery is built for peak performance wherever you need reliable energy, from indoor to outdoor applications. Featuring green, powerful, compact and safe, it becomes a perfect replacement for two 12V 100Ah lead-acid batteries in series.
One Step Power Solution
Don't have to worry about compatibility and complex power assemblies. The LiTime 24V 100Ah lithium ion battery simplifies setup with a streamlined one-step solution. Just install it and watch the juice flow.
Green EV-Grade LiFePO4 Cells
LiTime 24V 100Ah LiFePO4 battery adopts reliable EV-Grade cells to power over 4000 life cycles at 100%DOD. Its eco-friendly and sustainable chemicals can not only provide you with stable performance, high power and reliable protection, but also benefit our environment.

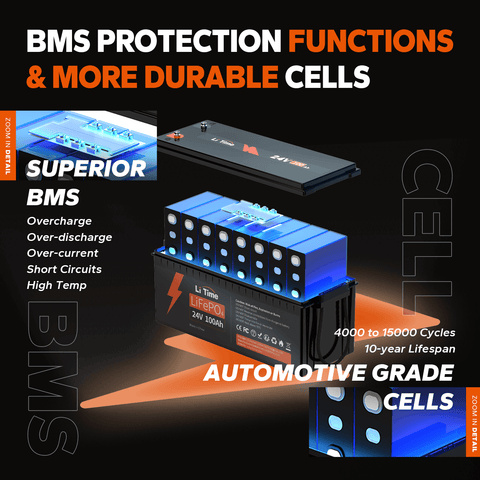

Excellent in Quality, Safety First
Guided by quality and safety first, LiTime 24V 100Ah LiFePO4 lithium batteries adopt a 100A BMS to protect the battery against over-discharge, over-charging, over-current, overheating and short circuit. LiTime ultra-safe BMS gives you peace of mind as you use our battery in an emergency or need.
Unlock Energy Limits
LiTime 24V 100Ah LiFePO4 lithium battery is a reliable power solution for your indoor demands and outdoor activities. With its 2560Wh energy and 3X the Energy Density (55.83Wh/lb) of a 24V 100Ah Lead-acid Battery, you can unlock energy limits to escape the grid and embrace outdoor life.
Easy Installation, Simply Replace Lead-Acid Battery
Thanks to its lighter weight and smaller size than lead-acid batteries, LiTime 24V 100Ah LiFePO4 batteries weighs 45.85 lbs, only 1/3 of a 12V 200Ah lead acid battery but has 2X usable energy, making it easier to install and transport for indoor and outdoor power needs.
Customize Your Power Station
Customizable LiTime 24V 100Ah LiFePO4 battery supports 4P2S to provide Max 20.48kWh of energy for your indoor needs and outdoor adventures, making you fearless of energy use. Meanwhile, a 24V 100Ah lithium iron battery has simpler wiring, making your power use easier.
Power for Every Purpose
The versatile LiTime 24V 100Ah LiFePO4 battery reliably powers off-grid, solar systems, home storage, marine and more, keeping you uninterrupted whether the power goes out or you're on the road, in the woods or out on the water. Its strength and durability ensure energy security wherever adventure calls.
4 Ways to Charge
LiTime 24V 100A LiFePO4 lithium batteries support LiFePO4 charger, solar panels, generator, and alternator. Its fast charging allows 5 hours to finish with a LiFePO4 charger, more convenient to meet your demands.
Reliable Energy When and Where You Need It Most
With top EV LiFePO4 cells and a robust battery management system, the LiTime 24V 100Ah LiFePO4 battery is built for peak performance wherever you need reliable energy, from indoor to outdoor applications. Featuring green, powerful, compact and safe, it becomes a perfect replacement for two 12V 100Ah lead-acid batteries in series.
Precautions to Notice Before Using the Battery
Trusted Power for Every Journey
BATTERY
BMS
CHARGE
TEMPERATURE
OTHERS
24V 100Ah
24V 50Ah TM Smart
24V 230Ah Smart Self-Heating
How long will a 24V 100Ah lithium battery last?
A LiTime 24V 100Ah lithium battery will last based on how much power you draw — for example, at a continuous 100 W load it could run about 24–25 hours (24 V × 100 Ah = ~2400 Wh usable energy ÷ 100 W), and higher loads shorten runtime proportionally.Learn more about how long do lithium batteries last?
Can I use LiTime 24V 100Ah LiFePO4 Lithium batteries as starting batteries?
No. As deep cycle batteries, the 24V 100Ah lithium batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices.
If you need the marine starting battery, visit LiTime 12V 20Ah Marine Cranking or 12V 140Ah Dual Purpose battery to choose.
Read on deep cycle vs starting batteries to learn more.
Can I charge LiTime 24 Volt 100Ah batteries with solar panels?
Yes, you can charge LiTime LiFePO4 lithium batteries with solar panels. Here are 3 reliable ways to charge
1. Using Solar Panels
The LiTime 24V 100Ah battery can be fully charged by in one day (with effective sunshine 4.5hrs/day) by 800W solar panels. It may take more than one day to fully charge the battery by ≥800W solar panels since the duration and intensity of light would be a great factor for their charging efficiency. Make sure using a solar charge controller when charging the battery with solar panels.
2. Generator/Alternator
If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations.
The Recommended Charging Voltage: 28.4V - 29.2V. The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
3. LiFePO4 Smart Chargers
To charge 24V battery, it is recommended to use 29.2V battery chargers.
The Recommended Charging Voltage: 28.4V - 29.2V.
The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
Related reading: Can I Charge LiFePO4 batteries with a Normal Charger?
Can I charge LiTime 24V lithium ion batteries in cold weather (under freezing temperatures)?
For This 24V 100Ah Battery: Please be aware that this model should only be charged when the battery's temperature is above 32°F (0°C). Charging in freezing temperatures will damage the cells. On cold days, the best practice is to bring the battery indoors to charge.
For Charging in Freezing Temperatures: If your application requires charging in sub-zero weather (e.g., winter RVing, off-grid cabins), consider our LiTime Cold Weather Batteries. These advanced batteries include a built-in system (low-temperature charging off protection) that automatically manages charging in the cold, protecting your investment.
How do I store LiTime LiFePO4 lithium batteries?
It is recommended to store LiTime LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, cycle the batteries at least every 3 months. Recommended storage environment: 10℃～35℃ (50℉～95℉), 45%RH～75％RH
What size of the trolling motor suits 24V 100Ah lithium battery?
70 ~ 100 lb
How many LiTime 24V 100Ah lithium Batteries can I connect at most?
LiTime 24V batteries support versatile configurations, including series, parallel, and series-parallel connections.
- Series connection: Up to 2 batteries
- Parallel connection: Up to 4 batteries
- Series-parallel connection: Up to 8 batteries
Important Notes:
For safe and stable operation, all connected batteries must meet the following criteria:
✔ Same specifications – Identical capacity (Ah) and BMS rating (A)
✔ Same brand – Different brands may have incompatible BMS settings
✔ Purchased within a short timeframe (ideally within one month)
Can a 24V 100Ah lithium battery catch fire when not in use?
LiTime 24v 100ah lithium ion battery are very stable and much less likely to catch fire when not in use compared with lead-acid types, thanks to their chemistry and built-in safety protections. However, basic safety precautions (proper storage, avoiding damage or short circuits) should still be followed.
Fast shipping, well packaged. Charged all separately then wired in series per the instructions. Put them in service a day later. Also using Litime 60A charge controller. It was cheaper to get these in 24 volt than 2 12 volt sla batteries. Much lighter also. Performing great. Using as an off grid/ back up power for home.
Once you get past the gimmicky promotional aspects of their website, a sound product came our way. The manual is actually interesting and well done. Clearly LiTime wants satisfied customers. Got to love their wiring guidance for a 4S 2P battery pack.
Really appreciated the safety covers on the contacts for shipping. I used them during the installation process to avoid tools and cables accidentally causing a short.
Two weeks now, everything indicates the 4 parallel 24V 100Ah batteries are performing much better than the 12, 6V golf cart AGM lead acid batteries they replaced.
I like everything about this battery, it has given plenty of power to power most thing at night with juice still left over for next day solar re-charging. I recommend this battery and seller.
I needed a DC/DC power supply that would output a constant 13.2 - 14.0VDC while under ~30A load.
Unfortunately, this unit only had a no-load output of 13.2V, and 12.92V under 28A load (and 12.53V under 38A load).
If you're okay voiding the warranty, you can adjust the voltage via internal adjustment ****.
1.5 turns clockwise brought the no-load voltage up to 13.9V, and 13.6V under 30A load. Perfect for my needs.
I bought a pair of these 24V 100ah to go with a pair of Ampere Time Batteries I bought a year ago. Was interested if they were as good as the Ampere Time batteries. I received the batteries in 3 days and undamaged.
I had a problem with one of the batteries charging correctly, so emailed Li Time Customer Service, and the next day received an email back from Elaine. After a couple of days of emails trying to figure out the problem Elaine said it looked like the battery would have to be shipped back. Elaine then offered to refund or replace. I choose to replace. They set me a packing label for FedEx, and I shipped the battery back. Once they received the battery they set me a new one. In all, it took between 2 and 3 weeks from the time I got the first battery till the time I received it's replacement.
My Off Grid Shop is up and running with plenty of power to spare. Thank you Elaine for all of your help. I will be adding a video of the Li Time Review soon.
Good quality. The battery construction is of high quality.
Thanks
Received my order very quickly. Installed the new battery on my boat for my trolling motor and fished a solid two days and still was running strong. So far so good with everything would recommend for your next trolling motor battery.
