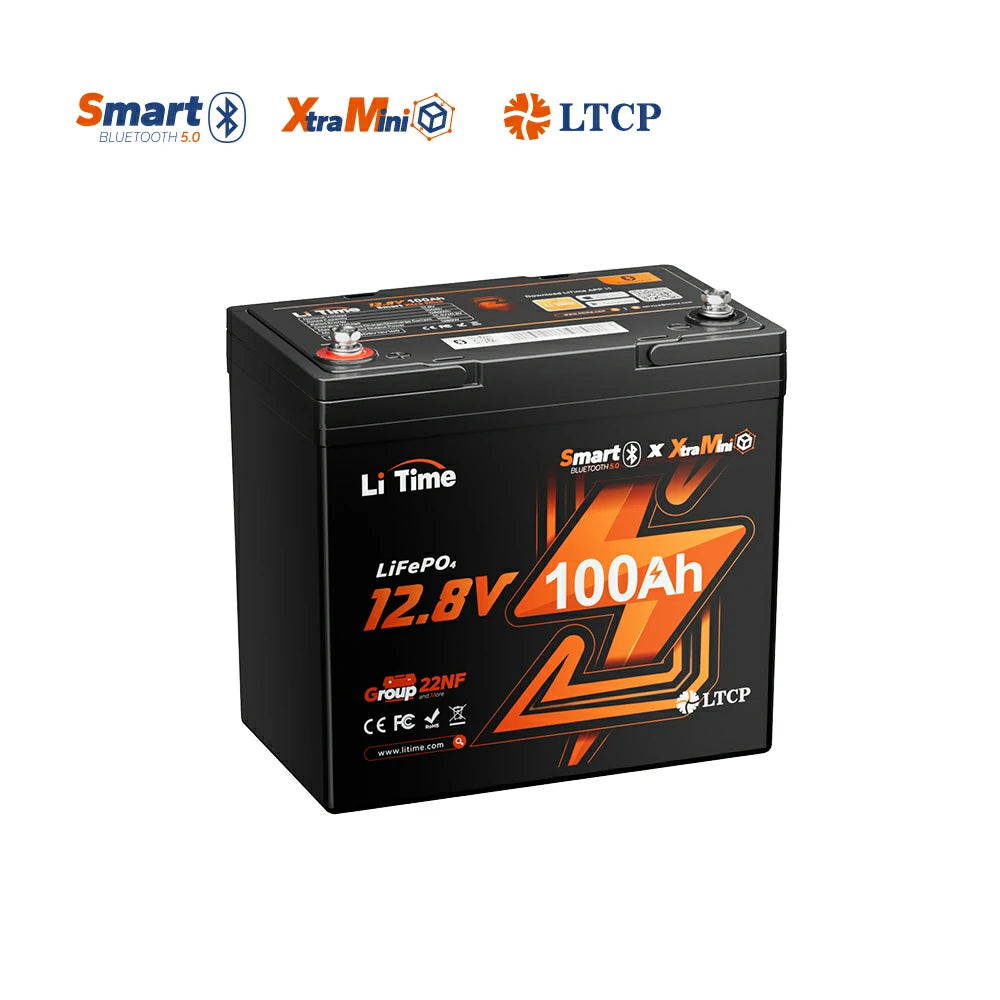

LiTime 12V 100Ah Xtra-Mini Bluetooth Small LiFePO4 Battery
Redefining Limits in Size & Weight – LiTime Always Goes Beyond

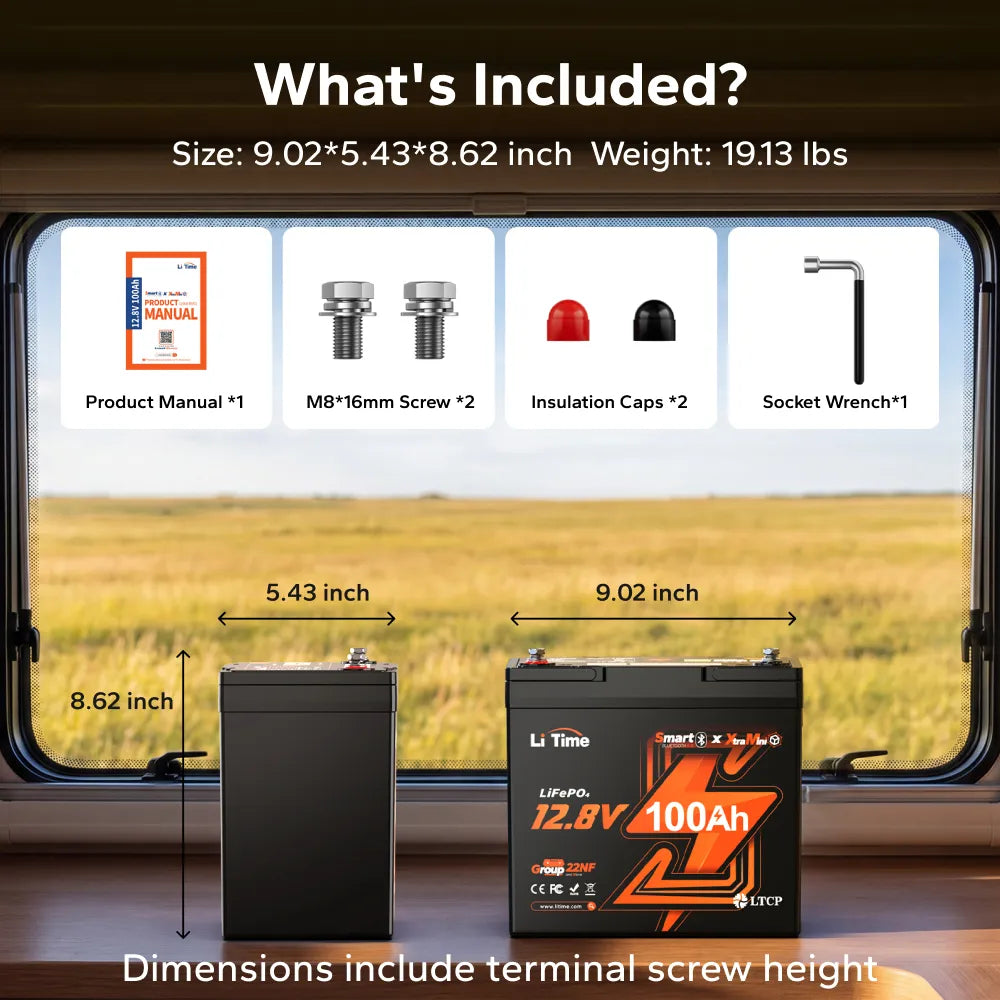

- Breaking Dual Limits: Smallest & lightest 12V 100Ah LFP battery—compact Group 22NF (9.02×5.43×8.19 in) & ultra-light 19.13 lbs.
- Innovation in Every Inch: LiTime Xtra-Mini redefines power density (194.7Wh/L) with next-gen smart BMS and advanced space compression tech—all in the smallest form.
- Smart Bluetooth 5.0, 1S Battery Check: Track SOC, power, and voltage in real-time. Monitor & manage battery system instantly via the LiTime App.
- LiTime Self-Developed BMS: 15 years of expertise bring 20+ smart protections, smart activating to ensure maximum battery safety and minimize failure risks.
- Built for Extreme Conditions: Designed to endure extreme weather with low-temp cut-off protection, auto-recovery from overload (30s), and more.
- EV-Grade Cells: 4000 cycles @100% DOD, 6000 @80%, 15,000 @60%. Each cell has a unique ID for full traceability, ensuring top-tier quality through 80+ tests.
- Massive Power, Ultra-Compact: 1280Wh, 100A continuous, 300A (5s), 500A (1s), and 1C fast charging—full charge in 1 hour.

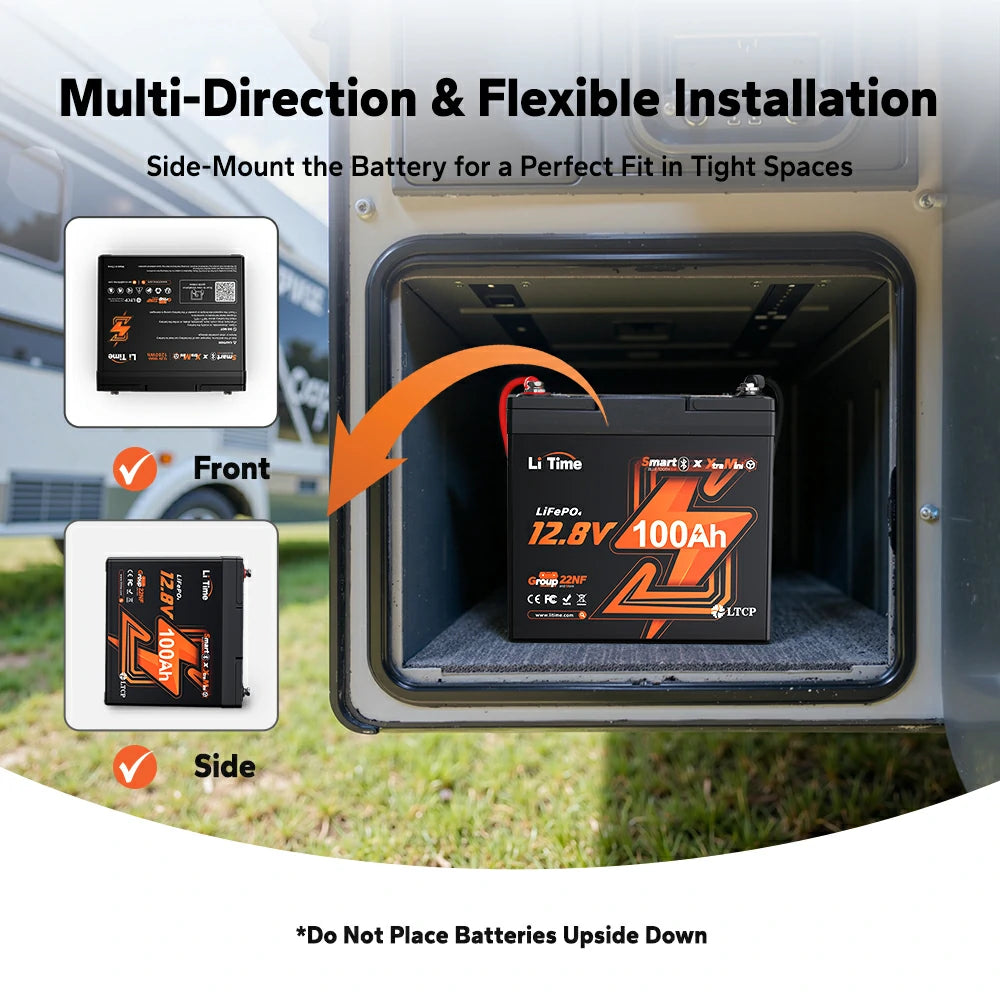

- Multi-Directional Mounting: Install front, side, or bottom to fit any setup.
- Power Where Space Matters: Ideal for RVs, trolling motors, mobility scooters, off-grid storage, and home backup power.
- $279.99
-
$469.99 - $279.99
- Unit price
- per
LiTime’s Latest Innovation – Breaking Industry Limits in Size & Weight. Enjoy Exclusive Launch Pricing!
Limited-Time Offers, End in:
151D
8H
23M
0S
Subtotal:
$279.99
Couldn't load pickup availability
Free Shipping
Free standard shipping on all orders
2-5 business days delivery.
5 Years Warranty
Backed up by techical support within 24hrs.
Free Returns
30 Days Hassle Free
Returns

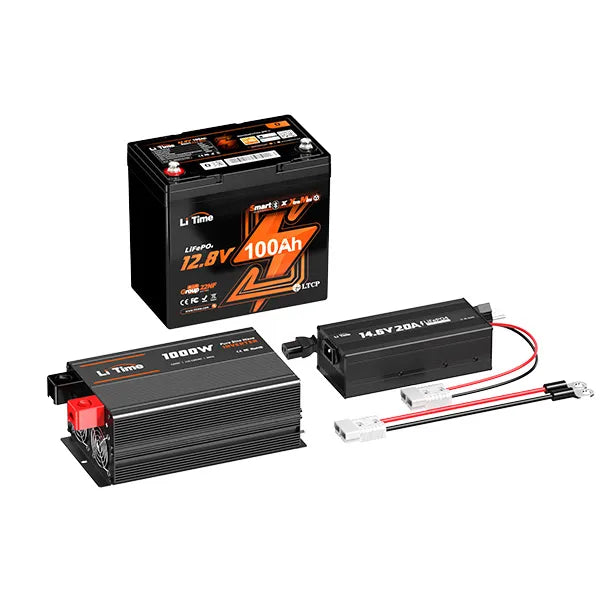

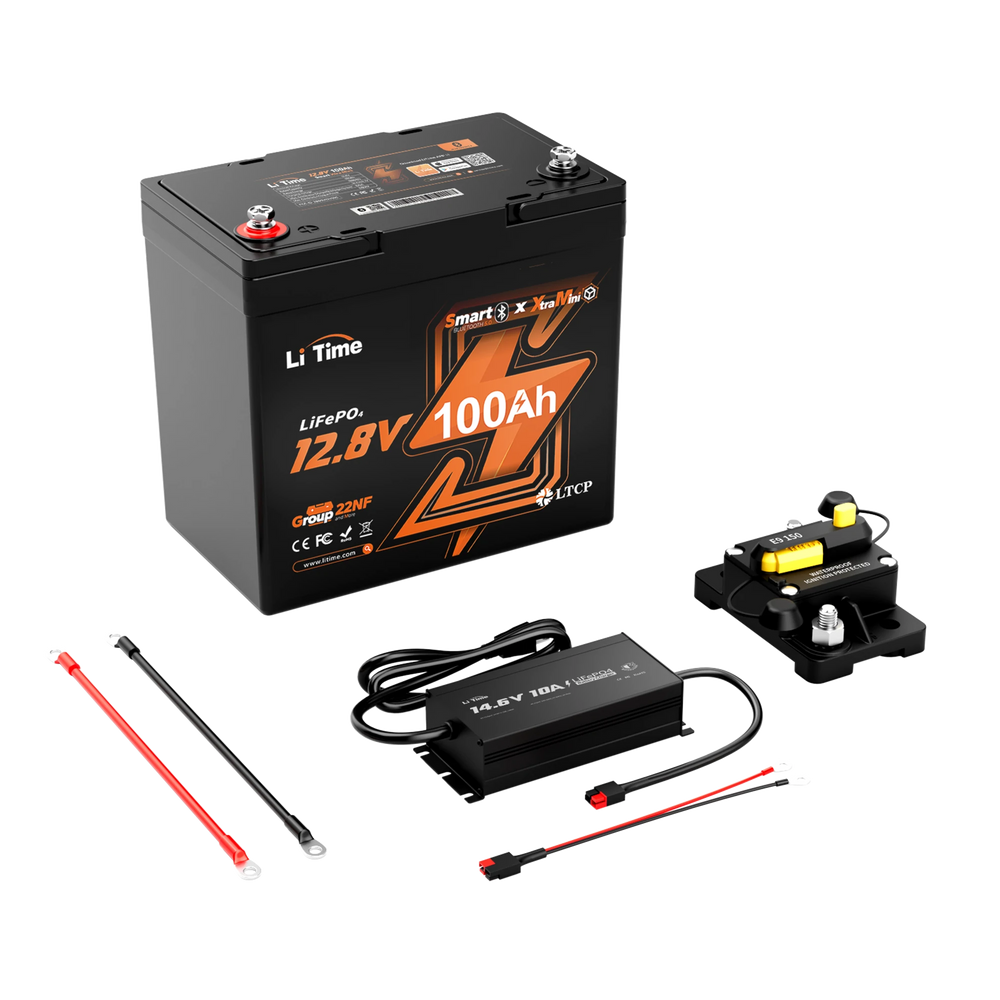

Frequently Bought Together
-
FEATURES
-
SPECS
-
COMPARE
-
FAQ
-
REVIEWS
Redefining Compact Power Innovation
LiTime relentlessly innovates, driven by 3.5 million users. We pioneered the industry's Mini battery concept in 2019, and now lead again with our groundbreaking Xtra-Mini evolution. Imagine packing more power! Featuring next-gen smart BMS and advanced space compression, we deliver top performance in the smallest form, achieving a record 194.7Wh/L energy density and leading the industry forward.
.webp)
Small in Size, Big on Power
Power your RV/off-grid life or trolling motor with unwavering confidence. LiTime Xtra-Mini delivers maximum reliable energy (19.13 lbs!) where space is precious. Our 15-year BMS expertise and EV-grade cells ensure lasting performance. Stay informed with Bluetooth, recharge ultra-fast in 1 hour, and mount it your way. Choose LiTime – power redefined for your needs.
.webp)
Industry Smallest and Lightest Lithium Battery
Unlock unprecedented installation flexibility. LiTime breaks dual limits – delivering the smallest and lightest 12V 100Ah LFP battery. At just 19.13 lbs and compact Group 22NF dimensions (9.02*5.43*8.19 in), it's specifically designed for the tightest spots in small trucks, campers, trailers, teardrop trailers, and kayaks where both size and weight matter critically.
.webp)

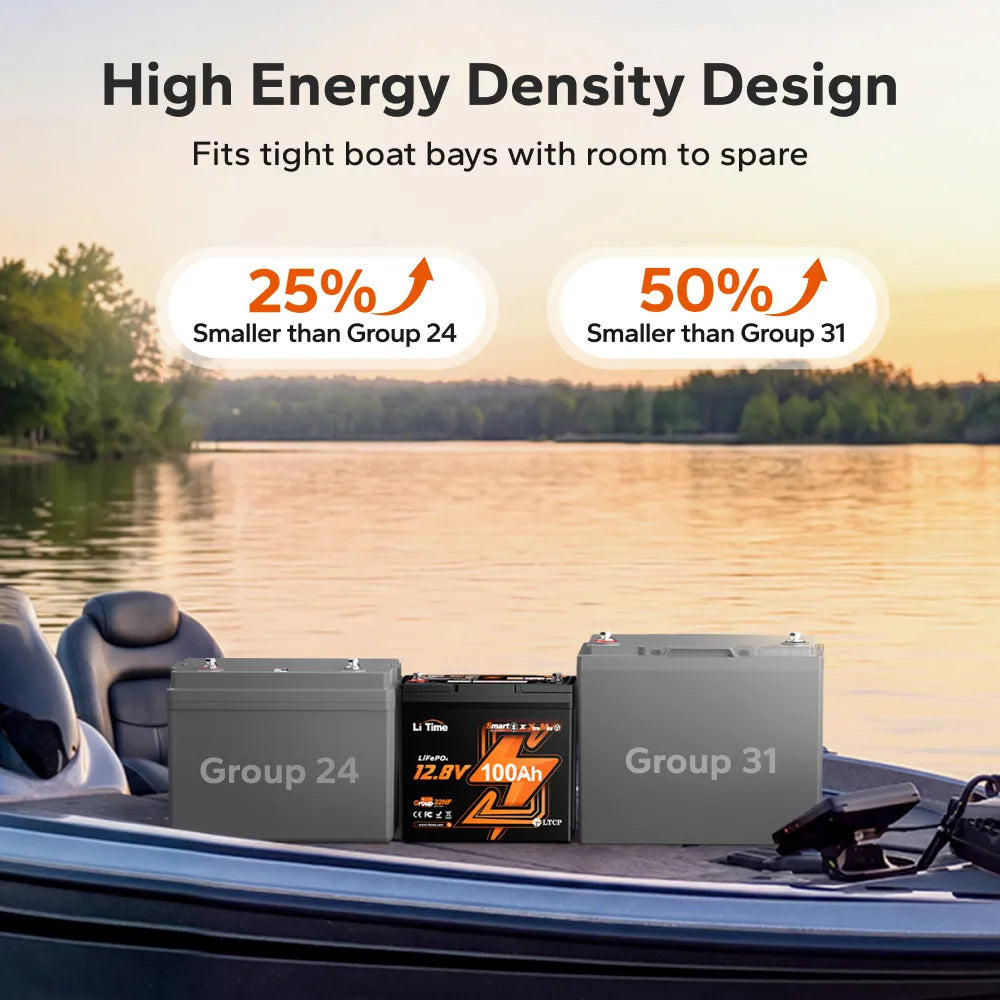

Lighter and Smaller than Ever
23% lighter than standard 12V 100Ah LFP batteries—only 19.13 lbs! A massive 70% lighter than 12V 100Ah AGM. Half the size of Group 31, yet packed with powerful performance. Perfect for RV travelling, fishing, camping, off-grid, and more. Reduce weight, maximize efficiency, and enjoy hassle-free installation for your off-grid adventures.
.webp)
LiTime Always Goes Beyond Innovation
LiTime Xtra-Mini is a breakthrough innovation, overcoming technical barriers to lead the newest technology. With next-gen smart BMS and advanced space compression technology, it achieves a record-breaking 194.7Wh/L power density in the smallest form. This cutting-edge design sets a new industry standard, delivering unparalleled performance and efficiency for space-conscious energy solutions.
.webp)

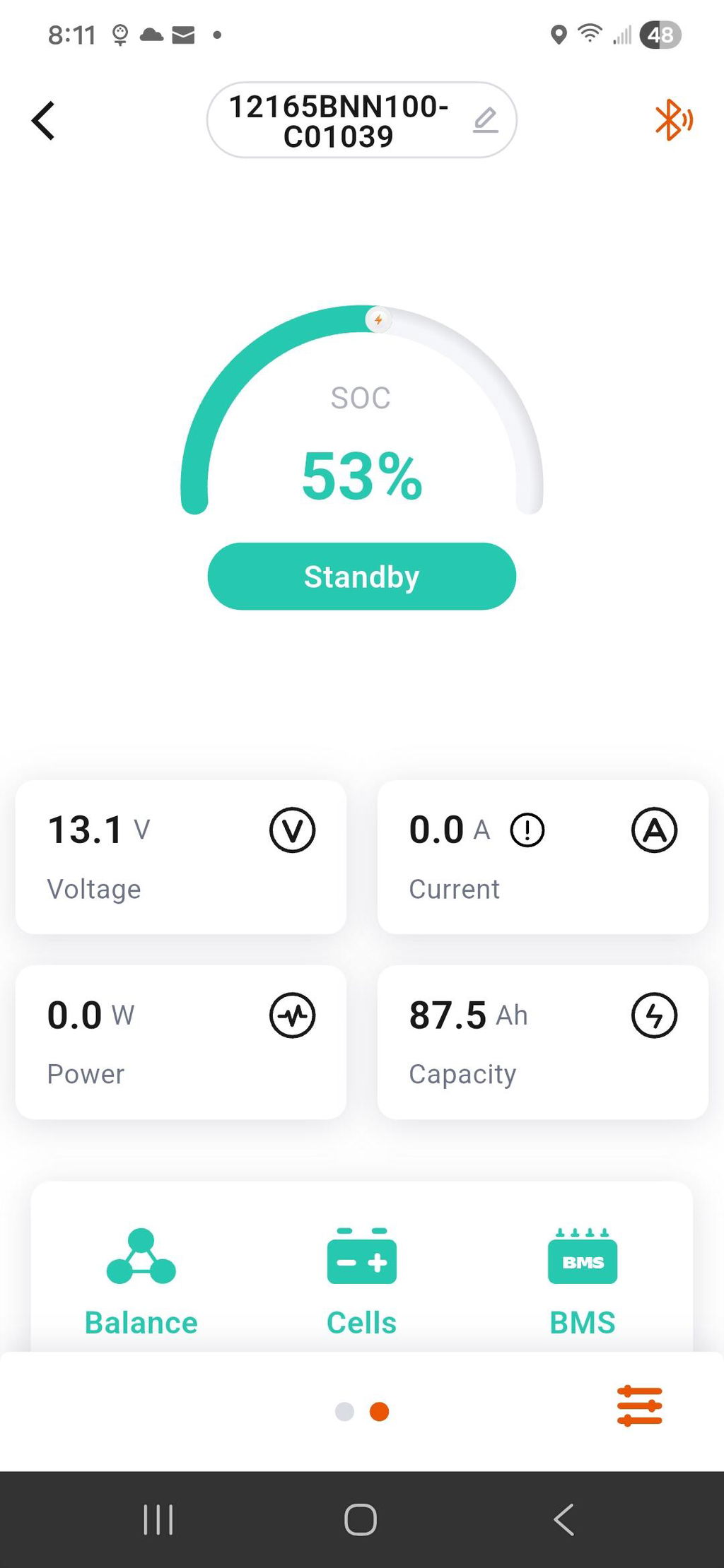

LiTime Bluetooth 5.0 for Smarter Control
Stay in control with Smart Bluetooth 5.0—monitor your battery in real-time within 10m, eliminating the hassle of manual checks. Automatically connect to your phone and track SOC, voltage, current, power, cycles, and temperature with ease. Remotely switch discharge on/off and manage your system effortlessly, ensuring smarter, stress-free energy management.
.webp)
Automatic Protection in Extreme Temperatures
The built-in low-temperature cut-off ensures charging stops below 32°F (0°C) to protect your cells, automatically resuming at 41°F (5°C). Discharge halts below -4°F (-20°C), ensuring your battery stays safe and reliable in extreme cold. No more manual shutdowns or worrying about battery performance—focus on your winter adventures while your battery takes care of itself.
.webp)
EV-Grade Cells with Over 80 Tests
EV-grade cells are built for ultimate safety and durability. With 4000 cycles at 100% DOD, 6000 at 80%, and 15,000 at 60%, each cell is uniquely identified for full traceability. Over 80 rigorous tests ensure premium quality, covering both safety (puncture, crush, drop, vibration, short circuit, salt spray, and more) and electrical performance (high/low temperature, cycling, and more).
.webp)
Self-Developed BMS and 20+ Protections
LiTime's self-developed BMS offers 20+ smart protections, including safeguards against over-charge, over-discharge, over-current, over-heat, and short circuits. Upgraded with low-temp cut-off, moisture proofing, salt-spray resistance, and 30-second auto-recovery from overload, ensuring maximum safety and reliability—perfect for users in demanding environments, eliminating worries about battery failures or performance issues.
.webp)
Xtra-Mini's Versatile Charging Options

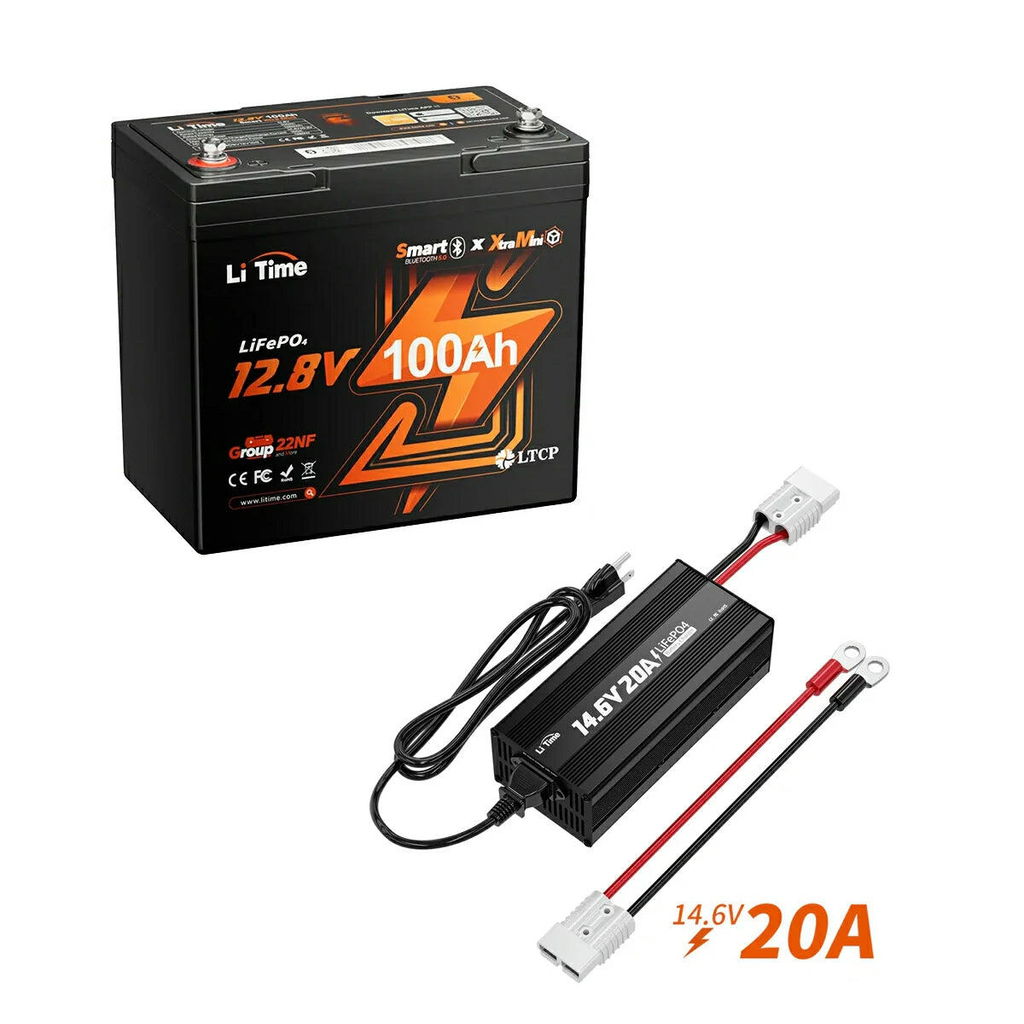

The 12V 100Ah Xtra-Mini supports multiple charging methods for convenience and efficiency. For optimal performance, use a 14.6V 20A AC-DC charger (5 hours) or a 14.6V 80A AC-DC charger (1.25 hours) for faster charging. To preserve battery life, charge at 0.2C for long-term use. For quick recharges, 1C fast charging is ideal. You can also use solar panels (≥400W) for eco-friendly charging or an alternator with a 40A DC-DC charger (2.5 hours).
.webp)
Reliable Energy for RVs, Boats, Off-Grid & More
The LiTime Xtra-Mini is designed to fit perfectly in tight spaces, effortlessly powering small trucks, campers, trailers, teardrop trailers, and kayaks. It's the ideal choice for RVs, electric boat motors, mobility scooters, camping, off-grid storage, and home backup power. Additionally, it can power cleaning machines, ride-on scrubbers, electric wheelchairs, and scooters, providing reliable and efficient energy in a variety of settings.
.webp)
.webp)
Details of the Product
SPECS
BATTERY
Cell Type：
LiFePO4
Warranty：
5 Years
Cycle Life：
4000 cycles @100% DOD, 6000 @80% DOD, 15,000 @60% DOD
Nominal Voltage：
12.8V
Rated Capacity：
100Ah
Energy：
1280
Max. Expansion (Parallel & Series)：
4P4S
Internal Resistance：
≤40mΩ
Certifications：
FCC ID,UL-1973,CE,RoHS,UN38.3,MIC
Bluetooth：
√
Self-Heating：
/
BMS
BMS：
100A
Max. Continuous Output Power：
1280
Max. Continuous Charge Current：
100A
Max. Continuous Discharge Current：
100A
Max. Discharge Current 1 Second：
500A
CHARGE
Charge Method：
CC/CV
Charge Voltage：
14.4±0.2V
Recommend Charge Current：
20A
TEMPERATURE
Charge Temperature：
0℃ to 50 ℃ / 32℉ to 122 ℉
Discharge Temperature：
20℃ to 60 ℃ / -4℉ to 140 ℉
Storage Temperature：
-10℃ to 50 ℃ / 14℉ to 122 ℉
Low-Temperature Protection：
√
OTHERS
Terminals：
M8 Bolts
Weight Approx.：
19.13 lbs
Size：
9.02*5.43*8.19 in
Protection Class：
IP65
COMPARE
Rated Capacity
Energy
Bluetooth
BMS
Low-Temperature Protection
Weight Approx.
Size
12V 100Ah Xtra-Mini
$279.99
$469.99
100Ah
1280
√
100A
√
19.13 lbs
9.02*5.43*8.19 in
12V 100Ah Mini
$259.99
$599.99
100Ah
1280Wh
/
100A
/
19 lbs
10.24*5.24*8.96 in
12V 100Ah Mini Smart
$269.99
$459.99
100Ah
1280Wh
√
100A
√
19.13 lbs
10.24*5.24*8.96 in
FAQ
Q: What makes the Xtra Mini 12V 100Ah battery different from a regular 12V 100Ah LiFePO4 battery?
A:
The Xtra Mini is 50% smaller and 23% lighter than standard 12V 100Ah LiFePO4 batteries. It's ideal for users who have limited space in RVs, small boats, camping setups, or DIY solar systems. Despite the compact size, it still delivers a full 1280Wh of energy with 100A BMS support.
Q: What devices can I monitor using the Bluetooth app?
A:
You can monitor real-time battery data through the LiTime App, including:
- State of Charge (SOC)
- Voltage
- Current (charge/discharge)
- Battery temperature
- Cycle count
- Remaining capacity

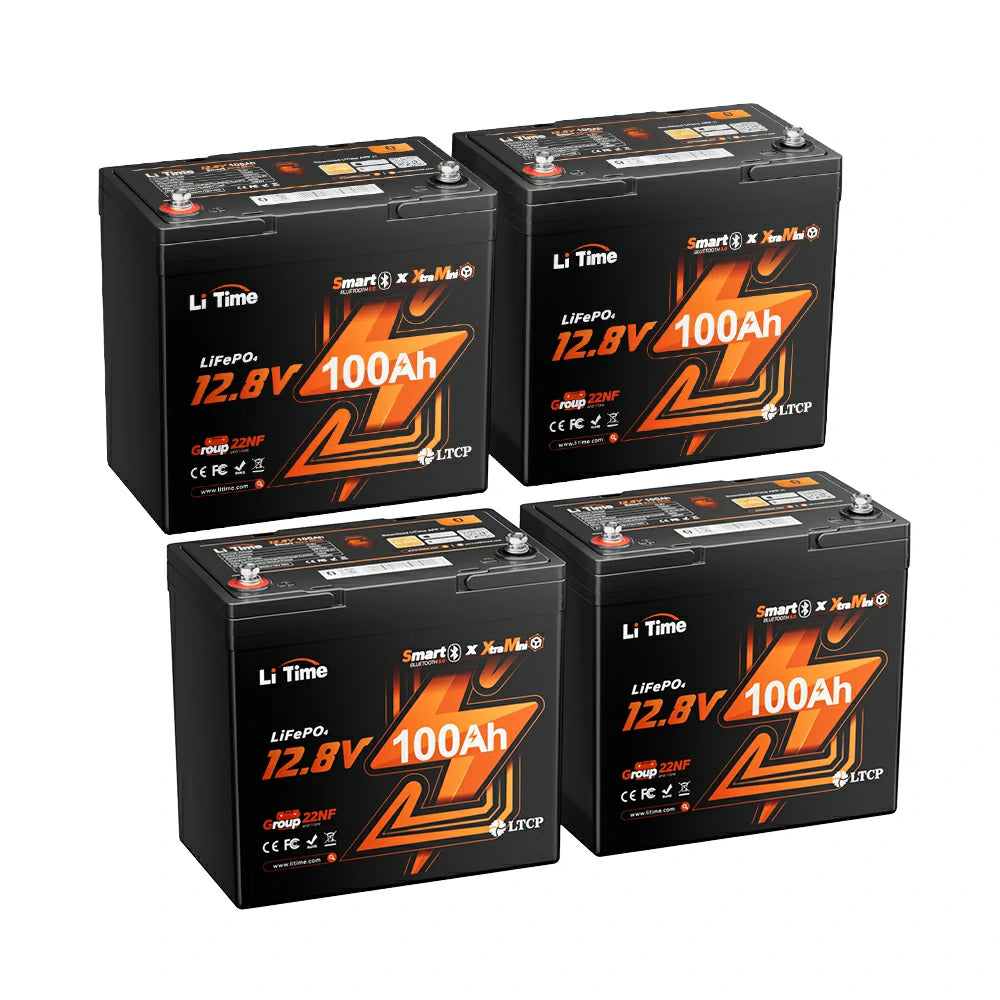

Q: Can I connect multiple Xtra Mini batteries in parallel or series?
A:
Yes. You can connect up to 4 in series (51.2V system) and 4 in parallel (400Ah) — or even combine both in a 4P4S configuration (20.48kWh total).
Please notice that lithium batteries can ONLY be connected in series or parallel with the same brand (LiTime), same type (lithium), same voltage (V), same capacity (Ah), same BMS and similar purchasing date (within 1 month).
Q: Can I install this battery on its side?
A:
Yes. It can be installed in any orientation except upside-down.
Q: Is the battery waterproof or weather-resistant?
A:
Xtra mini rates IP65 protection. It’s splash-proof and rain-resistant make it perfect for outdoor adventures, marine use. Just avoid full submersion in water.
Q: Is the Xtra Mini suitable for outdoor and mobile use?
A:
Yes! With its IP65 rating, rugged case, and compact size (10.2 x 7.1 x 8.2 in, 19.77 lbs), the Xtra Mini is ideal for:
- Kayaks and small boats
- RVs and van life
- Camping battery boxes
- Off-grid portable systems
Q: How to Charge Your LiTime 12V 100Ah Xtra Mini Battery
A:
1. Solar Panels
With 400W solar panels and around 4.5 hours of effective sunlight, you can fully charge the battery in a day.
- For systems ≥400W, actual charge time may vary depending on sunlight intensity and duration.
- Use a compatible MPPT solar charge controller to ensure safe and efficient charging.
2. Generator or Vehicle Alternator
- DC Output (Alternator): Requires a DC-DC charger to safely connect to the battery.
- AC Output (Generator): Use a LiFePO4-compatible AC charger between the generator and battery.
Charging Specs:
- Voltage: 14.2V – 14.6V
- Current Options:
20A (0.2C): Full charge in ~5 hours
50A (0.5C): Charges to ~100% in ~2 hours
3. LiFePO4 Battery Charger
For the most reliable performance, use a 14.6V LiFePO4 smart charger.
Charging Specs:
- Recommended Voltage: 14.2V – 14.6V
- Charging Current Options:
20A (0.2C): Full charge in ~5 hours
50A (0.5C): Up to 100% charge in ~2 hours
Q: Can I charge LiTime Xtra Mini small lithium batteries in cold weather (under freezing temperatures)?
A:
LiFePO4 batteries can safely charge between 0℃ to 50℃ / 32℉ to 122℉. LiTime XtraMini lithium battery include the low-temperature charging protection which will automatically cut the battery charging off when the cell temperature is lower than 32℉, thus preventing the battery cells from damage when charging under the freezing point.
It's recommended to charge the battery indoor when it's cold day. For more detailed guidance, visit the LiFePO4 Temperature Range page.
Q: How do I store LiTime Xtra Mini LiFePO4 lithium batteries?
A:
It is recommended to store LiTime LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, cycle the batteries at least every 3 months.
Recommended storage environment: 10℃～35℃ (50℉～95℉).
