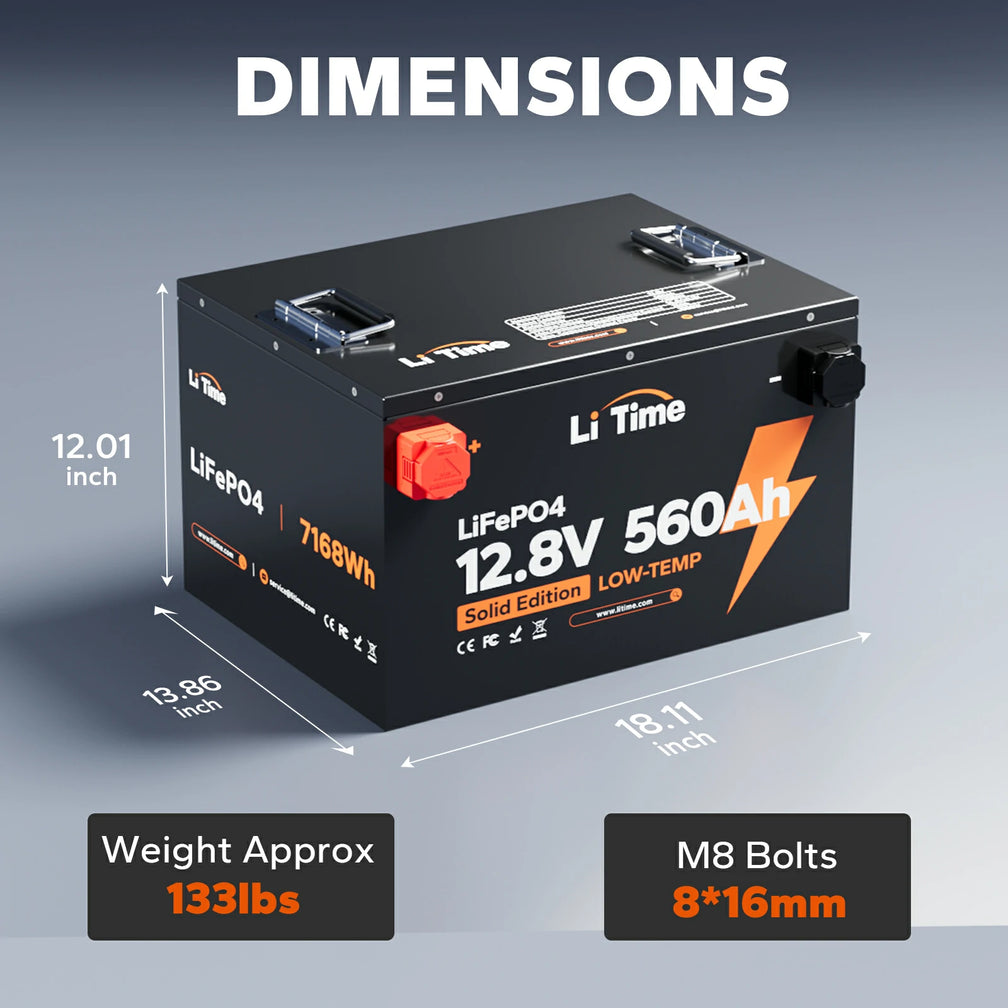

dimensions of litime lithium 560ah battery
bms protection information of litime 12v 560ah lifepo4 battery
low temperature charging off protection function of litime 12v 560ah lifepo4 battery
LiTime 12V 560Ah lithium battery discharging 7.1kWh energy
graphic showcasing the versatility of a power supply system featuring a 12V 560Ah LiFePO4 battery with 7168Wh usable energy and a maximum load power of 3200W
connect litime 12.8V 560Ah LiFePO4 batteries in series and parallel to promot a 51.2V 2240Ah battery system designed for off-grid solutions
Using Application Information of LiTime 12V 560Ah LiFePO4 Battery - RV, Off-Grid, Solar System, Marine
1 / 1
LiFePO4 battery with a capacity of 12.8V and 560Ah, featuring a solid edition design with low-temperature protection
Auto low-temp cut-off prevents damage from charging or discharging in extreme cold.
features of litime 12v 560ah lifepo4 battery
dimensions of litime lithium 560ah battery
bms protection information of litime 12v 560ah lifepo4 battery
low temperature charging off protection function of litime 12v 560ah lifepo4 battery
LiTime 12V 560Ah lithium battery discharging 7.1kWh energy
graphic showcasing the versatility of a power supply system featuring a 12V 560Ah LiFePO4 battery with 7168Wh usable energy and a maximum load power of 3200W
connect litime 12.8V 560Ah LiFePO4 batteries in series and parallel to promot a 51.2V 2240Ah battery system designed for off-grid solutions
Using Application Information of LiTime 12V 560Ah LiFePO4 Battery - RV, Off-Grid, Solar System, Marine
1 / 1
Features

LiTime 12V 560Ah LiFePO4 Battery for Off Grid Solar System with Low Temp Protection

$1,539.99
$2,371.99
35 % OFF

7168Wh Long-Lasting Energy & 3200W Powerful Output - Only One Battery, Up to 2 Days Off-Grid, 1-2 Days in Your RV, or 24 Hours of Home Backup

  • Sturdy SPCC housing, better heat dissipation and impact resistance.
  • Low-temp cut-off protection, 32℉ charging off, -4℉ discharging off, and 41℉ charging resume.
  • 250A BMS with 20+ protections, including auto-recovery(30s) after overload protection, resistance of moisture & salt-spray, pre-charge function.
  • 7168Wh & 3200W, ideal for RV, home energy storage, off-grid systems, and solar power.
  • Max. 4P4S, to build a 51.2V  2240Ah system (114.68kWh & 51.2kWh).
  • EV-grade LiFePO4 cells - safer, eco-friendly, 10 years lifespan.
  • 4000+ Cycles @100% DOD, 6000+ cycles @80% DOD, 15,000+ cycles @60% DOD.
  • 4 Charging ways - LiFePO4 charger, solar panel, alternator, generator.
  • Size: L18.11*W15.16*H11.42 inch.
  • UL1973 tested, FCC, CE, RoHS, UN38.3 certified.
  • Do NOT use it as a starter battery!
  • Please do not orient the battery with top or front side downward. Other orientations are permissible.
Comparison
Quantity:
$1,539.99
$2,371.99
35 % OFF
warranty
5-Year Warranty
Backed up by techical support within 24hrs.
Free Shipping
Free standard shipping on all orders.
Delivered in 2–5 business days.
Free Returns
30 Days Hassle Free Returns
LiFePO4 battery with a capacity of 12.8V and 560Ah, featuring a solid edition design with low-temperature protection
12V 560Ah
$1,539.99
$2,371.99

High Capacity for Home Storage & Off-grid Living

LiTime 12V 560Ah lithium battery is designed for high-demand energy scenarios like home storage, off-grid cabins, RV, and solar systems. With its massive 560Ah capacity, it provides reliable, long-lasting power to meet your energy-intensive needs. Built for durability and efficiency, it’s the perfect solution for sustainable living. Power your home or off-grid setup with confidence – choose LiTime.

 rv off grid life with LiTime 12V 560Ah LiFePO4 battery

Reliable Energy Storage, Built to Last

LiTime 12V 560Ah LiFePO4 battery delivers a massive 7168Wh energy capacity, which is suitable for high-demand applications. Built with a robust SPCC metal case, it ensures reliability in harsh environments. Featuring advanced BMS protection, low-temperature protection, and 4000-15000 deep cycles, it’s the ultimate energy solution for high-capacity needs.

features information of litime 12v 560ah lifepo4 lithium battery

Sustainable Power, Go Green

LiTime 12V 560Ah deep cycle battery is built with EV-graded LiFePO4 cells, offering unmatched durability and eco-friendly performance. With 4000+ cycles at 100% DOD, 6000+ at 80% DOD, and 15000+ at 60% DOD, it delivers over 10 years of lifespan, no maintenance, reducing replacement costs. Green, safe, and stable, it’s the perfect choice for sustainable energy solutions.

An image showcasing LiTime 12.8V 560Ah LiFePO4 battery, highlighting its green, safe, and stable features. It emphasizes stable discharging for off-grid, home, and RV use, with 4000 cycles at 100% depth of discharge and over 10 years lifespan

Advanced Protection for Ultimate Safety

LiTime 12V 560Ah lithium ion battery features a self-developed 250A BMS with 20+ protection functions. Beyond essential safeguards like low-temp cut-off, overcharge, over-discharge, overcurrent, overheating, and short circuit protection, it includes advanced upgrades such as auto-recovery after overload protection(30s) and pre-charging functions. With 250A continuous charge/discharge and 1000A surge current (1s), it features high-performance energy delivery.

bms protection information of litime 12v 560ah lifepo4 lithium deep cycle battery

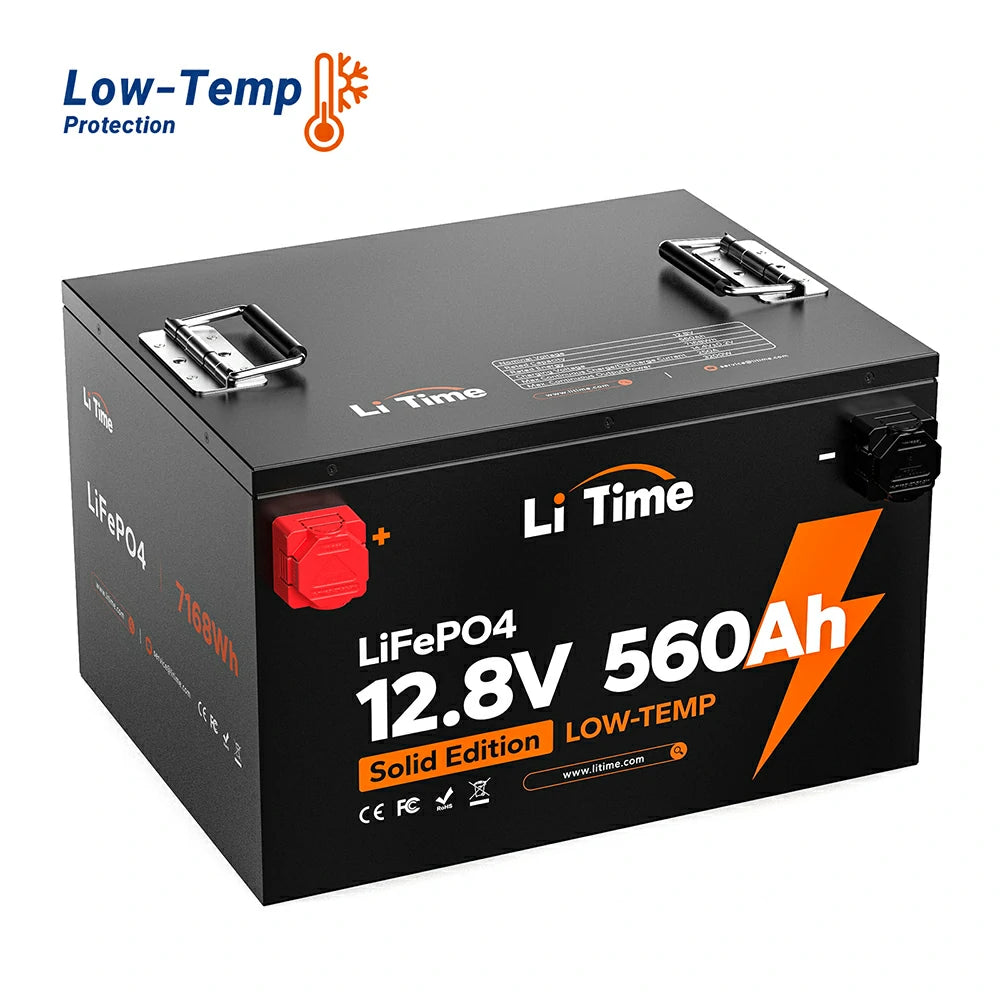

Protect Your Power from the Chill

LiTime 12V 560Ah lithium battery is equipped with intelligent low-temperature protection, automatically stopping charging below 32°F (0°C) and discharging below -4°F (-20°C), while resuming charging at 41°F (5°C). This advanced function safeguards the battery from damage in freezing conditions, extending your battery's lifespan. Whether for winter RV trips, or cold-weather applications, LiTime delivers reliable power and peace of mind in extreme environments.

litime 12v 560ah lithium battery low-temperature protection function

SPCC Metal Casing – Strength, Stability, and Longevity

LiTime 12V 560Ah LiFePO4 battery features a strong SPCC metal casing, offering superior protection against impacts, vibrations, and corrosion. Its excellent heat dissipation ensures stable performance, even under heavy loads, making it ideal for home storage. The SPCC casing enhances durability and reliability, ensuring long-term use in harsh environments.

Sturdy Building Information of LiTime 12V 560Ah LiFePO4 Battery

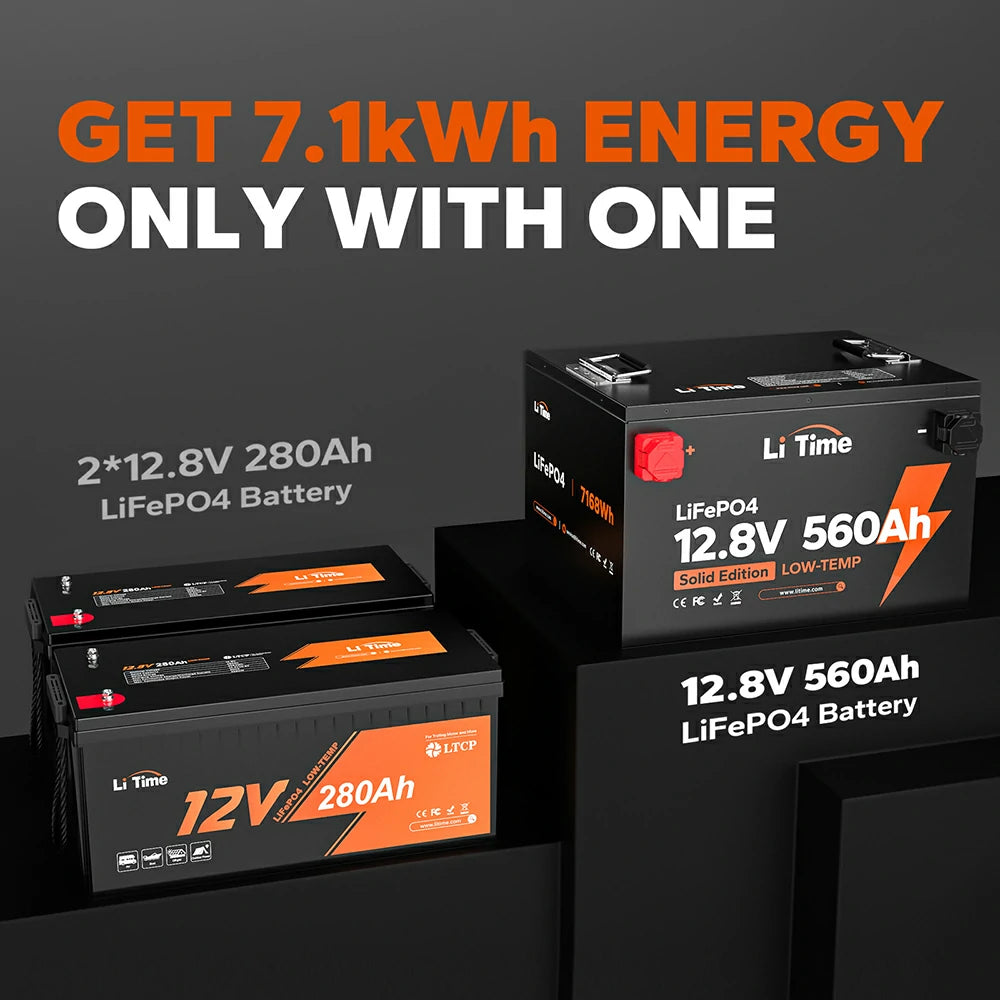

Meet All Your Power Needs With One Battery

LiTime 12 volt deep cycle battery boasts an impressive 7168Wh energy capacity and a robust 3200W max. output power, designed for power-intensive applications like home energy storage, off-grid systems, and extended RV trips. With just one battery, it meets all your daily power needs efficiently.

energy information (7168Wh) of litime 12v 560ah lifepo4 battery

4 Charging Methods

Recommend LiTime 14.6V 80A LiFePO4 charger, which fully charges the battery in just 7 hours. With a faster charging rate than traditional lead-acid batteries, it provides a better using experience. In addition, 3 other charging options, including solar panel, alternator and generator, suit your different charging needs.

how to charge a 12V 560Ah lithium battery

Versatile Energy for Every Scenario

Whether you’re powering an off-grid home, solar systems, or supporting RVs, campers, and marine equipment, LiTime 12V 560Ah lithium battery delivers consistent, high-capacity performance. Compact, durable, and efficient, it’s the perfect energy solution for any scenario.

perfect battery for RV, home energy storage, solar power, off-grid

Unmatched Support – From Delivery to Warranty

LiTime offers exceptional service to complement our high-quality batteries. With local warehouses, free fast shipping, a 5-year warranty, and 24/7 customer support, we ensure a seamless experience from purchase to post-purchase. Your satisfaction is our priority.

LiTime provides professional service

SPECS

BATTERY
Cell Type:
LiFePO4
Warranty:
5 Years
Cycle Life:
≥4000 times
Nominal Voltage:
12.8V
Rated Capacity:
560Ah
Energy:
7168Wh
Max. Expansion (Parallel & Series):
4P4S
Internal Resistance:
≤40mΩ
Certifications:
FCC, CE, RoHS, UN38.3
BMS
BMS:
250A
Max. Continuous Output Power:
3200W
Max. Continuous Charge Current:
250A
Max. Continuous Discharge Current:
250A
Max. Discharge Current 1 Second:
1000A@1 Second
CHARGE
Charge Method:
CC/CV
Charge Voltage:
14.4V±0.2V
Recommend Charge Current:
112A (0.2C)
TEMPERATURE
Charge Temperature:
0°C to 50°C/32°F to 122°F
Discharge Temperature:
-20°C to 60°C/-4°F to 140°F
Storage Temperature:
-10°C to 50°C/14°F to 122°F
Low-Temperature Protection:
Yes
Low-Temperature Charging Protection Auto Recovery:
Yes (5°C/41°F)
OTHERS
Terminals:
M8 Size Bolts
Weight Approx.:
133lbs
Size:
L18.11*W15.16*H11.42 inch
Housing Material:
SPCC (Steel Plate Cold Common)

FAQ

Can I conncet the LiTime 560Ah lithium battery in series or parallel?
What should I do when I receive the battery?
How long will it take to fully charge the LiTime 12V 560Ah battery?
Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?
Can I charge the LiTime 12V 560Ah below freezing point?
