LiTime 12V 100Ah Group 24 Deep Cycle LiFePO4 Lithium Battery
- 2/3 Lighter, 1/4 Smaller, 2X energy of 12V100Ah Lead-Acid battery
- IP65 Waterproof & dustproof
- LiTime's 100A BMS (over-charging, over-discharging, over-current, over-temperature, and short-circuit protection)
- 1280Wh of Energy, 1280W of Output Power
- 8X Higher Mass Energy Density (60.95Wh/lbs VS. 7.23Wh/lbs of Group 24 AGM Battery)
- EV Grade-A Cells, 4000+ cycles @100%DOD
- 100A Continuous Discharge/Charge Current, 400A/1S Continuous Discharge Current
- 10X Charging Efficiency, 2X Operating Time
-
20.48kWh Expandable Energy (Max. 4P4S)
- 10+ Years Lifespan & 5 Years Warranty
- Suitable for RVs/Camping/Trolling Motor/Solar/Home Storage/Off-grid
- Clean/Eco-friendly/Cost-effective
- Fast Delivery & Excellent Service
- Low TCO & Zero Maintenance Fee
- Note: This item is NOT suitable for starting. If you need a starting battery, please consider our 12V marine starting batteries series.
FedEx, UPS, or Amazon Logistics.
BATTERY
BMS
CHARGE
TEMPERATURE
OTHERS
12V 100Ah Group 24
12V 100Ah Group 24 Smart RV
12V 100Ah Group 24 Smart Self-Heating RV
12V 100Ah Group 27 Smart RV
What should I do when I receive the LiTime Group 24 lithium battery?
When you receive your battery, please note that it may have a low State of Charge (SOC) due to transportation and storage. For optimal performance, we recommend charging the battery with AC-DC lithium battery charger or MPPT solar charge controller immediately to avoid over-discharge.
If you intend to store the battery for an extended period without use, we recommend charging it to a SOC of 30% to 50% and conducting maintenance every three months. These measures will help preserve its functionality and performance in the long run.
Can I charge LiTime 12V 100Ah Group 24 LiFePO4 lithium batteries in cold weather (under freezing temperatures)?
Please be aware that this model should only be charged when the battery's temperature is above 32°F (0°C). Charging in freezing temperatures will damage the cells. On cold days, the best practice is to bring the battery indoors to charge.
For a detailed explanation, please read our complete Guide to LiFePO4 Battery Temperature Ranges.
For Charging in Freezing Temperatures: If your application requires charging in sub-zero weather (e.g., winter RVing, off-grid cabins), consider our LiTime Cold Weather Batteries. These advanced batteries include a built-in system (low-temperature charging off protection) that automatically manages charging in the cold, protecting your investment.
Does this deep cycle group 24 lithium battery have bluetooth function?
This battery model does not feature built-in Bluetooth. To monitor its status, you can pair it with our 500A Battery Monitor with Shunt.
For a Group 24 battery with Bluetooth functionality, you can explore the LiTime Group 24 Smart.
What's the dimension of group 24 lithium battery?
The Group 24 battery is a standard model measuring 10.5″L x 6.1875″W x 8.875″H, commonly found in vehicles, backup power systems, and medical equipment. These batteries are frequently utilized as deep cycle batteries rather than for starting engines.
What are the Differences Between a Group 24 and Group 31 Battery?
The main difference between a Group 24 and Group 31 battery lies in their physical size. Group 24 batteries are generally smaller compared to Group 31 batteries.
Can read on Deep Cycle Group 24 VS Group 31 for more information.
Can I connect LiTime group 24 and group 31 lithium battery in series or paralle?
To connect in series or parallel, batteries should meet the below conditions:
- identical batteries with the same battery capacity (Ah) and BMS (A);
- from the same brand (as lithium battery from different brands has their special BMS);
- purchased in near time (within one month).
Because of the different BMS, it's not recommended to connect these 2 types of battery in series or parallel.
Read on Matters Needing Attention in Parallel and Series Connections for more precautions of connecting batteries.
How many LiTime 100Ah group 24 lithium batteries can I connect?
LiTime group 24 batteries support versatile configurations, including series, parallel, and series-parallel connections.
- Series connection: Up to 4 batteries
- Parallel connection: Up to 4 batteries
- Series-parallel connection: Up to 16 batteries
Important Notes:
For safe and stable operation, all connected batteries must meet the following criteria:
✔ Same specifications – Identical capacity (Ah) and BMS rating (A)
✔ Same brand – Different brands may have incompatible BMS settings
✔ Purchased within a short timeframe (ideally within one month)
I think these are quality batteries, time will tell but so far so good. I also bought the onboard charger previously, I think it's been a good value and not much more expensive than the old lead acid charger I bought before I converted..
they are compact, lightweight and are a great addition to the solar system of my van conversion

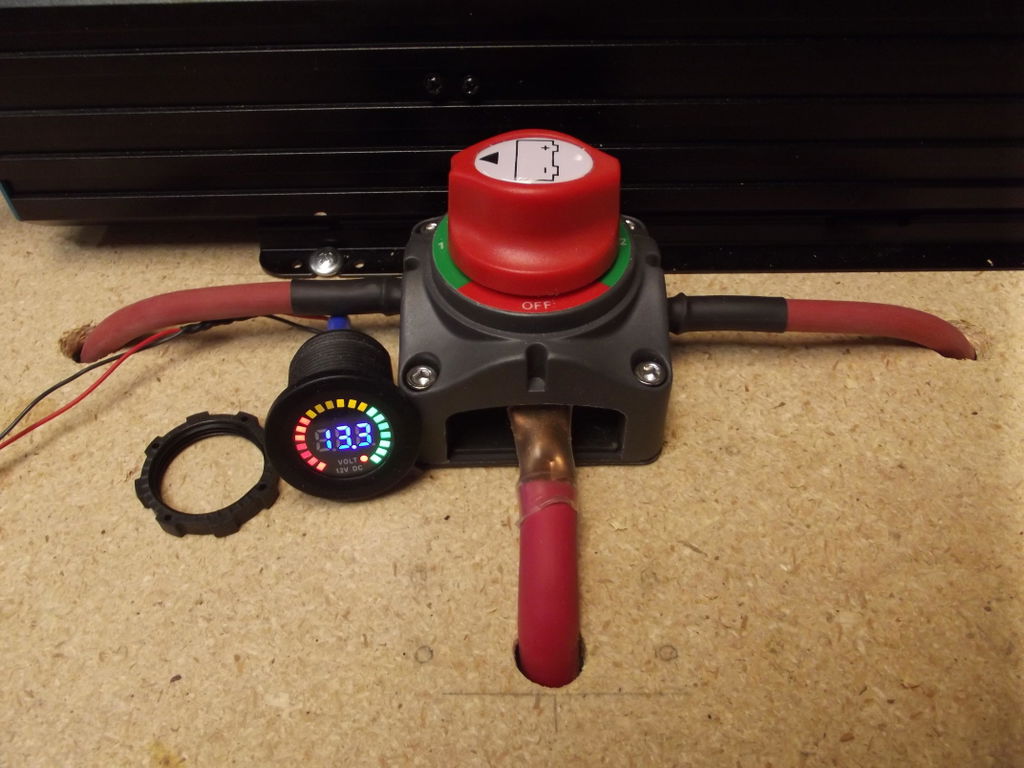

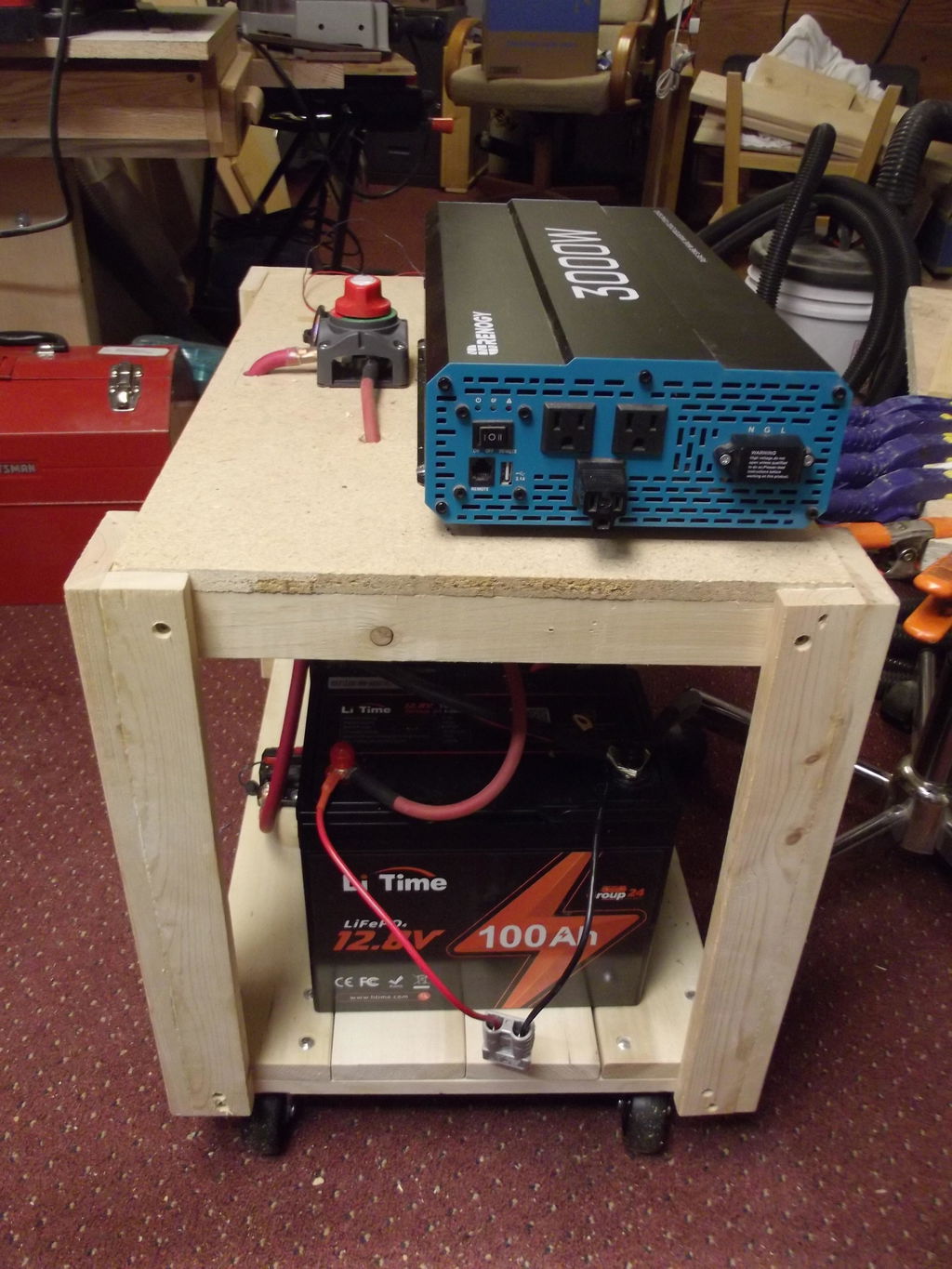

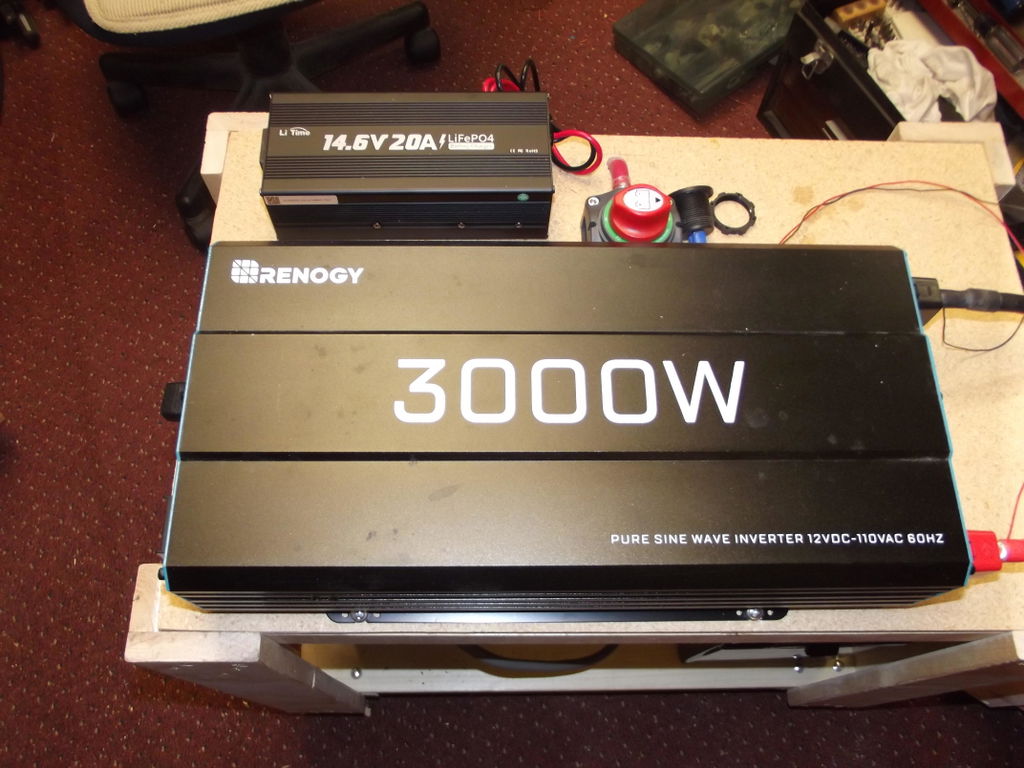

Since we have not experienced a power outage this emergency power is ready for service. It contains 2 LiFePO4 batteries with a switch to select each battery or both batteries. In a long power outage each battery could be recharged separately, while the other battery is being in service.
My new Class C RV had a low CCC Rating so I removed the heavy 56lb AGM battery and replaced it with a 21lb battery. I get longer run time and a much lower weight. The solar panel charges the battery when sitting and going down the road. This is my 3rd LiTime Lithium battery I have installed on past years and they always have been great.
![[Jack Oxenrider] review photo](https://review-images.judgeme.com/litime-us/1726828493__screenshot2024-08-24204032__original.jpg?quality=80&width=1024)
While I’ve only got a quick camping trip under my belt so far it’s working fine.

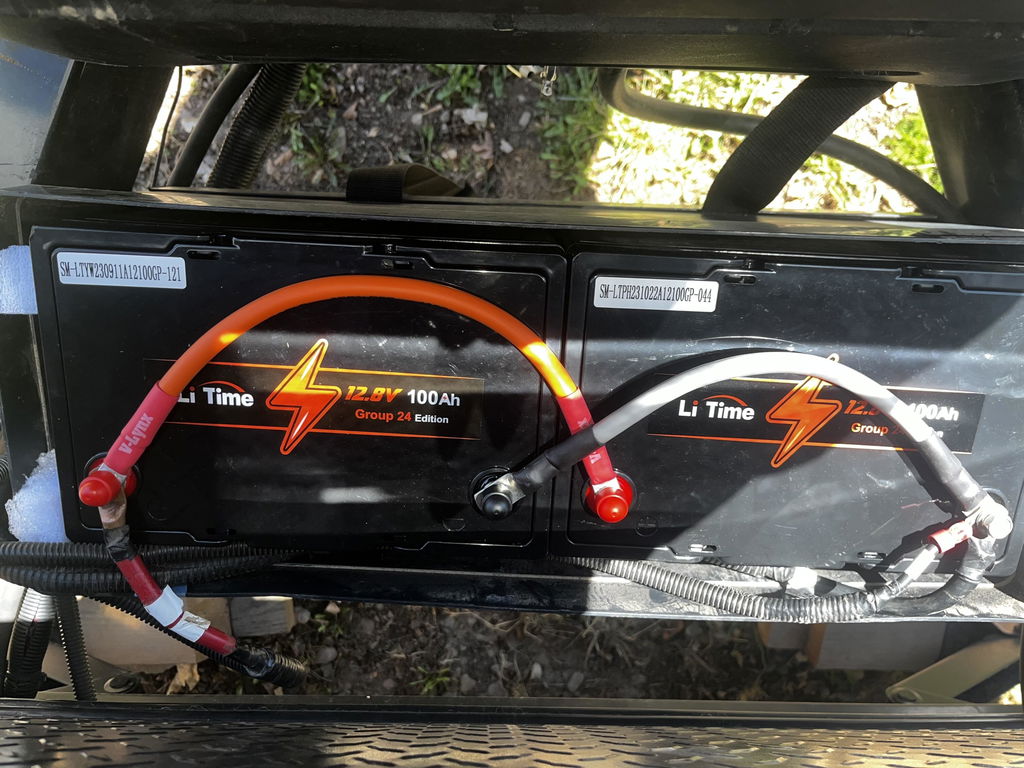

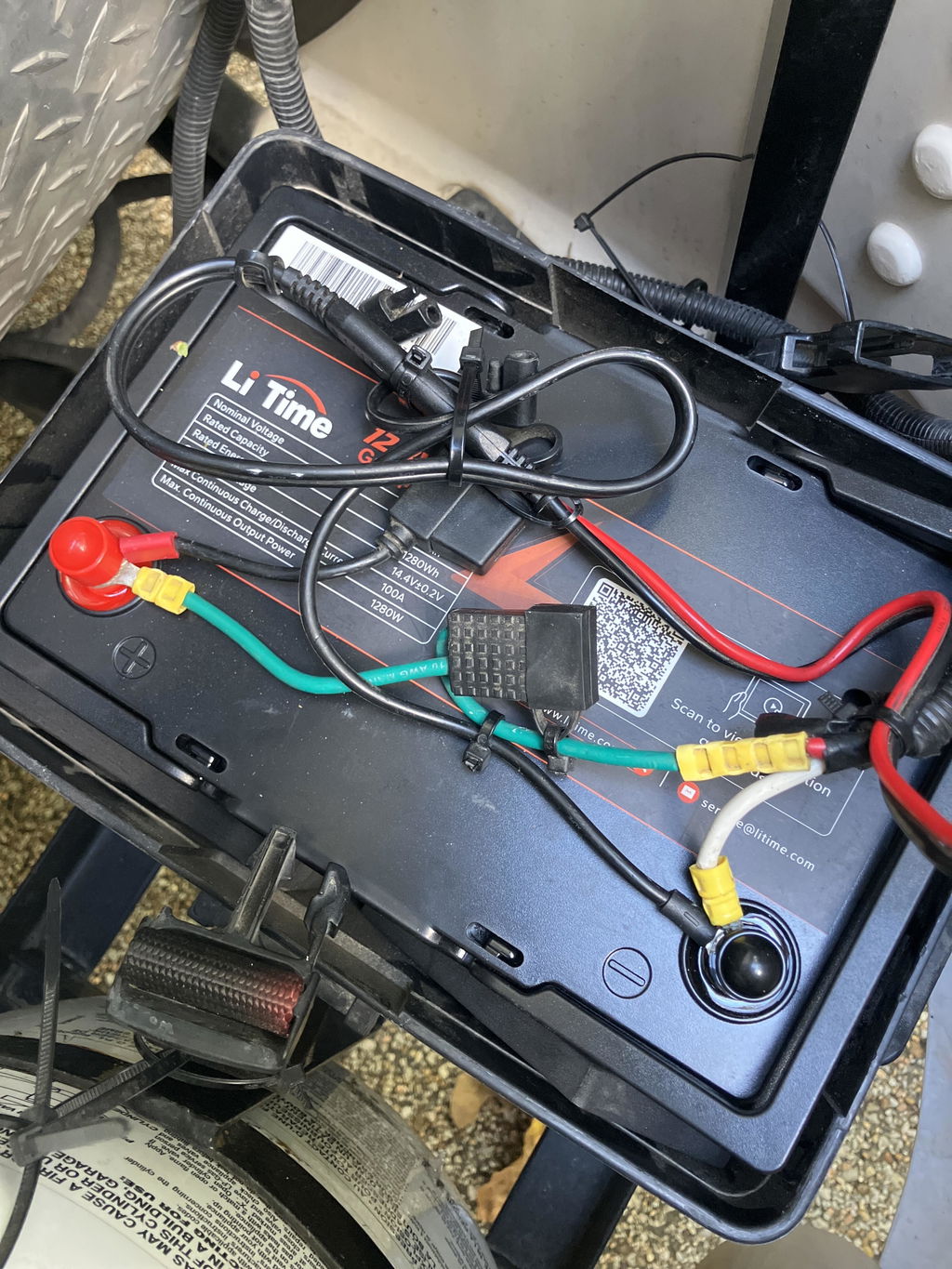

Went with the like new group 24 double pack deal for my 2021 Geo Pro because it fits in the factory box

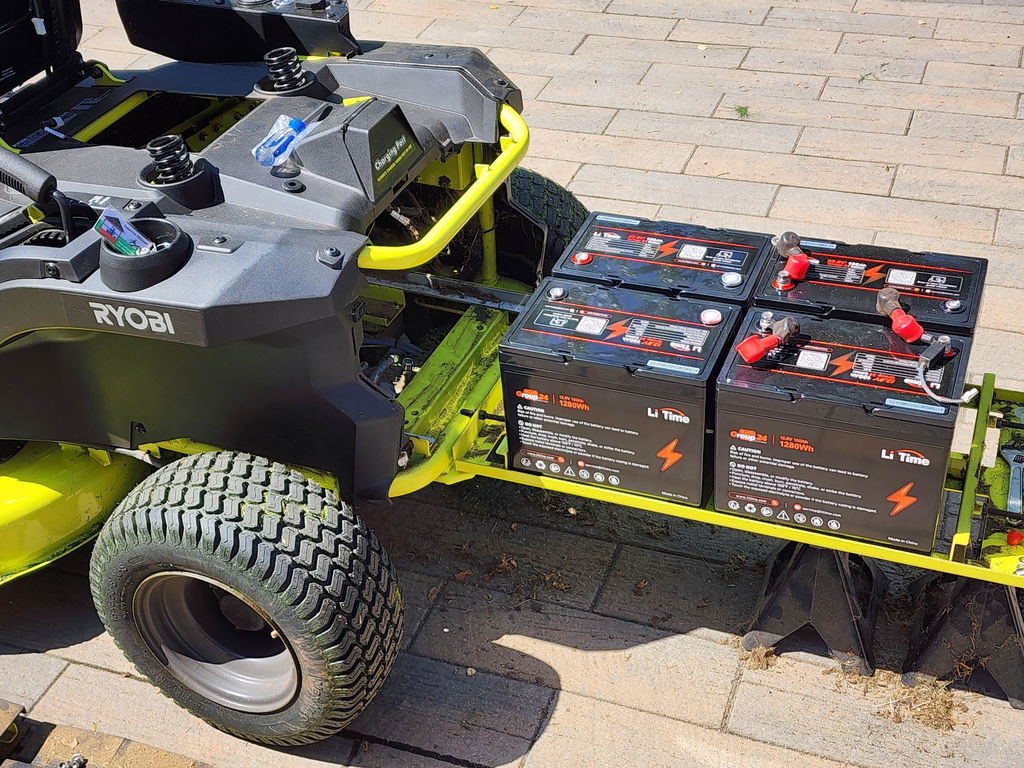

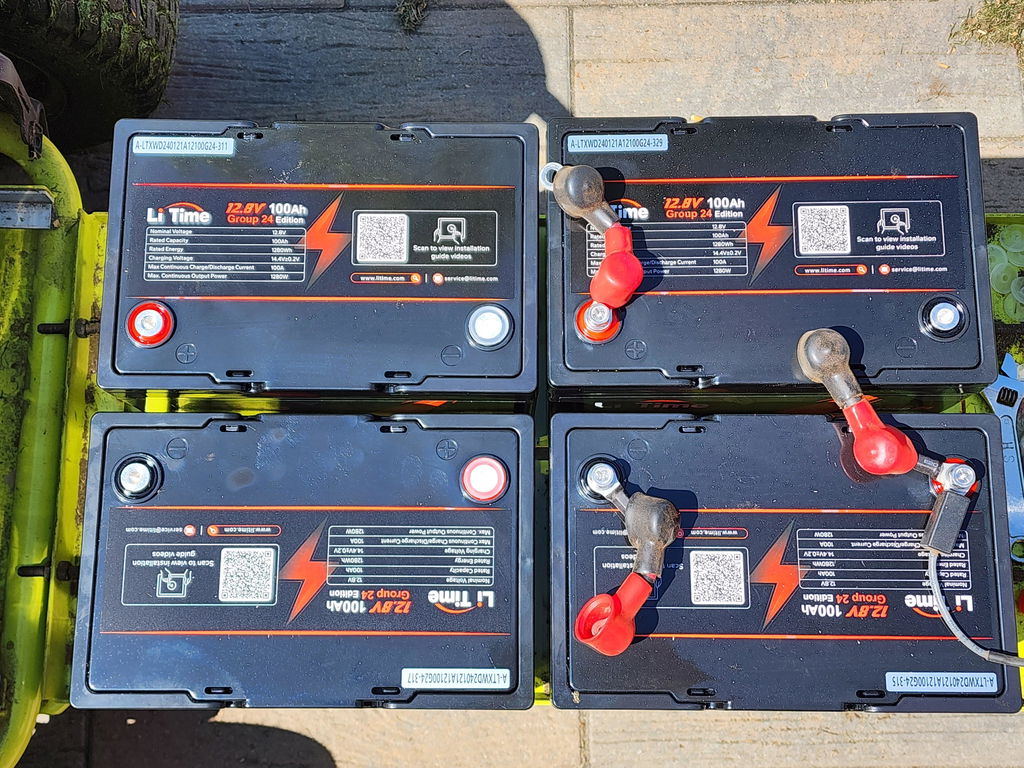

The LiTimes batteries were a replacement for lead acid batteries. First off, the technical support from LiTimes was excellent to ensure the batteries could be used. Second, the order was placed smoothly and the batteries arrived within 3 days from date of order. The replacement was straight forward - the new LiTimes batteries are nearly 50% lighter than the lead acid batteries. Charged up the batteries for 24 hours and took the lawnmower for its first test spin. Quite honestly, it felt like the performance was better than when the lawnmower first came with lead acid batteries. As with the lead acid batteries I proceeded to charge the batteries after mowing the lawn and I was surprised by how quickly it charged. Mowing nearly 1/2 acre in about 25 minutes, it seemed like it only used about 20 - 30% of the 100Amp, and it took a little less than 3 hours to be fully charged. Can't wait for my second test run, and then skipping the immediate charging thereafter. So far - very, very impressed.

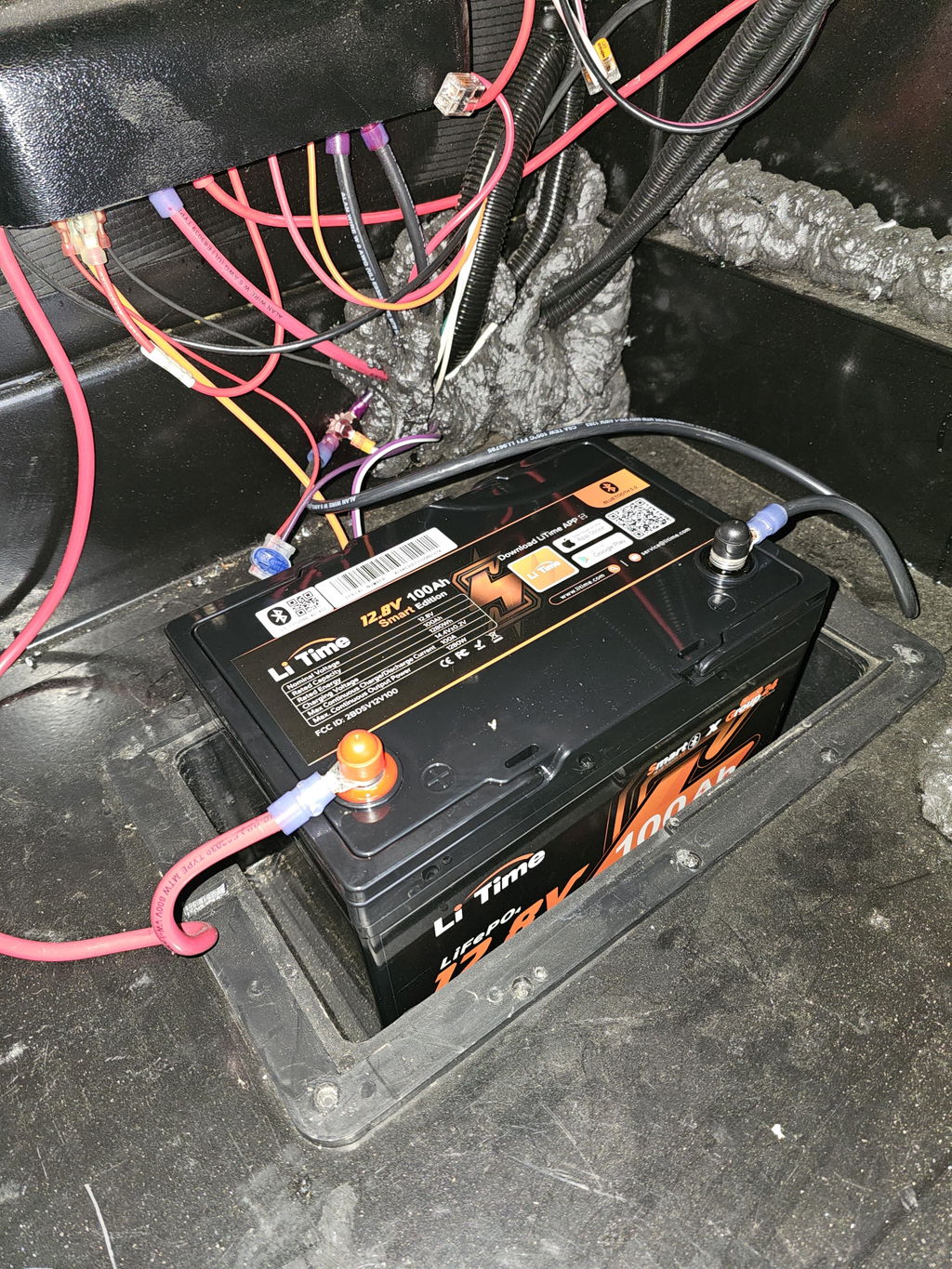

The battery itself is. Ice. Love the weight. My only issues are with support. I would love to have a phone number to actually speak to someone rather than text or email. Takes too long to get an answer. I can't i.agibe trying to reach someone in an emergency while at an RV Site. Difficult to get the app working. The paperwork has you using the latest but it doesn't work. Finally used the other app and all is well. A tech support rep would have been better to solve my issues. No torque given with the paperwork that came with the battery. Had to again, text, to find out but they did respond. Overall very happy with the battery just not the support.
![[Thomas Posey] review photo](https://review-images.judgeme.com/litime-us/1713024665__1000008077__original.jpg?quality=80&width=1024)
LIghtweight battery that performs flawlessly ! I will be adding 2 more as my other batteries go out !
