LiTime 24V 200Ah LiFePO4 Lithium Battery, 200A BMS, 5120Wh

SKU:
【Safe & Reliable Lithium Battery】 LiTime 24V 200Ah LiFePO4 batteries have exceptional quality since they are assembled by Automotive LiFePO4 Cells with UL certificated, which have a higher energy density, more stable performance, greater power, and excellent 3% self-discharge rate.
【4000-15000 Deep Cycle & 10-Year Lifetime】 24V 200Ah lithium battery can run 4000~15000 cycles, which is more than 10 times Lead Acid with 200~500 cycles. 24V LiFePO4 battery can realize 100% SOC&DOD and has a 10-year service life, three times longer than the Lead Acid’s 3-year.
【1/3 Lightweight & Portable】LiTime LiFePO4 Lithium Battery weighs 85.84lbs, only 1/3 the weight of lead-acid batteries. Plus, the IP65 level waterproof case with two solid handles on both sides, it’s easy to move and lift the battery. Thus, it’s no worry to install the lithium battery indoors or outdoors.

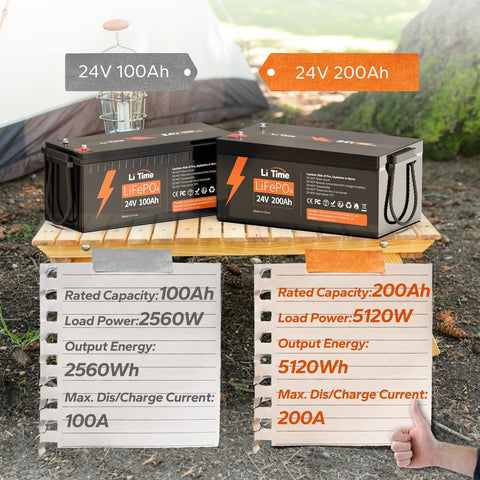

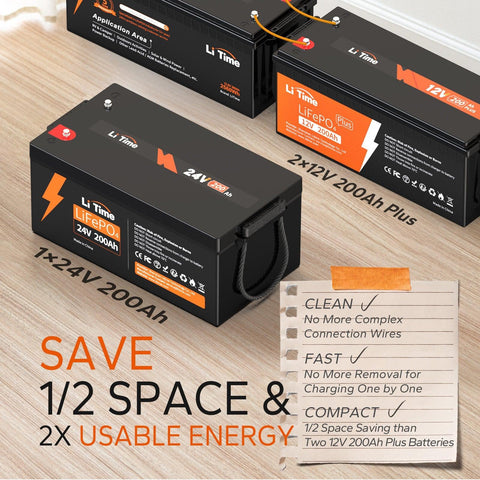

【5120Wh Higher Energy】 24V 200Ah lithium battery equals two 24V 100Ah lithium batteries. It is allowed to be expanded to a max 2S4P as 51.2V 800Ah battery system with around 41kWh energy. Perfect for which requires higher power or longer battery runtime Applications.
【2-5 Day Fast Delivery & 24 hours Customer Service】 LiTime Group is committed to providing you with satisfactory service. We will arrange the shipment from USA local warehouses in CA, TX and GA. Professional technical support and one-to-one customer service with quick feedback within 24 hours. If you have any questions during your use of the battery, please feel free to contact us.
Availability: 37 In Stock
$1,239.99
$1,799.99
$1,239.99
Please hurry! Only 37 left in stock
Size: 1 Pack 24V 200Ah
Subtotal: $1,239.99

Free Shipping

Free standard shipping on all orders

Estimated to be delivered within 2-5 business days.

5 Years Warranty

Backed up by technical support within 24hrs.

Free Returns

30 Days Hassle Free Returns
LiTime 24V 200Ah LiFePO4 Lithium Battery, 200A BMS, 5120Wh

LiTime 24V 200Ah LiFePO4 Lithium Battery, 200A BMS, 5120Wh

$1,799.99 $1,239.99

LiTime 24V 200Ah LiFePO4 Lithium Battery, 200A BMS, 5120Wh

$1,799.99 $1,239.99
Size: 1 Pack 24V 200Ah

Frequently Bought Together

LiTime 24V 200Ah LiFePO4 Lithium Battery, 200A BMS, 5120Wh 800
$1,799.99 $1,239.99
Choose Options
Choose Options
Size: 1 Pack 24V 200Ah
LiTime 29.2V 20A Lithium Battery Charger for 24V LiFePO4 Lithium Battery 1600
$199.99 $144.49
LiTime 30A MPPT 12V/24V Auto DC Input Solar Charge Controller, Built-in Bluetooth Adapter 1600
$219.99 $109.99
Price Total: $0.00

    Customer Reviews

    Based on 6 reviews
    100%
    (6)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    T
    Tracy Wood

    Double the capacity of the power bank in my cargo trailer, from 5k to 10k watts. Have not given the battery the off road test yet, if it survives I will be happy, 100 miles of ruff roads should be a good test. Price for the battery was great, shipping was good.

    W
    WALTER STOBER
    24 volt 200AH Lithium Battery

    I needed a battery that could power my 24 volt trolling motor for sustained, high-speed trolling for salmon on E-only lake. This battery has far exceeded my expectations. I recently tested this battery over 7 hours of heavy use in high winds and there was no voltage drop. The battery was also delivered quickly by LiTime. I priced other brands and LiTime was the best value. I couldn't be happier with this purchase.

    M
    Martin

    Nice!

    R
    Randy
    LiFePO4 Batteries for Two Uninteruptible Power Supplies

    My review is based strictly on the fact that I received my batteries in a timely manner after full payment. I believe that an accurate rating of a LiFePO4 battery is best determined by its usable lifespan, which has been advertised to be 10 years. Consequently, at this time, my review can not possibly reflect the quality of the batteries since I only have owned them for a period of days.

    T
    Tim Criswell
    Li Time 24v 200 ah batteries

    We’ve lived off grid for 16 years an these Li time 24v 200ah batteries are the best we’ve ever had… there holding power going through the night with no sun is impressive…we’ve used both L16 flooded batteries an AGM batteries since we’ve been here… an these Li Time Lithium ion LifeP04 24v 200ah batteries are by far the best… an there customer service is top notch… these are definitely the batteries to use if your going it live off grid… Thank you again Li Time..

    Power Your World with LiTime
    litime 24v 200Ah lifepo4 battery

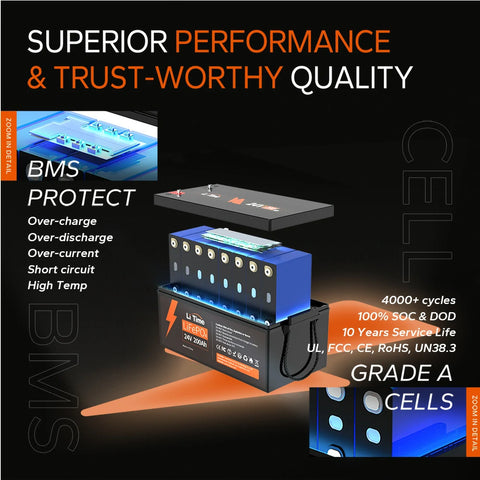

    Stong & Robust BMS
    With LiTime's high-quality Battery Management System (BMS), you can rest easy knowing your battery is fully protected against overvoltage, undervoltage, overheating, overcurrent, and short circuits. This advanced system ensures ultra-reliability and safety for your battery.
    litime battery management system

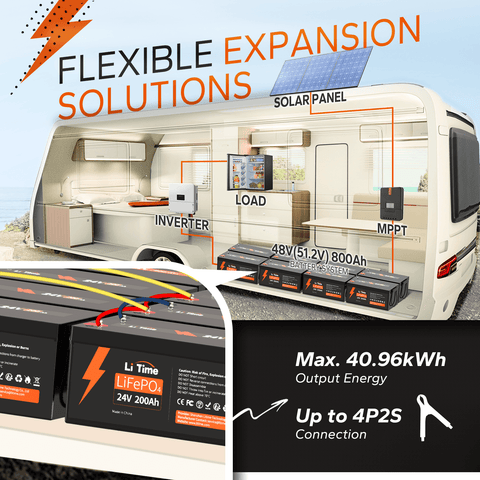

    51.2V 800Ah Battery Banck with Up To 4P2S
    litime lifepo4 battery in series and parallel
    power of litime 24v 200Ah lifepo4 batery

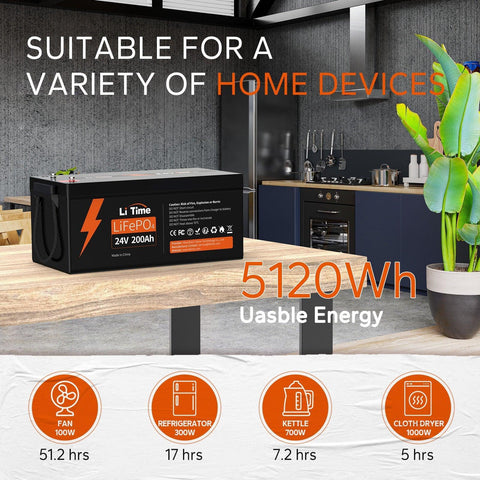

    applications of litime lifepo4 battery

    SPECS

    BATTERY
    Cell Type:
    LiFePO4 Prismatic
    Warranty:
    5 Years
    Cycle Life:
    4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
    Nominal Voltage:
    25.6V
    Rated Capacity:
    200Ah
    Energy:
    5120Wh
    Max. Expansion (Parallel & Series):
    4P2S
    Internal Resistance:
    ≤40mΩ
    Certifications:
    UL, FCC, CE, RoHS, UN38.3
    BMS
    BMS:
    200A
    Max. Continuous Output Power:
    5120W
    Max. Continuous Charge Current:
    200A
    Max. Continuous Discharge Current:
    200A
    Max. Discharge Current 5 Seconds:
    400A
    CHARGE
    Charge Method:
    CC/CV
    Charge Voltage:
    28.8V ± 0.4V
    Recommend Charge Current:
    40A (0.2C)
    TEMPERATURE
    Charge Temperature:
    0℃ to 50℃ / 32℉ to 122℉
    Discharge Temperature:
    -20℃ to 60℃ / -4℉ to 140℉
    Storage Temperature:
    -10℃ to 50℃ / 14℉ to 122℉
    Low-Temperature Protection:
    N/A
    Low-Temperature Charging Protection Auto Recovery:
    N/A
    SELF-HEATING
    Heating Temperature:
    N/A
    Approx. Heating Time:
    N/A
    OTHERS
    Terminals:
    M8 bolts
    Weight Approx.:
    80.25lbs
    Size:
    L20.47*W10.59*H8.66 inch
    Housing Material:
    ABS (Flame Retardant Plastic)
    Protection Class:
    IP65

    FAQ

    Q: Are LiTime LiFePO4 batteries safe?

    A: Yes. LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. LiTime lithium cells are UL certified for the highest safety and sustainability standards. All LiTime LiFePO4 batteries come with an internal Battery Management System which protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage. Additionally, LiTime LiFePO4 Lithium batteries have been tested to be free from the risk of fire, and electric shock in harsh environments.

    Q: Can I use LiTime LiFePO4 Lithium batteries as starting batteries?

    A:

    No. LiTime LiFePO4 lithium batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices.  Read on deep cycle vs starting batteries to learn more.

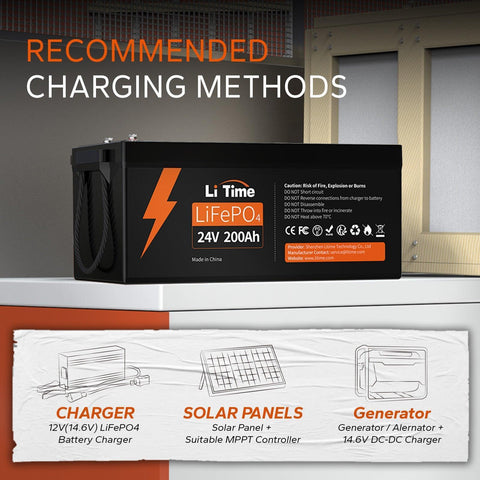

    Q: Can I charge LiTime LiFePO4 lithium batteries with solar panels?

    A:

    Yes, you can charge LiTime LiFePO4 lithium batteries with solar panels. You should size your charge controller based on the voltage and current output of your solar array setup. That will ensure that your charge controller can process and regulate the power coming from your solar panels. Take a 24V MAX. 22 amps output solar system for example. You would need a solar charge controller that can handle 24 volts and 27.5 amps (125% of your max current output).  Besides solar panels, there are 2 more ways to charge. Suggest reading: 3 reliable ways to charge LiFePO4 lithium batteries

    Q: Can I charge LiTime LiFePO4 lithium batteries in cold weather (under freezing temperatures)?

    A:

    LiFePO4 batteries can safely charge between 32°F to 113°F (0°C to 45°C). LiTime 12V 100Ah TM & 230Ah LiFePO4 batteries include low-temperature charging protection which will automatically cut the battery charging off when the cell temperature is lower than 32℉, thus preventing the battery cells from damage when charging under the freezing point.

    Q: How do I store LiTime LiFePO4 lithium batteries?

    A:

    It is recommended to store LiTime LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, cycle the batteries at least every 6 months. Recommended storage environment: 10℃~35℃ (50℉~95℉), 45%RH~75%RH
