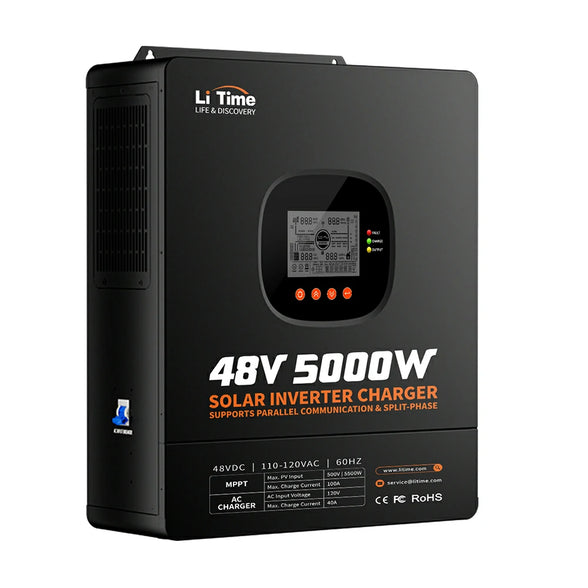

overview of litime 48v 5kw solar inverter charger
litime all-in-one solar inverter charger: 5kw invterter + max. 100a solar charge controller + max. 40a battery charger
A LiTime 48V 5kW inverter charger, showing parallel options for 120V, 240V split-phase, and up to 30kW total output
chart shows scheduling battery charging for off-peak hours and discharging during peak hours to save on electricity costs

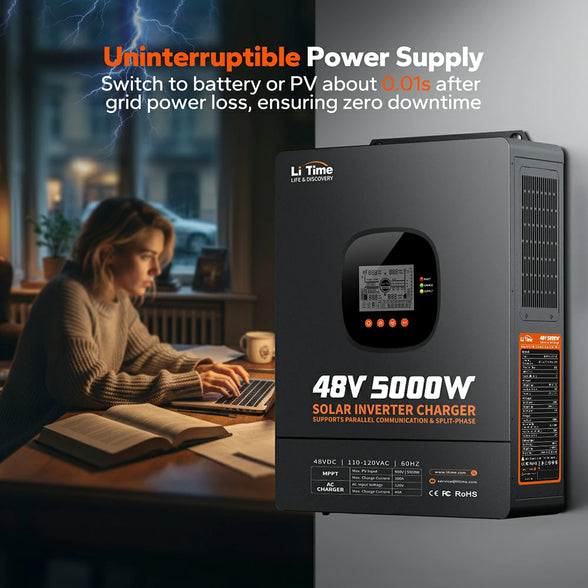

LiTime 48V 5kW inverter charger: an uninterruptible power supply, with a 0.01s switch to battery during an outage

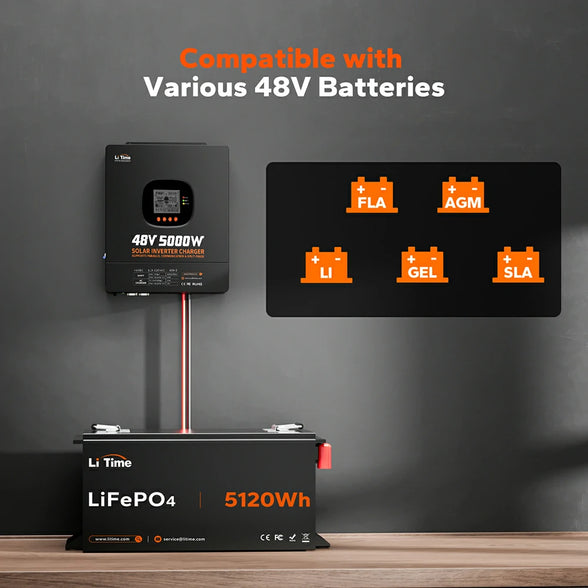

wide compatibility of 48v 5kw solar inverter charger for lead-acid, lifepo4,gel, agm batteries

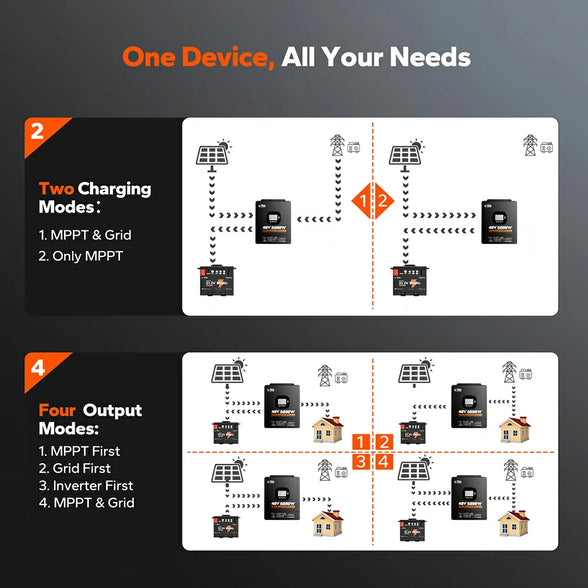

infographic of the LiTime inverter's 2 charging modes and 4 configurable output priority modes
A diagram of a LiTime 5kw inverter connecting solar, grid, generator, and battery to power appliances.
wide application of litime 48v 5kw solar inverter charger: home, off-grid, garage, farm
overview of litime 48v 5kw solar inverter charger
litime all-in-one solar inverter charger: 5kw invterter + max. 100a solar charge controller + max. 40a battery charger
A LiTime 48V 5kW inverter charger, showing parallel options for 120V, 240V split-phase, and up to 30kW total output
chart shows scheduling battery charging for off-peak hours and discharging during peak hours to save on electricity costs
LiTime 48V 5kW inverter charger: an uninterruptible power supply, with a 0.01s switch to battery during an outage
wide compatibility of 48v 5kw solar inverter charger for lead-acid, lifepo4,gel, agm batteries
infographic of the LiTime inverter's 2 charging modes and 4 configurable output priority modes

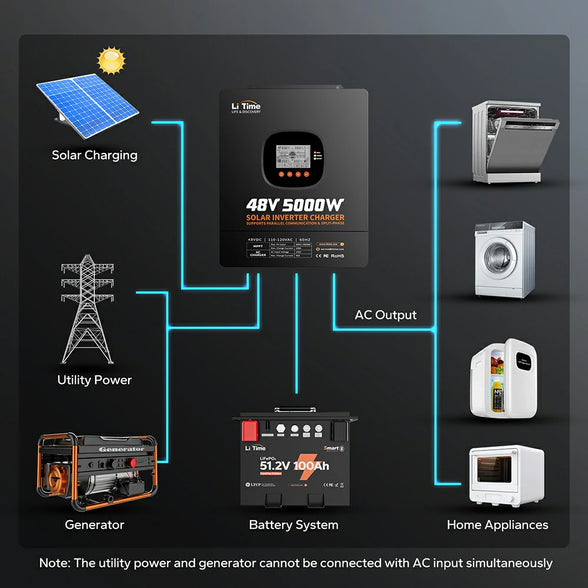

A diagram of a LiTime 5kw inverter connecting solar, grid, generator, and battery to power appliances.
wide application of litime 48v 5kw solar inverter charger: home, off-grid, garage, farm
1 / 0
Features
New

LiTime 48V 5kW Split Phase All-In-One Solar Inverter Charger

$839.99
$1,099.99
23% OFF
30-Day Price Guarantee & 7-Day Free Return Policy Included
  • 3-in-1 Design: Combines a 100A MPPT solar controller, 5kW pure sine wave inverter, and 40A battery charger in one unit—saving over 50% of space.
  • Wide Compatibility: For all 48V lithium and lead-acid batteries, plus USER mode.
  • Parallel Up to 6 Units: Connect up to 6 units for 30kW total power, from 120V (1 unit) to 240V/208V split-phase (2+ units)—scaling easily with your home, office, or business needs.
  • Timed Charging & Spend Less: Built-in timer lets you schedule charging and discharging around peak-valley electricity tariff, maximizing solar use and lowering bills.
  • Strong Load Capability: Delivers 5kW continuous output and up to 10kW surge, powering even high-demand devices. Ensures safe, clean energy with pure sine wave output.
  • Flexible Charging & Power Supply: With 2 charging modes and 4 output modes, it delivers strong flexibility to fit different energy strategies, maximizing the utilization of solar energy.
  • Uninterrupted Power Supply: Auto shifts to battery or PV power when the utility fails—ensuring essential appliances stay on.
  • Real-time Monitoring: LCD display and LED indicators provide at-a-glance system data, including battery, solar, grid, load, and overall status.
  • All-Around Protection: Equipped with 100% protection, including over/under-voltage, overload, overheating, etc., keeping your system safe at all times.
Comparison
Hurry—Only 15 Left in Stock!
Quantity:
$839.99
$1,099.99
23% OFF
Add to Cart
payment method
payment method
payment method
payment method
payment method
payment method
payment method
payment method
payment method
payment method
payment method
payment method
payment method
payment method
icon shows litime warranty service
2 Years Warranty
Backed by technical support within 24 hours.
icon of litime 30 days price garantee
30 Days Price Match
Worry-free purchase guarantee.
icon shows litime free return service
7 Days Free Returns
7 days no-questions-asked return.
icon shows litime free shipping service
Local Warehouse Shipping
Free standard shipping on all orders.
Delivered in 2–5 business days.
overview of litime 48v 5kw solar inverter charger
48V 5kW Solar Inverter Charger
$839.99
$1,099.99
23% OFF
Add to Cart
overview of litime 48v 5kw solar inverter charger
litime all-in-one solar inverter charger: 5kw invterter + max. 100a solar charge controller + max. 40a battery charger
A LiTime 48V 5kW inverter charger, showing parallel options for 120V, 240V split-phase, and up to 30kW total output
chart shows scheduling battery charging for off-peak hours and discharging during peak hours to save on electricity costs
LiTime 48V 5kW inverter charger: an uninterruptible power supply, with a 0.01s switch to battery during an outage
wide compatibility of 48v 5kw solar inverter charger for lead-acid, lifepo4,gel, agm batteries
infographic of the LiTime inverter's 2 charging modes and 4 configurable output priority modes
A diagram of a LiTime 5kw inverter connecting solar, grid, generator, and battery to power appliances.
wide application of litime 48v 5kw solar inverter charger: home, off-grid, garage, farm

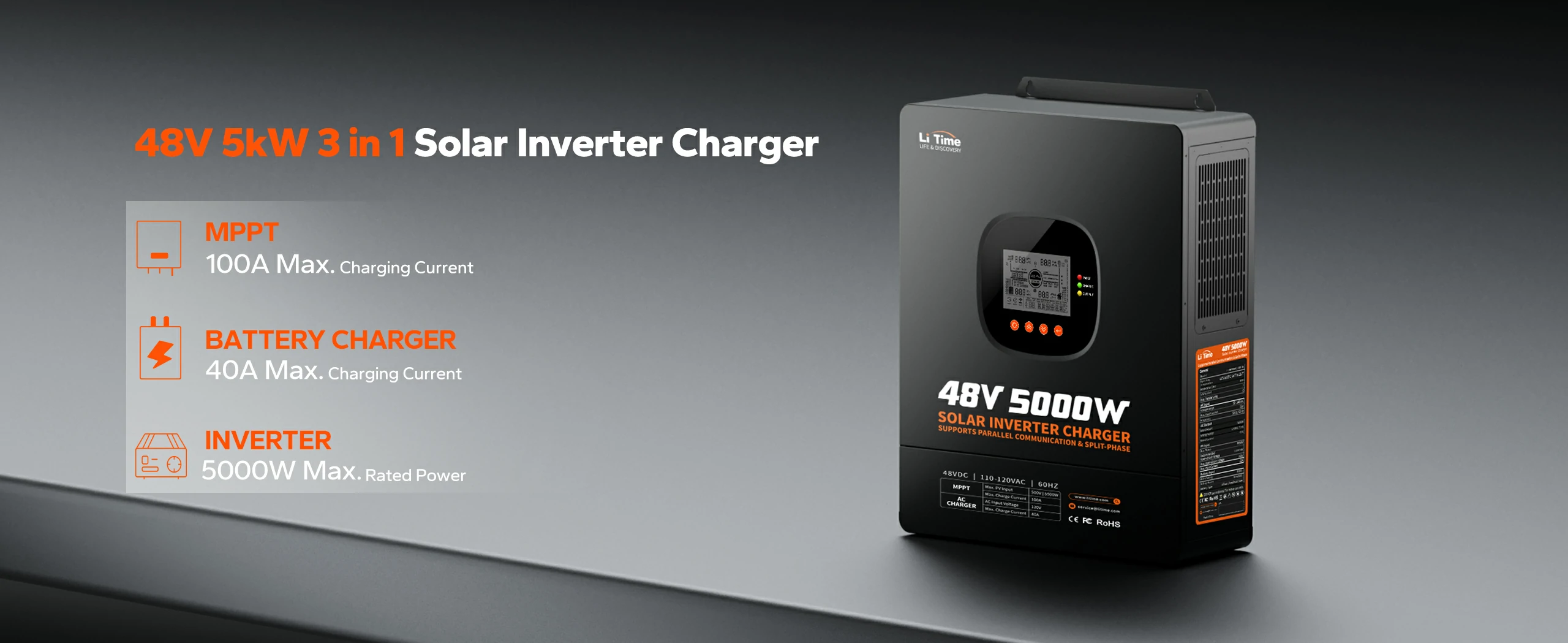

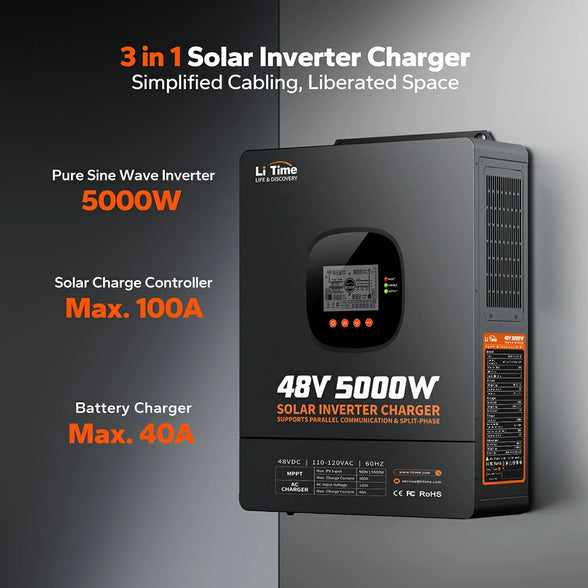

LiTime All-in-One Solar Power Solution

LiTime 48V 5kW split phase solar inverter charger combines a 5000W pure sine wave inverter, a 100A MPPT solar charge controller, and a 40A battery charger into one compact unit—simplifying wiring and saving space. Seamlessly communicates with the LiTime 48V 100Ah Smart ComFlex lithium battery, enabling a smarter off-grid energy solution. Fits all 48V batteries, including LiFePO4, FLA, AGM, GEL, SLA, etc.

LiTime 3-in-1 inverter specs: 100A MPPT, 40A battery charger, and 5000W max rated power

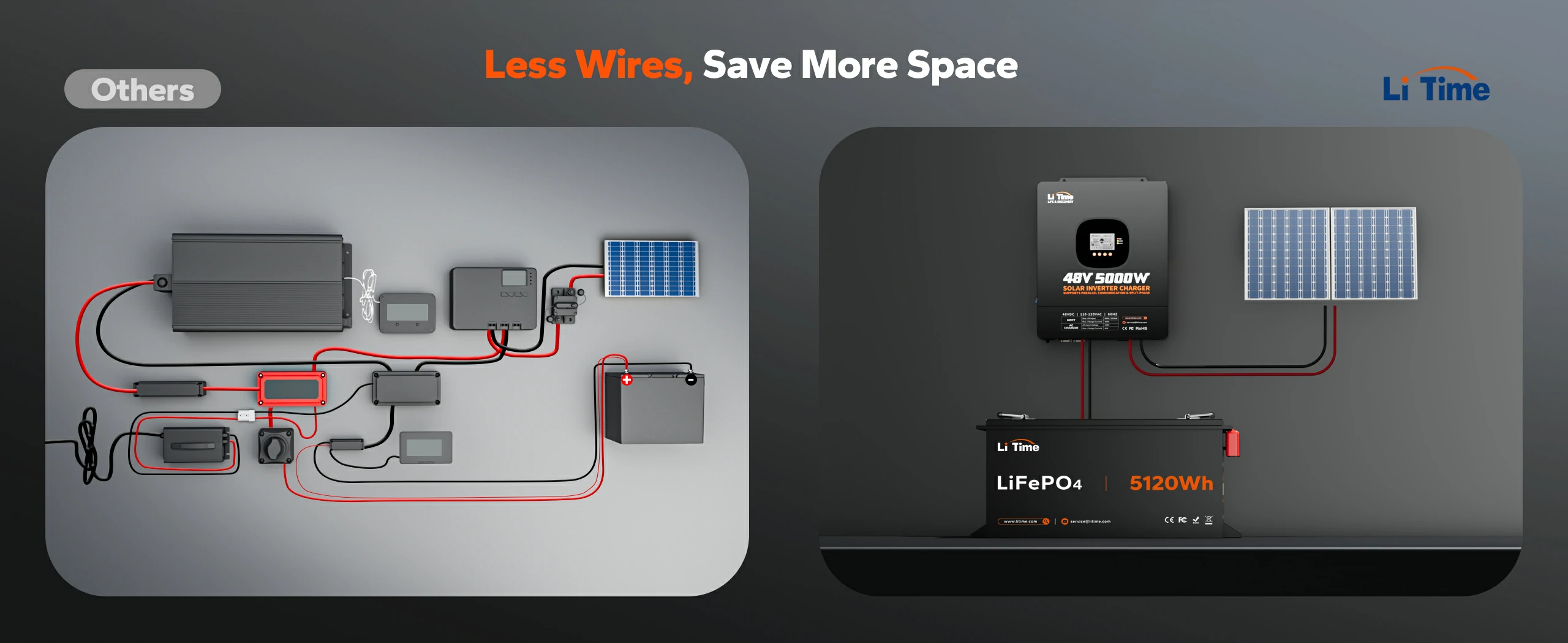

Save Approx. 50% Space with 3-in-1 Design

Say goodbye to tangled wires and scattered components! LiTime 48V 5000W solar inverter charger replaces bulky setups with a single compact unit — freeing up wall space, simplifying wiring and making your home energy system neat, safe and efficient.

less wires & saving space of litime 48v solar inverter charge

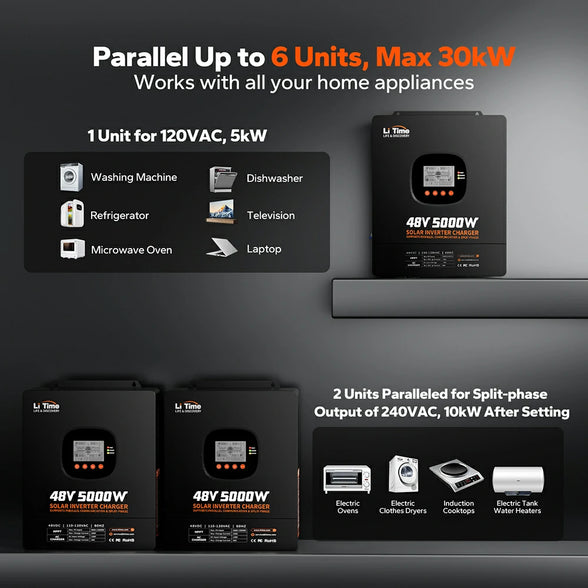

120V Single or 240V Split Phase - Power for Any Home Setup

LiTime 48V 5kW solar inverter charger supports both 120V single-phase and 120V/240V split-phase configurations with 2 units in parallel, delivering up to 10kW total power. Perfect for U.S. households—run everyday 120V loads or heavy 240V appliances like dryers and air conditioners with ease.

Wiring diagrams for two inverters in parallel: single phase (120V, 10kW) and split phase (240V, 10kW).

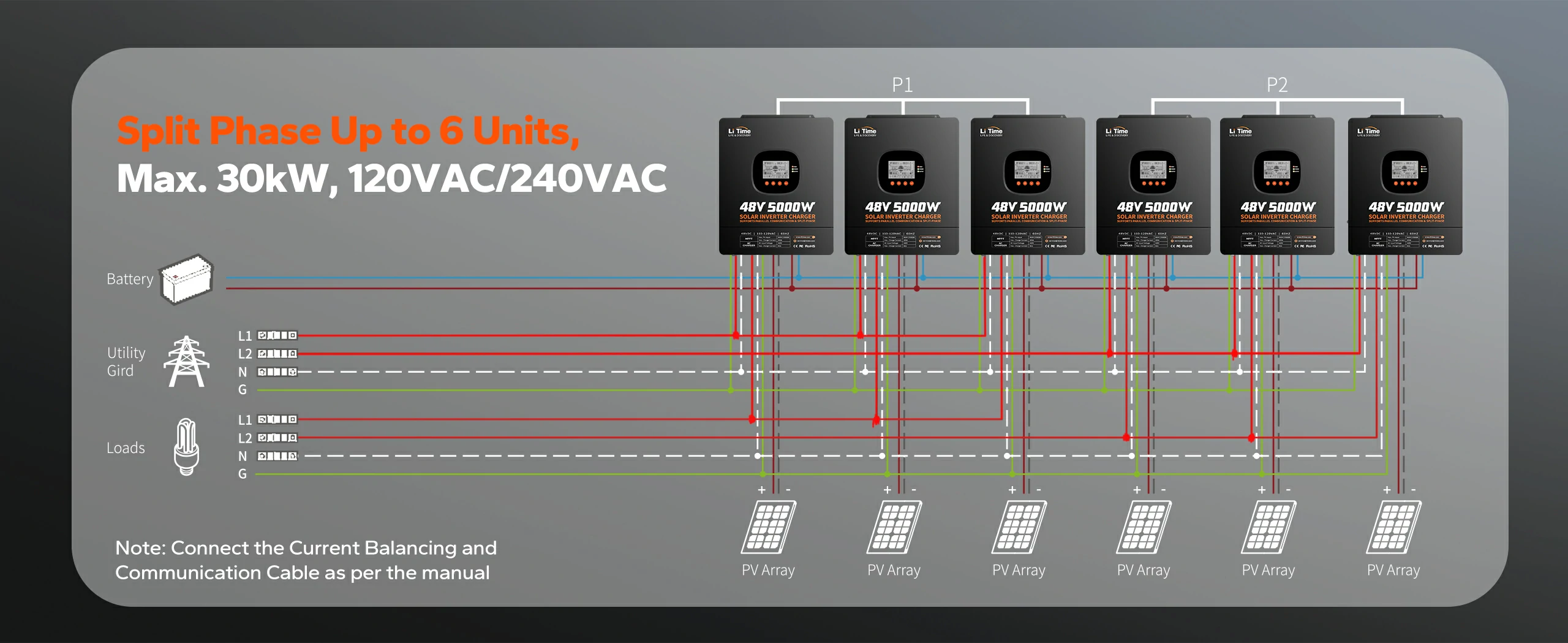

Up to 30kW Split Phase - Grow with Your Energy Needs

Parallel up to 6 units for 30kW split-phase output (120V/240V), which scales seamlessly with your lifestyle. Whether powering essential home devices, adding high-demand appliances, or supporting small business operations, LiTime 48V split-phase solar inverter charger can be extended as your energy needs increase.

A wiring diagram showing six LiTime inverters in a 30kW, 120V/240V split-phase parallel configuration.

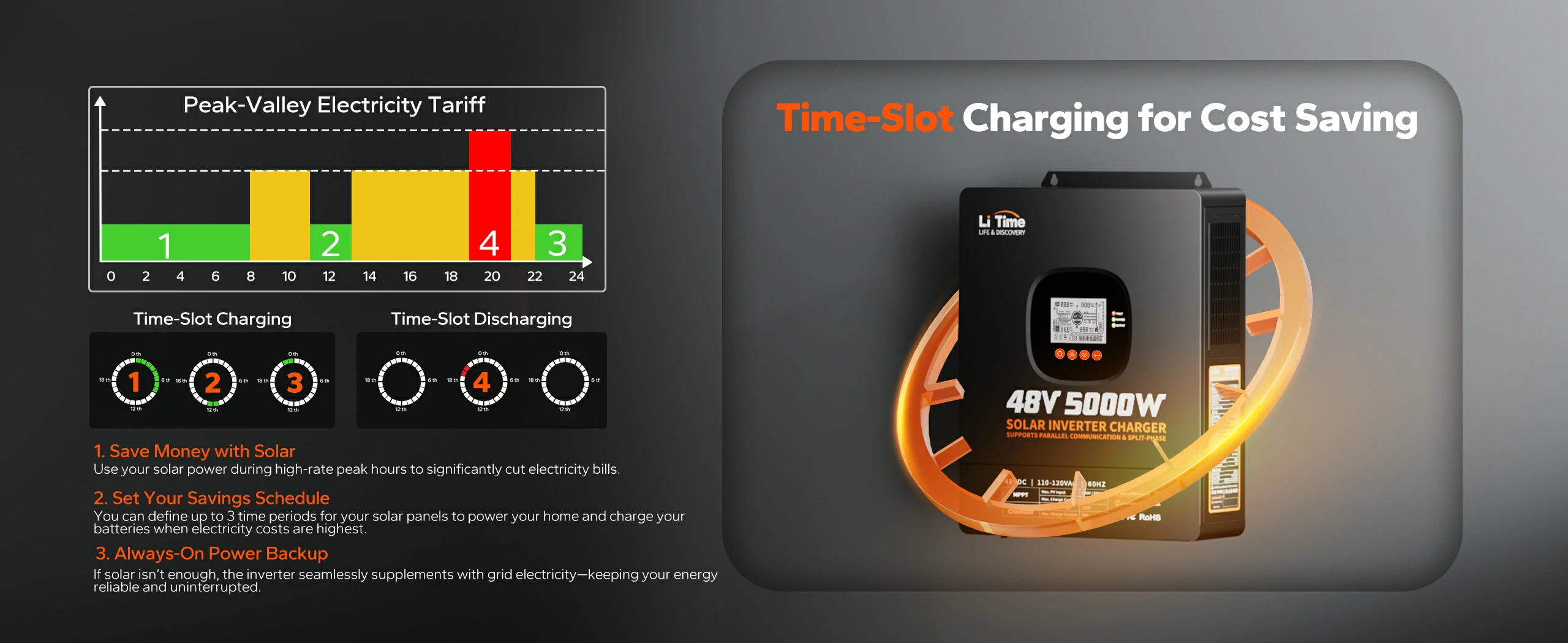

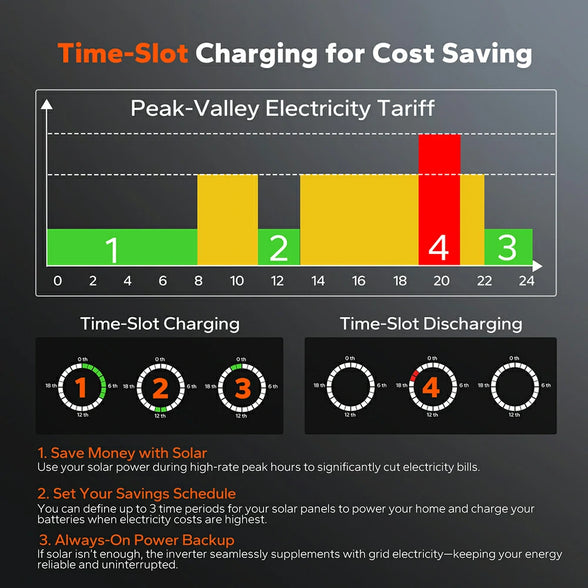

Maximize Energy Efficiency, Minimize Bills

When electricity rates peak, LiTime 48V solar inverter charger automatically switches to solar power or battery storage for home supply. During off-peak hours, it shifts to low-cost grid power for charging and discharging—helping you reduce electricity bills while maintaining maximum energy efficiency.

An infographic explaining time-slot charging: use off-peak rates to charge a battery and discharge it during peak hours to save money.

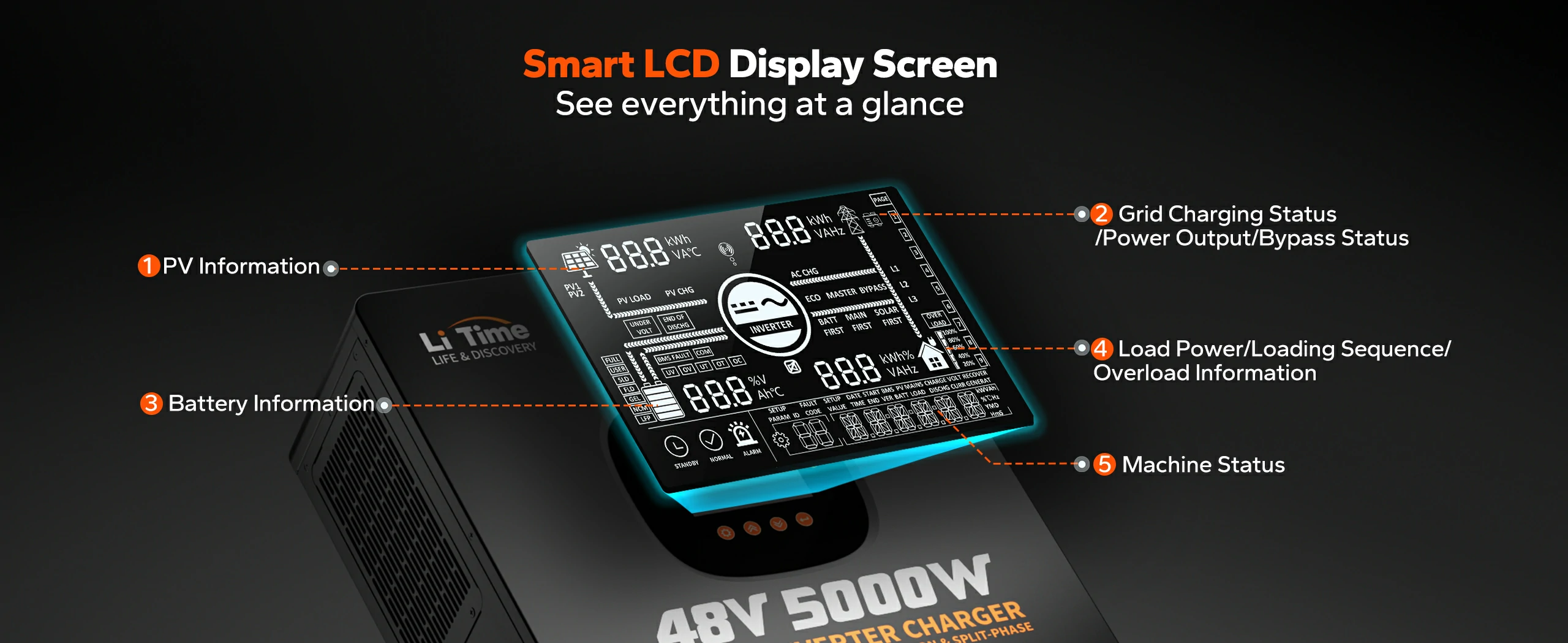

Get Real-Time Info in LCD Display

Stay in control with the built-in LCD display to easily monitor system data, receive error alerts, and track input/output performance—all in real-time. Seamlessly integrated with LiTime 48V 100Ah Smart ComFlex LiFePO4 battery to view instant battery data directly on the screen for smarter control.

diagram of the inverter's LCD screen, showing where to find PV, battery, grid, load, and machine status info

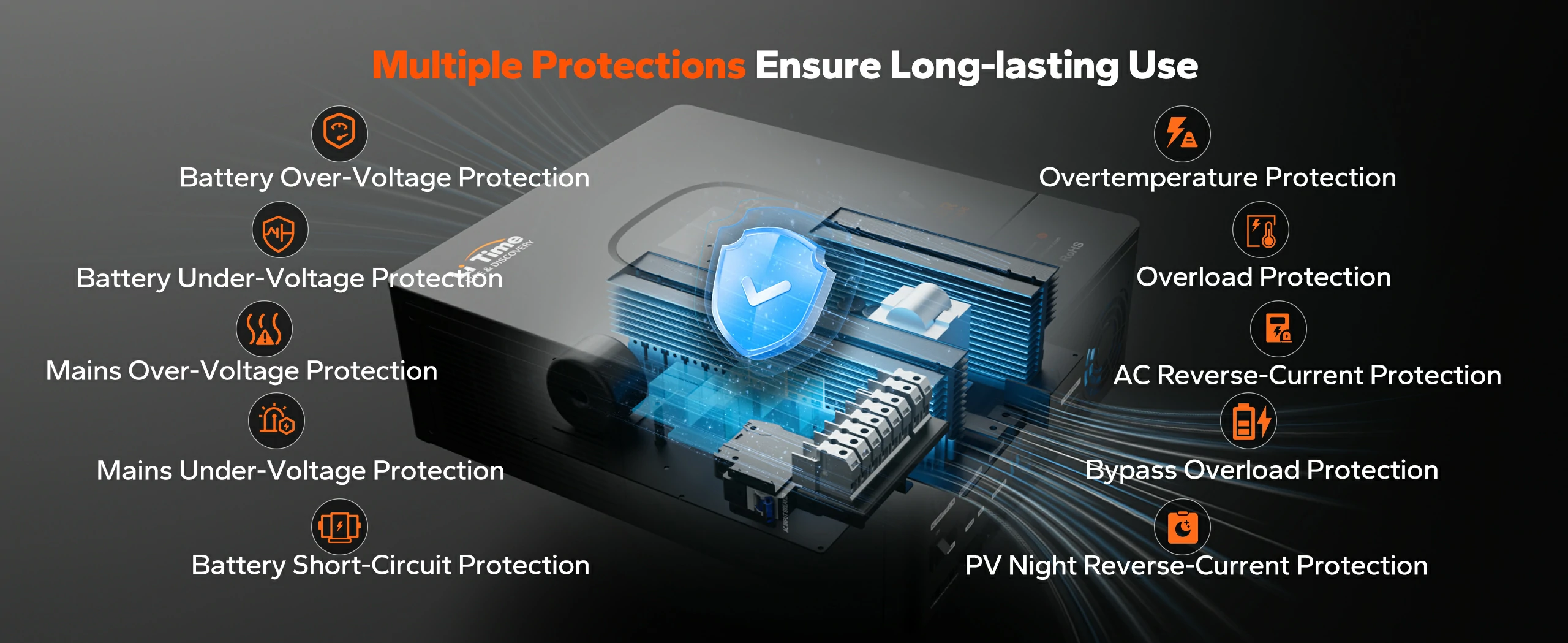

All-Round Protection for Safe & Reliable Power

With full protection to prevent risks, LiTime 48V 5kW solar charged inverter safeguards both your devices and itself, giving you consistent performance and long-lasting value.

litime 48v 5kw solar inverter charger provides all-around protection: temperature, overload and more

5000W Pure Sine Wave — Power All Your Essentials

LiTime 48V 5kW split-phase solar inverter charger delivers stable 5000W continuous power with pure sine wave output, safe for sensitive electronics and strong enough to run refrigerators, air conditioners, washing machines, microwaves, and more. Enjoy reliable performance and peace of mind for your household appliances.

appliances of a 5000W inverter, including a refrigerator, AC, washing machine, and microwave

One System, Multiple Applications

LiTime 48V 5000W solar inverter charger delivers reliable power wherever you need it. Whether for daily use, backup, or off-grid living, it provides stable energy to keep your life running smoothly.

wide application of litime 48v 5kw split phase solar inverter charger:off-grid, garage, farm

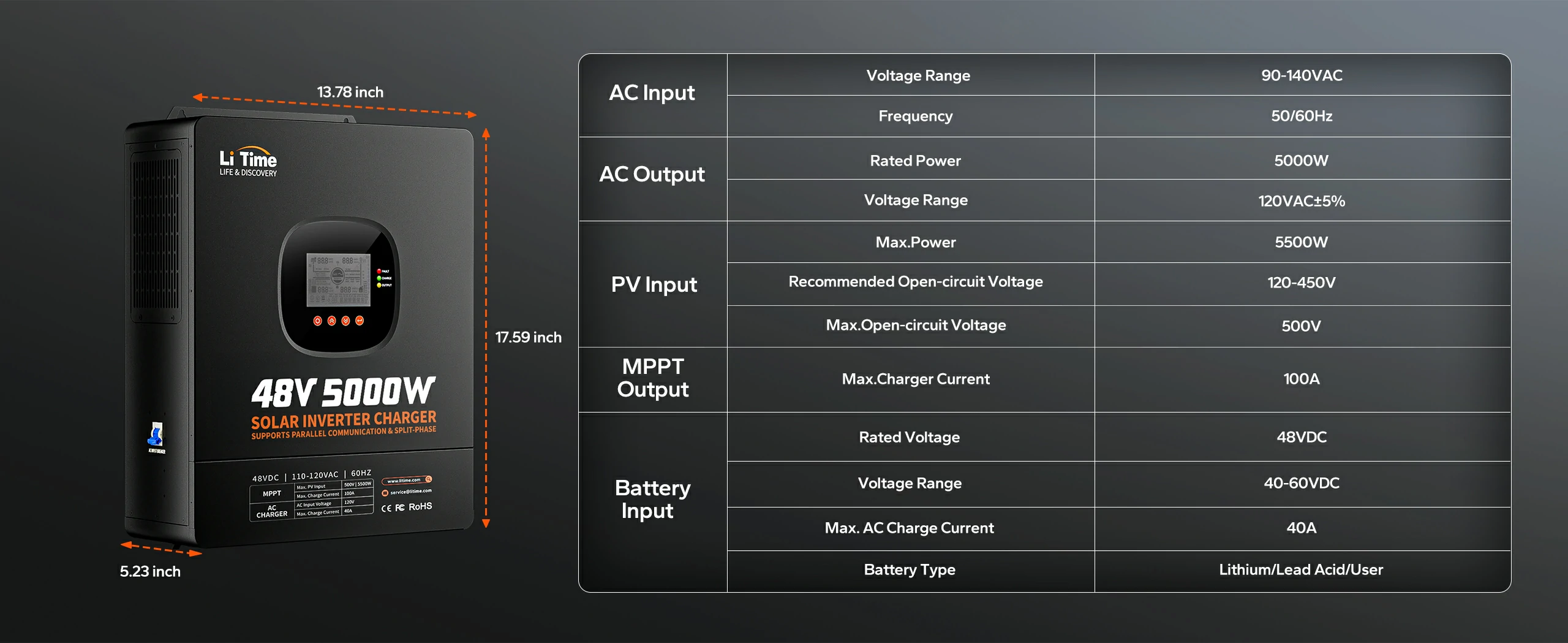

Clear & Detail Specs

Easily access key product parameters for fast reference!

sheet for the LiTime 5000W inverter, listing its dimensions and technical data for AC, PV, and battery connections

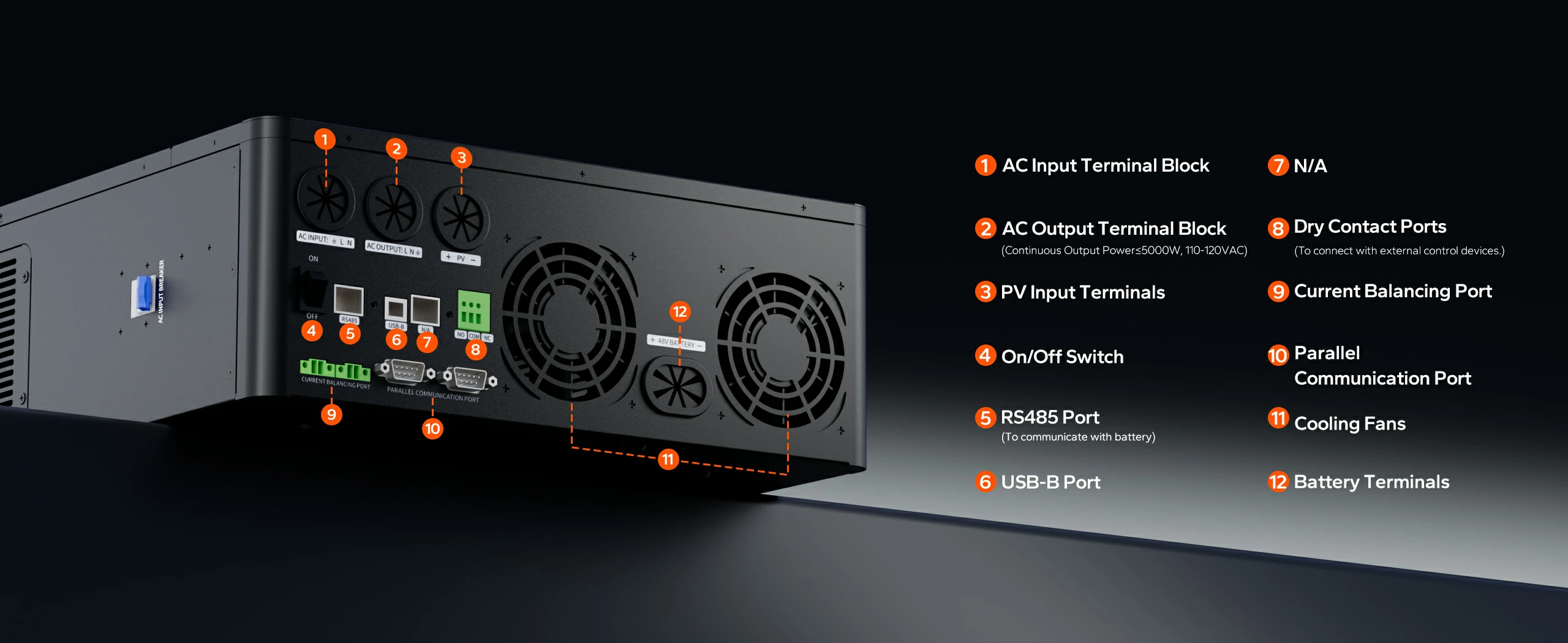

Complete Interfaces & Accessories

Designed with comprehensive ports for easy connection and stable performance, plus a full set of additional components included in the package.

A diagram identifying the ports on the LiTime inverter, including AC, PV, battery, USB, and parallel communication ports

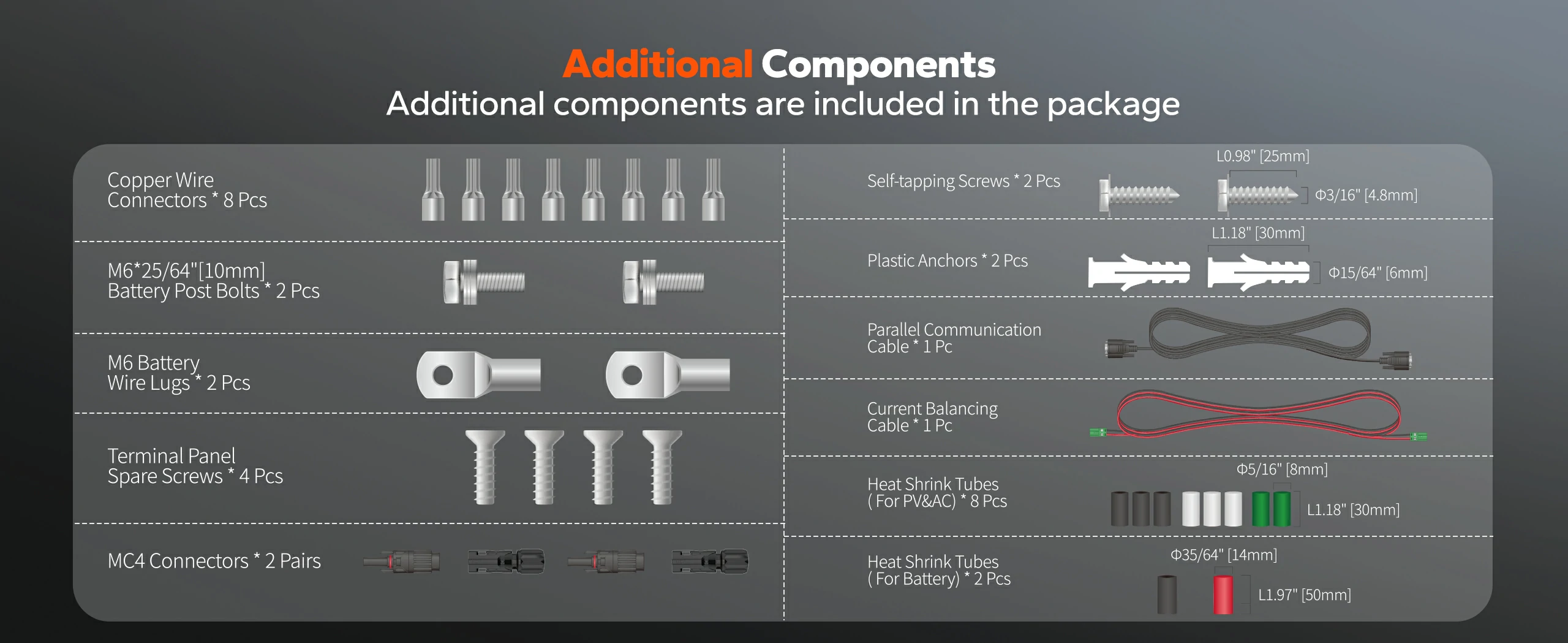

list of additional components included in the package, such as connectors, lugs, screws, and communication cables

PV Input

Operating Voltage Range:
120V to 500V
Recommended Operating Voltage Range:
120V to 450V
Max. Power:
5500W

MPPT Output

Charge Current Range:
100A
Efficiency:
>92%

Battery Input

Rated Voltage:
48V
Voltage Range:
40V to 60V
Terminal:
M6
Battery Type:
Lithium, Lead Acid, User
Max. AC Charge Current:
100A

AC Input

Voltage Range:
90 to 140VAC
Current Range:
0A to 40A
Frequency:
50Hz/60Hz
Max. Input Current:
63A

AC Output

Voltage Range:
120VAC士5%
Rated Power:
5000W
Output Wave Form:
Pure Sine Wave
Inverter Efficiency:
>90%
Bypass Efficiency:
>95%

General

Max. Charge Current (PV+AC):
100A
No Load Power Consumption:
Normal Mode≤80W, ECO Mode≤55W
Humidity Range:
5% to 95%
OperatingTemperature Range:
14°F to 131°F/-10°C to 55°C
Storage Temperature:
-13°F to 140°F/-25'C to 60°C
Weight Approx.:
30.86 lbs
Dimension (L*W*H):
17.60*13.78*5.24 inch

What is a 3-in-1 solar inverter charger?

How does the time-slot charging feature save money?

What are the benefits of using a LiTime 48V 5kW solar inverter charger?

What types of batteries are compatible with LiTime 48V 5000W solar inverter charger?

Is this 48V split-phase solar inverter charger supported to be used in parallel?
