DO NOT Use As A Starter Battery
The LiTime 12V 100Ah LiFePO4 battery is a deep cycle Energy Storage Battery. Please do not use the battery as a starting battery or power battery for electric vehicles or golf carts.
Series/Parallel Connection Premise
· The same type of battery (same Voltage, Capacity & BMS)
· The same brand
· Purchased within 3 months

Installation Tips
· Install the battery upright with post bolts facing up or on its 2 smaller sides.
· DO NOT mount the battery upside down or laying down.
· Charge the battery between 32°F and 122°F
GENERAL
Dimensions: L13*W6.77*H8.43 inches (L329*W172*H214 mm)
Battery Pack Case: ABS Plastic
Protection Class: IP65
Warranty: 5 years

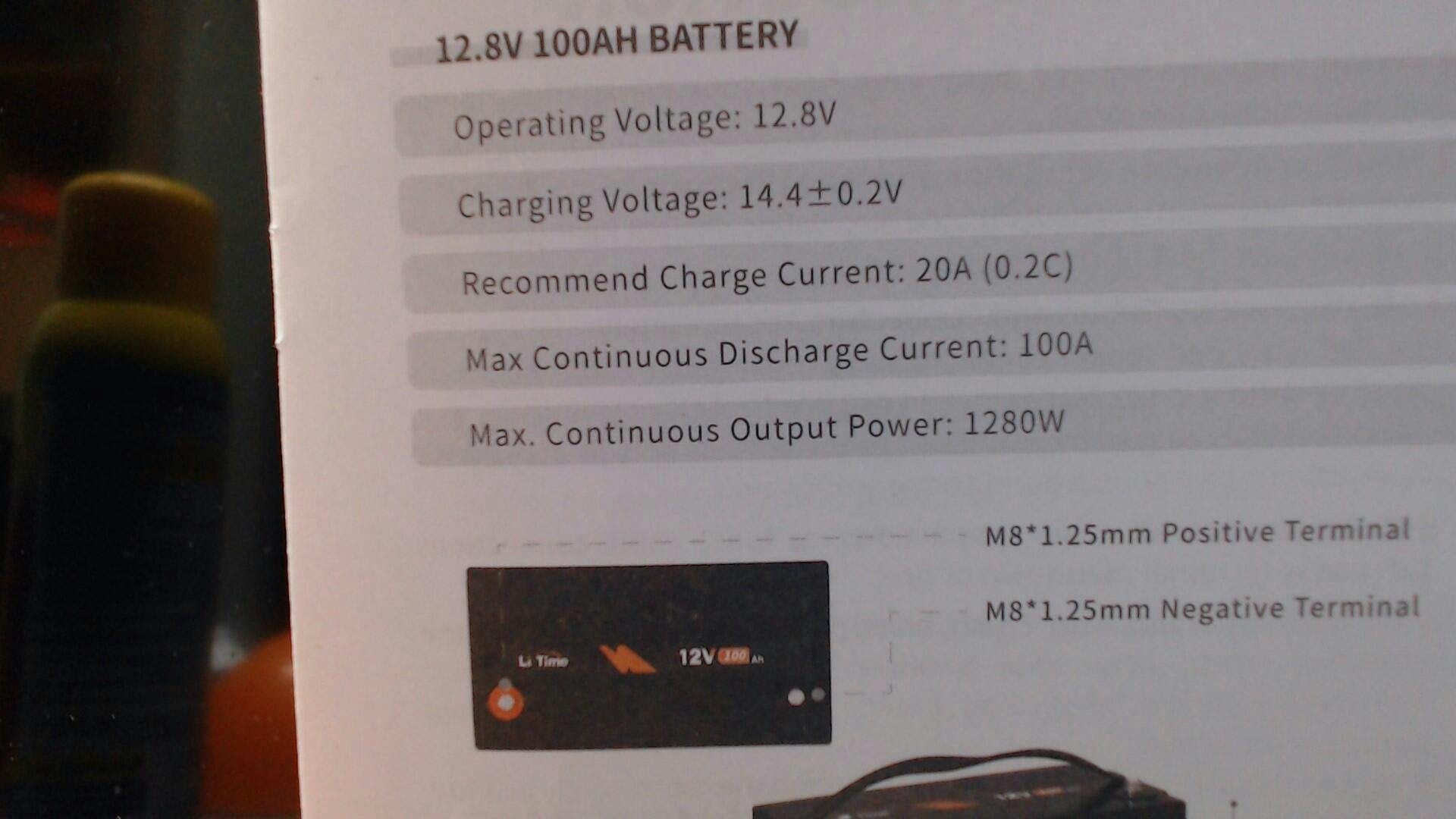

CHARGE
Charge Method: CC/CV
Charge Voltage: 14.4V±0.2V
Recommend Charge Current: 20A (0.2C)
BATTERY
Cell: Prismatic LiFePO4 Battery
Nominal/Usable Capability: 100Ah
Nominal Voltage: 12.8V
Energy: 1280Wh
Cycle Life: ≥4000 times
BMS
BMS Boar: 100A
Max. Continuous Charge/Discharge Current: 100A
Max. Discharge Current 5 Seconds: 280A
Max. Continuous Load Power: 1280W
Internal Impedance: ≤40mΩ
TEMPERATURE
Charge Temperature: 32℉ ~ 122℉ (0℃ ~ 50℃)
Discharge Temperature: -4℉ ~ 140℉ (-20℃ ~ 60℃)
Storage Temperature: 14℉ ~ 122℉ (-10℃ ~ 50℃)
PACKAGE
1* 12V 100Ah LiFePO4 Lithium Battery
1* user manual
A: Yes. LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. LiTime lithium cells are UL certified for the highest safety and sustainability standards. All LiTime LiFePO4 batteries come with an internal Battery Management System which protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage. Additionally, LiTime LiFePO4 Lithium batteries have been tested to be free from the risk of fire, and electric shock in harsh environments.
No. LiTime LiFePO4 lithium batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices.
Yes, you can charge LiTime LiFePO4 lithium batteries with solar panels. You should size your charge controller based on the voltage and current output of your solar array setup. That will ensure that your charge controller can process and regulate the power coming from your solar panels. Take a 24V MAX. 22 amps output solar system as example. You would need a solar charge controller that can handle 24 volts and 27.5 amps (125% of your max current output).
LiFePO4 batteries can safely charge between 32°F to 113°F (0°C to 45°C). LiTime 12V 100Ah Smart LiFePO4 batteries include the low-temperature charging protection which will automatically cut the battery charging off when the cell temperature is lower than 32℉, thus preventing the battery cells from damage when charging under the freezing point. If necessary (not recommended), you can push the low-temp protection button twice, then the BMS would allow your battery to charge under the freezing point for emergency use.
How do I store LiTime LiFePO4 lithium batteries?It is recommended to store LiTime LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, cycle the batteries at least every 6 months. Recommended storage environment: 10℃~35℃ (50℉~95℉),45%RH~75%RH
The batteries came in quickly, charged up and balanced the cells then installed. Holding almost 40v in the 36v bank. Twice now on the water and still holding 100%. These trips have not been taxing on the trolling motor but nevertheless helps to know that when traveling, I can make it multiple days without charging as this is often difficult at a hotel.
Although I just installed the batteries they seem great! One thing I will mention because of how critically important it is to us the buyer is that they have great customer service. I accidentally made a double order and they payed for the return shipping for 3 batteries. They responded same day, communicated well and allowed for an easy stress free solution with the customer in mind.
Every bit as good as the more expensive batteries. Purchasing and delivery was very simple.
I reviewed Lithium batteries on YouTube extensively and found this battery to get consistently high marks. So I bought one 6 months ago and then bought the second for my RV. Love these batteries!
