GENERAL

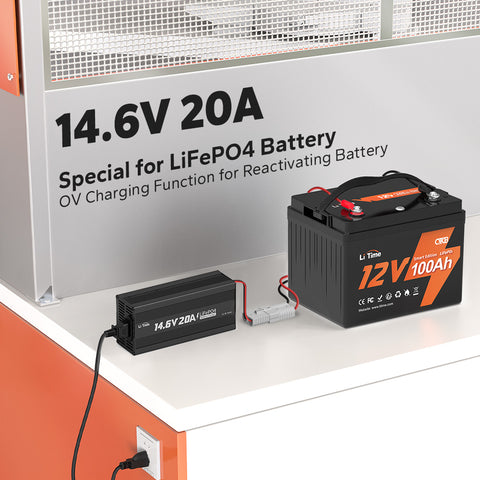

Product: LiTime 14.6V 20A LiFePO4 Battery Charger
Dimensions (inch): L7.99*W3.94*H2.13
Net Weight: 2.87 lbs (1.3kg)
PARAMETERS
Constant Voltage: 14.6V (LiFePO4)
Constant Current: 20A
Input Voltage Range: AC 100V to 240V; 45Hz to 65Hz
Max Input Current: 4A
OPERATING ENVIRONMENT
Operating Temperature: 14℉ ~ 113℉ (-10℃ ~ 45℃)
Storage Temperature: -40℉ ~ 167℉ (-40℃ ~ 75℃)
Atmospheric Pressure: 70KPa to 106KPa
Relative Humidity: 5%~95%

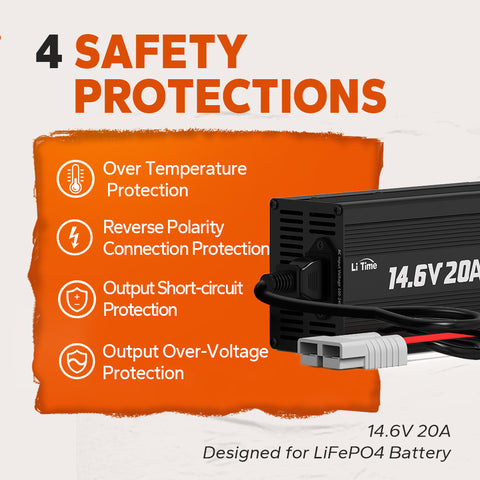

SAFETY & PROTECTION
Over Temperature Protection: Yes
Output Short-Circuit Protection: Yes
Reverse Polarity Connection Protection: Yes
Output Over-Voltage Protection: Yes
A: The 14.6V 10Ah LiFePO4 battery charger is designed to charge LiFePO4 batteries. The low resistance in the Lithium cells allow the battery to accept the full output from the charger. With a constant 10A current, it takes around 100Ah/10A=10hrs to fully charge a 12V 100Ah LiFePO4 lithium battery.

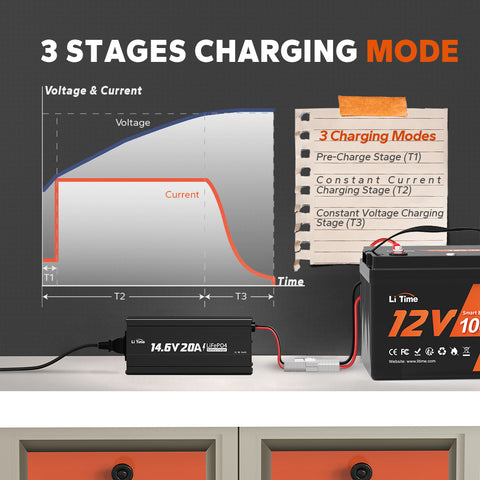

A: If the correct voltage limit is set for the LiFePO4 lithium ion battery you are charging, there should be no issue leaving a lithium ion battery on the charger overnight. LiTime Battery uses a LiFePO4 cell giving a nominal voltage of 12.8v and a fully charged voltage of 14.6v. A charger with 14.4-14.6v CC/CV output will do the job with consideration not to exceed roughly 1C maximum current output of the charger. As long as the CC/CV profile is used, the maximum voltage is at the correct level and the current is not excessive, you will achieve a safe and full charge on your battery.
A: To determine your charging speed, take the amp hour rating of your battery and divide it by the output current of your charger. For example, a 100 amp hour battery (Ah) would charge in 100AH/10A=10 hours with a 14.6V 10A LiFePO4 lithium battery charger.
A: For most applications, a charging time of 3-10 hours provides the longest lifespan for your LiFePO4 lithium battery. But if you have an application where you need rapid charging, you can choose a charger with a higher output current. For example, you could use a 40 amp charger with a 100Ah battery for a 2.5-hour charge time.
A: It depends on the voltages of your LiFePO4 lithium batteries. LiTime 14.6 volts charger is recommended for 12V LiFePO4 lithium batteries. And LiTime 29.2 volts charger is recommended for 24V LiFePO4 lithium batteries.
A: It is always important to match your charger to deliver the correct current and voltage for the LiFePO4 lithium battery you are charging. For example, you wouldn't use a 24V charger to charge a 12V LiFePO4 lithium battery. It's also recommended that you use a charger matched to your battery chemistry. Additionally, when charging a LiFePO4 lithium battery with a normal lead-acid charger, you would want to ensure that the charger does not have a desulfation mode or a dead battery mode.
Charges battery very fast and shuts off when battery is fully charged

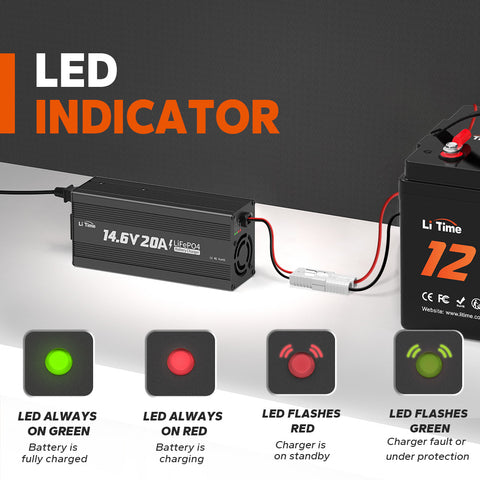

Sometimes it gets stuck in a loop of flickering light between green and red when battery finishes charging but usually turns green and stops charging once battery is charged. It charges the battery fast even when fully dead. This charger meets my expectations.
The product appears to be very well made and charged up my lithium ion batteries with no problems at all.
Read the instructions. They are good and they must be followed.
Using a clamp current meter, I confirmed this charger outputs ~20Amps and that rate of charge lasted until my 12V 100Ah LiFePo4 was almost fully charged. As a test I drained the battery by 20Ah and then recharged it. As expected, it charged fully in ~1hour.
Just connect to terminals to battery plug into wall outlet & let it do its thing till green light & done, I use it to charge my solar battery on when long rainy days on my home ups 200 ah
