Deep cycle batteries are essential for powering various applications such as marine vessels, RVs, golf carts, and renewable energy systems. To ensure their longevity and optimal performance, proper charging is crucial. In this article, we will explore the essential steps to effectively charge a deep cycle battery, helping you maintain its efficiency and extend its lifespan.

Understanding Deep Cycle Batteries

Before delving into the charging process, it's important to understand the nature of deep cycle batteries. Unlike traditional car batteries, deep cycle batteries are designed to provide sustained power over an extended period. They are built to withstand deep discharges and repeated recharging cycles, making them ideal for applications requiring continuous and reliable power. Learn more about Starting Battery VS Deep Cycle Batteries.

Types of Deep Cycle Batteries: Lead Acid VS Lithium

When comparing lead acid batteries to lithium batteries, distinct differences emerge. Lead acid batteries, a traditional technology, are known for their affordability and long-standing use. However, they are heavier, bulkier, and possess a lower energy density compared to lithium batteries. Additionally, lead acid batteries require regular maintenance and are less efficient in terms of weight and space.

On the other hand, lithium batteries stand out for their high energy density, making them lighter and more compact than lead acid batteries. Despite being initially more expensive, they offer a longer lifespan and reduced maintenance requirements. Moreover, lithium batteries provide a wider operating temperature range, making them suitable for a variety of environments.

Before Charging: Knowing LiFePO4 and Lead Acid Battery Charging Curve

The charging curves for LiFePO4 (Lithium Iron Phosphate) and lead acid batteries differ due to their distinct chemical compositions and charging requirements.

LiFePO4 Battery Charging Curve:

LiFePO4 batteries have a relatively flat charging curve compared to lead acid batteries. When charging LiFePO4 batteries, the voltage rises rapidly to its maximum level and then remains relatively constant during the bulk charging phase. This phase is followed by a gradual tapering of the charging current as the battery approaches full capacity.

The charging process for LiFePO4 batteries requires a constant current/constant voltage (CC/CV) charging method, where the current is held constant until the battery reaches a specific voltage, after which the voltage is held constant until the current tapers off.

Lead Acid Battery Charging Curve:

Lead acid batteries have a different charging curve characterized by distinct stages. Initially, the voltage rises gradually during the bulk charging phase until it reaches a maximum level. This is followed by the absorption phase, during which the voltage remains constant while the current decreases.

Finally, the charging process enters the float stage, where the voltage is reduced to a lower level to maintain the battery's full charge without overcharging. Lead acid batteries typically require a multi-stage charging process to ensure proper and efficient charging, involving bulk, absorption, and float stages to optimize the battery's performance and longevity.

Since the different charging curve, there are different charging methods for these 2 types of batteries. Understanding these charging curves is crucial for ensuring the proper charging of each battery type, as improper charging can lead to reduced battery lifespan, performance issues, or safety concerns.

Charging Rules for Lead Acid Deep Cycle Batteries

Before step into the specific steps to charge lead Acid battery, here are some crucial guidelines should follow when charge lead-acid deep cycle battery:

• Avoid fully depleting your battery and refrain from consistently drawing out more than 40% of its capacity.
• If you accidentally deplete or over-discharge a deep cycle battery, promptly recharge it.
• Utilize an appropriate charger of the correct size and type, and ensure it is set correctly (contact us if uncertain).
• When not in use, keep the battery on a trickle-charge or recharge it monthly to maintain its charge.

1. General Charging Guidelines

Batteries naturally lose charge over time, even when not in use. While advanced battery types like GEL, AGM, and Calcium outperform regular lead-acid batteries, it's still essential to regularly recharge them or better yet, employ a trickle charger or solar panel to maintain their optimal condition and extend their lifespan.

Using the appropriate charger for the specific battery chemistry is crucial. For instance, GEL cells require a lower charging voltage, while Calcium cells need periodic "stratification" charging at a much higher voltage. It's recommended to utilize a charger with temperature compensation and a temperature sensor that can be connected to the batteries being charged.

Ensure that the charging current is sufficient. As a general rule, the charging current should be at least 10% of the battery's amp-hour rating or battery bank. For example, a 100Amp-Hour battery should be paired with a minimum 10A charger.

Employing automatic, multi-stage chargers is beneficial for prolonging battery life. Most vehicle alternators are unable to fully charge a Deep Cycle battery, so investing in a quality charger or a solar setup with a charge controller/regulator featuring at least a three-stage charging control is advisable.

In an automatic 3-stage charger, the process typically involves Bulk, Absorption, and Float phases. Bulk charging delivers the maximum current at a constant voltage, while Absorption charging tops up the battery to 100% using a constant elevated voltage while monitoring the decreasing current. Once the battery is fully charged, Float Mode maintains a reduced voltage to prevent overcharging while keeping the battery in a non-sulfating state. Some chargers also intermittently introduce a trickle or pulse current to counteract self-discharge.

2. General Discharging Information

Avoid fully depleting the battery, as this can strip active material off the battery plates. Deep Cycle batteries should not be discharged to 100%, as doing so significantly reduces their lifespan (resulting in 3 to 10 times fewer cycles compared to discharging to 50%).

A general guideline is to recharge the battery when it retains 40% to 50% capacity or more.

To estimate the battery charge level, remove any surface charge from the plates (e.g., by turning on lights for 20 seconds), disconnect any chargers, and measure the voltage across the battery terminals. At normal temperatures, a standard lead-acid battery at 12.6V is considered 100% charged (for AGM or GEL batteries, 12.8V is 100%), while 11.8V indicates 0% charge. It's advisable to keep the battery above 12 volts minimum (approximately 20% capacity when unloaded).

If the battery is fully discharged, it's vital to recharge it promptly to prevent sulfation.

3. Using the Correct Charger

Adhere to the 10% rule for the charger's amperage, matching it to the battery's amp-hour rating. Flooded batteries may not withstand high currents for extended periods, potentially leading to plate damage and acid evaporation. High-quality AGM and GEL batteries can often handle higher currents for rapid charging if the appropriate charger and battery temperature monitoring are employed.

Refer to the battery's specification sheet and use the correct settings (AGM/GEL/Flooded) to establish appropriate Bulk, Absorption, and Float voltages. It's essential to monitor the battery temperature, as excessively high temperatures can be detrimental.

For different battery types, specific maximum voltages are recommended for bulk charging, with corresponding lower "float" voltages to prevent overcharging.

4. Maintaining Battery Levels

For "Flooded" or Wet Lead-Acid batteries, regularly top up with distilled water as needed, ensuring the plates remain covered in electrolyte at all times. Avoid using impure water, and never add battery acid after the initial filling.

Sealed batteries, while not requiring topping up with water, may still use wet electrolytic fluid. They are designed not to leak acid when tipped over or emit gas during normal charging.

While the "magic-eye" indicators can be helpful, they only reflect the condition of one cell out of six, so they should not be solely relied upon for battery status.

Charging Rules for LiFePO4 Lithium Deep Cycle Batteries

Charging lithium deep cycle batteries, particularly those using LiFePO4 chemistry, differs from lead-acid batteries due to the presence of a built-in Battery Management System (BMS). This system regulates the charging process, ensuring a safer and more efficient charging experience compared to traditional lead-acid batteries.

The BMS in lithium batteries serves several essential functions. It balances the individual cells within the battery pack, preventing overcharging of any single cell and ensuring that each cell reaches its full capacity during charging. Additionally, the BMS protects against over-discharge, over-current, and overheating, enhancing the overall safety and longevity of the battery.

When charging LiFePO4 lithium deep cycle batteries, it's crucial to use a charger specifically designed for lithium batteries or one that is compatible with lithium chemistry. These chargers typically incorporate features such as voltage and current regulation, temperature monitoring, and precise control over the charging process to ensure the battery is charged optimally without risk of overcharging or overheating.

Unlike lead-acid batteries, lithium batteries do not require a multi-stage charging process. Instead, they can be charged using a constant current and constant voltage (CC/CV) charging profile, which allows for a faster and more efficient charging cycle. However, it's important to adhere to the manufacturer's recommended charging parameters to ensure the battery's safety and longevity.

Furthermore, when using a charger for LiFePO4 lithium deep cycle batteries, it's essential to monitor the charging process and ensure that the charger is compatible with the battery's voltage and capacity specifications. As with any battery, it's advisable to follow the manufacturer's guidelines and recommendations for charging to maximize the performance and lifespan of the lithium battery.

Overall, the presence of a BMS in LiFePO4 lithium deep cycle batteries simplifies the charging process and provides added safety and control compared to traditional lead-acid batteries, making them a reliable and efficient choice for various applications, including renewable energy storage, marine, RV, and off-grid power systems.

Best Ways to Charge Deep Cycle Batteries

Charging a deep-cycle battery can be a straightforward process if you adhere to these guidelines. There are various methods to charge a deep cycle battery, regardless of the type of batteries you possess. These methods include utilizing solar power, grid power, as well as an alternator and starter battery.

Each approach has its own set of advantages and considerations, ensuring that you can effectively charge your deep-cycle battery under different circumstances. Let's delve into each method to understand the best practices for charging your deep-cycle battery.

First, if you opt for solar power, you will need to invest in a solar power system comprising solar panels, one or two charge controllers, and inverters. This initial investment may involve a substantial cost. However, the advantage of solar power systems lies in the gradual payoff as you shift towards using solar energy instead of relying on grid power or fossil fuels.

Suggest reading:

MPPT VS PWM Solar Charge Controller

Comprehensive Guide of Pure Sine Wave Inverter

The second option involves utilizing AC power from your grid to charge your deep cycle battery, necessitating an appropriate AC to DC battery charger. For instance, lithium batteries cannot be charged with a regular charger designed for lead acid batteries; instead, a specially designed charger such as the LiTime LiFePO4 Lithium Battery Charger.

When neither of the aforementioned methods is suitable for your situation, you can still attempt to charge your deep cycle battery through the alternator and the starter battery, which must work in tandem. However, this process requires a built-in DC to DC On-Board Battery Charger.

How Long Does it Take to Charge a Deep Cycle Battery?

The time it takes to charge a deep cycle battery can vary based on several factors, including the battery's capacity, the charging current, the state of charge when you begin charging, and the charging method being used.

Various deep cycle batteries exhibit differing charging durations. For example:

• Lead acid batteries: Recharging these batteries fully typically takes approximately 8-14 hours, although this time can vary significantly based on the depth of discharge and the battery's amp hour rating.
• Lithium batteries: Known for their rapid charging abilities, some lithium batteries like LiTime 48V 30Ah Golf Cart lithium battery support 1C charging, these batteries usually require 1-3 hours to reach a full charge. Learn more about Charging Speed of Lithium Battery
• AGM batteries: Generally, these batteries take about 8-10 hours to recharge, contingent upon the battery's capacity and the charger being utilized.
• Gel batteries: Charging times for gel batteries can range from 10-14 hours, influenced by factors such as battery size and charging voltage.

Determining the Right Time to Recharge

Check the battery voltage with the multi-meter, for example a 12 volt deep cycle battery in fully charged condition should be 13.5 volt, when the voltage is below 10.8V, it’s time to charge.

Can a Completely Dead Deep Cycle Battery Be Recharged?

In most cases, a completely dead deep cycle battery can be recharged, but it's important to note that the ability to revive a deeply discharged battery depends on several factors, including the type of battery, the extent of the discharge, and the condition of the battery.

Lead-acid deep cycle batteries, for example, can generally be recharged even if they have been completely discharged. However, it's crucial to avoid leaving them in a deeply discharged state for an extended period, as this can lead to irreversible damage.

Lithium-ion deep cycle batteries, on the other hand, can also be recharged from a deeply discharged state, but some lithium batteries have built-in protection circuits to prevent over-discharge, so it's important to consult the manufacturer's guidelines. LiTime lithium battery charger has the 0V function to activate the dead lithium battery.

It's worth noting that attempting to recharge a deeply discharged battery can sometimes pose safety risks, especially if the battery has been deeply discharged for an extended period. In such cases, it's advisable to seek professional assistance to ensure safe and effective recharging.

To maximize the chances of successfully recharging a deeply discharged deep cycle battery, it's important to use the appropriate charging equipment and follow the manufacturer's recommendations for the specific type of battery.

Why Should You Never Overcharge Your Deep Cycle Battery?

Overcharging a deep cycle battery can lead to several negative consequences:

1. Reduced lifespan: Overcharging can cause excessive heat and gassing, which can damage the internal structure of the battery, leading to a reduced lifespan.
2. Electrolyte loss: Overcharging can result in the loss of electrolyte from the battery, which can lead to a decrease in its overall performance and capacity.
3. Safety hazards: Overcharging can cause the battery to become hot, potentially leading to the release of flammable gases and posing a risk of explosion or fire.
4. Damage to electronic devices: If the deep cycle battery is used to power electronic devices, overcharging can potentially damage these devices due to the higher voltage levels.

To avoid these issues, it's important to use a proper charging system with a voltage regulator or a smart charger that can prevent overcharging by automatically adjusting the charging rate or shutting off when the battery is fully charged.

Safety Measures When Charging Deep Cycle Batteries

When charging deep cycle batteries, it's important to follow safety measures to prevent accidents and ensure the longevity of the batteries. Here are some safety measures to consider:

1. Use the Right Charger: Use a charger specifically designed for deep cycle batteries. Ensure that the charger voltage and current ratings match the specifications of the battery.



2. Ventilation: Charge batteries in a well-ventilated area to prevent the accumulation of hydrogen gas, which is produced during charging and can be flammable. Suggest reading: Do LiFePO4 Lithium Battery Needs to Be Vented

3. Avoid Overcharging: Use a smart charger or a charger with an automatic shut-off feature to prevent overcharging. Overcharging can lead to reduced battery life and safety hazards.

4. Inspect Cables and Connections: Before charging, inspect the cables and connections for any signs of damage or corrosion. Ensure that the connections are secure to prevent sparks or overheating.

5. Follow Manufacturer's Instructions: Always follow the manufacturer's guidelines for charging the specific type of deep cycle battery you are using.

6. Wear Protective Gear: When working with batteries, wear appropriate protective gear, such as gloves and safety glasses, to protect yourself from acid and other potential hazards.

7. Avoid Sparks and Flames: Keep sparks, open flames, and smoking materials away from the charging area to prevent the risk of fire or explosion.

8. Monitor Charging: Regularly monitor the charging process to ensure that the battery is charging properly and that there are no signs of overheating or other issues.

9. Unplug Charger: Once the battery is fully charged, disconnect the charger to prevent overcharging and potential damage to the battery.

By following these safety measures, you can ensure that the charging process is conducted in a safe and efficient manner, prolonging the life of the deep cycle batteries and minimizing the risk of accidents.

FAQs about Charging Deep Cycle Batteries

1. Is it possible to use a standard charger to charge a deep cycle battery?

Charging a deep cycle battery requires specific attention due to its unique design and function compared to standard batteries. While it is technically possible to use a regular charger, it may not provide the ideal charging conditions required for a deep cycle battery.

• Lead Acid Batteries: Traditional chargers can potentially overcharge these, leading to reduced lifespan or even damage.
• AGM Batteries: Absorbent Glass Mat batteries can tolerate regular chargers better than flooded lead acid batteries, but a charger designed for AGM is still preferable.
• Lithium Batteries: It is strongly discouraged. Using a standard charger on lithium batteries can lead to overheating, damage, or potential fires.

2. What amp setting should I use to charge my deep cycle battery, 2 or 10 amps?

The appropriate amp setting for charging your deep cycle battery largely depends on its capacity, usually measured in amp-hours (Ah). Charging at 10 amps will generally be faster than 2 amps, but the rate can impact battery longevity and performance.

• For Smaller Batteries: 2 amps might be preferable, ensuring a steady, gentle charge.
• For Larger Batteries: 10 amps could be a suitable option, especially if time is a factor.

3. Can I use a 12V charger to charge a deep cycle battery?

Most deep cycle batteries are designed to operate at 12V, making a 12V charger suitable for the task. However, it is important to ensure that the charger's output matches the battery's requirements. A mismatch in charging voltage can damage the battery or reduce its performance.

4. How can I determine if a deep cycle battery is fully charged?

Recognizing when your deep cycle battery is fully charged is essential for maintaining its longevity. Several indicators can help:

• Voltage: A fully charged 12V deep cycle battery typically measures between 12.6 to 12.8 volts, although this can vary based on the battery type.
• Specific Gravity: For flooded batteries, using a hydrometer can provide a reading on the electrolyte's specific gravity. A consistent reading across all cells indicates a full charge.

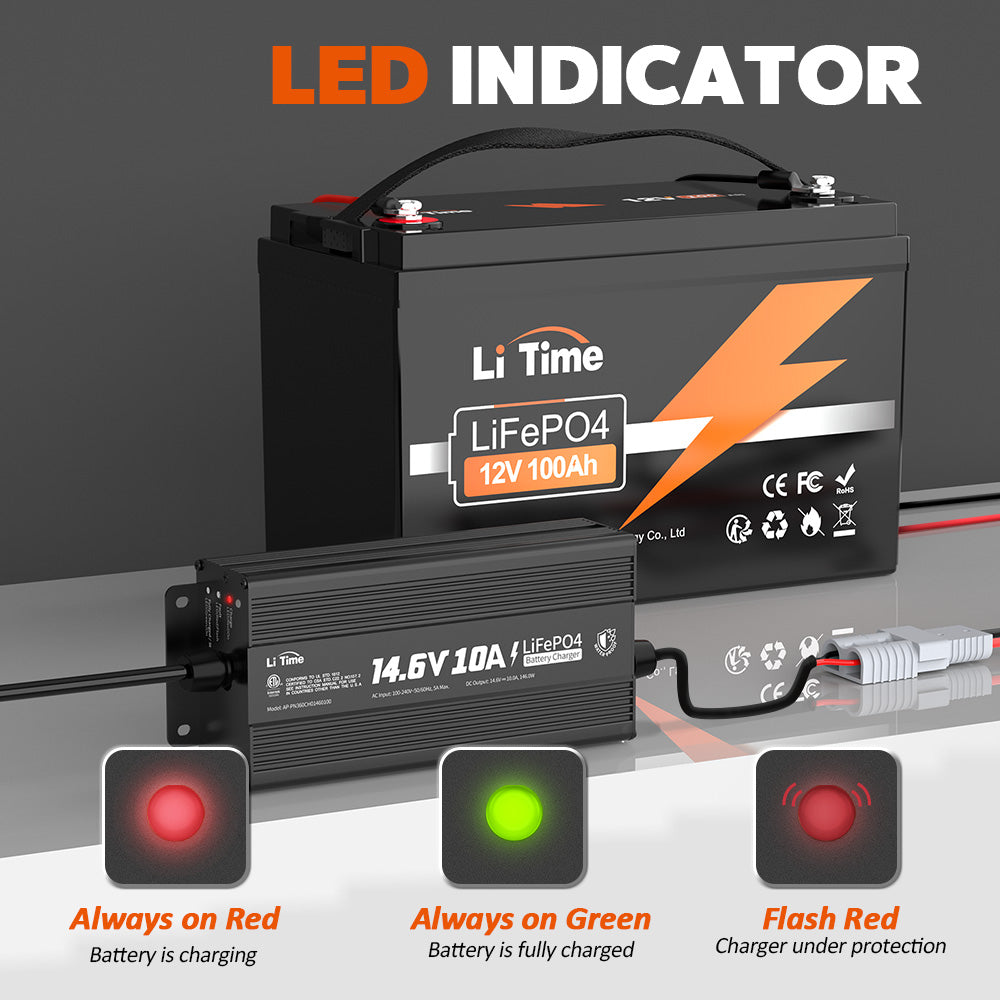

• Battery Chargers with Indicators: Modern chargers like LiTime battery charger often come with an indicator, making it easier to discern the charge level.

5. Can a 100-watt solar panel effectively charge a deep cycle battery?

Yes, a 100-watt solar panel can charge a deep cycle battery. However, the efficiency of this process depends on several factors:

• Sunlight: The panel's exposure and the intensity of sunlight play a significant role.
• Battery Capacity: Larger batteries might require extended periods to charge fully.
• Solar Controller: A charge controller ensures the battery isn't overcharged, enhancing the efficiency of the process.

6. How many recharge cycles can a deep cycle marine battery typically endure?

Generally, good-quality deep cycle marine batteries offer anywhere between 300 to 1000 cycles, depending on usage and care. High quality lithium battery like LiTime, provides 4000-15000 cycles.

Conclusion

In conclusion, properly charging deep cycle battery is crucial for extend the lifespan of the battery, following the guidelines to ensure the charging meets the manufactures requirements.
