Features

LiTime 36V 50Ah Marine Trolling Motor LiFePO4 Lithium Battery

$419.99

$699.99

40 % OFF

"Best 36V LiFePO4 Battery for Your Trolling Motor"

Born for 100-120 lb trolling motor, also suitable for solar systems/off-grid/marine/caravans/other outdoor activities.
Low-temp cut-off protection, ＜32℉ charging off, ＜-4℉ discharging off, and ≥41℉ charging recovery.
Self-developed 50A BMS, provides 20+ protections.
1920Wh of usable energy, 1920W of load power.
EV Grade LiFePO4 cells, 4000+ cycles @100% DOD, 10 years lifespan, and non-toxic.
Perfect replacement of lead-acid battery, 2.2X energy, 65% lighter, 3.3X lifespan.

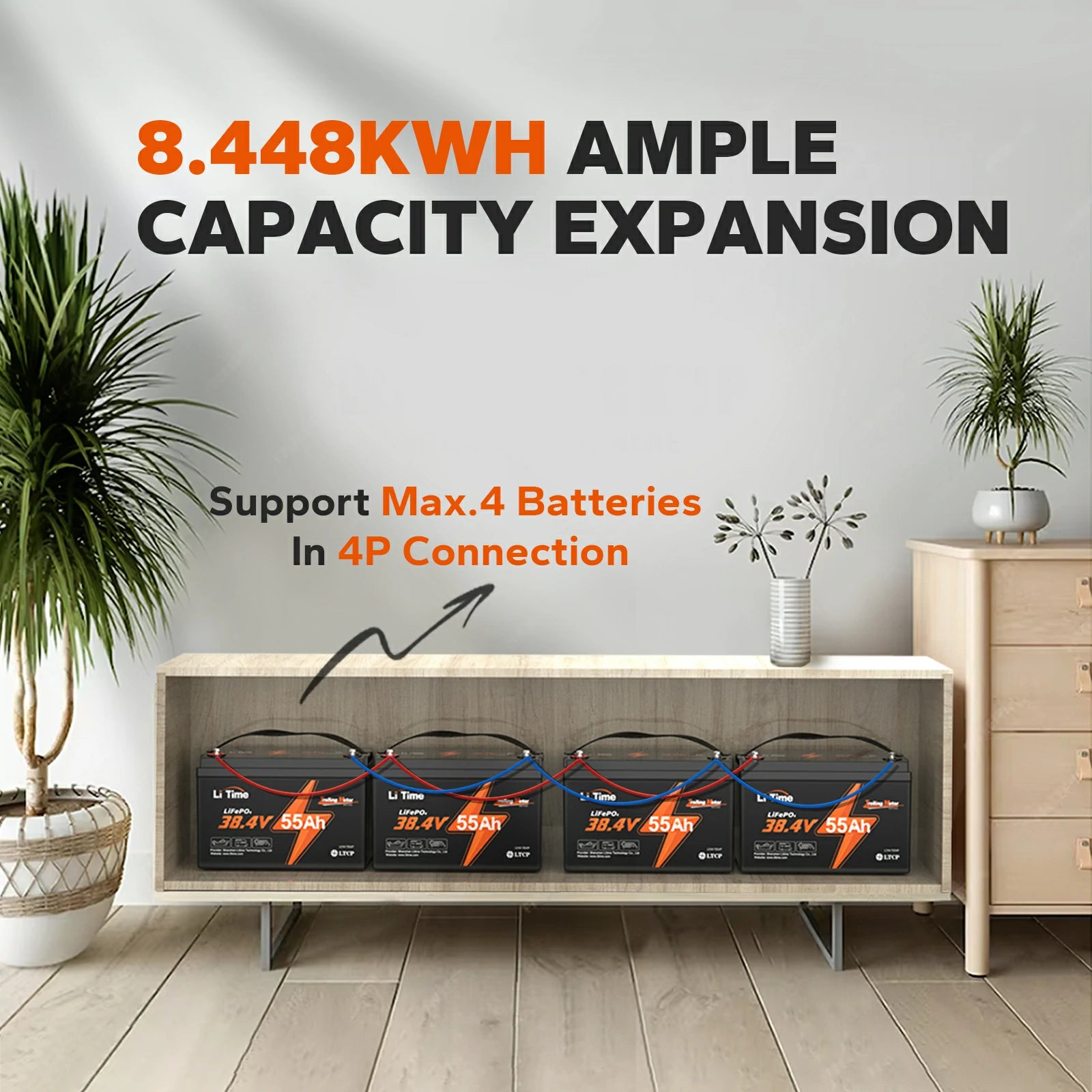

Max. 4P1S expansion, up to a 36V 200Ah system (7.68 kWh Energy & 7.68 kW Power).
BCI group 31 size (L13*W6.77*H8.5 inch), 33.14 lbs weight.
IP65 waterproof & dustproof.
4 Flexible charging ways - LiFePO4 charger, solar panel + MPPT, generator and alternator.
FCC, CE, RoHS, UN38.3 Certified, and UL-1973 Tested.
DO NOT use it as a Starter Battery! If you need a starting battery, please consider LiTime 12V marine starting batteries series.

Choose Products

Comparison

1 Pack

$419.99 $699.99

2 Pack ($376.19 /each)

$831.58 $1,389.98

1 Pack + 18A Charger (Save 8%)

$575.99 $905.99

1 Pack + 25A Charger (Save 8%)

$609.99 $979.99

Quantity:

$419.99

$699.99

40 % OFF

5-Year Warranty

Backed up by techical support within 24hrs.

Free Shipping

Free standard shipping on all orders.
Delivered in 2–5 business days.

Free Returns

30 Days Hassle Free Returns

36V 50Ah TM

$419.99

$699.99

[{"alt":"overview of LiTime 36v 50ah trolling motor lithium battery","id":34247655325916,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime36V50AhLiFePO4Battery_2.webp?v=1732259307"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime36V50AhLiFePO4Battery_2.webp?v=1732259307","width":1600},{"alt":"group 31 dimension and weight 33.14lbs information of litime 36v trolling motor battery","id":34247655358684,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime36V50AhLiFePO4Battery_3.webp?v=1732259307"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime36V50AhLiFePO4Battery_3.webp?v=1732259307","width":1600},{"alt":"LiTime 36V 50Ah lithium battery: for 100-120 lb trolling motors, features smart BMS, low-temp cut-off, and EV-grade cells","id":34247655489756,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime36V50AhLiFePO4Battery_7.webp?v=1732259307"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime36V50AhLiFePO4Battery_7.webp?v=1732259307","width":1600},{"alt":"LiTime 36V 50Ah lithium battery: designed for 100-120 lb trolling motors, ip65 waterproof, portable at 33.14 lbs","id":34247655555292,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime36V50AhLiFePO4Battery_9.webp?v=1732259307"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime36V50AhLiFePO4Battery_9.webp?v=1732259307","width":1600},{"alt":"LiTime 36V 50Ah lithium battery: EV-grade cells, 20+ protections, moisture resistance, low-temp cut-off, 50A smart BMS","id":34247655522524,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime36V50AhLiFePO4Battery_8.webp?v=1732259307"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime36V50AhLiFePO4Battery_8.webp?v=1732259307","width":1600},{"alt":"LiTime 36V 50Ah battery: 1920Wh capacity, supports various configurations for versatile energy needs on boats","id":34247655588060,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime36V50AhLiFePO4Battery_10.webp?v=1732259307"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime36V50AhLiFePO4Battery_10.webp?v=1732259307","width":1600},{"alt":"LiTime 36V 50Ah trolling motor battery: 65% lighter, 1920Wh energy, 4000+ cycles, non-toxic vs. lead-acid options","id":34247655424220,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime36V50AhLiFePO4Battery_5.webp?v=1732259307"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime36V50AhLiFePO4Battery_5.webp?v=1732259307","width":1600},{"alt":"LiTime 36v trolling motor lithium battery kit with 36v 18A lifepo4 battery charger","id":34757087756508,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/36V_50Ah_charger.webp?v=1744017136"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/36V_50Ah_charger.webp?v=1744017136","width":1000},{"alt":"LiTime 36v trolling motor lithium battery kit with 25A charger for lithium battery","id":34757087789276,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/36V_50Ah_25A_charger.webp?v=1744017136"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/36V_50Ah_25A_charger.webp?v=1744017136","width":1000}]

Features Specs FAQ Reviews

36V LiFePO4 Battery for Trolling Motor

Built-in EV grade cells and 50A BMS, LiTime 36V lithium battery provides upgraded protection and long-lasting performance. Low-temp cut-off protection ensures safe use in cold weather. Moreover, the Group 31 size and IP65 water resistance are compatible with your trolling motor.

LiTime 36V 50Ah battery: Group 31 size, smart 50A BMS, low-temp protection, and EV-grade LiFePO4 cells for 100-120 lb motors

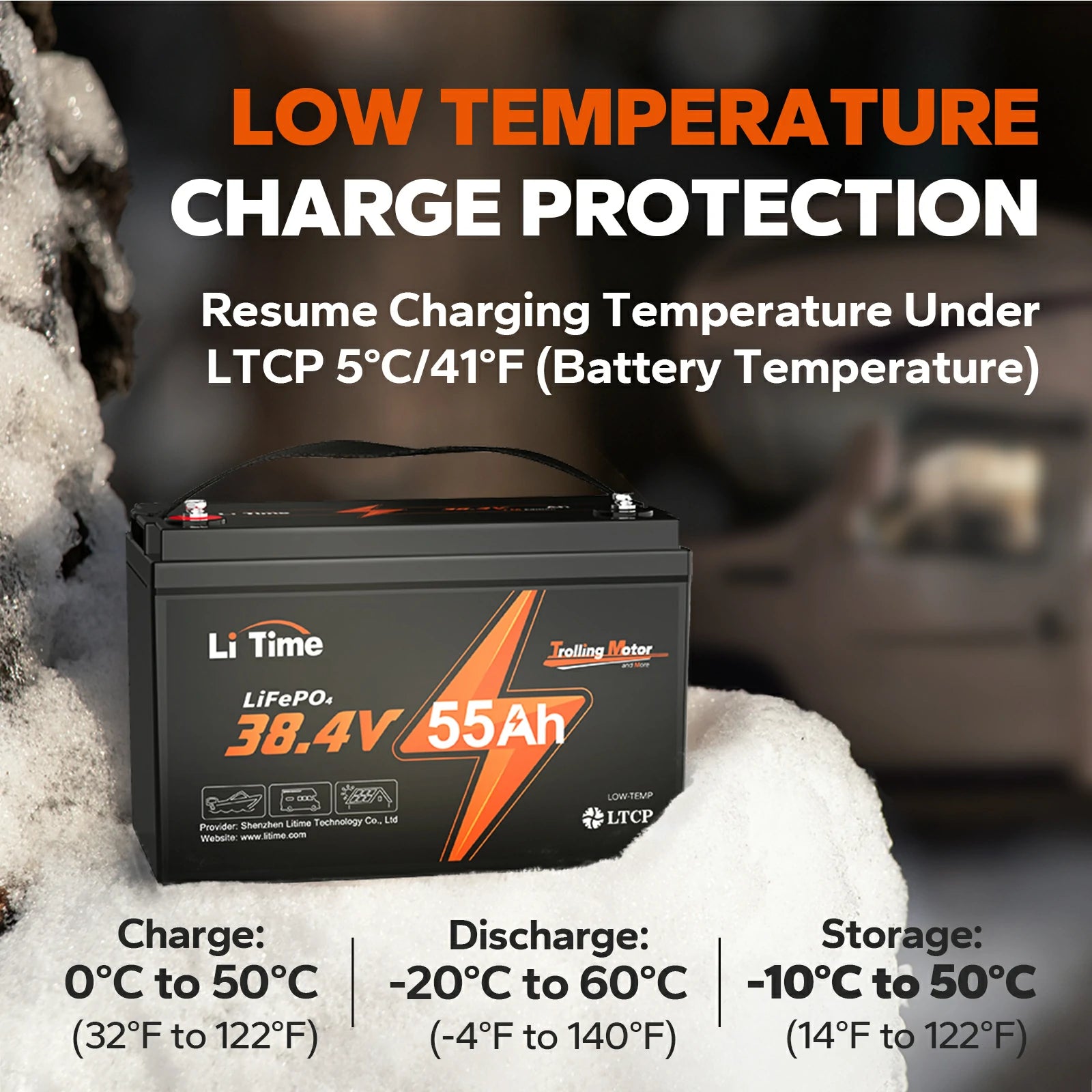

No Fear of Damages from Extreme Weather

Want to go ice fishing, or kick off a winter adventure? With low-temp cut-off protection, LiTime 36V trolling motor lithium battery intelligently stops charging below 32℉ and discharging below -4℉. It protects the cells from extreme weather damage, ensuring its health and reliability.

litime 36v trolling motor battery with low-temperature protection

Reliable Energy, Lasting Performance

Featured LiTime EV grade LiFePO4 cells, 36V lithium marine battery delivers efficient and sustainable power with 100% capacity usage, up to 4000+ deep cycles. With a 50A max. continuous discharge current, 60A upgraded-max. continuous discharging current(30mins) and 250A/1s peak discharge current, it enhances power output. 10-year lifespan and no maintenance, offer an unparalleled charging experience.

LiTime 36V 50Ah battery: EV-grade LiFePO4 cells, max 50A discharge, 4000+ cycles, durable, safe, and high energy density

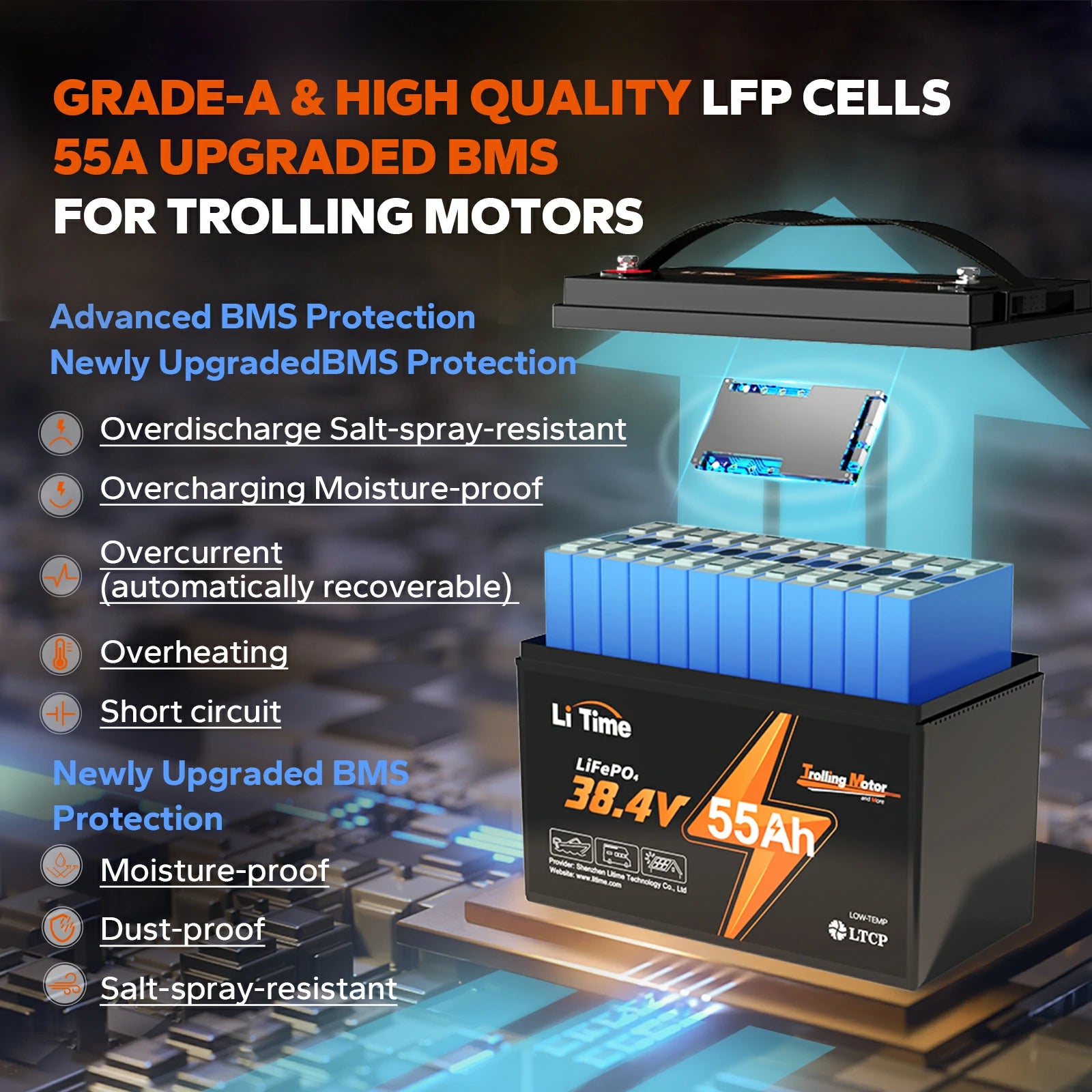

All Around Protection

LiTime self-developed BMS upgrades 20+ protections for 36V lithium ion battery, including pre-charging function, moisture-proof, salt spray-resistant, and automatic recovery after overload protection (30s). IP65 water & dust proof and hard housing guarantee secure operation even on bumpy boats!

LiTime 36V 50Ah battery: IP65 dustproof/waterproof, EV-grade LiFePO4 cells, ABS housing, and advanced BMS for safety

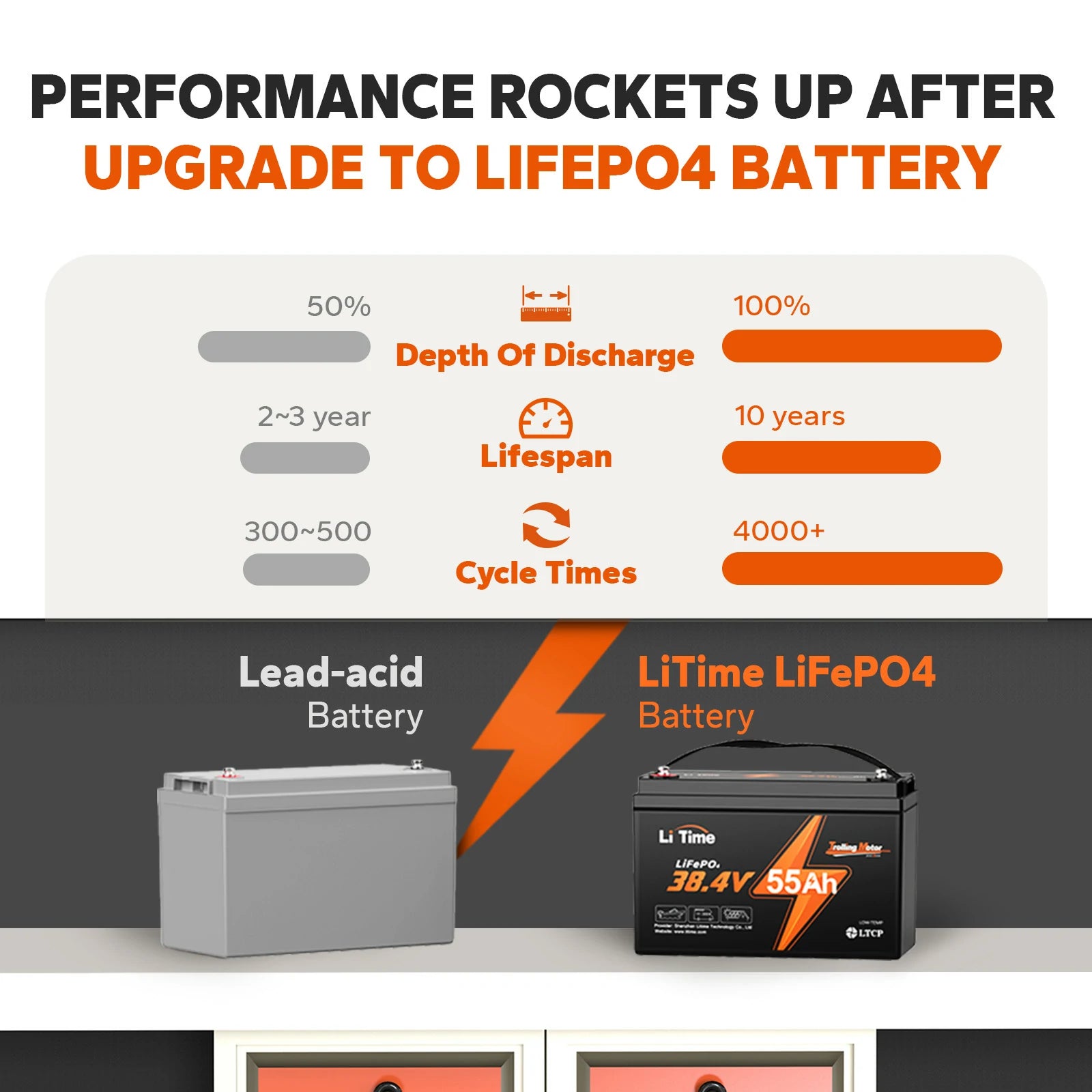

Perfectly Replace Your Old Lead-Acid Battery

LiTime 36V trolling motor battery is lightweight yet powerful, which is 33.14 lbs weight and group 31 size. Lighten the burden on your kayak, while meeting the power needs of your trolling motor. Enjoy a smoother, faster and more flexible boat driving experience!

LiTime 36V 50Ah battery: 2.2x energy, 65% lighter, 3.3x lifespan, smart BMS, non-toxic LiFePO4—better than lead-acid batteries

Meet Every Scenario with Ease

Designed for trolling motors (100-120lbs), LiTime 36V 50Ah LiFePO4 battery delivers reliable energy for all your onboard needs, enhancing your kayak fishing experience. Not only for marine applications, but also ready for more applications, such as home energy, solar systems, backup energy, etc.

SPECS

BATTERY

Cell Type：

LiFePO4

Warranty：

5 Years

Cycle Life：

4000 cycles

Nominal Voltage：

38.4V

Rated Capacity：

50Ah

Energy：

1920

Max. Expansion (Parallel & Series)：

4P1S

Internal Resistance：

≤40mΩ

Certifications：

UL-1973,FCC,CE,RoHS,UN38.3

BMS

BMS：

50A

Max. Continuous Output Power：

1920W

Max. Continuous Charge Current：

50A

Max. Continuous Discharge Current：

50A/ 60A@30mins

Max. Discharge Current 1 Second：

250A

CHARGE

Charge Method：

CC/CV

Charge Voltage：

43.2±0.6V

Recommend Charge Current：

10A(0.2C)

TEMPERATURE

Charge Temperature：

0℃ to 50 ℃ / 32℉ to 122 ℉

Discharge Temperature：

-20℃ to 60 ℃ / -4℉ to 140 ℉

Storage Temperature：

-10℃ to 50 ℃ / 14℉ to 122 ℉

Low-Temperature Protection：

Yes

Low-Temperature Charging Protection Auto Recovery：

Yes

OTHERS

Terminals：

M8 bolts

Weight Approx.：

33.14lbs

Size：

13*6.77*8.5 inch

Housing Material：

ABS

Protection Class：

IP65

FAQ

What is the ideal thrust range for a 36V 50Ah trolling motor battery?

100-120 lbs trolling motor

Can I use the trolling motor battery in my electric outboard motor?

Normally, it's not recommended to use a battery designed for a trolling motor in an electric outboard motor since the surge discharge current might not be sufficient. Outboard motors often require higher power for acceleration and sustained operation, which can lead to higher surge currents that trolling motor batteries may not handle well.

If you’re planning to use an electric outboard motor, it’s best to invest in a battery specifically designed for such applications like LiTime Outboard Motor Batteries. These batteries are built to handle the high power requirements and ensure optimal performance and safety.

Read on Electric Outboad Motor VS Trolling Motor for more detailed information.

Can I connect the battery in series or parallel?

LiTime 36V 50Ah lithium battery supports connecting up to 4 identical batteries in parallel for up to 36V(38.4V)200Ah battery system. However, the battery do not support connect in series.

To connect in series or parallel, batteries should meet the below conditions:

identical batteries with the same battery capacity (Ah) and BMS (A);
from the same brand (as lithium battery from different brands has their special BMS);
purchased in near time (within one month).

Can I charge LiTime 36V 50Ah TM LiFePO4 lithium batteries in cold weather (under freezing temperatures)?

LiTime 36V 50Ah TM LiFePO4 batteries can charge between 0℃ to 50℃ / 32℉ to 122℉. The 36V 50Ah TM version has low-temperature charging protection function, it would cut off charging when it's below 0℃. It's recommended to charge the battery indoor during cold days.

Do you provide marine staring batteries?

Yes. Visit LiTime Marine Starting Batteries to choose the right one.
