LiTime 12V 100Ah Smart LiFePO4 Lithium Battery with 100A BMS, Low Temp Charging Cutoff Protection

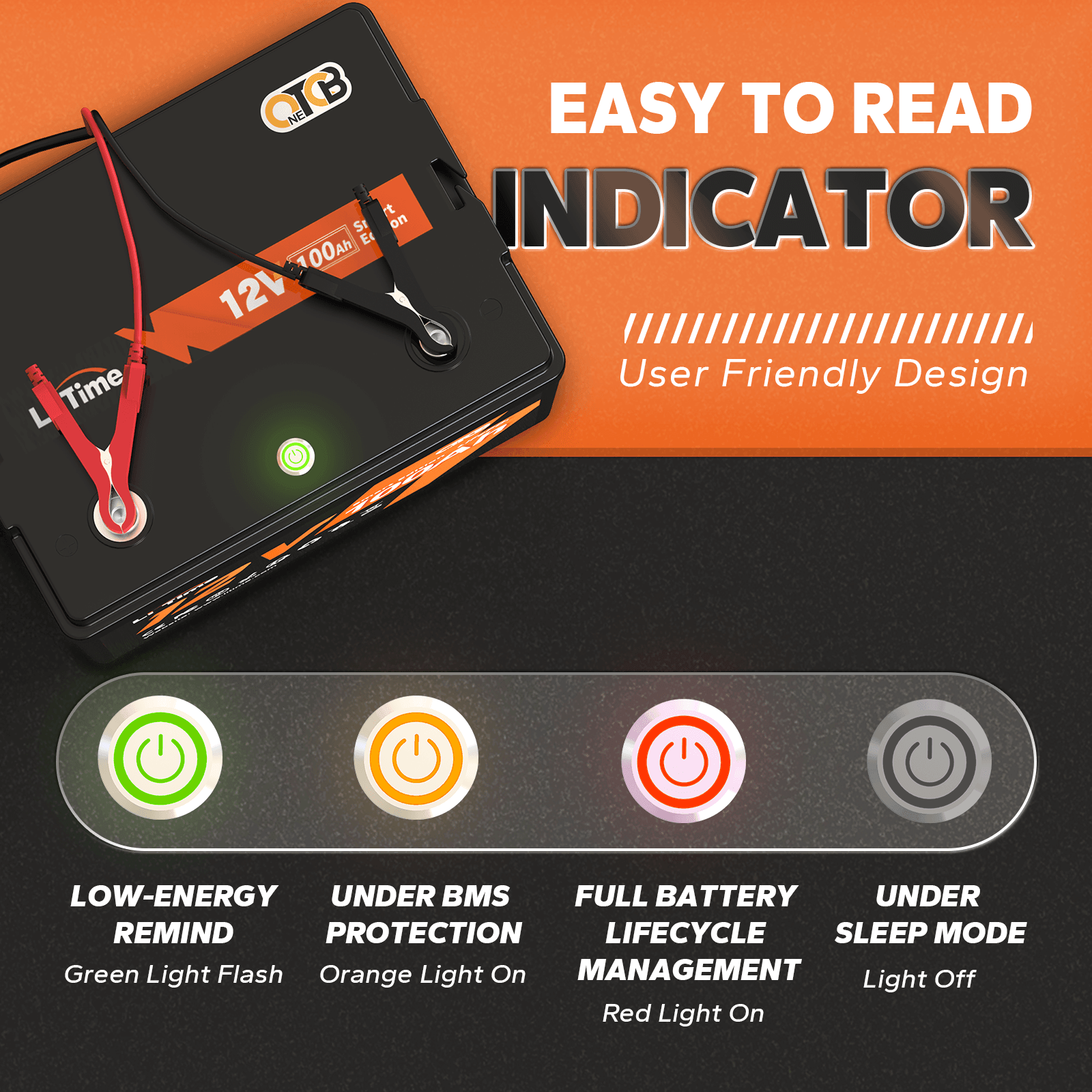

OTCB Tech & User-Friendly Indicator: LiTime 12V 100Ah Smart LiFePO4 Battery has a built-in smart BMS that is equipped with OTCB technology. Easy to use one-touch button can turn the battery ON/OFF, wake from sleep mode, and activate the force charging mode under low-temp protection. Read your battery status with the simple indicator light: low power, sleep mode, BMS protection, and provide full life-cycle management.

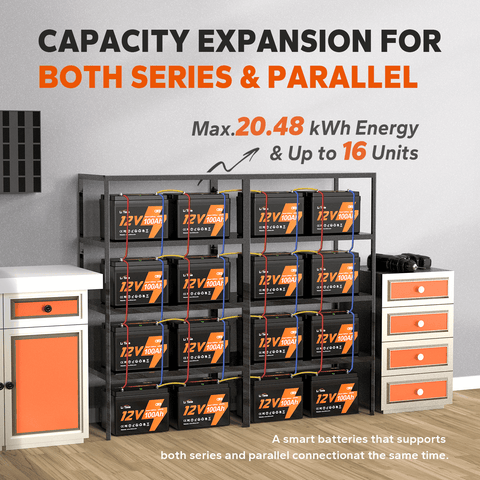

Smart LiFePO4 Battery that Supports Both Series & Parallel Connections: It's one of the few LiFePO4 lithium batteries that support battery connections in series & parallel at the same time. The LiTime 12V 100Ah smart battery supports maximum connections of 4 in series and 4 in parallel. Allow you to build up a maximum battery system of 16 battery units with 20.48kWh Max. capacity and 20.48kW of Max. power.

Low-Temp Charging Protections & Force Charge: The 12V 100Ah smart LiFePO4 battery have built-in low-temperature charging protection that will auto-cut the battery off from charging when the cell temperature is lower than 32℉. Preventing the battery cells from being damaged from charging under the freezing point. When low-temp charging is necessary, pushing the button will disable the protection and allow charging under the freezing point for emergency use.

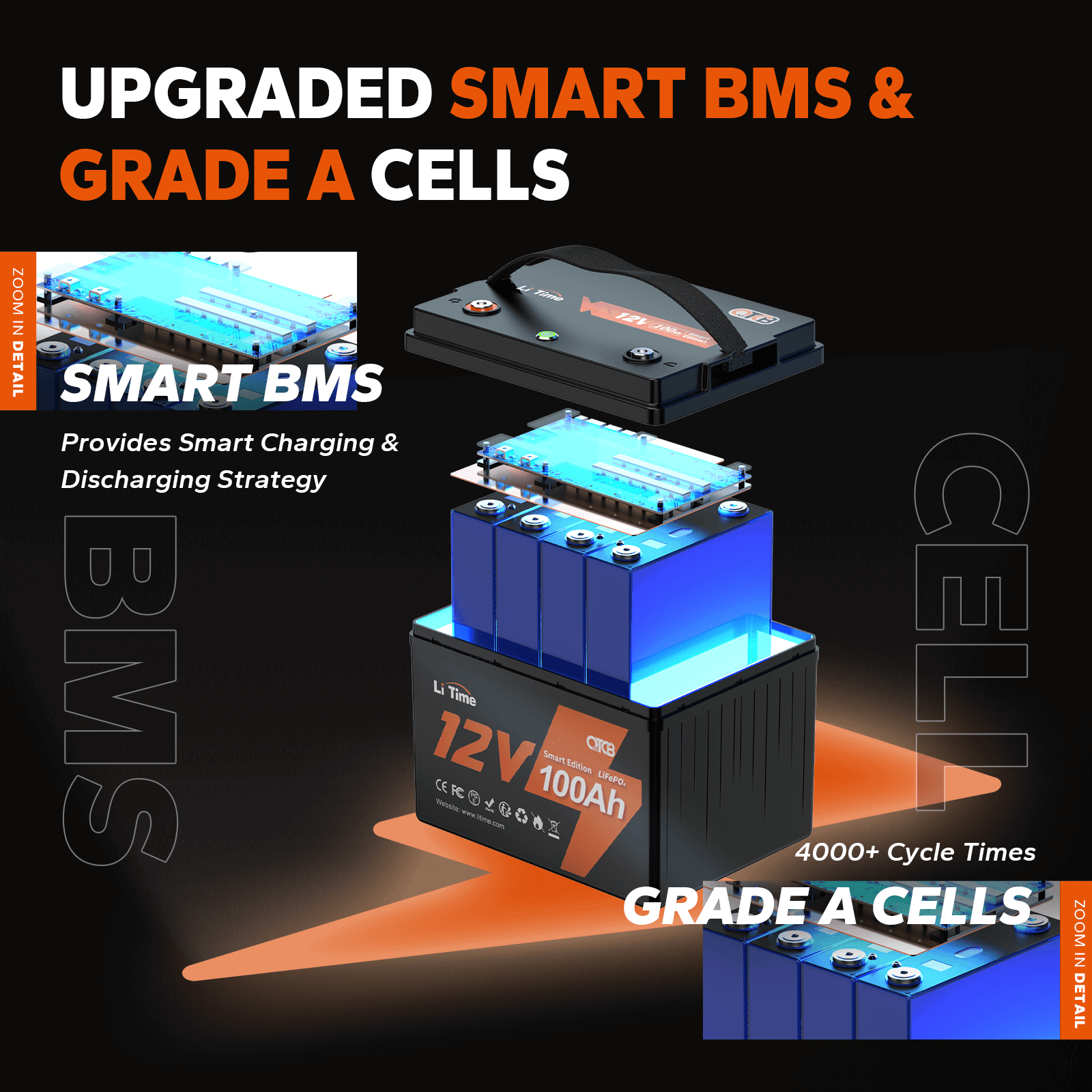

Smart BMS with Grade A Battery Cells: The built-in 100A smart BMS provides six protections for your battery: overcharging, over-discharging, over-current, short circuit, over-temperature, and under-temperature. With the full-lifetime management of the smart BMS, LiTime smart LiFePO4 battery using grade A battery cells that can provide over 4000+ cycle time @ 100% DOD for over 10-year. Make it long-lasting for your RV, trolling motor, solar system, home backup power system, and off-grid living.

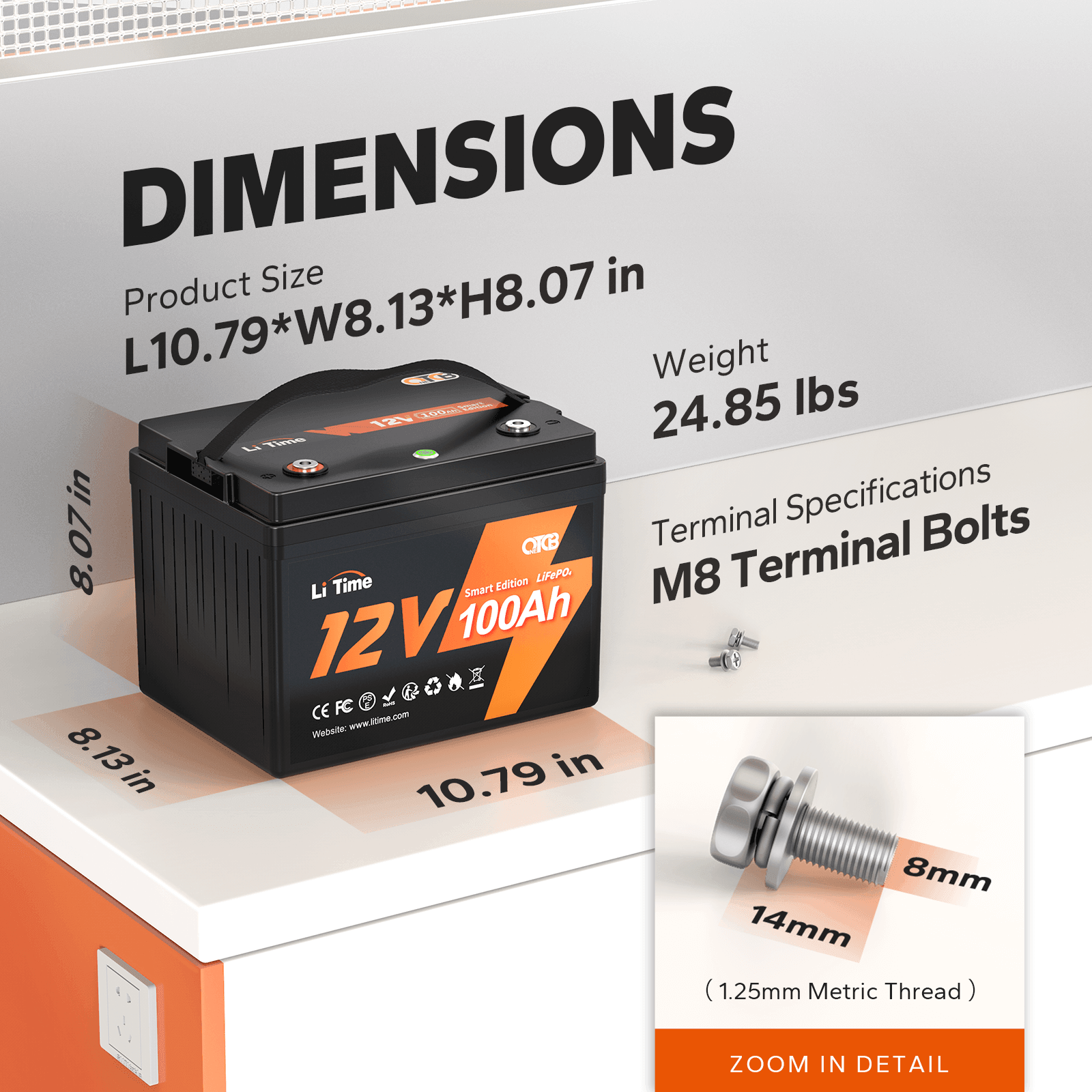

Portable & Lightweight: LiTime smart LiFePO4 battery uses high-density LiFePO4 battery cells that made the battery super lightweight in compact sizes. The light weight of 24.85 lbs with compact sizes of L10.79*W8.13*H8.07 inches. With a detachable strap handle design, it is ready to power any of your applications.

For Trolling Motor: The LiTime 12V 100Ah smart battery is a dedicated energy storage battery than starting battery and supports a max. discharge current of 1C. Recommendation for trolling motor: use 12V 100Ah smart battery for 30~70lbs thrust trolling motor. (For recommendations on other trolling motors, please contact us at service@litime.com

Availability: 14 In Stock
$309.99
$699.99
$309.99
Please hurry! Only 14 left in stock
Size: 1 Pack 12V 100Ah Smart
Subtotal: $309.99

Free Shipping

Free standard shipping on all orders

Estimated to be delivered within 2-5 business days.

5 Years Warranty

Backed up by techical support within 24hrs.

Free Returns

30 Days Hassle Free Returns
LiTime 12V 100Ah Smart LiFePO4 Lithium Battery with 100A BMS, Low Temp Charging Cutoff Protection

LiTime 12V 100Ah Smart LiFePO4 Lithium Battery with 100A BMS, Low Temp Charging Cutoff Protection

$699.99 $309.99

LiTime 12V 100Ah Smart LiFePO4 Lithium Battery with 100A BMS, Low Temp Charging Cutoff Protection

$699.99 $309.99
Size: 1 Pack 12V 100Ah Smart

Frequently Bought Together

LiTime 12V 100Ah Smart LiFePO4 Lithium Battery with 100A BMS, Low Temp Charging Cutoff Protection 1000
$699.99 $309.99
Choose Options
Choose Options
Size: 1 Pack 12V 100Ah Smart
Hurry up! only 14 left
LiTime 14.6V 10A Lithium Battery Charger 1600
$99.99 $72.24
LiTime 14.6V 20A Lithium Battery Charger for 12V LiFePO4 Lithium Battery 1000
$129.99 $93.49
LiTime 30A MPPT 12V/24V Auto DC Input Solar Charge Controller, Built-in Bluetooth Adapter 1600
$219.99 $109.99
Price Total: $0.00

    SPECS

    BATTERY
    Cell Type:
    LiFePO4 Prismatic
    Warranty:
    5 Years
    Cycle Life:
    4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
    Nominal Voltage:
    12.8V
    Rated Capacity:
    100Ah
    Energy:
    1280Wh
    Max. Expansion (Parallel & Series):
    4P4S
    Internal Resistance:
    ≤40mΩ
    Certifications:
    UL, FCC, CE, RoHS, UN38.3
    BMS
    BMS:
    100A
    Max. Continuous Output Power:
    1280W
    Max. Continuous Charge Current:
    100A
    Max. Continuous Discharge Current:
    100A
    Max. Discharge Current 5 Seconds:
    300A to 500A
    CHARGE
    Charge Method:
    CC/CV
    Charge Voltage:
    14.4V ± 0.2V
    Recommend Charge Current:
    20A (0.2C)
    TEMPERATURE
    Charge Temperature:
    0℃ to 50℃ / 32℉ to 122℉
    Discharge Temperature:
    -20℃ to 60℃ / -4℉ to 140℉
    Storage Temperature:
    -10℃ to 50℃ / 14℉ to 122℉
    Low-Temperature Protection:
    Yes (32℉/0℃)
    Low-Temperature Charging Protection Auto Recovery:
    Yes (41℉/5℃)
    SELF-HEATING
    Heating Temperature:
    N/A
    Approx. Heating Time:
    N/A
    OTHERS
    Terminals:
    M8 bolts
    Weight Approx.:
    24.85lbs
    Size:
    L10.79*W8.13*H8.07 inch
    Housing Material:
    ABS (Flame Retardant Plastic)
    Protection Class:
    Low (Becauese of the Button)

    FAQ

    Q: What does OTCB mean?

    A: One Touch Control Battery (OTCB) is the LiTime self-developed battery that is patent protected with a button to control and monitor your battery. The OTCB tech allows you to read the battery status through a single button and LED indicator. The LiTime OTCB BMS system stands out among traditional BMS by adding the following functions: ★ The one-touch button allows power on/off your battery for easy control and safety. ★ Read the LED indicator to learn your battery status. ★ Intelligent sleep mode, and one-touch to recall your battery. ★ Auto low-temperature charging cut-off protectionAllow low-temperature forced charging for emergency use. ★ Low battery indicatorFull lifecycle management

    Q: What battery charger should I use for the LiTime 12V 100Ah smart LiFePO4 lithium battery?

    A: We recommend using a 14.6V lithium iron phosphate (LiFePO4) battery charger to maximize the capacity. ☆ Recommend charging voltage: 14.2V ~ 14.6V ☆ Recommend charging current: 20A (0.2C): the battery will be fully charged in around 5hrs to 100% capacity. 50A (0.5C): the battery will be fully charged in around 2hrs to around 97% capacity. Attention: ☆ Connect the charger to the battery before connecting it to the grid power in case of sparks. ☆ Remember to disconnect the charger from the battery after fully charging.

    Q: Can I use an alternator or generator to charge the LiFePO4 lithium battery?

    A: Yes. You can use your alternator or generator to charge LiTime batteries. If your alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, you can use a 14.6V lithium iron phosphate (LiFePO4) battery charger to maximize the capacity.

    Q: Are LiFePO4 lithium batteries safe?

    A: Yes. LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. LiTime lithium cells are UL certified for the highest safety and sustainability standards. All LiTime LiFePO4 batteries come with an internal Battery Management System which protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage. Additionally, LiTime LiFePO4 Lithium batteries have been tested to be free from the risk of fire, and electric shock in harsh environments.

    Q: Can I use LiFePO4 lithium batteries as starting batteries?

    A: No. LiTime LiFePO4 lithium batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices.

    Q: Can I charge LiTime LiFePO4 lithium batteries with solar panels?

    A: Yes, you can charge LiTime LiFePO4 lithium batteries with solar panels. You should size your charge controller based on the voltage and current output of your solar array setup. That will ensure that your charge controller can process and regulate the power coming from your solar panels. Take a 24V MAX. 22 amps output solar system as example. You would need a solar charge controller that can handle 24 volts and 27.5 amps (125% of your max current output).

    Q: Can I charge LiTime LiFePO4 lithium batteries in cold weather (under freezing temperatures)?

    A:LiFePO4 batteries can safely charge between 32°F to 113°F (0°C to 45°C). LiTime 12V 100Ah Smart LiFePO4 batteries include the low-temperature charging protection which will automatically cut the battery charging off when the cell temperature is lower than 32℉, thus preventing the battery cells from damage when charging under the freezing point. If necessary (not recommended), you can push the low-temp protection button twice, then the BMS would allow your battery to charge under the freezing point for emergency use.

    Q: How do I store LiTime LiFePO4 lithium batteries?

    A: How do I store LiTime LiFePO4 lithium batteries?It is recommended to store LiTime LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, cycle the batteries at least every 6 months. Recommended storage environment: 10℃~35℃ (50℉~95℉),45%RH~75%RH
