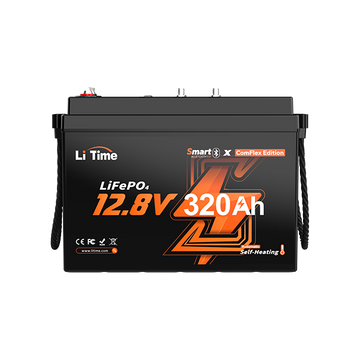

12V320Ah ComFlex Battery
x1
30 Days Returns
Local Warehouse Free Shipping
5 Years Warranty
30 Days Price Match

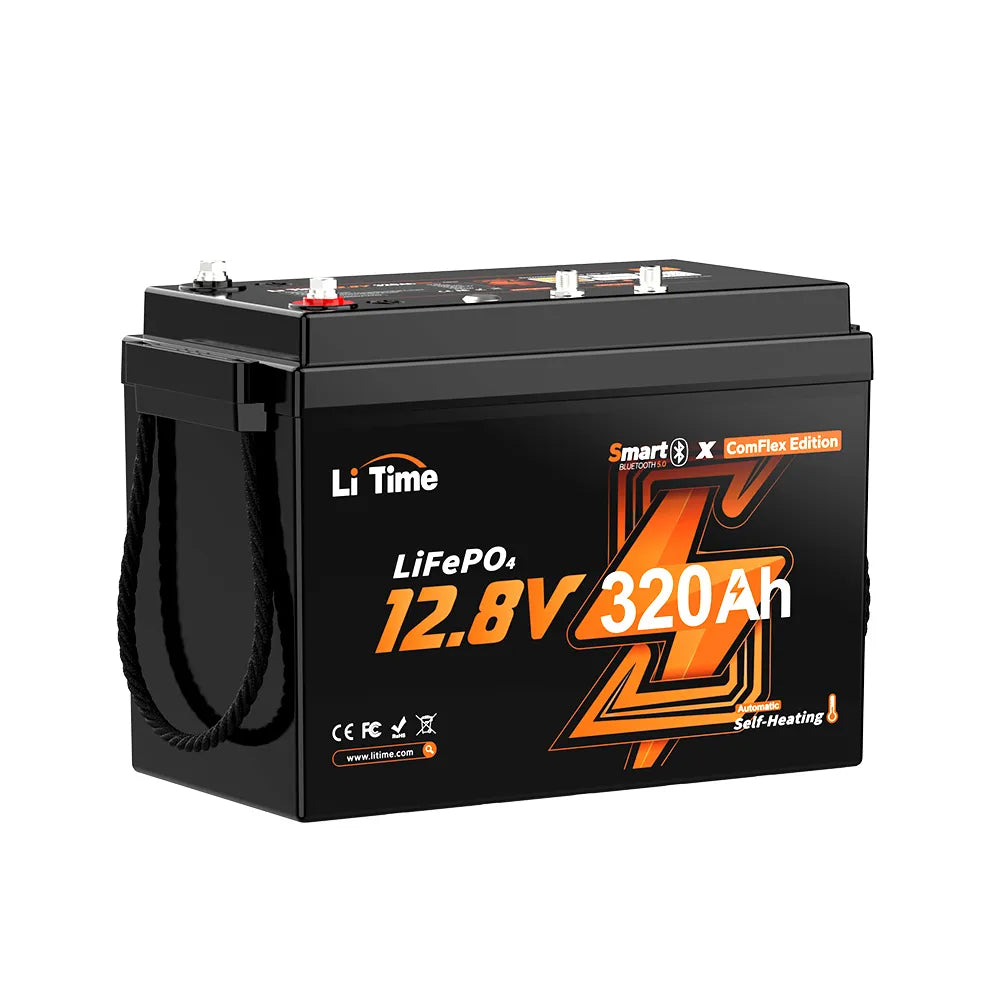

New LiTime 12V 320Ah CAN & RS485 ComFlex Smart LiFePO4 Battery | Victron, RV-C & NMEA 2000 Integration
$929.99
$1,299.99
Ends in:
:
:
:
03
Days
03
Hrs
03
Mins
03
Secs

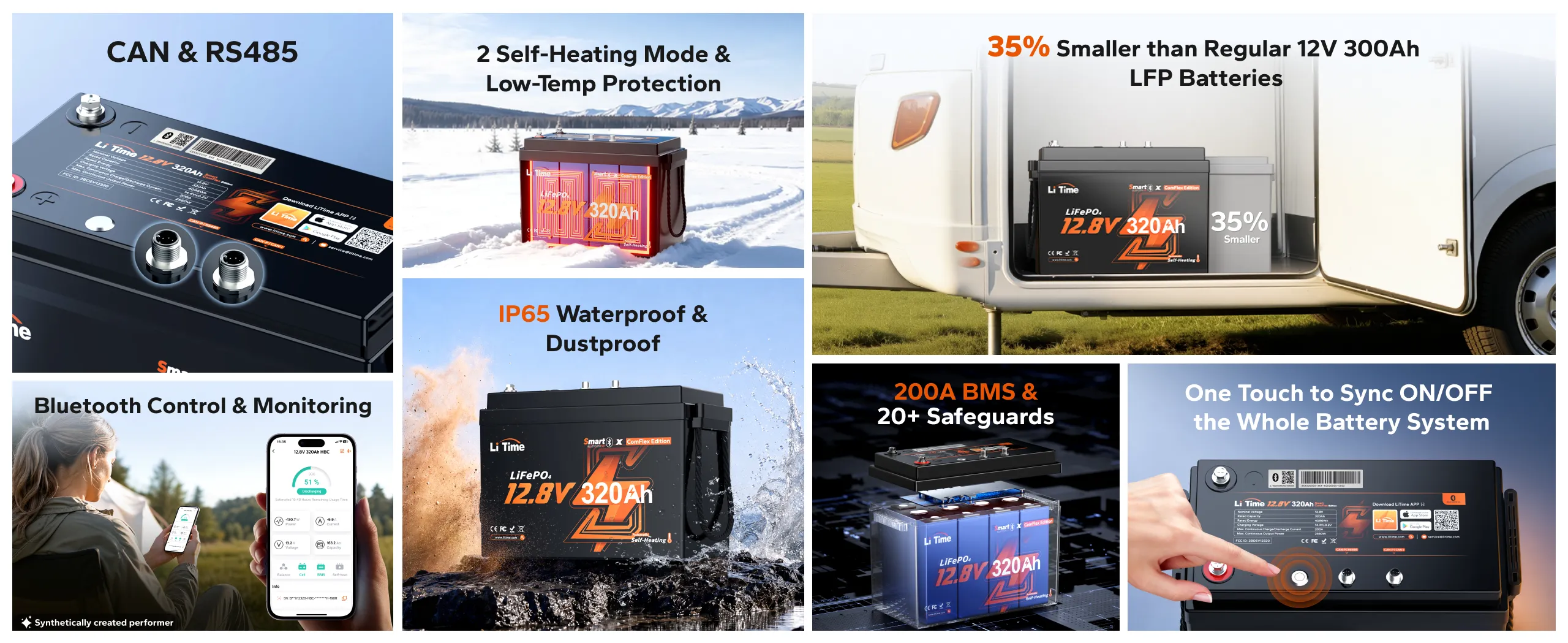

Integrated Communication: Equipped with CAN and RS485 dual ports, compatible with Victron, RV-C, and NMEA 2000 protocols for real-time battery status synchronization and more precise energy management
Simplify Operation: Press the button on any battery to turn that individual battery or the entire parallel battery bank on or off, helping reduce standby drain during seasonal storage
Compact 320Ah Power: 14.49 × 7.44 × 10.04 in, 35% smaller than typical 12V 300Ah LFP batteries and only 59.97 lbs for easier installation and transport
Smart APP Control: Monitor voltage, power and more via Bluetooth 5.0, review 30-day battery history, support OTA updates and customize minimum SOC reserve
Built for Cold Weather: Low-temperature protection and dual-mode self-heating help maintain reliable performance in freezing conditions
Flexible Expansion: Expand effortlessly from a single battery to a large-scale energy system with support for up to 16 batteries operating together (Parallel Communication: 16P1S; Standard Installations: 4P4S)
LiTime Labor Day Sale Ends In:
00D
00H
00M
00S
1 Pack 12V 320Ah Mini ComFlex
$929.99
$1,299.99
RV-C, CAN, RS485, NMEA 2000, and Victron integration
2 Pack 12V 320Ah Mini ComFlex
$1,804.99
$2,599.99
640Ah capacity for longer off-grid stays and higher RV power demands.
Best Value
4 Pack 12V 320Ah Mini ComFlex
$3,571.99
$5,199.99
Expandable to 4P4S (No Comm) and 16P1S (With Comm)
Recommended
1 Pack 12V 320Ah Mini ComFlex + 12V 60A Charger
$1,116.99
$1,599.99
Recharge your RV battery while driving.
Ultimate Setup
12V 320Ah Mini ComFlex Off-Grid Kit
$1,610.99
$2,499.99
Including 12V 320Ah Battery, 12V 60A DC-DC Charger, 12V 3000W Inverter, and 48V 60A MPPT
Quantity
Frequently bought together
$929.99
$1,299.99
FREE delivery Sun, Sep 20 - Wed, Sep 23
30 Days Returns
Local Warehouse Free Shipping
5 Years Warranty
30 Days Price Match
1
/
10
More Power. Easier Integrate
The LiTime 12V 320Ah ComFlex battery supports RV-C, CAN, RS485, NMEA 2000, and Victron integration, bringing real-time battery data, fault status, and remote monitoring for easier, smarter power management.

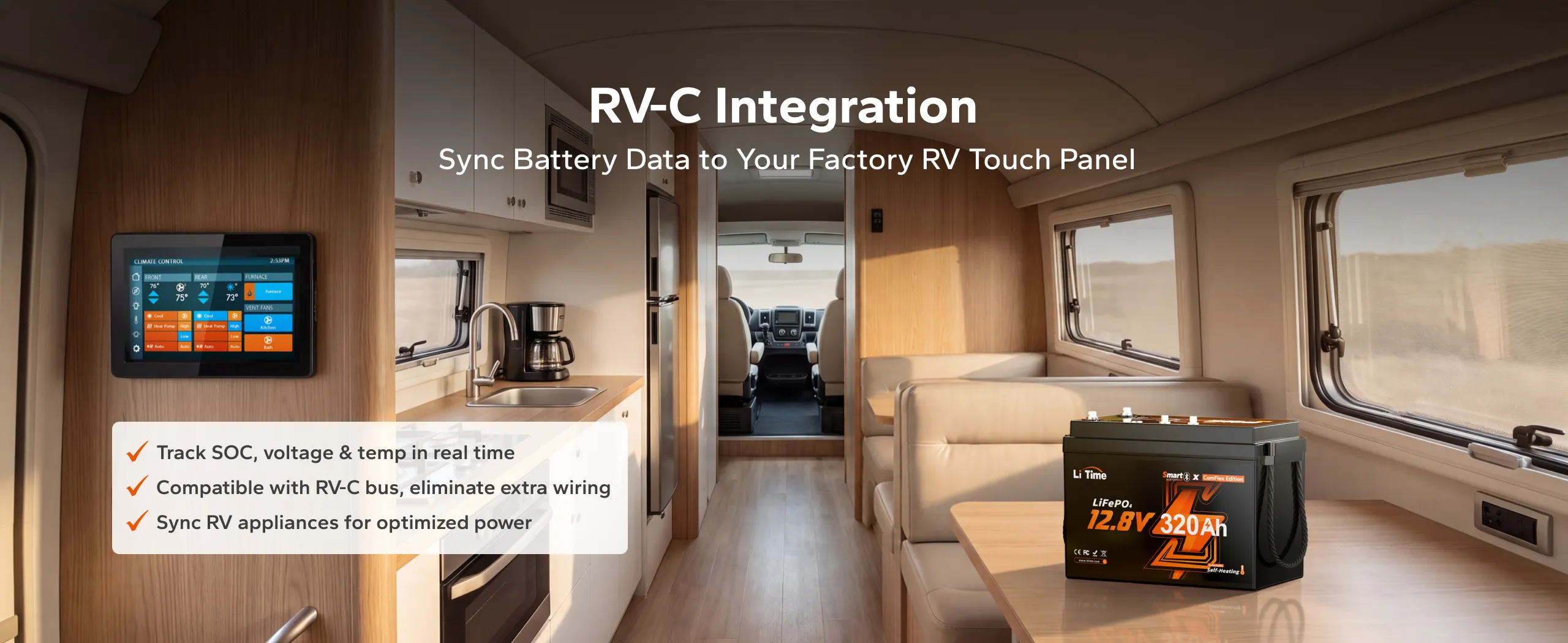

Seamless RV-C Integration for Smarter RV Power
Integrates with compatible RV-C systems to bring real-time battery data directly to your RV touch panel, making power monitoring simpler and helping you manage onboard energy with less wiring and hassle.

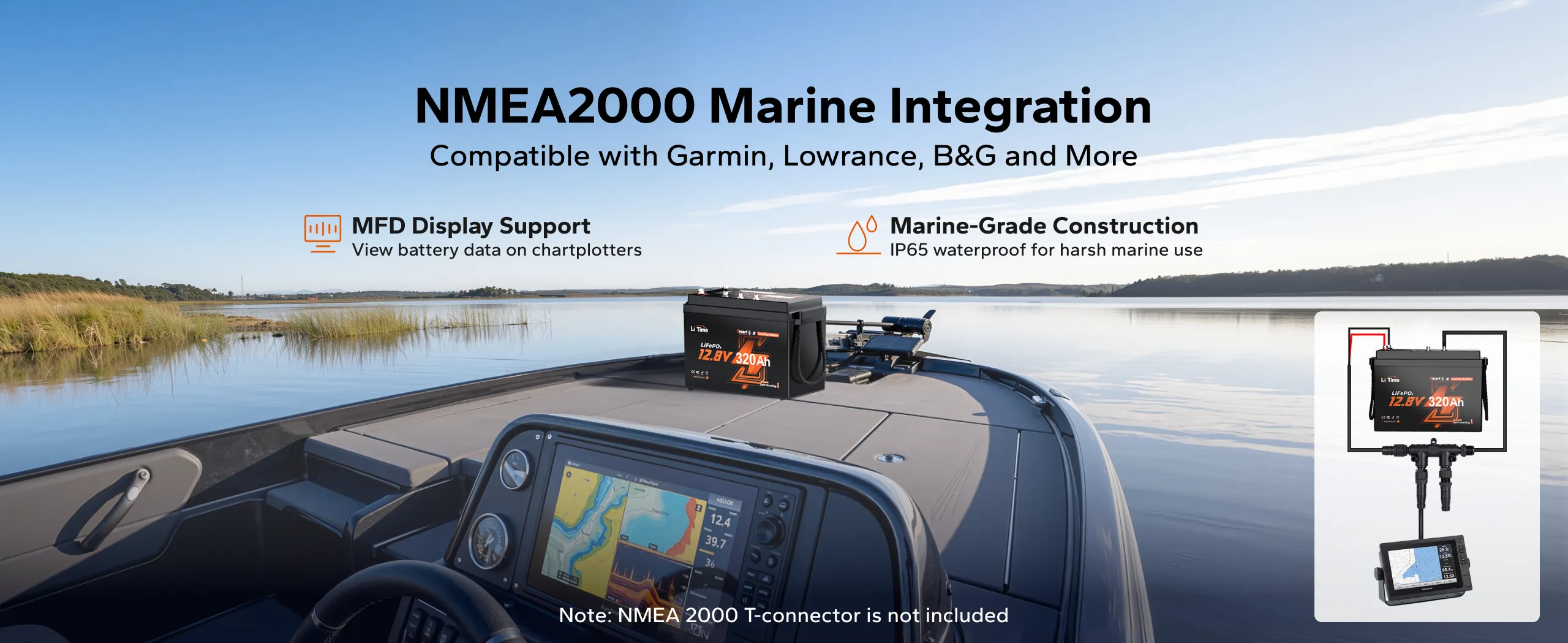

Effortless NMEA 2000 Integration for Smarter Marine Power
Connects to compatible NMEA 2000 networks to bring battery status directly to your MFD or chartplotter, letting you check power alongside other vessel data for quicker decisions and more confident trips on the water.

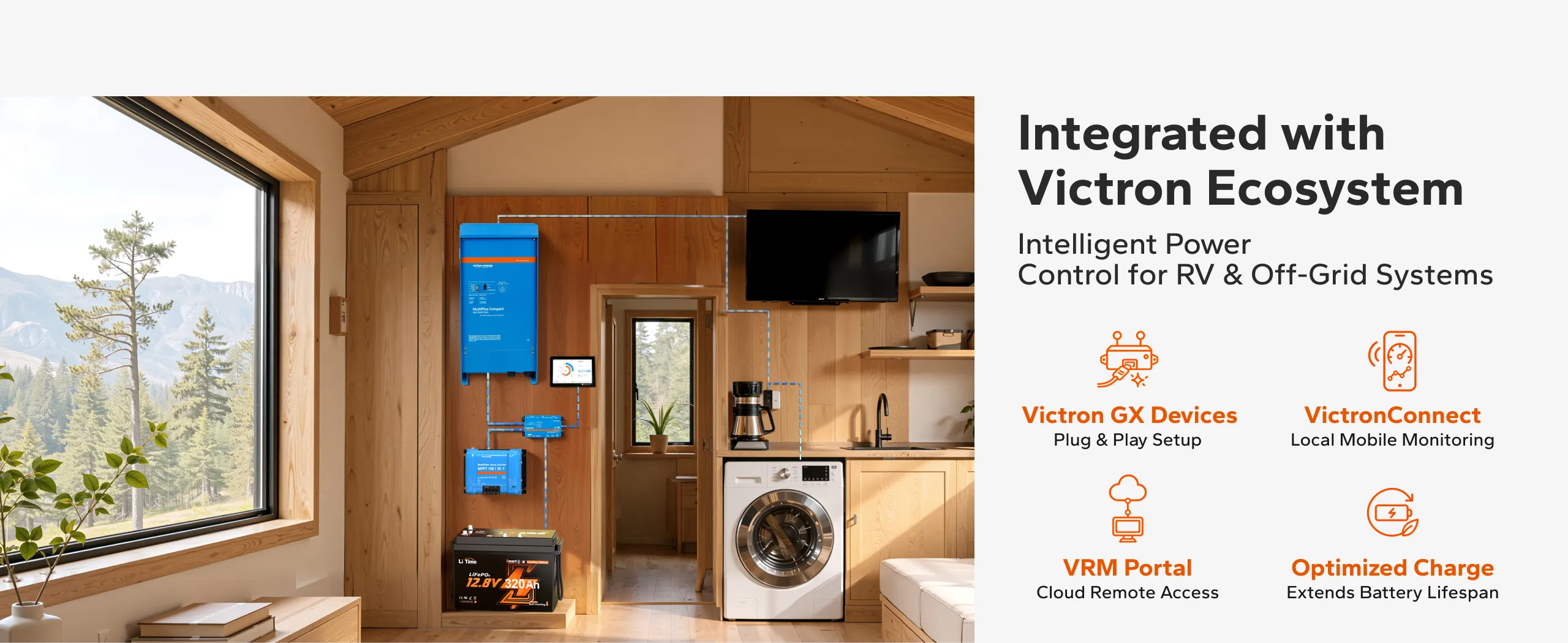

Smart Integration with the Victron Ecosystem
Connect with Victron Cerbo GX devices, VictronConnect, and VRM Portal to monitor battery status, access your system remotely, and optimize charging—making RV and off-grid power management simpler and more efficient.

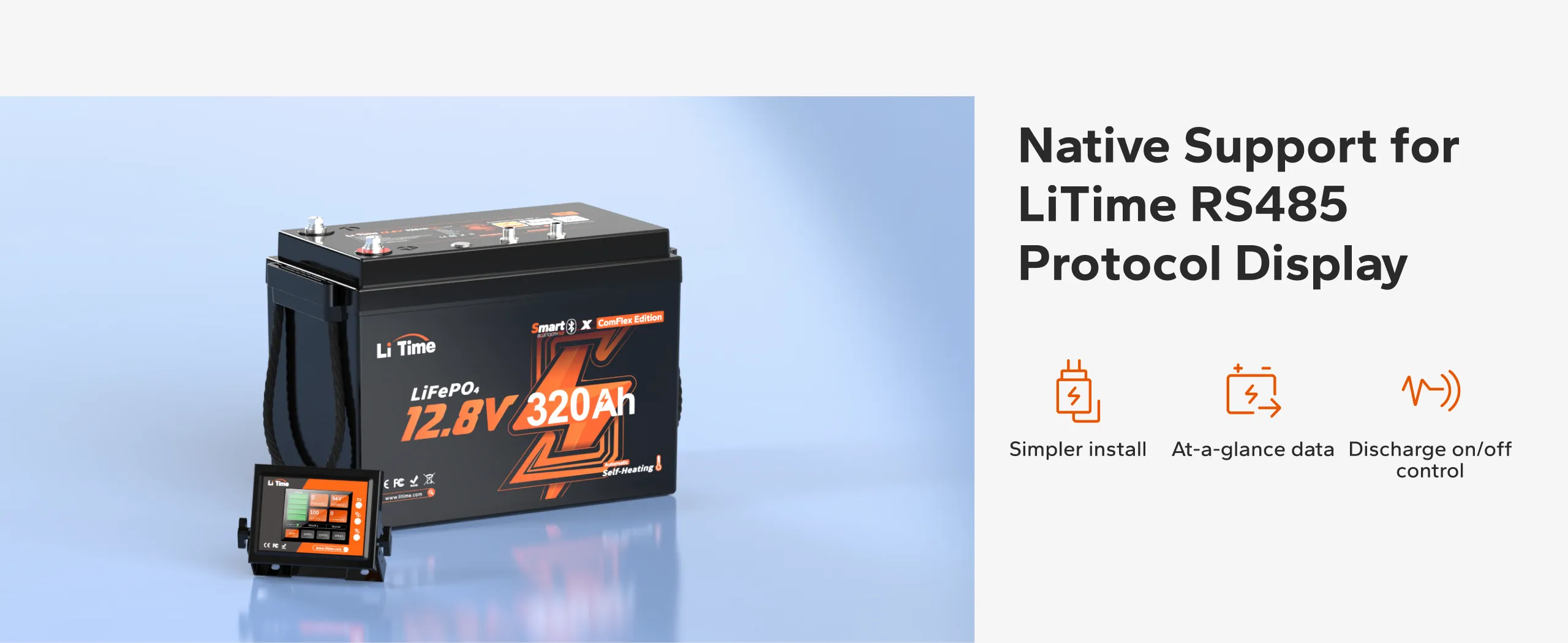

Native RS485 Display Integration for Easy Battery Control
Native support for the LiTime RS485 protocol enables direct battery status viewing and discharge control, making daily monitoring and power management faster and more convenient from one dedicated screen.
Better Battery Expansion, Easier System Control
Sync and manage your 320Ah ComFlex lithium battery bank with one-touch control and real-time status, supporting up to 4P4S without communication and 16P1S with communication.
More Power, Less Space and Weight
12V 320Ah Smart ComFlex Battery is 35% smaller than regular 12V 300Ah LFP batteries and 65% lighter than three 12V 100Ah lead-acid batteries for easier installation and travel.

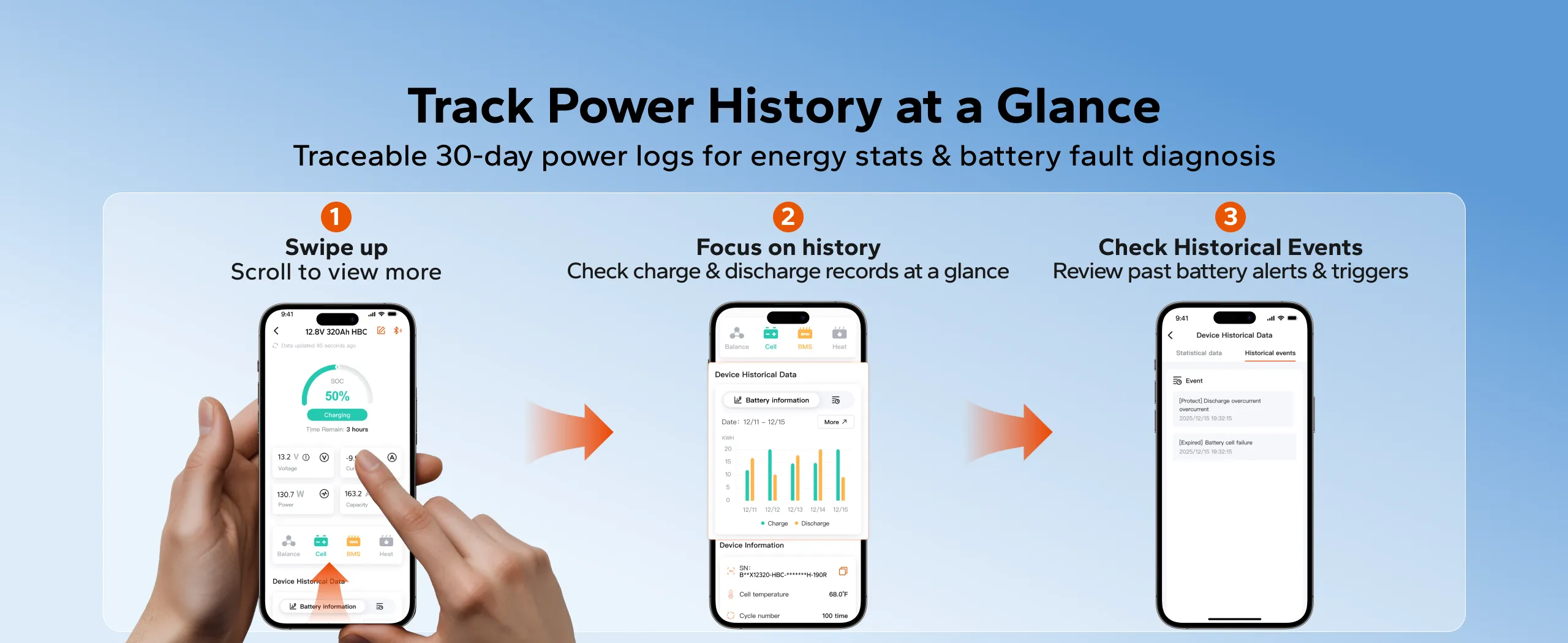

Know Your Power. Solve Issues Faster
Set a custom minimum SOC limit to reserve backup power, protect settings with a password, and monitor SOC in real time. 30-day history and 300 event records help track usage and troubleshoot issues faster via LiTime APP.

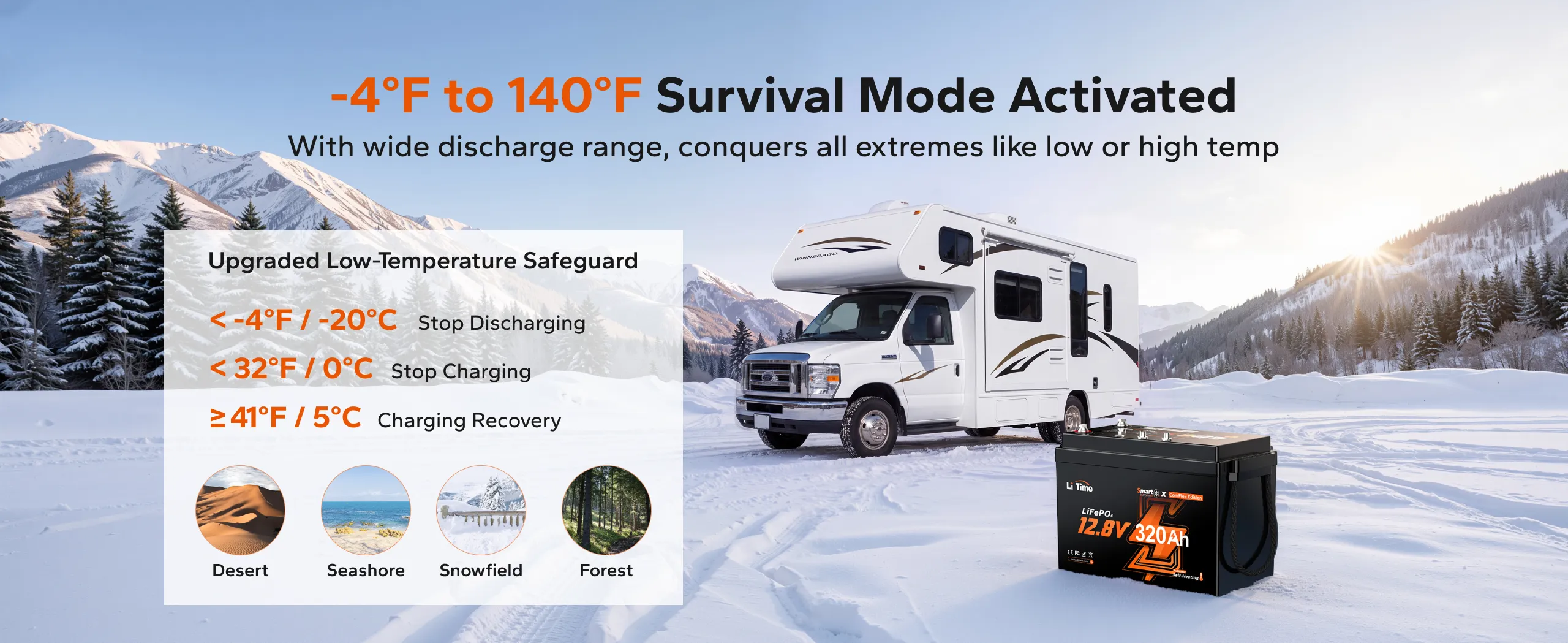

Stay Powered and Protected in Freezing Temperatures
Dual-mode self-heating keeps charging reliable in the cold, while low-temperature protection helps prevent LiTime 12V 320Ah ComFlex LiFePO4 battery damage, so you stay powered with less downtime all winter.
Flexible Charging Wherever You Go
Recharge by LiFePO₄ charger, solar, alternator, or generator—giving you flexible power options for RV and off-grid adventures.
BATTERY
Cell Type
LiFePO4
Warranty
5 Years
Cycle Life
4000 Cycles at 100% DOD, 6000 Cycles at 80% DOD, 15,000 Cycles at 60% DOD
Nominal Voltage
12.8V
Rated Capacity
320Ah
Energy
4096Wh
Max. Expansion (Parallel & Series)
4P4S (No Comm) and 16P1S (With Comm)
Internal Resistance
≤40mΩ
Certifications
FCC,CE,RoHS,UN38.3
Bluetooth
√
Self-Heating
√
ComFlex
√
BMS
BMS
200A
Max. Continuous Output Power
2560W
Max. Continuous Charge Current
200A
Max. Continuous Discharge Current
200A
Max. Discharge Current 1 Second
1000A
CHARGE
Charge Method
CC/CV
Charge Voltage
14.4±0.2V
Recommend Charge Current
64A
TEMPERATURE
Charge Temperature
-20℃ to 50 ℃ / -4℉ to 122 ℉
Discharge Temperature
-20℃ to 60 ℃ / -4℉ to 140 ℉
Storage Temperature
-10℃ to 50 ℃ / 14℉ to 122 ℉
Low-Temperature Protection
√
Automatic Discharge Off
-20℃ / -4℉
Automatic Charge Off
0℃ / 32℉
Automatic Charging Recovery
5℃ / 41℉
SELF-HEATING
Heating Temperature
-20°C to 5°C / -4°F to 41°F
Approx. Heating Time
60-80mins (From -10°C / 14°F), 90-110mins (From -20°C / -4°F)
OTHERS
Terminals
M8*16mm
Weight Approx.
59.97 lbs
Size
L14.49*W7.44*H10.04 in
Housing Material
ABS
Protection Class
IP65
1 Pack 12V 320Ah Mini ComFlex
M8 Screws
x2
Insulation Caps
x2
Socket Wrench
x1

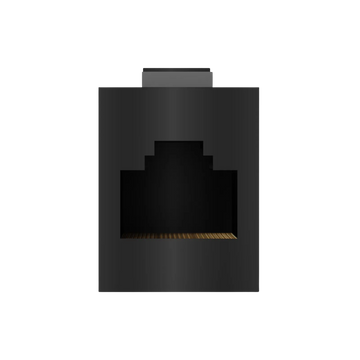

RJ45 Coupler
x1

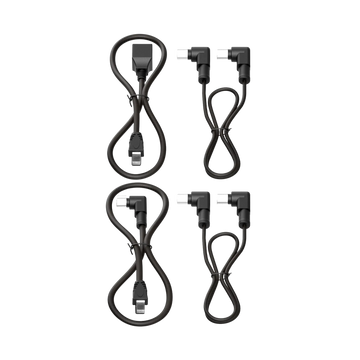

Communication Cable
x4
12V320Ah ComFlex Battery
x1
M8 Screws
x2
Insulation Caps
x2
Socket Wrench
x1
RJ45 Coupler
x1
Communication Cable
x4
2 Pack 12V 320Ah Mini ComFlex
12V320Ah ComFlex Battery
x2
M8 Screws
x2
Insulation Caps
x2
Socket Wrench
x1
RJ45 Coupler
x1
Communication Cable
x4
12V320Ah ComFlex Battery
x2
M8 Screws
x2
Insulation Caps
x2
Socket Wrench
x1
RJ45 Coupler
x1
Communication Cable
x4
4 Pack 12V 320Ah Mini ComFlex
12V320Ah ComFlex Battery
x4
M8 Screws
x2
Insulation Caps
x2
Socket Wrench
x1
RJ45 Coupler
x1
Communication Cable
x4
12V320Ah ComFlex Battery
x4
M8 Screws
x2
Insulation Caps
x2
Socket Wrench
x1
RJ45 Coupler
x1
Communication Cable
x4
1 Pack 12V 320Ah Mini ComFlex + 12V 60A Charger
12V320Ah ComFlex Battery
x1
M8 Screws
x2
Insulation Caps
x2
Socket Wrench
x1
RJ45 Coupler
x1
Communication Cable
x4
60A DC-DC
x1
12V320Ah ComFlex Battery
x1
M8 Screws
x2
Insulation Caps
x2
Socket Wrench
x1
RJ45 Coupler
x1
Communication Cable
x4
60A DC-DC
x1
12V 320Ah Mini ComFlex Off-Grid Kit
12V320Ah ComFlex Battery
x1
M8 Screws
x2
Insulation Caps
x2
Socket Wrench
x1
RJ45 Coupler
x1
Communication Cable
x4
60A DC-DC
x1
3000 Inverter
x1
60A MPPT
x1
12V320Ah ComFlex Battery
x1
M8 Screws
x2
Insulation Caps
x2
Socket Wrench
x1
RJ45 Coupler
x1
Communication Cable
x4
60A DC-DC
x1
3000 Inverter
x1
60A MPPT
x1
What are the LiTime 12V ComFlex battery’s power and capacity ratings?
Each battery provides 320Ah / 4096Wh of energy with a 200A BMS, supporting up to 2560W of continuous power. A fully charged 12V 320Ah (4096Wh) ComFlex LiFePO₄ battery can power a variety of appliances. Under ideal conditions, it can run an 800W air conditioner for up to 5.1 hours, or a 45W refrigerator for up to 91 hours. Actual runtime may vary depending on inverter efficiency, battery condition, and the appliance's power consumption.
What systems is this 12V 320Ah Smart ComFlex Battery compatible with?
It supports CAN & RS485 communication and integrates with compatible RV-C, Victron, NMEA 2000, and LiTime RS485 display systems, making it easier to monitor and manage battery data across RV, marine, and off-grid setups.
Can I use this 12V 320Ah ComFlex lithium battery with a Victron system?
Yes. It can work with compatible Victron Cerbo GX devices, VictronConnect, and VRM Portal for battery monitoring, system management, and remote access in RV or off-grid applications.
What Bluetooth upgrades does this battery offer compared with the standard 320Ah model?
The upgraded Bluetooth features include 30-day power history to review energy-use trends, up to 300 event records to trace alerts and troubleshoot issues faster, customizable minimum SOC limits to reserve backup power and reduce deep discharge, and password protection to prevent unauthorized access or setting changes.
How can I expand the battery bank, and what are the benefits?
The 12V 320Ah Victron compatible battery supports up to 4P4S without communication for flexible capacity and voltage expansion, making it easy to build larger RV or off-grid power systems. With communication enabled, up to 16 batteries can be connected in parallel (16P1S), allowing the battery bank to sync status and operate as one system for easier monitoring, control, and troubleshooting.
Can I use this LiTime 12V 320Ah Lithium batteries as starting batteries?
No. This battery is not intended to be used as starting batteries but energy storage, please do not use them to start any devices.
