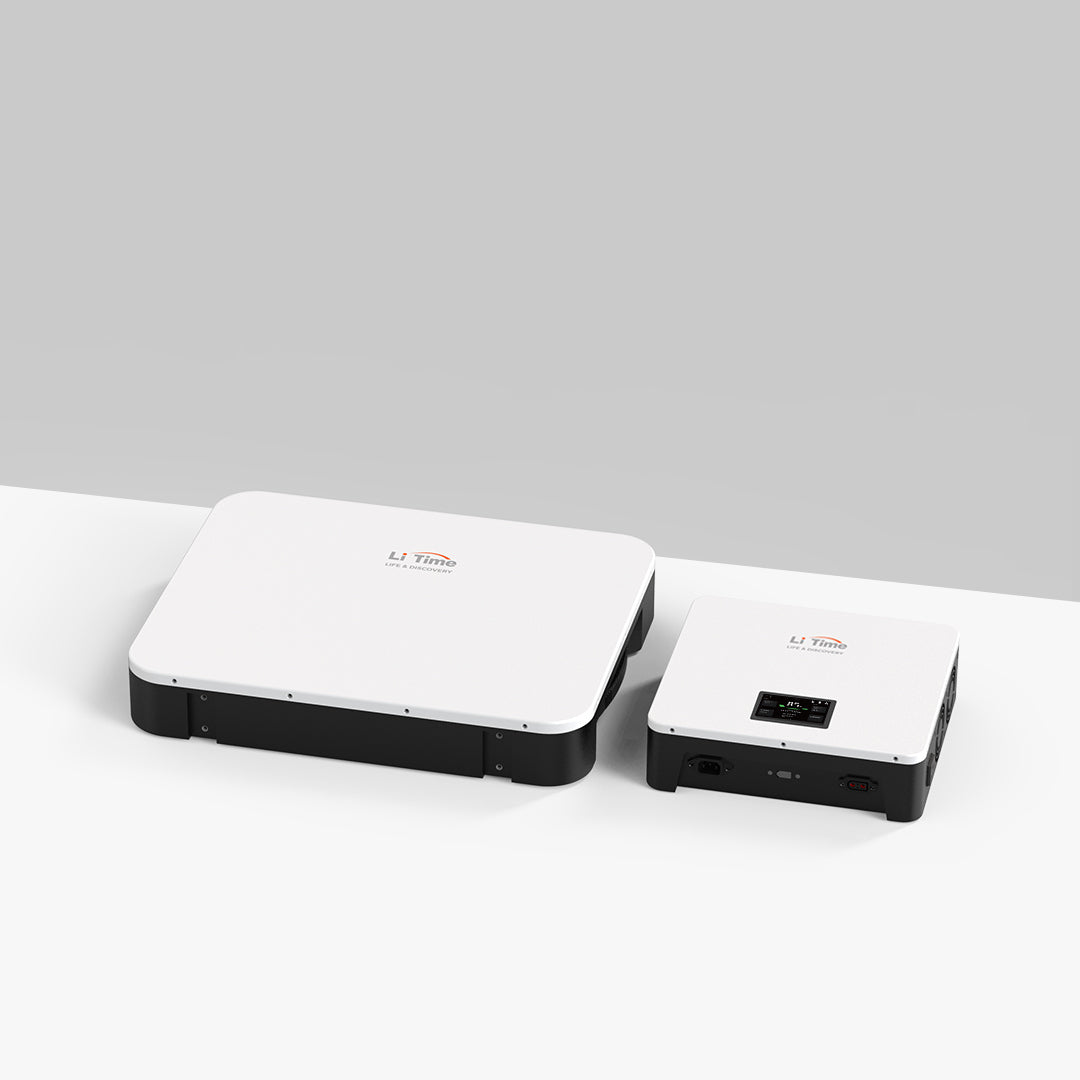

Lares K1 Kitchen Backup System

Lares K1 provides backup power for refrigerators, freezers and kitchen essentials such as microwaves, coffee makers and toaster ovens. It delivers 2,000W of continuous output and 4,000W of peak output for startup surges. Check your appliances'running and startup power requirements before connecting them.

For a combined setup, dimensions vary by mounting option:

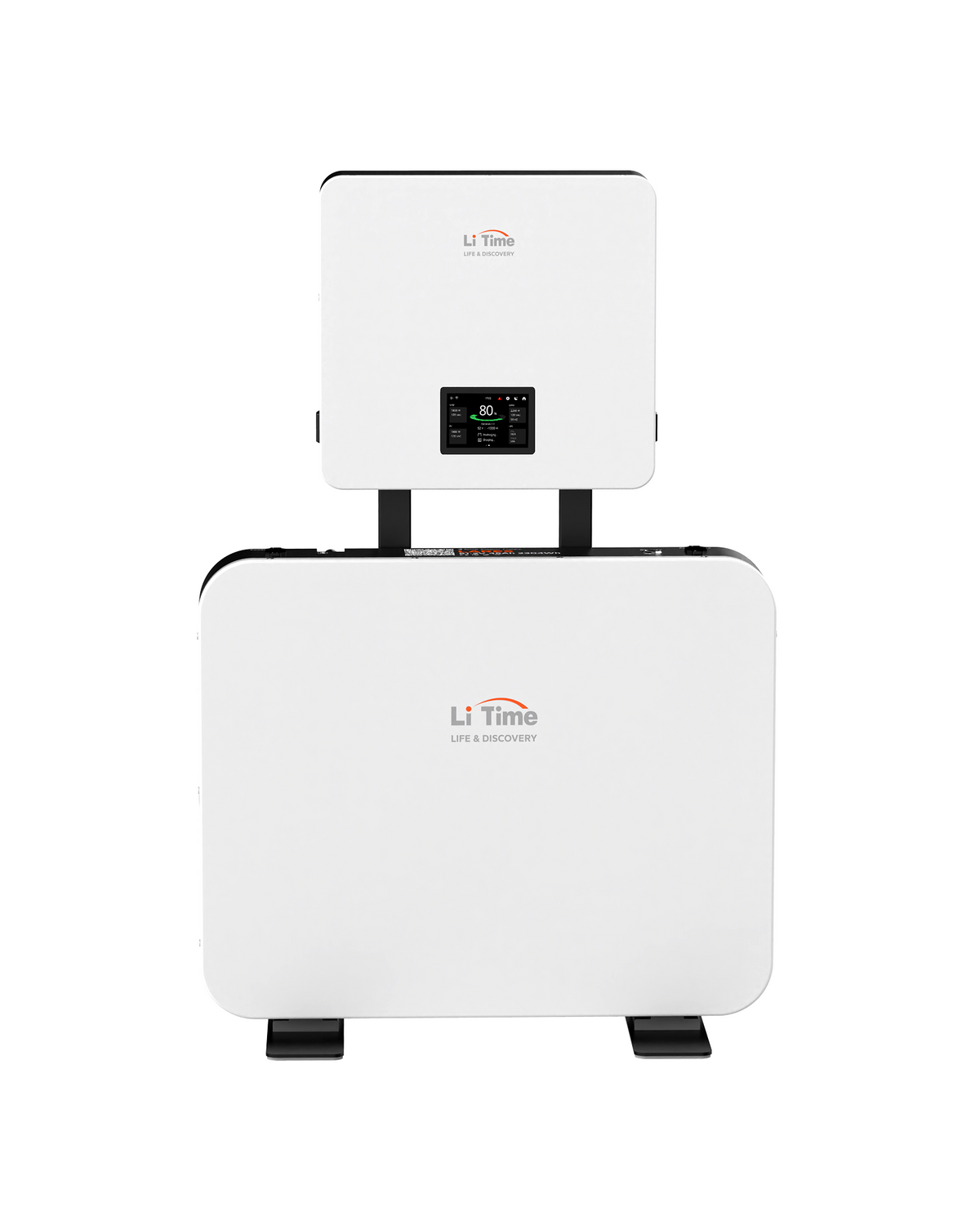

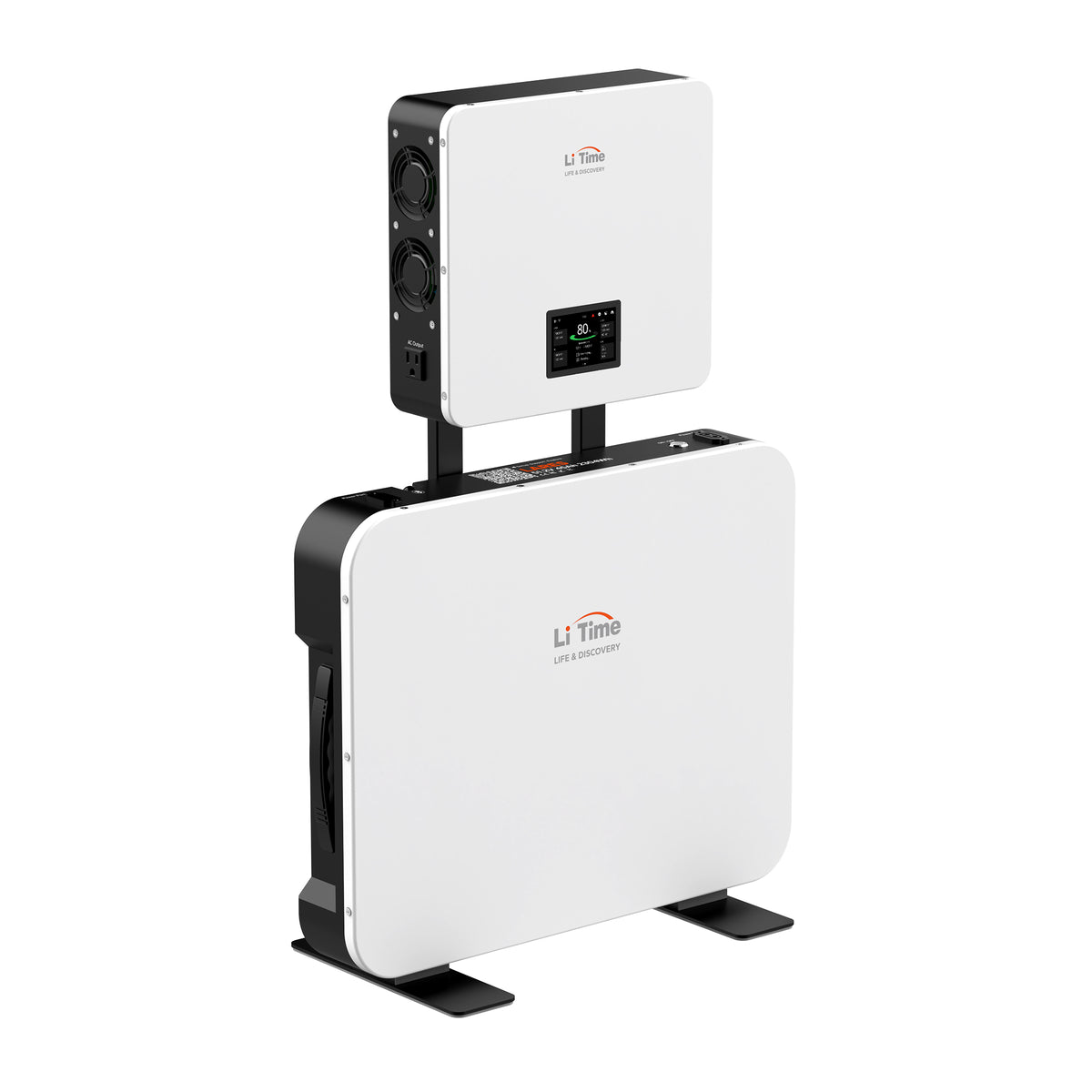

· With floor stand: System body dimensions are 20.47 × 30.71 × 3.94 in (520 × 780 × 100 mm). Each floor-stand foot measures 9.84 × 2.76 in (250 × 70 mm), so allow additional floor space for the feet.

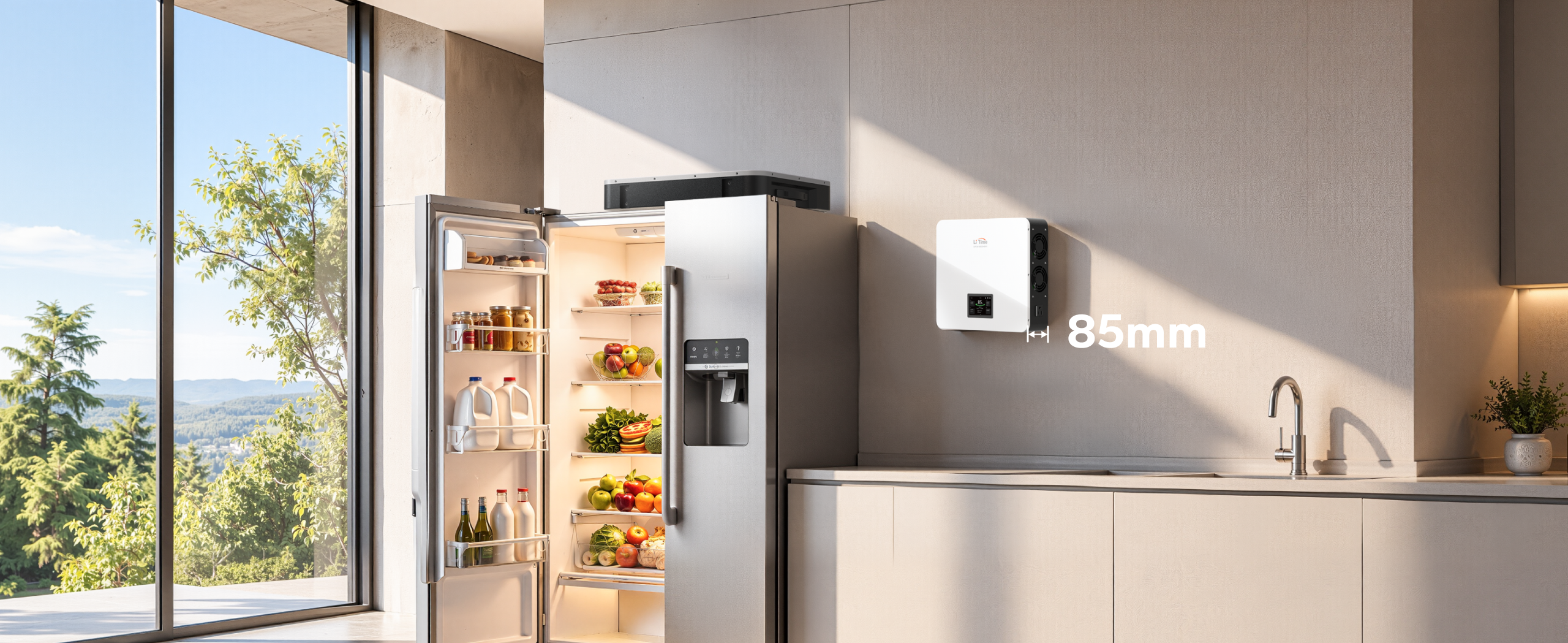

· With wall-mount brackets: Combined system dimensions are 20.47 × 30.71 × 3.74 in (520 × 780 × 95 mm).

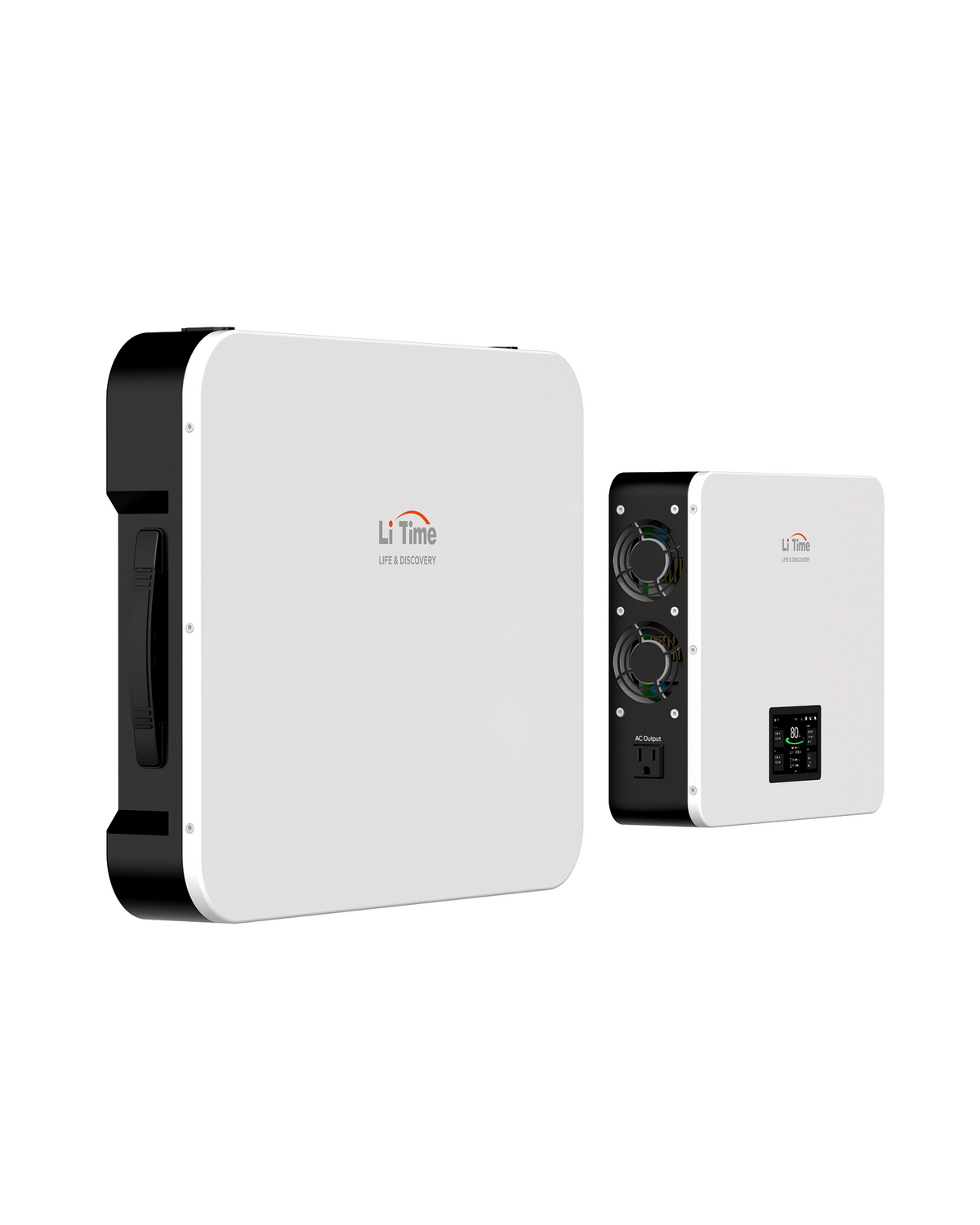

The battery and Solar Inverter Charger can also be placed separately to fit your space, with no brackets needed.

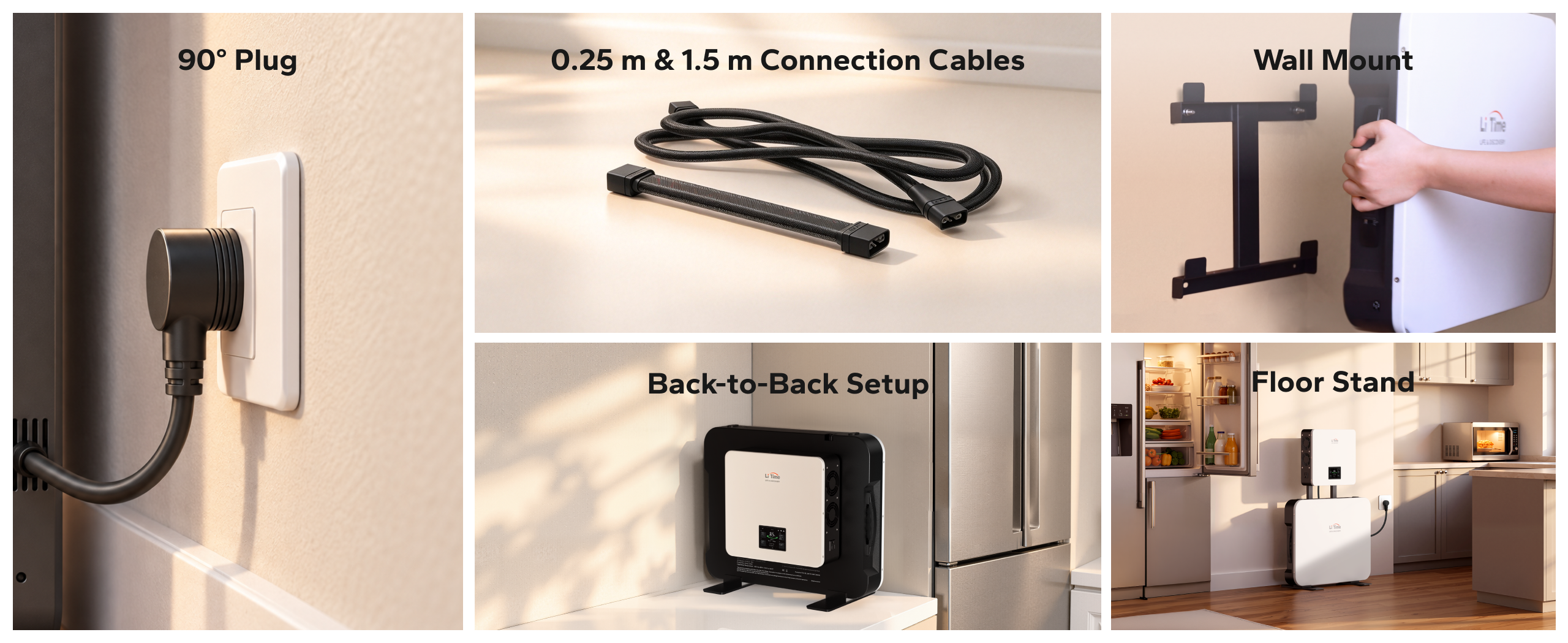

Lares K1 includes the accessories for flexible placement:

· Floor-stand accessories for a combined upright setup.

· Wall-mount accessories for the battery pack and Solar Inverter Charger.

· 0.25 m and 1.5 m battery connection cables for combined and separated setups, respectively.

· An AC power cord with a 90° plug for easier connections in tight spaces.

· A solar connection cable with MC4 connectors for compatible solar panels.

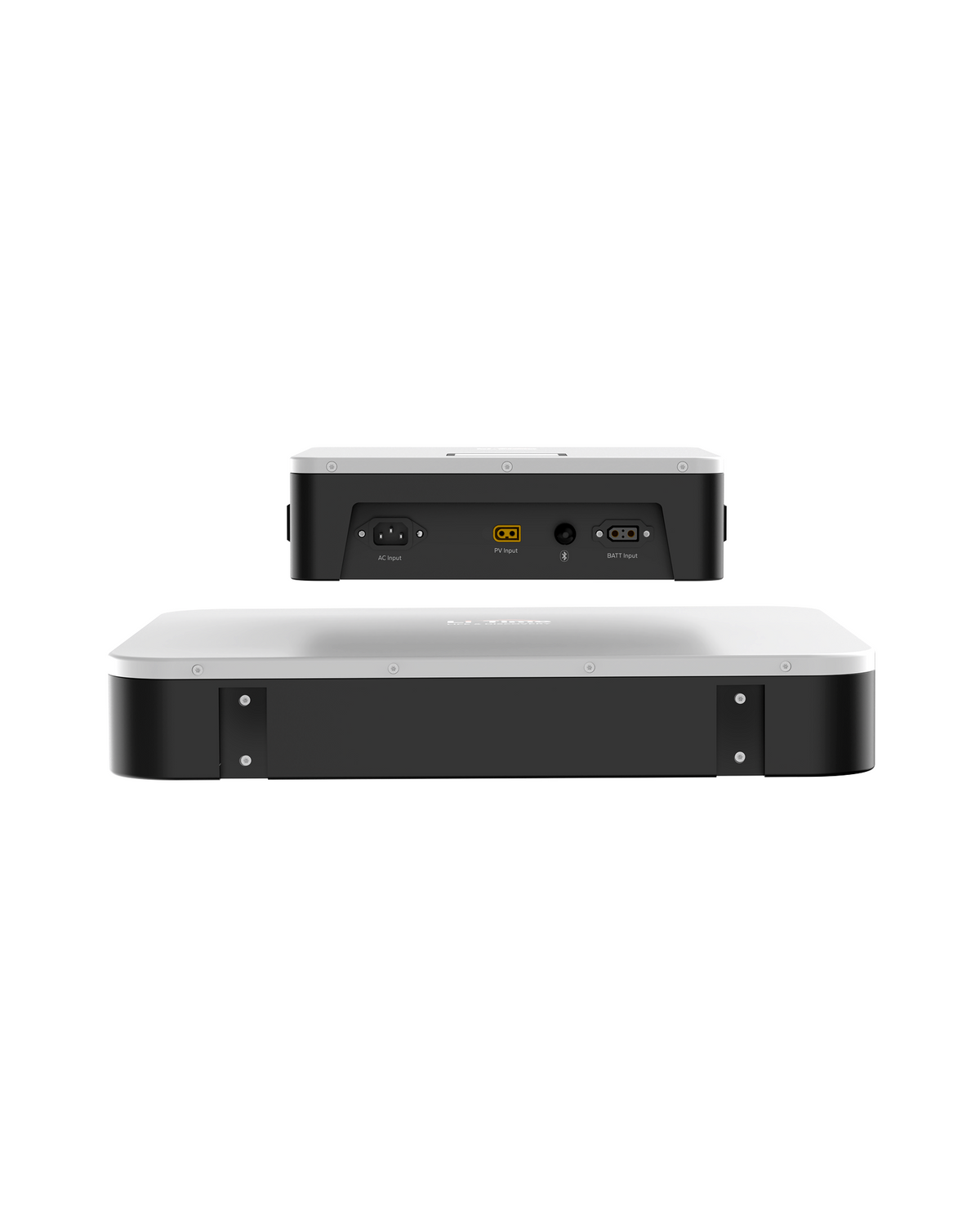

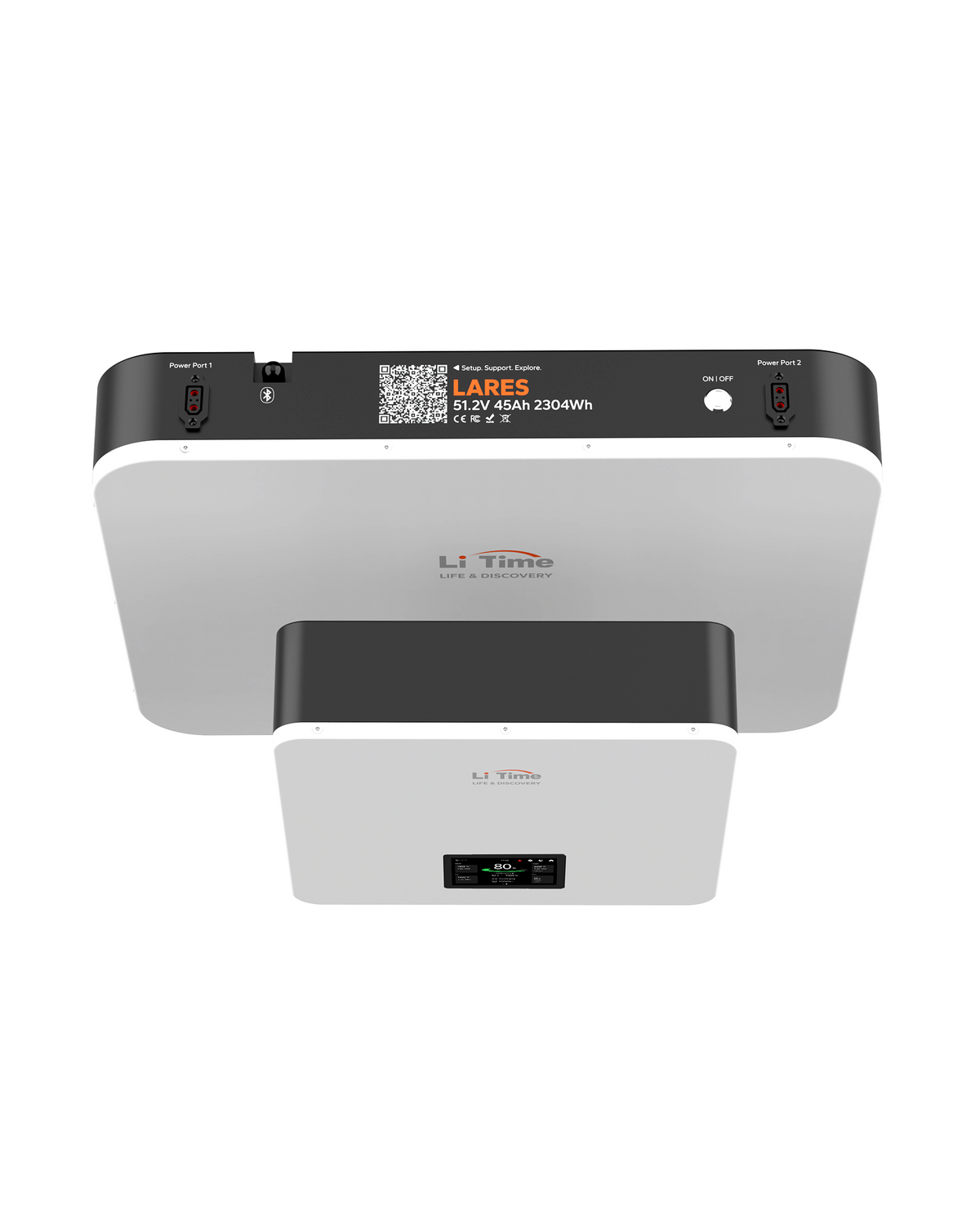

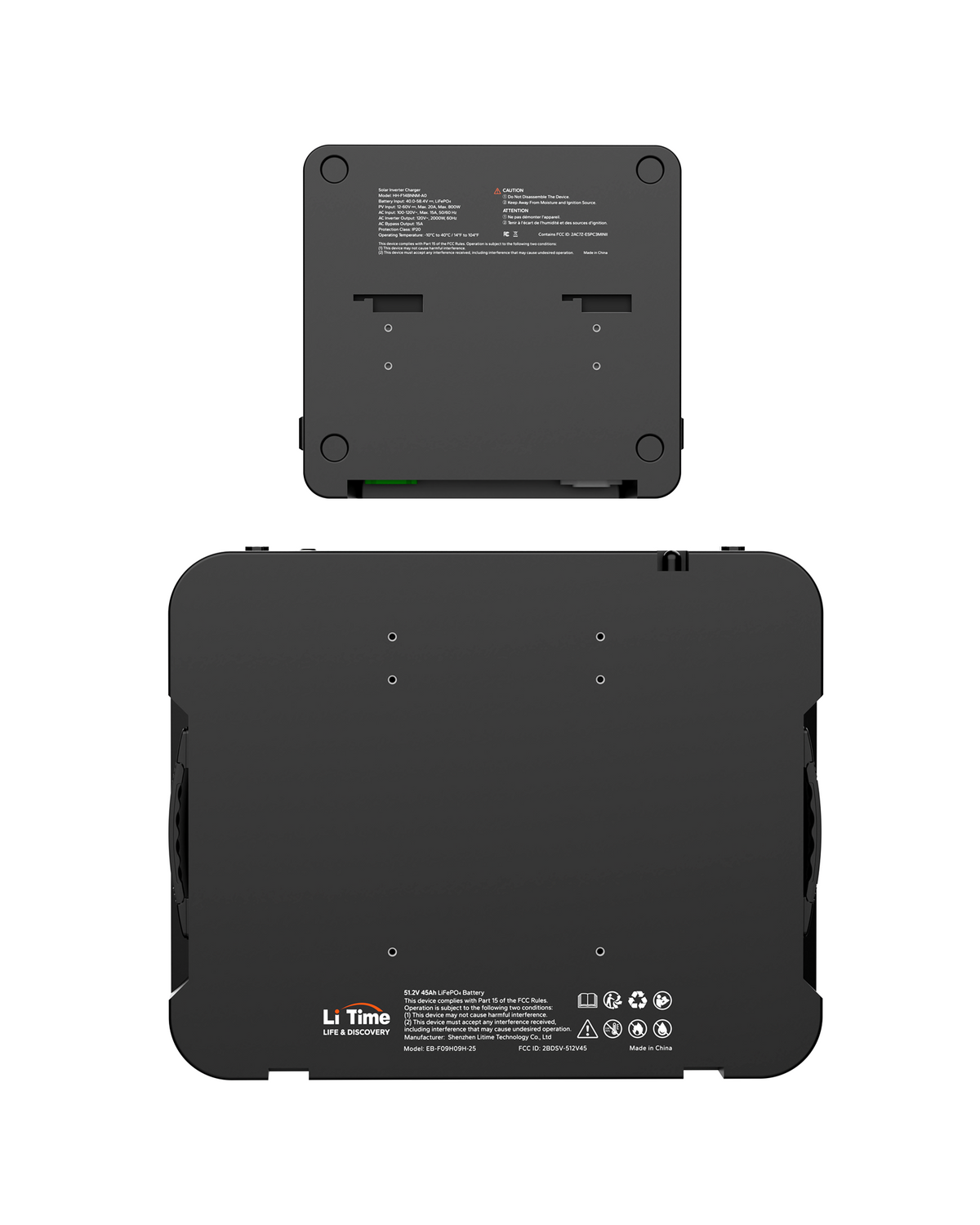

You can also place the battery horizontally with the Solar Inverter Charger stacked on top, without mounting brackets.

No. Lares K1 is designed for stationary indoor home use. It is not intended for boats, RVs or other environments with continuous vibration or movement.

Currently, Lares K1 is available as a complete system or bundled with additional battery packs. The Lares K1 Battery Pack and Solar Inverter Charger will be available for separate purchase in the future.

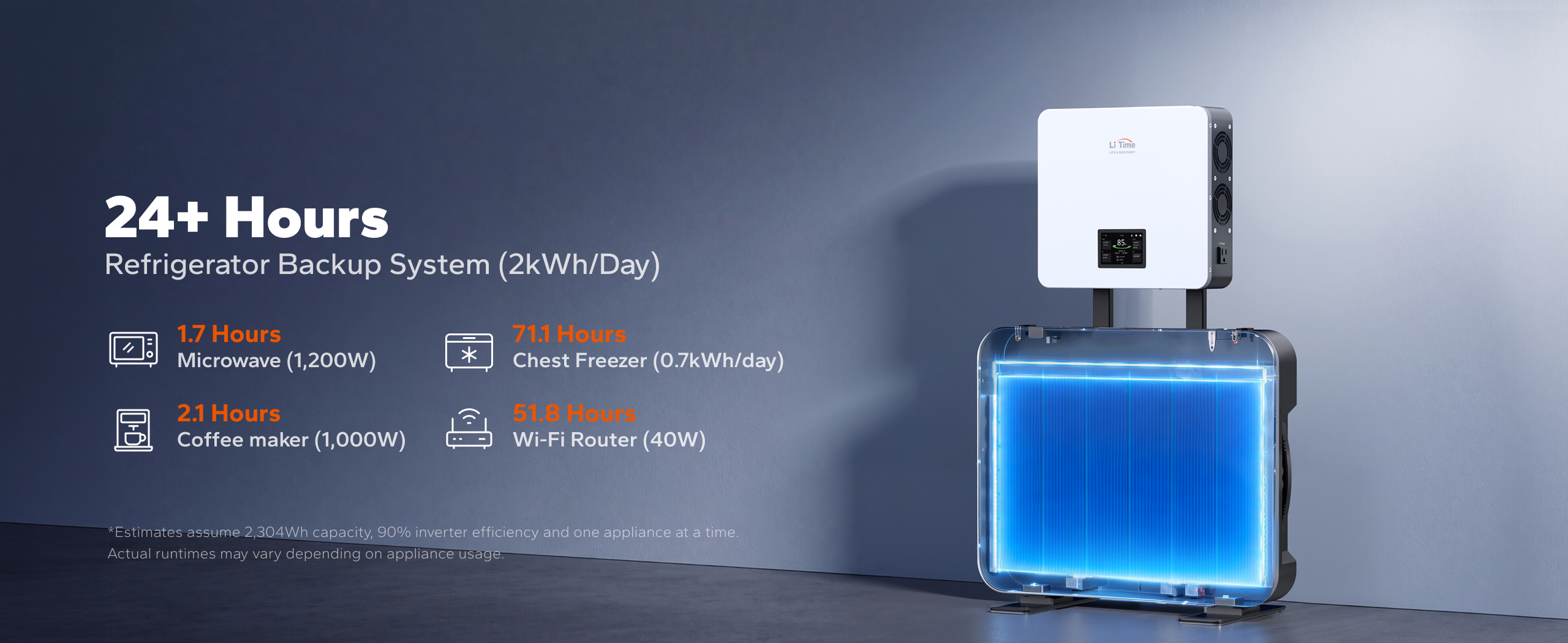

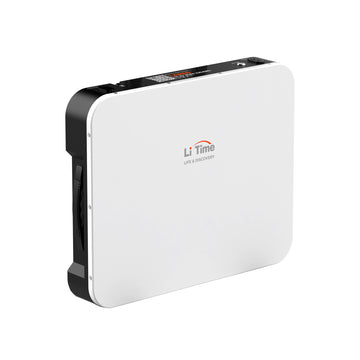

One 2,304Wh battery pack provides an estimated 24+ hours of backup for a refrigerator using 2 kWh per day. Expand to four battery packs for approximately 99 hours.

Estimates assume 90% inverter efficiency and the refrigerator as the only connected load. Actual runtime varies with the refrigerator, usage, ambient temperature and other connected appliances.

Yes, provided their combined continuous power draw stays within 2,000W and startup surges stay within the system’s 4,000W peak rating. Depending on your appliances’ power requirements, you can keep your refrigerator running while using one microwave, coffee maker or toaster oven.

Yes. With Lares K1 set up for backup and your appliances connected to its AC outlets, the built-in UPS switches to battery power in 10 milliseconds or less when grid power fails.

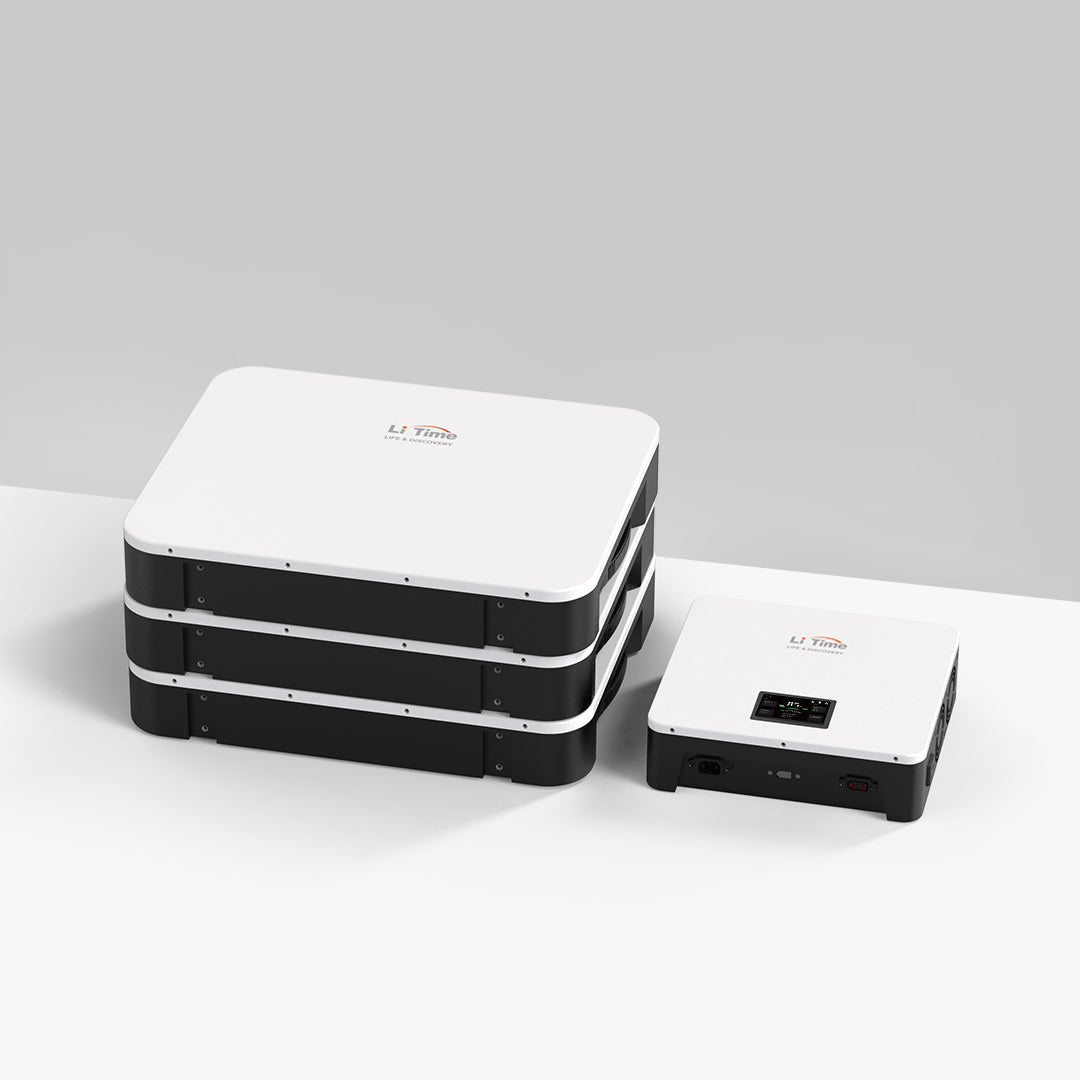

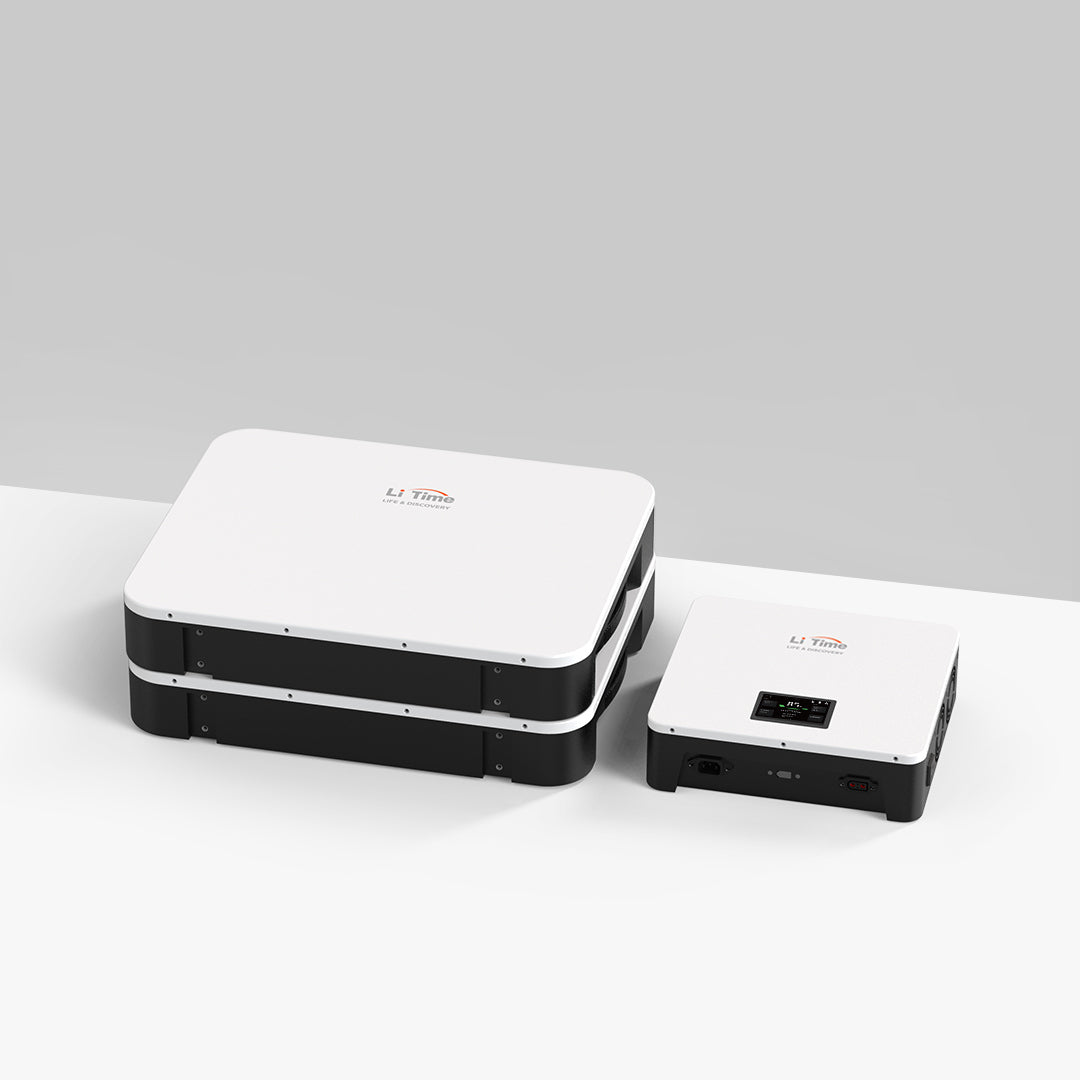

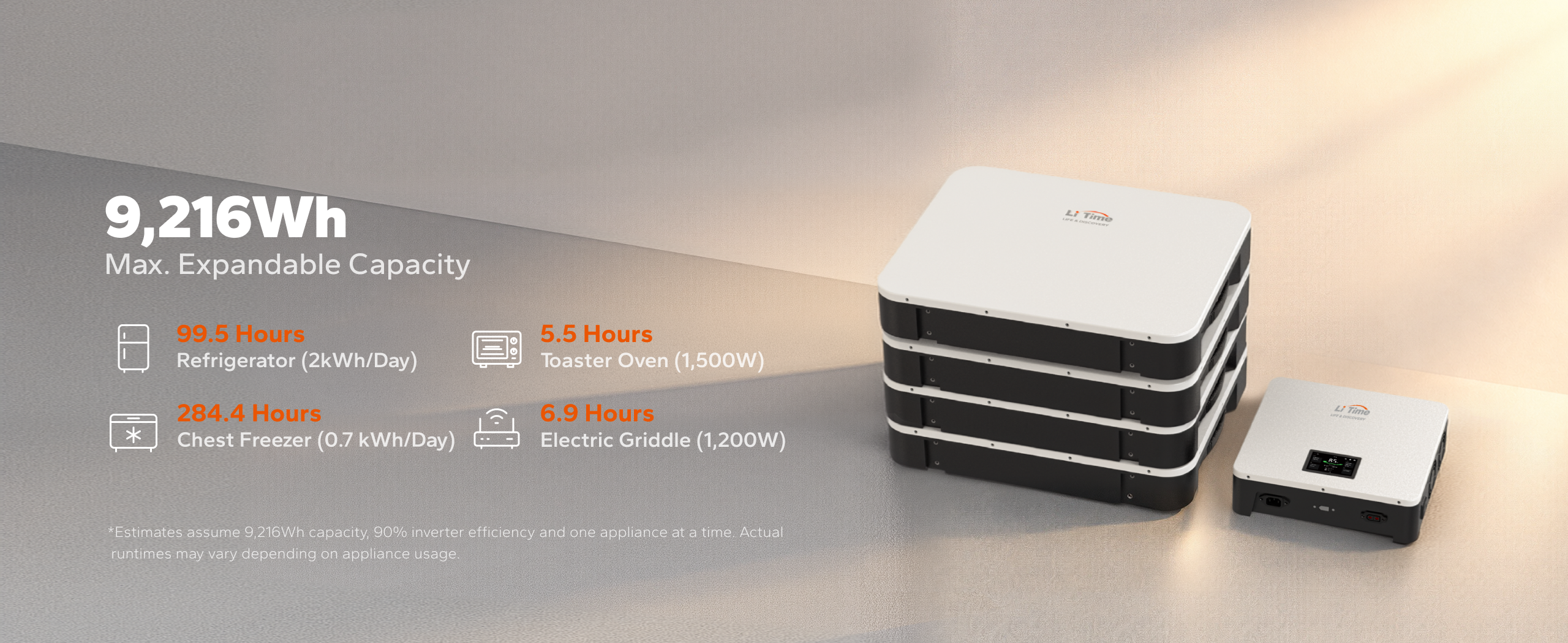

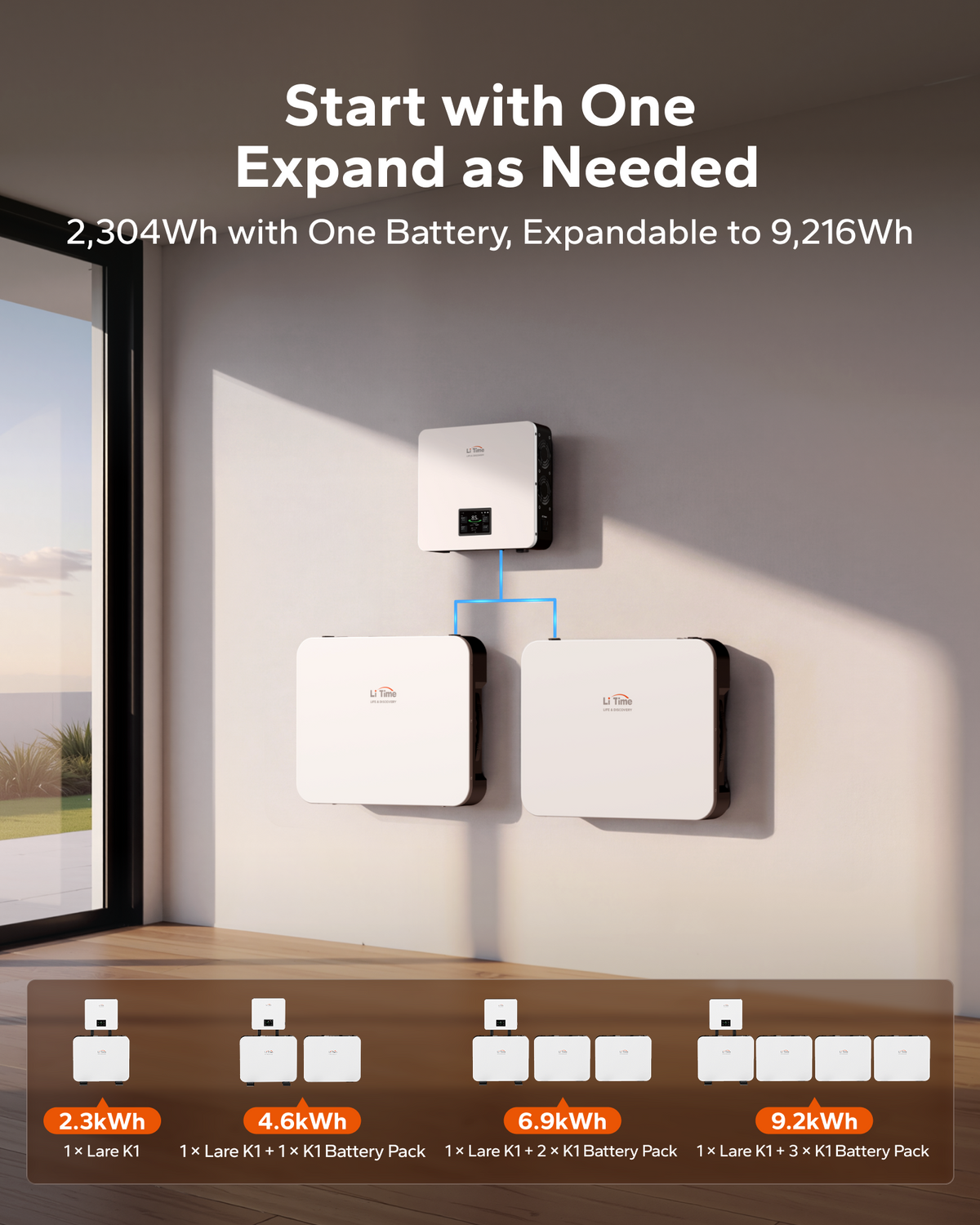

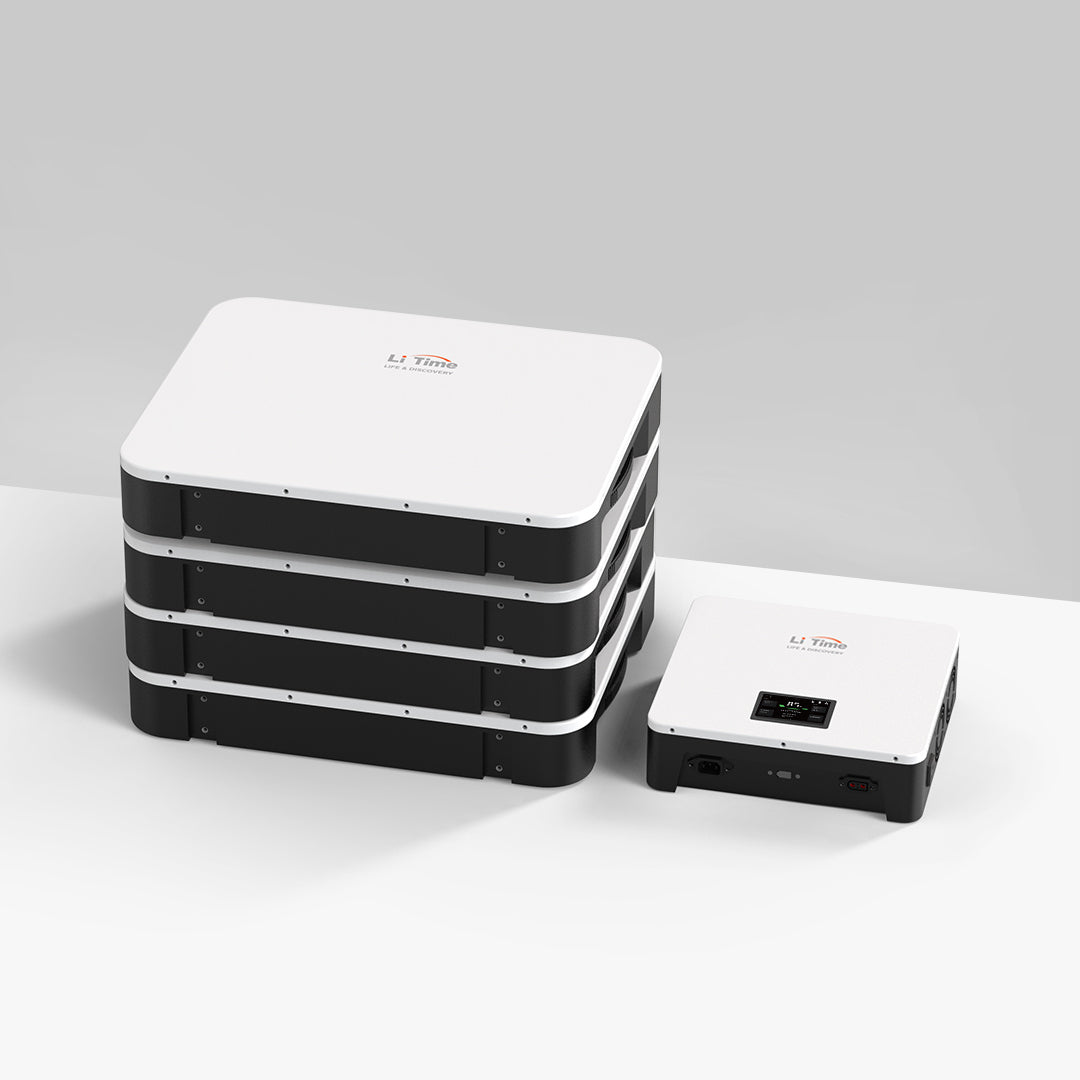

Yes. Lares K1 supports up to four compatible K1 Battery Packs, expanding capacity from 2,304Wh to 9,216Wh. Adding battery packs extends runtime; continuous output remains 2,000W.

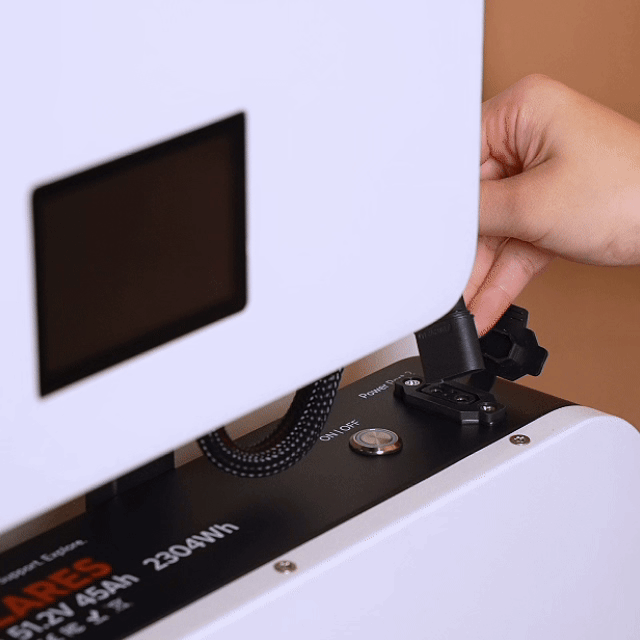

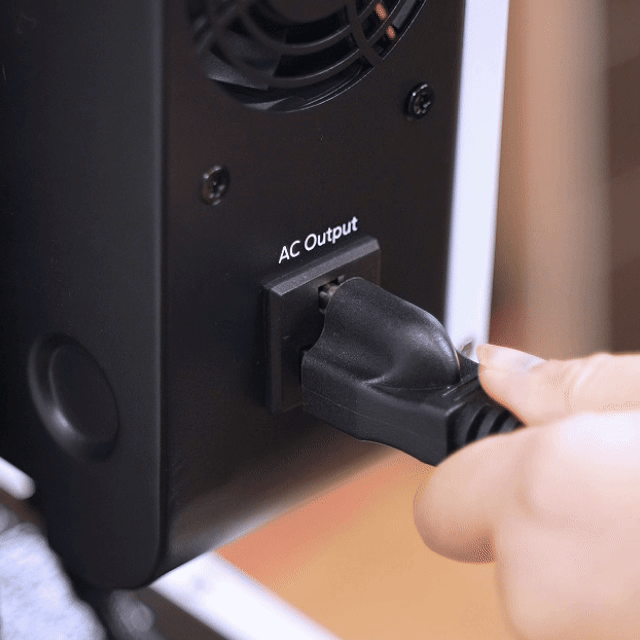

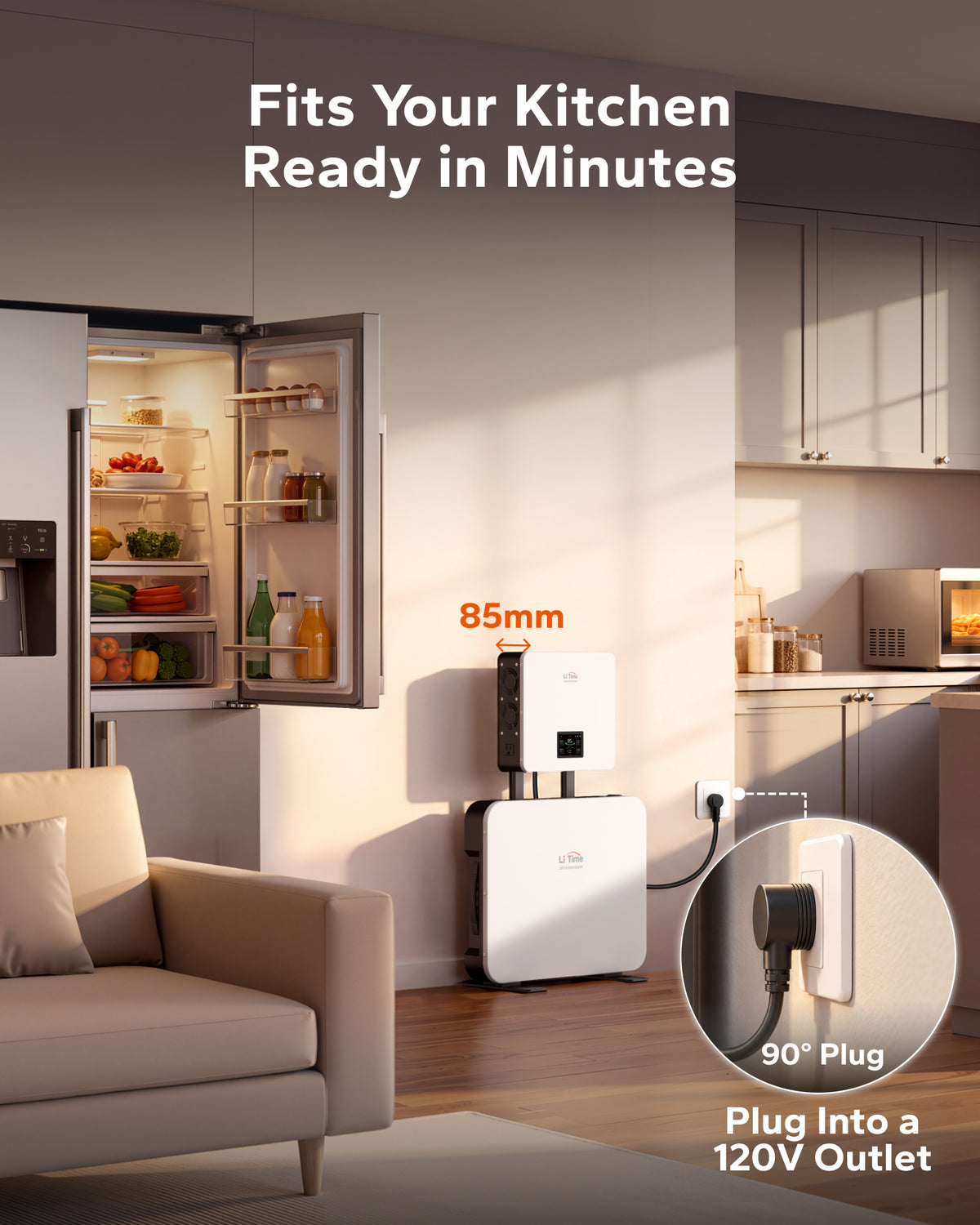

No. Connect the battery pack to the Solar Inverter Charger, plug the system into a standard 120V wall outlet and connect your appliances to its AC outlets. No hardwiring or electrical panel changes are needed.

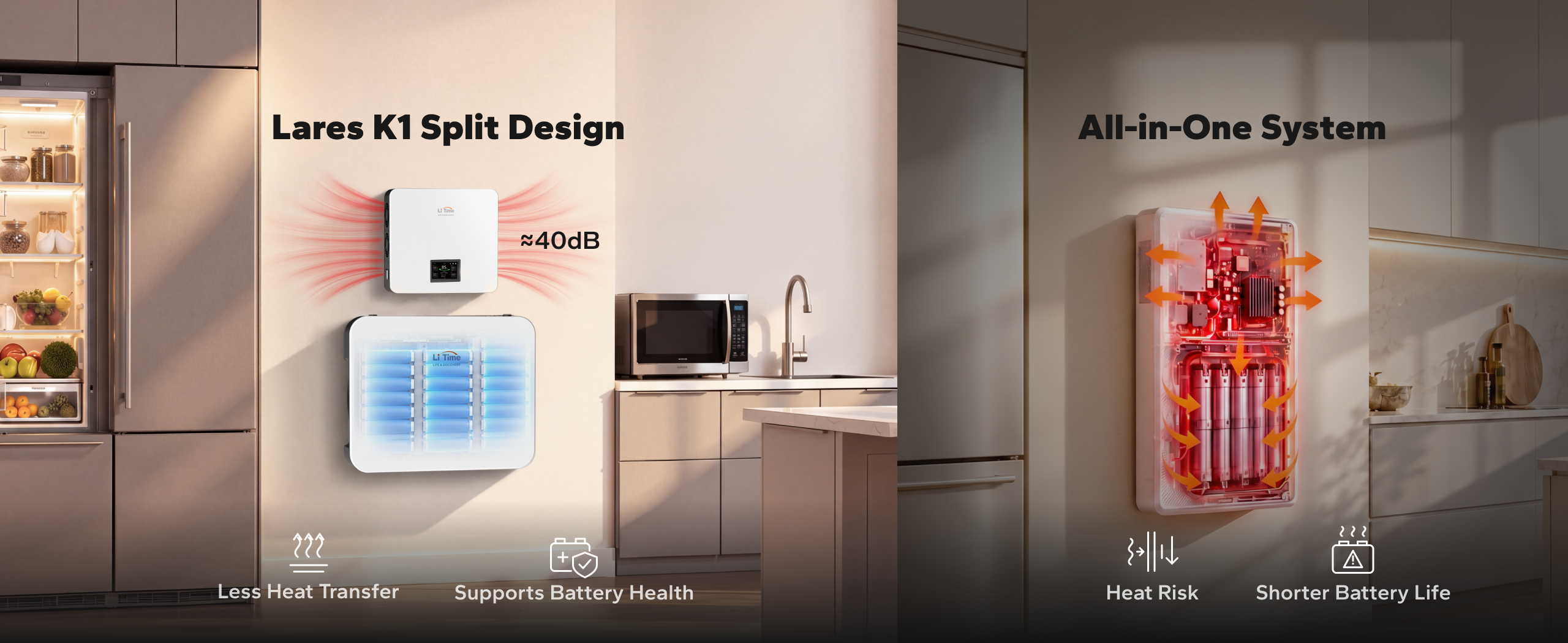

Yes. Lares K1’s Split Design lets you place them together or separately to suit your space. Use the floor stand for a combined setup, or position the components separately with the wall-mount accessories. Follow the setup guide for placement and ventilation requirements.

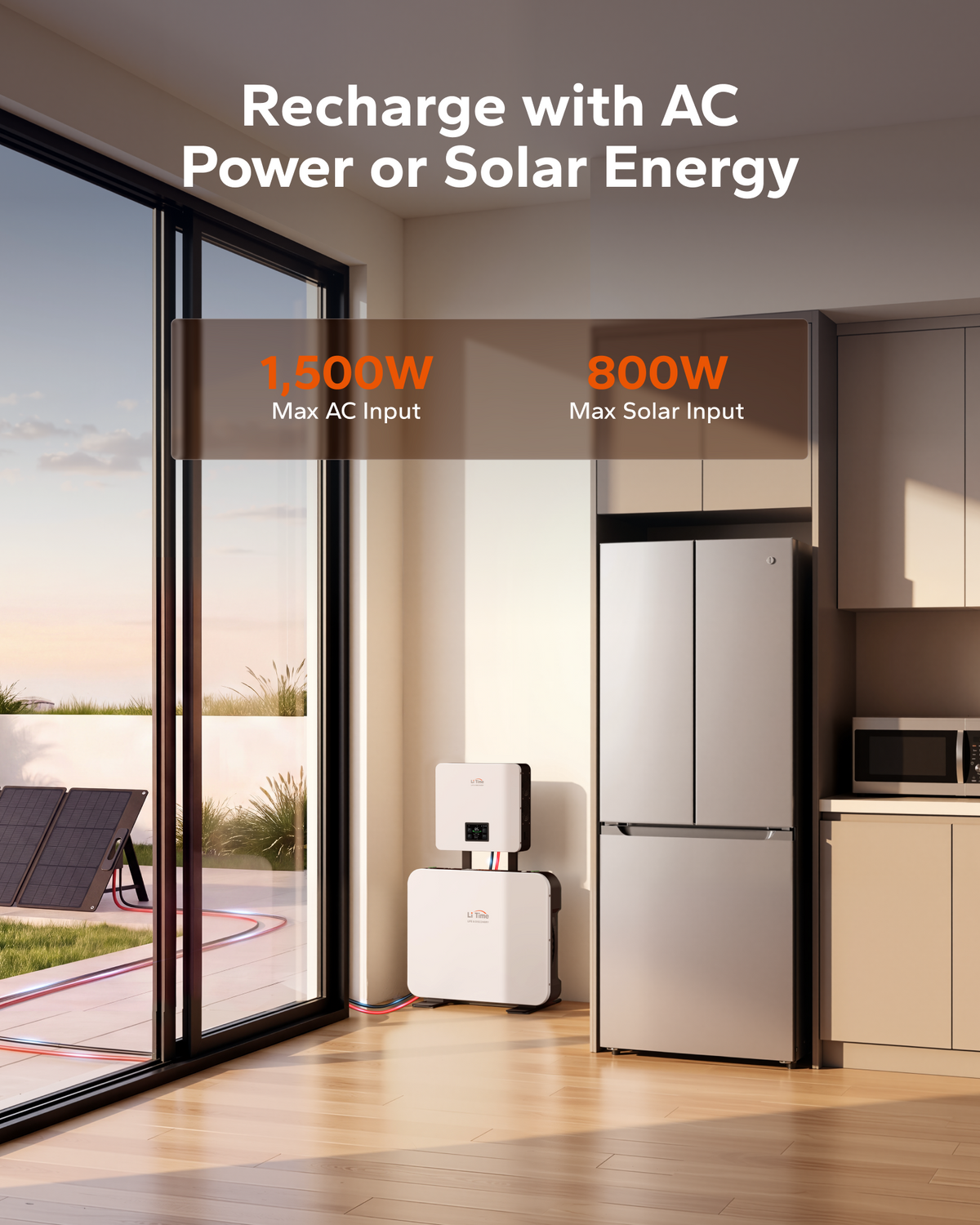

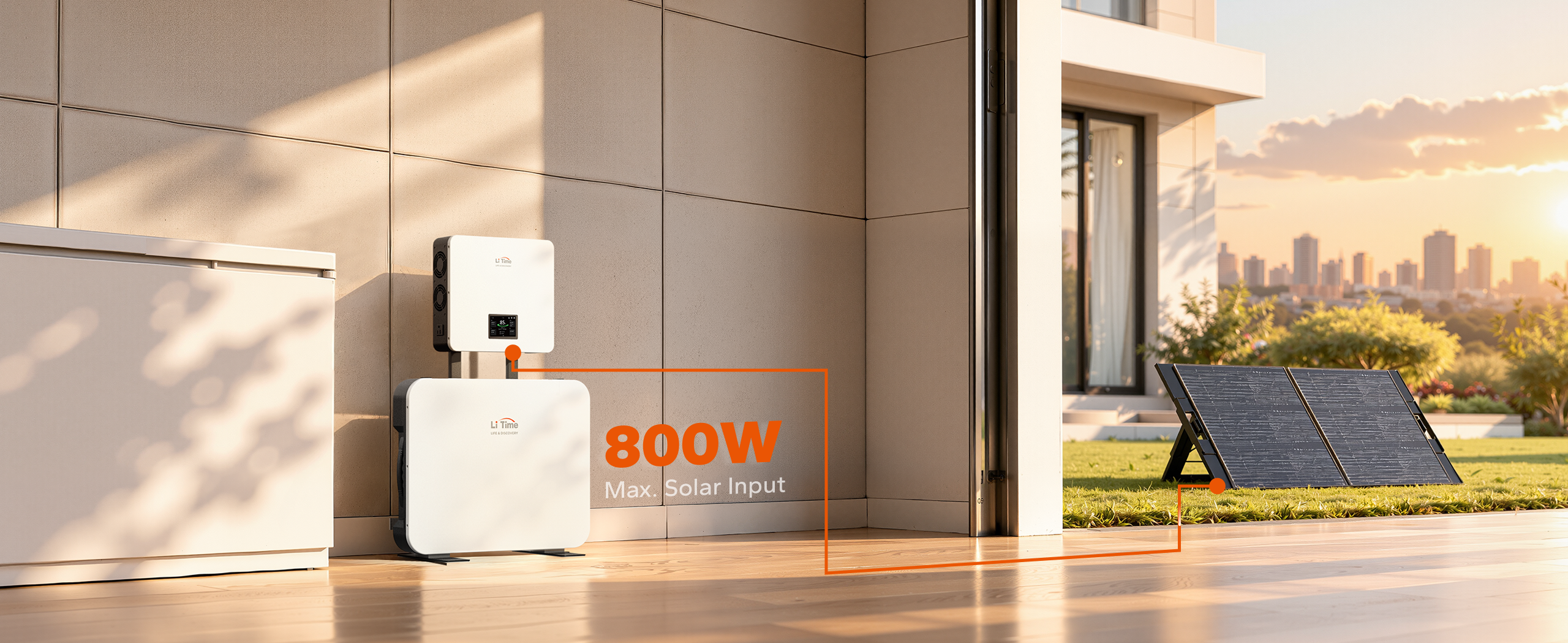

Lares K1 supports AC charging up to 1,500W and solar charging up to 800W. When using AC and solar together, total charging input is limited to 1,500W. Check the solar input requirements before connecting panels.

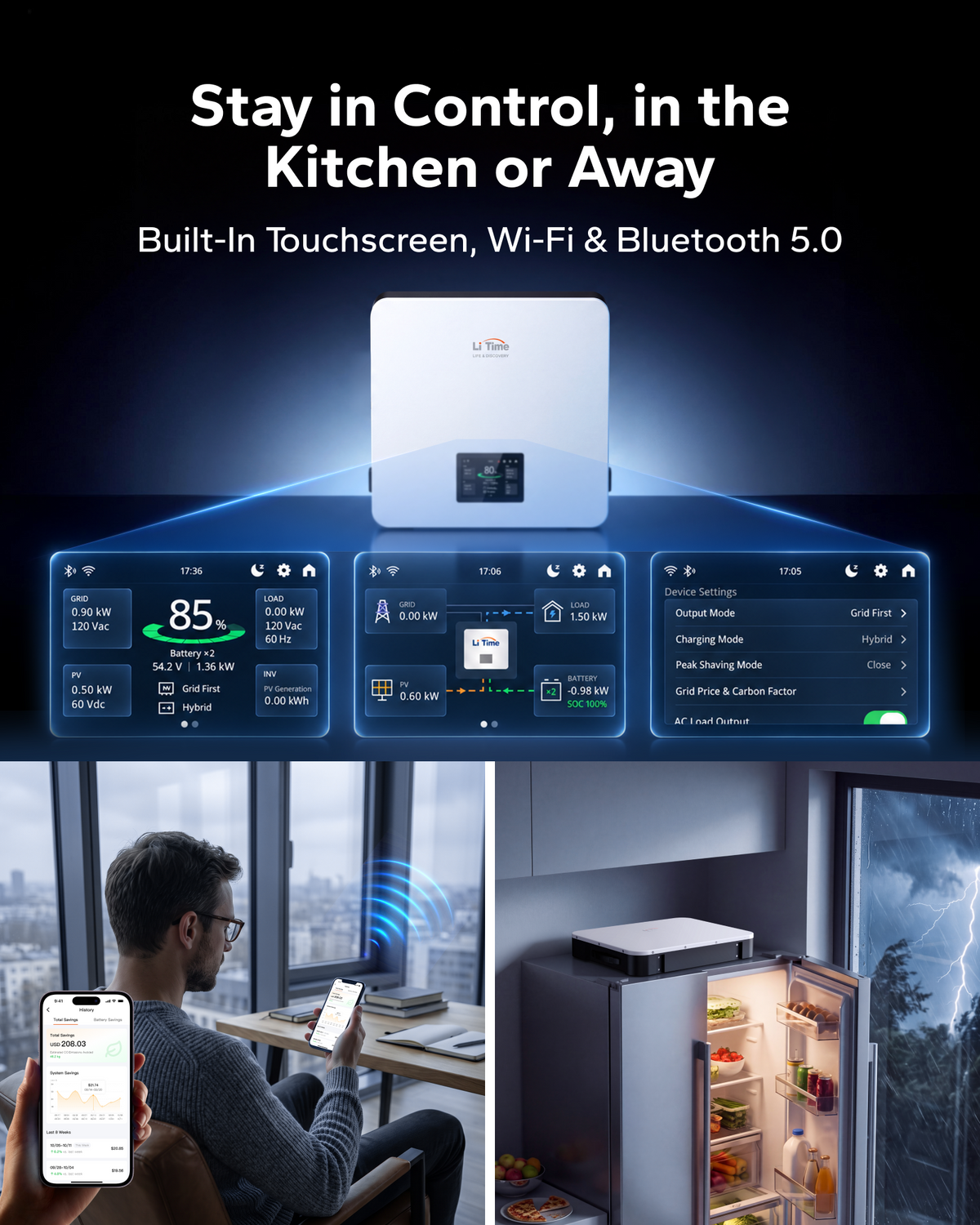

View real-time power flow between solar, the grid, the battery and connected appliances. Monitor battery status, input and output power, and adjust charging and output settings.

Use Bluetooth 5.0 nearby or Wi-Fi for remote monitoring and control, including starting charging before expected severe weather. Remote access requires an active internet connection.

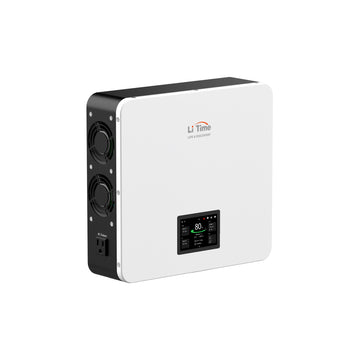

The touchscreen lets you view system status and key parameters, and adjust charging and output modes. Electricity-rate entry and estimated savings tracking are available only in the LiTime App.

Yes. Use the LiTime App to schedule charging during off-peak hours and battery use during peak hours. Enter your electricity rates in the App to view estimated savings. Actual savings depend on your rate plan, settings and energy use.

Lares K1 operates at approximately 40 dB. Actual noise levels vary with the load and operating conditions.
