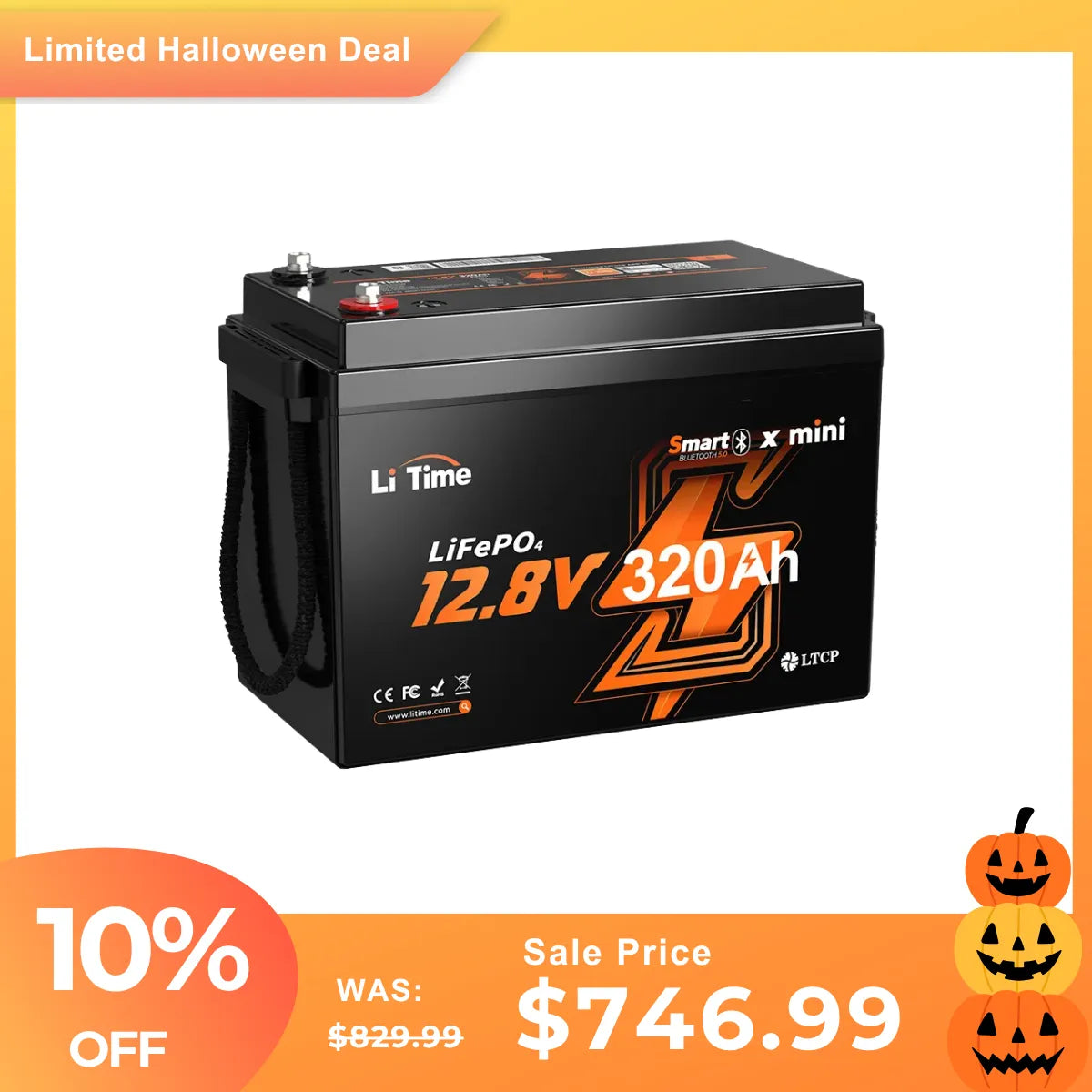

LiTime 12V 320Ah Mini Bluetooth Lithium Battery for Truck and RV
Mini Size: L15.12*W7.64*H9.76 in, 4096Wh of energy and only 57.17 lbs, all packed into a compact mini-size battery
Reduce Idling: A cleaner, quieter alternative to running a diesel engine or generator overnight. Powers parking AC while reducing fuel use, noise, and maintenance
More Power: 200A BMS supports continuous output of 2560W and a peak discharge current of up to 1000A for inverters and appliances
Smart Monitoring: Bluetooth 5.0 lets you monitor battery status in real time through the LiTime App
Outdoor-Ready Protection: IP65 and low-temp cut off support tough conditions
Expandable Long Life: 4000+ cycles and 4P4S expansion for long-term power builds, complies with the IEC 62619 standard
FedEx, UPS, or Amazon Logistics.
Redefining Compact Power Innovation
LiTime relentlessly innovates, driven by 3.5 million users. We pioneered the industry's Mini battery concept in 2019.
Top Review by NotebookCheck
Featured on NotebookCheck, our 12V 320Ah Mini Battery stands out with cutting-edge performance and smart Bluetooth control. Click here to read the full review.
Stop playing 'Storage Tetris'
Your RV space is for living, not for heavy lead-acid batteries. Stop sacrificing storage for power. Switch to LiTime 12V 320Ah Mini—31% smaller, 55% lighter, and zero space-wasting.
Smart Control, be a 'Hands-off' Explorer
Stop babysitting your power system. Easily check the small 12v lithium battery status, track SOC, and manage your power system—thanks to Bluetooth 5.0 and the LiTime App. Whether you're on the road, at sea, or off the grid, the power is in your palm.
Heavy Loads, Handled with Ease
The self-developed 200A BMS delivers a continuous output of 2560W and supports a peak discharge current of up to 1000A—ready to power inverters, air conditioners, electric stoves, and more. Built for high-demand use, without compromise.
Winter-Proof, Fail-Safe
Worrying about freezing temps killing your battery? Low-temperature cut-off protection keeps your small lithium battery protected. Ready for all seasons, from -4°F to 140°F.
One Battery, Zero Compromise
Replace bulky lead-acid setups with a single 12V 320Ah Mini Battery—lighter, longer-lasting, and 100% easier to install. No more complex wiring, just safe, clean, reliable power.
Real Power, Real Freedom
Power your essentials for over 2 days with four LiTime 12V320Ah batteries mini—delivering 16,384Wh of usable energy for fridges, lights, AC units, and stoves. Ideal for RVs, marine use, and full off-grid living.
.webp)
Massive Power for Energy-Independent Living
Build your own 65.5kWh home energy wall with 4P4S expansion. Perfect for blackouts, solar-powered homes, or off-grid cabins—this is backup you can count on.
Power That Fits Every Way You Live
From RV road trips to remote cabins, backyard camping to life on the water—LiTime 12V 320Ah Mini battery brings reliable energy wherever your lifestyle takes you.
BATTERY
BMS
CHARGE
TEMPERATURE
OTHERS
12V 320Ah Mini Smart Truck
12V 230Ah Low-Temp
24V 230Ah Smart Self-Heating
What makes the LiTime 12V 320Ah Mini different from a regular 12V 300Ah LiFePO₄ battery?
The LiTime 12V 320Ah Mini battery delivers more energy with less bulk. It's 31% smaller than typical 12V 300Ah LiFePO₄ batteries and 55% lighter than three 100Ah lead-acid units—while offering a high-energy 4096Wh output and up to 200A continuous discharge. That means you get max energy density, easier installation, and better portability—all in one compact unit.
How can I monitor the battery's data?
You can easily monitor real-time battery performance via the LiTime App with Bluetooth 5.0, including:
• State of charge (SOC)
• Real-time voltage, current, and power
• Charge/discharge and standby status
• Battery temperature
• Cycle times
• Remaining capacity
This makes it simple to manage your power from your phone, wherever you are.
Can I connect multiple 12V 320Ah Mini batteries in parallel or series?
Yes. LiTime 320Ah Mini lithium battery supports support versatile configurations, including series, parallel, and series-parallel connections.
- Series connection: Up to 4 batteries (51.2V total).
- Parallel connection: Up to 4 batteries (1280Ah).
- Series-parallel connection: Up to 16 batteries (65.5kWh).
Important Notes: For safe and stable operation, all connected batteries must meet the following criteria:
✔ Same specifications – Identical capacity (Ah) and BMS rating (A)
✔ Same brand – Different brands may have incompatible BMS settings
✔ Purchased within a short timeframe (ideally within one month)
Is the 12V 320Ah Mini suitable for outdoor and mobile use?
Absolutely. With its IP65 waterproof and dustproof rating, rugged housing, and compact design relative to its size (15.12*7.64*9.76 in), the 320Ah Mini is well-suited for:
- RVs and van conversions
- Marine systems and houseboats
- Off-grid cabins and solar homes
- Remote work or camping setups
It’s built to perform in harsh environments, including high humidity, salt spray, and extreme temperatures from -4°F to 140°F.
How to charge the 12V 320Ah Mini Battery?
The LiTime 12V 320Ah Mini battery can be charged in four different ways:
1. Solar Panels and Controller
Recommended Solar Power: ≥1300W
The battery can be fully charged in one day using 1300W solar panels, assuming effective sunlight for about 4.5 hours.
2. Battery Charger
Use a lithium iron phosphate (LiFePO₄) battery charger to maximize charging speed and battery life.
Recommended Charger: LiTime 14.6V 60A Charger
3. Generator + AC to DC Charger
Recommended Charger: LiTime 14.6V 60A Charger
4. Alternator + DC to DC Charger
Recommended Charger: LiTime 12V 60A DC to DC Charger
You can learn more about how to charge lithium battery.
Can Bluetooth and non-Bluetooth batteries be connected in series or parallel?
It is strongly not recommended. Only Bluetooth-enabled batteries can be monitored individually, while the system as a whole cannot be tracked. Mixing them may compromise total capacity and system performance.
Is the BMS passive or active balancing?
The small 12v lithium battery uses passive balancing technology, which safely manages cell voltage differences to maintain battery longevity and stability.
Can I replace multiple Group 27/Group 31 batteries with a single LiTime 12V 320Ah Mini?
Yes. In many RV and marine systems, two or three Group 27 or Group 31 batteries are used to reach around 250–300Ah. The LiTime 12V 320Ah Mini battery delivers similar or greater capacity in one high-density LiFePO₄ pack.
Even though the Mini is slightly longer than a single Group 27/31 battery, the overall system becomes smaller and lighter because you no longer need multiple cases, trays, and interconnecting cables. This makes it a smart upgrade wherever space is tight—like under RV seats, in van cabinetry, or in compact boat lockers.
