Reclaim Your Space, Power Without Limits

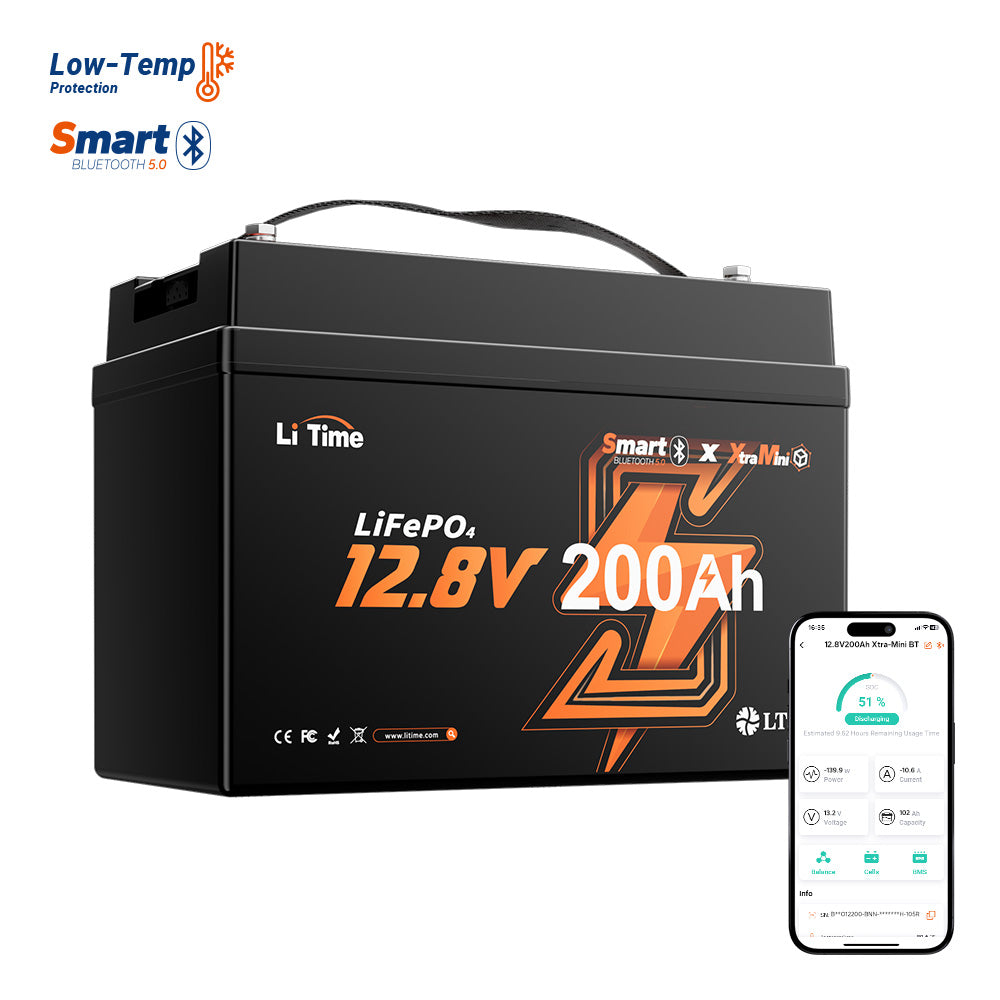

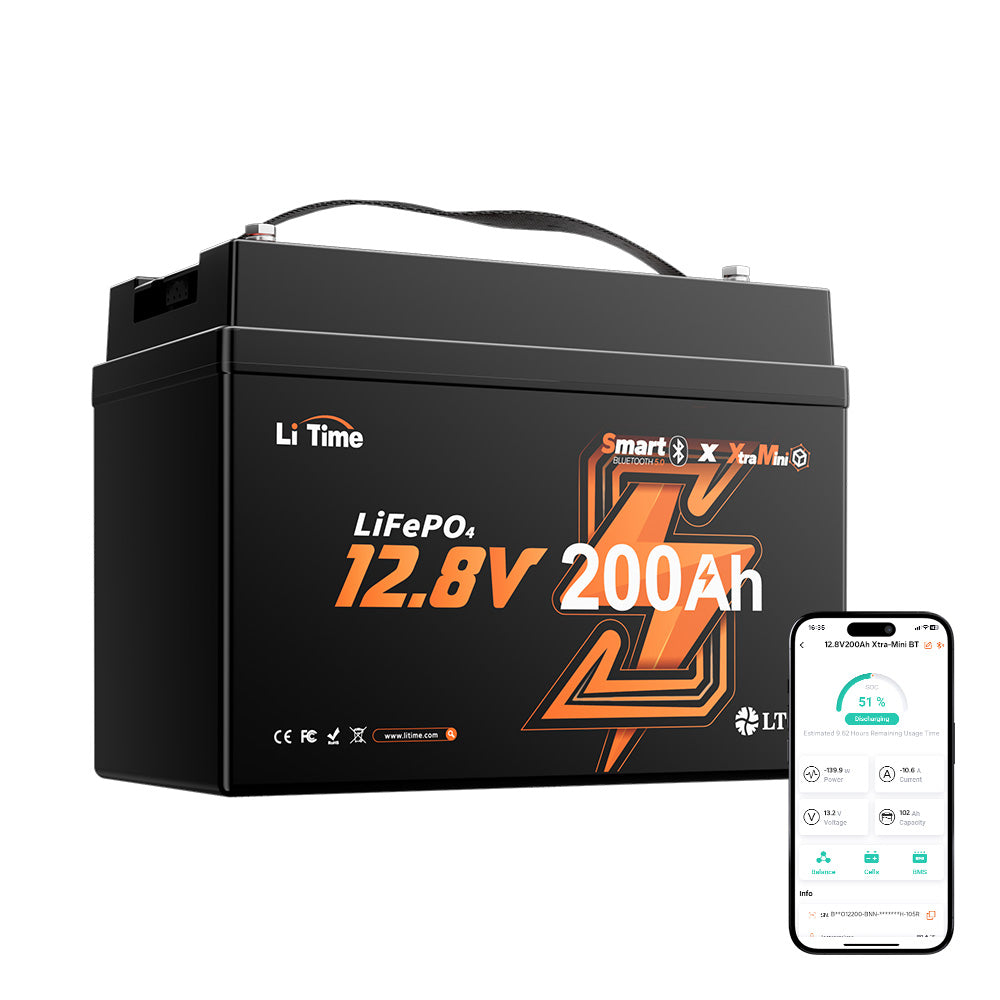

Mini size doesn't mean mini power. LiTime 12V 200Ah xtra mini pairs 2056Wh of energy with an upgraded 200A continuous BMS for 2560W continuous power, ready for heavy-load appliances. Break up with bulky “old habits” and step into compact, modern energy.

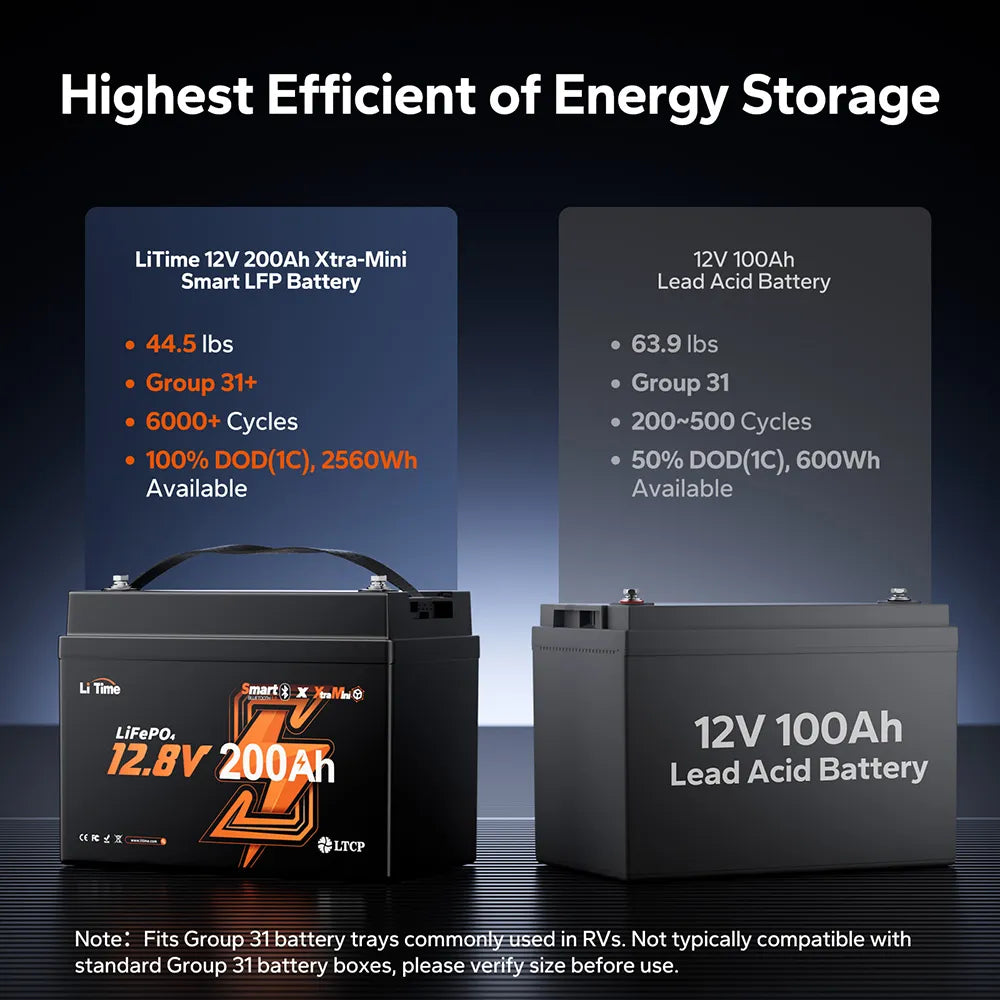

Fits Where Others Can't. Lighter. Easier.

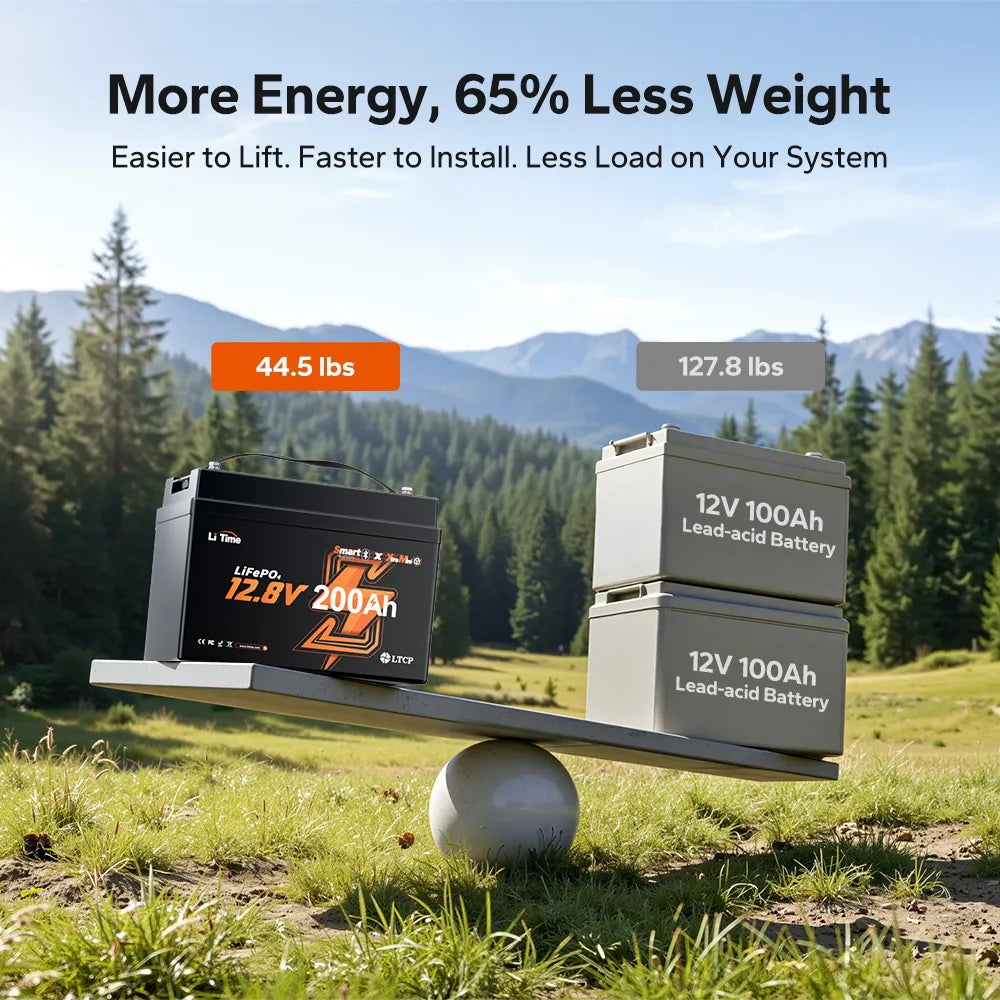

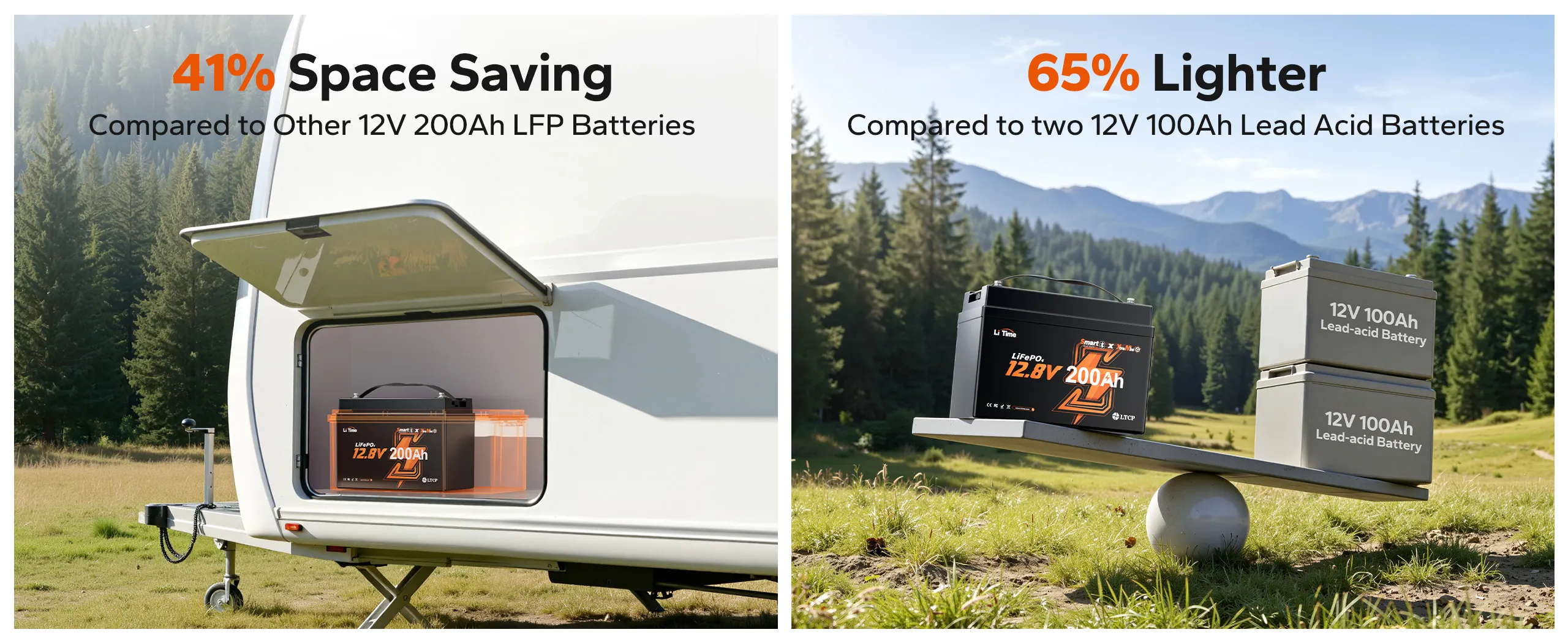

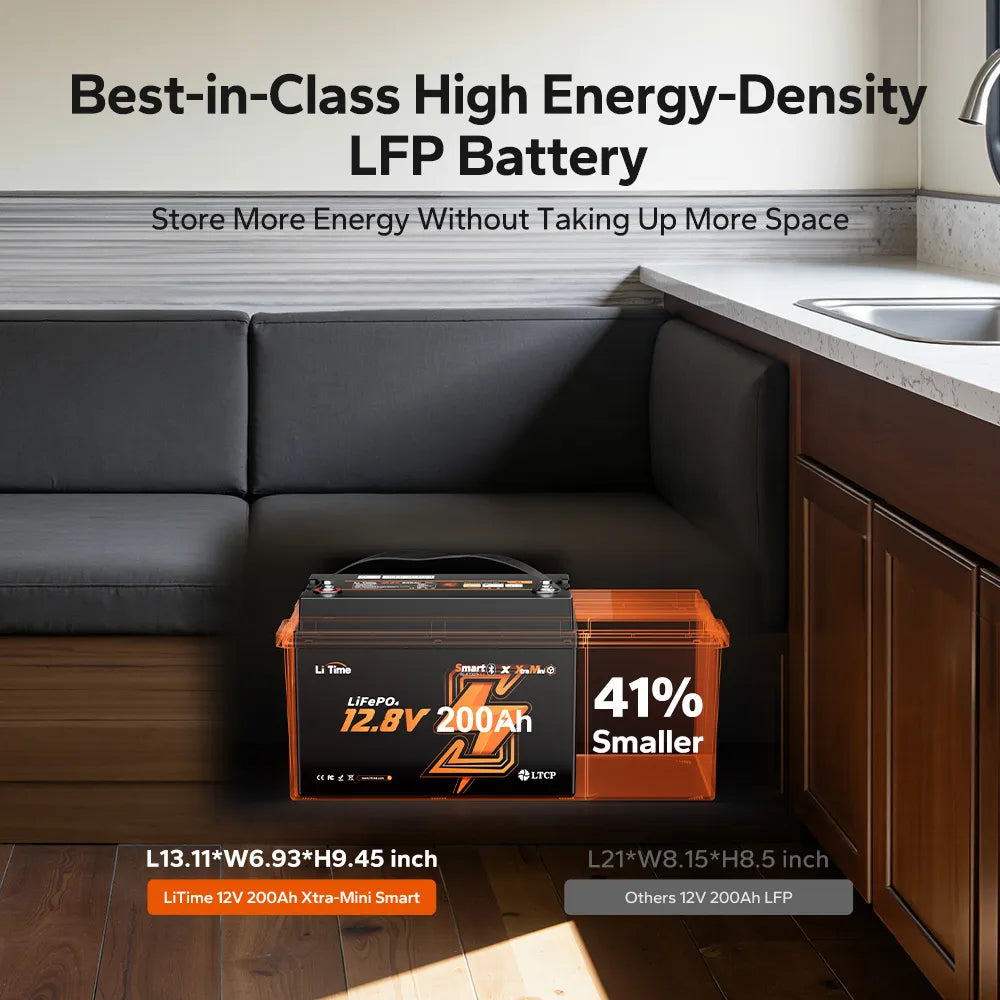

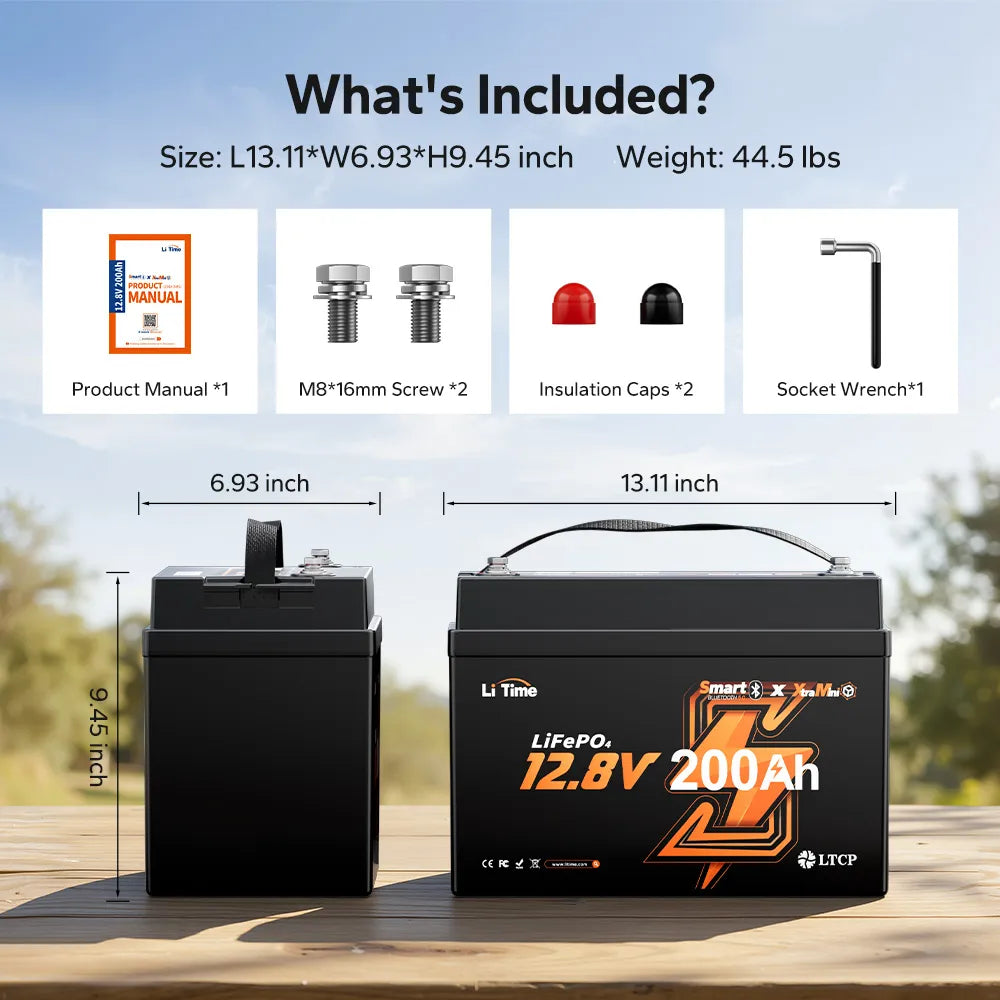

Still struggling with bulky battery boxes? 2560Wh in a compact 13.11×6.93×9.45 in case—41% smaller than traditional 12V 200Ah LiFePO4. Replaces two 12V 100Ah lead-acids at up to 65% less weight. Small size helps reduce tongue weight and making installation a one-person job.

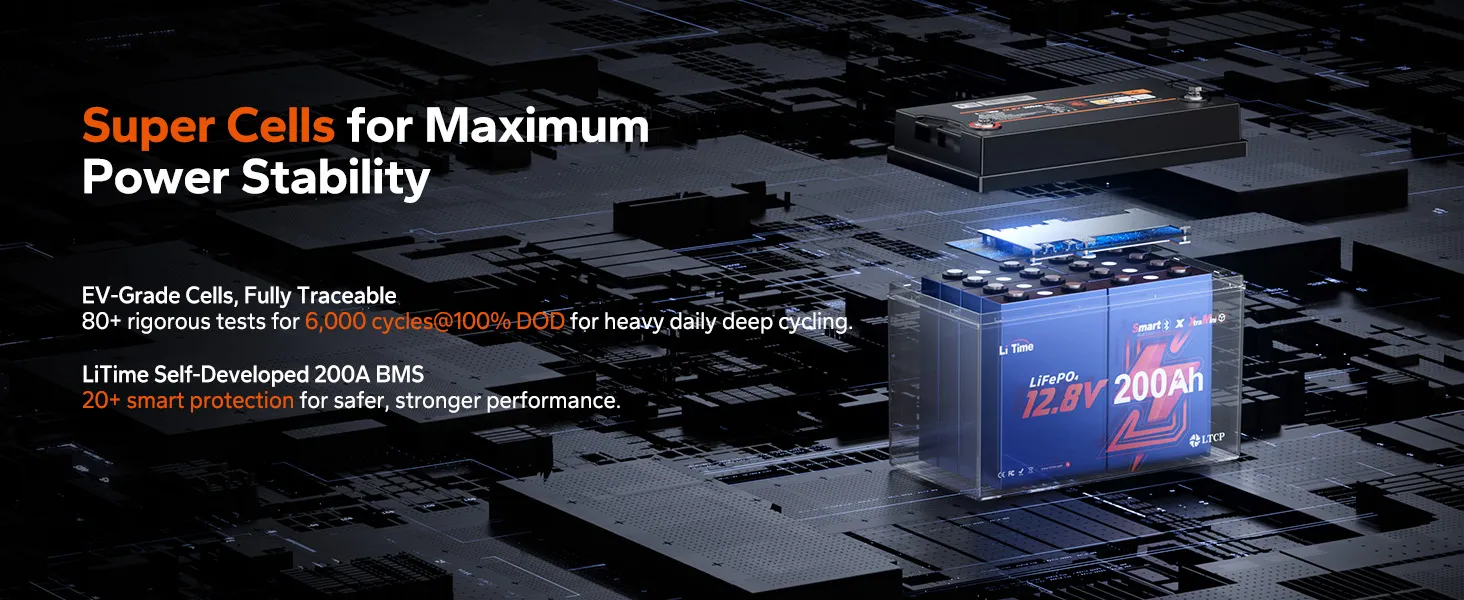

Built for Deep-Cycle Power Users

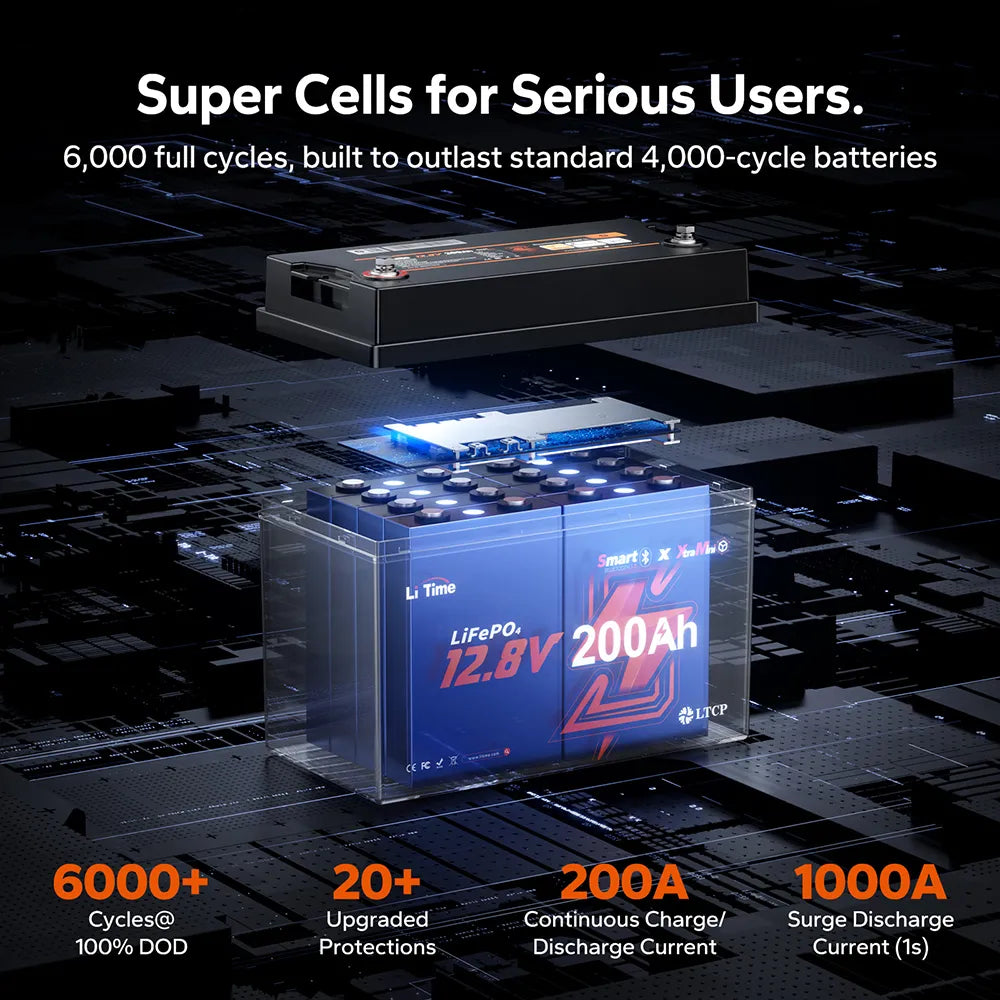

Don't let battery limitations hold back your setup. Powered by super EV-grade cells, this 12V 200Ah battery delivers 6,000+ cycles@100% DOD, built for heavy daily deep cycling and long-term durability. Combined with LiTime’s self-developed 200A BMS (1000A peak for 1s), it ensures stable power for high-demand appliances—all in an extra-mini size.

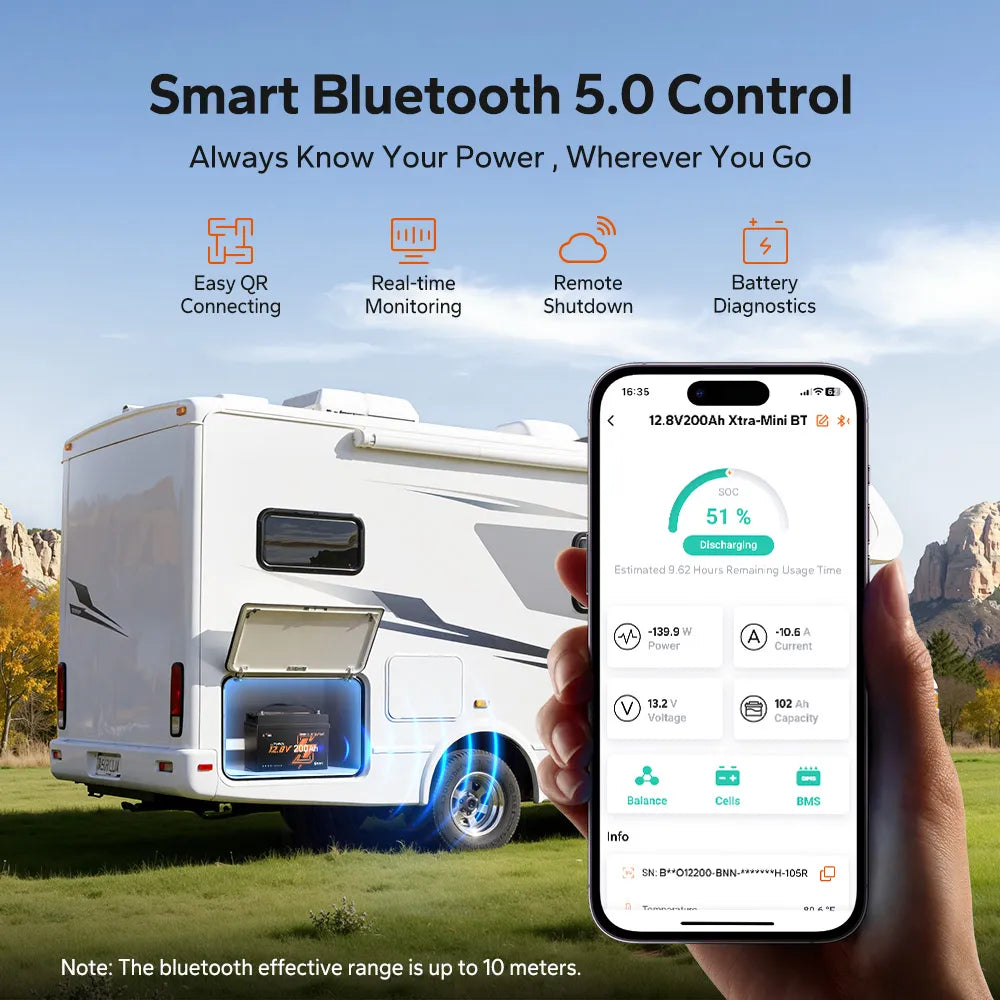

End Your Power Anxiety with Bluetooth 5.0
Checking battery status shouldn't be a chore. Built-in Bluetooth 5.0 allows you to monitor SOC, voltage, cycles, and more. No more manual testing or "power anxiety" in the middle of your trip.
Low-Temp Protection for All-Weather Freedom
No switches, no guesswork. LiTime 12V 200Ah xtra mini RV Battery automatically pauses charging below 32℉ (0℃) and discharging below -4℉ (-20℃), then safely resumes charging at ≥41℉ (5℃) to help protect the battery and extend its cycle life.
Clean Setup. Serious Power
Built for tight spaces and real-life upgrades: expand when you're ready, cut the cable clutter with less wiring, and get more usable power for heavy RV loads reliably.

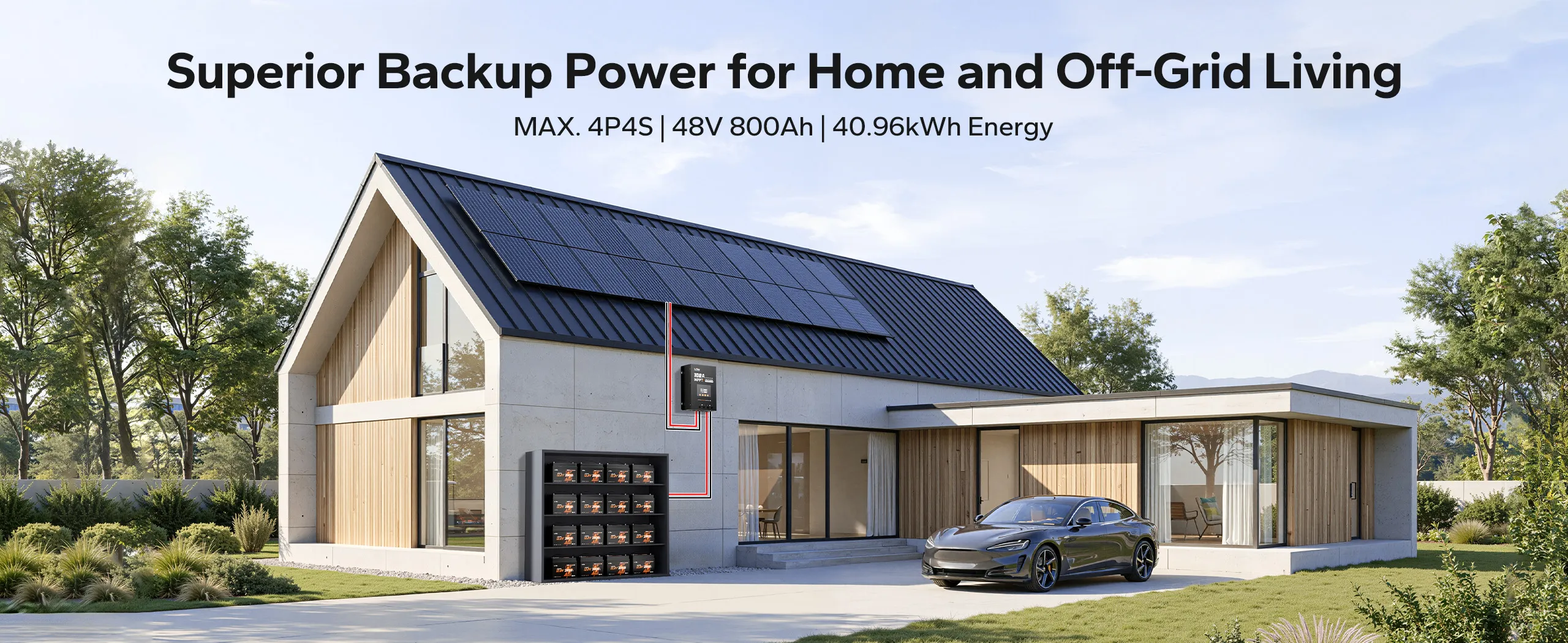

Scale to 40.96kWh for Home & Off-Grid Backup
Expand up to a 40.96kWh (4P4S 51.2V 800Ah) energy system for home or off-grid living. Power through long nights and surprise outages with steady, reliable energy. Made your space stays bright, comfortable, and secure.
Compact Power, Built to Go Anywhere
Made for RVs, cabins, camping, and marine use—reliable energy in a space-saving 12V 200Ah xtra mini design that fits tight installs without compromising on power.

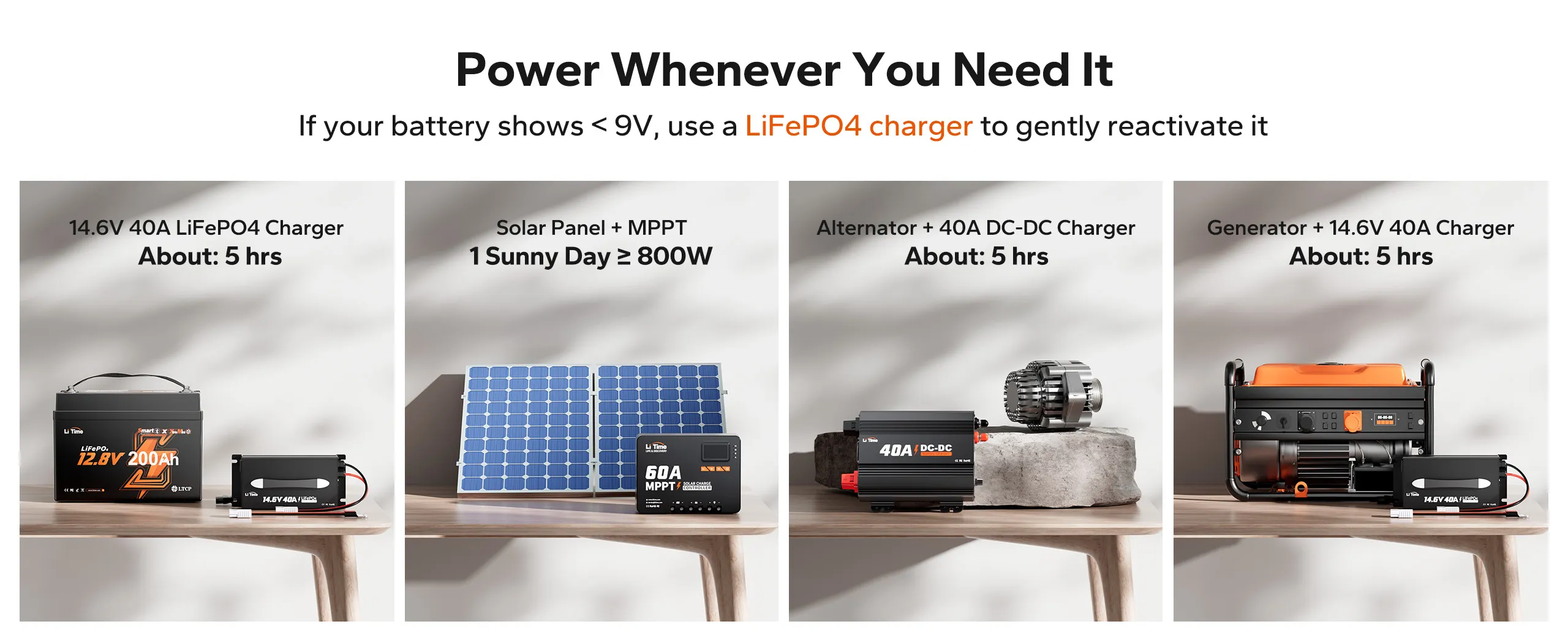

Charge Your Way. Anywhere. Anytime.

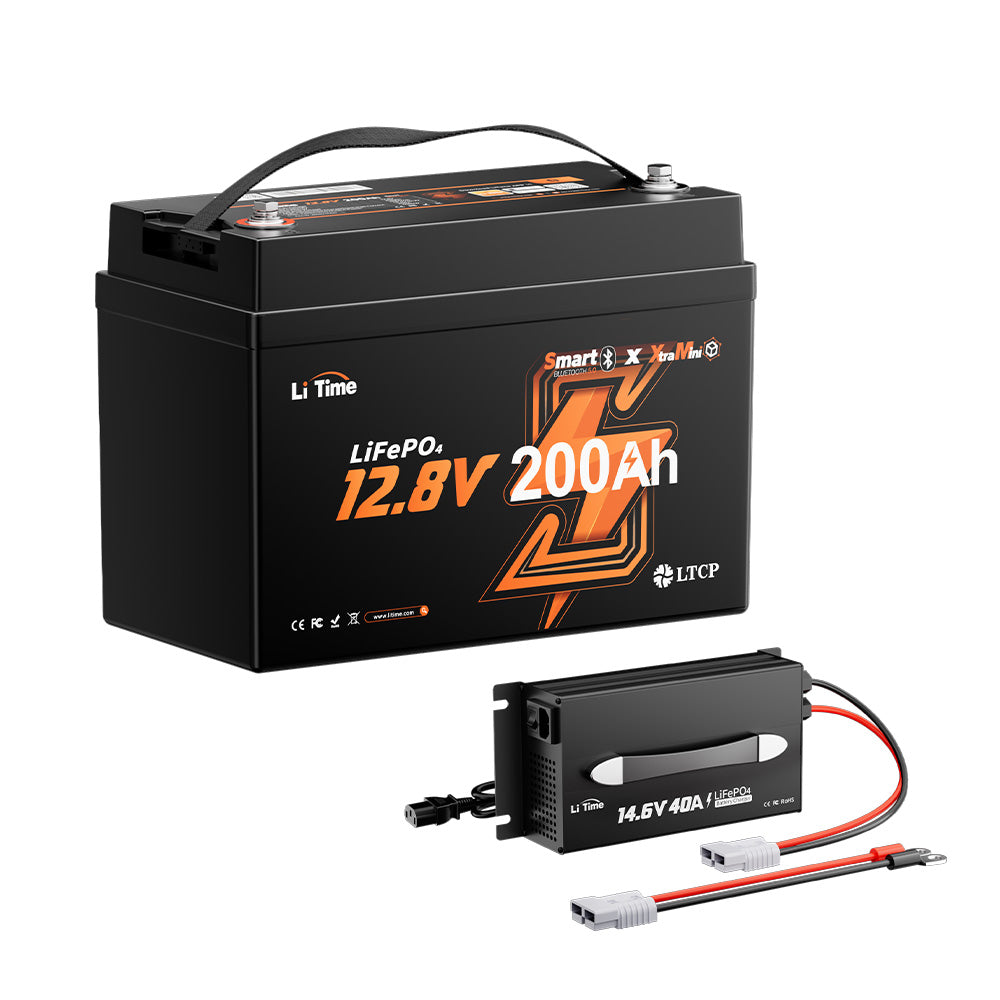

Four supported charging methods — solar charging, alternator charging, generator charing or a dedicated LiFePO4 charger. If the BMS protection is active, the battery must be reactivated using a LiFePO4 charger with a builtin activation function.
There isn't one. Litime 12V 200Ah Xtra Mini Battery for RV is compact because the design packs more energy into less space, so you can upgrade power without sacrificing storage in a tight RV battery bay.
Yes. 200Ah is the rated capacity, and the goal is usable runtime in real RV loads. Pair it with properly sized wiring, fusing, and an inverter to get the best real-world performance.
The battery uses an upgraded 200A BMS with 1000A peak (1S) to support demanding loads and protect the battery under real-world conditions. Like any power system, reliability also depends on correct installation (cable sizing, secure terminals, proper fusing).
No. Do not use as a starter battery or a golf cart battery. It is designed for deep-cycle energy storage applications.

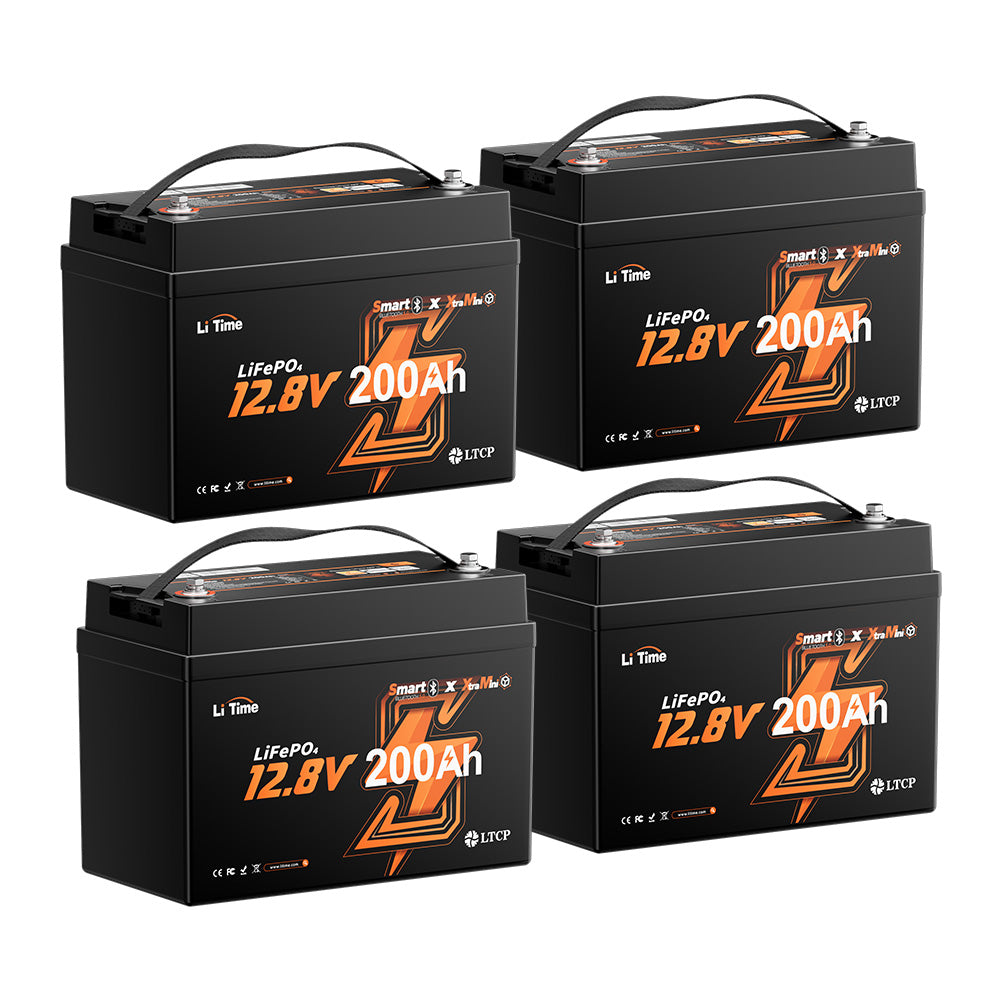

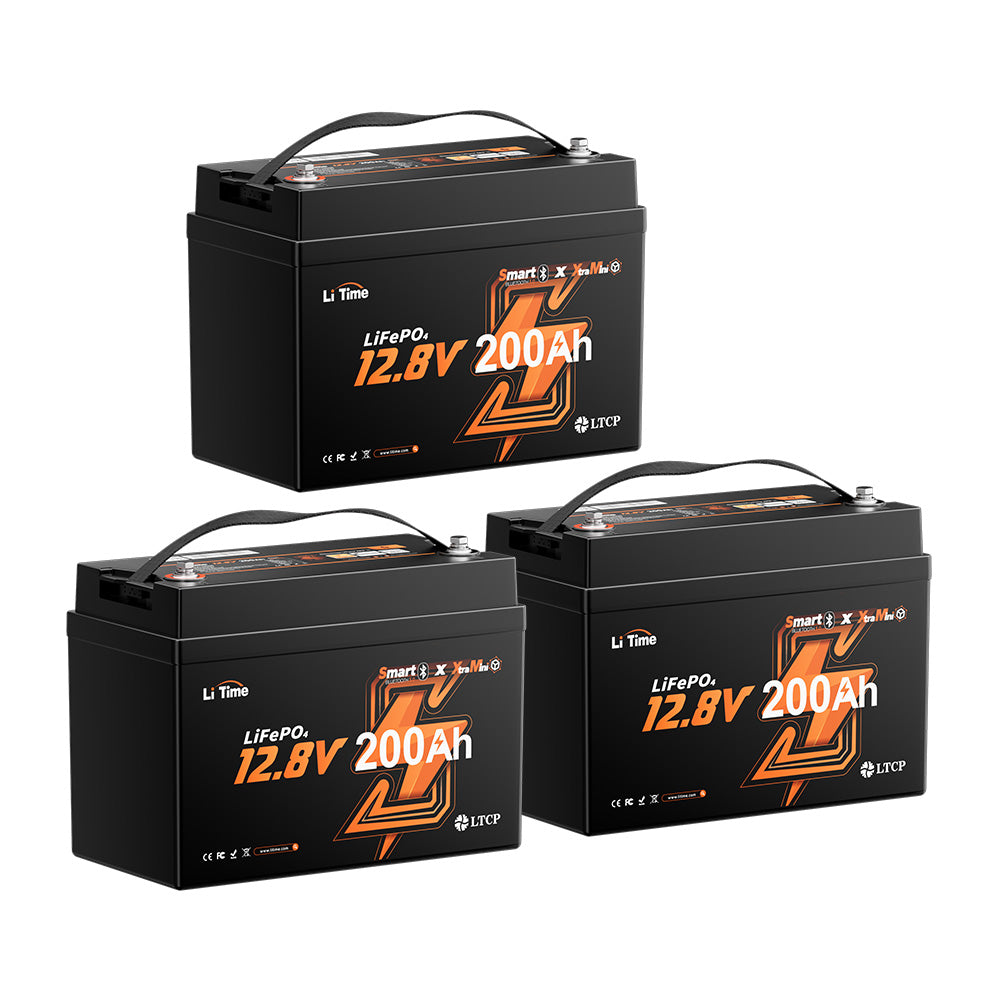

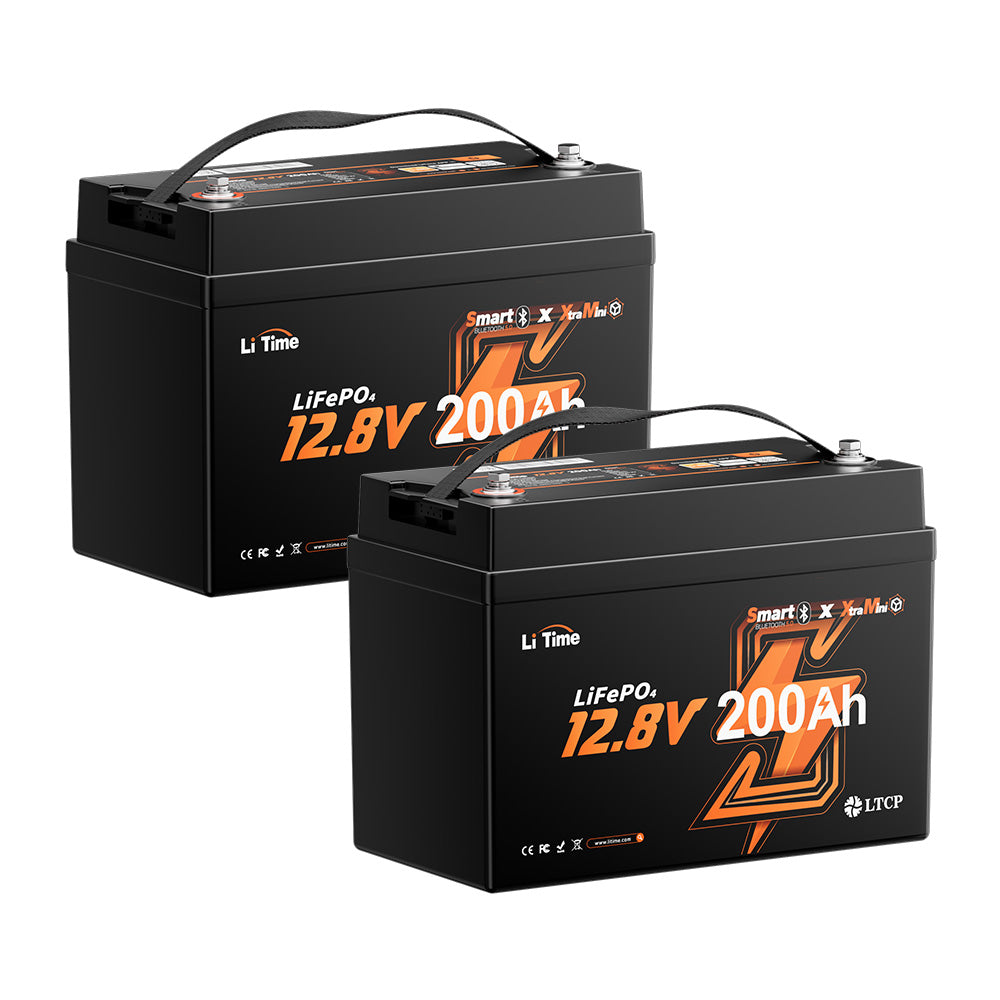

Yes. LiTime 12V 200Ah Xtra Mini RV lithium battery supports support versatile configurations, including series, parallel, and series-parallel connections.
Series connection: Up to 4 batteries (51.2V total).
Parallel connection: Up to 4 batteries (800Ah).
Series-parallel connection: Up to 16 batteries (40.96kWh).
Important Notes: For safe and stable operation, all connected batteries must meet the following criteria:
✔ Same specifications – Identical capacity (Ah) and BMS rating (A)
✔ Same brand – Different brands may have incompatible BMS settings
✔ Purchased within a short timeframe (ideally within one month)
