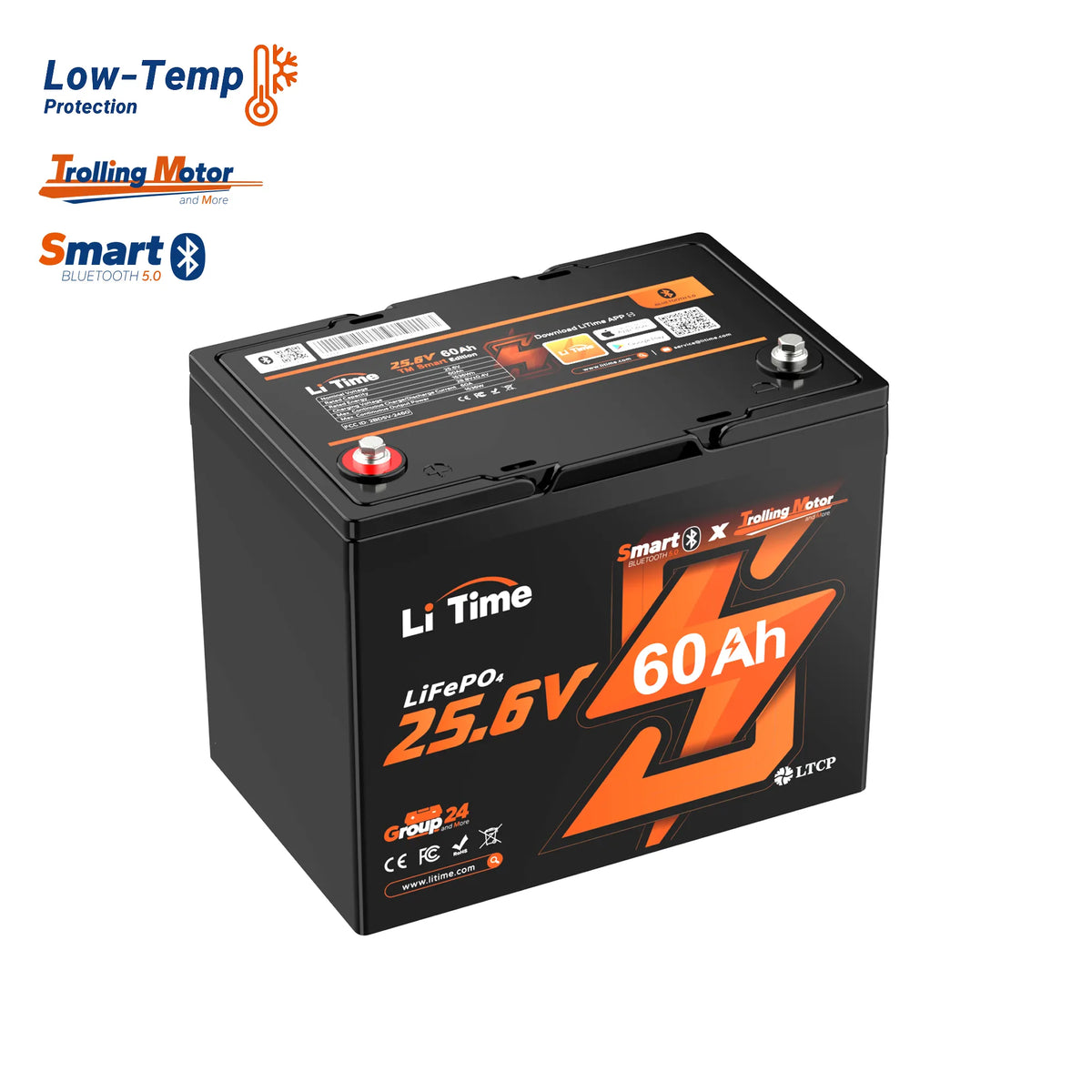

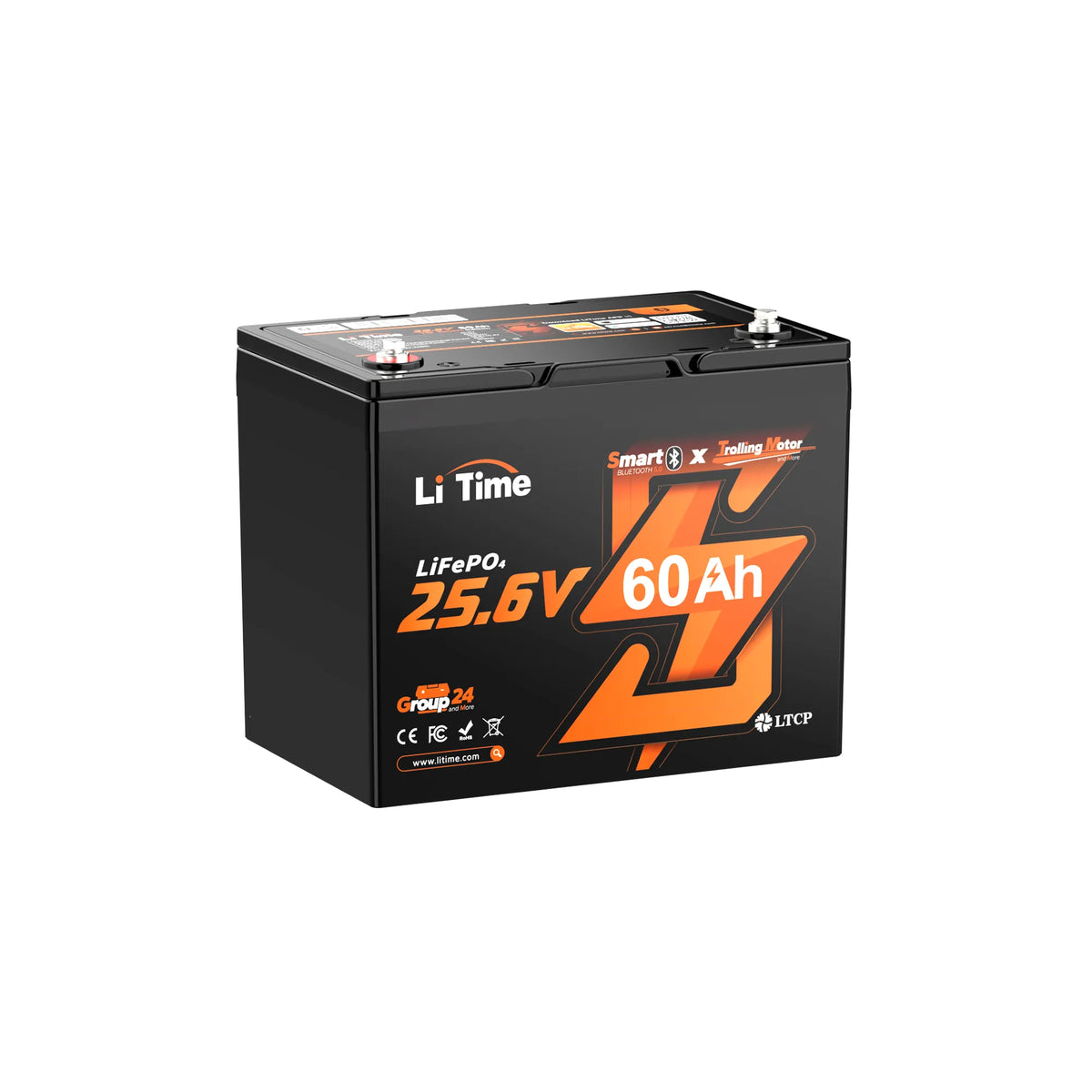

Pre Order LiTime 24V 60Ah Group 24 LiFePO4 Trolling Motor Battery with Bluetooth
$429.99
$529.99
Ends in:
:
:
:
03
Days
03
Hrs
03
Mins
03
Secs
Estimated to ship on Oct 12.
Built for 24V Trolling Motors: 60A continuous discharge delivers steady thrust through strong wind, current, and high-speed operation.
One Battery Replaces Two 12V Batteries: Simplify your 24V setup with one battery, less wiring, and 50%+ less weight than lead-acid.

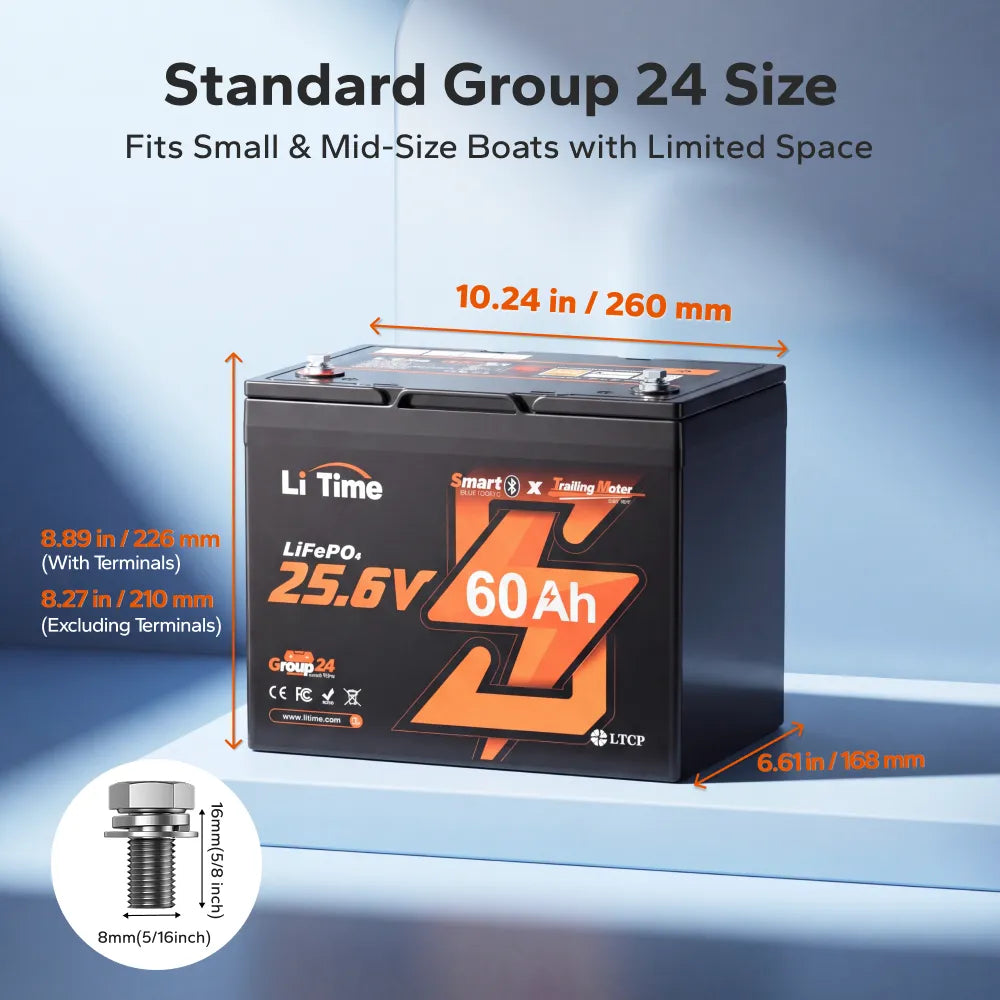

Compact Group 24 Size: 10.24" × 6.61" × 8.27" (260 × 168 × 210 mm), ideal for boats and kayaks with limited space.
60Ah for Longer Runtime: Offers 20% more capacity than a 50Ah battery, giving you more time on the water.
Bluetooth 5.0 Monitoring: Check SOC, voltage, current, and battery status in real time through the LiTime App.
Stable Power, Consistent Thrust: LiFePO4 holds voltage better than lead-acid, helping maintain trolling motor thrust as the battery drains.
IP65 Marine Protection: IP65-rated against dust and water for reliable use in marine environments.
4,000+ Cycles: Grade-A automotive cells deliver 4,000+ cycles at 100% DOD for years of reliable trolling motor power.
Low-Temperature Protection: Charging automatically stops below 32°F/0°C and discharging below -4°F/-20°C to help protect the battery in cold conditions.
Low-Temperature Protection: Charging automatically stops below 32°F/0°C and discharging below -4°F/-20°C to help protect the battery in cold conditions.
Flexible 4P2S Expansion: Expand capacity in parallel or build up to a 48V system for fishing boats, electric outboards, and off-grid applications.
Certified & Supported: Meets ABYC E-13 installation requirements and CE, RoHS, UN38.3, and FCC standards. Backed by a 5-year warranty, 24/7 support, lifetime assistance, and AIG Product Liability Insurance coverage.
1 Pack
$429.99
$529.99
60A max output for 24V trolling motor setups.

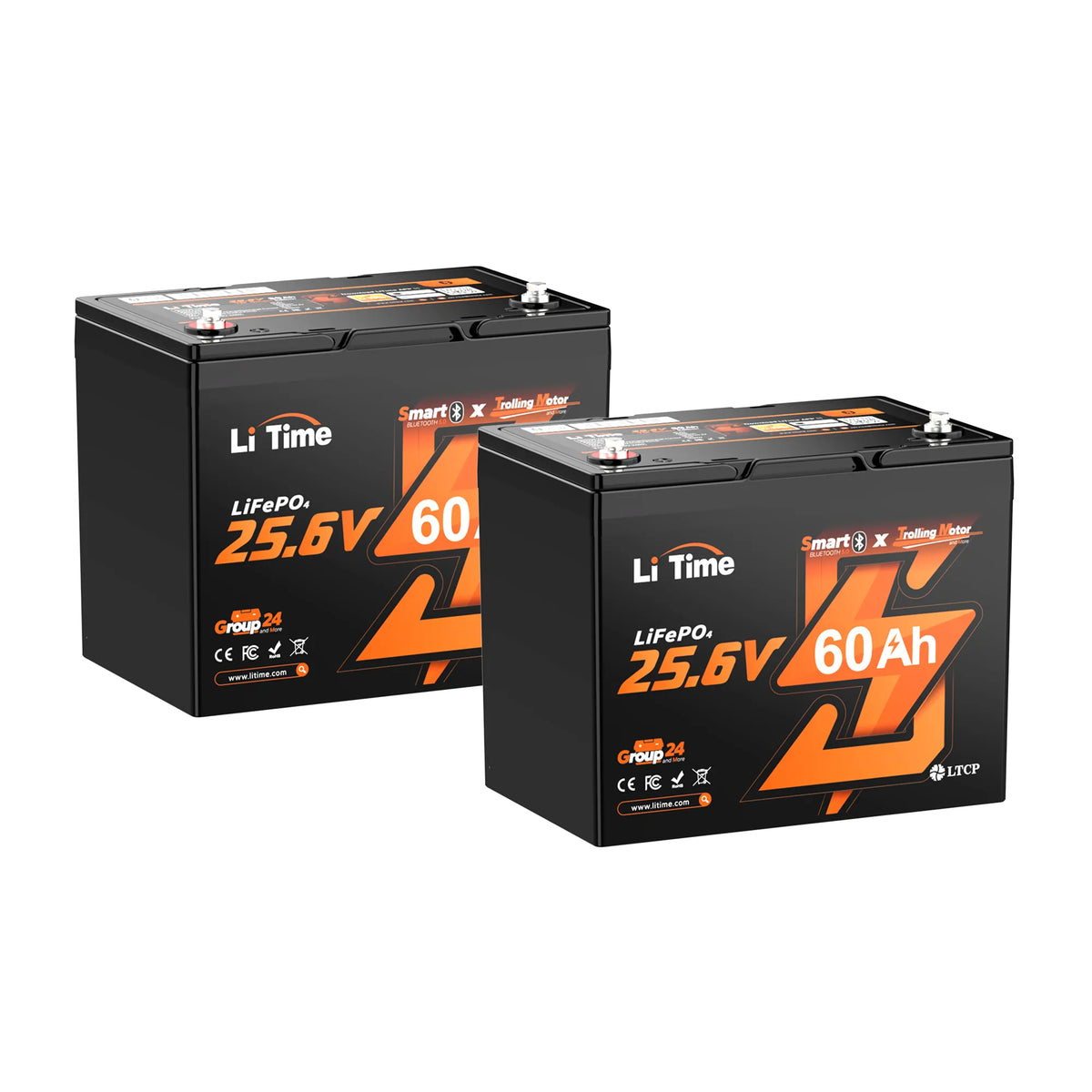

2 Pack
$847.08
$799.99
3,072Wh for longer trips or 48V electric outboards.
Best Seller

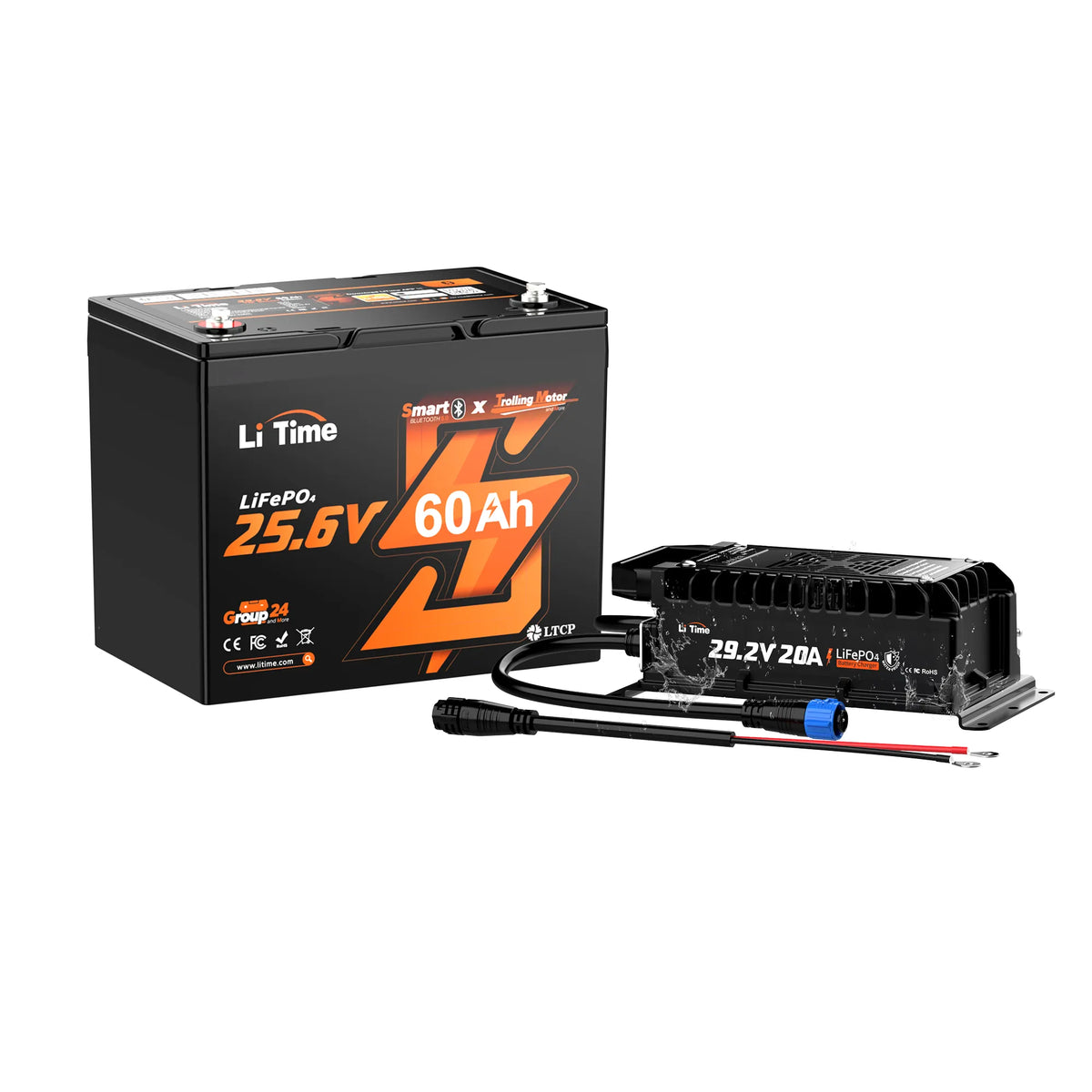

1 Pack + 20A Waterproof Charger
$566.78
$629.99
Full charge in about 3 hours with easy BMS activation.
Best Value

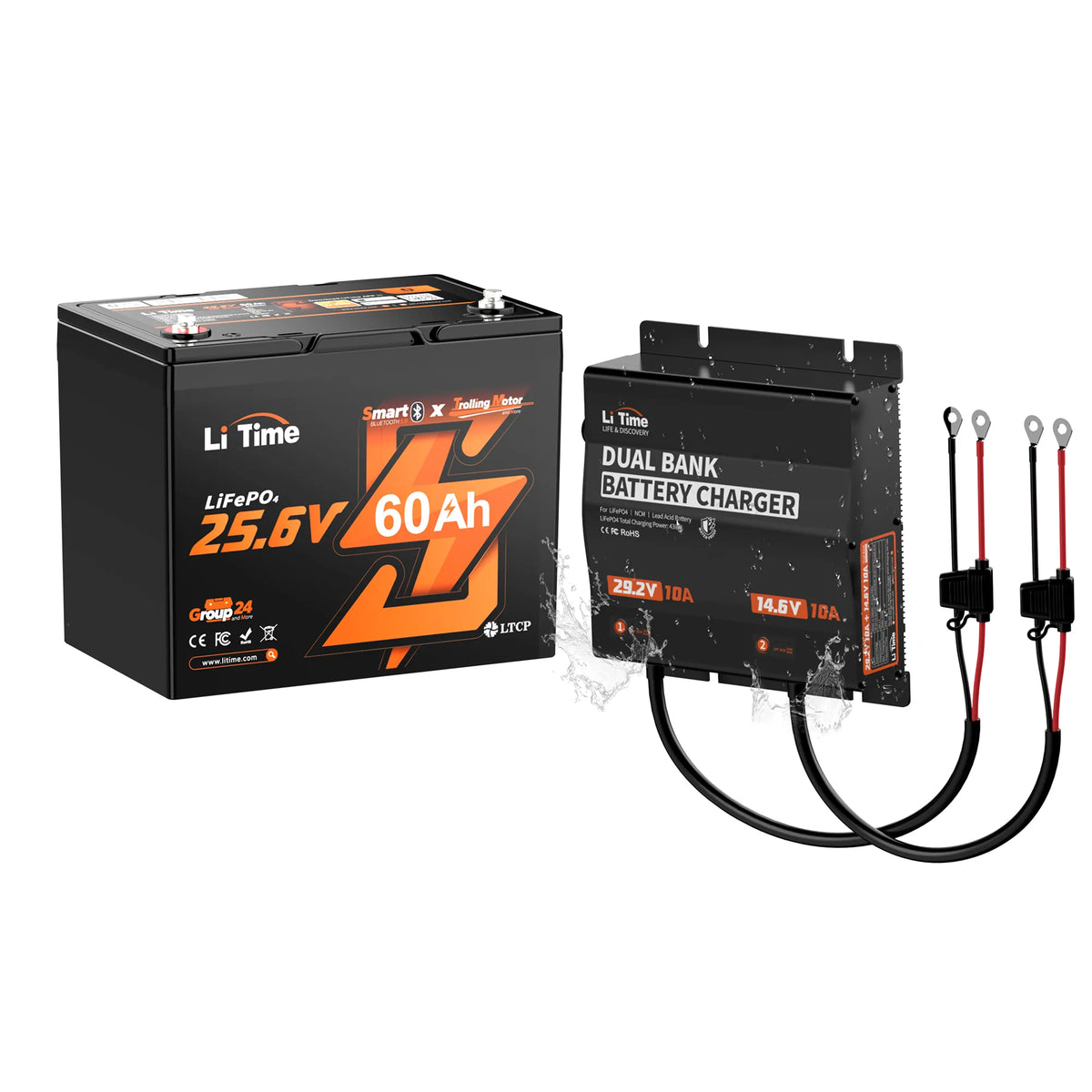

1 Pack + 12/24V Dual Bank Charger
$587.68
$649.99
Charge 24V trolling and 12V electronics batteries.
Quantity
Frequently bought together
$429.99
$529.99
5 Years Warranty
Local Warehouse Free Shipping
30 Days Price Match
30 Days Returns
Protection Upgrade
1
/
10

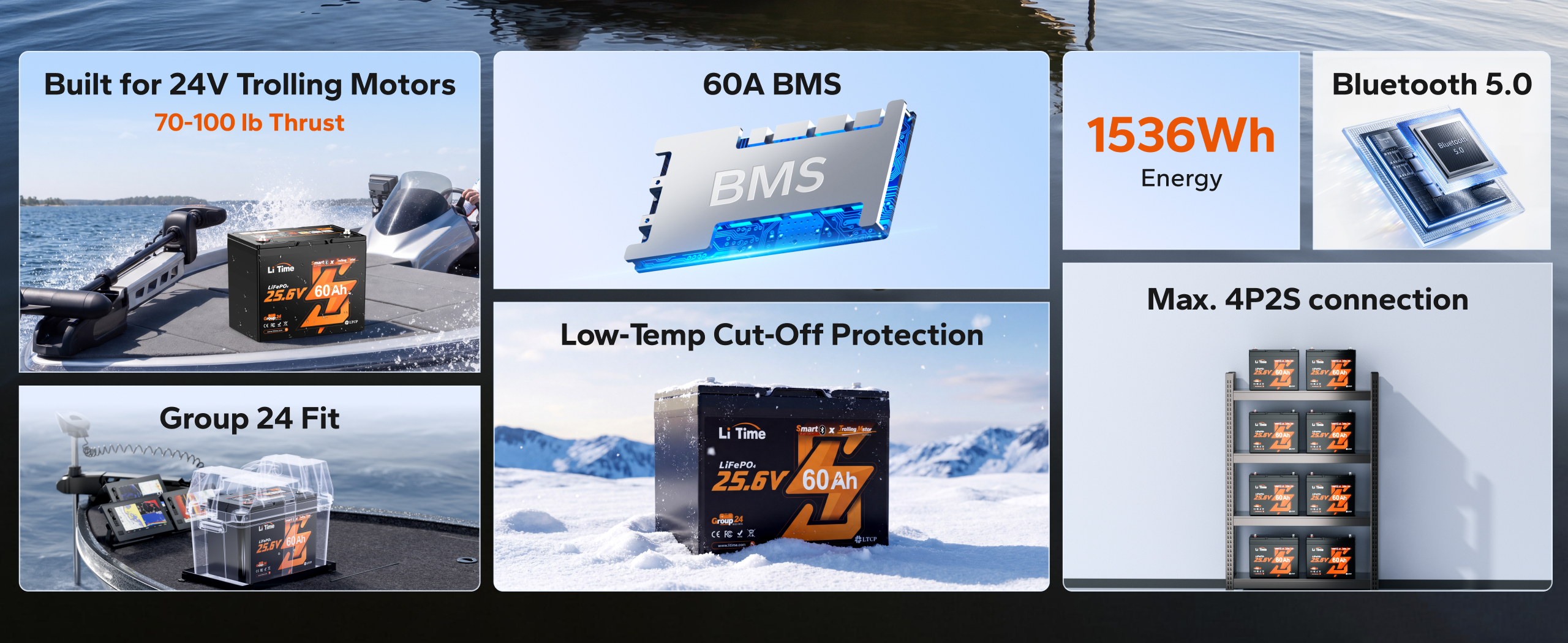

Built for Serious 24V Trolling Motor Fishing
The LiTime 24V 60Ah delivers 1,536Wh and 60A continuous output in a compact Group 24 size, giving anglers dependable 24V power with less bulk. LiTime is also affiliated with ABYC, IGFA, and NMEA.

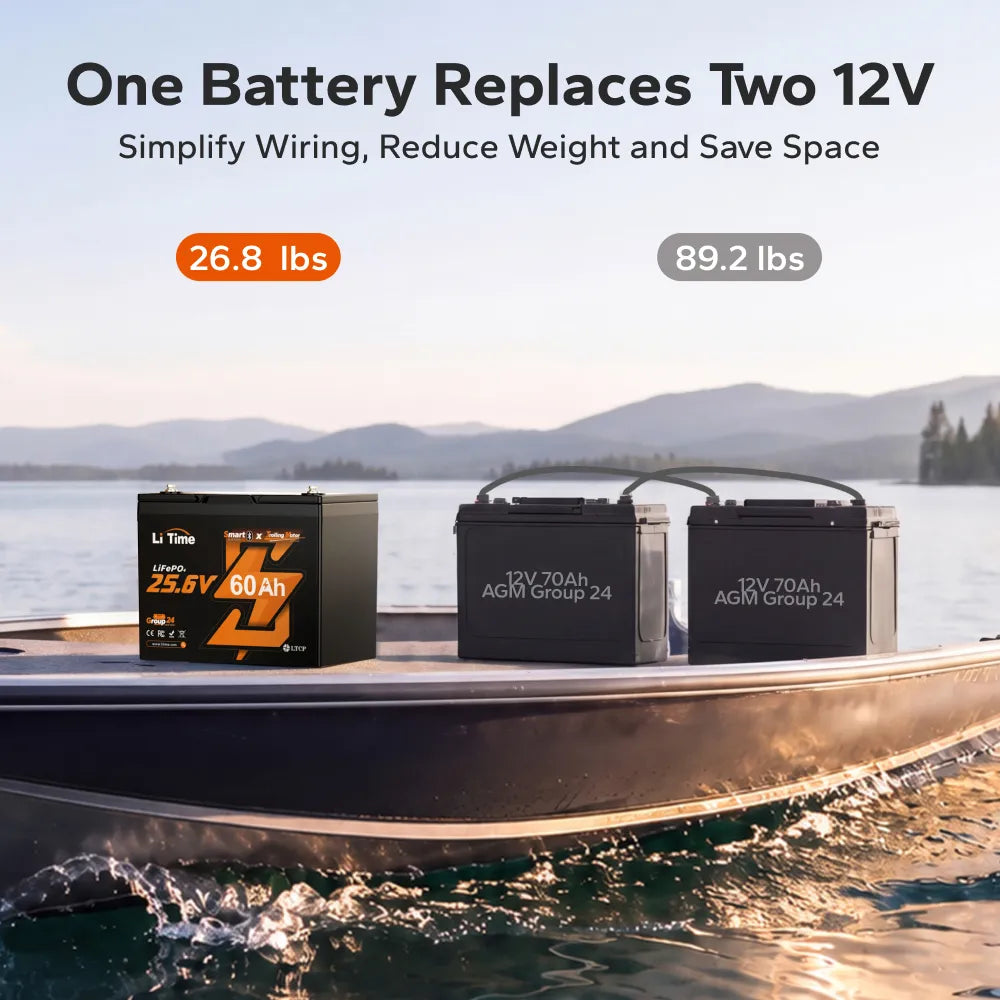

Replace Two 12V Batteries with One
Replace two 12V 70Ah lead-acid batteries with one compact 24V battery, cutting battery footprint by about 51% and case volume by about 53% while eliminating extra series wiring and connections.

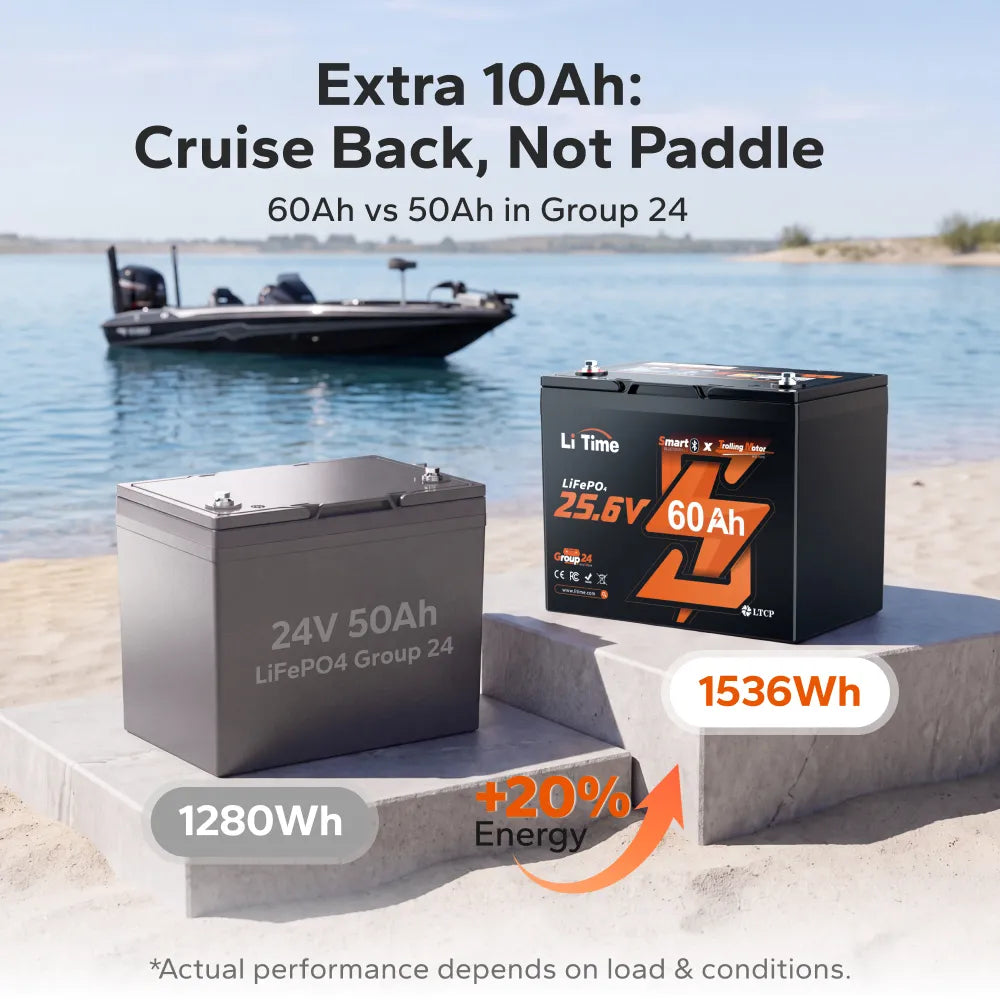

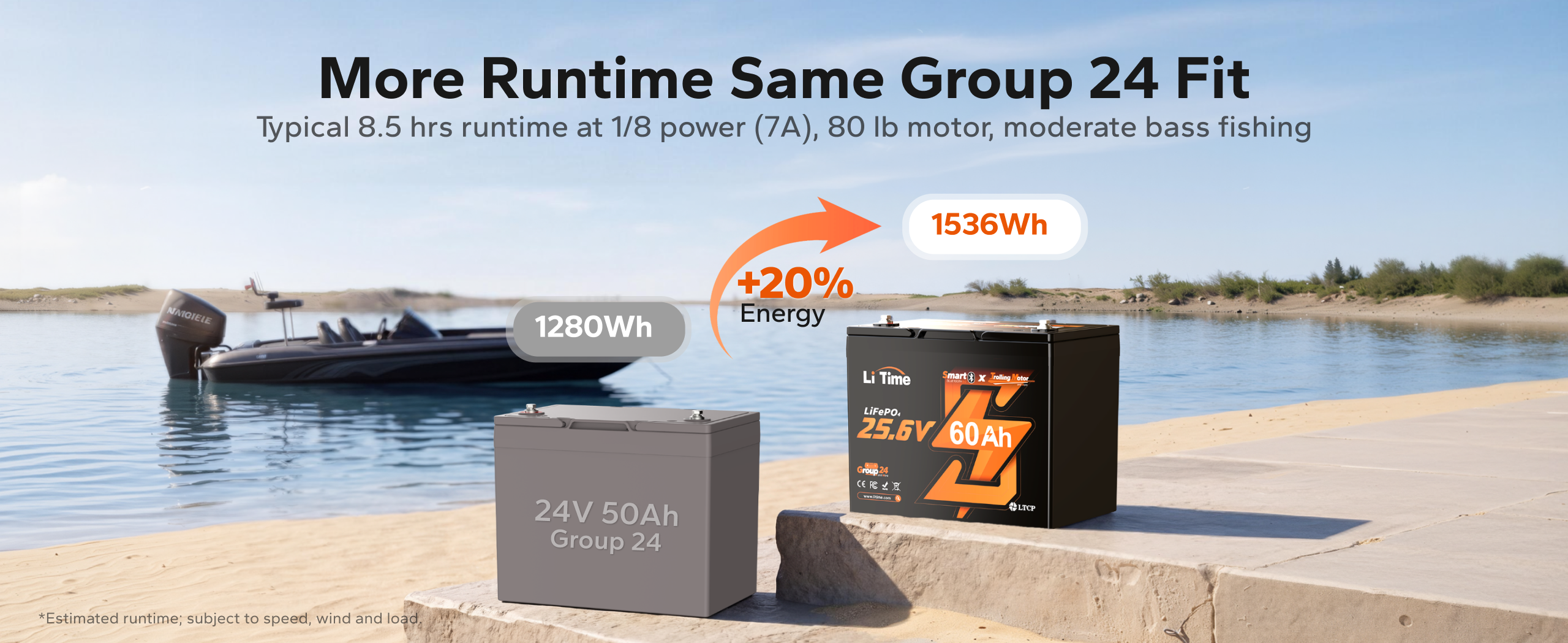

Group 24 Size, 20% More Capacity
Get 60Ah in a compact Group 24 footprint with 20% more capacity than a 50Ah battery. At a 7A draw, theoretical runtime reaches about 8.5 hours, ideal for moderate bass fishing.

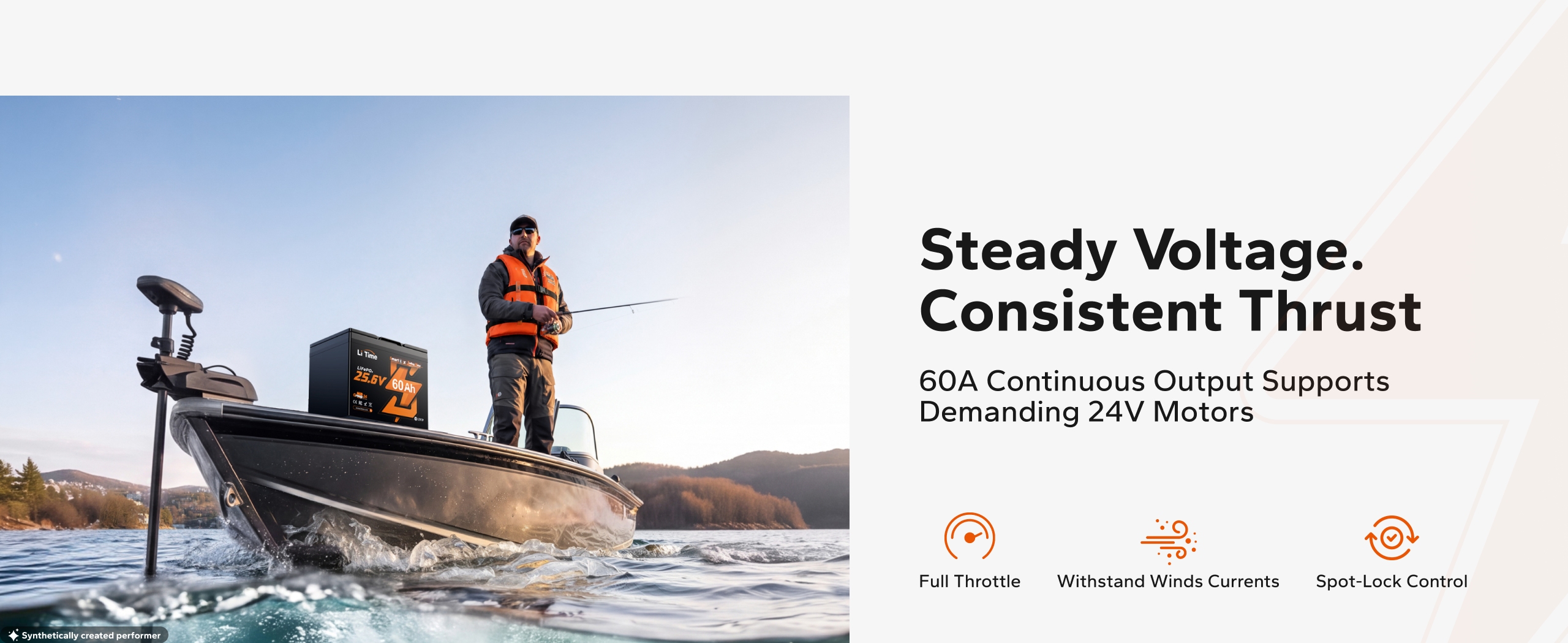

60A Power for Demanding Conditions
A stable 60A continuous output supports high-draw operation such as higher speeds and frequent maneuvering, while maintaining dependable thrust in strong wind, current, and during Spot-Lock or GPS anchoring.

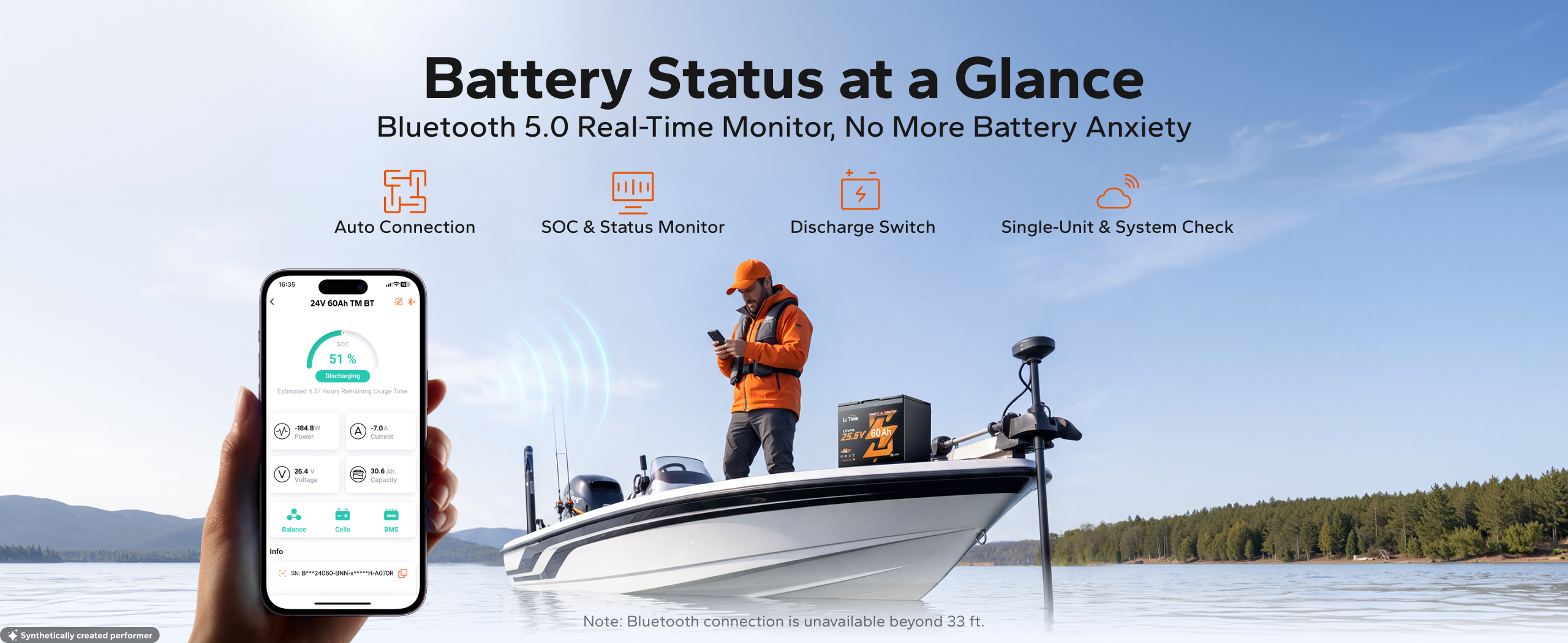

Know Your Battery at a Glance
Bluetooth 5.0 lets you check SOC, voltage, current, and battery status in the LiTime App, so you know how much power remains while fishing.

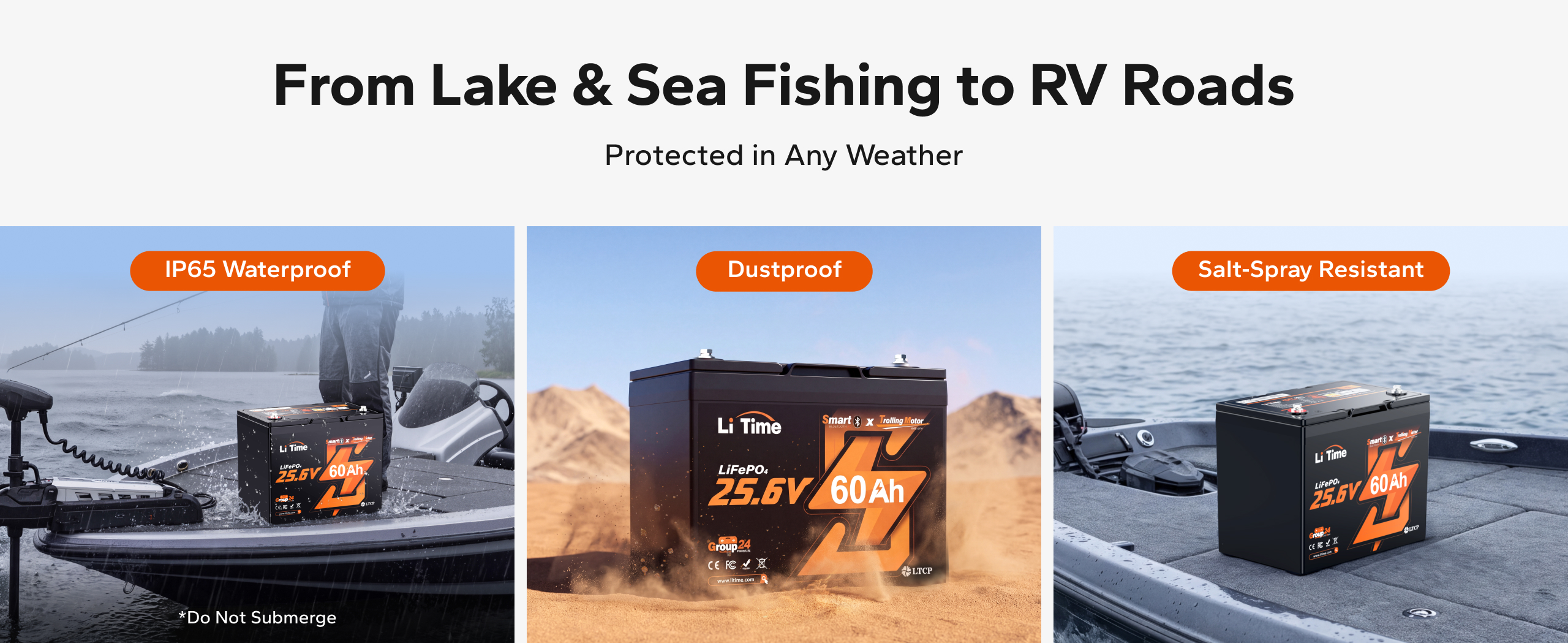

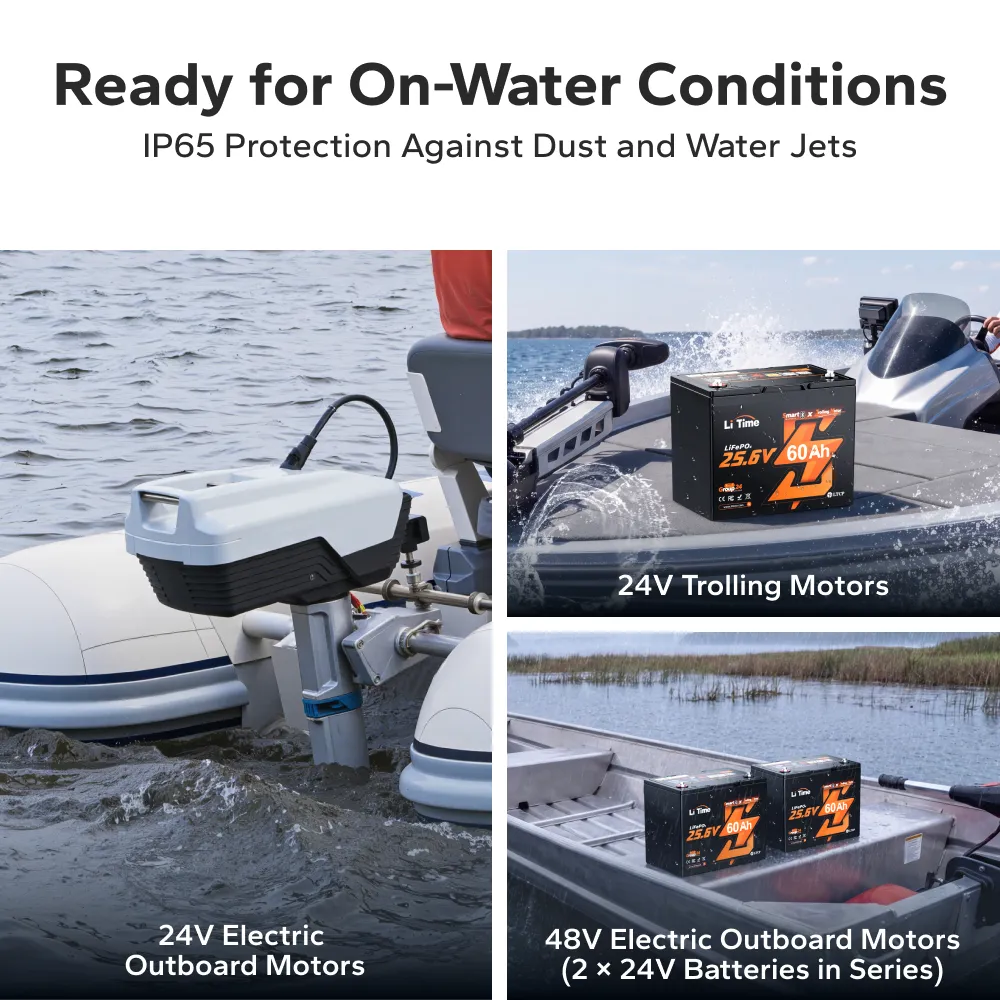

Made for the Marine Environment
The IP65-rated enclosure helps protect against dust and water jets, giving you greater confidence around splashes, moisture, and demanding outdoor fishing environments.

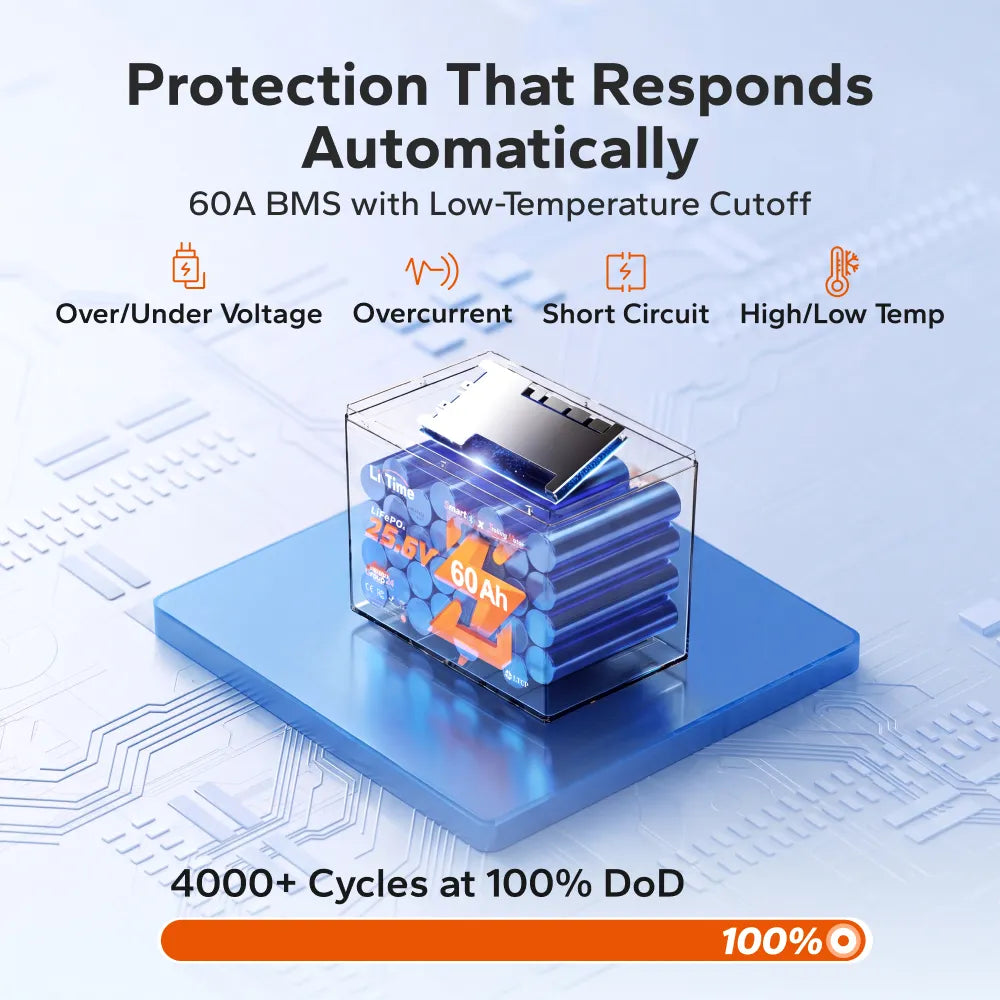

Protection That Works in the Background
The built-in 60A BMS with 20+ protections guards against overcharge, over-discharge, overcurrent, short circuits, and other electrical risks for safer, more reliable operation.

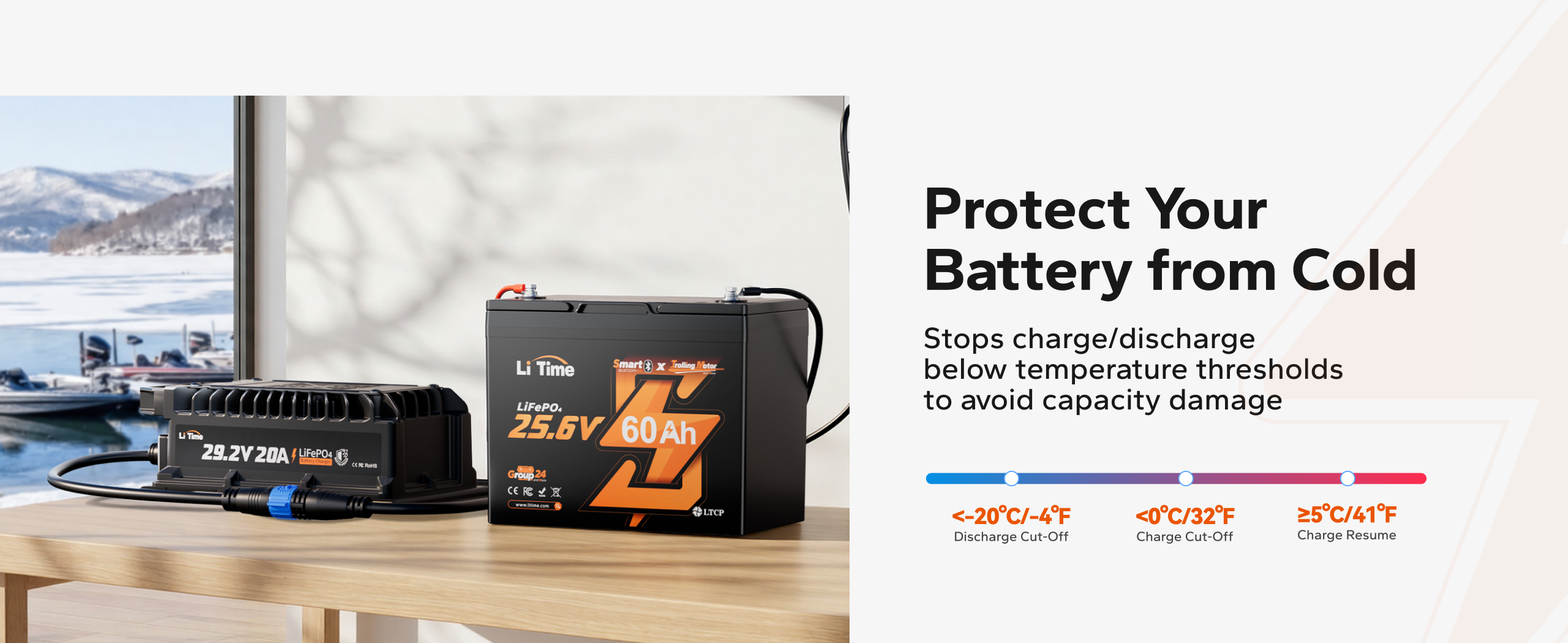

Ready for Cold-Weather Fishing
Low-temperature protection stops charging below 32°F / 0°C and discharging below -4°F / -20°C, helping protect the battery from cold-weather damage.

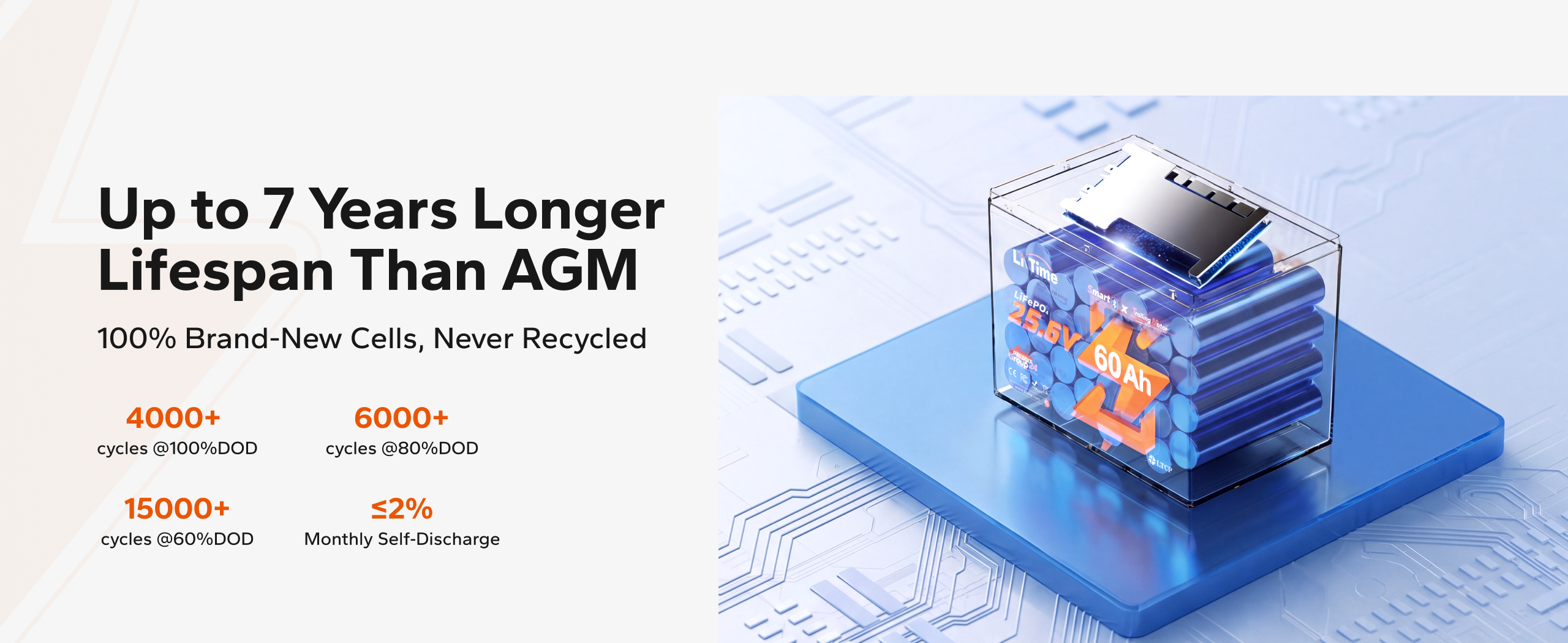

Built for Years of Fishing
Grade-A LiFePO4 cells deliver 4,000+ cycles at 100% DOD, providing long-term power and reducing the need for frequent battery replacement.

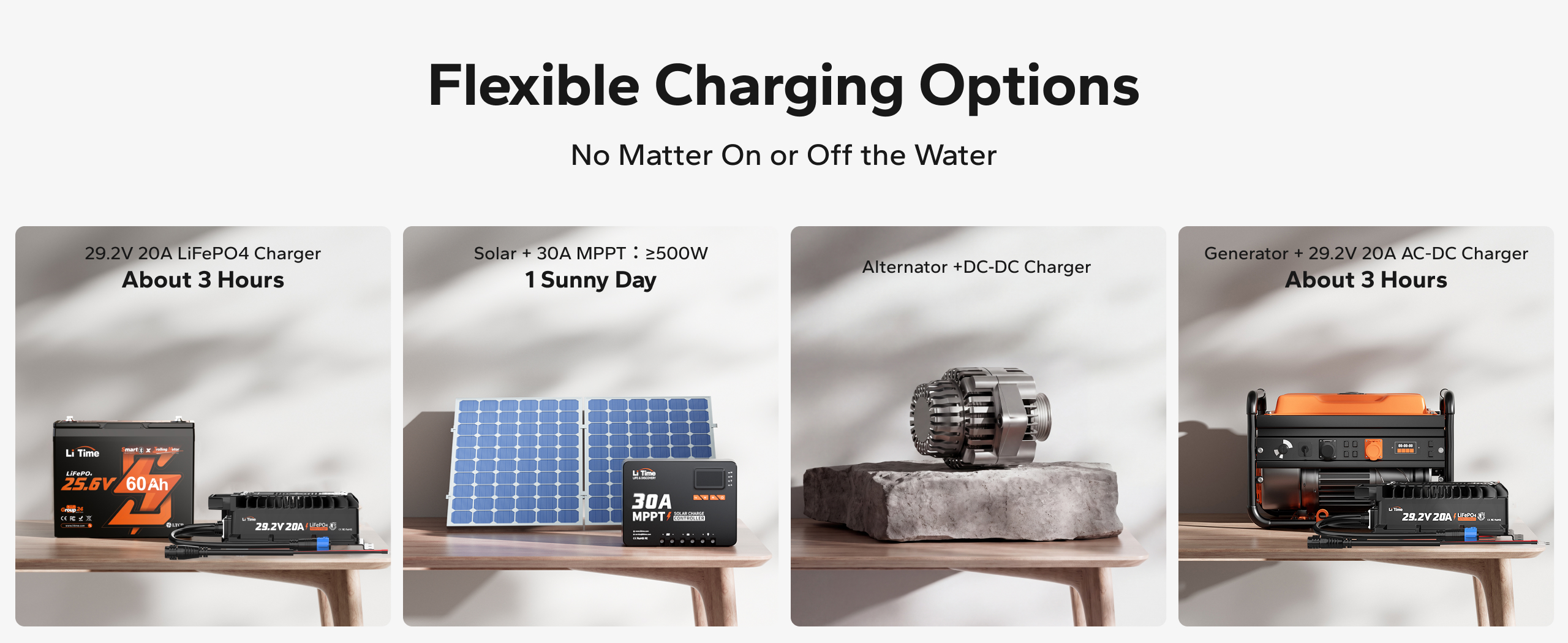

Flexible Charging Wherever You Go
Recharge in about 3 hours by 20A charger or generator, use ≥500W solar + 30A MPPT for off-grid charging, or recharge from an alternator + DC-DC charger while on the move.
One Battery, More Ways to Use It
With up to 4P2S expansion, you can increase capacity or build compatible systems for 48V electric outboards, off-grid power, and backup storage.

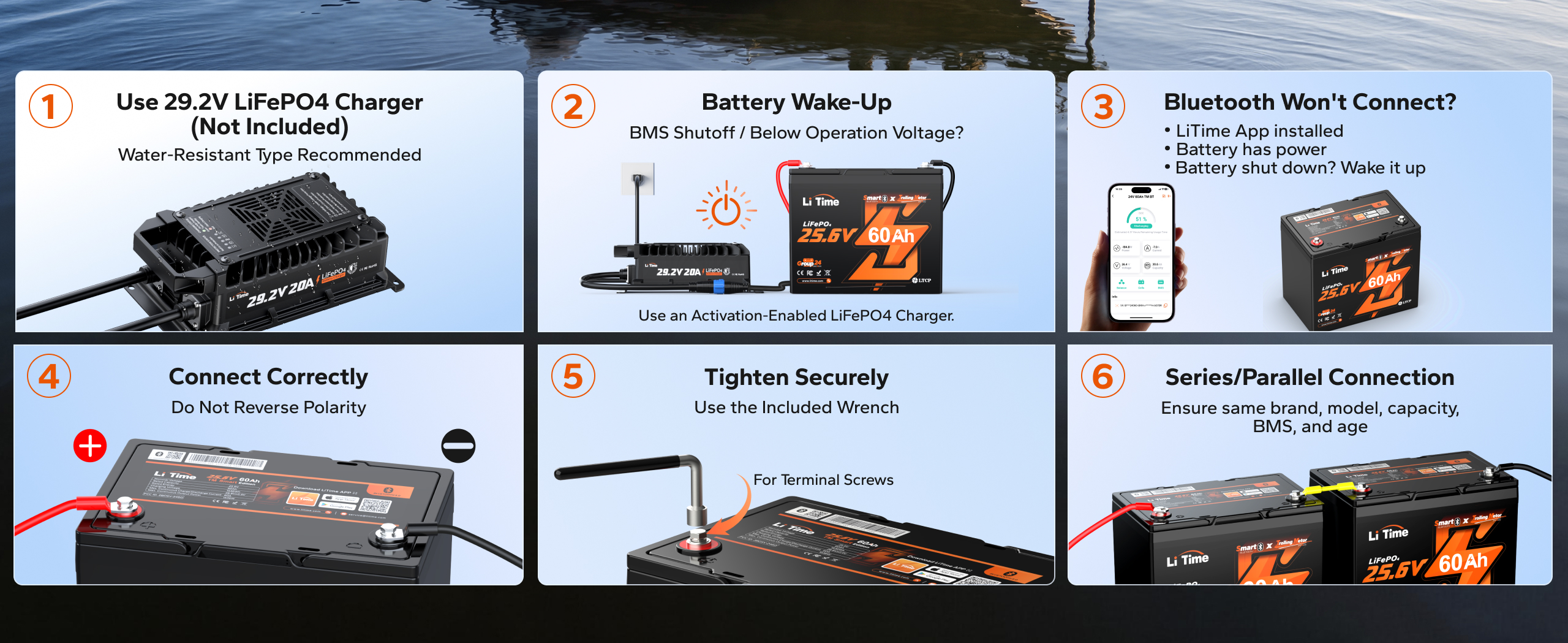

Set It Up Right Before You Hit the Water
Wake the BMS with a compatible waterproof LiFePO4 charger, check polarity, and tighten terminals securely. For series or parallel setups, use batteries with matching brand, model, capacity, BMS, and similar age.
BATTERY
Cell Type
LiFePO4
Warranty
5 Years
Cycle Life
4000 Cycles at 100% DOD, 6000 Cycles at 80% DOD, 15,000 Cycles at 60% DOD
Nominal Voltage
25.6V
Rated Capacity
60Ah
Energy
1536Wh
Max. Expansion (Parallel & Series)
4P2S
Internal Resistance
≤40mΩ
Certifications
UN38.3,RoHS,FCC ID,CE
Bluetooth
√
Self-Heating
/
BMS
BMS
60A
Max. Continuous Output Power
1536W
Max. Continuous Charge Current
60A
Max. Continuous Discharge Current
60A
Max. Discharge Current 1 Second
300A
CHARGE
Charge Method
CC/CV
Charge Voltage
28.8V±0.4V
Recommend Charge Current
12A
TEMPERATURE
Charge Temperature
0°C to 50°C / 32°F to 122°F
Discharge Temperature
-20°C to 60°C / -4°F to 140°F
Storage Temperature
-10°C to 50°C / 14°F to 122°F
Low-Temperature Protection
√
Automatic Discharge Off
<-4°F/-20°C
Automatic Charge Off
＜32°F/0°C
Automatic Charging Recovery
≥41°F/5°C
OTHERS
Terminals
M8*16mm
Weight Approx.
26.9lbs
Size
L10.24*W6.61*H8.31 in (Group 24 Size)
Housing Material
ABS
Protection Class
IP65

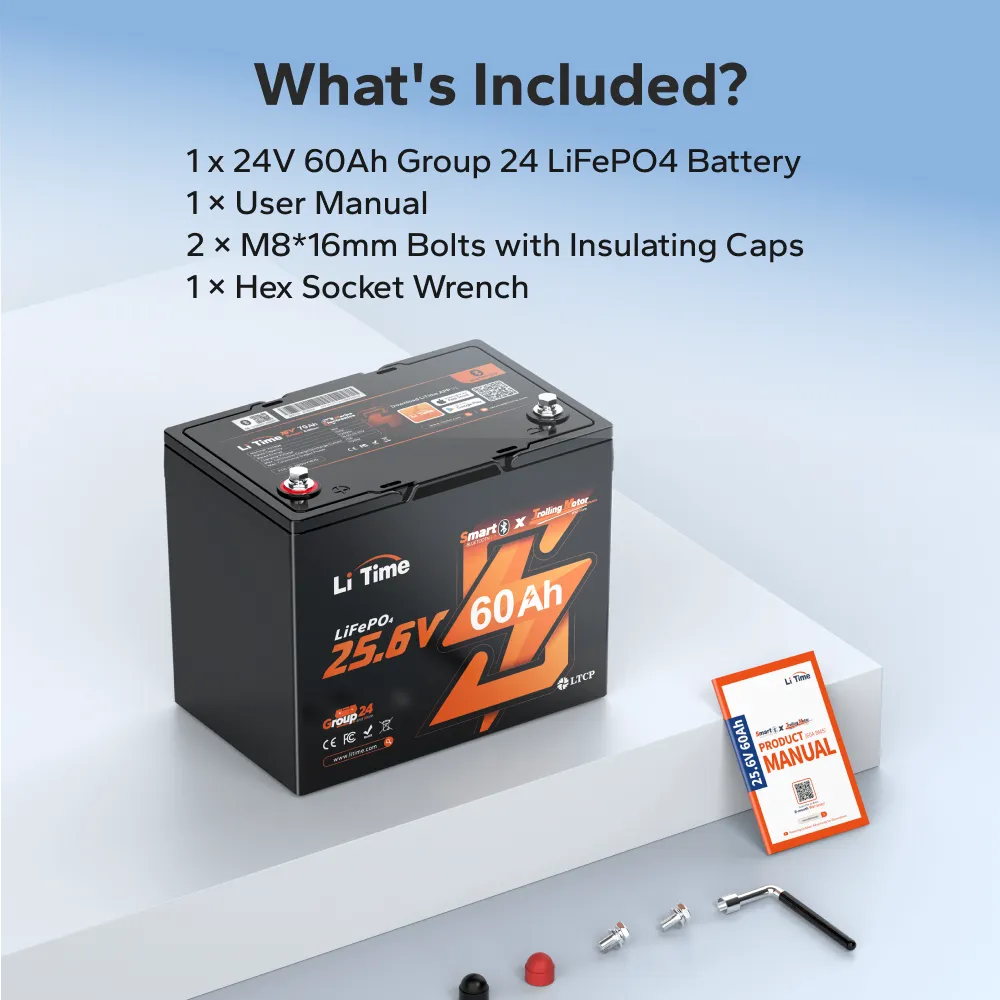

1 Pack
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
24V60Ah Battery
x1
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
2 Pack
24V60Ah Battery
x1
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
24V60Ah Battery
x1
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
1 Pack + 20A Waterproof Charger
24V60Ah Battery
x1
24v_20a_wp_charger
x1
Flat Washer
x2
M8 Screws
x2
Insulation Caps
x2
Socket Wrench
x1
24V60Ah Battery
x1
24v_20a_wp_charger
x1
Flat Washer
x2
M8 Screws
x2
Insulation Caps
x2
Socket Wrench
x1
1 Pack + 12/24V Dual Bank Charger
24V60Ah Battery
x1
12V/24V Dual Bank Charger
x1
Socket Wrench
x1
Flat Washer
x2
M8 Screws
x2
Insulation Caps
x2
AC Power Cord
x1
24V60Ah Battery
x1
12V/24V Dual Bank Charger
x1
Socket Wrench
x1
Flat Washer
x2
M8 Screws
x2
Insulation Caps
x2
AC Power Cord
x1
Is a 24V 60Ah battery enough for my trolling motor?
Yes. A 60Ah battery offers a practical balance of runtime, size, and weight for 24V trolling motor use, making it a strong choice for day trips, fishing, cruising, and GPS anchoring. Actual runtime varies with motor load, speed, wind, current, and boat weight.
What trolling motors can this 24V 60Ah battery support?
It is designed for 24V trolling motors with a maximum continuous current draw of 60A or less, including many 70–80 lb thrust models. Check your motor’s maximum amp draw rather than relying on thrust rating alone.
Can one 24V battery replace two 12V batteries?
Yes. One 24V battery can replace two 12V batteries wired in series, eliminating the series connection between two batteries. That means fewer cables and connection points, less installation space, and a simpler setup to maintain.
How long will a 24V 60Ah battery run my trolling motor?
Runtime depends mainly on your motor’s actual current draw. For example, a 60Ah battery provides about 6 hours at an average 10A draw or about 3 hours at 20A in theoretical calculations. High speed, strong wind, current, and continuous Spot-Lock use can shorten actual runtime.
Can the 60A BMS handle full-power trolling motor use?
The battery supports up to 60A continuous discharge. If your trolling motor stays within that limit, it can support normal operation up to the motor’s rated load. If the motor or another connected load exceeds the battery’s protection limits, the BMS may shut off output to protect the battery.
How can I check how much battery is left while fishing?
Connect the battery to the LiTime App via Bluetooth 5.0 to view SOC, voltage, current, and battery status on your phone. This lets you check remaining charge during a trip instead of estimating it from trolling motor performance alone.
