In the past 3 months, we've received 42 comments asking about connecting battery in parallel: How many batteries can I parallel? Does cable length matter? Why are my batteries unbalanced after parallel connection? Many users want to expand capacity by connecting batteries in parallel, but small mistakes lead to fast battery degradation, poor performance, or even safety hazards.
Thinking you can just hook up batteries in parallel and call it a day? Bad idea. Parallel battery connection looks simple, but hidden risks include voltage imbalance, improper wiring, and over-paralleling. One wrong step shortens battery life or creates fire risks. This guide answers your top questions, so even beginners can build a safe, high-performance battery bank.
Part1: Why You Can't Randomly Do Batteries in Parallel
Many users think batteries in parallel just means "connect positive to positive, negative to negative." But lithium batteries act like buckets of water at different levels — when connected, high-voltage batteries force current into low-voltage ones, creating large circulating current.
This circulation can cause localized overheating and severe energy loss during the instantaneous parallel connection. Even speeds up aging, and can cause short circuits or damage the BMS. Poor wiring batteries in parallel or mismatched batteries also lead to uneven charging/discharging and large voltage gaps.
From 42 real user questions, we made 4 non-negotiable rules to avoid 99% of risks for safe hooking batteries in parallel.
Rule 1: Same Brand & Model for Safe Parallel Battery Connection
This is the foundation of batteries in parallel. Even with the same rated voltage, different brands/models have different internal resistance, capacity, and discharge rates. Mismatched batteries cause uneven current flow, overwork cells, and shorten life.
✅ What to Do:
- Use identical brand & model & feature lithium batteries for parallel battery connection.
- Buy batteries within 1 month to keep performance consistent.
👉 Choose LiTime Lithium Batteries: use automotive-grade cells with ultra-high consistency. Same model batteries match in voltage, resistance, and capacity — perfect for batteries in parallel. For RV, marine, home storage, or outdoor use, LiTime reduces imbalance, circulating current, and degradation for a stable, long-lasting battery bank.
Rule 2: Equal Cable Length + Busbar for Wiring Batteries in Parallel
Does cable length matter? Can I skip the busbar? These make up 30% of questions about wiring batteries in parallel.
Unequal cables create different resistance. Current flows through shorter cables, causing unbalanced charging. Direct wiring without a busbar causes loose connections, local overheating, and uneven discharge.
✅ What to Do:
- Use same gauge & equal length cables to reduce resistance difference.
- Use the busbar for stable wiring batteries in parallel and even current distribution. Recommend the LiTime busbar, which provides extremely stable connectivity for high-current systems.

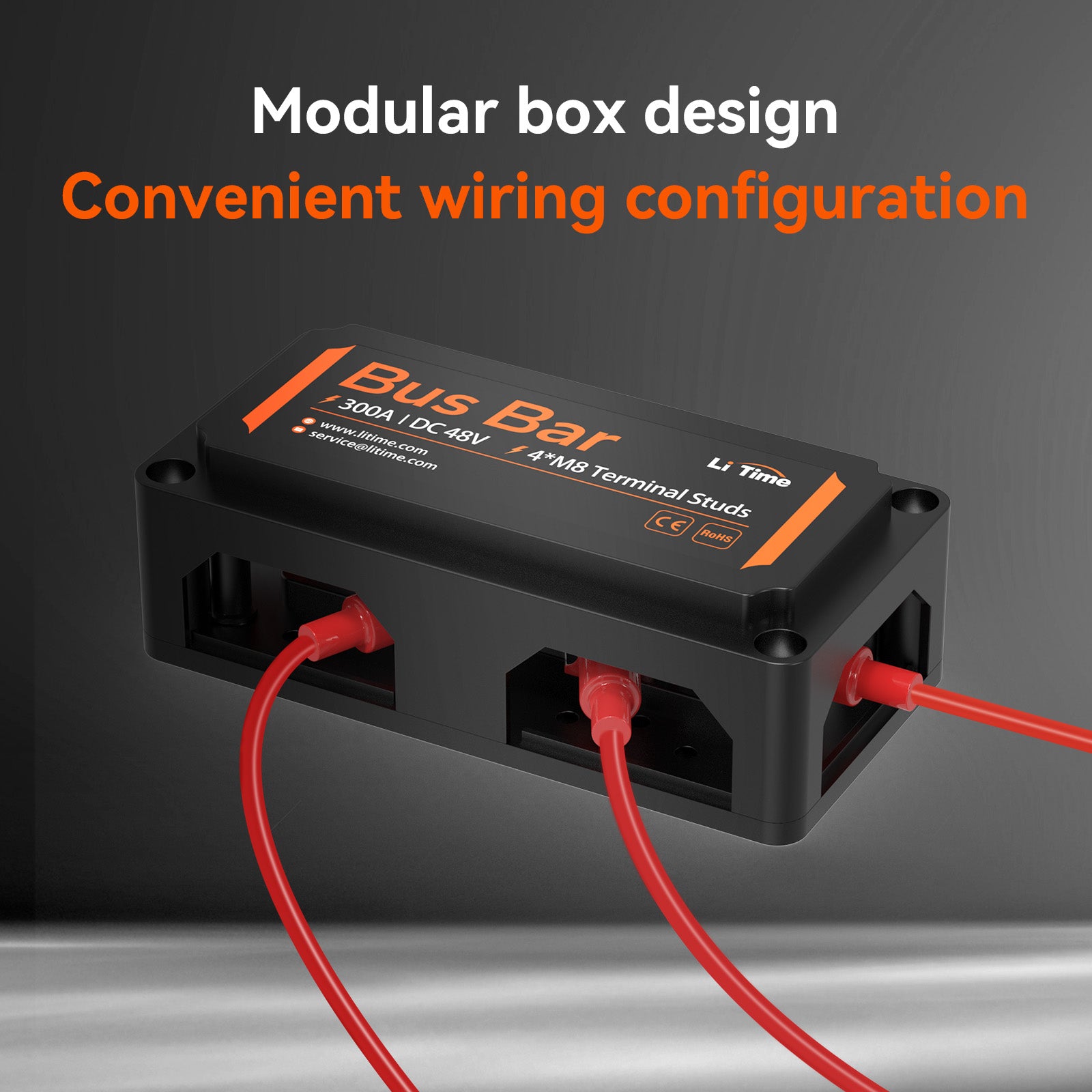

LiTime 300A Bus Bar Build safer batteries in parallel with stable current distribution for RV, marine, solar, and high-current systems. ▶ Buy Now
- Use tinned or silver-plated terminals with consistent torque to lower heat risk.
Rule 3: Full Charge Individually Before Hooking Batteries in Parallel
Skipping this step ruins batteries in parallel. Connecting batteries at different SOC creates voltage gaps. Just a 0.5V difference causes circulating current; over 1V damages BMS and kills cells.
✅ What to Do: Before hooking batteries in parallel, charge each battery fully individually so all start at the same level, eliminating sudden circulating current.
Rule 4: Max 4 Batteries for Safe Parallel Battery Wiring
How many batteries can I parallel? The most common question about parallel battery wiring.
More batteries mean harder-to-control consistency, stronger circulating current, and heavier BMS load. Accurate balancing becomes nearly impossible.

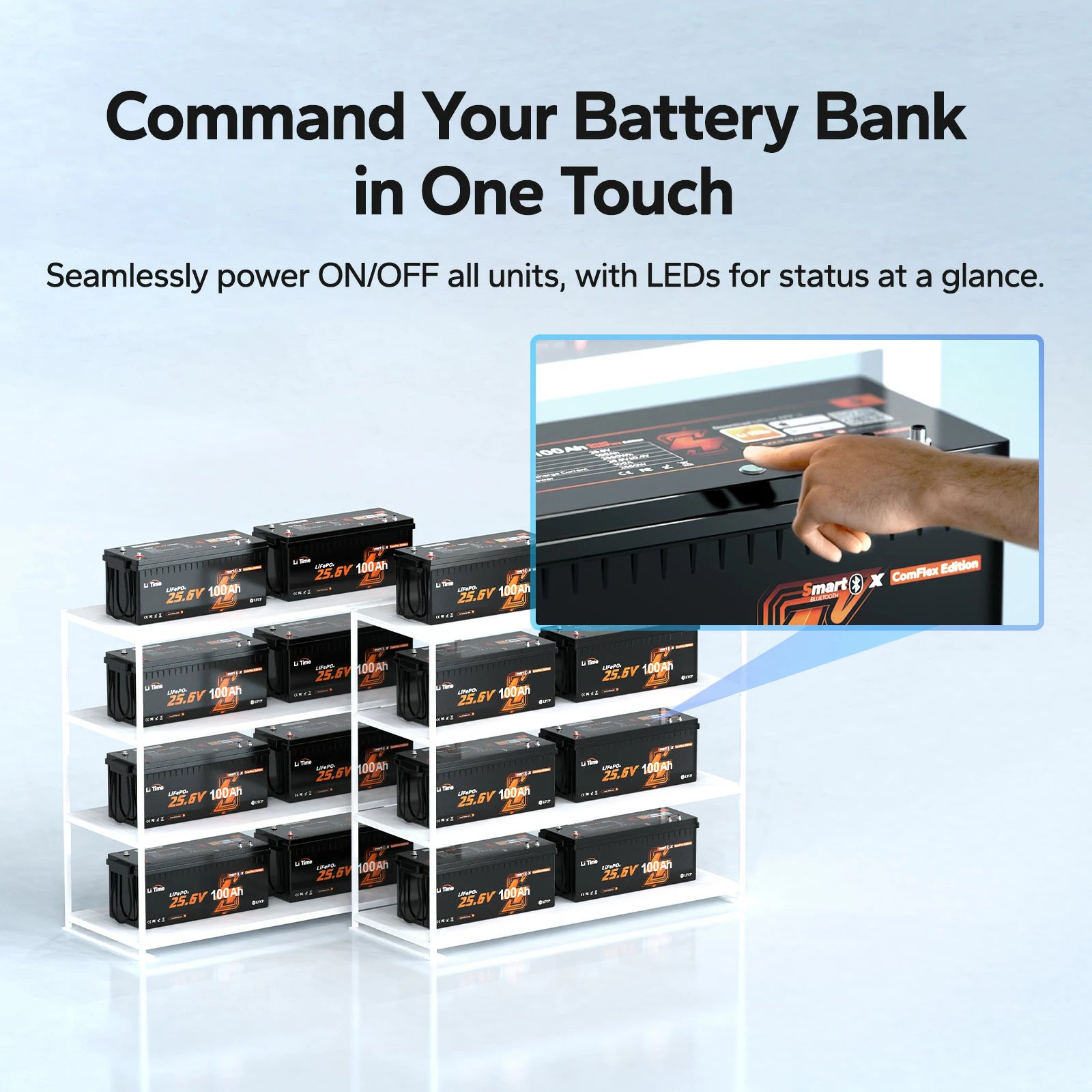

✅ What to Do: We recommend max 4 batteries for safe parallel battery wiring. If you need more capacity: Use a multi-bank system + 1-2-Both-Off switch. Each bank has ≤4 batteries. Switch between banks so only one bank discharges at a time — safe, stable, no extra parallel risks. Or choose LiTime batteries with parallel communication function directly (ComFlex Series). Up to 16 of these batteries can be connected in parallel.
Part2: How to Connect Batteries in Parallel? Parallel vs. Series
Batteries in parallel vs series serve different goals. Choosing wrongly breaks your system. Below is clear comparison for how to connect batteries in parallel or series correctly.
Core Difference: Parallel vs. Series
| Connection | Core Change | Best For | Example |
|---|---|---|---|
| Parallel | Voltage same; total capacity & current increase | Fixed-voltage devices | 12V battery + 12V inverter = batteries in parallel for longer runtime |
| Series | Capacity & current same; total voltage increases | High-voltage devices | 2×12V batteries in series = 24V system for 24V inverter |
Basic Wiring Diagrams
- Parallel wiringv: All batteries' positive to busbar positive, negative to busbar negative. All positives connected; all negatives connected. Keeps voltage stable for battery in parallel circuit.
Series wiring: Positive of Battery A → Negative of Battery B. Only first positive and last negative used as output. Voltage adds up.
⚠️ Note: For batteries in parallel vs series, always use same brand, model, and condition.
Choose by Your Device
- Fixed voltage (most users): Same voltage devices MUST use parallel only. Such as never series 12V batteries for 12V devices — overvoltage destroys equipment.
- High voltage: Use series to reach higher voltage. Do not parallel mismatched series groups. Such as connect two 12V batteries in series to match the 24V inverter.
Part3: FAQ: Top Questions About Battery in Parallel Circuit
Q1: Can I parallel different brands but same spec?
A: No. Internal resistance and charging curves differ, causing imbalance and hazards. Stick to identical batteries for batteries in parallel.
Q2: Does a few cm difference in cable length matter?
A: Yes. Unequal cables cause resistance imbalance and uneven current. Keep cables same length/gauge for wiring batteries in parallel.
Q3: Can I parallel more than 4 batteries?
A: Not directly. For more capacity, use multi-bank systems (≤4 per bank) with switch control — safe for parallel battery wiring.
Q4: Why are my parallel batteries unbalanced?
A: Usually 1 of 4:
- mismatched batteries;
- unequal cables;
- not fully charged individually before hooking batteries in parallel;
- Some battery connections in the system are tightened while others are not.
Q5: Can I use regular wire instead of busbar?
A: Possible but not recommended. Busbar ensures stable, even current for parallel battery connection.
Q6: How to maintain parallel batteries?
A: Use matching charger; avoid overcharge/over-discharge; fully charge individually every 6 months; recharge the battery to 50% SOC every three months if stored.
Part4: FORBIDDEN Cases for Parallel Battery Connection
There are 3 situations where parallel battery connection is forbidden:
- Damaged batteries: Bulging, leaking, or over-discharged (＜2.5V/cell) — may cause short risks.
- No supported BMS: BMS must support batteries in parallel; otherwise, no protection against overcharge, over-discharge, or high circulating current.
- Mismatched chemistry/capacity: LiFePO4 and ternary lithium, or different capacities — never mix in parallel battery connection.
Conclusion
The key to safe batteries in parallel is consistency: same battery specs, same wiring, same charge level, and safe parallel count. Nearly all 42 user questions came from ignoring these rules. Follow our 4 rules, avoid the 3 forbidden cases, and you can build a safe, reliable battery system.
For safe, easy parallel setup: Choose LiTime — LiTime lithium batteries feature ultra-high consistency Grade A cells, ideal for connecting batteries in parallel and parallel battery wiring. Works for 12V/24V systems and multi-bank expansion. Lower imbalance, longer life, safer performance.
