48V VS 12V Battery Systems: What's the Difference

In the world of automotive and industrial applications, the choice between a 48V and a 12V battery system can have a significant impact on performance, efficiency, and overall functionality. As technology continues to advance, the demand for more powerful and efficient energy storage solutions has grown, leading to a closer examination of the advantages and disadvantages of these two voltage systems.

Table of Content

Understanding The Basics
Analysis Between 12V 100Ah VS 48V 100Ah
Full Comparision Between 48 Volt and 12 Volt System
One 48 Volt Battery VS Four 12 Volt Batteries in Series

One 48V Battery
Four 12V Batteries in Series

FAQs about 48 Volt and 12 Volt Battery System

Understanding The Basics

To fully understand the differences between 48V and 12V systems, it is important to have a basic understanding of some key electrical terms: volts, amps, and watts.

1. Volts

Voltage is the force that drives electric current through a wire. It measures how strongly electricity moves. Imagine visiting the dentist. The technician uses a waterpik to clean your teeth. The flow of water from the waterpik represents electric current. In this case, the water flow is low, but the pressure is high. This pressure can shoot water across the room. We measure this pressure in volts.

2. Amps

An amp, short for ampere, gauges the strength of electric current. Back to the waterpik analogy: the flow of water represents electric current. The strength of this flow, or current, is measured in amps.

Equipment requires a specific number of amps to operate. This means it draws amps from a circuit. Conversely, equipment creates an amp load on the circuit. Before purchasing equipment, ensure it won’t exceed your circuit’s amp capacity.

what are amps

3. Watts

Watts measure power. When amps and volts work together, they produce watts (amps x volts = watts). Watts show how much energy is used or produced over time. Picture a stream of water powering a water wheel. The water generates energy that the wheel uses. Watts measure this energy's rate of production or consumption.

In summary, volts measure potential difference, while amps measure current, or electrical flow. Watts is the product of volts and amps, and represents the power delivered by the system.

Now, let's apply this to our system: a 48V system has a higher voltage than a 12V system, and can deliver more power (watts) at the same current (amps). This is because power (watts) is the product of voltage (volts) and current (amps), so at the same current, the higher the voltage, the more power. This means that a 48V system is able to efficiently power more demanding appliances, which is especially beneficial in food trucks where space and power are limited. For example:

Analysis Between 12V 100Ah VS 48V 100Ah

When comparing battery systems, particularly for applications like renewable energy storage or electric vehicles, voltage and capacity are critical factors. Here, we analyze the differences between a 12V 100Ah battery and a 48V 100Ah battery.

1. Power Calculation:

48v x 100 amps = 4800 watts
12v x 100 amps = 1200 watts

The 48V battery system can deliver significantly more power (4800 watts) compared to the 12V system (1200 watts). This higher power output makes the 48V system more suitable for high-demand applications, where more energy is required in a shorter time.

energy of 48v battery system

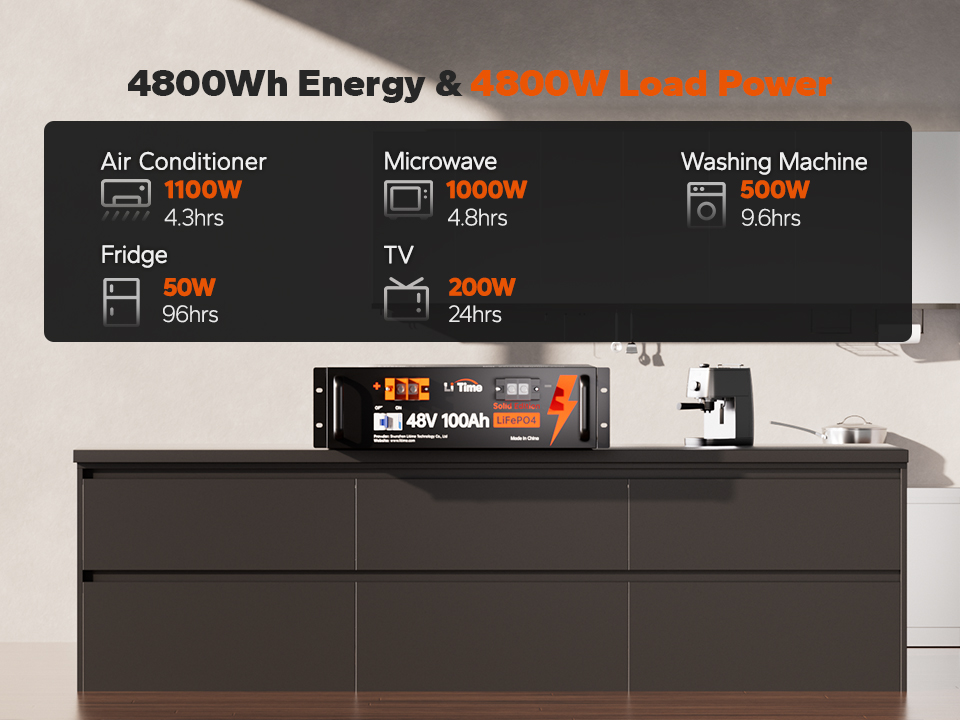

LiTime 48V 100Ah Server Rack LiFePO4 Off Grid Battery

2. Efficiency

Higher voltage systems, like 48V, require less current to deliver the same amount of power.

For instance, to achieve 4800 watts at 48V, the current draw is 100A. However, to achieve the same 4800 watts at 12V, the current draw would be 400A (4800W / 12V = 400A).

For better understanding, we can use a water flow analogy. Imagine that volts are the water pressure in the hose, amps are the flow rate of the water, and watts are the total power of the water spray.

In this analogy, a 48V system is like having a hose with higher water pressure (volts) than a 12V system. If both hoses release water at the same flow rate (amps), the hose with the higher pressure (48V system) can spray the water farther or more forcefully.

This is similar to how a 48V system delivers more power (watts) at the same current, effectively powering more demanding devices like espresso machines, ice cream makers, or panini sandwich makers.

3. Wiring and Installation

1) Wire Size:

Due to the higher current draw in a 12V system, thicker wires are required to handle the increased load without overheating.

Conversely, the 48V system can use thinner wires, which can reduce costs and make installation easier.

2) Distance:

Higher voltage systems can transmit power over longer distances with less voltage drop. This makes 48V systems more versatile for larger installations where battery banks may be situated far from the load.

3. Battery Size and Weight

1) Physical Size:

Higher voltage batteries may be more compact for the same power output, making them easier to integrate into various applications.

2) Weight:

While both systems have the same energy capacity (100Ah), the design and construction of the battery can differ. Sometimes, higher voltage batteries may be heavier due to additional components, but they often compensate for this with increased efficiency and reduced wire size.

4. Application Suitability

12V Systems: Commonly used in automotive applications, small-scale solar setups, and backup power for household appliances.
48V Systems: More suitable for larger solar installations, electric vehicles, or applications requiring a significant power output, such as commercial energy storage systems.

5. In Summary:

48V System:

Higher Voltage: A 48V system has a higher voltage compared to a 12V system. This higher voltage allows the system to deliver more power (watts) for the same current (amps) compared to a 12V system.
Power Delivery: With higher voltage, a 48V system can efficiently deliver more power to demanding appliances, making it suitable for applications where higher power output is required, such as electric powertrains and advanced driver assistance systems.
Efficiency: The higher voltage in a 48V system can result in more efficient power delivery, especially in applications with higher power demands.

12V System:

Standard Voltage: A 12V system has been the traditional standard for automotive and many industrial applications. While it has been reliable, it may not deliver as much power as a 48V system for the same current due to its lower voltage.
Power Limitations: In a 12V system, the lower voltage may limit the power output and efficiency, especially in modern applications with higher power demands.

In a space-limited environment like a food truck, the power demands can be significant, especially with various appliances such as refrigerators, cooking equipment, and lighting. A 48V system's ability to efficiently deliver more power for the same current can be crucial in meeting the demands of these appliances while optimizing space and energy usage.

Feature	12V 100Ah	48V 100Ah
Power Output	1200 Watts	4800 Watts
Wire Size Requirement	Thicker wires needed	Thinner wires can be used
Distance Capability	More voltage drop over distance	Less voltage drop over distance
Physical Size	Generally larger for same power	More compact for same power
Weight	Can be lighter	May vary, often heavier due to components
Common Applications	Automotive, small solar setups	Larger solar, electric vehicles, commercial storage

Full Comparision Between 48 Volt and 12 Volt System

Efficiency and Performance

In the bustling world of food trucks, efficiency is not just a preference but a necessity. Compared to 12V, a 48V battery system ensures critical components like grills and refrigerators operate smoothly and consistently. During peak hours, a 12V system might struggle to keep up with demand, potentially leading to slowed operations. In contrast, a 48V system provides steady and robust energy output, ensuring uninterrupted service even under heavy load.

Safety Considerations

Safety is paramount when evaluating battery systems. 48V batteries are much safer than their 12V counterparts due to reduced current draw, minimizing the risk of overheating and electrical hazards. This enhanced safety contributes to a secure working environment, making 48V systems a wise choice, particularly in demanding applications like food trucks.

Battery Storage

48V batteries stand out for their space efficiency, requiring less physical space while delivering substantial power. This efficiency is particularly valuable in applications where space is limited, such as in food trucks. With 48V batteries, operators can maximize power storage within a smaller footprint, ensuring a reliable and robust energy supply.

Cost-Effectiveness and Financial Impact

The reduced wiring requirements of 48V systems lead to significant savings on both material costs and installation labor. In contrast, 12V systems require more extensive wiring due to their higher current demands, contributing to higher upfront and operational costs. The cost-effectiveness of 48V systems becomes evident as they minimize both wiring and equipment expenditures, making them a financially prudent choice, especially for food truck operations where prudent financial decisions significantly impact long-term profitability.

Scalability with 48V Systems

With their higher power capacity, 48V systems are inherently better equipped to accommodate business growth and the integration of additional appliances. This scalability ensures that as a food truck business expands, the 48V system can readily adapt to meet evolving needs without the need for extensive upgrades or replacements. In contrast, 12V systems offer limited scalability for growing power demands, often necessitating costly system upgrades when additional appliances are introduced. This flexibility and expandability make 48V systems a forward-thinking choice for food truck owners seeking reliable power and room for future growth and enhanced operational efficiency.

Aspect	48V System	12V System
Power Output	Offers higher power output, suitable for demanding applications such as electric power trains and advanced driver assistance systems.	Standard power output suitable for traditional automotive components. May not meet higher power demands.
Efficiency	More energy efficient, especially in high-power applications, reducing energy losses and improving overall efficiency.	Less energy efficient, particularly in high-power applications.
Safety	Requires additional safety considerations due to higher voltage, posing greater risks of electrical shock.	Generally considered safer due to lower voltage, reducing the risk of electrical shock.
Storage	Can store more energy, suitable for high-power applications and providing longer driving ranges in electric vehicles.	May not be as suitable for applications that require higher energy storage capacity.
Cost Efficiency	Higher initial implementation cost due to specialized components and safety measures. Long-term cost efficiency can be significant.	More cost-effective in terms of production, maintenance, and replacement components.
Scalability	Highly scalable, accommodating increasing power demands and future technology advancements.	Limited scalability in applications that require higher power output and advanced functionalities.

One 48 Volt Battery VS 4*12 Volt Batteries in Series

When comparing a single 48-volt battery to four 12-volt batteries connected in series, several factors come into play, including ease of installation, maintenance, cost, and overall system performance. Let's examine each way's pros and cons.

One 48V Battery

Pros:

Space Efficiency: Requires less space due to a single unit design.
Simpler Installation: Fewer connections and wiring make installation easier and quicker.
Lower Weight: Generally lighter than multiple batteries, improving overall vehicle efficiency.
Reduced Maintenance: One battery means less maintenance and monitoring.
Consistent Power Output: Provides stable voltage, reducing the risk of performance issues.

Cons:

Higher Initial Cost: A 48V battery can be more expensive upfront compared to multiple lower-voltage batteries.
Single Point of Failure: If the battery fails, the entire system goes down.

Four 12V Batteries in Series

Pros:

Lower Initial Cost: Often cheaper to purchase four 12V batteries than a single 48V battery.
Flexibility: Easier to replace individual batteries if one fails, allowing the system to continue functioning.
Widely Available: 12V batteries are common and readily available, offering many choices.
Customizable Configurations: Can be configured for different voltages and applications.

Cons:

Space Requirements: Takes up more physical space due to multiple batteries.
Complex Installation: More wiring and connections increase installation complexity and potential for errors.
Increased Weight: Heavier overall, which may affect vehicle performance.
Maintenance: Requires monitoring of multiple batteries, increasing maintenance efforts.

In summary, the choice between a single 48-volt battery and four 12-volt batteries in series depends on specific requirements such as space limitations, cost considerations, ease of installation, and the desired level of redundancy. Each setup has its advantages and drawbacks, and the decision should be based on the specific needs and constraints of the application.

LiTime 12 Volt batteries can be connecet in sereis and parallel to create 48 volt battery system.

connect battery in sereis and parallel

When linking LiFePO4 batteries in a series, several factors should be taken into account:

1. Consistency: It's crucial to employ cells or batteries with matching specifications, including capacity and age, in a series connection. Mismatched cells can lead to voltage imbalances, resulting in overcharging or undercharging of individual cells or batteries. Therefore, when connecting the battery in sereis or parallel, please make sure that:

The batteries must be identical in capacity (Ah) and have the same battery management system (BMS) rating (A).
They should be from the same brand, as lithium batteries from different brands feature unique BMS configurations.
It’s best to purchase them within a similar timeframe, ideally within one month.

2. Charging: In a series connection, overcharging can happen if one cell or battery reaches full charge before others. To mitigate this, a battery management system (BMS) is advised to monitor the voltage of each cell or battery in the series connection.

3. Safety: With a series connection, the total voltage output increases, raising the risk of electrical shock. Proper insulation and grounding of the battery pack must be considered for safety purposes.

Furthermore, it's not advisable to connect old and new batteries (purchased within 1 month) as they may have different internal resistance, impacting the overall battery pack performance. Using batteries with consistent performance and avoiding mixing lithium-ion batteries of different brands, capacities, or types is crucial. Lastly, always pay attention to the battery polarity to prevent voltage drops or other hazards.

Choosing the Right System for Your Needs

When deciding between a 48V and a 12V battery system, it's essential to consider the specific requirements of the application. For high-power electric and hybrid vehicles, as well as advanced industrial machinery, the benefits of a 48V system in terms of power, efficiency, and advanced features make it an attractive option. On the other hand, for applications where compatibility, cost-effectiveness, and reliability are paramount, a 12V system may be the better choice.

FAQs about 48 Volt and 12 Volt Battery System

1. Is a 48V battery better than 12V?

A 48V battery system outperforms a 12V system, ensuring that essential components like your grill, refrigerator, and lights run smoothly and consistently.

2. Is a 48V inverter more efficient than a 12V?

When a 48V inverter converts power, it operates much more efficiently than a 12V to 120V inverter because of its higher voltage. This results in less energy waste, longer battery life, and reduced operating costs.

3. Can I charge a 48V battery with solar panels?

Yes, you can charge the 48V or 12V battery with the solar panel, the size of the panels depends on how many ah the battery is. Battery with larger ah needs higher watt solar panels.

To charge safely, it's best to use the solar charge controller when charging.
