L12V100-100-XTRA-MINI-BT-4-A55
x1
30 Days Returns
Local Warehouse Free Shipping
5 Years Warranty
Protection Upgrade

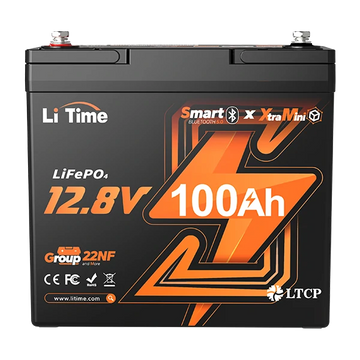

Hot LiTime 12V 100Ah Xtra-Mini Bluetooth Small LiFePO4 Deep Cycle Battery
$375.99
$469.99
Ends in:
:
:
:
03
Days
03
Hrs
03
Mins
03
Secs
Redefining Limits in Size & Weight, ideal for flexible DIY installations.
- Breaking Dual Limits: Smallest & lightest 12V 100Ah LFP battery—compact Group 22NF (9.02×5.43×8.19 in) & ultra-light 19.13 lbs, DIY-friendly.
- Innovation in Every Inch: LiTime Xtra-Mini redefines power density (194.7Wh/L) with next-gen smart BMS and advanced space compression tech—all in the smallest form.
- Smart Bluetooth 5.0, 1S Battery Check: Track SOC, power, and voltage in real-time. Monitor & manage battery system instantly via the LiTime App.
- LiTime Self-Developed BMS: 15 years of expertise bring 20+ smart protections, smart activating to ensure maximum battery safety and minimize failure risks.
- Built for Extreme Conditions: Designed to endure extreme weather with low-temp cut-off protection, auto-recovery from overload (30s), and more.
- EV-Grade Cells: 4000 cycles @100% DOD, 6000 @80%, 15,000 @60%. Each cell has a unique ID for full traceability, ensuring top-tier quality through 80+ tests.
- Massive Power, Ultra-Compact: 1280Wh, 100A continuous, 300A (5s), 500A (1s), and 1C fast charging—full charge in 1 hour.
- Multi-Directional Mounting: Install front, side, or bottom to fit any setup.
- Power Where Space Matters: A true DIY power module. Ideal for RVs, trolling motors, mobility scooters, off-grid storage, and home backup power.
<span style="font-weight: bold;">LiTime Day Flash Sale Ends In:</span>
00D
00H
00M
00S
Best Seller
1 Pack
$375.99
$469.99
Ideal for RV, Marine & Off-Grid Adventures
2 Pack
$740.70
$939.99
Best Value
1 Pack + 14.6V 20A Charger （non-waterproof）
$473.83
$629.99
Power longer stays with 14.6V 20A Ultra Fast AC-DC Charger
Quantity
Frequently bought together
$375.99
$469.99
FREE delivery Fri, Aug 14 - Mon, Aug 17
30 Days Returns
Local Warehouse Free Shipping
5 Years Warranty
Protection Upgrade
1
/
10
Redefining Compact Power Innovation
LiTime relentlessly innovates, driven by 3.5 million users. We pioneered the industry's Mini battery concept in 2019, and now lead again with our groundbreaking Xtra-Mini evolution. Imagine packing more power! Featuring next-gen smart BMS and advanced space compression, we deliver top performance in the smallest form, achieving a record 194.7Wh/L energy density and leading the industry forward.
Small in Size, Big on Power
Power your RV/off-grid life or trolling motor with unwavering confidence. LiTime Xtra-Mini delivers maximum reliable energy (19.13 lbs!) where space is precious. Our 16-year BMS expertise and EV-grade cells ensure lasting performance. Stay informed with Bluetooth, recharge ultra-fast in 1 hour, and mount it your way.
Industry Smallest and Lightest Lithium Battery
Unlock unprecedented installation flexibility. LiTime breaks dual limits – delivering the smallest and lightest 12V 100Ah Lithium battery. At just 19.13 lbs and compact Group 22NF dimensions (9.02*5.43*8.19 in), it's specifically designed for the tightest spots in small trucks, campers, trailers, teardrop trailers, and kayaks where both size and weight matter critically.
Lighter and Smaller than Ever
23% lighter than standard 12V 100Ah LFP batteries—only 19.13 lbs! A massive 70% lighter than 12V 100Ah AGM. Half the size of Group 31, yet packed with powerful performance. Perfect for RV travelling, fishing, camping, off-grid, and more. Reduce weight, maximize efficiency, and enjoy hassle-free installation for your off-grid adventures.
LiTime Always Goes Beyond Innovation
LiTime Xtra-Mini is a breakthrough innovation, overcoming technical barriers to lead the newest technology. With next-gen smart BMS and advanced space compression technology, it achieves a record-breaking 194.7Wh/L power density in the smallest form. This cutting-edge design sets a new industry standard, delivering unparalleled performance and efficiency for space-conscious energy solutions.
LiTime Bluetooth 5.0 for Smarter Control
Stay in control with Smart Bluetooth 5.0—monitor your battery in real-time within 10m, eliminating the hassle of manual checks. Automatically connect to your phone and track SOC, voltage, current, power, cycles, and temperature with ease. Remotely switch discharge on/off and manage your system effortlessly, ensuring smarter, stress-free energy management.
Automatic Protection in Extreme Temperatures
The built-in low-temperature cut-off ensures charging stops below 32°F (0°C) to protect your cells, automatically resuming at 41°F (5°C). Discharge halts below -4°F (-20°C), ensuring your battery stays safe and reliable in extreme cold. No more manual shutdowns or worrying about battery performance—focus on your winter adventures while your battery takes care of itself.
EV-Grade Cells with Over 80 Tests
EV-grade cells are built for ultimate safety and durability. With 4000 cycles at 100% DOD, 6000 at 80%, and 15,000 at 60%, each cell is uniquely identified for full traceability. Over 80 rigorous tests ensure premium quality, covering both safety (puncture, crush, drop, vibration, short circuit, salt spray, and more) and electrical performance (high/low temperature, cycling, and more).
Self-Developed BMS and 20+ Protections
LiTime's self-developed BMS offers 20+ smart protections, including safeguards against over-charge, over-discharge, over-current, over-heat, and short circuits. Upgraded with low-temp cut-off, moisture proofing, salt-spray resistance, and 30-second auto-recovery from overload, ensuring maximum safety and reliability—perfect for users in demanding environments, eliminating worries about battery failures or performance issues.
Xtra-Mini's Versatile Charging Options
The 12V 100Ah Xtra-Mini supports multiple charging methods for convenience and efficiency. For optimal performance, use a 14.6V 20A AC-DC charger (5 hours) or a 14.6V 80A AC-DC charger (1.25 hours) for faster charging. To preserve battery life, charge at 0.2C for long-term use. For quick recharges, 1C fast charging is ideal. You can also use solar panels (≥400W) for eco-friendly charging or an alternator with a 40A DC-DC charger (2.5 hours).
Reliable Energy for RVs, Boats, Off-Grid & More
The LiTime 12V Xtra-Mini is designed to fit perfectly in tight spaces, effortlessly powering small trucks, campers, trailers, teardrop trailers, and kayaks. It's the ideal choice for RVs, electric boat motors, mobility scooters, camping, off-grid storage, and home backup power. Additionally, it can power cleaning machines, ride-on scrubbers, electric wheelchairs, and scooters, providing reliable and efficient energy in a variety of settings.
Small Size, Big Impact in Your Life
Details of the Product
BATTERY
Cell Type
LiFePO4
Warranty
5 Years
Cycle Life
4000 Cycles at 100% DOD, 6000 Cycles at 80% DOD, 15,000 Cycles at 60% DOD
Nominal Voltage
12.8V
Rated Capacity
100Ah
Energy
1280Wh
Max. Expansion (Parallel & Series)
4P4S
Internal Resistance
≤40mΩ
Certifications
FCC ID, CE, RoHS, UN38.3, MIC
Bluetooth
√
Self-Heating
/
BMS
BMS
100A
Max. Continuous Output Power
1280W
Max. Continuous Charge Current
100A
Max. Continuous Discharge Current
100A
Max. Discharge Current 1 Second
500A
CHARGE
Charge Method
CC/CV
Charge Voltage
14.4 ± 0.2V
Recommend Charge Current
20A
TEMPERATURE
Charge Temperature
0°C to 50°C / 32°F to 122°F
Discharge Temperature
-20°C to 60°C / -4°F to 140°F
Storage Temperature
-10°C to 50°C / 14°F to 122°F
Low-Temperature Protection
√
Automatic Discharge Off
<-4°F/-20°C
Automatic Charge Off
＜32°F/0°C
Automatic Charging Recovery
≥41°F/5°C
OTHERS
Terminals
M8 Bolts
Weight Approx.
19.13 lbs
Size
L9.02*W5.43*H8.19 in (Group 22NF Size)
Housing Material
ABS
Protection Class
IP65
1 Pack
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
L12V100-100-XTRA-MINI-BT-4-A55
x1
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
2 Pack
L12V100-100-XTRA-MINI-BT-4-A55
x1
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
L12V100-100-XTRA-MINI-BT-4-A55
x1
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
1 Pack + 14.6V 20A Charger （non-waterproof）
L12V100-100-XTRA-MINI-BT-4-A55
x1
14.6V 20A AC-DC charger
x1
M8 Screws
x2
Insulation Caps
x2
Flat Washer
x2
L12V100-100-XTRA-MINI-BT-4-A55
x1
14.6V 20A AC-DC charger
x1
M8 Screws
x2
Insulation Caps
x2
Flat Washer
x2
What makes the Xtra Mini 12V 100Ah battery different from a regular 12V 100Ah LiFePO4 battery?
The Xtra Mini is 50% smaller and 23% lighter than standard 12V 100Ah LiFePO4 batteries. It's ideal for users who have limited space in RVs, small boats, camping setups, or DIY solar systems. Despite the compact size, it still delivers a full 1280Wh of energy with 100A BMS support.
How can I monitor the battery's data?
You can monitor real-time battery data through the LiTime App, including:
- State of Charge (SOC)
- Voltage
- Current (charge/discharge)
- Battery temperature
- Cycle count
- Remaining capacity
Can I connect multiple Xtra Mini batteries in parallel or series?
LiTime 12V batteries support versatile configurations, including series, parallel, and series-parallel connections.
- Series connection: Up to 4 batteries
- Parallel connection: Up to 4 batteries
- Series-parallel connection: Up to 16 batteries
Important Notes:
For safe and stable operation, all connected batteries must meet the following criteria:
✔ Same specifications – Identical capacity (Ah) and BMS rating (A)
✔ Same brand – Different brands may have incompatible BMS settings
✔ Purchased within a short timeframe (ideally within one month)
Can I use Xtra Mini Lithium batteries as starting batteries?
No. As deep cycle batteries, the xtra mini batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices.
Visit LiTime marine starting batteries for starting needs.
Is the Xtra Mini suitable for outdoor and mobile use?
Yes! With its IP65 rating, rugged case, and compact size (10.2 x 7.1 x 8.2 in, 19.77 lbs), the Xtra Mini is ideal for:
- Kayaks and small boats
- RVs and van life
- Camping battery boxes
- Off-grid portable systems
How to Charge Your LiTime 12V 100Ah Xtra Mini Battery
1. LiFePO4 Battery Charger
For the most reliable performance, use a 14.6V LiFePO4 smart charger.
Charging Specs:
- Recommended Voltage: 14.2V – 14.6V
- Charging Current Options:
20A (0.2C): Full charge in ~5 hours
50A (0.5C): Up to 100% charge in ~2 hours
2. Solar Panels
With 400W solar panels and around 4.5 hours of effective sunlight, you can fully charge the battery in a day.
- For systems ≥400W, actual charge time may vary depending on sunlight intensity and duration.
- Use a compatible MPPT solar charge controller to ensure safe and efficient charging.
3. Generator or Vehicle Alternator
- DC Output (Alternator): Requires a DC-DC charger to safely connect to the battery.
- AC Output (Generator): Use a LiFePO4-compatible AC charger between the generator and battery.
Charging Specs:
- Voltage: 14.2V – 14.6V
- Current Options:
20A (0.2C): Full charge in ~5 hours
50A (0.5C): Charges to ~100% in ~2 hours
Can I charge LiTime Xtra Mini small lithium batteries in cold weather (under freezing temperatures)?
LiFePO4 batteries can safely charge between 0℃ to 50℃ / 32℉ to 122℉. LiTime XtraMini lithium battery include the low-temperature charging protection which will automatically cut the battery charging off when the cell temperature is lower than 32℉, thus preventing the battery cells from damage when charging under the freezing point.
It's recommended to charge the battery indoor when it's cold day. For more detailed guidance, visit the LiFePO4 Temperature Range page.
How do I store LiTime Xtra Mini LiFePO4 lithium batteries?
For optimal longevity, store your LiFePO4 batteries under the following conditions:
Storage Recommendations
- State of Charge (SOC): Store batteries at a 50% state of charge. Avoid storing them fully charged or completely discharged.
- Regular Recharging: If storing for an extended period, recharge the batteries to 50% at least every three months to prevent deep discharge and maintain cell balance.
- Temperature: The ideal storage temperature is between -10°C to 50°C / 14°F to 122°F.
- Humidity: Maintain a relative humidity of 45% to 75%.
- Protective Casing: It is highly recommended to store the batteries in a dedicated battery box to protect them from physical damage, dust, and moisture.
Best Practices for Long-Term Storage
For storage exceeding three months, adhering to these guidelines will significantly preserve your battery's health and performance:
- Disconnect Completely: Ensure the batteries are disconnected from all loads and charging sources. This prevents slow parasitic drains that can lead to over-discharge.
- Avoid Extreme Temperatures: Storing batteries outside the recommended temperature range can accelerate degradation. In particular, high heat can permanently damage the battery's capacity.
- Cycle Before Use: After a long storage period, it's good practice to cycle the battery (one full charge and discharge) before putting it back into regular service.
B
I replaced two LiTime group 31 batteries with two xtra mini 100 AH batteries. I was not sure if they could power the trolling motor the same. But so far so good. Bought me tons of space in the bow of my boat as now the two batteries fit in a battery compartment for one group 31 battery. Outstanding
j
Works as expected. As do my other 4 Litime batteries. The Xtra Mini fit in the space I had available with some room to spare.
B
What a battery. Super compact tons of power. Wasn’t available in Canada only had 50ah in the xtra mini.
R
Surprised how small the battery is definitely will be replacing the rest of my old ones
R
Plug and play, I use 20 amp charger. Works as expected. Bluetooth app on my android is easy and tells me everything except individual cell voltage. I have many different Litime batteries and they work great. Even in the cold with built-in heaters for freezingtemperatures .
C
Took the boat out today and tried the livescope battery for the first time. I spent 4 hours on livescope with the126SV screen and only used 10%. I was very impressed with how this battery performed today.
J
Nice battery small lightweight easy Store wish it would last a little longer
D
It has been working great! No issues. I like the small form factor. Easy to use and move around.
