12V 320Ah Mini Battery
x1
30 Days Returns
Local Warehouse Free Shipping
5 Years Warranty
30 Days Price Match

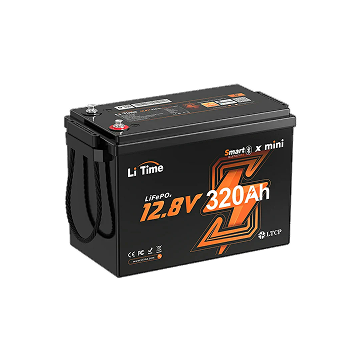

Hot LiTime 12V 320Ah Mini Bluetooth Lithium Battery for RV, Off-Grid, Marine and Truck
$829.99
$999.99
Ends in:
:
:
:
03
Days
03
Hrs
03
Mins
03
Secs
Mini Size: L15.12*W7.64*H9.76 in, 4096Wh of energy and only 57.17 lbs, all packed into a compact mini-size battery
More Power: 200A BMS supports continuous output of 2560W and a peak discharge current of up to 1000A for inverters and appliances
Smart Monitoring: Bluetooth 5.0 lets you monitor battery status in real time through the LiTime App
Outdoor-Ready Protection: IP65 and low-temp cut off support tough conditions
Expandable Long Life: 4000+ cycles and 4P4S expansion for long-term power builds, complies with the IEC 62619 standard
Stay Cool: Ensures stable performance for reliable parking AC use to stay cool all night
<span style="font-weight: bold;">LiTime Day Flash Sale Ends In:</span>
00D
00H
00M
00S
Best Seller
1 Pack 12V 320Ah Mini
$829.99
$999.99
Weekend RV, boat & camping power
Best Seller
1 Pack 12V 320Ah Mini + 14.6V60A Charger
$1,048.48
$1,399.99
Longer trips with faster charge
Best Value
1 Pack 12V 320Ah Mini Off-Grid Kit
$1,504.96
$2,065.99

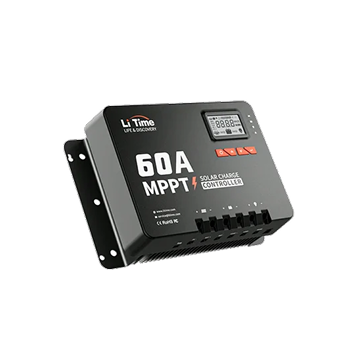

Power longer stays with 60A DC-DC, 60A MPPT & 3000W Inverter
2 Pack 12V 320Ah Mini (save 3%）
$1,610.18
$999.99
3 Pack 12V 320Ah Mini
$2,402.82
$999.99
4 Pack 12V 320Ah Mini
$3,187.16
$999.99
Quantity
Frequently bought together
$829.99
$999.99
FREE delivery Fri, Aug 14 - Mon, Aug 17
30 Days Returns
Local Warehouse Free Shipping
5 Years Warranty
30 Days Price Match
1
/
10
Redefining Compact Power Innovation
LiTime relentlessly innovates, driven by 3.5 million users. We pioneered the industry's Mini battery concept in 2019.

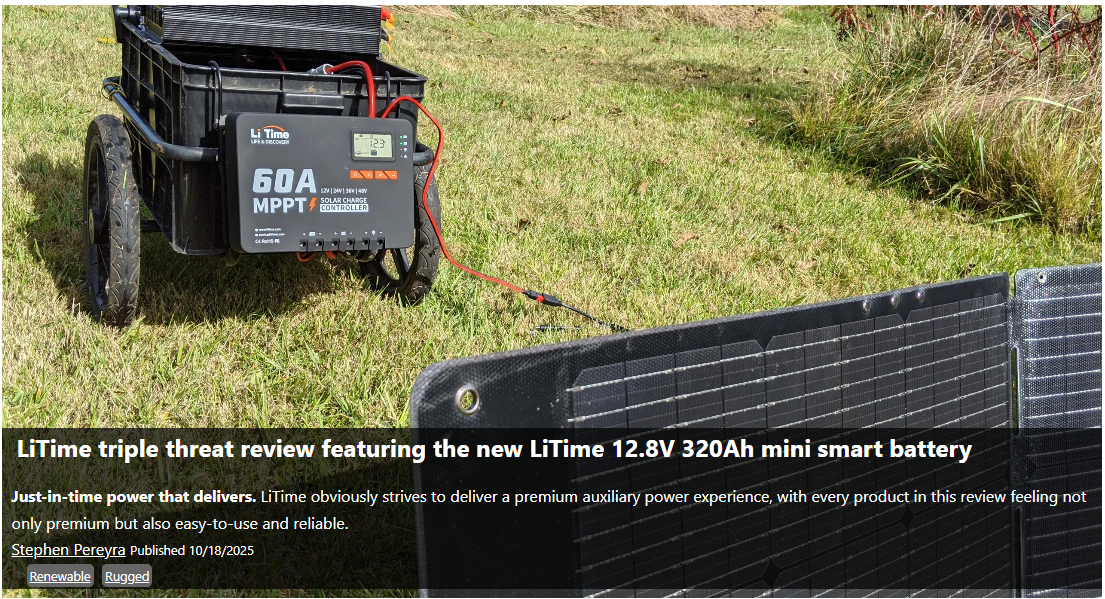

Top Review by NotebookCheck
Featured on NotebookCheck, our 12V 320Ah Mini Battery stands out with cutting-edge performance and smart Bluetooth control. Click here to read the full review.
Stop playing 'Storage Tetris'
Your RV space is for living, not for heavy lead-acid batteries. Stop sacrificing storage for power. Switch to LiTime 12V 320Ah Mini—31% smaller, 55% lighter, and zero space-wasting.
Smart Control, be a 'Hands-off' Explorer
Stop babysitting your power system. Easily check the small 12v lithium battery status, track SOC, and manage your power system—thanks to Bluetooth 5.0 and the LiTime App. Whether you're on the road, at sea, or off the grid, the power is in your palm.
Heavy Loads, Handled with Ease
The self-developed 200A BMS delivers a continuous output of 2560W and supports a peak discharge current of up to 1000A—ready to power inverters, air conditioners, electric stoves, and more. Built for high-demand use, without compromise.
Winter-Proof, Fail-Safe
Worrying about freezing temps killing your battery? Low-temperature cut-off protection keeps your small lithium battery protected. Ready for all seasons, from -4°F to 140°F.
One Battery, Zero Compromise
Replace bulky lead-acid setups with a single 12V 320Ah Mini Battery—lighter, longer-lasting, and 100% easier to install. No more complex wiring, just safe, clean, reliable power.
Real Power, Real Freedom
Power your essentials for over 2 days with four LiTime 12V320Ah batteries mini—delivering 16,384Wh of usable energy for fridges, lights, AC units, and stoves. Ideal for RVs, marine use, and full off-grid living.
Massive Power for Energy-Independent Living
Build your own 65.5kWh home energy wall with 4P4S expansion. Perfect for blackouts, solar-powered homes, or off-grid cabins—this is backup you can count on.
Power That Fits Every Way You Live

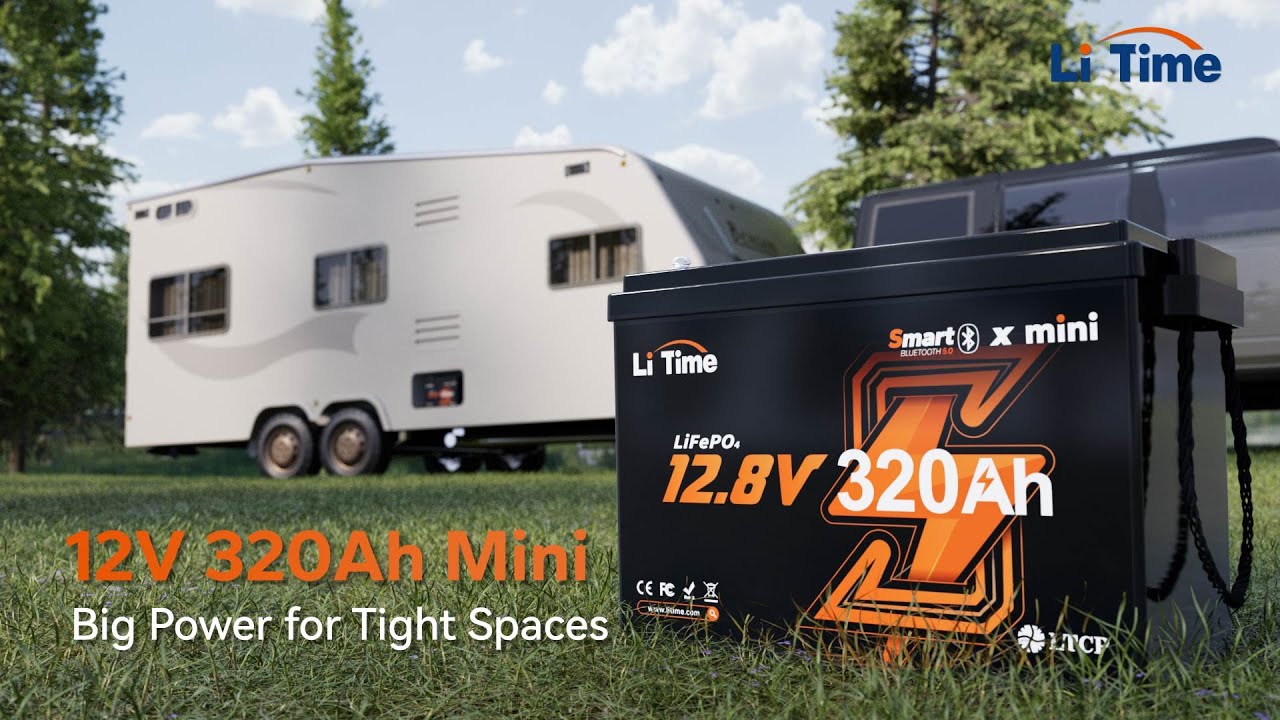

From RV road trips to remote cabins, backyard camping to life on the water—LiTime 12V 320Ah Mini battery brings reliable energy wherever your lifestyle takes you.
BATTERY
Cell Type
LiFePO4
Warranty
5 Years
Cycle Life
4000 Cycles at 100% DOD, 6000 Cycles at 80% DOD, 15,000 Cycles at 60% DOD
Nominal Voltage
12.8V
Rated Capacity
320Ah
Energy
4096Wh
Max. Expansion (Parallel & Series)
4P4S
Internal Resistance
≤40mΩ
Certifications
FCC, CE, RoHS, UN38.3
Bluetooth
√
Self-Heating
/
BMS
BMS
200A
Max. Continuous Output Power
2560W
Max. Continuous Charge Current
200A
Max. Continuous Discharge Current
200A
Max. Discharge Current 1 Second
1000A
CHARGE
Charge Method
CC/CV
Charge Voltage
14.4V ± 0.2V
Recommend Charge Current
64A
TEMPERATURE
Charge Temperature
0°C to 50°C / 32°F to 122°F
Discharge Temperature
-20°C to 60°C / -4°F to 140°F
Storage Temperature
-10°C to 50°C / 14°F to 122°F
Low-Temperature Protection
√
Automatic Discharge Off
<-4°F/-20°C
Automatic Charge Off
＜32°F/0°C
Automatic Charging Recovery
≥41°F/5°C
OTHERS
Terminals
M8 Bolts
Weight Approx.
57.17 lbs
Size
L15.12*W7.64*H9.76 in
Housing Material
ABS
Protection Class
IP65
1 Pack 12V 320Ah Mini
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
12V 320Ah Mini Battery
x1
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
1 Pack 12V 320Ah Mini + 14.6V60A Charger
12V 320Ah Mini Battery
x1
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2

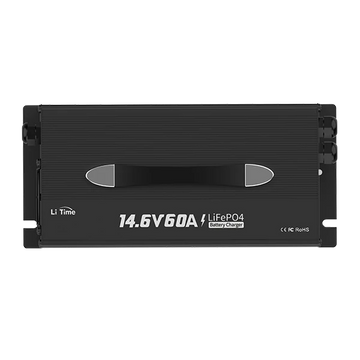

LT-L12V60A-BCHA-Y
x1
12V 320Ah Mini Battery
x1
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
LT-L12V60A-BCHA-Y
x1
1 Pack 12V 320Ah Mini Off-Grid Kit
12V 320Ah Mini Battery
x1

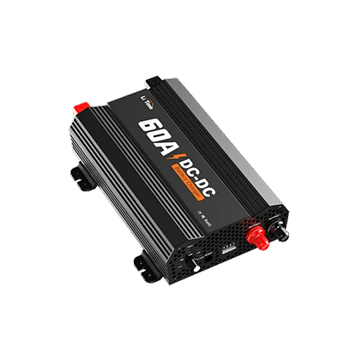

60A DC-DC
x1
60A MPPT
x1

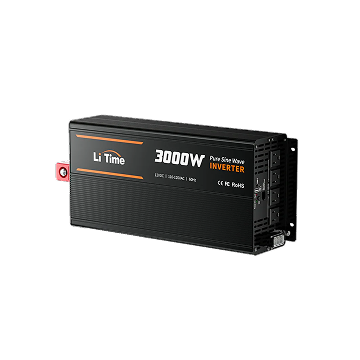

3000 Inverter
x1
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
12V 320Ah Mini Battery
x1
60A DC-DC
x1
60A MPPT
x1
3000 Inverter
x1
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
2 Pack 12V 320Ah Mini (save 3%）
12V 320Ah Mini Battery
x1
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
12V 320Ah Mini Battery
x1
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
3 Pack 12V 320Ah Mini
12V 320Ah Mini Battery
x1
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
12V 320Ah Mini Battery
x1
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
4 Pack 12V 320Ah Mini
12V 320Ah Mini Battery
x1
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
12V 320Ah Mini Battery
x1
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
What makes the LiTime 12V 320Ah Mini different from a regular 12V 300Ah LiFePO₄ battery?
The LiTime 12V 320Ah Mini battery delivers more energy with less bulk. It's 31% smaller than typical 12V 300Ah LiFePO₄ batteries and 55% lighter than three 100Ah lead-acid units—while offering a high-energy 4096Wh output and up to 200A continuous discharge. That means you get max energy density, easier installation, and better portability—all in one compact unit.

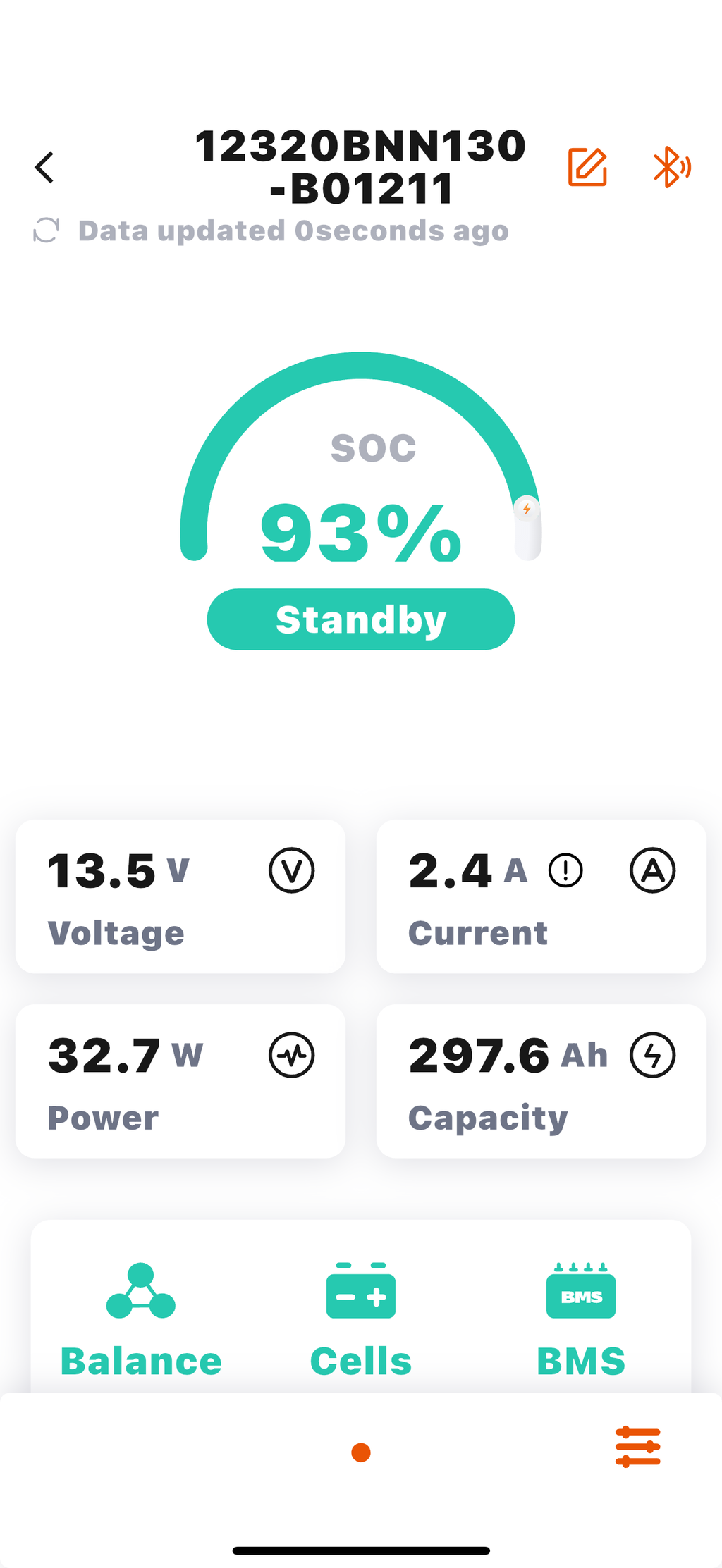

How can I monitor the battery's data?
You can easily monitor real-time battery performance via the LiTime App with Bluetooth 5.0, including:
• State of charge (SOC)
• Real-time voltage, current, and power
• Charge/discharge and standby status
• Battery temperature
• Cycle times
• Remaining capacity
This makes it simple to manage your power from your phone, wherever you are.
Can I connect multiple 12V 320Ah Mini batteries in parallel or series?
Yes. LiTime 320Ah Mini lithium battery supports support versatile configurations, including series, parallel, and series-parallel connections.
- Series connection: Up to 4 batteries (51.2V total).
- Parallel connection: Up to 4 batteries (1280Ah).
- Series-parallel connection: Up to 16 batteries (65.5kWh).
Important Notes: For safe and stable operation, all connected batteries must meet the following criteria:
✔ Same specifications – Identical capacity (Ah) and BMS rating (A)
✔ Same brand – Different brands may have incompatible BMS settings
✔ Purchased within a short timeframe (ideally within one month)
Is the 12V 320Ah Mini suitable for outdoor and mobile use?
Absolutely. With its IP65 waterproof and dustproof rating, rugged housing, and compact design relative to its size (15.12*7.64*9.76 in), the 320Ah Mini is well-suited for:
- RVs and van conversions
- Marine systems and houseboats
- Off-grid cabins and solar homes
- Remote work or camping setups
It’s built to perform in harsh environments, including high humidity, salt spray, and extreme temperatures from -4°F to 140°F.
How to charge the 12V 320Ah Mini Battery?
The LiTime 12V 320Ah Mini battery can be charged in four different ways:
1. Solar Panels and Controller
Recommended Solar Power: ≥1300W
The battery can be fully charged in one day using 1300W solar panels, assuming effective sunlight for about 4.5 hours.
2. Battery Charger
Use a lithium iron phosphate (LiFePO₄) battery charger to maximize charging speed and battery life.
Recommended Charger: LiTime 14.6V 60A Charger
3. Generator + AC to DC Charger
Recommended Charger: LiTime 14.6V 60A Charger
4. Alternator + DC to DC Charger
Recommended Charger: LiTime 12V 60A DC to DC Charger
You can learn more about how to charge lithium battery.
Can Bluetooth and non-Bluetooth batteries be connected in series or parallel?
It is strongly not recommended. Only Bluetooth-enabled batteries can be monitored individually, while the system as a whole cannot be tracked. Mixing them may compromise total capacity and system performance.
Is the BMS passive or active balancing?
The small 12v lithium battery uses passive balancing technology, which safely manages cell voltage differences to maintain battery longevity and stability.
Can I replace multiple Group 27/Group 31 batteries with a single LiTime 12V 320Ah Mini?
Yes. In many RV and marine systems, two or three Group 27 or Group 31 batteries are used to reach around 250–300Ah. The LiTime 12V 320Ah Mini battery delivers similar or greater capacity in one high-density LiFePO₄ pack.
Even though the Mini is slightly longer than a single Group 27/31 battery, the overall system becomes smaller and lighter because you no longer need multiple cases, trays, and interconnecting cables. This makes it a smart upgrade wherever space is tight—like under RV seats, in van cabinetry, or in compact boat lockers.
S
Great batteries and I would definitely order them again
A
Long lasting battery!! Perfect for boat.
M

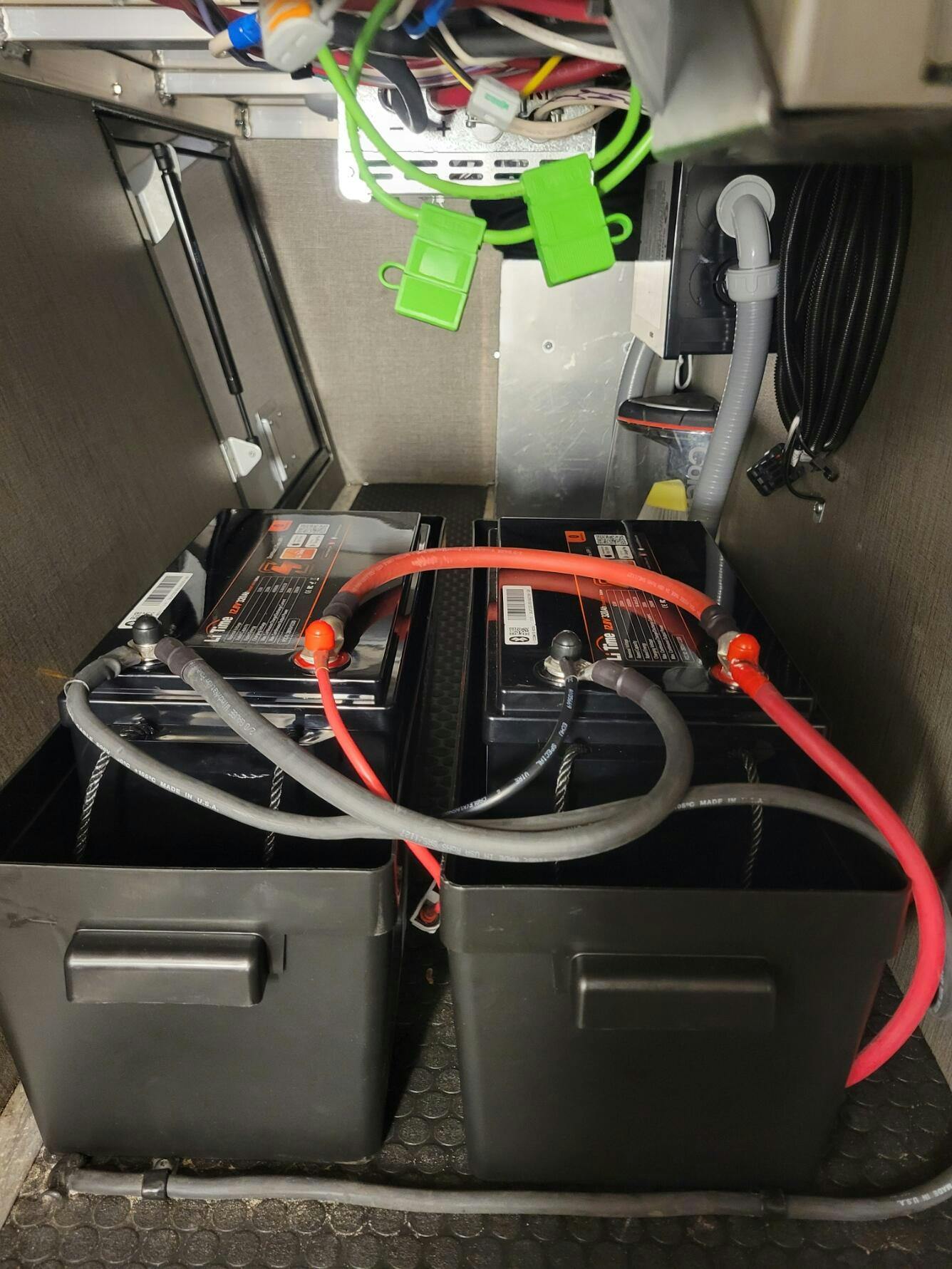

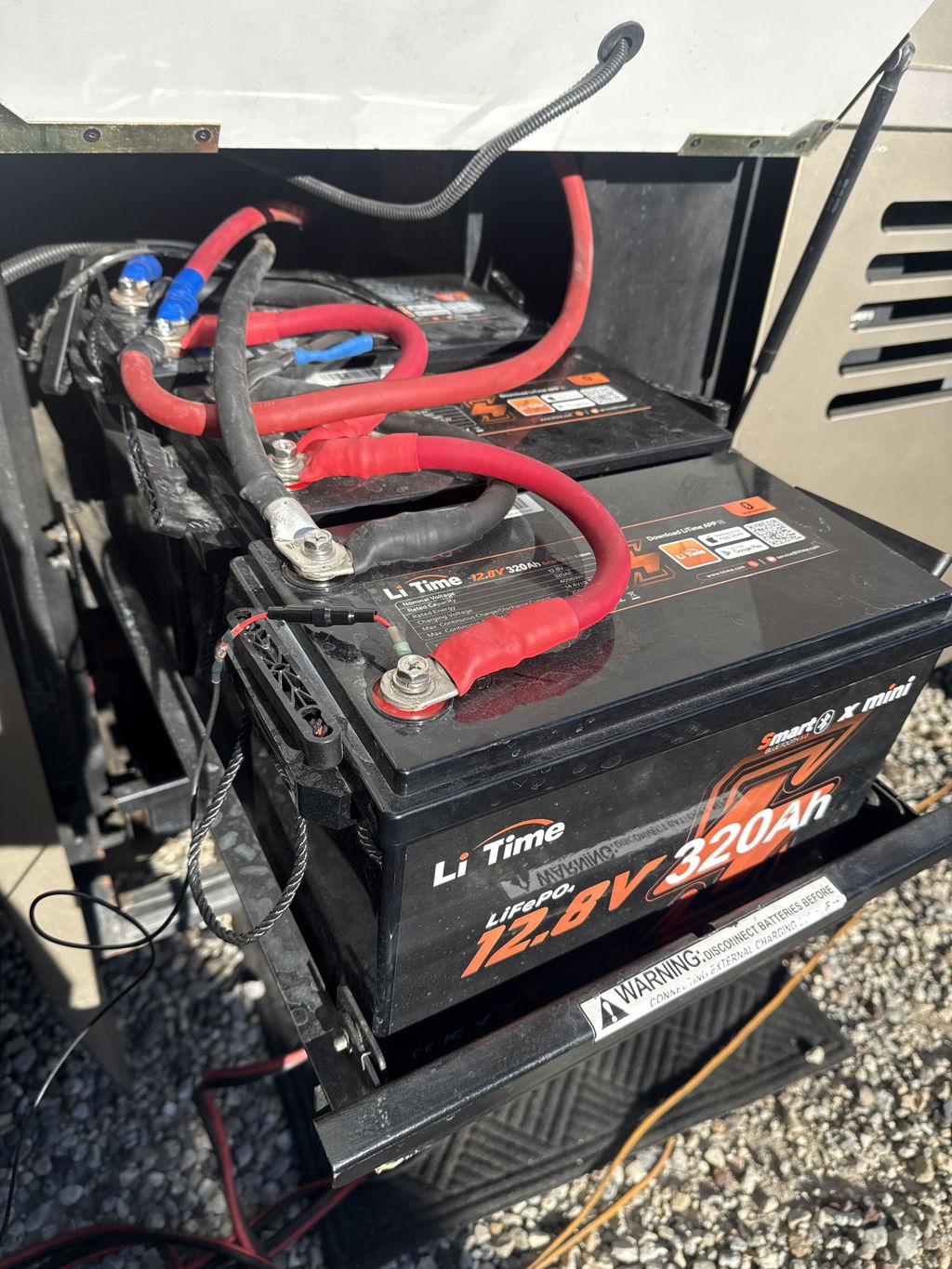

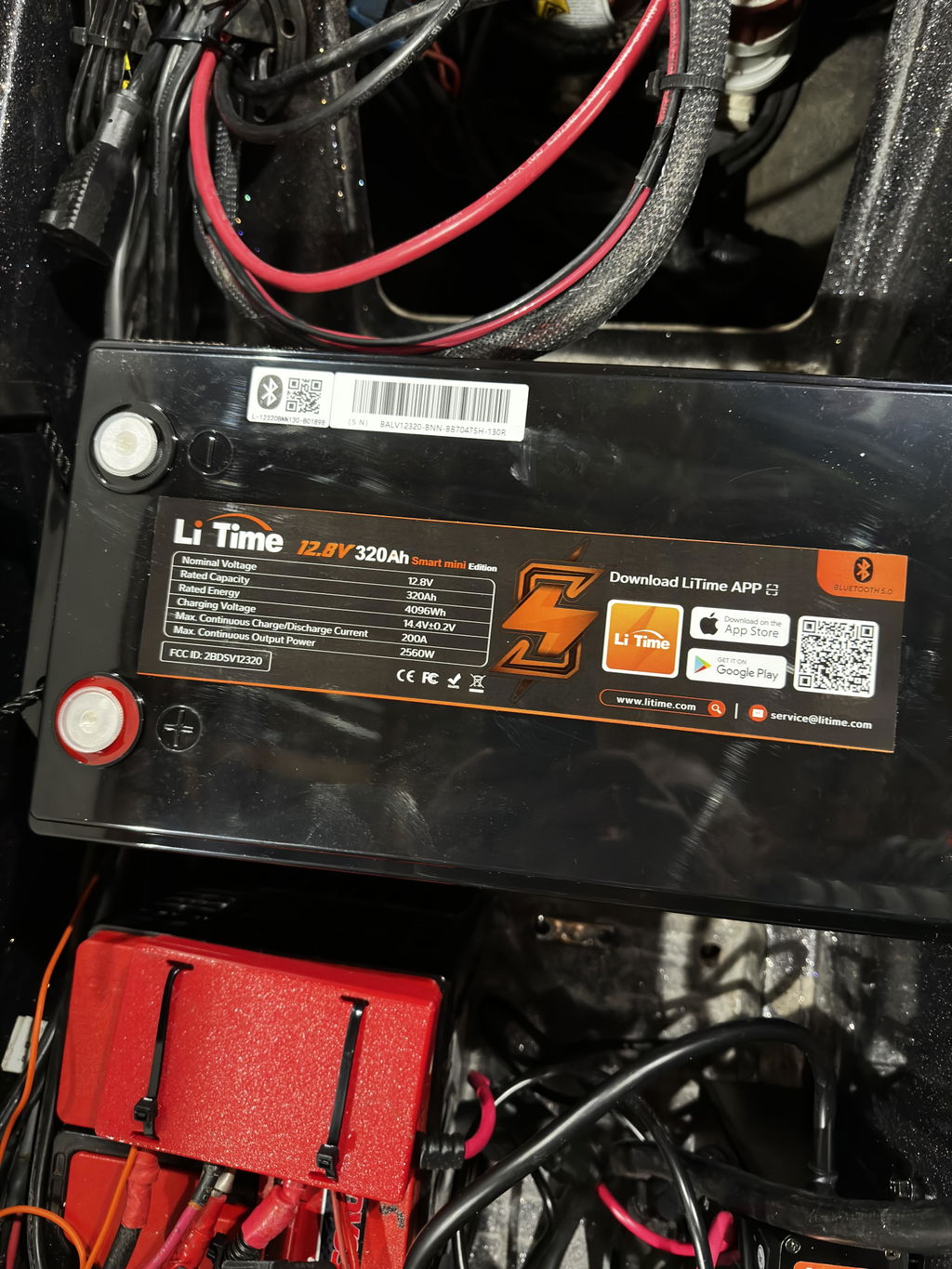

Shipped in a timely manner. Very well secured in the boxes. I received two 320 amp hour minis hooked them up a couple days ago. They are charging fine on my sailboat. The app works very well also. So far so good. I believe this will be a great product. I also have a 60 amp solar charger that I will be hooking up very soon.
D
Amazing battery!! 320 amp hours in a small package and at a great price. Best house battery ever! Run all your electronics for days!
M

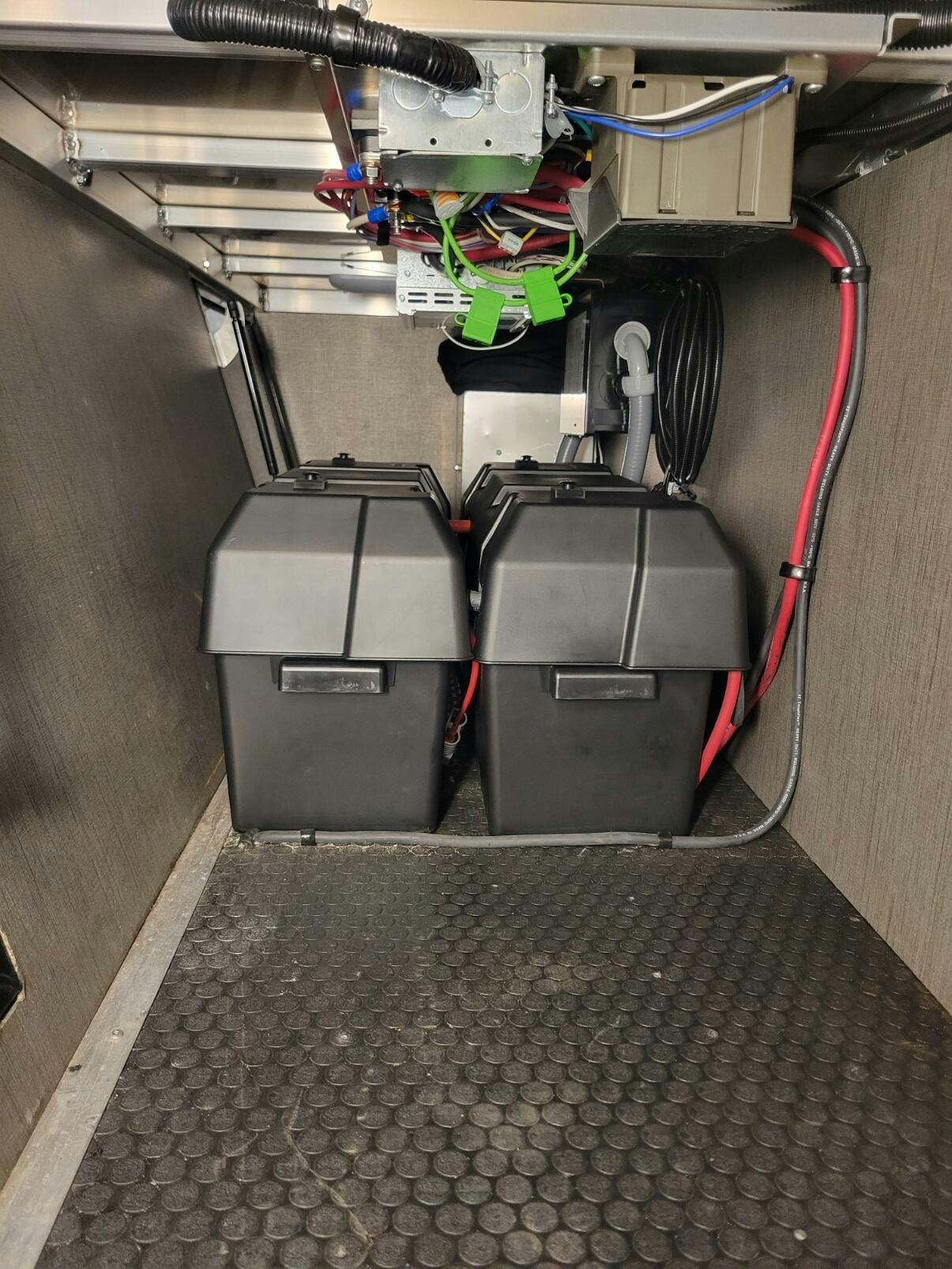

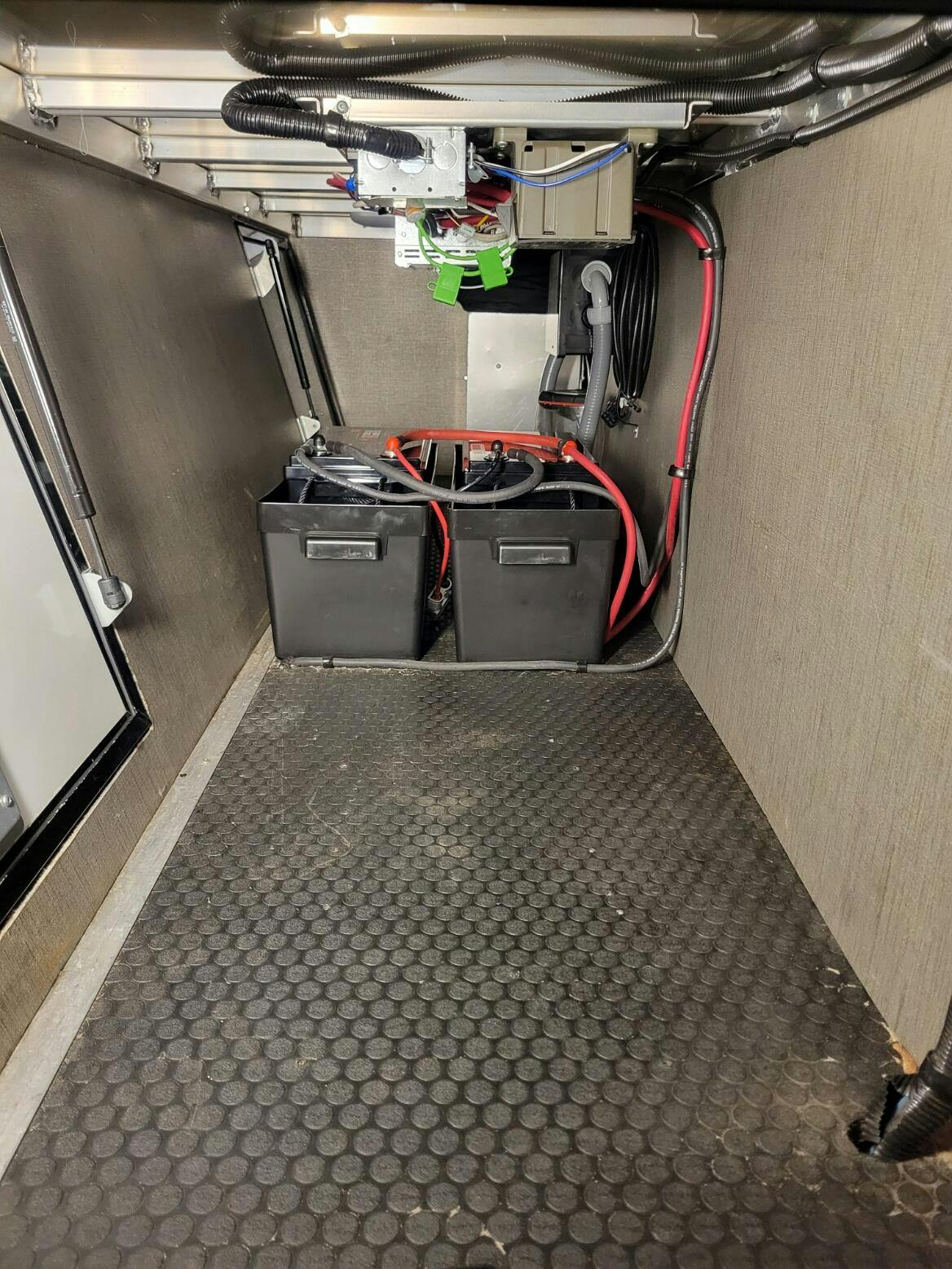

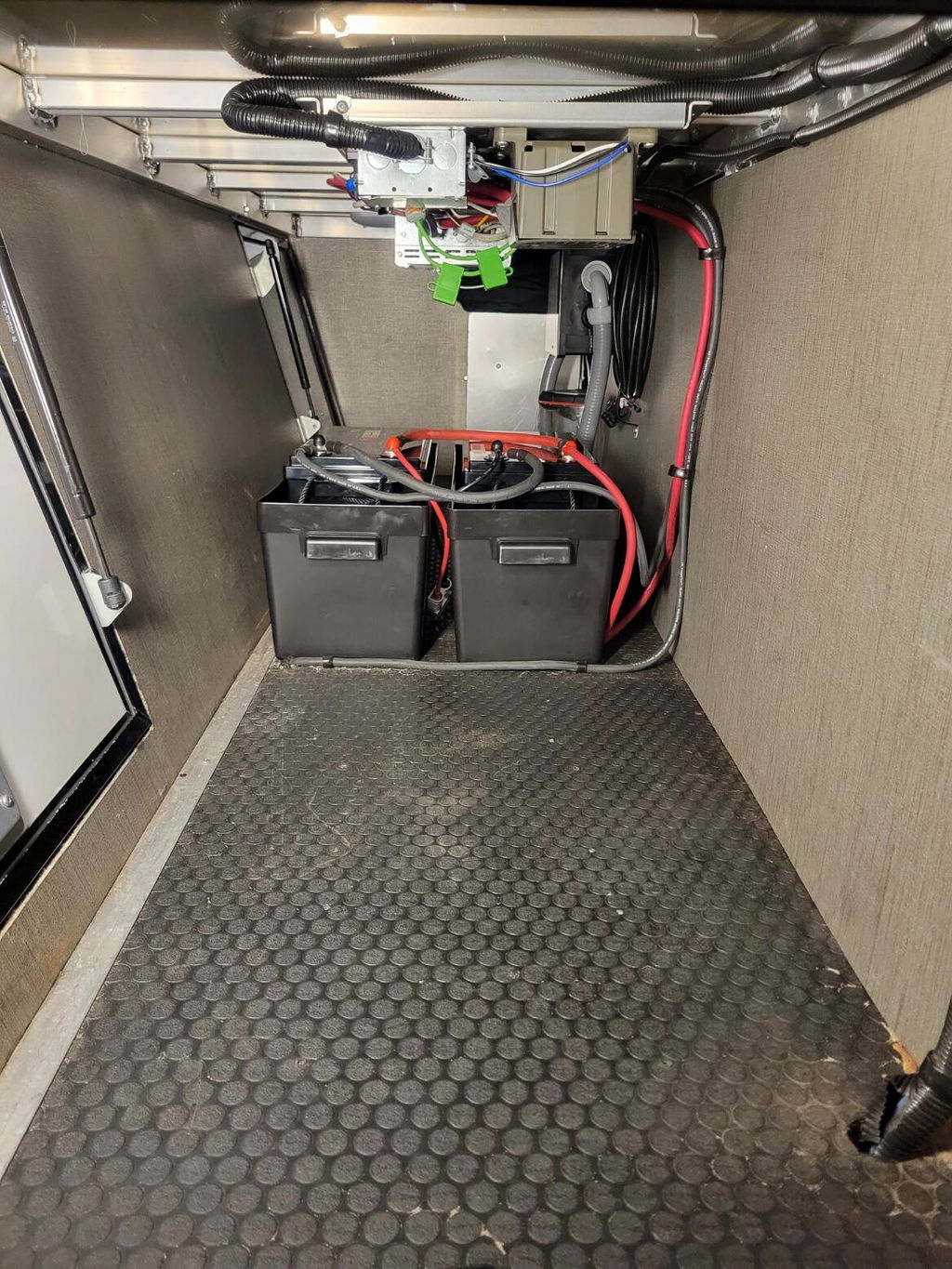

Litime battery was purchased to replace 2 lead acid batteries that came with our camper, this is a huge upgrade to keep our 12v refrigerator going while on the road. Great price from a very reputable company.
C

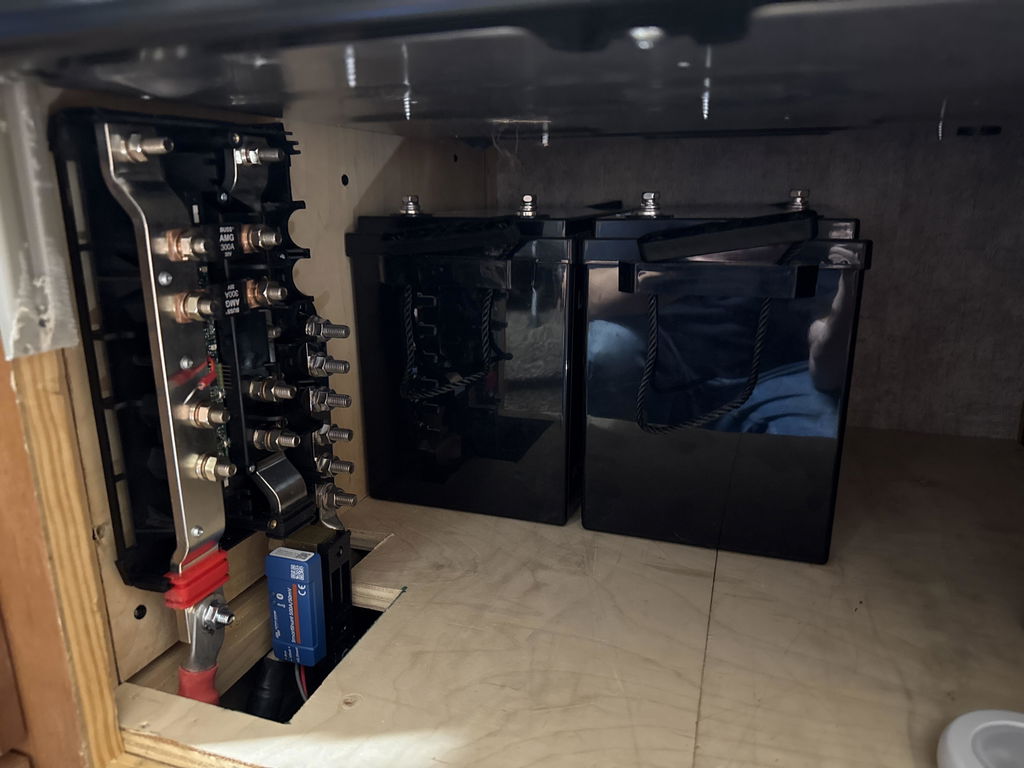

I’m using 2 of these in my truck camper in a 24v main battery bank. About to go with 4 because I’ve made the room. These 320ah batteries are game changers.
P
We tried dry camping and our 2 6v la's would only run us for about 14 hours. Took advantage of the holidays sales, purchased the two-pack giving us 640ah of usable power and a 60-amp AC charger. Super easy swap, one switch to flip, one controller to reprogram, a couple new boxes and some wiring. Had a power outage and the RV fridge was on with two air dryers, Ran for 24 hours before I noticed, checked the app and batt's were only down to 83 & 91 percents. This is going to work big time.
D

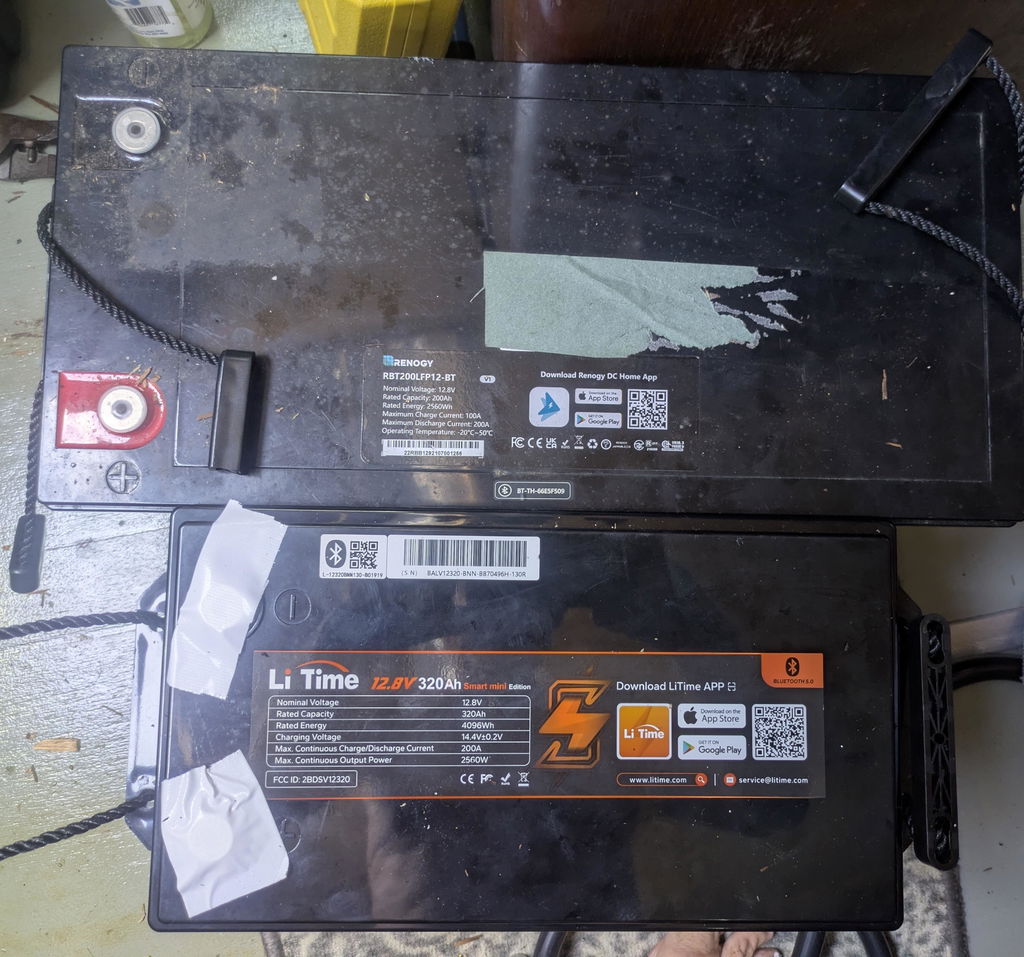

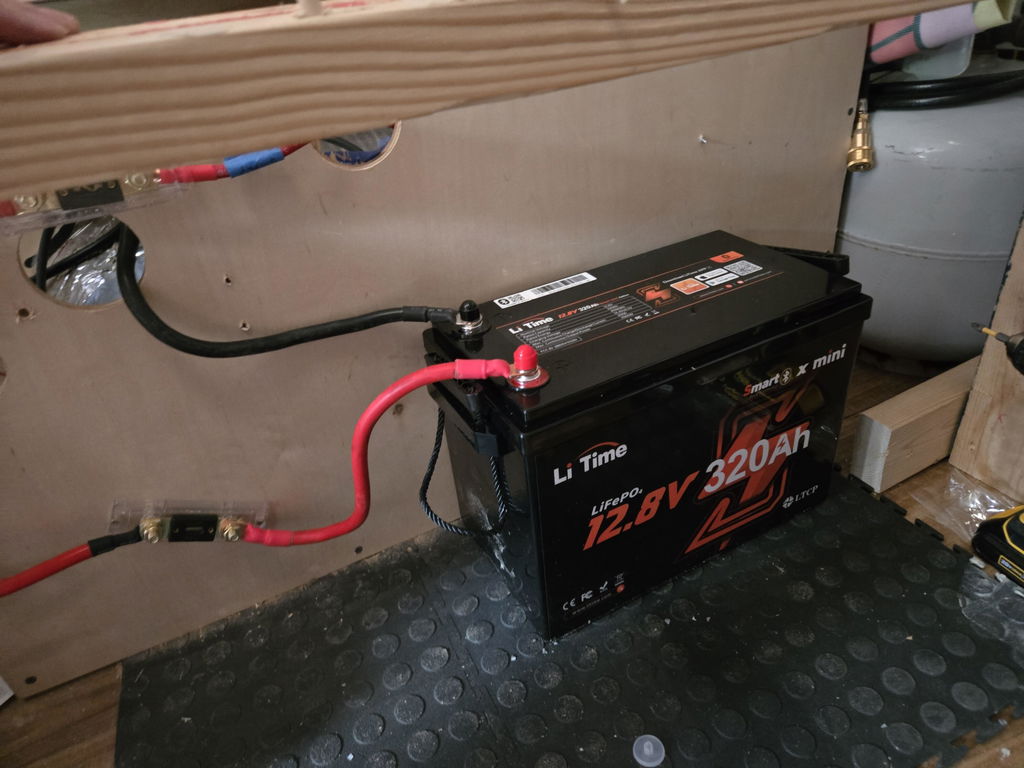

It arrived in a well packed box. it was bigger than my mind imagined but the measurements were correct. I had to take out the tray in my battery compartment if I wanted to put the cables on. Downloaded the app. Got it placed and hooked up then adjusted my charger for lithium and got the app synced to the battery. I love the real time data for charging and capacity and use. Haven’t started our travels yet but everything seems to be working. Looking forward to our trip.

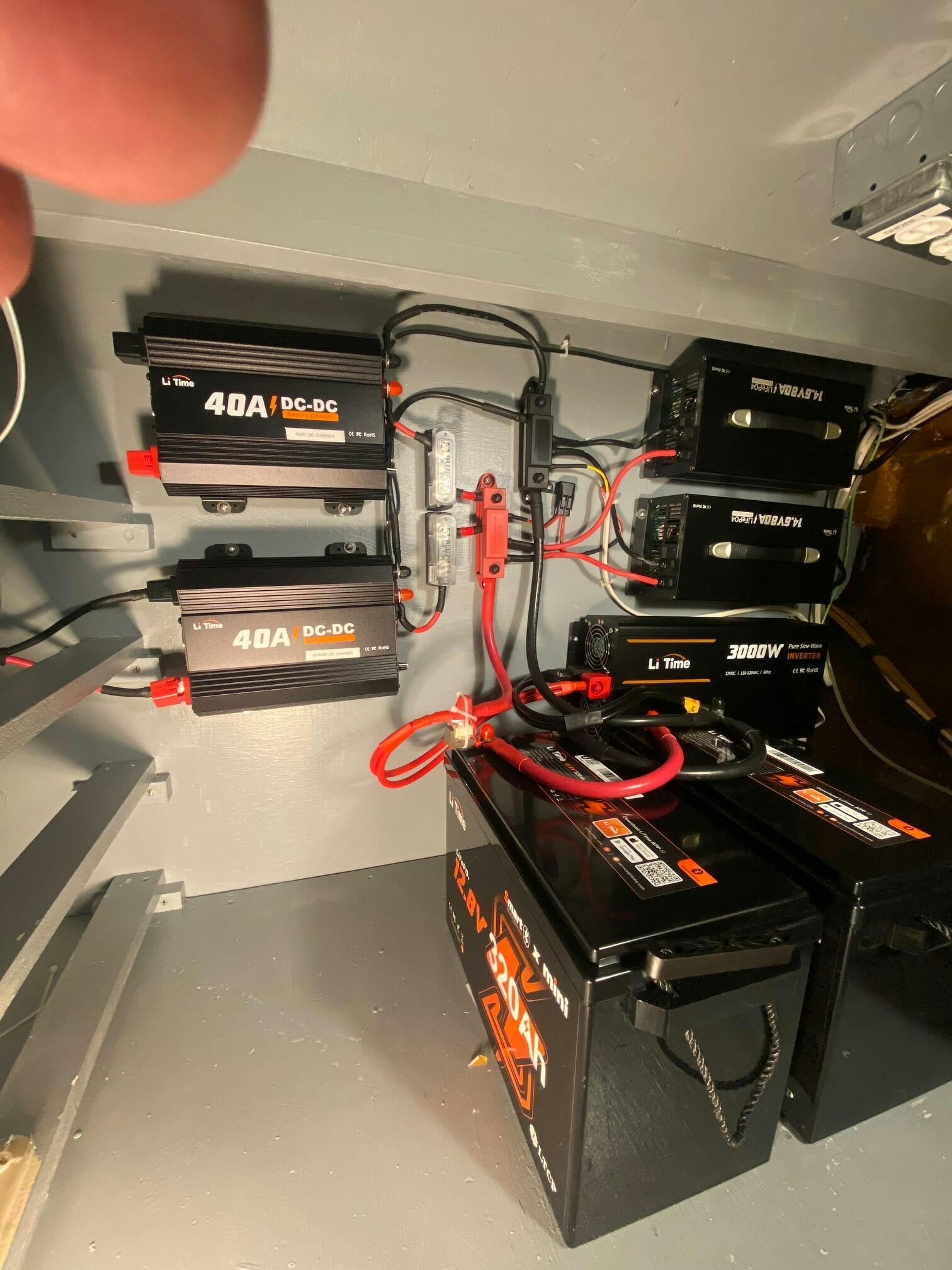

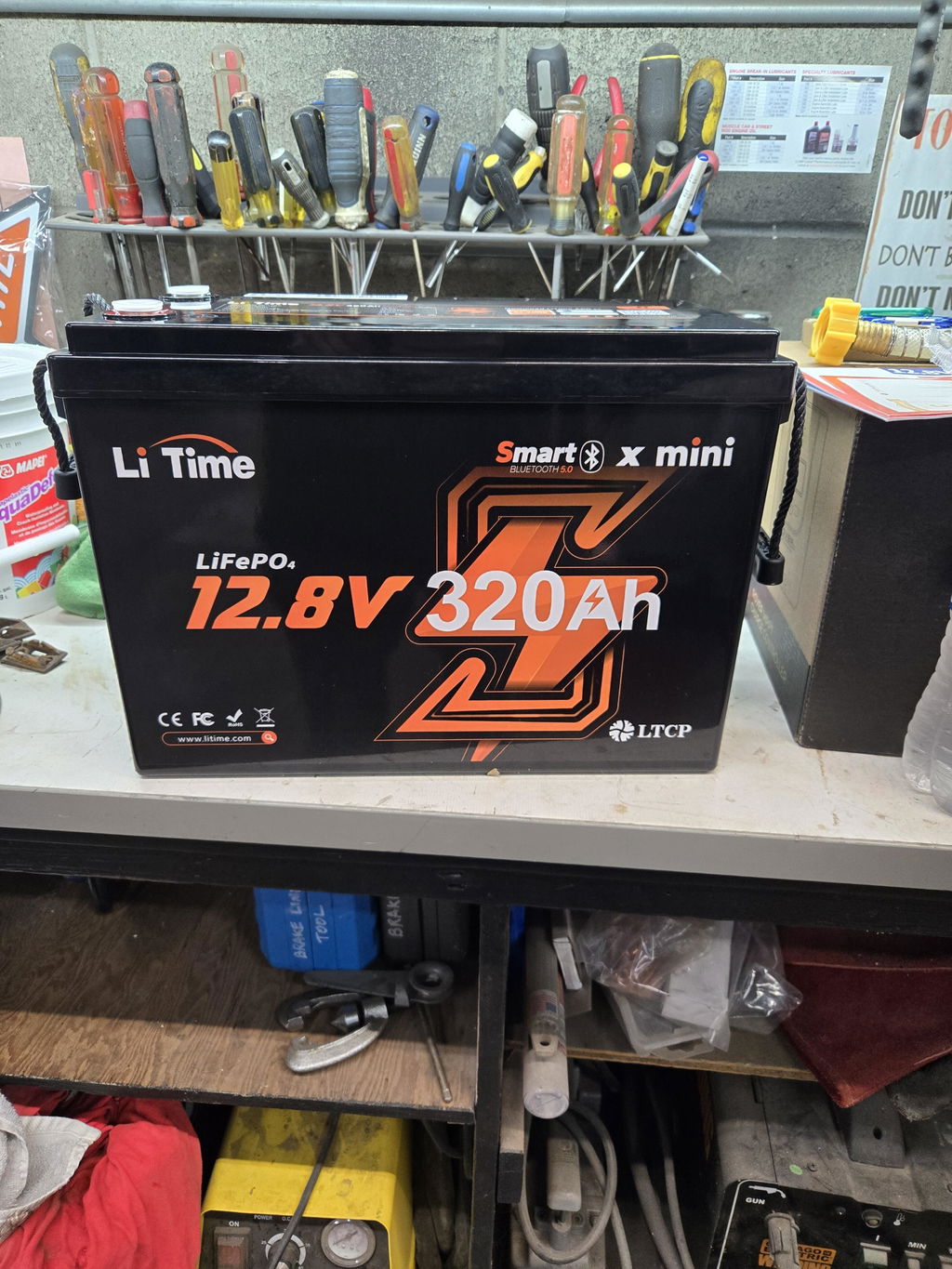

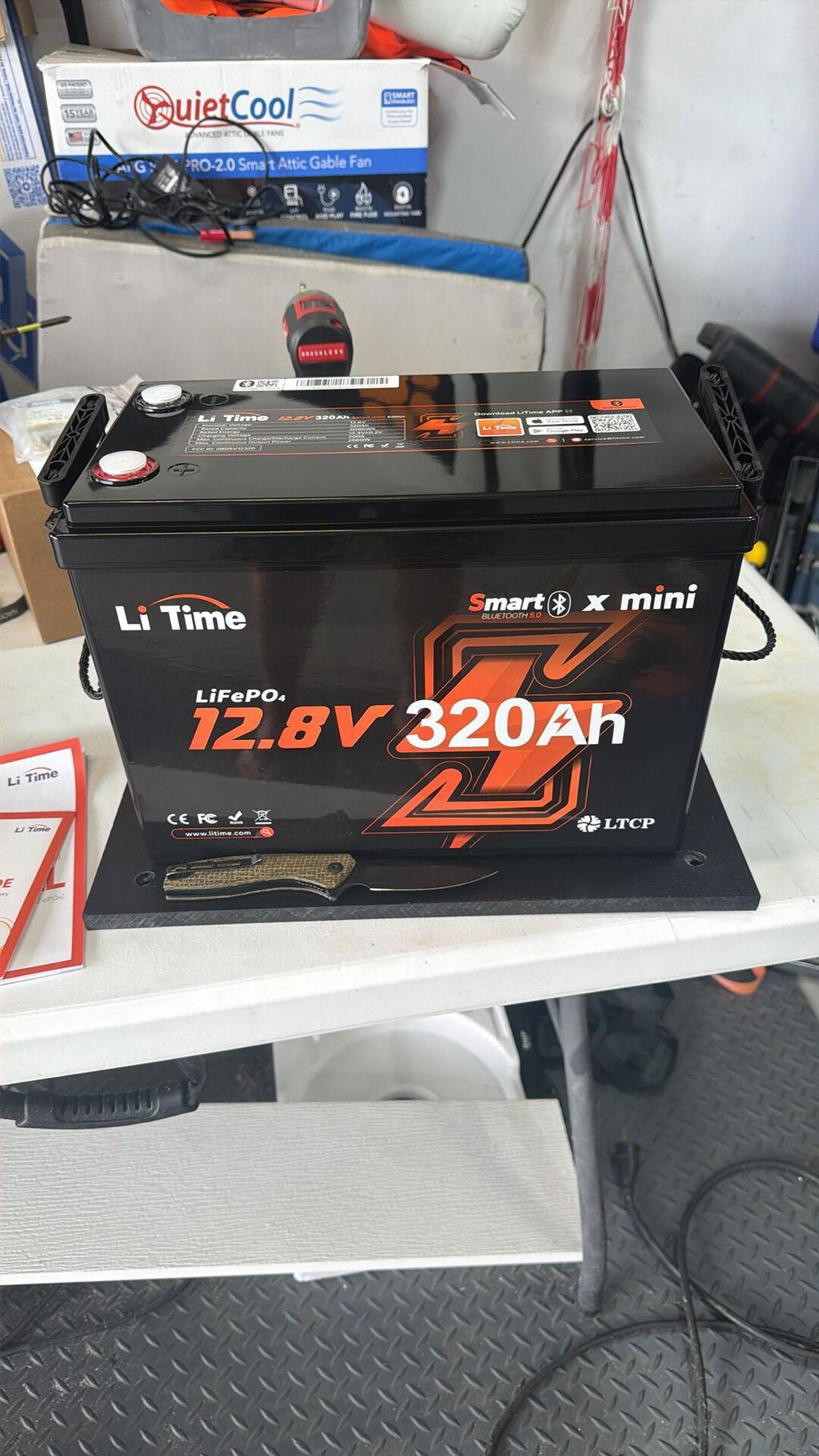

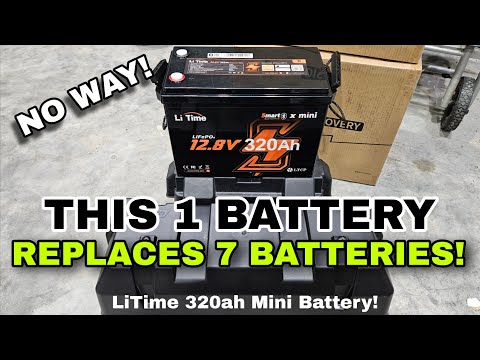

See the 12V 320Ah Mini in Real Setups
Watch real users put the LiTime 12V 320Ah Mini LiFePO4 Battery to work in RV, camping, off-grid, and everyday power setups. See how its high capacity and compact design help deliver longer-lasting power while saving valuable space.
