LiTime 24V 50Ah Group 24 TM LiFePO4 Trolling Motor Battery with Bluetooth
-
1,280Wh Longer Runtime: Built for 70–100 lb trolling motors, providing dependable 24V power for longer days on the water.
-
Stable Power Output: Delivers 50A continuous discharge and a peak discharge current of 250A for 1 second.
-
Smart Bluetooth 5.0: Track battery capacity, voltage, current, temperature, and operating status in real time through the LiTime App.
- Compact Group 24 Design: Weighs only 21.15 lb and measures 10.24 × 6.61 × 8.31 in. It takes up about two-thirds the space of two 12V 50Ah lead-acid batteries while providing approximately twice the usable energy.
-
20+ BMS Protections: Helps provide safer, more reliable power for demanding marine use.
-
Low-Temperature Protection: Automatically cuts off charging below 32°F (0°C) to help protect the battery cells from cold-weather damage.
- IP65 Protection: Water-resistant and dust-resistant for fishing and boating environments.
-
EV-Grade LiFePO4 Cells: Deliver 4,000–15,000 deep cycles and an expected service life of up to 10 years.
-
Flexible 2S4P Expansion: Build flexible 24V or 48V systems and expand up to 51.2V 200Ah, providing 10.24kWh of energy and up to 10.24kW of continuous output.
-
Four Charging Options: Supports compatible LiFePO4 chargers, solar charging systems, generators, and alternator charging equipment, with a maximum charging current of 50A.
-
Versatile 24V Power: Suitable for trolling motors, boats, golf carts, RVs, campers, off-grid energy storage systems, and more.
- Activation Note: Before first use or after manually shutting down the battery, connect a compatible charger to reactivate it. A LiTime 29.2V 20A LiFePO4 charger is recommended.
FedEx, UPS, or Amazon Logistics.
Ultimate Battery for 24V Trolling Motors
Specifically engineered for 70–100 lb thrust motors, the LiTime 24V 50Ah LiFePO4 battery delivers smooth, reliable performance on the water. With IP65 waterproofing and 60A continuous discharge (30mins), it's built for anglers who demand all-day power, without the bulk or worry.
Damage-Free Performance Even in Ice Fishing
With low-temp cut-off protection, LiTime 24V 25Ah trolling motor lithium battery pauses charging below 32℉, cuts off discharging below-4℉ and resumes safely above 5℉. It can protect your battery from cold damage so you can focus on the catch, not the conditions.
Smart Monitoring, Anytime, Anywhere
With built-in Bluetooth 5.0, LiTime 24V 50Ah trolling motor battery lets you monitor real-time battery and system status through the LiTime App. Easily check voltage, state of charge, temperature, and more—anytime, anywhere. Whether managing a single unit or a full setup, you stay informed and in control with just a tap on your phone.
New-Gen BMS, All-around Protection
More than just standard safeguards, the upgraded and self-developed BMS adds advanced features like low-temperature cut-off, auto-recovery from overload protection, pre-charging support, and moisture & salt-spray resistance. On top of essential protections like overcharge, short-circuit, and over-temp defense, this intelligent system ensures your battery stays safe, stable, and reliable—even in the toughest environments.
Built to Last with EV-Grade Cells
Powered by advanced LiFePO4 cells, LiTime 24V 50Ah lithium battery delivers 4000+ deep cycles@100% DOD, and gives you up to 10 years of reliable, maintenance-free use. With higher energy efficiency, zero toxic emissions, and a longer lifespan than lead-acid batteries, it’s an eco-friendly power solution that saves you money in the long run.
Smaller, Stronger, Smarter
Get the performance of two 12V 50Ah lead-acid batteries in one compact LiTime 24V 50Ah lithium battery. With 2X the usable energy and only 2/3 the size, it's easier to install, lighter to carry and perfect for tight spaces like boats - without sacrificing power.
Grow Your Power System as You Need
Expand your energy storage up to 10.24kWh with support for 4P2S configurations. LiTime 24V 50Ah trolling motor lithium battery is ideal for whole-home backup, off-grid cabins and solar systems. With up to 200A continuous discharge current and 10.24kWh load capacity, this system is built to handle high-demand appliances with reliable, flexible power - day or night.
One Battery, Power for Every Adventure
Whether you're cruising on a lake, camping off-grid, living in a van, or storing solar energy at home, LiTime 24V 50Ah LiFePO4 battery adapts effortlessly to your needs. Compact, long-lasting, and easy to use—it delivers reliable performance across all your adventures and everyday power setups.
4 Flexible Charging Ways
LiTime 24V 50Ah trolling motor LiFePO4 battery supports 4 convenient charging methods—LiFePO4 charger, solar panel (400W), alternator with DC-DC charger, and generator with AC-DC charger. Upon initial use or after manually powering off the battery, please ensure to connect the charger to turn on the battery. Recommended with LiTime 29.2V 20A battery charger.
.jpg)
Trusted Power for Every Journey
See What's Inside: Unboxing Now
BATTERY
BMS
CHARGE
TEMPERATURE
OTHERS
24V 50Ah TM Smart
12V 50Ah
12V 50Ah TM Smart
Can I use the 24V 50Ah trolling motor battery in electric outboard motor?
Normally, it's not recommended to use a battery designed for a trolling motor in an electric outboard motor since the surge discharge current might not be sufficient. Outboard motors often require higher power for acceleration and sustained operation, which can lead to higher surge currents that trolling motor batteries may not handle well.
If you’re planning to use an electric outboard motor, it’s best to invest in a battery specifically designed for such applications like LiTime Outboard Motor Batteries. These batteries are built to handle the high power requirements and ensure optimal performance and safety.
Read on Electric Outboad Motor VS Trolling Motor for more detailed information.
How do I monitor the 24 Volt 50Ah LiFePO4 battery status?

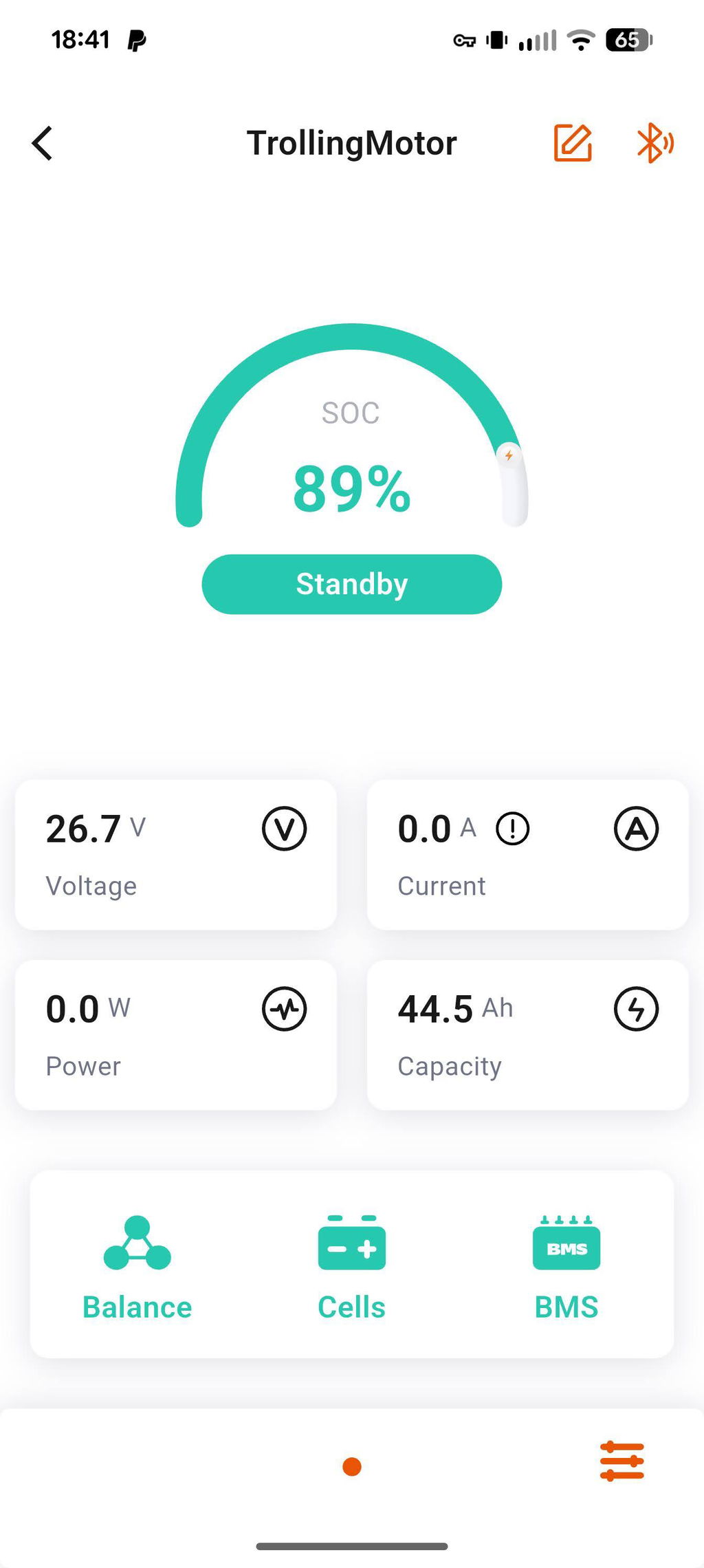

This 24V 50Ah lithium battery, equipped with an integrated Bluetooth module, enables convenient monitoring of the battery status using your smartphone through the LiTime App.
What to do when receive the 24V 50Ah lithium battery?
Please charge the 50Ah battery first after receiving it. This will ensure that the battery can be turned on and the Bluetooth connection is established.
Our Bluetooth batteries are delivered in the off state, the virtual voltage of the battery terminal is 3V-5V, this is a normal phenomenon, just use the AC-DC lithium battery charger or MPPT solar charge controller to charge the battery and turn on the battery, it can be used normally.
Can I use the 24V 50Ah battery to start my car/boat engine?
No. This battery not intended to be used as starting batteries but energy storage, please do not use them to start any devices. If you need the marine starting batteries, visit LiTime 12V 20Ah Marine Cranking or 12V 165Ah Dual Purpose battery to choose.
For more information to tell the differeces among these 2 types batteries, read on our blog Deep Cycle VS Starting Battery.
Which pound thrust trolling motor is compatible with the battery?
70-100 lbs
Hard to beat LiTime lithium batteries. With longer life and a fraction of the weight of lead acid batteries you'll be trolling on this battery long after your buddies lead acid battery is dead. The bluetooth app gives you peace of mind, knowing exactly how much battery life you have left at any trolling speed. These batteries are a game changer!!
Upgraded to a 24v trolling motor and this battery is smaller and lighter than my old 12 volt 100ah Lithium battery. LiTime app is a lot nicer than my previous Lithium battery as well.
I have it in a 24V trolling motor and can fish all weekend, morning and evening and still have plenty of power. Highly recommended
This 24V TM battery offers big power even if it is only 50AH. Normal Lead Acid batteries offer 100AH, but can only be effectively used for half of that power and time. This battery gives you the same amount of power with a smaller footprint and lighter weight by almost half.
SIMPLY AMAZING!!! Listen, I have been fishing for over 45 years and have gone through dozens of Lead-Trolling Motor-Batteries. The 24v TM battery not only was 80lbs. lighter under my center console, but it was on 88% when I got home and checked it via.bluetooth...Where my old Lead Batteries would be almost dead and need charging. Thank you LiTime for an amazing product!!!
LEE <*{{{.><
First time charging the new batterys went well. I used one of them for a 24v 80lb thrust trolling motor. I ran the motor for a few hours on various speeds and used spot lock for a while. I only used 13 percent battery. I like them a lot so far. The bluetooth range is very short. You must be right next to the battery to connect. I wish the app was a little easier to navigate.
I am very pleased with this charger. I hooked it up to my two LiTime 24v batteries and was able to charge them at 40 amps.
Wasn't sure if I needed one or two of the 50ah 24v for my Minn Kota Ultrex. I decided on just one at first. I have fished several times for 6 hrs both on the Mississippi in current and local lakes and keep my trolling motor speed on 5-10. Each time I get off the water I am surprised that the battery is still at 60% life or more. Much better than lead acid!
