LiTime 12V (14.6V) 20A LiFePO4 Charger – For 12V LiFePO4 Batteries
Note: This charger is not waterproof. Not for marine use or lead-acid batteries.
- LiTime 12V LiFePO4 Smart Charger: 14.6V output, 20A current, 100–240V AC input. Features 0V activation to recover deeply discharged batteries.
- Upgraded for Convenience: Features an M8 terminal and 50A Anderson connector for easy, secure connections, plus a built-in cooling fan for efficient charging performance.

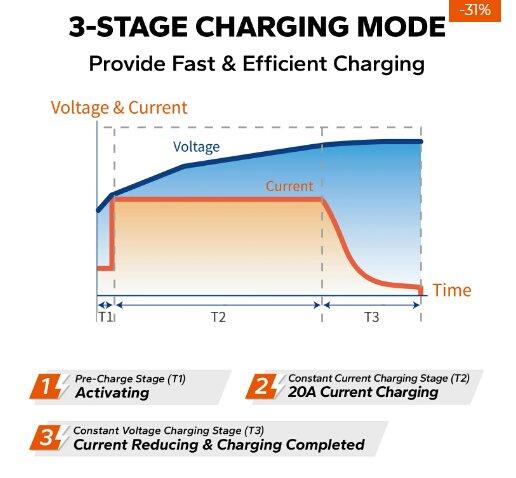

- Smart 3-Stage Charging with LED Status Display: Pre-charge, CC, and CV stages extend battery life, with real-time LED indicators for standby, charging, full, and error status
- Multilevel Safety Protection: Guards against over-temperature, reverse polarity, short circuit, over-current, and over-voltage — and can jump-start BMS-protected dead batteries.
- Durable & Efficient Design: Advanced LLC soft-switching technology, sturdy aluminum shell, and a built-in cooling fan for long-lasting, reliable performance.
- Certified & Supported: CE and RoHS certified, backed by a 2-year warranty and responsive customer support — phone or online, with replies within 24 hours.
FedEx, UPS, or Amazon Logistics.
BASIC
PROTECTION
TEMPERATURE
OTHERS
What charger should I use for LiFePO4 battery?
For a complete charge of a 12V LiFePO4 battery, a charger with a voltage ranging of 14.4V±0.2V is necessary. If a charger with a lower voltage is used, it can still charge the battery, but it won't reach full 100% capacity.
Can I charge a LiFePO4 battery with a trickle charger?
Trickle charging is not acceptable for lithium batteries. Charging a LiFePO4 battery with a trickle charger not designed for this type of battery could lead to overcharging or damage due to the different charging requirements of lithium batteries compared to traditional lead-acid batteries.
How long does it take to charge a 12V 100Ah LiFePO4 lithium battery?
The 14.6V 20Ah LiFePO4 battery charger is designed to charge LiFePO4 batteries. The low resistance in the Lithium cells allow the battery to accept the full output from the charger. With a constant 20A current, it takes around 100Ah/20A=5hrs to fully charge a 12V 100Ah LiFePO4 lithium battery.
Should I charge LiFePO4 to 100% by the 20A battery charger?
Charging a battery to less than 100% and avoiding complete discharge always increases cell longevity. Similarly, maintaining operation within the 20%-80% state of charge (SoC) range will prolong the life of lithium batteries.
In the case of LiTime deep cycle lithium batteries, they can withstand over 4000 deep cycles at 100% Depth of Discharge (DOD), over 6000 cycles at 80% DOD, and more than 15,000 cycles at 60% DOD.
Is it ok to leave a LiFePO4 lithium battery on the 12V 20A charger?
If the correct voltage limit is set for the LiFePO4 lithium ion battery you are charging, there should be no issue leaving a lithium ion battery on the charger overnight. LiTime Battery uses a LiFePO4 cell giving a nominal voltage of 12.8v and a fully charged voltage of 14.6V. A charger with 14.4-14.6V CC/CV output will do the job with consideration not to exceed roughly 1C maximum current output of the charger. As long as the CC/CV profile is used, the maximum voltage is at the correct level and the current is not excessive, you will achieve a safe and full charge on your battery.
Can I charge my LiFePO4 lithium battery faster?
For most applications, a charging time of 3-10 hours provides the longest lifespan for your LiFePO4 lithium battery. But if you have an application where you need rapid charging, you can choose a charger with a higher output current. For example, you could use a 40 amp charger with a 100Ah battery for a 2.5-hour charge time.
What voltage should LiFePO4 lithium batteries be charged at?
It depends on the voltages of your LiFePO4 lithium batteries. LiTime 14.6 volts charger is recommended for 12V LiFePO4 lithium batteries. And LiTime 29.2 volts charger is recommended for 24V LiFePO4 lithium batteries.
How to choose the right charger for my LiFePO4 lithium battery?
Can this charger work with lead-acid batteries?
No. This 20A lithium battery charger is designed only for LiFePO4 batteries. For charging Lead-Acid, LiFePO4, or NCM batteries, we recommend using our LiTime Multi-Bank Chargers, including 12V+24V 10A, 12V+36V 10A, 12V 10A 2-Bank, 12V 10A 3-Bank, and 12V 10A 4-Bank.

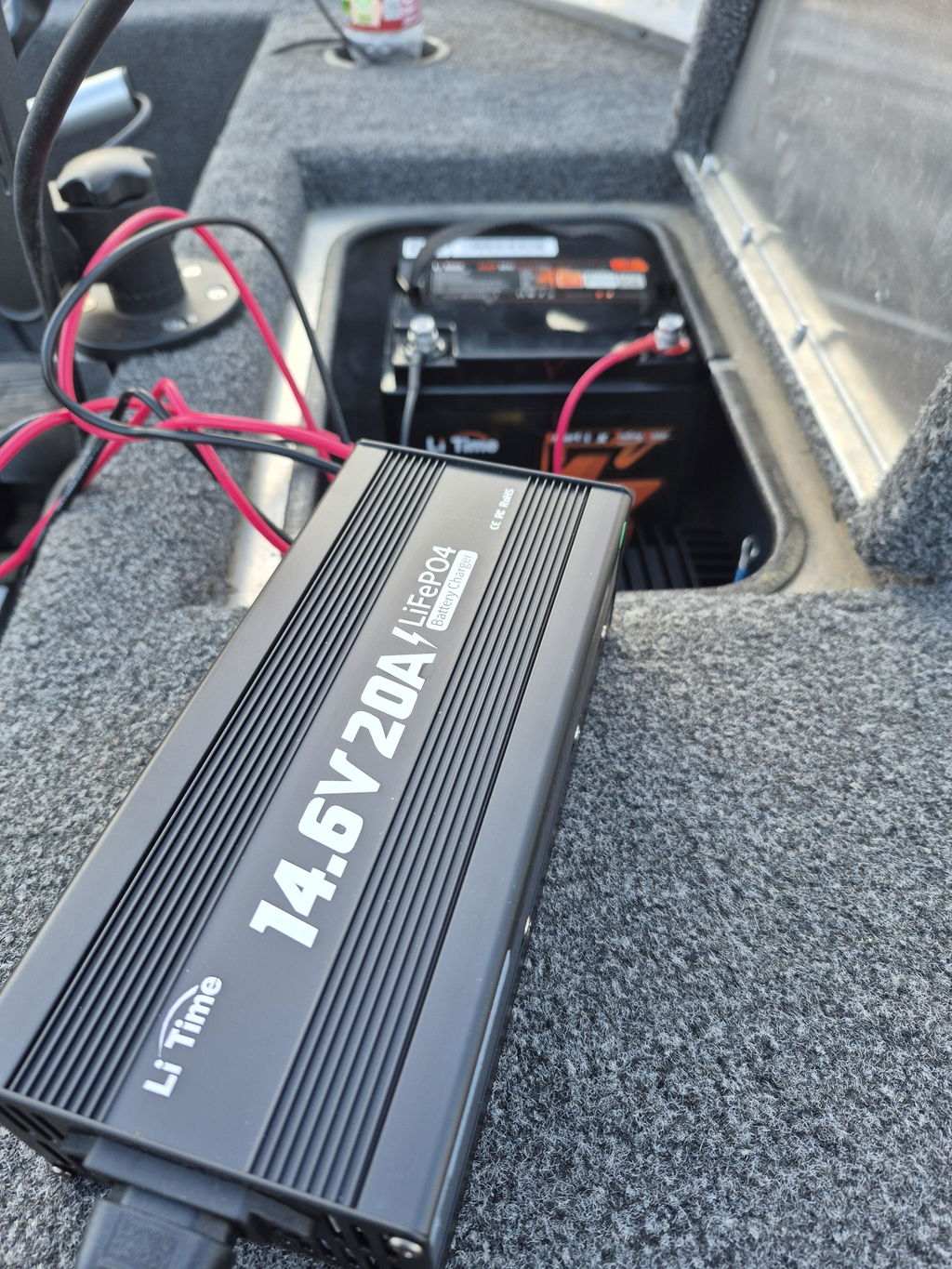

Only been out on the water once since getting the trolling motor battery but was very impressed by how well this battery holds a charge.
Just over three hours on the water with a slight breeze and minor chop on the water, and the trolling motor was running 95% of the time and the battery meter still read full charge when I got home.
I only wish I had spent the extra $30 to get the Bluetooth version.
I couldn’t justify having the technology as I have never needed it in the past 30 years of fishing, so why would I need it now. 🤦🏻♂️🤷🏻♂️
So. What was the first thing I did after watching the video on the setup and first charge instructions …. ? …. I went to the auto parts store and bought a digital multi meter….and spent $34. 🤦🏻♂️🤭😉

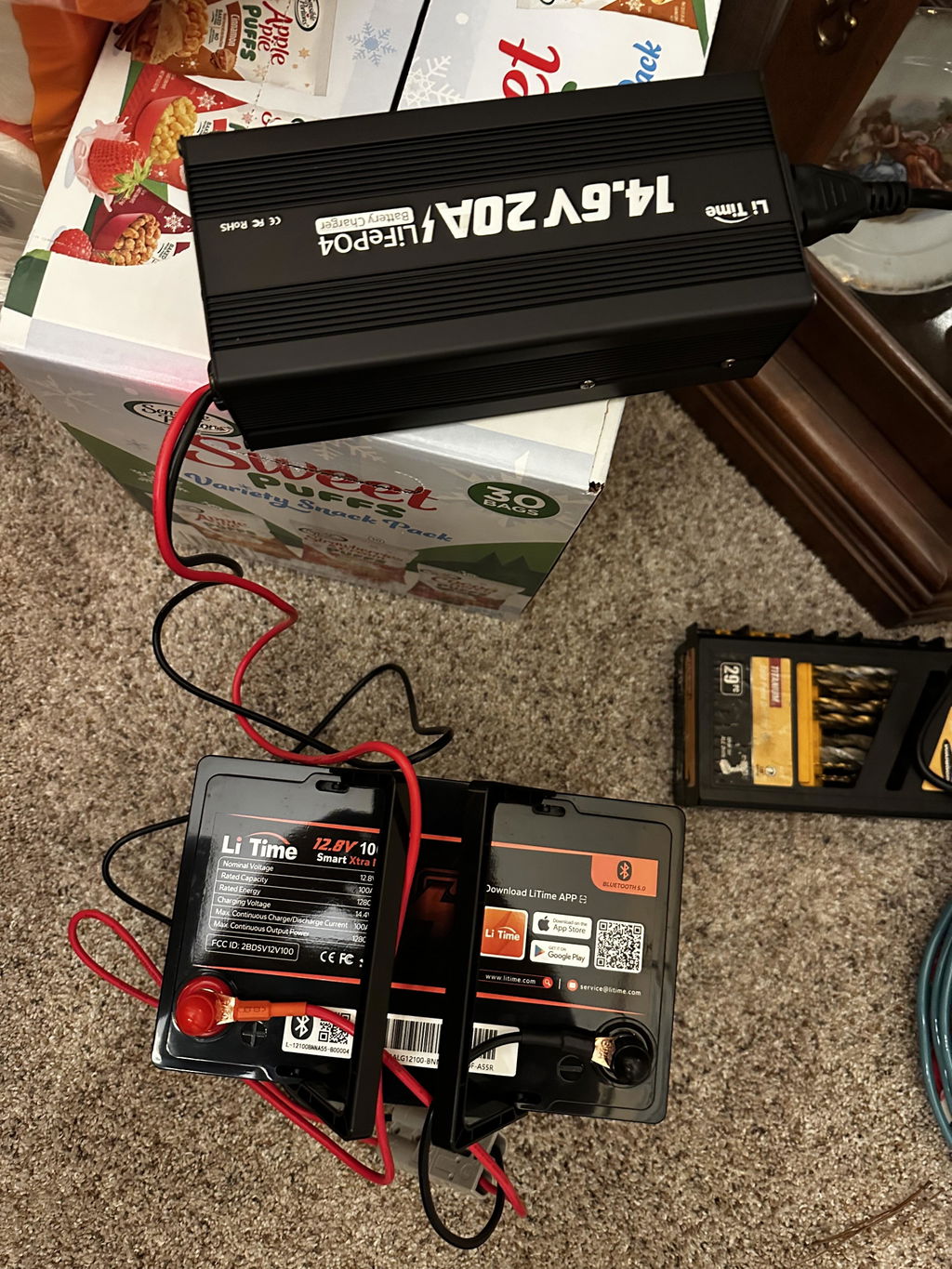

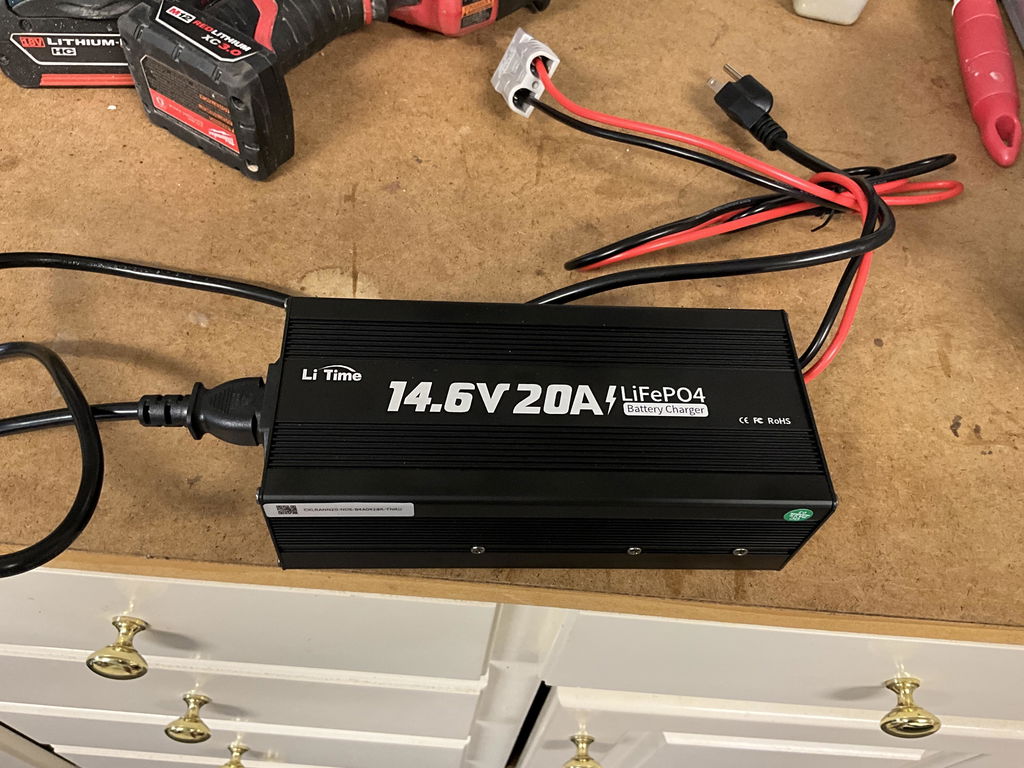

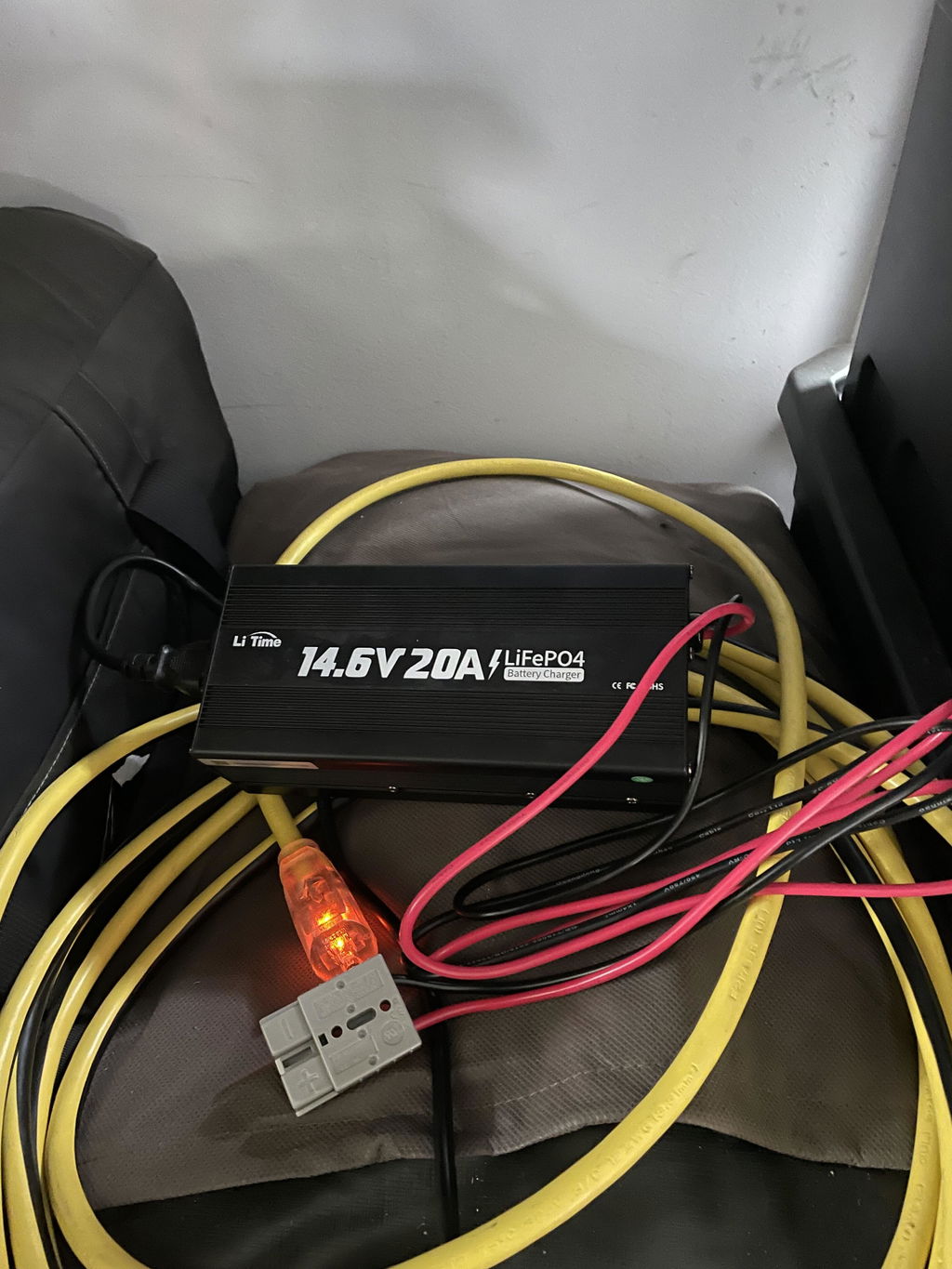

Charger works very well. Heavy duty Charger and wiring. Well pleased with this product.
Amazing performance...fast and efficient changing easy set up and use.
This charger is a perfect accessory for our LiTime battery. We are on our third cycle, and have not have any issues with it. Another review we read before purchasing claimed it would over heat. We have not experienced any of this. It remains cool enough to handle, and cables and connections show no sign of overheating.

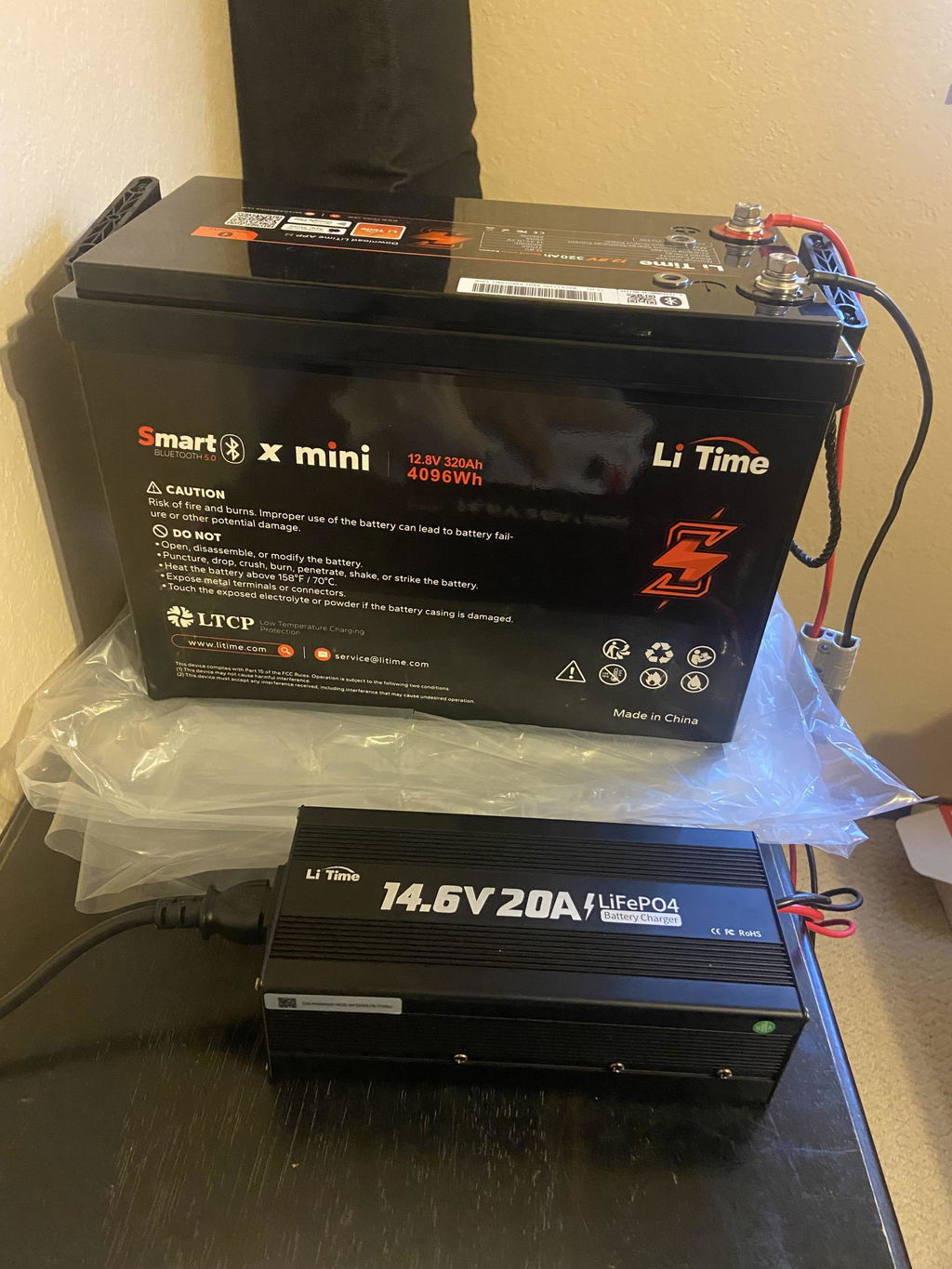

So far, so good! I have charged 2 lithium batteries so far and it has performed perfectly. Glad I got the 20A for the 100aH and 140aH batteries.
I have no bad complaints so far with this charger it’s the same quality if not better than the expensive ones! It does the job fast!

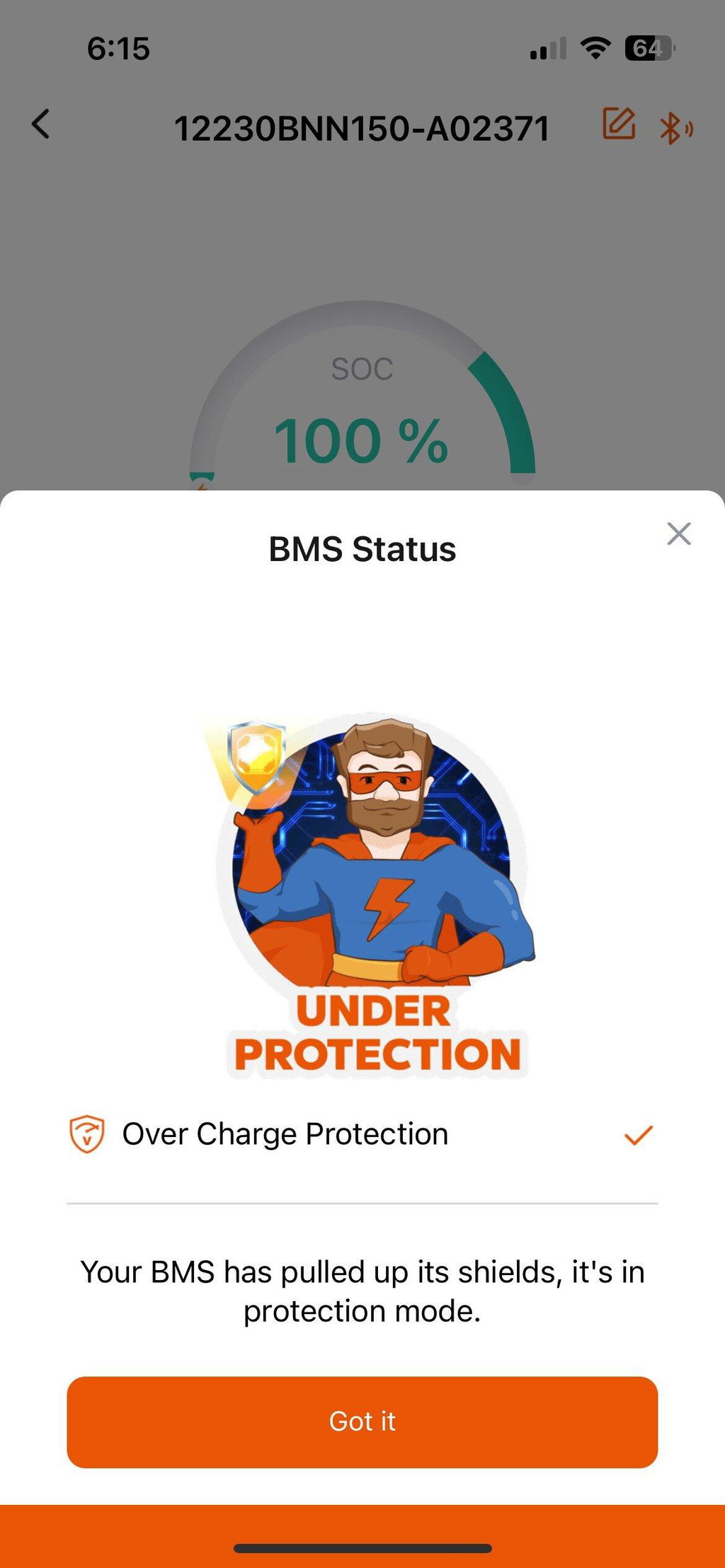

Using this 20 amp charger with my LiTime batteries, the battery's BMS always shuts the charger down instead of the charger getting into the later stages of the charge where it reduces the amps
Dear Support,

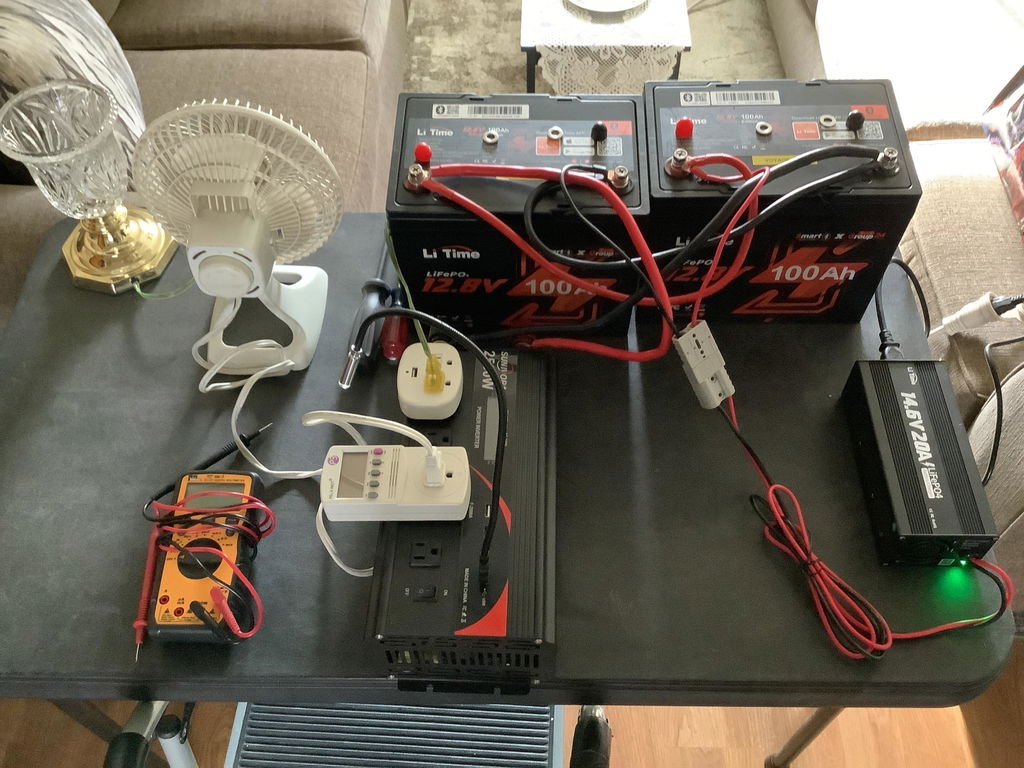

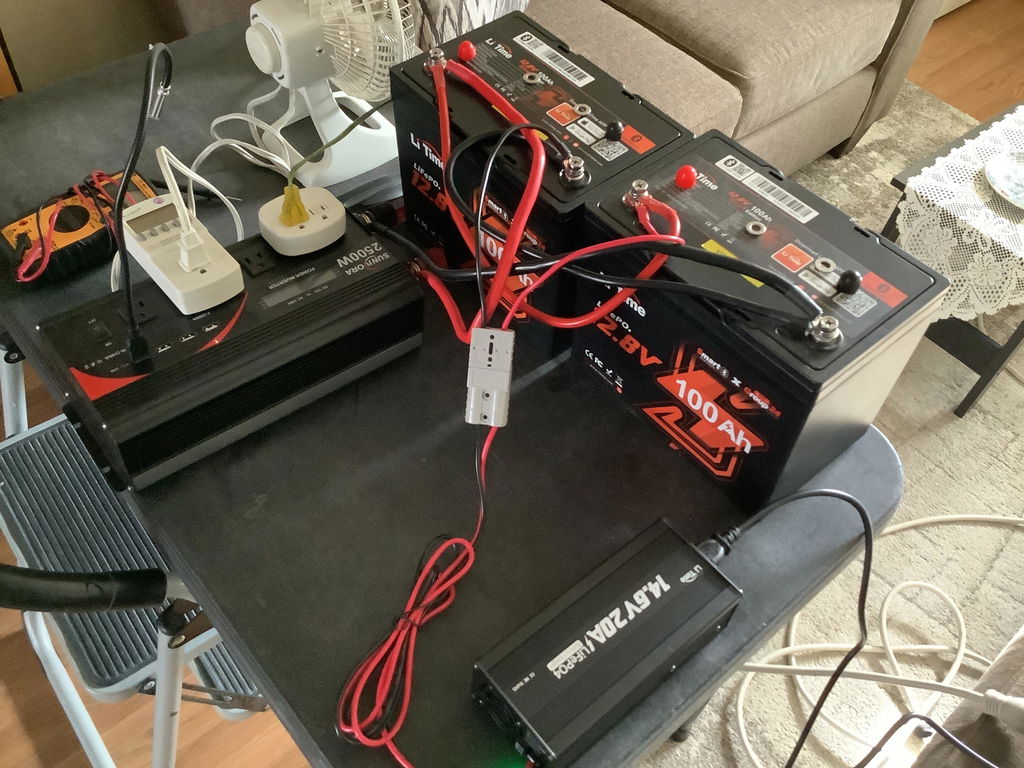

I am attempting to run two LiTime 100 Ah in parallel, however, when I turn on the inverter only one battery discharges. I fully charged each battery before connecting them. Also, after connecting them in parallel I allowed them to balance before putting on a load. When I turn on the inverter with a small load (light and fan), only one battery takes the load and the other one stays on standby. Where am I going wrong?
cid:B99EBCEE-B1C9-42C2-8D87-3DDB98C62F76
Your help is fully appreciated.
Sincerely,
John Miller
[****]
