LiTime 16V 100Ah Lithium Battery for LiveScope & Fish Finder Systems with Bluetooth and Self-Heating

$504.48
$589.99
14% OFF
Auto-Applied
Ends in:
03
Days
:
03
Hrs
:
03
Mins
:
03
Secs

【Official Sponsor of MLF 2025】Pro-Level 16V Power Built for Serious Anglers.
Built for high-performance fish finders, forward-facing sonar, and compatible marine electronics.

  • Stable 16V Power: Helps reduce voltage drop and delivers up to 25% longer runtime than comparable 12V systems under similar loads.
  • Built for Advanced Sonar: Compatible with Garmin, Lowrance, Humminbird, Raymarine, LiveScope, ActiveTarget, MEGA Live and more.
  • 1600Wh High Capacity: Powers up to five fish finders for approximately 10–16 hours, depending on total power draw.
  • Bluetooth Smart Monitoring: Track battery status in real time with a stable connection, plus one-click power control and LED status indicator.
  • Dual-Mode Self Heating: Activates below 41°F and stops at 50°F, with regular and energy-saving modes for cold-weather fishing.
  • Lighter & More Compact: 59% lighter with 2.6× the energy of a 12V 100Ah lead-acid battery, and smaller than comparable 16V lithium batteries.
  • 100A Smart BMS: 20+ protections, 100A continuous discharge and up to 500A surge current for 1 second for demanding marine electronics.
  • Marine-Ready Durability: IP65 water and dust protection plus EV-grade LiFePO4 cells rated for 4,000+ cycles at 100% DOD and up to 10 years.

LiTime Day Flash Sale Ends In:

00D 00H 00M 00S
1 Pack
$399.99
$439.99
2 Pack
$787.98
$869.99
1 Pack + 16V 10A Charger (Save 5%)
$504.48
$589.99
1 Pack + 16V 20A Charger (Save 5%)
$532.98
$639.99
Quantity
Frequently bought together
$504.48
$589.99
14% OFF
FREE delivery Sun, Sep 6 - Wed, Sep 9
Add to Cart
Buy Now
Notify me
payment method
payment method
payment method
payment method
payment method
payment method
payment method
payment method
payment method
payment method
payment method
payment method
payment method
payment method
payment method
30 Days Returns
Local Warehouse Free Shipping
5 Years Warranty
30 Days Price Match
Protection Upgrade
16V 100Ah Smart Self-Heating
FREE delivery Sun, Sep 6 - Wed, Sep 9
$504.48
14% OFF
$589.99
Add to Cart
Buy Now
Notify me
1 / 10

16V 100Ah Fish Finder Lithium Battery

Unlock the full potential of your high-end fish finder with LiTime 16V 100Ah lithium battery. As the official sponsor of Major League Fishing (MLF), LiTime is recognized for meeting the power demands of experts on the water. With LiTime battery, experience unmatched power that drives your premium fish finder, enabling precise locations for every big catch and giving you the edge to secure victory in fishing competitions!

LiTime 16V 100Ah lithium fish finder battery: top pro choice for fishing, ensuring reliable power for major league events

Click Here! Get the Quick Insights.

Get the Highlights

LiTime 16V 100Ah LiFePO4 Battery ensures reliable and efficient performance. Safety is paramount, featuring over 20 protections for peace of mind. Enjoy smart control with Bluetooth connectivity and a user-friendly power button. Built for all-weather conditions, it includes self heating and an IP65 waterproof rating, making it the perfect companion for any fishing adventure.

main features of litime 16v 100ah fish finder lithium battery

Tired of Dim Screens and Clunky Devices?

Struggling with 12V batteries causing the dim display or requiring bulky stabilizers? Or dealing with the hassle of step-down converters for 24V batteries? Say goodbye to these frustrations with just one LiTime 16V 100Ah fish finder lithium battery! The separated 16V battery eliminates interference from trolling motors or other on-board electrical devices, to deliver a stable power supply and maintains optimal voltage even during long-term use. Maximize your fish finder’s performance effortlessly!

LiTime 16V 100Ah lithium fish finder battery: simplifies setup, maximizing pro fish finder potential without interference

Reasons You Must Have 16V Battery

Upgrade your fishing experience with LiTime 16V 100Ah fish finder battery, compared to 12V battery. Featuring a higher and more stable voltage, LiTime 16V battery enhances the sonar signal, allowing you to fully leverage advanced sonar technologies like Garmin Livescope, Lowrance Active Target, and Humminbird Mega Live. Experience clearer display images, so never miss a moment of underwater action. Additionally, enjoy up to 25% extended runtime, giving you more time on the water to track and catch the big ones.

benefits of litime 16v lithium battery vs 12v:stable power, stronger sonar signals, and 25% longer runtime

All-day Power for High-performance Fishing

Packed with 1600Wh of energy, LiTime 16V 100Ah lithium battery can run up to 5 fish finders for 10-16 hours-no interruptions, no compromises. The large capacity is enough to meet the high-performance needs of pro anglers, supports the fish finder longer to locate fish, and maximizes the confidence to land the perfect catch-every time.

LiTime 16V lithium fish finder battery: large capacity supports 5 units for 10-16 hours of reliable performance

Intelligent Bluetooth & One Touch to Control

Take control of LiTime 16V 100Ah fish finder lithium battery with upgraded embedded Bluetooth. It can not only track the status of individual battery or the entire battery system, and power on/off, but also provide a more stable Bluetooth connection, even on rough waters. Plus, the external power button with LED indicator allows to completely cut off power to extend battery life. Deliver smart, reliable power for every outdoor adventure!

LiTime 16V 100Ah lithium fish finder battery: features Bluetooth for real-time monitoring and easy control with LED indicators

Ensure Safe Charging & Extend Lifespan

To avoid cells' damage by low temperature, LiTime 16V 100Ah lithium battery for livescope has low-temp cut-off protection, which stops discharging at <-4°F, stops charging at <32°F, and resumes charging at ≥41°F. On top of that, the additional self-heating function can help the battery to heat up to the appropriate charging temp., thus restoring safe and efficient charging, as well as optimizing the safety of the cells to prolong the lifespan.

low-temp protection, self-heating feature of litime 16v 100ah deep cycle lithium battery for fish finder

Beat the Cold with 2 Self-heating Modes

With built-in 2 heating pads, LiTime 16V 100Ah lithium fish finder battery starts heating at -4℉ to 41℉ and stops at 50℉. It supports 2 heating modes - regular and energy-efficient, which can be adjustable via LiTime APP. Flexible switching between charger and battery energy, faster heating to the optimal working temperature and maximized battery performance!

2 heating modes of litime 16v 100ah kayak fish finder battery for optimal temperature and enhanced performance
great discharge & charge performance in winter of litime 16v 100ah lithium battery

Unlock Superior Safety and Peak Performance

Engineered for reliability, LiTime 16V 100Ah lithium battery features a self-developed 100A BMS and EV-grade LiFePO4 cells. Enhanced with 20+ upgraded protections—including moisture-proof, salt-spray resistance, and overload protection with auto-recovery (30s), which is built to thrive in harsh environments. With 100A continuous discharge, and 500A surge current (1s), this battery unleashes unmatched performance, offering stronger power to your fish finder.

ev-grade lifepo4 cells, 100a bms of litime 16v 100ah fish finder batteries

Industry-Leading Fish Finder Battery - More Compact & Powerful

LiTime 16V 100Ah fish finder lithium batteries redefine compact high capacity. Whether compared to bulky lead-acid batteries or other 16V 100Ah lithium batteries, LiTime 16V battery has a higher energy density, ideal for use on boats, saving space and lightening the load. Meanwhile, the multi-functional design, including Bluetooth and heating functions, enhances its intelligence and safety.

LiTime 16V 100Ah LiFePO4 battery: smaller, lighter, and stronger than other 16V lithium and 12V lead-acid options

3 Charging Methods

LiTime 16V fish finder lithium battery supports 3 charging methods - dedicated 16V LiFePO4 charger, solar panel and generator. Upon initial use or after manually powering off the battery, please ensure to connect the charger with lithium activation to turn on the battery and activate Bluetooth.

3 charging ways of litime 16v 100ah garmin fish finder battery

Born for Marine Electronics

LiTime 16V 100Ah lithium battery delivers reliable energy for fish finders, sonars, and radars, ensuring seamless performance in any fishing or boating scenario. Compact, durable, and built to last, it’s the ultimate power solution for every marine adventure.

LiTime 16V 100Ah LiFePO4 battery: powers multiple marine electronics simultaneously, fish finders and radar

LiTime Powers MLF Phoenix BFL Championship!

BATTERY

Cell Type

LiFePO4

Warranty

5 Years

Cycle Life

4000+ Cycles@100% DOD

Nominal Voltage

16V

Rated Capacity

100Ah

Energy

1600Wh

Max. Expansion (Parallel & Series)

4P1S

Internal Resistance

≤40mΩ

Certifications

FCC,CE,RoHS,UN38.3,FCC ID

Bluetooth

Self-Heating


BMS

100A

Max. Continuous Output Power

1600W

Max. Continuous Charge Current

100A

Max. Continuous Discharge Current

100A

Max. Discharge Current 1 Second

500A


Charge Method

CC/CV

Charge Voltage

18±0.25V

Recommend Charge Current

20A(0.2C)


Charge Temperature

-20℃ to 50 ℃ / -4℉ to 122 ℉

Discharge Temperature

-20℃ to 60 ℃ / -4℉ to 140 ℉

Storage Temperature

-10℃ to 50 ℃ / 14℉ to 122 ℉

Low-Temperature Protection

Yes

Low-Temperature Charging Protection Auto Recovery

Yes


Heating Temperature

-20°C to 5°C / -4°F to 41°F

Approx. Heating Time

70-90mins (From -10°C / 14°F); 100-150mins (From -20°C / -4°F)

Required Minimum Charge Current for Heating Function

10A


Terminals

M8

Weight Approx.

26.48lbs

Size

12.13*6.69*8.31 inch (BCI Group 27)

Housing Material

ABS

Protection Class

IP65


LiTime 16V 100Ah Smart Self-Heating Battery - User Manual.pdf

LiTime 16V 100Ah Smart Self-Heating Battery - User Manual.pdf

View Online
16V100Ah Battery

16V100Ah Battery

x1

Flat Washer

Flat Washer

x2

M8 Screws

M8 Screws

x2

Insulation Caps

Insulation Caps

x2

16V100Ah Battery

16V100Ah Battery

x1

Flat Washer

Flat Washer

x2

M8 Screws

M8 Screws

x2

Insulation Caps

Insulation Caps

x2

16V100Ah Battery

16V100Ah Battery

x1

Flat Washer

Flat Washer

x2

M8 Screws

M8 Screws

x2

Insulation Caps

Insulation Caps

x2

16V100Ah Battery

16V100Ah Battery

x1

Flat Washer

Flat Washer

x2

M8 Screws

M8 Screws

x2

Insulation Caps

Insulation Caps

x2

1 Pack + 16V 10A Charger (Save 5%)

16V100Ah Battery

16V100Ah Battery

x1

Flat Washer

Flat Washer

x2

M8 Screws

M8 Screws

x2

Insulation Caps

Insulation Caps

x2

16V100Ah Battery

16V100Ah Battery

x1

Flat Washer

Flat Washer

x2

M8 Screws

M8 Screws

x2

Insulation Caps

Insulation Caps

x2

16V100Ah Battery

16V100Ah Battery

x1

Flat Washer

Flat Washer

x2

M8 Screws

M8 Screws

x2

Insulation Caps

Insulation Caps

x2

16V100Ah Battery

16V100Ah Battery

x1

Flat Washer

Flat Washer

x2

M8 Screws

M8 Screws

x2

Insulation Caps

Insulation Caps

x2

Why choose LiTime 16V 100Ah fish finder battery?

LiTime 16V battery was originally developed from customer feedback on the performance of fish finders. Using a single battery on your fish finder, especially a 16V LiFePO4 battery, provides a more stable power supply. It effectively isolates interference from other devices on the boat, and prevents affecting the fish finder's imaging and sonar signals. The stable power is crucial for maintaining the optimal performance of sensitive equipment like forward facing sonar and marine electronics.

What are the advantages of 16V batteries over 12V batteries?

With longer running time, using a traditional 12V lead-acid or LiFePO4 battery, the voltage drops and results in erratic imaging. LiTime 16V LiFePO4 battery provides a higher voltage level to stabilize and maximize the performance of your fish finder.

1. Better Clarity & Stronger Singal: It not only enhances the clarity and brightness of the electronic display, but also produces a stronger signal for greater penetration and clearer returns from underwater, further improving the accuracy of the sonar image.

2. 25% Longer Runtime: 16V 100Ah LFP battery has higher power than 12V 100Ah LFP battery, which offers 25% longer running time to meet your all-day fishing.

Will a 16V 100Ah Lithium battery damage my fish finder?

Not at all! For the same power, a higher voltage results in a lower current. It's well known that more current generates more heat, which is the enemy of your electronics. Therefore, a 16V battery will produce less than 20% of the current as a 12V battery, resulting in less heat to reduce the risk of overheating.

Example:

A 7-inch graph is rated for 2A at 12.8V. If upgraded to a 16V battery, and maintaining the same power of 25.6W, we can calculate the current at 16V based on the power formula:

I=P/U=25.6W/16V=1.6A

Therefore, the 16V battery will not produce more heat to damage your graphs.

Is LiTime 16V 100Ah LiFePO4 battery compatible with my fish finder?

LiTime 16V LiFePO4 battery is compatible with most fish finder brands on the market, including Lowrance, Garmin, Humminbird, Raymarine, etc.

Do I need a special charger for 16V 100Ah LiFePO4 battery?

Yes. You will need to have a charger that is specifically for 16V LiFePO4 battery. It is not compatible with chargers for 12V, 24V, 36V or 48V batteries.

Can I connect LiTime fish finder batteries in series or parallel?

LiTime 16V 100Ah lithium fish finder battery supports max. 4 batteries in parallel conncetion. Please don't connect the battery in series.

When connect the battery in parallel, please make sure:

They should be identical batteries with the same capacity (Ah) and battery management system (BMS) rating (A).

They must be from the same brand, as lithium batteries from different brands have unique BMS configurations.

They should be purchased within a close timeframe (ideally within one month).

Is LiTime 16V 100Ah lithium battery suitable for ice fishing or cold areas?

Of course! LiTime 16V 100Ah battery is equipped with a self-heating function that allows the heating to start at -4°F to 41°F and stop when it reaches 50°F. This ensures that the battery operates at a safe temperature state and fully utilizes its performance. If you need a starting battery, learn more about LiTime marine starting battery.

Customer Reviews

Based on 34 reviews
100%
(34)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Mike
3 fish finders one 16V LiTime Battery

I purchased a 16V LiTime 100 AH battery to run
One Garmin Ultra 2 16” and two LOWRANCE 9”
fish finders.
I wasn’t sure if it would be enough amps to run
three units.
I was wrong. The battery worked flawlessly.
I fished two days, 10 hrs each day.
According to the Bluetooth, the battery still had
63 amp hours left.
I was surprised. It was well worth the price.
Would I recommend this battery?
YES!!!

g
greg kellogg
Well my problems of the cranking battery going dead are solved!! Garmin live scope was draining

Well my problems of the cranking battery going dead are solved!! Garmin live scope was draining cranking battery in around 3 hrs or so I would have to jump cranking battery with trolling motor battery and let engine idle to get some charge on battery! I went out last weekend and only went through 20% of fully charged battery! And that was 10 hrs on the water.

A
Anonymous
So far this has been an excellent decision

So far this has been an excellent decision. Runs 3 12” Lowrance screens and active target for approximately 8hrs and will still have 60-70% of battery with voltage around 16.2-16.4.

K
Kurt Latour

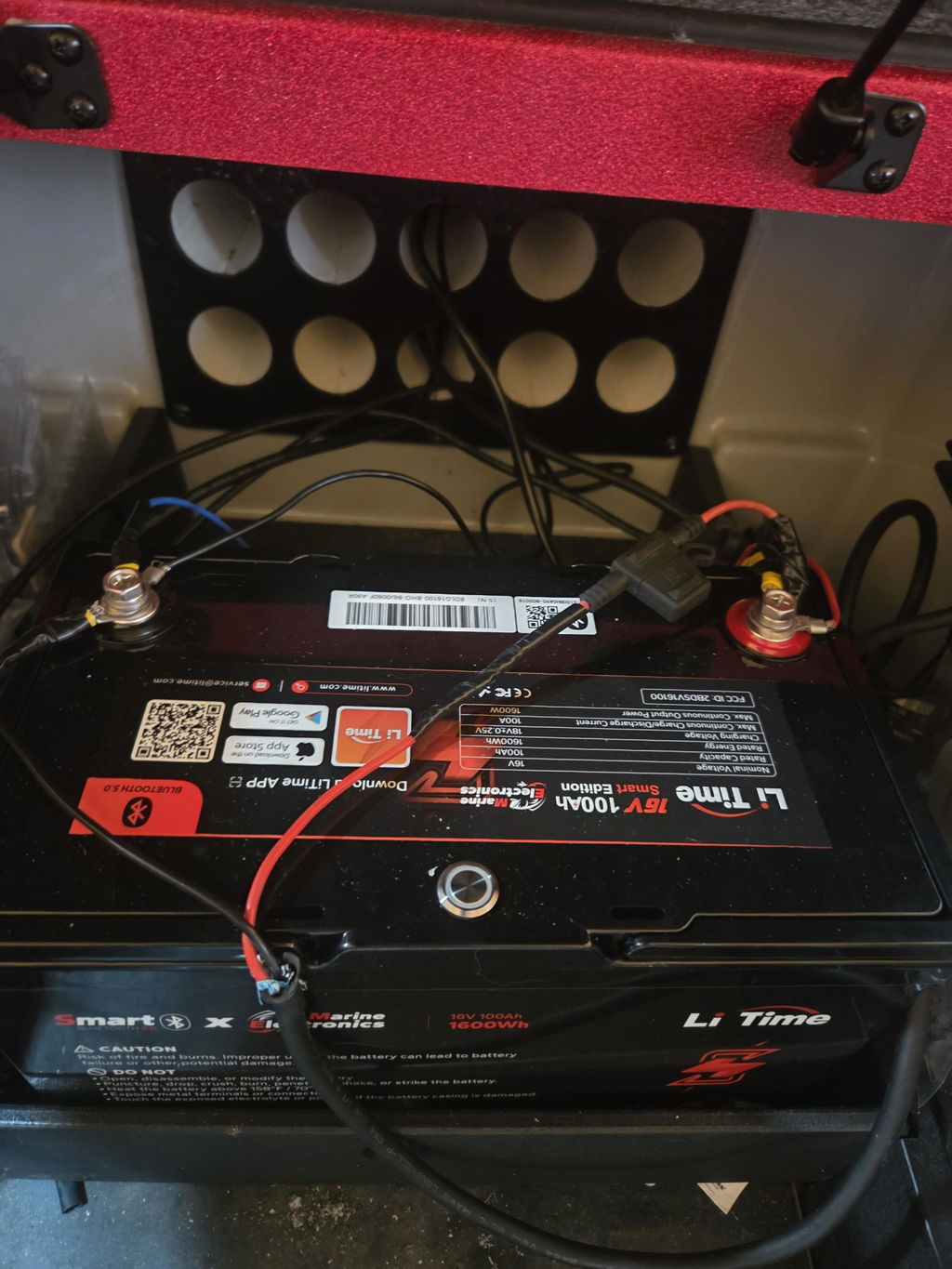

Just installed this battery in my boat to run all my electronics! Connected the battery to the app

Just installed this battery in my boat to run all my electronics! Connected the battery to the app and my phone, very happy with it so far!! Haven’t had the opportunity to run it for a long period of time yet, but will do a follow up after the season.

M
M.K.
Great for Fishing Electronics

I love having the clean 16V power dedicated to my fishing electronics. Alot of people think this will give you a clearer picture. This is not true! But what it will do is give you higher voltages that will help account for voltage drops the further your electronics are away from your battery. The best thing you can do for a clearer picture is have quality, marine grade wiring!

K
Kenny Price
So far so good!!! I purchased a 16v 100ah battery and its been everything I hope

So far so good!!!

I purchased a 16v 100ah battery and its been everything I hope. Alot of power and Good runtime. I love the power button it has to shut down all electronics when needed.

J
Jonathan Williamson

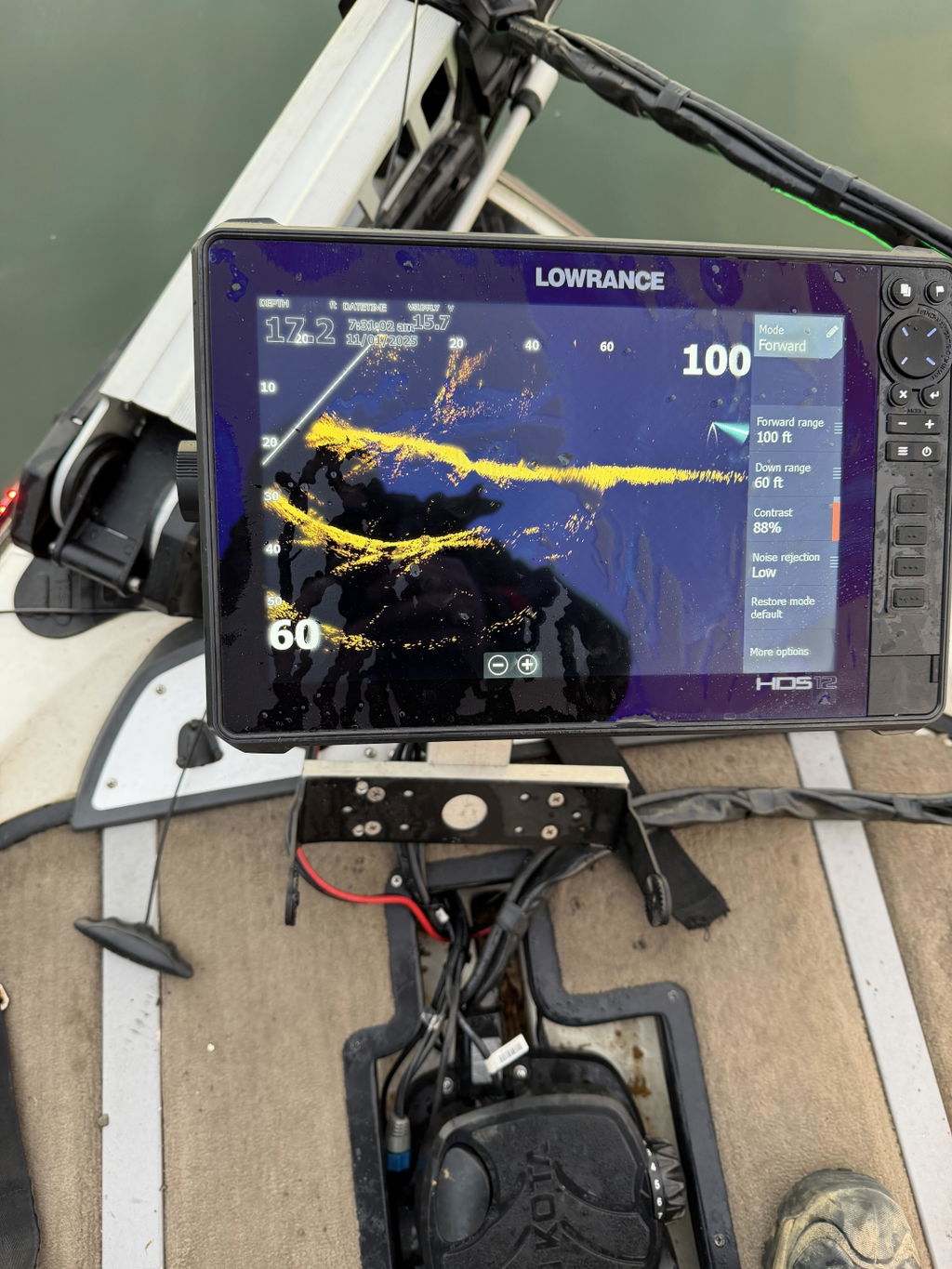

Graphs worked great!

I have 2 HDS Pros, 2 Active target 2, 1…3-1 transducers running on the 16v 100ah. Everything worked perfectly. I only used 40% of the battery in an 8 hour tournament with everything running!
I highly recommend this battery!!!!

S
Stevie Guffey
Not to heavy and the 16v is perfect for

Not to heavy and the 16v is perfect for AT
