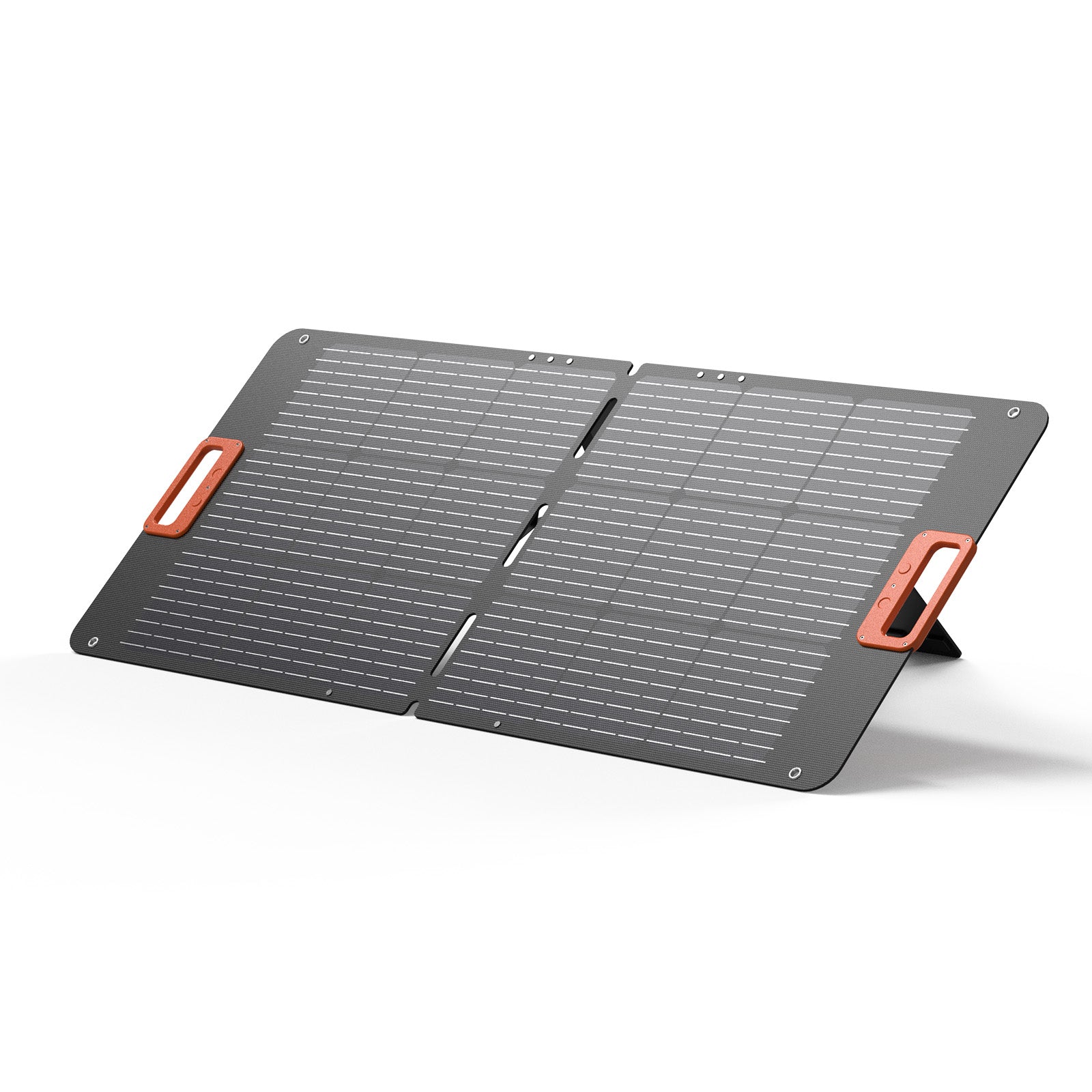

LiTime 100 Watt Monocrystalline Portable Solar Panel

The 100W Solar Panel is rated to produce a maximum power output of 100 watts under standard test conditions (STC). However, the actual power output of the panel can vary based on a number of factors, such as the angle and intensity of sunlight, temperature, and shading. In real-world conditions, it's common for a solar panel to not produce its maximum rated power output. Factors such as cloudy weather, shading, and the angle and orientation of the panel can all affect its performance. So, while the 100W Solar Panel is capable of producing up to 100 watts of power, the actual power output you get from the panel may be lower than this.

In general, you can expect the 100W panel to produce between 70 and 95 watts of power when sunlight hits it at a 90° angle on a clear day with no clouds in the sky. This is just an estimate, and the actual power output can vary based on the specific conditions. It's worth noting that the output power of the solar panel is tested under specific conditions (1000W/m2 or 92.9W/ft2 in AM1.5 conditions with a panel temperature of 25°C/77°F), and the actual power output you get in the real world may be different from the peak power output.

Certainly! You can connect these 100W Solar Panels with other sizes of solar panels in a series circuit. However, it's important to note that the performance of the solar panels in the series circuit will be limited by the lowest performing panel in the circuit. So, if you connect a 100W solar panel with a lower-rated panel, the overall performance of the circuit will be limited by the lower-rated panel.
Additionally, when connecting solar panels in a series circuit, it's important to ensure that the total voltage of the circuit does not exceed the rated voltage of the charge controller or inverter you're using. Exceeding the rated voltage can damage the equipment and potentially be dangerous.

Yes, you can connect these 100W Solar Panels with solar panels of different sizes in a parallel connection. When connecting solar panels in parallel, the voltage remains the same but the current increases. This can be useful if you want to increase the current output of your solar array without changing the voltage.
When connecting solar panels of different sizes in a parallel connection, the total power output is equal to the sum of the power of the individual panels. However, it's important to note that the voltage of the lower-powered panel should not differ from the higher-powered panel by more than 1.1 times, as this can cause current backflow and potentially damage the panels. For instance, a solar panel with a power voltage of 19.8V can be connected in parallel with a panel with a power voltage that is <19.8V*1.1=21.78V or ≥19.8V/1.1=18V. In other words, it can be connected in parallel with a panel whose power voltage is between 18V and 21.78V. It's essential to follow these guidelines to ensure the safe and efficient operation of the solar panels.
Mismatched panels can lead to inefficient power production and potential damage to the panels. It's also important to use appropriate wiring and fuses to ensure safe and efficient operation of the solar array.

The optimal solar panel setup is determined by the maximum input power that the device being powered can handle. For instance, if you require a solar panel to charge a portable energy storage device that can only support a maximum input power of 200W, it is recommended to select two 100W solar panels and connect them in parallel.

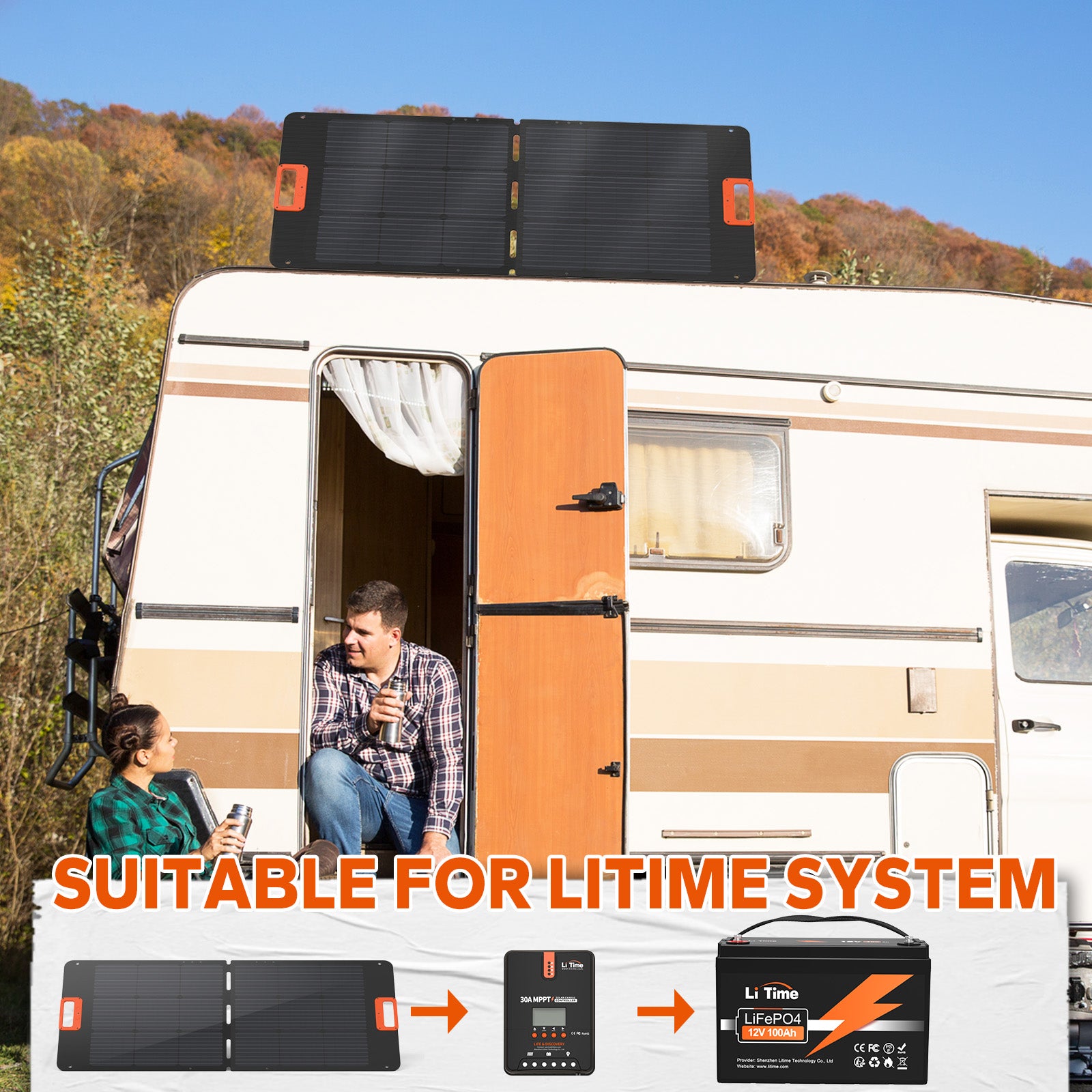

The type of battery that can be used with solar panels is not limited by the panels themselves. Instead, it's the controller that determines which types of batteries are supported for charging when using a solar panel and controller. The controller ensures that the battery is charged safely and efficiently, regardless of its type, by regulating the charging voltage and current.

To ensure optimal performance, it's advisable to clean the surface of the solar panels. Any dust and dirt should be swept off the panel surface using a soft brush, followed by wiping the surface with a damp cloth to remove any remaining dirt and grime.
