LiTime 48V 100Ah Golf Cart Metal Case Lithium Battery - 200A BMS & Real-Time Monitoring

$969.99

$1,489.99

34% OFF

30-Day Price Guarantee & 7-Day Free Return Policy Included

No Setup Hassle, Just Reliable Power with Real-Time Display

Real-Time Battery Monitoring: Stay informed with a clear display showing power, voltage, current, SOC, and system status via RS485 communication. Control discharge and even shut off the battery remotely!
Unstoppable 2C Power: 2C-rate discharge (200A/120 seconds) delivers robust and stable power when you need it most. Conquer any hill with confidence!
Wide Golf Cart Compatibility: Designed for a perfect fit in Club Car, EZGO, ICON & Yamaha golf carts with a custom-designed mounting bracket.
EV-graded LiFePO4 Cells: 4000 cycles at 100% DOD, 6000 cycles at 80% DOD, and 15000 cycles at 60% DOD.
Powerful Performance: 5.12kW Continuous Power for golf carts up to 5kW, providing a long range of approximately 73km/45 miles on a full charge.
Max. 8P1S: Up to 51.2V 800Ah battery system.
Lightweight: 73.4% lighter than 8*6V 200Ah lead-acid batteries.
Advanced Security: 20+ BMS protections & Low-temp cut-off protection.
Suitable for 48V Street-Legal Carts (≤21MI/hour): LSV, UTV, NEV. Also perfect for Marine, Home, and Off-Grid.
Robust SPCC Housing: Improves impact resistance, heat dissipation, and corrosion resistance.
CAN/RS485 Communication - CAN: between batteries, RS485: between battery and external display.

Choose Products

Comparison

1 Pack 51.2V 100Ah Com

$969.99 $1,489.99

1 pack battery + 58.4V 18A Charger + Monitoring Display

$1,189.99 $1,899.99

Quantity:

$969.99

$1,489.99

34% OFF

5-Year Warranty

Backed up by techical support within 24hrs.

30-Day Price Match

Worry-free purchase guarantee.

7-Day Free Returns

7 days no-questions-asked return.

Free Shipping

Free standard shipping on all orders.
Delivered in 2–5 business days.

51.2V 100Ah GC Comm

$969.99

$1,489.99

[{"alt":"overview of LiTime 48v (51.2v) 100ah lithium metal case golf cart batteries","id":34586297172188,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/15_5e0d0cff-661a-4751-a4a5-6d36a86f14df.webp?v=1740119702"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/15_5e0d0cff-661a-4751-a4a5-6d36a86f14df.webp?v=1740119702","width":1000},{"alt":"dimensions and weight of litime 48 volt 100ah metal case rs485 golf cart batteries","id":34586299171036,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/7_44be23bb-21db-4502-8f0d-b2f044f224ad.webp?v=1740640960"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/7_44be23bb-21db-4502-8f0d-b2f044f224ad.webp?v=1740640960","width":1000},{"alt":"features of litime 51.2v 100ah lithium ion golf cart rs485 metal case batteries ","id":34406761988316,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime51.2V100Ahgolfcartbattery_8.webp?v=1740640960"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime51.2V100Ahgolfcartbattery_8.webp?v=1740640960","width":1000},{"alt":"LiTime 48V 100Ah LiFePO4 battery with metal case, 600A peak discharge, supporting golf carts on steep terrain","id":34586299400412,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/10_591fa00d-d3f1-4f74-bf01-9b62370f2bd2.webp?v=1740640960"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/10_591fa00d-d3f1-4f74-bf01-9b62370f2bd2.webp?v=1740640960","width":1000},{"alt":"bms protection information of litime 48v 100ah metal case lithium golf cart rs485 battery ","id":34406762119388,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime51.2V100Ahgolfcartbattery_12.webp?v=1740640960"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime51.2V100Ahgolfcartbattery_12.webp?v=1740640960","width":1000},{"alt":"benefits of litime 48 volt lithium metal case golf cart battery vs lead acid golf cart battery","id":34406762021084,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime51.2V100Ahgolfcartbattery_9.webp?v=1740640960"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime51.2V100Ahgolfcartbattery_9.webp?v=1740640960","width":1000},{"alt":"diagrame of litime lithium golf cart batteries complete kit","id":34586299957468,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/13_dbfc0b81-d3ff-4492-8a20-bf77013cb627.webp?v=1740640960"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/13_dbfc0b81-d3ff-4492-8a20-bf77013cb627.webp?v=1740640960","width":1000},{"alt":"LiTime 48V 100Ah LiFePO4 battery with external monitoring screen and adjustable angle bracket for easy data access","id":34406762086620,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime51.2V100Ahgolfcartbattery_11.webp?v=1740640960"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime51.2V100Ahgolfcartbattery_11.webp?v=1740640960","width":1000},{"alt":"LiTime 48V 100Ah RS485 lithium battery promoting energy savings, low consumption, and support for solar charging","id":34473023766748,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime_51.2V_100Ah_Golf_Cart_Battery_14.webp?v=1740640960"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/LiTime_51.2V_100Ah_Golf_Cart_Battery_14.webp?v=1740640960","width":1000},{"alt":"LiTIme 48V 100Ah Golf Cart Battery With Monitor","id":34714892042460,"position":10,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/www.litime.com\/cdn\/shop\/files\/3_1_1.webp?v=1742889461"},"aspect_ratio":1.0,"height":1080,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/3_1_1.webp?v=1742889461","width":1080},{"alt":"LiTIme Golf Cart Battery Smart Monitor","id":34714892009692,"position":11,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/www.litime.com\/cdn\/shop\/files\/5_1.webp?v=1742979455"},"aspect_ratio":1.0,"height":1080,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/5_1.webp?v=1742979455","width":1080},{"alt":"LiTime 48 volt meatal case lithium golf cart battery kit with display and charger","id":34586310770908,"position":12,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.litime.com\/cdn\/shop\/files\/16.webp?v=1743403089"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/16.webp?v=1743403089","width":1000},{"alt":"overview of LiTime 48v 100ah lithium metal case golf cart batteries","id":34718661542108,"position":13,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.litime.com\/cdn\/shop\/files\/1_9b7e721a-5213-4365-b9e6-a1eeecd64188.webp?v=1743403089"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/1_9b7e721a-5213-4365-b9e6-a1eeecd64188.webp?v=1743403089","width":1600},{"alt":"LiTime 48V meatal case lithium golf cart battery kit with display and charger","id":34718664982748,"position":14,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.litime.com\/cdn\/shop\/files\/1_97f88208-1df5-47b1-905a-f3e91756d6e0.webp?v=1743403089"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/www.litime.com\/cdn\/shop\/files\/1_97f88208-1df5-47b1-905a-f3e91756d6e0.webp?v=1743403089","width":1600}]

Features Specs FAQ Reviews

Features

Budget Golf Cart Lithium! LiTime 48V 100Ah Kit Installation and Performance

Revolutionize Your Golf Cart Experience with LiTime 48V LiFePO4 Batteries

With an advanced LCD monitor that supports RS485 communication, users can easily track voltage, capacity, and system status in real-time, eliminating guesswork and ensuring optimal performance. The durable metal case provides exceptional impact and corrosion resistance, while the 200A 2C discharge rate (120 seconds) supports higher power demands for smooth rides on any terrain. Backed by a 15,000-cycle lifespan and capable of delivering 5.12kW continuous power, these lithium ion golf cart batteries are ideal for powering up to 5kW golf carts.

features of LiTime 48v 100ah lithium metal case golf cart rs485 batteries

5.12kW Power, 200A BMS, Maximum Performance for Your Golf Cart

Elevate your golf cart's potential with LiTime's lithium ion golf cart batteries. Designed for superior performance, each 48V 100Ah battery offers a robust 5120Wh energy and supports up to 8 batteries in parallel, delivering a staggering 40,960Wh of energy for extended use. Equipped with a powerful 200A BMS capable of handling 600A for 1 second, 360A for 10 seconds, or 200A for 120 seconds, these batteries ensure reliable, safe operation even under heavy loads. With support for external monitoring screens and seamless CAN/RS485 communication, you can easily track performance in real-time. Lightweight and maintenance-free, LiTime's batteries are the perfect eco-friendly solution to maximize your golf cart's efficiency and range.

features of LiTime 48 volt golf cart 100ah rs485 lifepo4 batteries

Say Goodbye to Guesswork and Unexpected Issues

Take full control of your lithium golf cart batteries with LiTime's advanced real-time monitoring screen, designed to solve the most pressing pain points of golf cart users. Supporting CAN/RS485 communication, this system offers seamless integration with your 48v golf cart battery, providing precise data on voltage, current, temperature, and state of charge (SOC) at a glance. Monitor up to 8 batteries simultaneously, ensuring optimal performance and identifying issues such as overheating or system errors instantly. Enables comprehensive system-wide performance checks when installed on the first or last battery in a parallel, allowing users to manage power, control discharge on/off, check battery health, and troubleshoot with ease. Ergonomically designed for user convenience, allowing adjustable viewing angles to suit your needs.

real-time monitor feature of litime 48v golf cart battery with CAN/RS485 Communication

51.2v 100ah lithium golf cart batteries with eternal display

litime 48v lithium golf cart batteries with real-time monitoring

51.2v golf cart lithium battery with adjustable LCD screen

Easy to Carry, Safe, and Smart Design

LiTime's 48 volt golf cart batteries are thoughtfully designed to address common frustrations of golf cart users. With easy-to-carry handles, installation and transportation are hassle-free. The built-in pressure release vent ensures safety by automatically stabilizing internal pressure, while the intuitive switch button with LED indicator provides real-time status visibility. Featuring advanced connectivity with RS485/CAN communication, these lithium ion golf cart batteries offer seamless integration with monitoring systems for optimal performance management. Engineered for reliability and convenience, LiTime's golf cart lithium battery is the perfect combination of safety, functionality, and user-friendliness, setting a new benchmark for lithium batteries for golf carts.

litime 48v lithium golf cart rs485 battery featuring a convenient carry handle, power button with LED indicator, and vent for pressure release

Stable, Durable, and Built to Last Over a Decade

This battery uses premium EV-grade LiFePO4 cells to deliver exceptional performance and reliability. Designed to address common user frustrations like frequent replacements and inconsistent power, these golf cart lithium batteries provide over 4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD—equivalent to more than 10 years of dependable use. With stable discharging capabilities, they maximize golf cart efficiency and ensure smooth, uninterrupted rides every time. Engineered for safety, stability, and eco-friendliness, LiTime's lithium ion golf cart batteries are the ultimate solution for long-lasting and hassle-free energy in your golf cart.

LiTime 51.2V 100Ah RS485 battery for golf carts, showcasing EV-grade LiFePO4 cells for stable performance and long lifespan

Unmatched Safety and Reliability with Advanced BMS

Engineered for performance and peace of mind, the advanced BMS in LiTime's lithium golf cart batteries provides industry-leading protection. Featuring 20+ safety protocols, it guards against overcharge, over-discharge, over-current, overheating, low temperature, and short circuit , ensuring your battery's reliability in every ride. The low-temp cut-off protection prevents damage in extreme weather, while the auto-recovery function after overload (30s) ensures reducing manual intervention. Built for durability, the pre-charging function and salt spray resistance make these 48 volt golf cart batteries ideal for any terrain or climate. With LiTime's BMS-equipped lithium ion golf cart batteries, you can focus on the course without worrying about your power supply.

LiTime 48V 100Ah RS485 battery for golf carts with 20+ BMS protection

Lightweight, Long-Lasting, and Built for Peak Performance

When it comes to powering your golf cart, LiTime's 48 volt golf cart batteries redefine reliability and efficiency. Compared to heavy and short-lived lead-acid options, our lithium golf cart batteries offer up to 15,000 charge cycles, 100% discharge capacity, and ultra-low self-discharge of just 1-3% per month. Built with a self-developed BMS, LiTime lithium golf cart battery deliver unmatched safety and performance while being significantly lighter, making installation and handling easier. Designed specifically to address the frustrations of frequent maintenance and limited runtime, LiTime's golf cart lithium battery is the eco-friendly, high-performance solution every golfer needs.

advantages of LiTime 48V 100Ah RS485 lithium battery for golf carts over 6 packs gc2 lead acid batteries

Cost-Effective and Energy-Efficient

Say goodbye to high energy costs and constant maintenance with LiTime's lithium golf cart batteries. Designed for efficiency, these 48 volt golf cart batteries consume minimal energy while offering a low self-discharging rate of just 1-3% per month, ensuring your battery stays ready even after extended downtime. With no regular maintenance required and support for solar panel charging, LiTime's golf cart lithium battery not only saves you money but also promotes eco-friendly practices. Engineered for reliability and convenience, these lithium ion golf cart batteries are the perfect solution for users seeking long-term savings and hassle-free performance.

Reliable Charging Anywhere

Keeping your golf cart lithium battery charged has never been easier with LiTime's versatile charging solutions. Whether using a 58.4V LiFePO4 charger at home, harnessing solar energy with an MPPT controller, or relying on a generator with an AC-DC charger, these flexible options ensure your golf cart is always powered up and ready to go. Designed to solve the common pain points of limited charging accessibility and downtime, LiTime's lithium batteries for golf carts deliver convenience, reliability, and eco-friendly performance. With seamless integration and efficient charging, LiTime's 48v golf cart battery is the ultimate solution for uninterrupted rides.

recommended charging ways to litime 48V 100Ah RS485 lithium golf cart battery

Premium Battery for Top Brands and Versatile Vehicle Types

LiTime offers professional-grade lithium golf cart batteries, expertly designed to power top vehicle brands like Yamaha, Club Car, EZGO, and ICON, as well as various vehicle types including LSVs (Low-Speed Vehicles), UTVs (Utility Terrain Vehicles), and NEVs (Neighborhood Electric Vehicles) with speeds ≤25MI/hour. These 48 volt golf cart batteries deliver reliable, maintenance-free energy with high efficiency and long lifespans, ensuring optimal performance across diverse applications. Whether for recreational off-roading or street-legal use, LiTime's golf cart lithium battery provides the durability, reliability, and energy density required to keep your vehicle running smoothly.

LiTime 48V 100Ah LiFePO4 battery for golf and street-legal carts, compatible with Club Car, EZGO, ICON, Yamaha

Product Details

LiTime 48V 100Ah lithium golf cart battery

LiTime 48V 100Ah golf cart battery with switch

SPECS

BATTERY

Cell Type：

LiFePO4

Warranty：

5 Years

Cycle Life：

4000 cycles@100% DOD, 6000 cycles@80% DOD, 15000 cycles@60% DOD

Nominal Voltage：

51.2V

Rated Capacity：

100Ah

Energy：

5120Wh

Max. Expansion (Parallel & Series)：

8P1S

Internal Resistance：

≤40mΩ

Certifications：

FCC,CE,RoHS,UN38.3,UL-2271

Bluetooth：

BMS

BMS：

200A

Max. Continuous Output Power：

For Electric Cart: 5000W; For Energy Storage: 5120W

Max. Continuous Charge Current：

100A

Max. Continuous Discharge Current：

100A

Max. Discharge Current 1 Second：

600A

CHARGE

Charge Method：

CC/CV

Charge Voltage：

57.6±0.8V

Recommend Charge Current：

20A(0.2C)

TEMPERATURE

Charge Temperature：

0℃ to 50 ℃ / 32℉ to 122 ℉

Discharge Temperature：

-20℃ to 60 ℃ / -4℉ to 140 ℉

Storage Temperature：

-10℃ to 50 ℃ / 14℉ to 122 ℉

Low-Temperature Protection：

√

Low-Temperature Charging Protection Auto Recovery：

5℃ / 41℉ (Battery Temperature)

OTHERS

Terminals：

M8 Bolts

Weight Approx.：

100.62 lbs

Size：

19.88*12.32*9.25 in

Housing Material：

Steel Plate Cold Common (SPCC)

Protection Class：

IP66

FAQ

What are the benefits of RS485 VS bluetooth monitor?

The LiTime Real-Time Battery Monitoring Display uses RS485 communication for enhanced performance. Compared to Bluetooth, RS485 supports much longer transmission distances—up to 328 feet—while Bluetooth typically supports 32.8 feet. More importantly, RS485 provides a stable, interference-resistant wired connection, ensuring reliable real-time data display without the risk of dropouts common in wireless systems.

Visit RS485 VS Bluetooth Monitor for more comparison.

Can the battery be mounted sideways?

We recommend mounting it upright with the poles facing up. It is important to pay attention that the front and top are not facing down.

Can I connect the golf cart batteries in series or parallel?

The 48V GC2 lithium golf cart battery supports only connecting in parallel instead of series.

It supports max.8 batteries connect in parallel to get 40960kWh energy.

How do I monitor the battery? Can I monitor it through the phone?

Just eqquiped with LiTime RS485 Battery Monitoring Display then you can check on the batteries status.

It doesn't eqquipped with bluetooth, you can visit GC2 Bluetooth model for this function.

How will installing lithium batteries improve the performance of a golf cart?

Lithium batteries provide more power to your golf cart compared to traditional lead-acid batteries. This allows you to climb hills and inclines effortlessly, while also achieving a higher top speed.

Is a 48V Lithium Golf Cart Battery Better Than 36V?

While 36V setups have been popular in golf carts for many years and perform well, there are notable advantages to using a 48V system:

•Faster Acceleration: A 48V system provides higher low-end torque, allowing for quicker acceleration.

•Increased Power: With more overall power, a 48V setup is beneficial for tackling hills and challenging terrain.

•Improved Efficiency: 48V batteries draw fewer amps, making them more efficient than 36V batteries. This efficiency translates to longer usage on a single charge.

•Better for Rough Terrain: A 48V system handles rougher terrain effectively, enabling off-road capabilities and easier navigation of hilly areas.

Related reading: Golf Cart Batteries: 36V VS 48V

REVIEWS

👍👍👍

So far, I’m very impressed with this battery. I hadn’t had it but about four weeks but so far it’s beyond expectations.

Golf Cart Saved

If you are thinking about getting rid of your messy, over weight, non economical lead acid batteries, NOW IS THE TIME!! I recently purchased the 48 volt LiPo4 for my 96 Club Car DS and I wish i would have done it sooner. I dropped over 200 lbs of weight, went from 6 individual batteries to 1 sealed case, clean simplified wiring and no more headache of filling batteries. So far I've noticed an overall gain in speed, a longer more consistent run time, and the ability to charge the battery a lot faster. I'm impressed with the customer service I received while doing my install and the warranty sealed the deal for me. 5 stars isn't enough when rating this product. Thank you LiTime for renewing my old cart!!!

Great replacement

This battery pack has been a great improvement for the old lead acid batteries. The amount of power that this battery can instantly dump into the cart is awesome.

Missing charger and screen

Got the battery and it was an easy install. I am missing the charger and the monitor that it says it includes. I will update the review when it’s fixed.

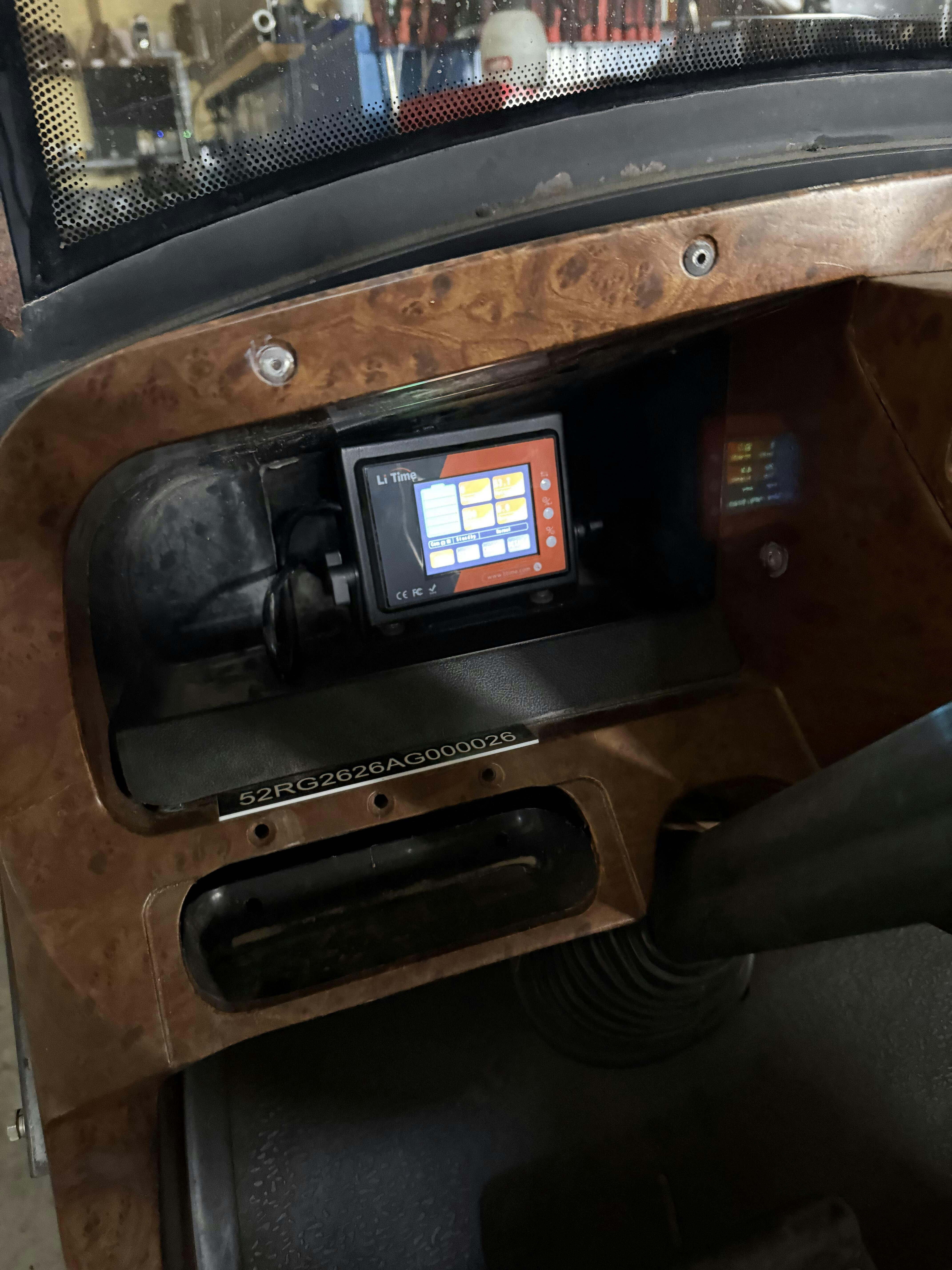

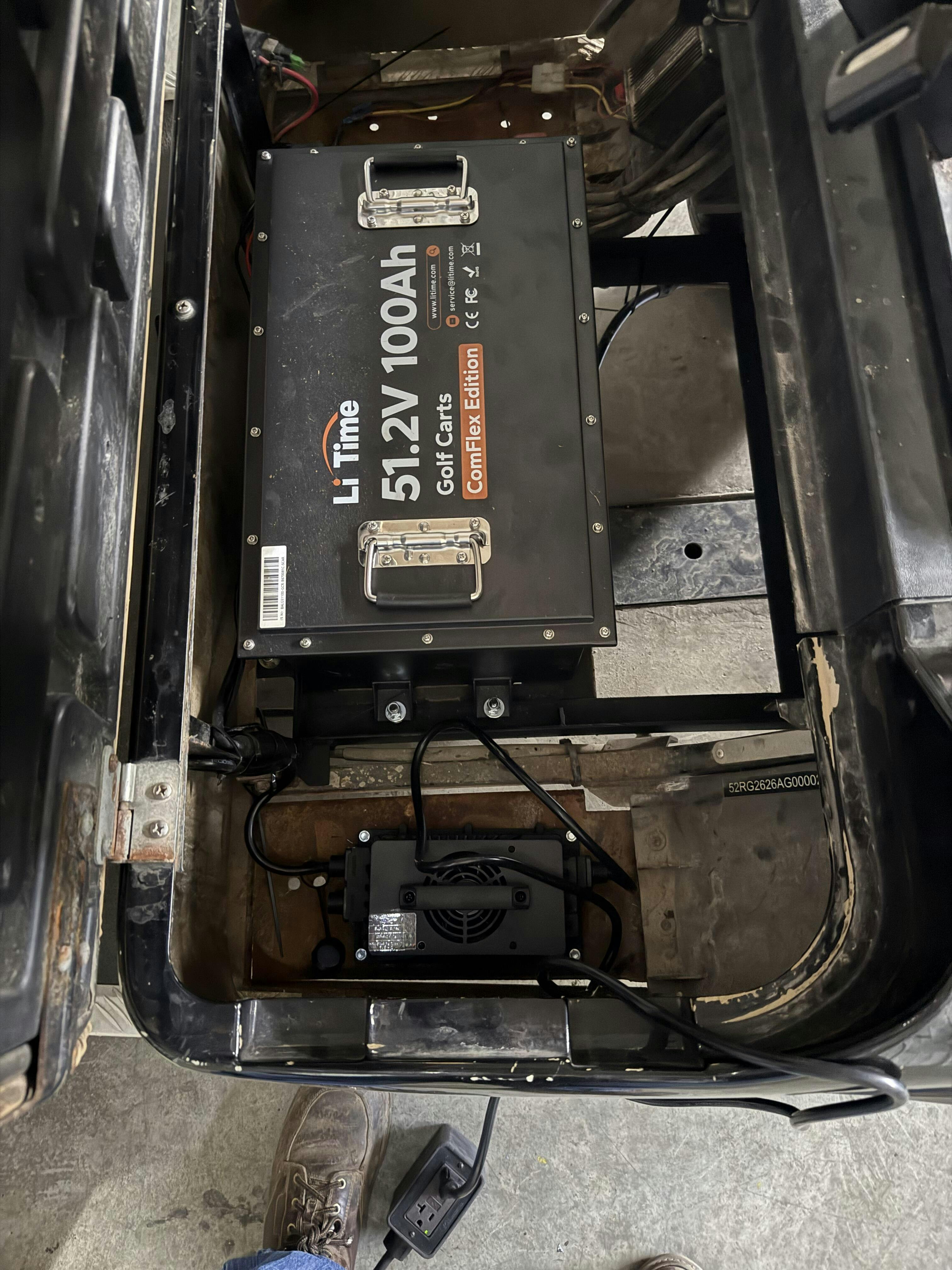

Happy with Club Cart Precedent Conversion

Converted a 2013 Club Car Precedent from lead acid to this lithium pack and very happy with the results. Cart accelerates faster, maybe a little higher top speed, and handles hills much better. Have a lift and big tires. Installation was a little more work than I anticipated. The battery tray isnt wide enough for the battery because of a few molded parts in the bottom. Used an oscillating tool to remove those and then the battery fits in fine. Used a ratchet strap around the battery and the hook point for the original battery hold down and feel like the battery is secure. Bypassed the OBC to avoid a lockout. Little concerning cutting and jumping wires but no issues. OBC wiring is behind the silver panel. You need to jump the blue and yellow wires that run from the OBC to the controller. I cut all of the wires on the OBC harness so I didnt have to cut the main cart wiring. Connected the blue and yellow wires and capped the remaining wiring. There are black wire from the OBC to the charge port and controller that also need to be cut and capped. The main negative from the controller to the pack runs through the middle of the OBC and you dont cut that. Doesnt actually connect to the OBC just physically passes through it. All wires from the charge port are cut since you will be using the included charger. I mounted the charger on the cart with a few bolts (not included with kit). I also purchased a replacement charge port that has a male outside plug and female plug inside so I can plug an extension cord in the original charge port to power the included charger. You have to pry off the ring around the original charge port, remove the floor mat, and some trim to get to the screws to replace the charge port. This is when you will want to run wires for the display to the dash. Display fits perfectly right above the steering column. If you dont have any 12v accessories you would be done with the install at this point. If you have 12v accessories you need to install a converter to step down the 48v to 12v. I have a light kit so I needed the converter. I wanted the converter to power on and off with the key so I got a converter with a turn on wire (blue ones on Amazon, not cheaper silver ones). Run the turn on wire to the key switch when you run the wiring for the display. I went and installed a fuse panel as well so future accessories can easily be wired. The wiring for my light kit had a positive and negative sticking out from conduit in the battery compartment. Positive was actually a blue wire. Youre really just looking for two wires that look like they are spliced into the main harness. I used a 12v battery to test the two wires I thought were for the light kit to confirm since I dont have a wiring diagram. Excuse the wiring mess in photos, still need to clean that up. Total additional parts for complete installation were converter, fuse panel, charge port, and ratchet strap. Will also need additional wires for dc connections and mounting hardware if you dont have those on hand.
