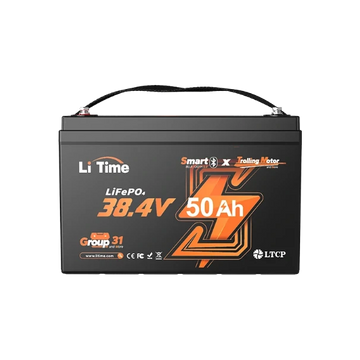

Hot LiTime 36V 50Ah Marine Trolling Motor Lithium Bluetooth Battery
$620.03
$869.99
Ends in:
:
:
:
03
Days
03
Hrs
03
Mins
03
Secs
Born for 100-120 lb trolling motors, Upgraded with Smart Bluetooth 5.0.
- Intelligent Bluetooth 5.0: Monitor a single battery or system's status, control discharge, or turn off battery via LiTime APP.
- 60A Power Output: Supports up to 60A discharge current to keep compatible trolling motors running steadily under demanding loads.
- Lightweight Lead-Acid Upgrade: 65% lighter with 2.1× the energy of three 12V 50Ah lead-acid batteries, reducing onboard weight and space.
- 20+ Upgraded Protection: Includes pre-charging, over-current protection with auto-recovery (30s), moisture-proof, salt-spray resistance, etc.
- Low-Temp Protection: Automatically limits charging and discharging in extreme cold to help protect battery cells and extend service life.
- IP65 Protection: Water- and dust-resistant for fishing, boating and other marine environments.
- Long-Lasting LiFePO4 Cells: EV-grade cells deliver 4,000–15,000 cycles and an expected service life of up to 10 years.
- Expandable 36V Power: Connect up to 4 batteries in parallel to build a 38.4V 200Ah system for greater energy capacity.
-
Compact Footprint: Measures 13 × 6.77 × 8.5 in for easier installation in marine battery compartments.
- Not for Engine Starting
September Power Deals End In:
00D
00H
00M
00S
1 Pack
$449.99
$579.99
1.92kWh for 100–120 lb TM—one battery replaces three 12V batteries.
Best Value
2 Pack
$886.48
$999.99
3.84kWh for longer fishing days and fewer recharge
Ultra-Fast Recharge
1 Pack + 36V 25A Charger
$620.03
$869.99
25A IP65 charging—recharge 50Ah in about 2 hours.
1 Pack + 36V 15A Charger
$588.68
$859.98
15A IP66 charging with BMS activation for reliable marine use.
Quantity
Frequently bought together
$620.03
$869.99
FREE delivery Fri, Sep 25 - Mon, Sep 28
30 Days Returns
Local Warehouse Free Shipping
5 Years Warranty
30 Days Price Match
Protection Upgrade
1
/
10
Lithium Battery for 36V Trolling Motor
This battery is ideal for 100–120 lb trolling motors, built with EV-grade LiFePO4 cells for high energy density. Equipped with LiTime's self-developed 50A smart BMS for enhanced protection, it features a Group 31 size that offers broad compatibility with trolling motors.
Bluetooth Integrated for Easy Monitoring

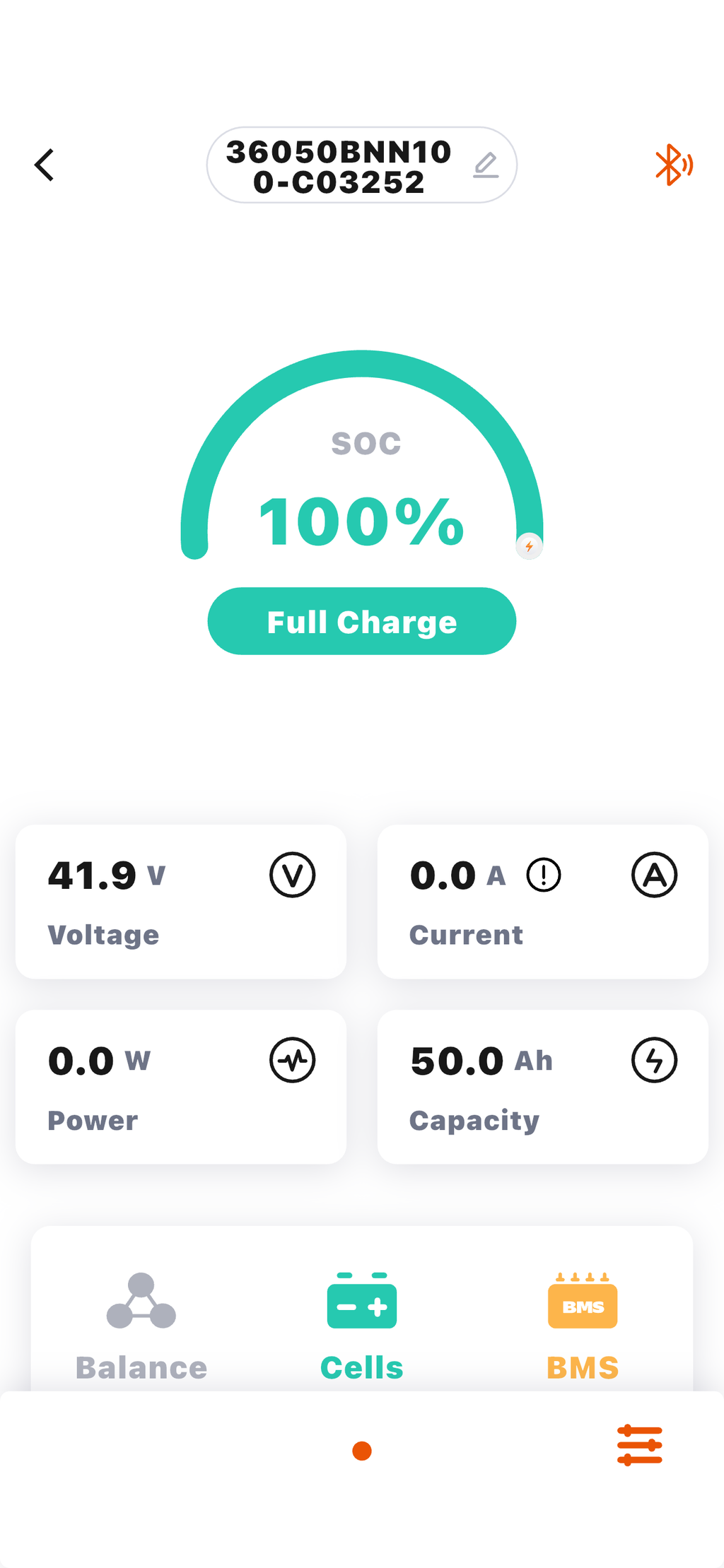

Equipped with Smart Bluetooth 5.0, the battery connects to the LiTime app for real-time monitoring of key metrics, including SOC, charge/discharge status, voltage, current, power, remaining capacity, temperature, and life cycles. Simply scan the battery's barcode for automatic connection, and use the app to control discharge or power off the battery.
Protect the Battery's Safety in Winter
Featuring low-temperature cutoff protection, this 36V trolling motor battery intelligently halts charging below 0°C and discharging below -20°C, protecting its cells from harsh winter conditions. Powered by LiTime's latest BMS innovation, it ensures safe and efficient performance year-round."
Top EV-Grade A LiFePO4 Cells
Green, Safe, and High-Efficiency: Designed with higher energy density for superior performance.
Enhanced Power Output: Delivers a max continuous discharge current of 50A, with an upgraded capacity of 60A for up to 30 minutes, and peak discharging at 250A for 1 second.
Durability & Longevity: Built for endurance, offering 4000+ deep cycles at 100% DOD, ensuring a lifespan of over 10 years without the need for replacement.
Full Protected By BMS
The advanced 50A battery management system (BMS) offers over 20 protections and warnings, including smart Bluetooth connectivity, low-temperature charging cutoff, over-voltage and low-voltage protection, over-current protection with auto-recovery, temperature protection (high and low), short-circuit protection, overload protection, and a pre-charging function with a 30mF capacitive load. These features ensure stable, intelligent, and safe operation.
Best Replacement to Lead-Acid Battery
This advanced lithium battery features Bluetooth connectivity for real-time monitoring, a smart BMS for comprehensive protection, and non-toxic LiFePO4 cells for eco-friendly, efficient power. Compared to three 12V 50Ah lead-acid batteries, it offers significant advantages: 65% lighter, delivering 2.1x the energy and lasting 3.3x longer. Experience a high-performance, long-lasting, and environmentally conscious power solution.
Reliable Power for Trolling Motor/Back-Up Power/Solar Power
3 Ways to Charge The Lithium Trolling Motor Battery
LiFePO4 batteries offer versatile charging options, allowing you to keep them powered efficiently no matter your environment. Here are three reliable ways to charge your battery:
LiFePO4 Charger (AC-DC)
For a fast and efficient charge, use a 43.8V 25A AC-DC charger. In just 2 hours, your battery will be fully recharged, ensuring minimal downtime and maximum performance. This is the go-to method for quick, convenient charging at home or in any location with AC power access.
Solar Panel + MPPT Controller
For eco-friendly charging, harness the power of the sun. With a solar panel setup of at least 600W, paired with an MPPT (Maximum Power Point Tracking) controller, you can charge your LiFePO4 battery in just one sunny day. This method is ideal for off-grid applications or environmentally conscious users looking for renewable energy solutions.
Generator + AC-DC Charger
When access to solar power or grid electricity is limited, a generator can be an excellent alternative. Using a 43.8V 25A AC-DC charger connected to a generator, you can fully recharge the battery in just 2 hours. This option is perfect for remote locations or as a backup charging solution during emergencies.
BATTERY
Cell Type
LiFePO4
Warranty
5 Years
Cycle Life
4000 Cycles at 100% DOD, 6000 Cycles at 80% DOD, 15,000 Cycles at 60% DOD
Nominal Voltage
38.4V
Rated Capacity
50Ah
Energy
1920
Max. Expansion (Parallel & Series)
4P1S
Internal Resistance
≤40mΩ
Certifications
FCC,CE,RoHS,UN38.3
Bluetooth
√
Self-Heating
/
BMS
BMS
50A
Max. Continuous Output Power
1920W
Max. Continuous Charge Current
50A
Max. Continuous Discharge Current
50A
Max. Discharge Current 1 Second
250A
CHARGE
Charge Method
CC/CV
Charge Voltage
43.2±0.6V
Recommend Charge Current
10A
TEMPERATURE
Charge Temperature
0°C to 50°C / 32°F to 122°F
Discharge Temperature
-20°C to 60°C / -4°F to 140°F
Storage Temperature
-10°C to 50°C / 14°F to 122°F
Low-Temperature Protection
√
Automatic Discharge Off
<-4°F/-20°C
Automatic Charge Off
＜32°F/0°C
Automatic Charging Recovery
≥41°F/5°C
OTHERS
Terminals
M8 Bolts
Weight Approx.
33.14 lbs
Size
L13*W6.77*H8.5 in (Group 31 Size)
Housing Material
ABS
Protection Class
IP65
1 Pack
Flat Washer
x2
M8 Screws
x2
Insulation Caps
x2
36V50Ah Battery
x1
Flat Washer
x2
M8 Screws
x2
Insulation Caps
x2
2 Pack
36V50Ah Battery
x1
Flat Washer
x2
M8 Screws
x2
Insulation Caps
x2
36V50Ah Battery
x1
Flat Washer
x2
M8 Screws
x2
Insulation Caps
x2
1 Pack + 36V 25A Charger
36V50Ah Battery
x1
Flat Washer
x2
M8 Screws
x2
Insulation Caps
x2
36V50Ah Battery
x1
Flat Washer
x2
M8 Screws
x2
Insulation Caps
x2
1 Pack + 36V 15A Charger
36V50Ah Battery
x1
Flat Washer
x2
M8 Screws
x2
Insulation Caps
x2
36V50Ah Battery
x1
Flat Washer
x2
M8 Screws
x2
Insulation Caps
x2
What is the ideal thrust range for a 36V 50Ah trolling motor battery?
100-120 lbs trolling motor
What should I do when I receive the battery?
Upon receiving your battery, please be aware that it may have a low State of Charge (SOC) due to transportation and storage. To ensure optimal performance, we recommend charging the battery immediately to prevent over-discharge.
For Bluetooth batteries, they may arrive in an off state, showing a virtual voltage of 3V to 5V at the terminals. This is normal and can be rectified by using an AC-DC LiFePO4 lithium battery charger or an MPPT solar charge controller to charge the battery for 3 to 10 seconds, which will activate it for normal use.
If you intend to store the battery for an extended period without use, charge it to a SOC between 30% and 50% and perform maintenance every three months. This practice will help maintain its functionality and performance over time.
Can I use the trolling motor battery in my electric outboard motor?
Normally, it's not recommended to use a battery designed for a trolling motor in an electric outboard motor since the surge discharge current might not be sufficient. Outboard motors often require higher power for acceleration and sustained operation, which can lead to higher surge currents that trolling motor batteries may not handle well.
If you’re planning to use an electric outboard motor, it’s best to invest in a battery specifically designed for such applications like LiTime Outboard Motor Batteries. These batteries are built to handle the high power requirements and ensure optimal performance and safety.
Read on Electric Outboad Motor VS Trolling Motor for more detailed information.
Can I connect the battery in series or parallel?
LiTime 36V 50Ah lithium battery supports connecting up to 4 identical batteries in parallel for up to 36V(38.4V)200Ah battery system. However, the battery do not support connect in series.
To connect in series or parallel, batteries should meet the below conditions:
- identical batteries with the same battery capacity (Ah) and BMS (A);
- from the same brand (as lithium battery from different brands has their special BMS);
- purchased in near time (within one month).
Can I charge LiTime 36V 50Ah TM LiFePO4 lithium batteries in cold weather (under freezing temperatures)?
LiTime 36V 50Ah TM LiFePO4 batteries can charge between 0℃ to 50℃ / 32℉ to 122℉. The 36V 55Ah TM version has low-temperature charging protection function, it would cut off charging when it's below 0℃. It's recommended to charge the battery indoor during cold days.
Do you provide marine staring batteries?
Yes. Visit LiTime Marine Starting Batteries to choose the right one.
How do I monitor the battery status?
The battery is equipped with an integrated Bluetooth module, enables convenient monitoring of the battery status using your smartphone through the LiTime App.
S

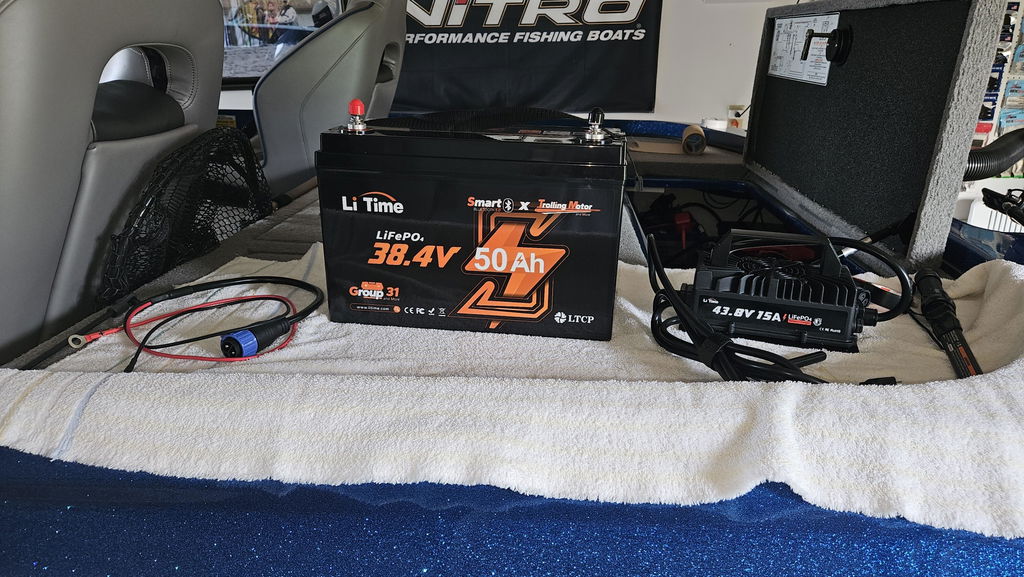

Quick delivery on both of the batteries I bought. And have been working awesome so far for me. I recommend them.
T

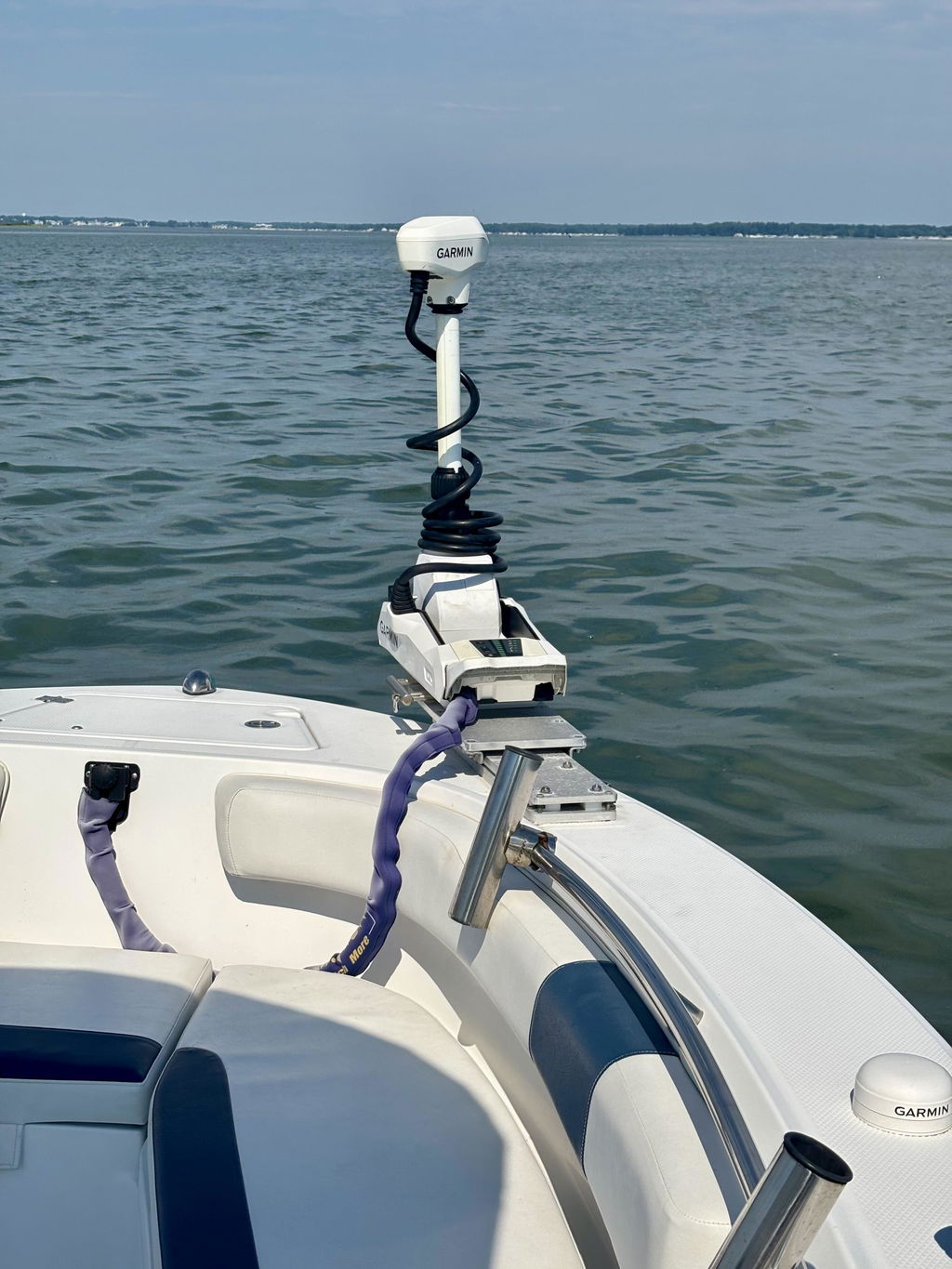

Runs great and weighs only 33 lbs compared to a std 12v starter battery which is 43 lbs. I ran my Garmin Force Kraken trolling motor for hours around the bay without any issues. I did have a minor issue with the app, though, and Customer Service was quick to respond and it was fixed within 24 hours.
C
I own a Champion 206, 250 Yamaha with Lowrance Ghost trolling motor, not a lightweight rig. I fish a few local lakes that are electric motor only. I have went out three times in the last two weeks on one of the local lakes and when I've returned to dock after 7 or 8 hours of hard fishing I've had 57%, 48% and 41% battery left. This battery has a ton of power and is proving to be much more efficient than my old lithium batteries that were 3x 12v 100Ah. Very pleased with the performance of this battery and only having to deal with one BMS and a much smaller footprint in the rear of my boat.
W

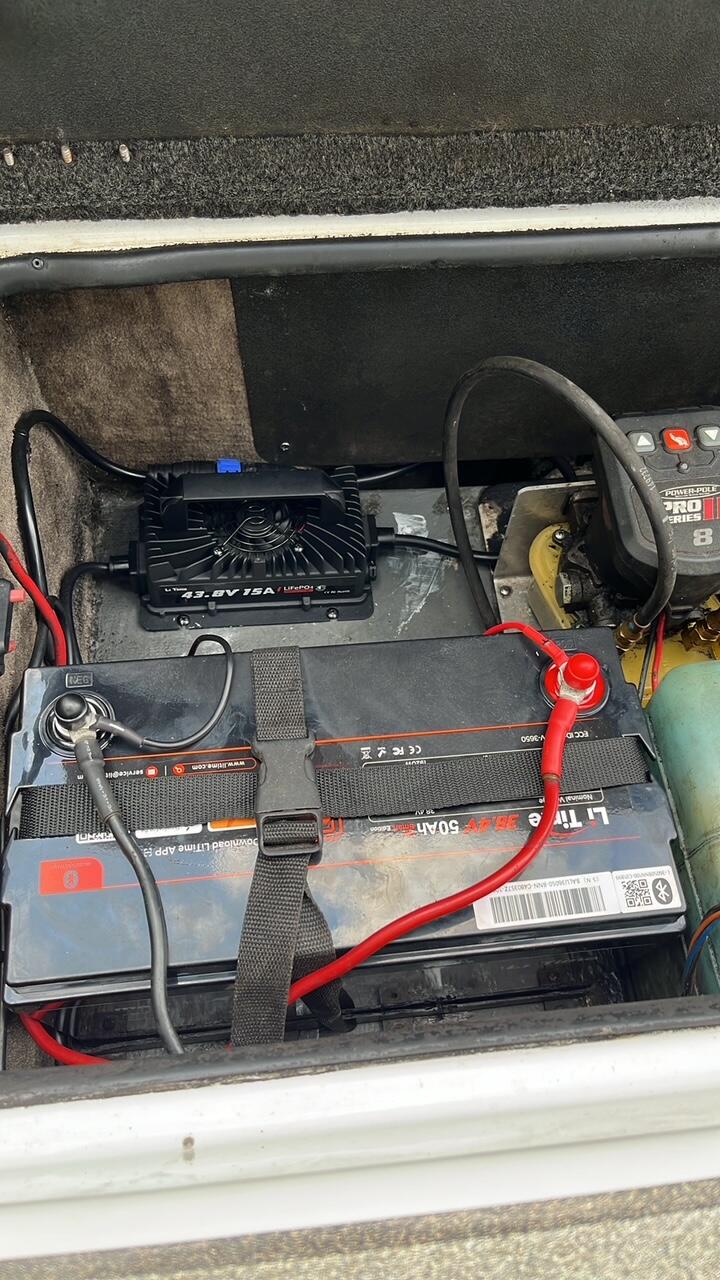

Installed a pair of these in my 22 foot SeaArk BXT 220 for my Power Pole trolling motor. Ran it for 4+ hours between level 5 and 15. It only used 2% of charge!
C
I have had a chance to use it three times on my 36V 105# Motorguide digital tour pro trolling motor pulling around a 20' Skeeter Bay boat. I charged to 100% upon receiving the battery and again after the first use (as instructed). I used 9% after use #1 and 11% after trip two and three. The 36v 50 amp battery replaced (3) orbit 12v AGM batteries. I wasn't sure if I would need the 100 amp battery but I settle for the 36v 50 amp and I am glad I did. 12 hours of normal fishing (bass) and only 11% usage. I did some research and the recommendations I found suggested that normal usage should be between 30% and 80%, that it isn't necessary to charge to 100% unless you plan on heavy usage over a couple of days. I have been fishing for 50 years and gone through more lead acid and AGM batteries than I can remember. The upgrade to lithium is a no brainer and the LiTime battery exceeds my expectations. It charges from 80 to 100% in less than an hour with the 25v LiTime charger. My next upgrade will be for my Lance truck camper and I will be buying LiTime batteries for that. Oh buy the way get the bluetooth option.
R
So far I am very impressed and happy with LiTimes 36V smart 50 AH battery. I love how I can see the State of Charge. I bought two to have 100 AH with a battery selector switch, but I have only used 32% of one battery on (2) 6 hour jetty trips where I would spot lock the majority of the time. Great job LiTime!
R
Loving these batteries. I got 2 in parallel for my Lowrance ghost. Ran on power 4 for 2 hours and only used 3%. Highly recommended
T
I’ve only used the battery once but I was impressed by how little it discharged in a full day of fishing. I really enjoyed being able to monitor the charging and discharging rates with the Bluetooth app.
