LiTime 36V 100Ah Golf Cart Lithium Battery Conversion Kits
$944.03
$1,199.99
Ends in:
:
:
:
03
Days
03
Hrs
03
Mins
03
Secs
-
Complete 100Ah Conversion Kit: Includes 100Ah battery with compatible charger and optional RS485 display.
-
36V Golf Cart Compatibility: Works with Yamaha, E-Z-GO TXT, Club Car, and most 36V golf carts.
-
Up to 35 Miles Range: 3840Wh lithium power for full-day golf course use.
-
High Burst Power Output：Delivers 500A peak current for 1 second and 100A continuous output to support strong takeoff and hill climbing.
- Smart Monitoring: Track SOC, voltage, current, and battery status in real time via the mobile app or optional RS485 display.
- Group 8D Size: Replaces 6×6V 210Ah lead-acid batteries with 85% less weight and 50% space saving.
September Power Deals End In:
00D
00H
00M
00S
36V 100Ah Golf Cart Essential Kit
$944.03
$1,199.99
Includes 25A WaterProof LiFePO4 Charger for easy activation and charging.
36V 100Ah Golf Cart Smart Display Kit
$1,070.99
$1,299.99
25A waterproof charger + RS485 display for easy charging and monitoring.
Recommended
36V 100Ah Golf Cart Complete Install Kit
$1,083.26
$1,299.99
18A waterproof charger + RS485 display + hold-down kit for at-a-glance monitoring and secure installation.
Quantity
Frequently bought together
$944.03
$1,199.99
FREE delivery Thu, Oct 8 - Sun, Oct 11
Local Warehouse Free Shipping
5 Years Warranty
30 Days Price Match
30 Days Returns
Protection Upgrade
1
/
10

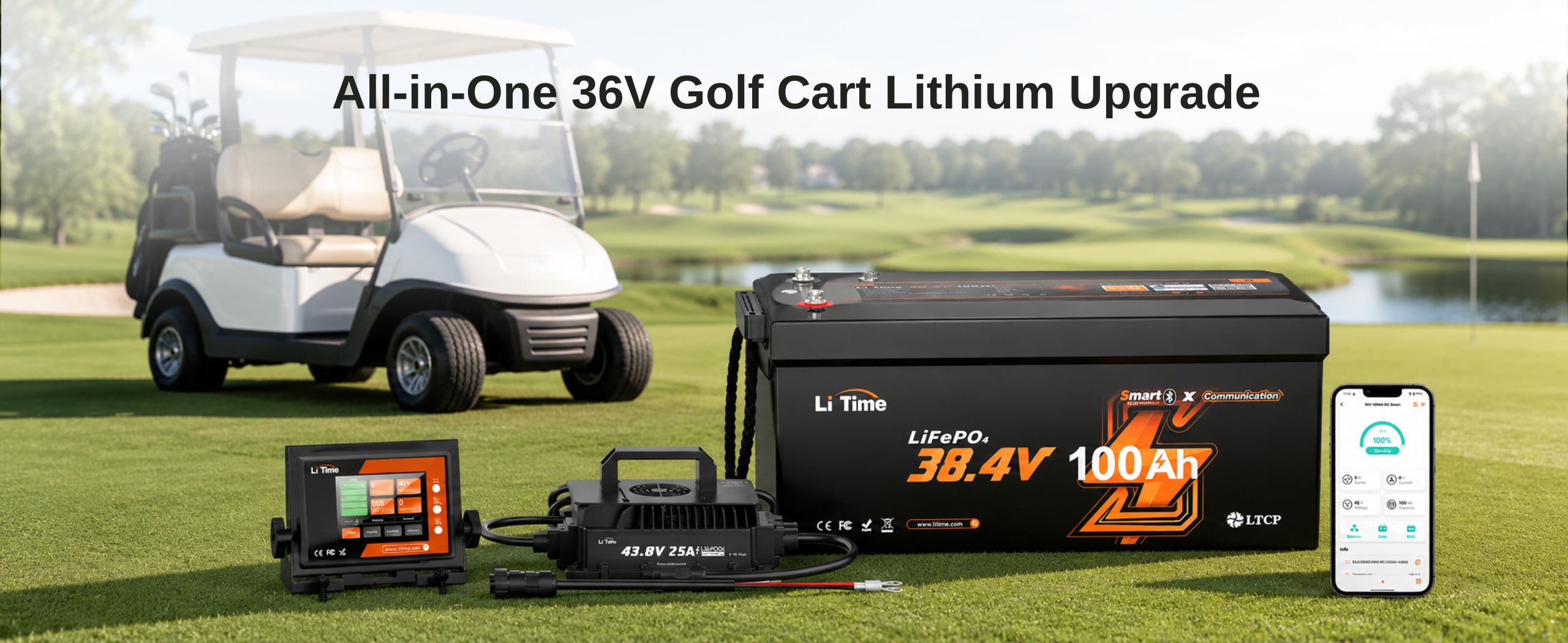

36V Golf Cart Lithium Battery Kit: Long Range, Power & Smart Control
Upgrade your 36V golf cart with LiTime’s 100Ah lithium battery kit for longer range, stable power output, and smarter battery monitoring. Built for easy conversion, smoother rides, and all-day use on the course or around the neighborhood.
Bluetooth 5.0 App: Real-Time SOC, Voltage & Battery Control
With Bluetooth 5.0 monitoring by LiTime APP, you can view key battery data in real time, including SOC, voltage, current, and system status. Password pairing and battery control features help make daily use more convenient and secure.
RS485 Display: Real-Time Battery Data on Your Dash
The LiTime RS485 display gives you clear battery data directly from the driver’s seat, so you can check power level, voltage, current, and system status without opening the app. Adjustable viewing angles and plug-play setup make it easier to monitor your golf cart power on every ride.
Built for Safer, Longer-Lasting Power
The self-developed 100A BMS provides 20+ built-in protections for common abnormal conditions, including low temperature, moisture, salt spray, overload, and more. EV-grade LiFePO4 cells deliver long cycle life and stable power for everyday golf cart use.
Designed for Popular 36V Golf Cart Setups
LiTime 36V lithium golf cart batteries are designed for common 36V golf cart models, including E-Z-GO TXT / Marathon, Club Car DS, and Yamaha G-Series carts. Before upgrading from lead-acid to lithium, please confirm your cart’s voltage system, motor power requirements, battery compartment space, and charger compatibility. For the best fit, also check the mounting method and whether the charger AC plug needs to be replaced.
BATTERY
Cell Type
LiFePO4
Warranty
5 Years
Cycle Life
4000 Cycles at 100% DOD, 6000 Cycles at 80% DOD, 15,000 Cycles at 60% DOD
Nominal Voltage
38.4V
Rated Capacity
100Ah
Energy
3840Wh
Max. Expansion (Parallel & Series)
4P1S
Internal Resistance
≤40mΩ
Certifications
FCC,CE,RoHS,UN38.3
Bluetooth
√
BMS
BMS
100A
Max. Continuous Output Power
For Electric Cart: 3000W; For Energy Storage: 3840W
Max. Continuous Charge Current
100A
Max. Continuous Discharge Current
100A
Max. Discharge Current 1 Second
600A
CHARGE
Charge Method
CC/CV
Charge Voltage
43.2V±0.6V
Recommend Charge Current
20A
TEMPERATURE
Charge Temperature
0°C to 50°C / 32°F to 122°F
Discharge Temperature
-20°C to 60°C / -4°F to 140°F
Storage Temperature
-10°C to 50°C / 14°F to 122°F
Low-Temperature Protection
√
Automatic Discharge Off
<-4°F/-20°C
Automatic Charge Off
＜32°F/0°C
Automatic Charging Recovery
≥41°F/5°C
OTHERS
Terminals
M8*16mm
Weight Approx.
61.06 lbs
Size
L20.47*W10.55*H8.66 in (Group 8D Size)
Housing Material
ABS
Protection Class
IP65
36V 100Ah Golf Cart Essential Kit
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
36V100Ah Battery
x1
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
36V 100Ah Golf Cart Smart Display Kit
36V100Ah Battery
x1
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
36V100Ah Battery
x1
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
36V 100Ah Golf Cart Complete Install Kit
36V100Ah Battery
x1
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
36V100Ah Battery
x1
Insulation Caps
x2
M8 Screws
x2
Flat Washer
x2
Is this 36V 100Ah kit compatible with my golf cart?
This 36V golf cart lithium battery conversion kit is compatible with most 36V systems, including E-Z-GO TXT, Club Car DS, and Yamaha G-series carts. Always confirm your motor voltage, motor power requirements, and battery compartment size before purchase.
Do I need to modify my golf cart to install this kit?
In most cases, no major modification is required. The 36V lithium golf cart battery kit is designed as a drop-in replacement for lead-acid systems, making the upgrade simple, convenient, and easy to complete.
For an even more secure installation, you can pair your battery with the LiTime Heavy-Duty Battery Hold Down Kit.
Can I replace all lead-acid batteries with this 100Ah lithium kit?
Yes. The 36V 100Ah lithium golf cart battery kit is designed to replace a full set of lead-acid batteries, simplifying your system into a single, more efficient lithium solution.
Do I need a special charger for this kit?
Yes. The 36v (43.8) 25A battery charger is required. Using the correct charger helps ensure safe charging, better performance, and longer battery lifespan.
Is installation difficult for a 36V golf cart lithium battery conversion kit?
Installation is generally straightforward for users familiar with basic wiring. However, professional installation is recommended for users without electrical experience to ensure safety and optimal performance.
