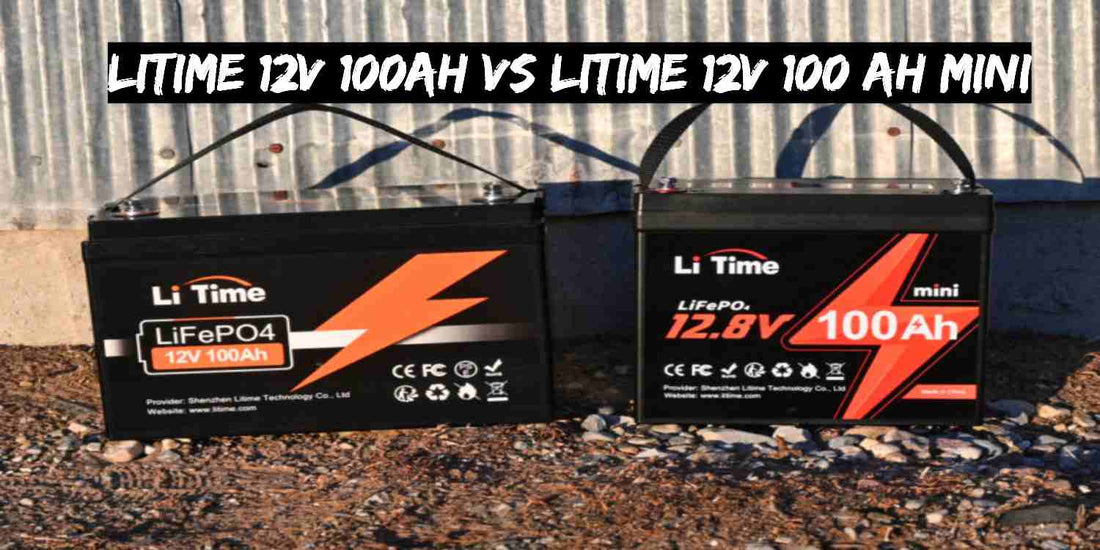

LiTime 12V 100Ah VS LiTime 12V 100Ah Mini, Which one to Choose
LiTime 12V 100Ah and LiTime 12V 100 Ah Mini are the most popular types batteries on LiTime, many customers are confused how to choose between them. This article will have a comprehensive comparison between these 2 types of batteries, hope it can help you when choosing. Let’s dive in.
Table of Content
Part 1: The Similarities Between the 12V 100Ah Battery and LiTime's 12V 100Ah Mini
Generally speaking, these 2 batteries has the similarities among parameter performance in voltage, capacity, cycle life, charge and discharge rate and so on.
1. Voltage & Capacity
Both of these 2 batteries have the nominal voltage at 12.8V, rated capacity of 100Ah.
2. Cycle Life
Both of these 2 types of batteries’ life cycle can be 4000-15000+.
- 4000+ Cycles (100% DOD)
- 6000+ Cycles (80% DOD)
- 15000+ Cycles (60% DOD)
3. Energy
The energy of these 2 batteries is 1280Wh.
4. Internal Resistance
≤40mΩ
5. Battery Management System (BMS Board)
Both of these 2 batteries have built-in 100A BMS, which can protect the battery from overcharging, over-discharging, over-current, overheating, and short circuits.
Note: These 2 batteries don’t have low-temperature protection. If you are looking for the battery with low-temperature protection, visit LiTime newest released LiTime 12V 100Ah TM LiFePO4 lithium battery.
6. Charge Method
CC/CV
7. Charge Voltage
14.4V±0.2V
8. Recommend Charge Current
20A (0.2C)
9. Max. Continuous Charge Current
100A
10. Max. Discharge Current 5 Seconds
280A
11. Max Continuous Output Power
1280W
12. Housing Material
ABS (Flame Retardant Plastic)
13. Protection Class
IP65
14. Temperature Range
- (1) Charge: 0℃ to 50℃/32℉ to 122℉
- (2) Discharge: -20℃ to 60℃/ -4℉ to 140℉
- (3) Storage: -10℃ to 50 ℃/14℉ to 122℉
15.Multiple Applications
Both regular one and mini supports up to 4 in series and 4 in parallel (Max 4S4P) to build a 48V 400Ah battery system for 20.48kWh energy and max. 20.48kW load power. Perfect for RV, solar, home energy storage, and off-grid applications.
Part 2: The Differences Between LiTime 12V 100Ah and 12V 100Ah Mini
The main differences between 12V 100Ah and 12V 100Ah mini are the cells and BMS.
1. Dimension & Weight
LiTime's 12V 100Ah Mini stands out with its innovative cell layout design, which prioritizes safety while also achieving a more compact size without compromising performance. This breakthrough design allows for a precise fitment and ensures that the battery is securely in place to prevent any safety hazards. As a result, the LiTime 12V 100Ah Mini is not only smaller in size, but also offers optimal performance.
|
Battery |
Dimensions |
Weight |
|
L13*W6.77*H8.43 in (L329*W172*H214 mm) |
24.25 lbs |
|
|
L10.24*W5.24*H8.96 in (L260*W133*H227.5 mm) |
19 lbs |
2. Battery Cells
The regular one is made of prismatic LiFePO4 cells, while the mini is made of pouch LiFePO4 cells.
Both prismatic and pouch LiFePO4 cells are types of lithium iron phosphate batteries, a popular type of battery used in various applications, including energy storage systems, electric vehicles, and backup power systems.
Prismatic LiFePO4 cells have a rectangular shape and come in standard sizes that are easy to manufacture and integrate into battery packs. They are relatively durable and tend to have higher energy density than other types of lithium-ion batteries, making them a popular choice for many applications.
LiTime (Aka Ampere Time) 12V 100Ah Tear Down----Lithium Solar
Pouch LiFePO4 cells, on the other hand, are flexible and lightweight, making them ideal for portable applications such as mobile devices and power banks. They are often used when space and weight are critical factors for the application. Pouch cells are also known for their ability to maintain voltage levels and discharge rates at lower temperatures.
LiTime 12V 100Ah MiniTear Down---- Frugal Off Grid
All of LiTime’s LiFePO4 batteries have the highest level of safety, as confirmed by UL Test reports, you can rest assured that both the 12V 100Ah and LiTime's 12V 100Ah Mini are extremely safe to use.
3. Internal Structure
LiTime's 12V 100Ah Mini boasts an optimized internal design with a compact and sturdy structure, ensuring rock-solid reliability that has been rigorously tested and confirmed to be the safest ever. With this level of safety, you can confidently install the battery in any direction that suits your application, without worrying about any damage from rough roads or bumpy rides.
However, the regular 12V 100Ah can only be installed upright with post bolts facing up or on its 2 smaller sides.
4. Energy Density
The mini one has the Industry highest energy density: 164.5wh/L (142.2wh/kg). While the regular 100Ah one has the energy density of 109.07 Wh/kg.
Part 3: Reviews of LiTime 12V 100Ah & 100Ah Mini
Both of these types of batteries have received widespread praise in the market.
Here are some reviews of these 2 batteries.
“If you would have told me a couple of years ago that I will be able to buy a reliable 100Ah LiFePO4 battery with a built-in BMS for $349, I would’ve said “no way”. But here we are. After testing this battery and pushing it to its limits, my opinion is that it’s a great battery at an affordable price.” ------Is The LiTime 12V 100Ah Lithium Battery Any Good?
“LiTime calls it Mini and advertises it as being the most compact 100Ah LiFePO4 battery on the market, and it is! It’s quite impressive how compact it is, and it’s hard to believe it’s a 100Ah battery. Not only is the form factor compact, but it’s also lightweight at 19 pounds.” ----LiTime 12V 100Ah Mini LiFePO4 Lithium Battery Review
Part 4: FAQs about LiTime 12V 100Ah vs 100Ah Mini
1. Can I connect these 2 typle of LiFePO4 batteries in series or parallel?
No. Connecting these two batteries together would be detrimental to their individual lifespans, as they possess differing cells and internal structures.
2. Can they be used as starting batteries for golf carts?
Not recommended, as the golf cart generates a high current during startup, uphill driving, or acceleration, 100ah or mini may not have enough power to supply it. To protect the batteries, the BMS board will be activated. Over time, the BMS may get damaged, leading to a decline in battery system performance or even its destruction.
Visit LiTime Golf Cart lithium batteries and choose the best battery for golf cart.
3. Do the 12V 100Ah and mini batteries have Bluetooth functionality?
No, the built-in BMS of these two batteries is a hardware version and cannot be used to obtain information from PC software. LiTime batteries can be connected to a monitor and monitored, but the built-in BMS cannot communicate with the monitor.
Which one Should I Choose?
Generally speaking, the mini version is smaller and lighter in size. They support the same performance (maximum continuous discharge current of 100A, maximum load power of 1280W, and available capacity of 1280Wh).
If you are concerned about the volume and want a smaller and lighter battery, then the mini version is more suitable for you. The price difference between the two is only $40.
LiTime offers an extensive warranty period of five years for new battery products, four years for batteries that are used-like new. We welcome any questions or concerns you may have, and our team is available to assist you promptly at service@litime.com.
